6. 运行期优化
6.1 即时编译
分层编译(TieredCompilation)
- 先看看一个例子
public class JIT1 {
public static void main(String[] args) {
for (int i = 0; i < 200; i++) {
long star = System.nanoTime();
for (int j = 0; j < 1000; j++) {
new Object();
}
long end = System.nanoTime();
System.out.printf("%d\t%d\n", i, (end - star));
}
}
}
===================输出=================================
0 39400
1 27100
2 25700
3 31600
......
......
196 400
197 400
198 400
199 400
- 原因是什么呢?
JVM 将执行状态分为 5 各层次
- 0 层,解析执行(Interpreter)
- 1 层,使用 C1 即时编译器编译执行(不带 profiling)
- 2 层,使用 C1 即时编译器编译执行(带基本的 profiling)
- 3 层, 使用 C1 即时编译器编译执行(带完全的 profiling)
- 4 层,使用 C2 即时编译器编译执行
profiling是指在运行过程中收集一些程序执行状态的数据,例如【方法的调用次数】,【循环的回边次数】等
- 即时编译器(JIT)于解析器的区别
- 解析器是将字节码解析为机器码,下次即使遇到相同的字节码,仍会重复执行
- JIT 是将一些字节码编译为机器码,并存入 Code Cache,下次遇到相同的代码,直接执行,无需再编译
- 解析器是将字节码解析为针对所有平台都通用的机器码
- JIT 会根据平台的类型,生成平台特定的机器码
- 对于占据大部分的不常用的代码,我们无需耗费时间将其编译成机器码,而是采取解析执行的方式运行;另一方面,对于占据小部分的热点代码,我们则可以将其编译成机器码,以达到理想的运行速度。执行效率上简单比较比较一下 Interpreter < C1 < C2 ,总的目标是发现热点代码(hotspot 名称的由来),优化之。
- 刚才的一种优化手段称之为【逃逸分析】,发现新建的对象是否逃逸(也就是在外部没有使用到该对象)。可以使用 -XX:-DoEscapeAnalysis 关闭逃逸分析,再运行刚才示例代码
/**
* @description: -XX:+PrintCompilation -XX:-DoEscapeAnalysis
* 关闭逃逸分析
* @author: Seldom
* @time: 2020/4/25 17:13
*/
public class JIT1 {
public static void main(String[] args) {
for (int i = 0; i < 200; i++) {
long star = System.nanoTime();
for (int j = 0; j < 1000; j++) {
new Object();
}
long end = System.nanoTime();
System.out.printf("%d\t%d\n", i, (end - star));
}
}
}
====================输出===============================
0 42800
1 27700
2 28100
3 27900
......
197 10100
198 9100
199 9200
方法内联(Inlining)
public class JIT2 {
private static int square(final int i) {
return i * i;
}
public static void main(String[] args) {
System.out.println(square(9));
}
}
- 如果发现 square 是热点方法,并且长度不天太长时,会进行内联,所谓的内联就是把方法内代码拷贝、粘贴到调用者的位置:
System.out.println(9 * 9);
- 还能进行常量折叠(constant folding)的优化
System.out.println(81);
- 实验:
import java.util.concurrent.ForkJoinPool;
/**
* @description: -XX:+UnlockDiagnosticVMOptions
* -XX:+PrintInlining 打印是否内联,配合上一个
* -XX:CompileCommand=dontinline,*JIT3.square
* -xx:PrintCompilation
* @author: Seldom
* @time: 2020/4/25 17:13
*/
public class JIT3 {
public static void main(String[] args) {
int x = 0;
for (int i = 0; i < 500; i++) {
long start = System.nanoTime();
for (int j = 0; j < 1000; j++) {
x = square(9);
}
long end = System.nanoTime();
//System.out.printf("%d\t%d\t%d\n", i, x, (end - start));
}
}
private static int square(final int i) {
return i * i;
}
}
=========================================
1. 不使用任何参数,发现有输出0的
2. 禁用后就不会出现0了
字段优化
- JMH 基准测试请参考:http://openjdk.java.net/projects/code-tools/jmh/
- 创建 maven 工程,添加依赖
<dependency>
<groupId>org.openjdk.jmh</groupId>
<artifactId>jmh-core</artifactId>
<version>1.21</version>
</dependency>
<dependency>
<groupId>org.openjdk.jmh</groupId>
<artifactId>jmh-generator-annprocess</artifactId>
<version>1.21</version>
<scope>provided</scope>
</dependency>
- 编写基准测试代码
package jmh;
import org.openjdk.jmh.annotations.*;
import org.openjdk.jmh.runner.Runner;
import org.openjdk.jmh.runner.RunnerException;
import org.openjdk.jmh.runner.options.Options;
import org.openjdk.jmh.runner.options.OptionsBuilder;
import java.util.Random;
import java.util.concurrent.ThreadLocalRandom;
/**
* @description:
* @Warmup 热身,充分优化
* @Measurement 几轮测试
* @author: Seldom
* @time: 2020/4/25 20:03
*/
@Warmup(iterations = 3, time = 1)
@Measurement(iterations = 5, time = 1)
@State(Scope.Benchmark)
public class JMH {
int[] elements = randomInts(1_000);
private static int[] randomInts(int size){
Random random = ThreadLocalRandom.current();
int[] values = new int[size];
for (int i = 0; i < size; i++) {
values[i] = random.nextInt();
}
return values;
}
@Benchmark
public void test1() {
for (int i = 0; i < elements.length; i++) {
doSum(elements[i]);
}
}
@Benchmark
public void test2() {
int[] local = this.elements;
for (int i = 0; i < local.length; i++) {
doSum(local[i]);
}
}
@Benchmark
public void test3() {
for (int element : elements) {
doSum(element);
}
}
static int sum = 0;
/**
* 运行的时候是否进行内联
* Mode.INLINE 允许内联
* Mode.DONT_INLINE 不允许
* @param x
*/
@CompilerControl(CompilerControl.Mode.DONT_INLINE)
static void doSum(int x) {
sum+=x;
}
public static void main(String[] args) throws RunnerException {
Options opt = new OptionsBuilder()
.include(JMH.class.getSimpleName())
.forks(1)
.build();
new Runner(opt).run();
}
}
=================允许内联=======================================
Benchmark Mode Cnt Score Error Units
JMH.test1 thrpt 5 2746974.821 ± 608243.266 ops/s
JMH.test2 thrpt 5 2516252.427 ± 1856789.216 ops/s
JMH.test3 thrpt 5 2807244.854 ± 134342.018 ops/s
==================不允许========================================
Benchmark Mode Cnt Score Error Units
JMH.test1 thrpt 5 349174.504 ± 26968.673 ops/s
JMH.test2 thrpt 5 439675.968 ± 12869.592 ops/s
JMH.test3 thrpt 5 438972.916 ± 12290.416 ops/s
===============================================================
ops/s 吞吐量
Score 得分
分析
- 在刚才的示例当中,doSum 方法是否内联会影响 elements 成员变量读取的优化
- 如果刚才 doSum 方法内联了,刚才的 test1 方法会被优化成下面的样子(伪代码):
@Benchmark
public void test1() {
// elements.length 首次读取回缓存起来 -> int[] local
for (int i = 0; i < elements.length; i++) { // 后续 999 次求长度 <- local
sum += elements[i]; // 1000 次取下标 i 的元素 <- local
}
}
- 可以节省 1999 次 Field 读取操作
- 但如果 doSum 方法没有内联,则不会进行上面的优化
可以练习一下:elements 添加 volatile 属性,看看区别
===================内联==============================
Benchmark Mode Cnt Score Error Units
JMH.test1 thrpt 5 559935.572 ± 51157.743 ops/s
JMH.test2 thrpt 5 2832519.761 ± 36512.447 ops/s
JMH.test3 thrpt 5 2840574.083 ± 59400.081 ops/s
==================不内联==============================
Benchmark Mode Cnt Score Error Units
JMH.test1 thrpt 5 302513.195 ± 37563.712 ops/s
JMH.test2 thrpt 5 393454.706 ± 143898.389 ops/s
JMH.test3 thrpt 5 391034.345 ± 160287.677 ops/s
6.2 反射优化
package reflect;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
/**
* @description: 反射优化
* @author: Seldom
* @time: 2020/4/25 20:55
*/
public class Reflect1 {
public static void foo() {
System.out.println("foo...");
}
public static void main(String[] args) throws Exception {
Method foo = Reflect1.class.getMethod("foo");
for (int i = 0; i <= 16; i++) {
System.out.printf("%d\t", i);
foo.invoke(null);
}
System.in.read();
}
}

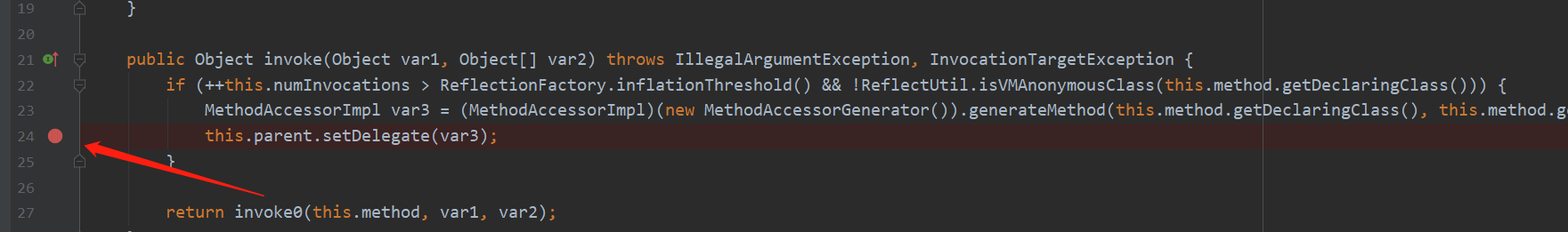

- foo.invoke 前面 0~15 次调用使用的是 MethodAccessor 的 NativeMethodAccessorImpl 实现
========NativeMethodAccessorImpl 种的判断语句=============
++this.numInvocations > ReflectionFactory.inflationThreshold()
==============继续查看===================================
private static int inflationThreshold = 15; // 阈值
使用 **arthas-boot.jar
**
-
debug 运行代码
-

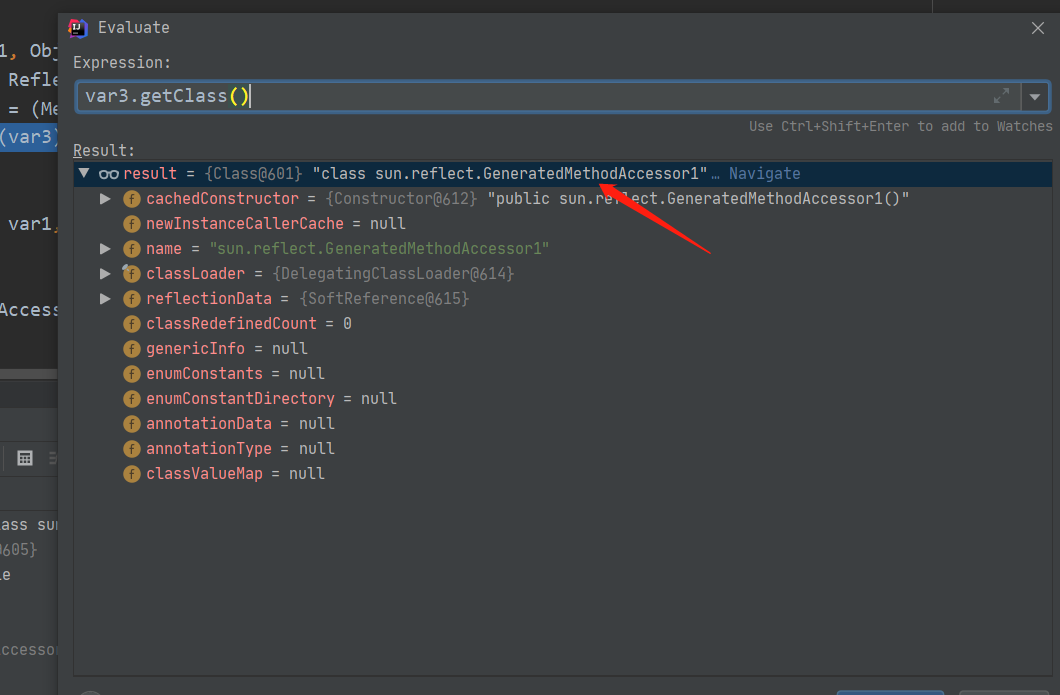

查看 var3.getClass()
-
记录这个值 sun.reflect.GeneratedMethodAccessor1
-
运行代码
-
cmd 运行 java -jar arthas-boot.jar
-

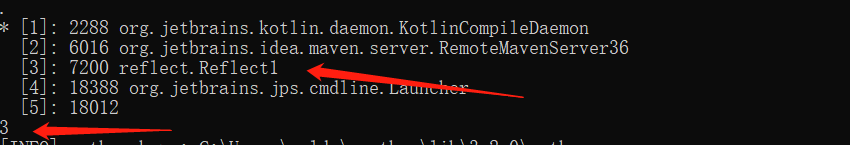

选择自己的 java 进程
-

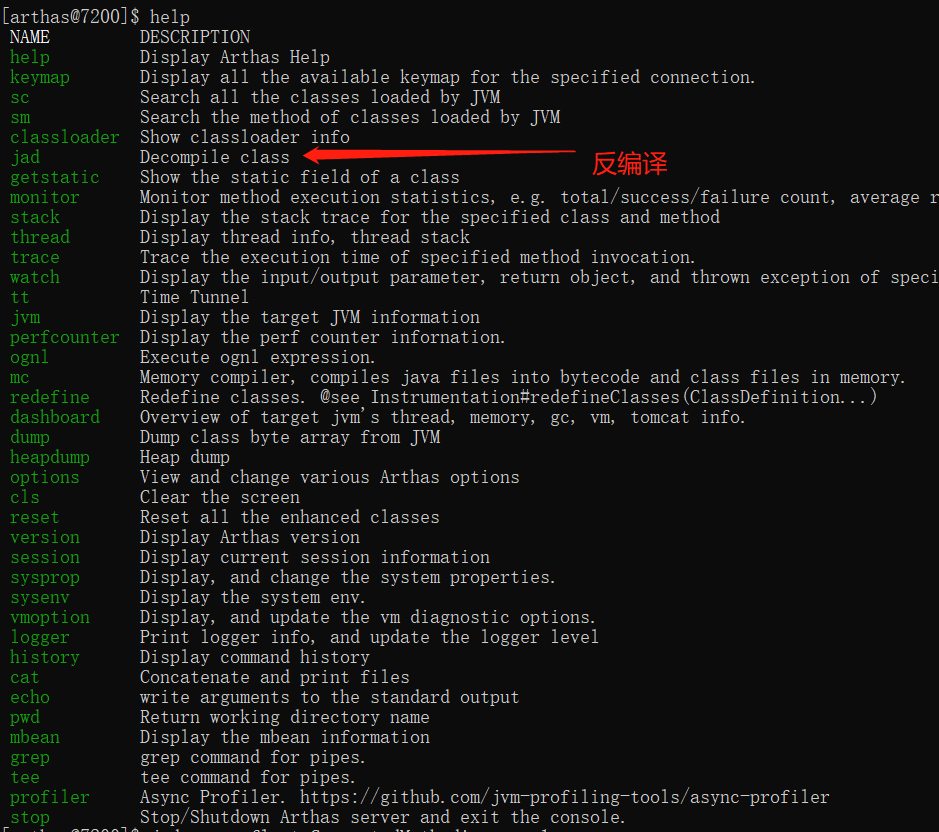

连接后 输入 help 可以查看帮助
-
输入 jad sun.reflect.GeneratedMethodAccessor1
/*
* Decompiled with CFR.
*
* Could not load the following classes:
* reflect.Reflect1
*/
package sun.reflect;
import java.lang.reflect.InvocationTargetException;
import reflect.Reflect1;
import sun.reflect.MethodAccessorImpl;
public class GeneratedMethodAccessor1
extends MethodAccessorImpl {
/*
* Loose catch block
* Enabled aggressive block sorting
* Enabled unnecessary exception pruning
* Enabled aggressive exception aggregation
* Lifted jumps to return sites
*/
public Object invoke(Object object, Object[] arrobject) throws InvocationTargetException {
// 比较奇葩的做法,如果有参数,那么抛非法参数异常
block4: {
if (arrobject == null || arrobject.length == 0) break block4;
throw new IllegalArgumentException();
}
try {
// 可以看到,已经是直接调用了
Reflect1.foo();
// 因为没有返回值
return null;
}
catch (Throwable throwable) {
throw new InvocationTargetException(throwable);
}
catch (ClassCastException | NullPointerException runtimeException) {
throw new IllegalArgumentException(super.toString());
}
}
}
注意
- sun.reflect.noInflation 可以用来禁用膨胀(直接生成 GeneratedMethodAccessort1,但首次生成比较耗时,如果仅反射一次,不划算)
- sun.reflect.inInflationThreshold 可以修改膨胀阈值
