对Adafruit_GFX库函数进行了一些更改,让它支持中文
准备工作2023.12.20重新编辑对部分文件进行优化
1、软件的安装
arduinoide安装就不说了,一搜就有。
字体制作:
1、 安装gcc,具体安装方式和操作系统有关,我是mac,使用的是brew安装,其他系统自行搜教程。
2、安装freetype2库,自行搜。
3、Adafruit_GFX库中有字体制作程序,但只能制作ascii码字库,现在对这个程序进行了更改,支持中文字库制作。
程序放后面,先来写那些进行了更改
这个是make文件
all: fontconvert
CC = gcc #这个不用动
#这个是加入头文件,让在打包时能找到头文件,找到自己的头文件地址进行更换
CFLAGS = -Wall -I/opt/homebrew/Cellar/freetype/2.13.0_1/include/freetype2 -I/opt/homebrew/Cellar/freetype/2.13.0_1/include
#这个是库,mac下需要指定freetype位置,不然make报错
LIBS = -lfreetype -L/opt/homebrew/Cellar/freetype/2.13.0_1/lib
fontconvert: fontconvert.c
$(CC) $(CFLAGS) $< $(LIBS) -o $@
strip $@
clean:
rm -f fontconvert
使用方法:直接在终端 make ,
然后使用下面命令制作字库
./fontconvert 字体.ttf 16 温度计高差长摄氏 >> ch.h
./fontconvert 程序主体
字体.ttf 你使用什么字体制作字库
16 使用字号
温度******** 需要编写进去的中文
ch.h 字库头文件输出
这是fontconvert.c
#ifndef ARDUINO
#include <string.h>
#include <locale.h>
#include <time.h>
#include <ctype.h>
#include <ft2build.h>
#include <stdint.h>
#include <stdio.h>
#include FT_GLYPH_H
#include FT_MODULE_H
#include FT_TRUETYPE_DRIVER_H
#include "gfxfont.h" // Adafruit_GFX font structures
#include <assert.h>
#define DPI 141 // Approximate res. of Adafruit 2.8" TFT
FT_Library library;
FT_Face face;
FT_Glyph glyph;
FT_Bitmap* bitmap;
FT_BitmapGlyphRec* g;
GFXglyph* table;
uint8_t bit;
int i, j, i_1;
int err;
int size;
int first = ' ';
int last = '~';
int bitmapOffset = 0, x, y, byte;
char* fontName, c, * ptr;
wchar_t mb;
int cdat;
unsigned char s [2] = { '0' };
char str [1000];
wchar_t Chinese_unicode [1000];
int Chinese_code[] = { 0 };
void enbit(uint8_t value) {
static uint8_t row = 0, sum = 0, bit = 0x80, firstCall = 1;
if (value)
sum |= bit; // 如果需要,设置位
if (!(bit >>= 1)) { // 前进到下一位,是否到达字节末尾?
if (!firstCall) { // 很好地格式化输出表
if (++row >= 12) { // 行上的最后一个条目?
printf(",\n "); // Newline format output
row = 0; // Reset row counter
}
else { // Not end of line
printf(", "); // Simple comma delim
}
}
printf("0x%02X", sum); // 写入字节值
sum = 0; // Clear for next byte
bit = 0x80; // Reset bit counter
firstCall = 0; // Formatting flag
}
}
//Unicode编码转utf-8,将中文Unicode编码以汉字输出
int enc_unicode_to_utf8_one(unsigned long unic, unsigned char* pOutput, int outSize) {
assert(pOutput != NULL);
assert(outSize >= 6);
if (unic <= 0x0000007F) {
// * U-00000000 - U-0000007F: 0xxxxxxx
*pOutput = (unic & 0x7F);
return 1;
}
else if (unic >= 0x00000080 && unic <= 0x000007FF) {
// * U-00000080 - U-000007FF: 110xxxxx 10xxxxxx
*(pOutput + 1) = (unic & 0x3F) | 0x80;
*pOutput = ((unic >> 6) & 0x1F) | 0xC0;
return 2;
}
else if (unic >= 0x00000800 && unic <= 0x0000FFFF) {
// * U-00000800 - U-0000FFFF: 1110xxxx 10xxxxxx 10xxxxxx
*(pOutput + 2) = (unic & 0x3F) | 0x80;
*(pOutput + 1) = ((unic >> 6) & 0x3F) | 0x80;
*pOutput = ((unic >> 12) & 0x0F) | 0xE0;
return 3;
}
else if (unic >= 0x00010000 && unic <= 0x001FFFFF) {
// * U-00010000 - U-001FFFFF: 11110xxx 10xxxxxx 10xxxxxx 10xxxxxx
*(pOutput + 3) = (unic & 0x3F) | 0x80;
*(pOutput + 2) = ((unic >> 6) & 0x3F) | 0x80;
*(pOutput + 1) = ((unic >> 12) & 0x3F) | 0x80;
*pOutput = ((unic >> 18) & 0x07) | 0xF0;
return 4;
}
else if (unic >= 0x00200000 && unic <= 0x03FFFFFF) {
// * U-00200000 - U-03FFFFFF: 111110xx 10xxxxxx 10xxxxxx 10xxxxxx 10xxxxxx
*(pOutput + 4) = (unic & 0x3F) | 0x80;
*(pOutput + 3) = ((unic >> 6) & 0x3F) | 0x80;
*(pOutput + 2) = ((unic >> 12) & 0x3F) | 0x80;
*(pOutput + 1) = ((unic >> 18) & 0x3F) | 0x80;
*pOutput = ((unic >> 24) & 0x03) | 0xF8;
return 5;
}
else if (unic >= 0x04000000 && unic <= 0x7FFFFFFF) {
// * U-04000000 - U-7FFFFFFF: 1111110x 10xxxxxx 10xxxxxx 10xxxxxx 10xxxxxx 10xxxxxx
*(pOutput + 5) = (unic & 0x3F) | 0x80;
*(pOutput + 4) = ((unic >> 6) & 0x3F) | 0x80;
*(pOutput + 3) = ((unic >> 12) & 0x3F) | 0x80;
*(pOutput + 2) = ((unic >> 18) & 0x3F) | 0x80;
*(pOutput + 1) = ((unic >> 24) & 0x3F) | 0x80;
*pOutput = ((unic >> 30) & 0x01) | 0xFC;
return 6;
}
return 0;
}
void English_convert_Bitmaps() {
for (i = first, j = 0; i <= last; i++, j++) {
// MONO渲染器通过位图结构提供具有完美裁剪(没有浪费像素)的干净图像。
if ((err = FT_Load_Char(face, i, FT_LOAD_TARGET_MONO))) {
fprintf(stderr, "Error %d loading char '%c'\n", err, i);
continue;
}
if ((err = FT_Render_Glyph(face->glyph, FT_RENDER_MODE_MONO))) {
fprintf(stderr, "Error %d rendering char '%c'\n", err, i);
continue;
}
if ((err = FT_Get_Glyph(face->glyph, &glyph))) {
fprintf(stderr, "Error %d getting glyph '%c'\n", err, i);
continue;
}
bitmap = &face->glyph->bitmap;
g = (FT_BitmapGlyphRec*)glyph;
//存储最小的字体和每个字形信息,以减少闪存空间需求。
//Glyph位图是完全位压缩的;没有按扫描线填充,
//不过在需要时可以将每个字符的末尾填充到下一个字节边界。
//16位偏移量意味着位图的最大64K,代码当前不检查溢出。
//(也不检查大小和偏移是否在范围内……请负责任地转换字体。)
table [j].bitmapOffset = bitmapOffset;
table [j].width = bitmap->width;
table [j].height = bitmap->rows;
table [j].xAdvance = face->glyph->advance.x >> 6;
table [j].xOffset = g->left;
table [j].yOffset = 1 - g->top;
for (y = 0; y < bitmap->rows; y++) {
for (x = 0; x < bitmap->width; x++) {
byte = x / 8;
bit = 0x80 >> (x & 7);
enbit(bitmap->buffer [y * bitmap->pitch + byte] & bit);
}
}
// 如果需要,将字符位图的末尾填充到下一个字节边界
int n = (bitmap->width * bitmap->rows) & 7;
if (n) { // Pixel count not an even multiple of 8?
n = 8 - n; // # bits to next multiple
while (n--)
enbit(0);
}
bitmapOffset += (bitmap->width * bitmap->rows + 7) / 8;
FT_Done_Glyph(glyph);
}
}
void English_convert_Glyphs() {
for (i = first, j = 0; i <= last; i++, j++) {
printf(" { %5d, %3d, %3d, %3d, %4d, %4d }", table [j].bitmapOffset,
table [j].width, table [j].height, table [j].xAdvance, table [j].xOffset,
table [j].yOffset);
printf(", // 0x%02X", i);
printf(" '%c'", i);
putchar('\n');
}
}
void Chinese_convert_Bitmaps() {
for (i = 0; i < i_1; i++, j++) {
//printf("\n");
//printf("开始第%d个", i);
// MONO渲染器通过位图结构提供具有完美裁剪(没有浪费像素)的干净图像。
if ((err = FT_Load_Char(face, Chinese_code [i], FT_LOAD_TARGET_MONO))) {
fprintf(stderr, "Error %d loading char '%c'\n", err, Chinese_code [i]);
continue;
}
if ((err = FT_Render_Glyph(face->glyph, FT_RENDER_MODE_MONO))) {
fprintf(stderr, "Error %d rendering char '%c'\n", err, Chinese_code [i]);
continue;
}
if ((err = FT_Get_Glyph(face->glyph, &glyph))) {
fprintf(stderr, "Error %d getting glyph '%c'\n", err, Chinese_code [i]);
continue;
}
bitmap = &face->glyph->bitmap;
g = (FT_BitmapGlyphRec*)glyph;
//存储最小的字体和每个字形信息,以减少闪存空间需求。
//Glyph位图是完全位压缩的;没有按扫描线填充,
//不过在需要时可以将每个字符的末尾填充到下一个字节边界。
//16位偏移量意味着位图的最大64K,代码当前不检查溢出。
//(也不检查大小和偏移是否在范围内……请负责任地转换字体。)
table [j].bitmapOffset = bitmapOffset;
table [j].width = bitmap->width;
table [j].height = bitmap->rows;
table [j].xAdvance = face->glyph->advance.x >> 6;
table [j].xOffset = g->left;
table [j].yOffset = 1 - g->top;
for (y = 0; y < bitmap->rows; y++) {
for (x = 0; x < bitmap->width; x++) {
byte = x / 8;
bit = 0x80 >> (x & 7);
enbit(bitmap->buffer [y * bitmap->pitch + byte] & bit);
}
}
// 如果需要,将字符位图的末尾填充到下一个字节边界
int n = (bitmap->width * bitmap->rows) & 7;
if (n) { // 像素数不是8的偶数倍吗?
n = 8 - n; // # 位到下一个倍数
while (n--)
enbit(0);
}
bitmapOffset += (bitmap->width * bitmap->rows + 7) / 8;
FT_Done_Glyph(glyph);
}
}
void Chinese_convert_Glyphs() {
//int icode = Chinese_unicode [0];
for (i = 0; i < i_1; i++, j++) {
printf(" { %5d, %3d, %3d, %3d, %4d, %4d }", table [j].bitmapOffset,
table [j].width, table [j].height, table [j].xAdvance, table [j].xOffset,
table [j].yOffset);
if (i < i_1 - 1) {
printf(", // 0x%02X", Chinese_code [i]);
enc_unicode_to_utf8_one(Chinese_code [i], s, 10);
printf(" '%s'", s);
putchar('\n');
}
else {
printf(" // 0x%02X", Chinese_code [i]);
enc_unicode_to_utf8_one(Chinese_code [i], s, 10);
printf(" '%s'", s);
putchar('\n');
}
}
}
int main(int argc, char* argv[]) {
size = atoi(argv [2]);
if (argc == 4) {
setlocale(LC_ALL, "");
strcpy(str, argv [3]);
mbstowcs(Chinese_unicode, str, 1000);
Chinese_code [0] = Chinese_unicode [0];
for (i = 0;Chinese_code [i] != 0;i++) {
Chinese_code [i] = Chinese_unicode [i];
}
i_1 = i - 1;
int temp;
for (i = 0;i < i_1 - 1;i++) {
for (j = i + 1;j < i_1;j++) {
if (Chinese_code [i] > Chinese_code [j]) {
temp = Chinese_code [i];
Chinese_code [i] = Chinese_code [j];
Chinese_code [j] = temp;
}
}
}
//printf("0x%d \n", i_1);
//printf("0x%x \n", Chinese_unicode [1]);
//printf("0x%x \n", Chinese_unicode [2]);
ptr = strrchr(argv [1], '/'); // 查找文件名中的最后一个斜线
if (ptr)
ptr++; // 文件名的第一个字符(去掉路径)
else
ptr = argv [1]; // 没有路径;本地目录中的字体。
// 为字体名称和字形表分配空间
if ((!(fontName = malloc(strlen(ptr) + 20))) ||
(!(table = (GFXglyph*)malloc((last - first + 1 + i_1) * sizeof(GFXglyph))))) {
fprintf(stderr, "Malloc错误\n");
return 1;
}
strcpy(fontName, ptr);
ptr = strrchr(fontName, '.'); // 查找最后一个句点(文件文本)
if (!ptr)
ptr = &fontName [strlen(fontName)]; // If none, append
sprintf(ptr, "%dpt%db", size, (last > 127) ? 8 : 7);
for (i = 0; (c = fontName [i]); i++) {
if (isspace(c) || ispunct(c))
fontName [i] = '_';
}
if ((err = FT_Init_FreeType(&library))) {
fprintf(stderr, "FreeType init error: %d", err);
return err;
}
FT_UInt interpreter_version = TT_INTERPRETER_VERSION_35;
FT_Property_Set(library, "truetype", "interpreter-version",
&interpreter_version);
if ((err = FT_New_Face(library, argv [1], 0, &face))) {
fprintf(stderr, "Font load error: %d", err);
FT_Done_FreeType(library);
return err;
}
// << 6 because '26dot6' fixed-point format
FT_Set_Char_Size(face, size << 6, 0, DPI, 0);
printf("const uint8_t %sBitmaps[] PROGMEM = {\n ", fontName);
English_convert_Bitmaps();//转换英文字母及符号
Chinese_convert_Bitmaps();
printf(" };\n\n"); // End bitmap array
printf("const GFXglyph %sGlyphs[] PROGMEM = {\n", fontName);
English_convert_Glyphs();
Chinese_convert_Glyphs();
printf(" }; ");
printf("\n\n");
//输出中文unicode码
printf("uint16_t Chinese_code[] ={\n");
for (i = 0;i < i_1;i++) {
if (i > 0 && /*((i / 5) - ((int)(i / 5))*/((i+1)%5 == 0)) {
printf("0x%02X,\n", Chinese_code [i]);
}
else {
printf("0x%02X,", Chinese_code [i]);
}
}
//printf("0x%02X", Chinese_code [i + 1]);
printf("}; \n");
// 输出字体结构
printf("const GFXfont %s PROGMEM = {\n", fontName);
printf(" (uint8_t *)%sBitmaps,\n", fontName);
printf(" (GFXglyph *)%sGlyphs,\n", fontName);
printf(" (uint16_t*)Chinese_code,\n");
if (face->size->metrics.height == 0) {
// 没有面部高度信息,假设固定宽度并从字形中获取。
printf(" 0x%02X, 0x%02X, %d };\n\n", first, last + i_1, table [0].height);
}
else {
printf(" 0x%02X, 0x%02X, %ld };\n\n", first, last + i_1,
face->size->metrics.height >> 6);
}
printf("// Approx. %d bytes\n", bitmapOffset + (last + i_1 - first + 1) * 7 + 7);
// Size estimate is based on AVR struct and pointer sizes;
// actual size may vary.
FT_Done_FreeType(library);
return 0;
}
else {
printf("Usage:fontfile size [first] [last]\n");
return 1;
}
}
#endif /* !ARDUINO */
这是gfxfont.h的更改
typedef struct {
uint8_t *bitmap; ///< 字形位图,串联
GFXglyph *glyph; ///< 字形阵列
uint16_t *Chinese_; //增加了中文unicode编码库
uint16_t first; ///< ASCII extents (first char)
uint16_t last; ///< ASCII extents (last char)
uint8_t yAdvance; ///< 新线距离 (y 轴)
} GFXfont;
以上已完成字库制作
将制作完的字库##include 进你的ino文件
使用tft.setFont(&songti16pt7b);
设置字库,

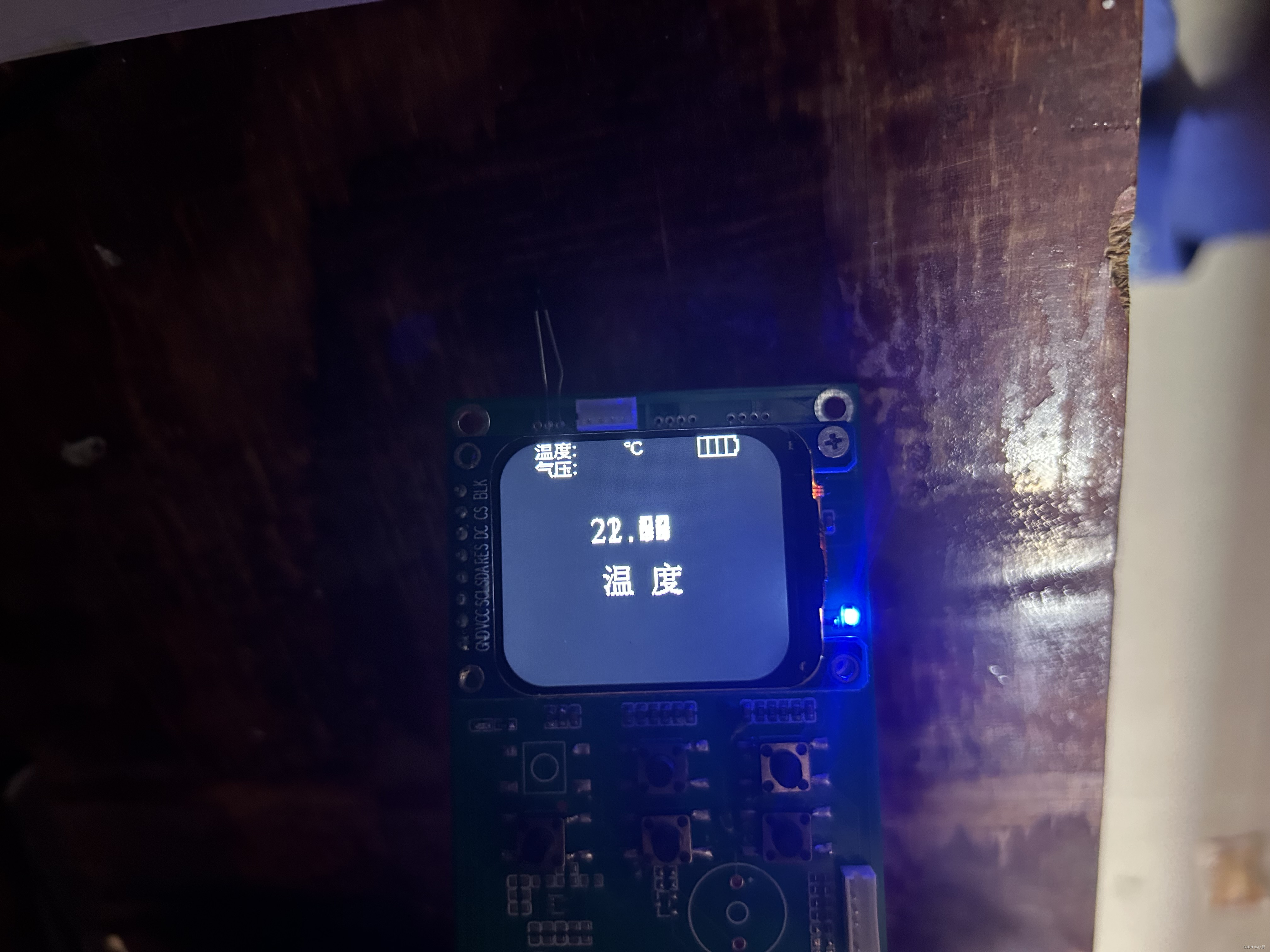

使用tft.drawChar(100,150, "温", ST77XX_WHITE, ST77XX_BLACK, 1);
输出中文字体
目前未解决问题tft.println()/tft.print()输出中文,没找到定义在那_
新版程序已解决此问题全套程序请从gitee下载:stm_tft和STM32SPIDMA
新版使用dma驱动tft屏幕且只适配了st7789,如果需要使用其他屏幕 请自行改库。(使用的库最好都自己进行变种已适配自己的编程习惯)
SPIDMAClass spi_1;
STM_ST7789 tft(&spi_1, SPI1NSS, TFT_DC, -1);
void setup() {
Serial.begin(115200); //初始化串口
tft.begin(240, 240); //屏幕初始化
delay(100);
tft.setRotation(2); //设置屏幕旋转
tft.setFont(&songti12pt7b); //设置字体
tft.fillScreen(ST77XX_BLACK); //清屏
tft.setTextColor(ST77XX_WHITE, ST77XX_BLACK);
tft.setCursor(5, 60);
tft.print("温度测量"); //新版已适配print()函数,目前支持123个汉字。
}
