文章介绍了如何在Java项目中集成ZebraAPI，包括添加jar包，连接Zebra打印机，以及使用zebraPrinter.printImage()方法打印BufferedImage图像。同时，提供了使用Java自带打印服务的替代方案，并附有相关资源下载链接。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

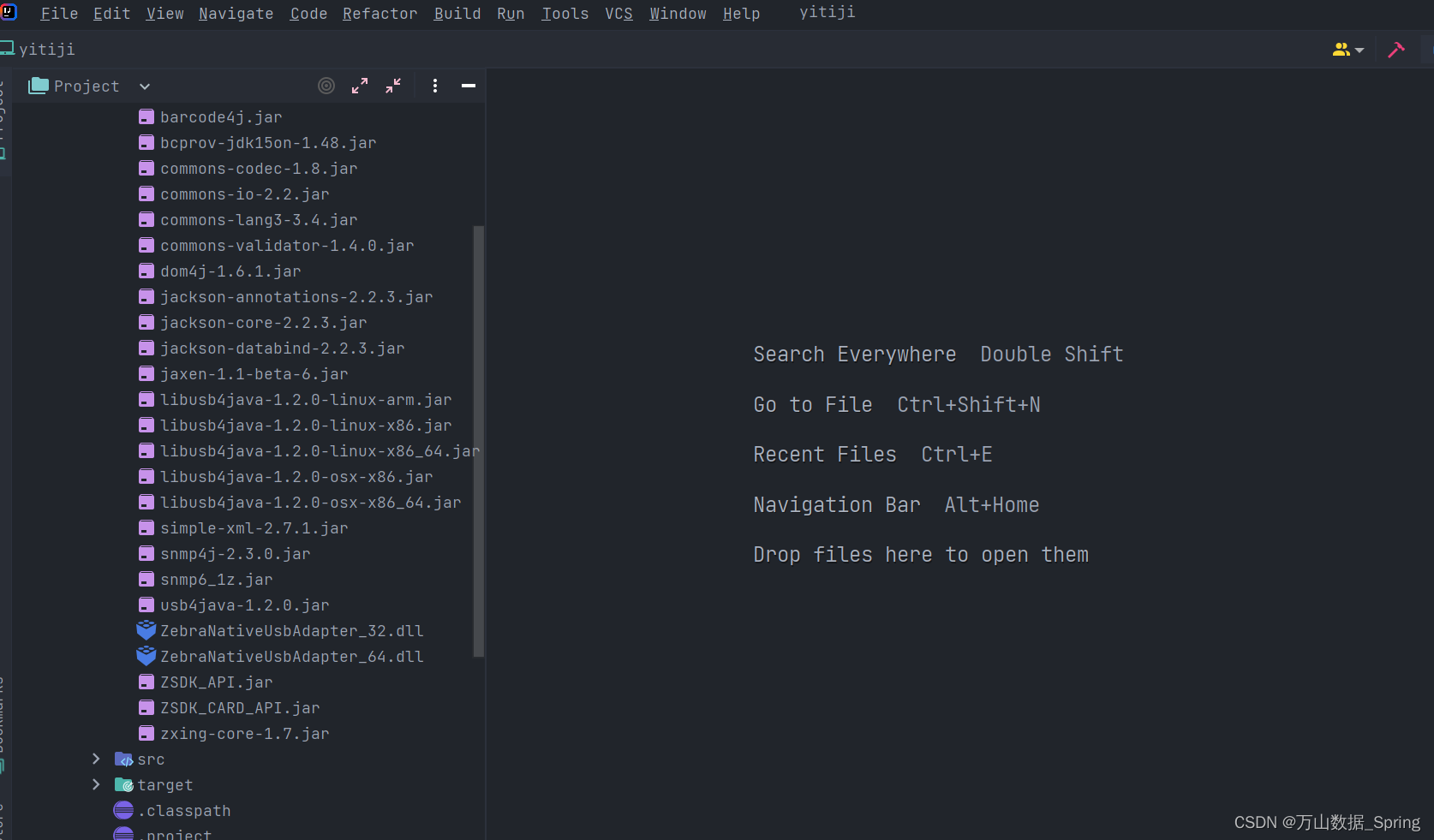

1.添加zebra_api的jar包到自己的项目中

当然也得有ZebraNativeUsbAdapter_32.dll jdk使用的是64位使用ZebraNativeUsbAdapter_64.dll

2.连接打印机

import com.zebra.sdk.comm.*;
import com.zebra.sdk.graphics.ZebraImageFactory;
import com.zebra.sdk.graphics.ZebraImageI;
import com.zebra.sdk.printer.PrinterStatus;
import com.zebra.sdk.printer.ZebraPrinter;
import com.zebra.sdk.printer.ZebraPrinterFactory;
import com.zebra.sdk.printer.ZebraPrinterLanguageUnknownException;
import com.zebra.sdk.printer.discovery.*;

public class  printHandler {

    private static ZebraPrinter zebraPrinter = null;
//单次打印只给一个对象，防止打印机线程堵塞
    public static void initPrinter()throws Exception{
        if(null==zebraPrinter){
            DiscoveredPrinter[] printers = null;
	    	Connection connection = null;

	    	ByteArrayOutputStream baos = null;
            printers = UsbDiscoverer.getZebraUsbPrinters(new ZebraPrinterFilter());
			connection = printers[0].getConnection();
			System.out.println(connection.toString());
            connection.open();
            zebraPrinter = ZebraPrinterFactory.getInstance(connection);
			System.out.println("获取到实例---"+zebraPrinter.toString());
        }
    }

3.使用zebraPrinter.printImage()进行打印

    ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ImageOutputStream imageOutput = ImageIO.createImageOutputStream(byteArrayOutputStream);
        ImageIO.write(image, "jpg", imageOutput);
//这里的image需要是BufferedImage类型的，需要自己构造
        InputStream inputStream = new ByteArrayInputStream(byteArrayOutputStream.toByteArray());
        ZebraImageI image2 = ZebraImageFactory.getImage((inputStream));
        System.out.println("--开始打印--");
        zebraPrinter.printImage(image2, 0, 0, 450,320, false);
        System.out.println("--打印完成--");

当然也可以用java自带的进行打印，创建打印任务


	public static void JPGPrint(InputStream inputStream,float width,float height) throws PrintException {

        try { // 设置打印格式，如果未确定类型，可选择autosense
            DocFlavor flavor = DocFlavor.INPUT_STREAM.JPEG; // 设置打印参数
            PrintRequestAttributeSet aset = new HashPrintRequestAttributeSet();
            aset.add(new Copies(1)); //份数 //
            //aset.add(MediaSize.ISO.A0); //纸张
            aset.add(new MediaPrintableArea(0f,0f,width, height, Size2DSyntax.MM));
            //aset.add(Finishings.STAPLE);//装订
            aset.add(Sides.ONE_SIDED);//单双面 // 定位打印服务
            PrintService printService = null;
                PrintService[] printServices = PrinterJob.lookupPrintServices();
                if(printServices == null || printServices.length == 0) {
                    System.out.print("打印失败，未找到可用打印机，请检查。");
                    return ;
                } //匹配指定打印机
                for (int i = 0;i < printServices.length; i++) {
                    //System.out.println(printServices[i].getName());
                    if (printServices[i].getName().matches(".*ZDesigner.*")) {
                        printService = printServices[i];
                        break;
                    }
                }
                if(printService==null){
                    System.out.print("打印失败，未找到打印机，请检查。");
                    return ;
                }

            Doc doc = new SimpleDoc(inputStream, flavor, null);
            DocPrintJob job = printService.createPrintJob(); // 创建打印作业
            job.print(doc, aset);
        } catch (Exception e1) {
            e1.printStackTrace();
        }
    }

}

使用BufferedImage构图

public static void print(){
		try{
                   画图
            int imageWidth=120;
            int imageHeight=125;
            BufferedImage bufferedImage =new BufferedImage(imageWidth,imageHeight, BufferedImage.TYPE_INT_RGB);
            Graphics graphics = bufferedImage.getGraphics();
            graphics.setColor(Color.WHITE);
            graphics.fillRect(0, 0, imageWidth, imageHeight);
            graphics.setColor(Color.BLACK);
            graphics.drawString("测试1", 2, 20);
            graphics.drawString("测试2", 2, 40);
            ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
            ImageOutputStream imageOutput = ImageIO.createImageOutputStream(byteArrayOutputStream);
            ImageIO.write(bufferedImage, "jpg", imageOutput);
            InputStream inputStream = new ByteArrayInputStream(byteArrayOutputStream.toByteArray());
            JPGPrint(inputStream,76,58);
            // FileOutputStream fos = new FileOutputStream("D:/b.jpg");
            // byte[] b = new byte[1024];
            // while ((inputStream.read(b)) != -1) {
            //     fos.write(b);// 写入数据
            // }
            // inputStream.close();
            // fos.close();

        }catch(Exception e){
            e.printStackTrace();
        }

	}

再丢个盘

链接：https://pan.baidu.com/s/18ziv1xHIfe6cizFQ1lLdFQ?pwd=8lr7
提取码：8lr7
--来自百度网盘超级会员V3的分享

api下载链接：

https://download.csdn.net/download/weixin_44830864/87713551https://download.csdn.net/download/weixin_44830864/87713551dll包下载链接：
https://download.csdn.net/download/weixin_44830864/87719203https://download.csdn.net/download/weixin_44830864/87719203
