GUI编程
组件
- 窗口
- 弹窗
- 面板
- 文本框
- 列表框
- 按钮
- 图片
- 监听事件
- 鼠标
- 键盘事件
- 破解工具
1. 简介
GUI的核心技术 :Swing,AWT
- 因为界面不美观
- 需要jar环境
有什么用?
- 可以写一些小具
- 工作时候可能需要维护swing界面,概率极小
- 了解MVC架构,了解监听
2. AWT
2.1 AWT介绍
- 包含了很多类和接口!GUI!
- 元素:窗口,按钮,文本框
- java.awt

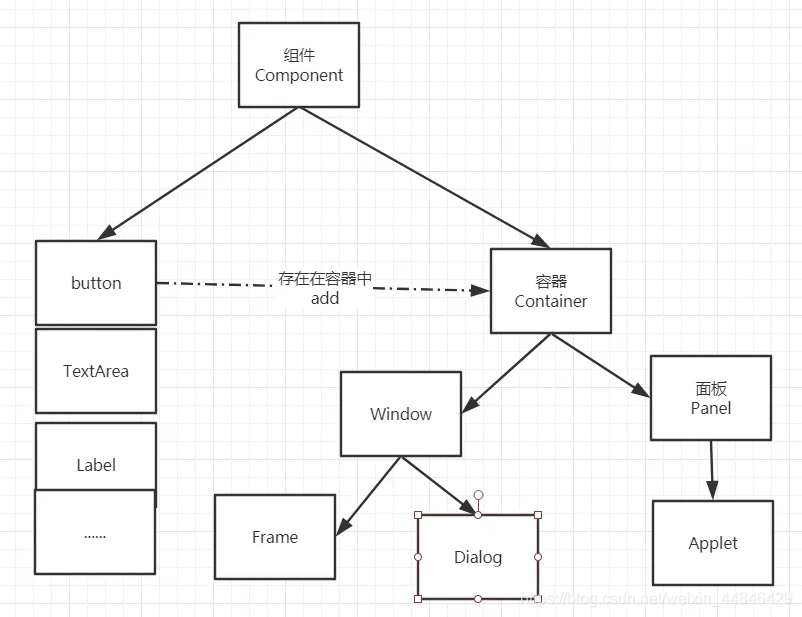

2.2 组件和容器
2.2.1. Frame
package 第一个Frame窗口;
import java.awt.*;
//GUI的第一个界面
public class TestFrame {
public static void main(String[] args) {
//Frame ,JDK,看源码
Frame frame=new Frame("我的第一个Java图像界面窗口");
//需要设置可见性 w,h
frame.setVisible(true);
//设置窗口大小
frame.setSize(500,500);
//设置背景颜色
// frame.setBackground(Color.red);
frame.setBackground(new Color(69, 142, 239));
//弹出初始位置
frame.setLocation(200,200);
//设置大小固定
frame.setResizable(false);
}
}

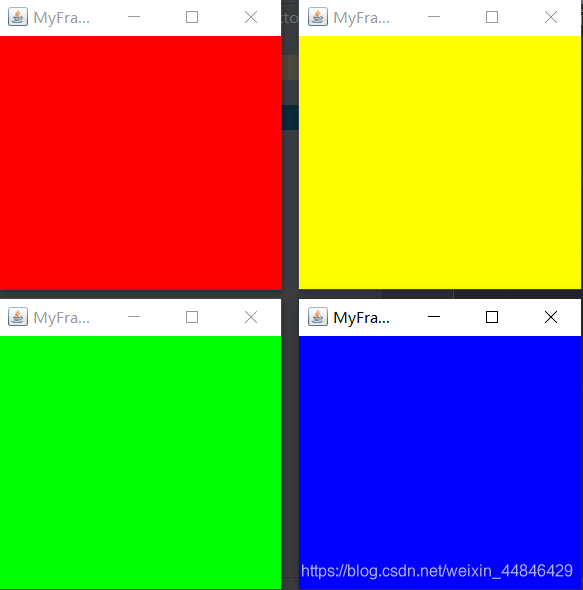

运行效果图
问题:发现窗口关闭不掉,停止java程序
尝试回顾封装
package 第一个Frame窗口;
import java.awt.*;
public class TestFrame01 {
public static void main(String[] args) {
MyFrame MyFrame01=new MyFrame(100,100,300,300,Color.red);
MyFrame MyFrame02=new MyFrame(400,100,300,300,Color.yellow);
MyFrame MyFram03=new MyFrame(100,400,300,300,Color.green);
MyFrame MyFrame04=new MyFrame(400,400,300,300,Color.blue);
}
}
class MyFrame extends Frame{
static int id=0;//可能存在多个窗口,需要一个计时器
public MyFrame(int x,int y,int w,int h,Color color){
super("MyFrame"+(++id));
setBackground(color);
setVisible(true);
// setSize(x,y);
// setLocation(w,h);
setBounds(x,y,w,h);
}
}

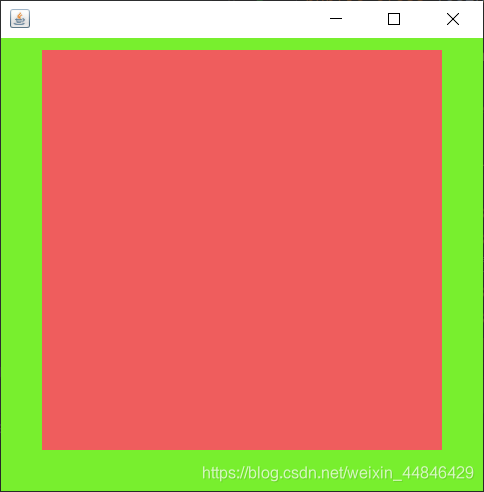

2.2.2. Panel面板
解决了关闭事件
package Panel面板;
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
//Panel可以看成是一个空间,但是不能单独存在
public class TestPanel {
public static void main(String[] args) {
Frame frame=new Frame();
//布局概念
Panel panel=new Panel();
//设置布局
frame.setLayout(null);
//坐标
frame.setBounds(300,300,500,500);
frame.setBackground(new Color(120, 239, 46, 255));
//panel设置坐标,相对于frame
panel.setBounds(50,50,400,400);
panel.setBackground(new Color(239, 93, 93));
//frame.add(panel)
frame.add(panel);
frame.setVisible(true);//设置是否可见
//监听事件,监听窗口关闭事件,System.exit(0),强行关闭,正常关闭,,,exit(0),异常关闭
//适配器模式
frame.addWindowListener(new WindowAdapter() {
//窗口点击关闭时需要做的事情
@Override
public void windowClosing(WindowEvent e) {
//结束程序
System.exit(0);
}
});
}
}
2.3 布局管理器
- 流式布局
- 东西南北中
- 表格布局
流式布局
package FlowLayOut;
import java.awt.*;
/**
* 3种布局管理器
* (1)流式布局
* (2)东西南北中
* (3)表格布局
*
*/
public class TestFlowLayOut {
public static void main(String[] args) {
Frame frame=new Frame();
/**
* 流式布局
*/
//组件,按钮
Button button = new Button("button");
Button button1 = new Button("button1");
Button button2 = new Button("button2");
//设置为流式布局
// frame.setLayout(new FlowLayout());//FlowLayout.CENTER
frame.setLayout(new FlowLayout(FlowLayout.LEFT));
// frame.setLayout(new FlowLayout(FlowLayout.RIGHT));
frame.setSize(200,200);
//把按钮添加上去
frame.add(button);
frame.add(button1);
frame.add(button2);
frame.setVisible(true);
}
}
东西南北中
package 布局管理器;
import java.awt.*;
import static java.awt.BorderLayout.*;
/**
* 东西南北中
*/
public class TestBorderLayOut {
public static void main(String[] args) {
Frame frame=new Frame("TestBorderLayout");
Button east = new Button("East");
Button west = new Button("West");
Button south = new Button("South");
Button north = new Button("North");
Button center = new Button("Center");
// frame.add(east,EAST);
// frame.add(west,WEST);
// frame.add(south,SOUTH);
// frame.add(north,NORTH);
// frame.add(center,CENTER);
frame.add(east,BorderLayout.EAST);
frame.add(west,BorderLayout.WEST);
frame.add(south,BorderLayout.SOUTH);
frame.add(north,BorderLayout.NORTH);
frame.add(center,BorderLayout.CENTER);
frame.setSize(200,200);
frame.setVisible(true);
}
}
表格布局 Grid
package 布局管理器;
import java.awt.*;
/**
* 表格布局
*/
public class TestGridLayout {
public static void main(String[] args) {
Frame frame=new Frame("TestGridLayout");
Button grid1 = new Button("grid1");
Button grid2 = new Button("grid2");
Button grid3 = new Button("grid3");
Button grid4 = new Button("grid4");
Button grid5 = new Button("grid5");
Button grid6 = new Button("grid6");
frame.setLayout(new GridLayout(3,2));
frame.add(grid1);
frame.add(grid2);
frame.add(grid3);
frame.add(grid4);
frame.add(grid5);
frame.add(grid6);
frame.pack();//Java函数
frame.setVisible(true);
}
}

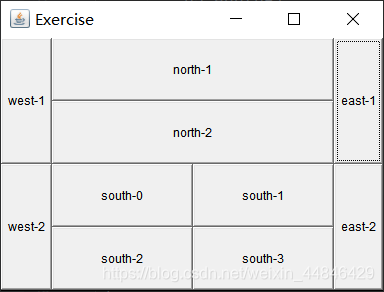

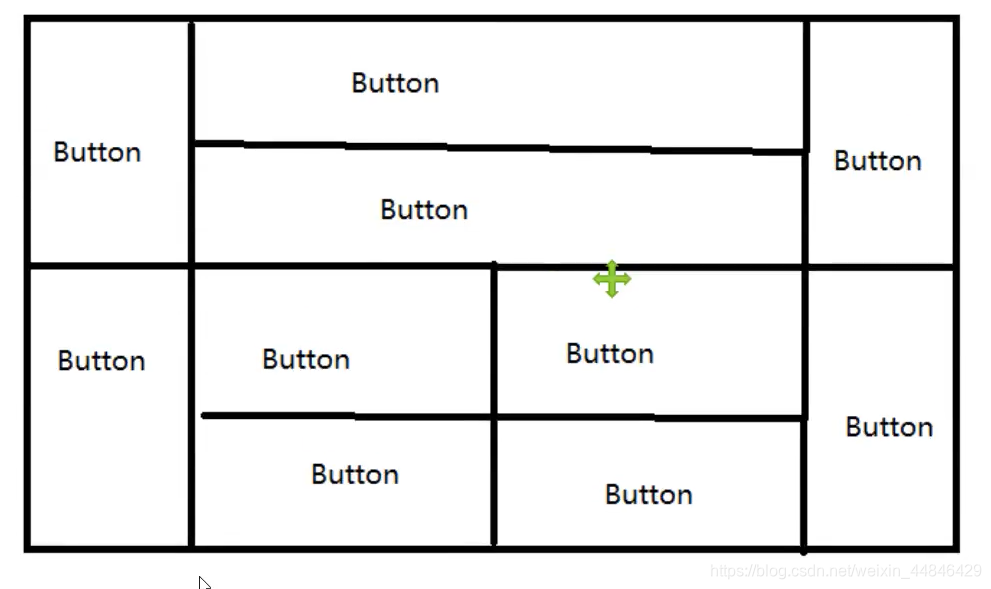

思考

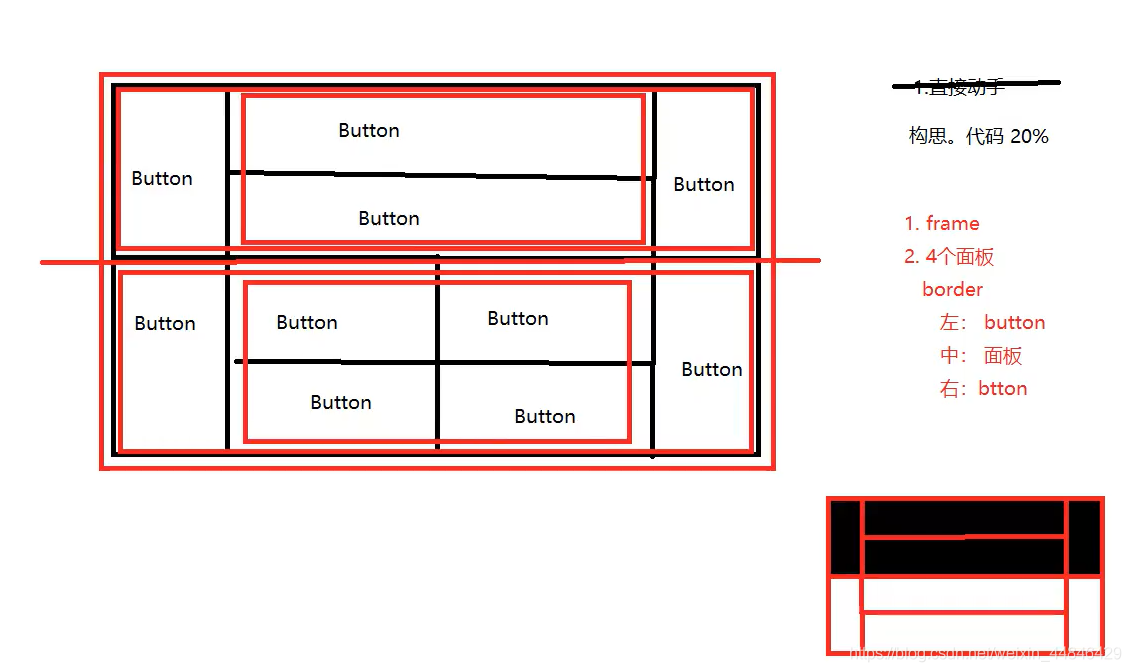

分析过程
代码实现
package 布局管理器;
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
/**
* 练习
*/
public class Exercise {
public static void main(String[] args) {
//总窗口
Frame frame=new Frame("Exercise");
frame.setSize(400,300);
frame.setBackground(new Color(1,1,1));
frame.setLocation(500,300);
frame.setVisible(true);
//分
frame.setLayout(new GridLayout(2,1));
//上板面
Panel p1=new Panel(new BorderLayout());
Panel p2=new Panel(new GridLayout(2,1));
p1.add(new Button("east-1"),BorderLayout.EAST);
p1.add(new Button("west-1"),BorderLayout.WEST);
p2.add(new Button("north-1"));
p2.add(new Button("north-2"));
//下板面
Panel p3=new Panel(new BorderLayout());
Panel p4=new Panel(new GridLayout(2,2));
p3.add(new Button("east-2"),BorderLayout.EAST);
p3.add(new Button("west-2"),BorderLayout.WEST);
for (int i = 0; i < 4; i++) {
p4.add(new Button("south-"+i));
}
//组合
p1.add(p2,BorderLayout.CENTER);
p3.add(p4,BorderLayout.CENTER);
frame.add(p1);
frame.add(p3);
//监听关闭窗口
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.exit(0);
}
});
}
}
总结
- Frame是一个顶级窗口
- Panel无法单独显示,必须添加到某个容器中
- 布局管理器
1. 流式布局
2. 东西南北中
3. 表格 - 大小,定位,背景颜色,可见性,监听!
2.4 事件监听
事件监听:当某个事件发生的时候,干什么?
package 事件监听;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
public class TestActionEvent {
public static void main(String[] args) {
//按下按钮,触发事件
Frame frame=new Frame("TestActionEvent");
Button button=new Button("button");
//因为addActionListener()需要一个ActionListener,所以我们需要构建一个ActionListener
MyActionListenner myActionListenner=new MyActionListenner();
button.addActionListener(myActionListenner);
frame.add(button,BorderLayout.CENTER);
frame.pack();
windowClose(frame);//关闭窗口
frame.setVisible(true);
}
//关闭窗口事件
public static void windowClose(Frame frame){
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.exit(0);
}
});
}
}
//事件监听
class MyActionListenner implements ActionListener{
@Override
public void actionPerformed(ActionEvent e) {
System.out.println("aaa");
}
}
多个按钮,共享一个事件
package 事件监听;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
/**
* 两个按钮,实现同一个监听
*/
public class TestActionEvent02 {
public static void main(String[] args) {
//开始 停止
Frame frame=new Frame("开始-停止");
Button start = new Button("start");
Button stop = new Button("stop");
//可以定义触发所显示返回的信息,如果不定义,则会走默认值!
stop.setActionCommand("button-stop");
//可以多个按钮只写一个监听类,按钮可根据监听类,判断按钮实现的操作
MyMonitor myMonitor = new MyMonitor();
start.addActionListener(myMonitor);
stop.addActionListener(myMonitor);
frame.add(start,BorderLayout.NORTH);
frame.add(stop,BorderLayout.SOUTH);
frame.pack();
frame.setVisible(true);
}
}
//事件监听
class MyMonitor implements ActionListener{
@Override
public void actionPerformed(ActionEvent e) {
//e.getActionCommand()获取按钮信息
System.out.println("按钮被点击了,msg:"+e.getActionCommand());
if (e.getActionCommand().equals("start")){
}
}
}
2.5 输入文本框TextField监听
package 事件监听;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
/**
* 文本框
*/
public class TestText01 {
public static void main(String[] args) {
//启动
new MyFrame();
}
}
class MyFrame extends Frame{
public MyFrame(){
TextField textField=new TextField();
add(textField);
//监听这个文本框输入的文字
MyActionListener01 myActionListener01 = new MyActionListener01();
//按下回车就会触发这个输入框的事件
textField.addActionListener(myActionListener01);
//设置替换编码
textField.setEchoChar('*');//设置编码格式,一般用于隐藏密码
pack();
setVisible(true);
windowsClose( this);
}
public static void windowsClose(Frame frame){
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.exit(0);
}
});
}
}
class MyActionListener01 implements ActionListener{
@Override
public void actionPerformed(ActionEvent e) {
TextField field=(TextField) e.getSource();//获的一些资源
System.out.println(field.getText());//获得文本框的文本
field.setText("");
}
}

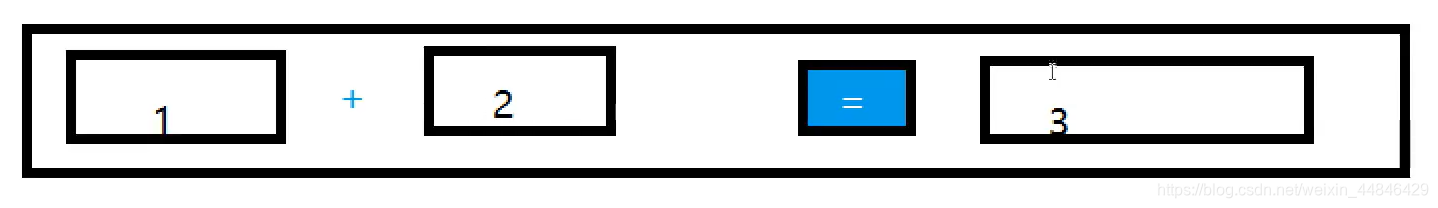

2.6 简易计算机,组合+内部类回顾复习!
oop(面向对象)原则:先组合,大于继承!
目前代码
package 事件监听;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
/**
* 简易计算器
*/
public class TestCalculator {
public static void main(String[] args) {
// new Calculator();
TestActionEvent.windowClose(new Calculator());//直接调用之间创建的窗口关闭事件
}
}
//计算器类
class Calculator extends Frame{
public Calculator() {
//3个文本框
TextField textField1 = new TextField(10);//字符数
TextField textField2 = new TextField(10);
TextField textField3 = new TextField(20);
//一个按钮
Button button = new Button("=");
button.addActionListener(new MyCalculatorListener(textField1,textField2,textField3));
//一个标签
Label label = new Label("+");
//布局
setLayout(new FlowLayout());
add(textField1);
add(label);
add(textField2);
add(button);
add(textField3);
pack();
setVisible(true);
}
}
class MyCalculatorListener implements ActionListener{
//获取三个变量
private TextField textField1,textField2,textField3;
public MyCalculatorListener(TextField textField1,TextField textField2,TextField textField3){
this.textField1=textField1;
this.textField2=textField2;
this.textField3=textField3;
}
@Override
public void actionPerformed(ActionEvent e) {
//获取加数和被加数
//parseInt将字符串参数作为有符号的十进制整数进行解析
int n1=Integer.parseInt(textField1.getText());
int n2=Integer.parseInt(textField2.getText());
//将这个值+法运算后,放到第三个框
textField3.setText(""+(n1+n2));
//清除前两个框
textField1.setText("");
textField2.setText("");
}
}
完全改造成面向对象写法
package 事件监听;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
public class TestCalculator02 {
public static void main(String[] args) {
new Calculator01().loadFrame();
}
}
//计算器类
class Calculator01 extends Frame {
//属性
TextField textField1,textField2,textField3;
//方法
public void loadFrame(){
textField1=new TextField(10);
textField2=new TextField(10);
textField3=new TextField(20);
Button button = new Button("=");
Label label = new Label("+");
button.addActionListener(new MyCalculatorListener01(this));
//布局
setLayout(new FlowLayout());
add(textField1);
add(label);
add(textField2);
add(button);
add(textField3);
pack();
setVisible(true);
}
}
class MyCalculatorListener01 implements ActionListener {
//获取计算机这个对象,在一个类中组合另外一个类
Calculator01 calculator01=null;
public MyCalculatorListener01(Calculator01 calculator01){
this.calculator01=calculator01;
}
@Override
public void actionPerformed(ActionEvent e) {
//获取加数和被加数
//将这个值+法运算后,放到第三个框
//清除前两个框
int n1=Integer.parseInt(calculator01.textField1.getText());
int n2=Integer.parseInt(calculator01.textField2.getText());
calculator01.textField3.setText(""+(n1+n2));
calculator01.textField1.setText("");
calculator01.textField2.setText("");
}
}
内部类:
- 更好的包装
- 内部类最好的方法,就是可以畅通无阻的访问外部类的属性和方法!
package 事件监听;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
public class TestCalculator03 {
public static void main(String[] args) {
new Calculator02().loadFrame();
}
}
//计算器类
class Calculator02 extends Frame {
//属性
TextField textField1,textField2,textField3;
//方法
public void loadFrame(){
textField1=new TextField(10);
textField2=new TextField(10);
textField3=new TextField(20);
Button button = new Button("=");
Label label = new Label("+");
button.addActionListener(new MyCalculatorListener02());
//布局
setLayout(new FlowLayout());
add(textField1);
add(label);
add(textField2);
add(button);
add(textField3);
pack();
setVisible(true);
}
//监听器
private class MyCalculatorListener02 implements ActionListener {
@Override
public void actionPerformed(ActionEvent e) {
//获取加数和被加数
//将这个值+法运算后,放到第三个框
//清除前两个框
int n1=Integer.parseInt(textField1.getText());
int n2=Integer.parseInt(textField2.getText());
textField3.setText(""+(n1+n2));
textField1.setText("");
textField2.setText("");
}
}
}
2.7 画笔
package 画笔Paint;
import java.awt.*;
/**
* 画笔
*/
public class TestPaint {
public static void main(String[] args) {
new MyPaint().loadFrame();
}
}
class MyPaint extends Frame{
public void loadFrame(){
setBounds(200,200,600,400);
setVisible(true);
}
//画笔
@Override
public void paint(Graphics g) {
//画笔,需要有颜色,画笔可以画画
// g.setColor(new Color(157, 3, 253, 255));
g.drawOval(100,100,100,100);
g.fillOval(100,200,200,200);//实心的圆
// g.setColor(Color.RED);
g.fillRect(200,100,200,200);
//养成习惯,画笔用完,将他还原到最初的颜色
}
}
2.8 鼠标监听
目的:想要实现鼠标画画
package 鼠标监听;
import java.awt.*;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.util.ArrayList;
import java.util.Iterator;
/**
*鼠标监听事件
*/
public class TestMouseListener {
public static void main(String[] args) {
new MyFrame("画图");
}
}
class MyFrame extends Frame {
//画画需要画笔,需要监听鼠标当前的位置,需要集合来存储这个点
ArrayList points;
public MyFrame(String title) {
super(title);
setBounds(200,200,400,300);
//鼠标点击的点的集合
points=new ArrayList();
setVisible(true);
//鼠标监听器,正对这个窗口
this.addMouseListener(new MyMouseListener());
}
@Override
public void paint(Graphics g) {
//画画,监听鼠标的事件
Iterator iterator=points.iterator();
while (iterator.hasNext()){
Point point=(Point)iterator.next();
g.setColor(Color.blue);
g.fillOval(point.x,point.y,10,10);
}
}
//添加一个点到界面上
public void addPaint(Point point){
points.add(point);
}
//适配器模式
private class MyMouseListener extends MouseAdapter{
@Override
public void mousePressed(MouseEvent e) {
MyFrame frame=(MyFrame)e.getSource();
//这个点击时,就会在界面上产生一个点!画
//这个点就是鼠标的点
frame.addPaint(new Point(e.getX(),e.getY()));
//每次点击鼠标都需要重新画一遍
frame.repaint();
}
}
}
2.9 窗口监听
package 窗口监听;
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
public class TestWindow {
public static void main(String[] args) {
new WindowsFrame("窗口监听");
}
}
class WindowsFrame extends Frame{
public WindowsFrame(String title){
super(title);
setBackground(Color.yellow);
setBounds(100,100,400,400);
setVisible(true);
addWindowListener(new WindowAdapter() {//匿名内部类
@Override
//关闭窗口
public void windowClosing(WindowEvent e) {
setVisible(false);//隐藏窗口
// System.exit(0);
System.out.println("windowClosing");
}
//激活窗口
@Override
public void windowActivated(WindowEvent e) {
WindowsFrame windowsFrame=(WindowsFrame) e.getSource();
windowsFrame.setTitle("被激活了");
System.out.println("windowActivated");
}
});
}
}
2.10 键盘监听
package 键盘监听;
import java.awt.*;
import java.awt.event.KeyAdapter;
import java.awt.event.KeyEvent;
import java.security.UnresolvedPermission;
/**
* 键盘监听
*/
public class TestKeyListener {
public static void main(String[] args) {
new KeyFrame("键盘监听");
}
}
class KeyFrame extends Frame{
public KeyFrame(String title){
super(title);
setBackground(new Color(255, 251, 0));
setBounds(100,100,400,400);
setVisible(true);
this.addKeyListener(new KeyAdapter() {
@Override
public void keyPressed(KeyEvent e) {
int keyCode=e.getKeyCode();
System.out.println(keyCode);
if (keyCode==KeyEvent.VK_UP)
System.out.println("你按压了上键");
}
});
}
}
3. Swing
3.1 窗口、面板
package Swing之JFrame窗体;
import javax.swing.*;
import java.awt.*;
//
public class TestJFrame {
//init();初始化
public void init(){
//顶级窗口
JFrame jFrame=new JFrame("这是一个JFrame窗口");
jFrame.setBounds(100,100,400,400);
jFrame.setVisible(true);
//设置文字JLabel
JLabel jLabel=new JLabel("这是我创建的第一个JFrame窗口");
jFrame.add(jLabel);
//让文本标签居中,设置水平对齐
jLabel.setHorizontalAlignment(SwingConstants.CENTER);
//容器
jFrame.getContentPane().setBackground(Color.yellow);//背景颜色需要设置在容器中
//关闭事件
jFrame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
public static void main(String[] args) {
//创建一个窗口
new TestJFrame().init();
}
}
3.2 弹窗
JDialog,用来被弹出,默认就有关闭事件
package JDialog弹窗;
import Swing之JFrame窗体.TestJFrame;
import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
//主窗口
public class TestJDialog extends JFrame {
public TestJDialog(String title){
super(title);
this.setVisible(true);
this.setBounds(100,100,400,400);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
//JFrame放东西,容器
Container container=this.getContentPane();//Container集装箱
//绝对布局
container.setLayout(null);
//按钮
JButton button = new JButton("点击我,弹出一个新弹窗");
button.setBounds(50,50,200,60);
container.add(button);
//创建按钮监听事件,点击一个按钮时,弹出一个弹窗
button.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
new FirstDialog();
}
});
}
public static void main(String[] args) {
new TestJDialog("主窗口");
}
}
class FirstDialog extends JDialog{
public FirstDialog(){
this.setVisible(true);
this.setBounds(300,300,400,400);
Container container= this.getContentPane();//Container集装箱
// container.setBackground(Color.yellow);
container.add(new Label("我是弹窗"));
}
}
3.3 标签
label
new JLabel("xxx")
图标 ICON
package IconImageIcon标签;
import javax.swing.*;
import java.awt.*;
/**
* 图标,需要实现类,Frame继承
*/
public class TestIcon extends JFrame implements Icon {
private int width;
private int height;
public TestIcon() {
}
public TestIcon(int width, int height) {
this.width = width;
this.height = height;
}
@Override
public void paintIcon(Component c, Graphics g, int x, int y) {
g.fillOval(x,y,width,height);
}
@Override
public int getIconWidth() {
return this.width;
}
@Override
public int getIconHeight() {
return this.height;
}
public static void main(String[] args) {
new TestIcon().init();
}
public void init(){
TestIcon testIcon =new TestIcon(15,15);
//图标可以放在标签上,也可以放在按钮上
JLabel jLabel=new JLabel("icontest",testIcon,SwingConstants.CENTER);
Container container= getContentPane();
container.add(jLabel);
this.setVisible(true);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}

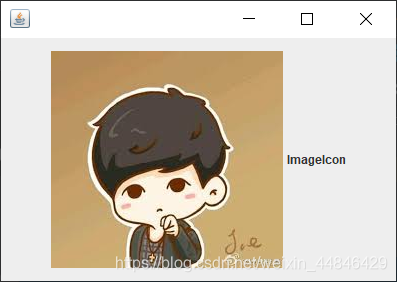

图片 ImageIcon
package IconImageIcon标签;
import javax.swing.*;
import java.awt.*;
import java.net.URL;
public class TestImageIcon extends JFrame {
public static void main(String[] args) {
new TestImageIcon();
}
public TestImageIcon (){
//获取图片地址
JLabel jLabel=new JLabel("ImageIcon");
URL url=TestImageIcon.class.getResource("下载.jpg");
ImageIcon imageIcon=new ImageIcon(url);
jLabel.setIcon(imageIcon);
jLabel.setHorizontalAlignment(SwingConstants.CENTER);
Container container=getContentPane();
container.add(jLabel);
setVisible(true);
setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}

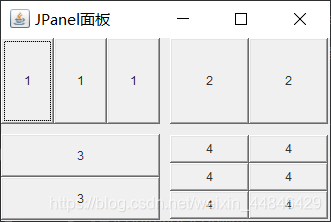

3.4 面板
JPanel
package 文本域JScroll面板;
import javax.swing.*;
import java.awt.*;
public class TestJPanel extends JFrame {
public TestJPanel(String title){
super(title);
Container container=getContentPane();
container.setLayout(new GridLayout(2,1,10,10));//后面两个参数的意思是面板的间距
JPanel jPanel1=new JPanel(new GridLayout(1,3));
JPanel jPanel2=new JPanel(new GridLayout(1,2));
JPanel jPanel3=new JPanel(new GridLayout(2,1));
JPanel jPanel4=new JPanel(new GridLayout(3,2));
jPanel1.add(new Button("1"));
jPanel1.add(new Button("1"));
jPanel1.add(new Button("1"));
jPanel2.add(new Button("2"));
jPanel2.add(new Button("2"));
jPanel3.add(new Button("3"));
jPanel3.add(new Button("3"));
jPanel4.add(new Button("4"));
jPanel4.add(new Button("4"));
jPanel4.add(new Button("4"));
jPanel4.add(new Button("4"));
jPanel4.add(new Button("4"));
jPanel4.add(new Button("4"));
container.add(jPanel1);
container.add(jPanel2);
container.add(jPanel3);
container.add(jPanel4);
setVisible(true);
setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
public static void main(String[] args) {
new TestJPanel("JPanel面板");
}
}

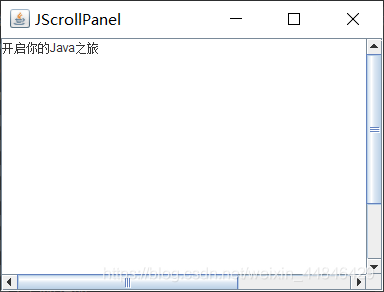

JScrollPanel面板(可滚动面板)
package 文本域JScroll面板;
import javax.swing.*;
import java.awt.*;
/**
* 滚屏
*/
public class TestJScroll extends JFrame {
public static void main(String[] args) {
new TestJScroll("JScrollPanel");
}
public TestJScroll(String title){
super(title);
Container container=getContentPane();
//文本域
JTextArea textArea = new JTextArea(20,50);
textArea.setText("开启你的Java之旅");
//Scroll面板
JScrollPane jScrollPane = new JScrollPane(textArea);
container.add(jScrollPane);
setVisible(true);
setBounds(100,100,400,300);
setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
3.5 按钮

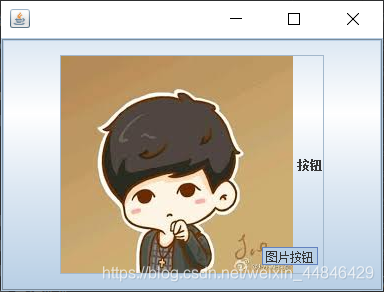

图片按钮
package 图片按钮单选框多选框;
import javax.swing.*;
import java.awt.*;
import java.net.URL;
/**
* 图片按钮
*/
public class TestJButton extends JFrame {
public static void main(String[] args) {
TestJButton testJButton=new TestJButton();
}
public TestJButton(){
Container container=this.getContentPane();
//将一个图片变成一个图标
URL url=TestJButton.class.getResource("下载.jpg");
ImageIcon imageIcon = new ImageIcon(url);
//将图片放在按钮上
JButton jbutton = new JButton("按钮");
jbutton.setIcon(imageIcon);
jbutton.setToolTipText("图片按钮");
container.add(jbutton);
this.setVisible(true);
this.setBounds(100,100,400,300);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
- 单选按钮
package 图片按钮单选框多选框;
import javax.swing.*;
import java.awt.*;
import java.net.URL;
/**
* 单选框,单选按钮
*/
public class TestJButton02 extends JFrame {
public static void main(String[] args) {
new TestJButton02();
}
public TestJButton02(){
Container container=this.getContentPane();
//单选框
JRadioButton jRadioButton1 = new JRadioButton("jRadioButton1");
JRadioButton jRadioButton2 = new JRadioButton("jRadioButton2");
JRadioButton jRadioButton3 = new JRadioButton("jRadioButton3");
//由于单选框只能选一个,分组,一个分组中只能选一个
ButtonGroup buttonGroup = new ButtonGroup();
buttonGroup.add(jRadioButton1);
buttonGroup.add(jRadioButton2);
buttonGroup.add(jRadioButton3);
container.add(jRadioButton1,BorderLayout.NORTH);
container.add(jRadioButton2,BorderLayout.CENTER);
container.add(jRadioButton3,BorderLayout.SOUTH);
this.setVisible(true);
this.setBounds(100,100,400,300);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}

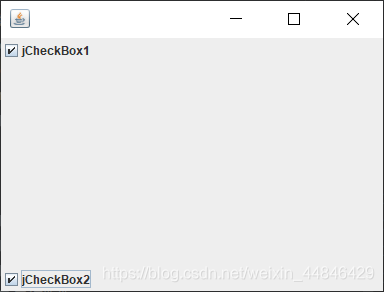

- 复选按钮
package 图片按钮单选框多选框;
import javax.swing.*;
import java.awt.*;
public class TestJButton03 extends JFrame {
public static void main(String[] args) {
new TestJButton03();
}
public TestJButton03(){
Container container=this.getContentPane();
//多选框
JCheckBox jCheckBox1 = new JCheckBox("jCheckBox1");
JCheckBox jCheckBox2 = new JCheckBox("jCheckBox2");
container.add(jCheckBox1,BorderLayout.NORTH);
container.add(jCheckBox2,BorderLayout.SOUTH);
this.setVisible(true);
this.setBounds(100,100,400,300);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
3.6 列表
- 下拉框
package 下拉框列表框;
import javax.swing.*;
import java.awt.*;
/**
* 下拉框
*/
public class TestCombobox extends JFrame {
public static void main(String[] args) {
new TestCombobox();
}
public TestCombobox(){
Container contentPane = getContentPane();
JComboBox<Object> objectJComboBox = new JComboBox<>();
objectJComboBox.addItem(null);
objectJComboBox.addItem("语文");
objectJComboBox.addItem("数学");
objectJComboBox.addItem("英语");
contentPane.add(objectJComboBox);
pack();
setVisible(true);
setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
- 列表框
package 下拉框列表框;
import javax.swing.*;
import java.awt.*;
import java.util.Vector;
public class TestCombobox02 extends JFrame {
public static void main(String[] args) {
new TestCombobox02();
}
public TestCombobox02(){
Container contentPane = getContentPane();
//生成列表的内容
//添加静态数据
// String[] string={"张三","李四","王五"};
//添加动态数据
Vector<Object> objects = new Vector<>();
objects.add("张三");
objects.add("李四");
objects.add("王五");
// JList<Object> objectJList = new JList<>(string);
JList<Object> objectJList = new JList<>(objects);
contentPane.add(objectJList);
pack();
setVisible(true);
setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
应用场景
- 选择地区,或者一些单个选项
- 列表,展示信息,一般是动态扩容!
3.7 文本框
- 文本框
package 文本框密码框文本域;
import 下拉框列表框.TestCombobox02;
import javax.swing.*;
import java.awt.*;
import java.util.Vector;
/**
* 文本框
*/
public class TestText01 extends JFrame {
public static void main(String[] args) {
new TestText01();
}
public TestText01(){
Container contentPane = getContentPane();
JTextField jTextField1 = new JTextField("欢迎来到Java的世界");
JTextField jTextField2 = new JTextField("开启Java之旅",20);
contentPane.add(jTextField1,BorderLayout.NORTH);
contentPane.add(jTextField2,BorderLayout.SOUTH);
pack();
setVisible(true);
setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
- 密码框
package 文本框密码框文本域;
import javax.swing.*;
import java.awt.*;
public class TestText02 extends JFrame {
public static void main(String[] args) {
new TestText02();
}
public TestText02(){
Container contentPane = getContentPane();
JPasswordField jPasswordField = new JPasswordField();//默认为:******
jPasswordField.setEchoChar('*');
contentPane.add(jPasswordField);
pack();
setVisible(true);
setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
- 文本域
package 文本域JScroll面板;
import javax.swing.*;
import java.awt.*;
/**
* 滚屏
*/
public class TestJScroll extends JFrame {
public static void main(String[] args) {
new TestJScroll("JScrollPanel");
}
public TestJScroll(String title){
super(title);
Container container=getContentPane();
//文本域
JTextArea textArea = new JTextArea(20,50);
textArea.setText("开启你的Java之旅");
//Scroll面板
JScrollPane jScrollPane = new JScrollPane(textArea);
container.add(jScrollPane);
setVisible(true);
setBounds(100,100,400,300);
setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
4. 贪吃蛇
帧,如果时间片足够小,就是动画,一秒30帧 60帧。连起来是帧,拆开就是静态的图片!
键盘监听
定时器 Timer
package 贪吃蛇;
import javax.swing.*;
/**
* 游戏的主启动类
*/
public class StartGame {
public static void main(String[] args) {
JFrame jFrame=new JFrame("贪吃蛇");
jFrame.setBounds(10,10, 900,720);
//正常游戏界面通常都是在面板上
jFrame.add(new GameJPanel());
jFrame.setVisible(true);
jFrame.setResizable(false);//窗口大小不可变
jFrame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
}
package 贪吃蛇;
import javax.swing.*;
import java.net.URL;
/**
* 数据中心
*/
public class Data {
//相对路径 tx.jpg
//绝对路径 /相当于当前的项目
public static URL headerurl=Data.class.getResource("Static/header.png");
public static ImageIcon header=new ImageIcon(headerurl);
public static URL upurl=Data.class.getResource("Static/head.jpg");
public static URL downurl=Data.class.getResource("Static/head.jpg");
public static URL lefturl=Data.class.getResource("Static/head.jpg");
public static URL righturl=Data.class.getResource("Static/head.jpg");
public static ImageIcon up=new ImageIcon(upurl);
public static ImageIcon down=new ImageIcon(downurl);
public static ImageIcon left=new ImageIcon(lefturl);
public static ImageIcon right=new ImageIcon(righturl);
public static URL bodyurl=Data.class.getResource("Static/body.jpg");
public static ImageIcon body=new ImageIcon(bodyurl);
public static URL foodurl=Data.class.getResource("Static/food.png");
public static ImageIcon food=new ImageIcon(foodurl);
}
package 贪吃蛇;
import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.KeyEvent;
import java.awt.event.KeyListener;
import java.util.Random;
import static javafx.scene.input.KeyCode.Y;
import static javafx.scene.input.KeyCode.getKeyCode;
/**
* 游戏的面板
*/
public class GameJPanel extends JPanel implements KeyListener, ActionListener {
//定义蛇的数据结构
int length;//蛇的长度
int[] snakeX=new int[600];//蛇的X坐标
int[] snakeY=new int[500];//蛇的Y坐标
String fx;
//食物的坐标
int foodX;
int foodY;
Random random=new Random();
//游戏当前的状态:开始,停止
Boolean isStart=false;//默认是不开始
//设置游戏是否失败
Boolean isFail=false;
//设置积分
int score;
//定时器
Timer timer=new Timer(100,this);//以毫秒为单位,100毫秒执行一次
//构造器
public GameJPanel(){
init();
//获得焦点和键盘事件
this.setFocusable(true);
this.addKeyListener(this);
timer.start();//游戏一开始就启动
}
//初始化方法
public void init(){
length=3;
fx = "R";//初始方向向右
snakeX[0]=100;snakeY[0]=100;//脑袋的坐标
snakeX[1]=75;snakeY[1]=100;//第一个身体的坐标
snakeX[2]=50;snakeY[2]=100;//第二个身体的坐标
//把食物随机分布在界面上
foodX=25+25*random.nextInt(34);
foodY=75+25*random.nextInt(24);
score=0;
}
//绘制面板,我们游戏中的所有东西,都是用这个画笔来画
@Override//画组件
protected void paintComponent(Graphics g) {
super.paintComponent(g);
//绘制静态面板
Data.header.paintIcon(this,g,25,10);
g.fillRect(25,75,850,600);//默认的游戏界面
this.setBackground(Color.WHITE);
//画积分
g.setColor(Color.WHITE);
g.setFont(new Font("微软雅黑",Font.BOLD,18));
g.drawString("长度"+length,750,35);
g.drawString("分数"+score,750,50);
//把食物画上去
Data.food.paintIcon(this,g,foodX,foodY);
//把蛇画上去
if (fx.equals("R")){
Data.right.paintIcon(this,g,snakeX[0],snakeY[0]);//蛇头初始化向右,需要通过方向来判断
}else if (fx.equals("L")){
Data.left.paintIcon(this,g,snakeX[0],snakeY[0]);//蛇头初始化向右,需要通过方向来判断
}else if (fx.equals("U")){
Data.up.paintIcon(this,g,snakeX[0],snakeY[0]);//蛇头初始化向右,需要通过方向来判断
}else if (fx.equals("D")){
Data.down.paintIcon(this,g,snakeX[0],snakeY[0]);//蛇头初始化向右,需要通过方向来判断
}
for (int i = 1; i < length; i++) {
Data.body.paintIcon(this,g,snakeX[i],snakeY[i]);//第一个身体的坐标
}
//游戏状态
if (isStart==false){
g.setColor(Color.WHITE);
g.setFont(new Font("微软雅黑",Font.BOLD,40));//设置字体的名字,样式(BOLD粗),大小
g.drawString("按下空格开始游戏",300,300);
}
if (isFail){
g.setColor(Color.RED);
g.setFont(new Font("微软雅黑",Font.BOLD,40));//设置字体的名字,样式(BOLD粗),大小
g.drawString("失败,按下空格重新开始",300,300);
}
}
@Override
public void keyTyped(KeyEvent e) {
}
//键盘监听事件
@Override
public void keyPressed(KeyEvent e) {
int keyCode=e.getKeyCode();
if (keyCode==KeyEvent.VK_SPACE){//如果按下的是空格键
if (isFail){
//重新开始
isFail=false;
init();
}else {
isStart=!isStart;//取反
}
repaint();
}
//小蛇移动
if (keyCode==KeyEvent.VK_UP){
fx="U";
}
if (keyCode==KeyEvent.VK_DOWN){
fx="D";
}
if (keyCode==KeyEvent.VK_LEFT){
fx="L";
}
if (keyCode==KeyEvent.VK_RIGHT){
fx="R";
}
}
@Override
public void keyReleased(KeyEvent e) {
}
//事件监听---需要通过固定事件来刷新,1s=10次
@Override
public void actionPerformed(ActionEvent e) {
if (isStart&&isFail==false){//如果游戏是开始状态,,就让小蛇动起来
//吃食物
if (snakeX[0]==foodX&&snakeY[0]==foodY){
//长度加一
length++;
//分数加10
score=score+10;
//再次随机生成食物
foodX=25+25*random.nextInt(34);
foodY=75+25*random.nextInt(24);
}
//y移动
for (int i=length-1;i>0;i--){//及后一节移到前一节位置, snakeX[1]=snakeX[0]
snakeX[i]=snakeX[i-1];
snakeY[i]=snakeY[i-1];
}
//走向
if (fx.equals("R")){
snakeX[0]=snakeX[0]+25;
//边界判断
if (snakeX[0]>850){
snakeX[0]=25;
}
}
if (fx.equals("L")){
snakeX[0]=snakeX[0]-25;
//边界判断
if (snakeX[0]<25){
snakeX[0]=850;
}
}
if (fx.equals("U")){
snakeY[0]=snakeY[0]-25;
//边界判断
if (snakeY[0]<75){
snakeY[0]=650;
}
}
if (fx.equals("D")){
snakeY[0]=snakeY[0]+25;
//边界判断
if (snakeY[0]>650){
snakeY[0]=75;
}
}
//判断失败,撞到自己就算失败
for (int i=1;i<length;i++){
if (snakeX[0]==snakeX[i]&&snakeY[0]==snakeY[i]){
isFail=true;
}
}
repaint();//重画页面
}
timer.start();//定时器开启
}
}
