springboot整合rabbitmq实例

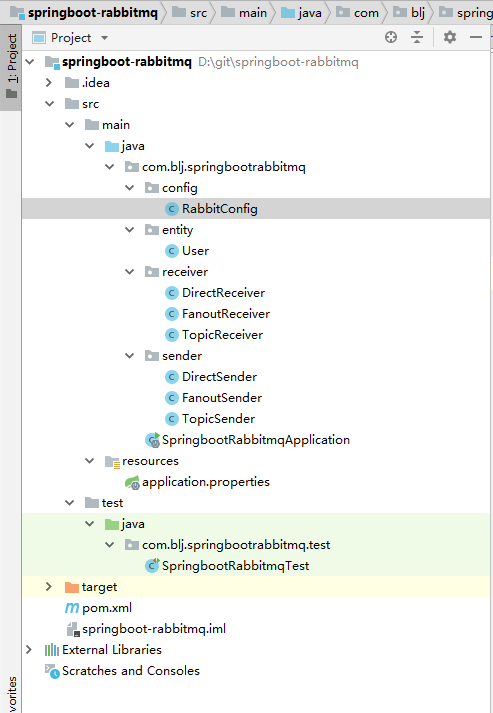

工程目录结构
1.pom文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.blj</groupId>
<artifactId>springboot-rabbitmq</artifactId>
<version>1.0-SNAPSHOT</version>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.4.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
2.application.properties
spring.application.name=spirng-boot-rabbitmq
#IP地址
spring.rabbitmq.host=127.0.0.1
#rabbitmq默认端口号
spring.rabbitmq.port=5672
#账户名和密码
spring.rabbitmq.username=root
spring.rabbitmq.password=root1234
spring.rabbitmq.virtual-host=/test
3.主启动类
package com.blj.springbootrabbitmq;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
/**
* 主启动类
*
* @author BaiLiJun on 2019/10/30
*/
@SpringBootApplication
public class SpringbootRabbitmqApplication {
public static void main(String[] args) {
SpringApplication.run(SpringbootRabbitmqApplication.class,args);
}
}
4.RabbitConfig 配置类
package com.blj.springbootrabbitmq.config;
import org.springframework.amqp.core.*;
import org.springframework.amqp.rabbit.config.BindingFactoryBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.HashMap;
import java.util.Map;
/**
* RabbitConfig 配置类
*
* @author BaiLiJun on 2019/10/30
*/
@Configuration
public class RabbitConfig {
//topic 模式
public static final String TOPIC_QUEUE1 = "topic.queue1";
public static final String TOPIC_QUEUE2 = "topic.queue2";
public static final String TOPIC_EXCHANGE = "topic.exchange";
//fanout 模式
public static final String FANOUT_QUEUE1 = "fandout.queue1";
public static final String FANOUT_QUEUE2 = "fandout.queue2";
public static final String FANOUT_EXCHANGE = "fandout.exchange";
//direct模式
public static final String DIRECT_QUEUE1 = "direct.queue1";
public static final String DIRECT_QUEUE2 = "direct.queue2";
public static final String DIRECT_EXCHANGE = "direct.exchange";
//Headers 模式
public static final String HEADER_QUEUE1 = "header.queue1";
public static final String HEADER_QUEUE2 = "header.queue2";
public static final String HEADER_EXCHANGE = "header.exchange";
/**
* topic 模式
*
*/
/**
* 声明队列topicQueue1
*
* @return
*/
@Bean
public Queue topicQueue1() {
return new Queue(TOPIC_QUEUE1);
}
/**
* 声明队列topicQueue2
*
* @return
*/
@Bean
public Queue topicQueue2() {
return new Queue(TOPIC_QUEUE2);
}
/**
* 声明主题模式交换机 TopicExchange
*
* @return
*/
@Bean
public TopicExchange topicExchange() {
return new TopicExchange(TOPIC_EXCHANGE);
}
/**
* 将队列topicQueue1绑定到交换机
*
* @return
*/
@Bean
public Binding topicBinding1() {
return BindingBuilder.bind(topicQueue1()).to(topicExchange()).with("user.add");
}
/**
* 将队列topicQueue2绑定到交换机
*
* @return
*/
@Bean
public Binding topicBinding2() {
return BindingBuilder.bind(topicQueue2()).to(topicExchange()).with("user.#");
}
/**
* fanout 模式
*Fanout 就是我们熟悉的广播模式或者订阅模式，给Fanout交换机发送消息，绑定了这个交换机的所有队列都收到这个消息
*/
/**
* 声明队列 fanoutQueue1
*
* @return
*/
@Bean
public Queue fanoutQueue1() {
return new Queue(FANOUT_QUEUE1);
}
/**
* 声明队列 fanoutQueue2
*
* @return
*/
@Bean
public Queue fanoutQueue2() {
return new Queue(FANOUT_QUEUE2);
}
/**
* 声明FanoutExchange
*
* @return
*/
@Bean
public FanoutExchange fanoutExchange() {
return new FanoutExchange(FANOUT_EXCHANGE);
}
/**
* 将队列fanoutQueue1 绑定到交换机
*
* @return
*/
@Bean
public Binding fanoutBinding1() {
return BindingBuilder.bind(fanoutQueue1()).to(fanoutExchange());
}
/**
* 将队列fanoutQueue2 绑定到交换机
*
* @return
*/
@Bean
public Binding fanoutBinding2() {
return BindingBuilder.bind(fanoutQueue2()).to(fanoutExchange());
}
/**
* direct模式
* 消息中的路由键（routing key）如果和 Binding 中的 binding key 一致， 交换器就将消息发到对应的队列中。路由键与队列名完全匹配
* @return
*/
/**
* 声明队列DIRECT_QUEUE1
*
* @return
*/
@Bean
public Queue directQueue1() {
return new Queue(DIRECT_QUEUE1);
}
/**
* 声明队列DIRECT_QUEUE2
*
* @return
*/
@Bean
public Queue directQueue2() {
return new Queue(DIRECT_QUEUE2);
}
/**
* 声明directExchange
* @return
*/
@Bean
public DirectExchange directExchange() {
return new DirectExchange(DIRECT_EXCHANGE);
}
/**
* 将队列1绑定到交换机
* @return
*/
@Bean
public Binding directBinding1(){
return BindingBuilder.bind(directQueue1()).to(directExchange()).with("goods.update");
}
/**
* 将队列2绑定到交换机
* @return
*/
@Bean
public Binding directBinding2(){
return BindingBuilder.bind(directQueue2()).to(directExchange()).with("goods.delete");
}
/**
* Headers 模式
* 设置header attribute参数类型的交换机，相较于 direct 和 topic 固定地使用 routing_key ,
* headers 则是一个自定义匹配规则的类型. 在队列与交换器绑定时, 会设定一组键值对规则,
* 消息中也包括一组键值对( headers 属性), 当这些键值对有一对, 或全部匹配时, 消息被投送到对应队列
*
*/
@Bean
public Queue headerQueue1(){
return new Queue(HEADER_QUEUE1,true);
}
@Bean
public Queue headerQueue2(){
return new Queue(HEADER_QUEUE2,true);
}
@Bean
public HeadersExchange headersExchange(){
return new HeadersExchange(HEADER_EXCHANGE);
}
@Bean
public Binding headerBinding1(){
Map<String, Object> map = new HashMap<>();
map.put("header1","value1");
map.put("header2","value2");
return BindingBuilder.bind(headerQueue1()).to(headersExchange()).whereAll(map).match();
}
@Bean
public Binding headerBinding2(){
Map<String, Object> map = new HashMap<>();
map.put("header1","value1");
map.put("header2","value2");
return BindingBuilder.bind(headerQueue2()).to(headersExchange()).whereAll(map).match();
}
}
5.实体类
package com.blj.springbootrabbitmq.entity;
import java.io.Serializable;
/**
* 用户实体类
*
* @author BaiLiJun on 2019/10/30
*/
public class User implements Serializable {
private String id;
private String name;
public String getId() {
return id;
}
public void setId(String id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
@Override
public String toString() {
return "User{" +
"id='" + id + '\'' +
", name='" + name + '\'' +
'}';
}
}
6.生产者（依次分别为：Fanout 模式生产者，Direct 模式生产者，Topic 模式 生产者，Headers 模式生产者）
package com.blj.springbootrabbitmq.sender;
import com.blj.springbootrabbitmq.config.RabbitConfig;
import com.blj.springbootrabbitmq.entity.User;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
/**
* Fanout 模式
* 生产者
*
* @author BaiLiJun on 2019/10/30
*/
@Component
public class FanoutSender {
@Autowired
private AmqpTemplate amqpTemplate;
public void send(User user) {
//第一个参数：Exchange名字
//第二个参数：Route-Key
//第三个参数：要发送的内容
amqpTemplate.convertAndSend(RabbitConfig.FANOUT_EXCHANGE,"",user);
}
}
package com.blj.springbootrabbitmq.sender;
import com.blj.springbootrabbitmq.config.RabbitConfig;
import com.blj.springbootrabbitmq.entity.User;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
/**
* Direct 模式
* 生产者
*
* @author BaiLiJun on 2019/10/30
*/
@Component
public class DirectSender {
@Autowired
private AmqpTemplate amqpTemplate;
public void send(User user){
amqpTemplate.convertAndSend(RabbitConfig.DIRECT_EXCHANGE,"goods.update",user);
//amqpTemplate.convertAndSend(RabbitConfig.DIRECT_EXCHANGE,"goods.delete",user);
}
}
package com.blj.springbootrabbitmq.sender;
import com.blj.springbootrabbitmq.config.RabbitConfig;
import com.blj.springbootrabbitmq.entity.User;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
/**
* Topic 模式
* 生产者
*
* @author BaiLiJun on 2019/10/30
*/
@Component
public class TopicSender {
@Autowired
private AmqpTemplate amqpTemplate;
public void send(User user) {
//第一个参数：Exchange名字
//第二个参数：Route-Key
//第三个参数：要发送的内容
amqpTemplate.convertAndSend(RabbitConfig.TOPIC_EXCHANGE,"user.add",user);
//amqpTemplate.convertAndSend(RabbitConfig.TOPIC_EXCHANGE,"user.delete",user);
}
}
package com.blj.springbootrabbitmq.sender;
import com.blj.springbootrabbitmq.config.RabbitConfig;
import com.blj.springbootrabbitmq.entity.User;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
/**
* Headers 模式
* 生产者
*
* @author BaiLiJun on 2019/10/30
*/
@Component
public class HeaderSender {
@Autowired
private AmqpTemplate amqpTemplate;
public void send(Object massage) {
//第一个参数：Exchange名字
//第二个参数：Route-Key
//第三个参数：要发送的内容
String msg=(String)massage;
MessageProperties properties = new MessageProperties();
properties.setHeader("header1","value1");
properties.setHeader("header2","value2");
Message message = new Message(msg.getBytes(), properties);
amqpTemplate.convertAndSend(RabbitConfig.HEADER_EXCHANGE,"",message);
}
}
7.消费者（分别为：Fanout模式消费者，Direct 模式消费者，Topic 模式消费者，Header 模式消费者）
package com.blj.springbootrabbitmq.receiver;
import com.blj.springbootrabbitmq.config.RabbitConfig;
import com.blj.springbootrabbitmq.entity.User;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/**
* Fanout模式
* 消费者
*
* @author BaiLiJun on 2019/10/30
*/
@Component
public class FanoutReceiver {
//queues是指要监听的队列的名字
@RabbitListener(queues = RabbitConfig.FANOUT_QUEUE1)
public void receiveFanout1(User user){
System.out.println("[receiveFanout1] receive message"+user);
}
@RabbitListener(queues = RabbitConfig.FANOUT_QUEUE2)
public void receiveFanout2(User user){
System.out.println("[receiveFanout2] receive message"+user);
}
}
package com.blj.springbootrabbitmq.receiver;
import com.blj.springbootrabbitmq.config.RabbitConfig;
import com.blj.springbootrabbitmq.entity.User;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/**
* Direct 模式
* 消费者
*
* @author BaiLiJun on 2019/10/30
*/
@Component
public class DirectReceiver {
//queues是指要监听的队列的名字
@RabbitListener(queues = RabbitConfig.DIRECT_QUEUE1)
public void receiveDirect1(User user){
System.out.println("[receiveDirect1] receive message"+user);
}
@RabbitListener(queues = RabbitConfig.DIRECT_QUEUE2)
public void receiveDirect2(User user){
System.out.println("[receiveDirect2] receive message"+user);
}
}
package com.blj.springbootrabbitmq.receiver;
import com.blj.springbootrabbitmq.config.RabbitConfig;
import com.blj.springbootrabbitmq.entity.User;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/**
* Topic 模式
* 消费者
*
* @author BaiLiJun on 2019/10/30
*/
@Component
public class TopicReceiver {
//queues是指要监听的队列的名字
@RabbitListener(queues = RabbitConfig.TOPIC_QUEUE1)
public void receiveTopic1(User user){
System.out.println("[receiveTopic1] receive message"+user.toString());
}
@RabbitListener(queues = RabbitConfig.TOPIC_QUEUE2)
public void receiveTopic2(User user){
System.out.println("[receiveTopic2] receive message"+user.toString());
}
}
package com.blj.springbootrabbitmq.receiver;
import com.blj.springbootrabbitmq.config.RabbitConfig;
import com.blj.springbootrabbitmq.entity.User;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/**
* Header 模式
* 消费者
*
* @author BaiLiJun on 2019/10/30
*/
@Component
public class HeaderReceiver {
//queues是指要监听的队列的名字
@RabbitListener(queues = RabbitConfig.HEADER_QUEUE1)
public void receiveHeader1(byte[] message){
System.out.println("[receiveHeader1] receive message "+new String(message));
}
@RabbitListener(queues = RabbitConfig.HEADER_QUEUE2)
public void receiveHeader2(byte[] message){
System.out.println("[receiveHeader2] receive message "+new String(message));
}
}
8.测试
package com.blj.springbootrabbitmq.test;
import com.blj.springbootrabbitmq.entity.User;
import com.blj.springbootrabbitmq.receiver.FanoutReceiver;
import com.blj.springbootrabbitmq.sender.DirectSender;
import com.blj.springbootrabbitmq.sender.FanoutSender;
import com.blj.springbootrabbitmq.sender.HeaderSender;
import com.blj.springbootrabbitmq.sender.TopicSender;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
/**
* 测试类
*
* @author BaiLiJun on 2019/10/30
*/
@SpringBootTest
@RunWith(SpringRunner.class)
public class SpringbootRabbitmqTest {
@Autowired
private FanoutSender fanoutSender;
@Autowired
private DirectSender directSender;
@Autowired
private TopicSender topicSender;
@Autowired
private HeaderSender headerSender;
@Test
public void testFanoutSend(){
User user = new User();
user.setId("1");
user.setName("Fanout");
fanoutSender.send(user);
}
@Test
public void testDirectSend(){
User user = new User();
user.setId("2");
user.setName("Direct");
directSender.send(user);
}
@Test
public void testTopicSend(){
User user = new User();
user.setId("3");
user.setName("Topic");
topicSender.send(user);
}
@Test
public void testHeaderSend(){
headerSender.send("hello header Exchange");
}
}
1346
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
