Routing订阅模型-Direct(直连):
队列与交换机的绑定,不能是任意绑定了,而是需要指定一个Routingkey(路由key)
消息的发送方在想Exchage发送消息时,也必须指定消息的Routingkey
Exchage不再把消息交给每一个绑定的队列,而是根据Routingkey进行判断,只有队列的Routingkey与消息的Routingkey完全一致,才会接收到消息

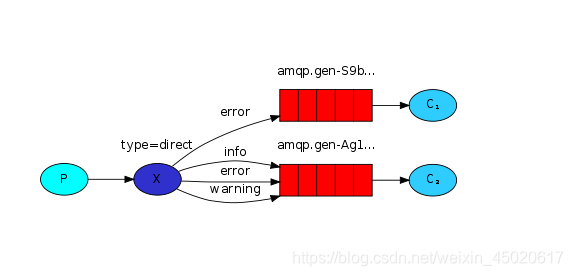

上图模型中:
P:生产者,向Exchage发送消息,发送消息时,会指定一个Routingkey
X:Exchage交换机,接受生产者的消息,然后把消息递交给与Routingkey完全匹配的队列
C1:消费者,其所在队列指定了需要Routingkey为error的消息
C2:消费者,其所在队列指定了需要Routingkey为info,error,warning的消息
代码实现:
1.开发生产者
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import utils.RabbitMQUtils;
/**
* 生产者
*/
public class Provider {
public static void main(String[] args) throws Exception {
//获取连接对象
Connection connection = RabbitMQUtils.getConnection();
//获取通道对象
Channel channel = connection.createChannel();
//通过通道声明交换机
channel.exchangeDeclare("logs_direct","direct");
//发送消息
String routingkey = "info";
channel.basicPublish("logs_direct",routingkey,null,("这是direct模型基于route key :["+routingkey+"]发送的消息 ").getBytes());
//关闭资源
RabbitMQUtils.closeConnectionAndChanel(channel,connection);
}
}
2.开发消费者1
import com.rabbitmq.client.*;
import utils.RabbitMQUtils;
import java.io.IOException;
/**
* 消费者1
*/
public class Customer1 {
public static void main(String[] args) throws Exception {
//获取连接对象
Connection connection = RabbitMQUtils.getConnection();
//获取通道对象
Channel channel = connection.createChannel();
//通道声明交换机以及交换机的类型
channel.exchangeDeclare("logs_direct","direct");
//创建一个临时队列
String queue = channel.queueDeclare().getQueue();
//基于route key 绑定队列和交换机
channel.queueBind(queue,"logs_direct","error");
//获取消费的消息
channel.basicConsume(queue,true,new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("消费者1:"+new String(body));
}
});
}
}
3.开发消费者2
import com.rabbitmq.client.*;
import utils.RabbitMQUtils;
import java.io.IOException;
/**
* 消费者2
*/
public class Customer2 {
public static void main(String[] args) throws Exception {
//获取连接对象
Connection connection = RabbitMQUtils.getConnection();
//获取通道对象
Channel channel = connection.createChannel();
//通道声明交换机以及交换机的类型
channel.exchangeDeclare("logs_direct","direct");
//创建一个临时队列
String queue = channel.queueDeclare().getQueue();
//基于route key 绑定队列和交换机
channel.queueBind(queue,"logs_direct","info");
channel.queueBind(queue,"logs_direct","error");
channel.queueBind(queue,"logs_direct","warning");
//获取消费的消息
channel.basicConsume(queue,true,new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("消费者2:"+new String(body));
}
});
}
}
4.运行消费者和生产者

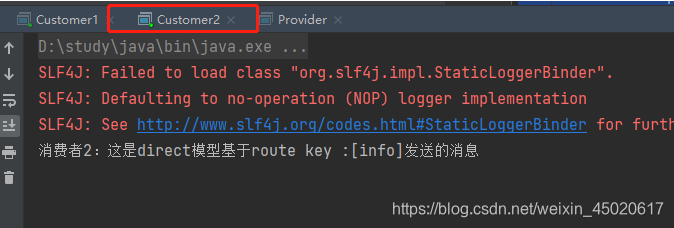

发现消费者2中消费了消息,因为消费者2中绑定了三种Routingkey,而消费者1无对应的Routingkey,若将生产者中的Routingkey改为非error,info,warning,则消费者1和消费者2都接收不到消息。
