ArmV7-M 内核

一，ArmV7-M版本：

ArmV7-M 有ArmV7-M和ArmV7E-M  2个版本，

M3 基于ArmV7-M, M4,M7是基于ArmV7E-M架构

ArmV7E-M比ArmV7-M多了DSP和FPU

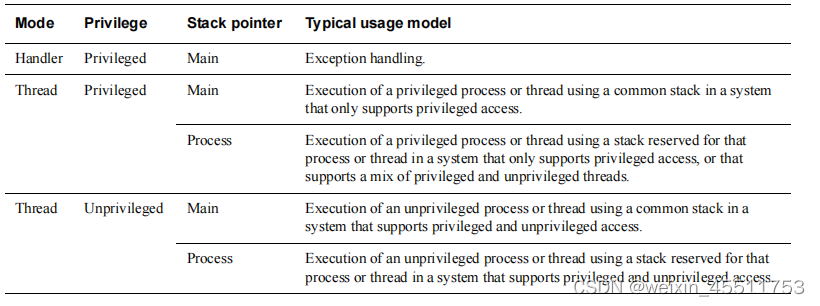

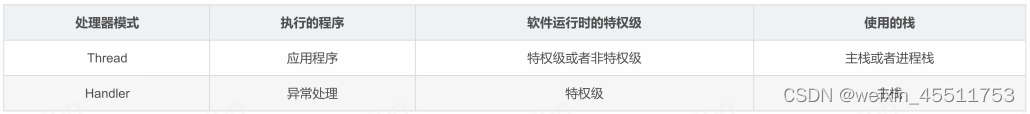

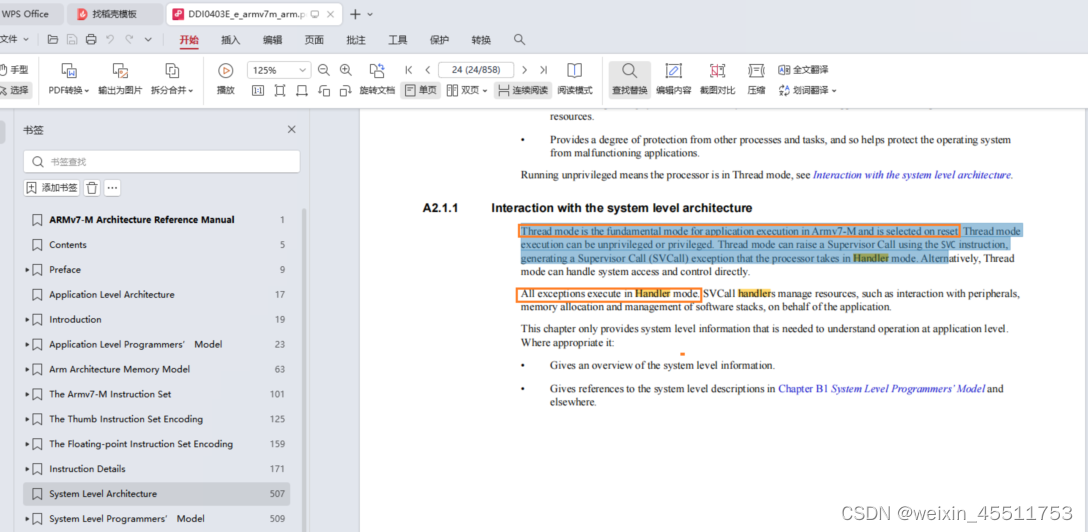

二，ArmV7-M工作模式：

Thread mode：Is entered on reset, and can be entered as a result of an exception return.

Handler mode：Is entered as a result of an exception. The processor must be in Handler mode to issue an exception return

三，ArmV7-M堆栈指针寄存器

Stack pointer:The processor implements a banked pair of stack pointers, the Main stack pointer, and the Process stack pointer;

In Handler mode, the processor uses the Main stack pointer. In Thread mode it can use either stack pointer.

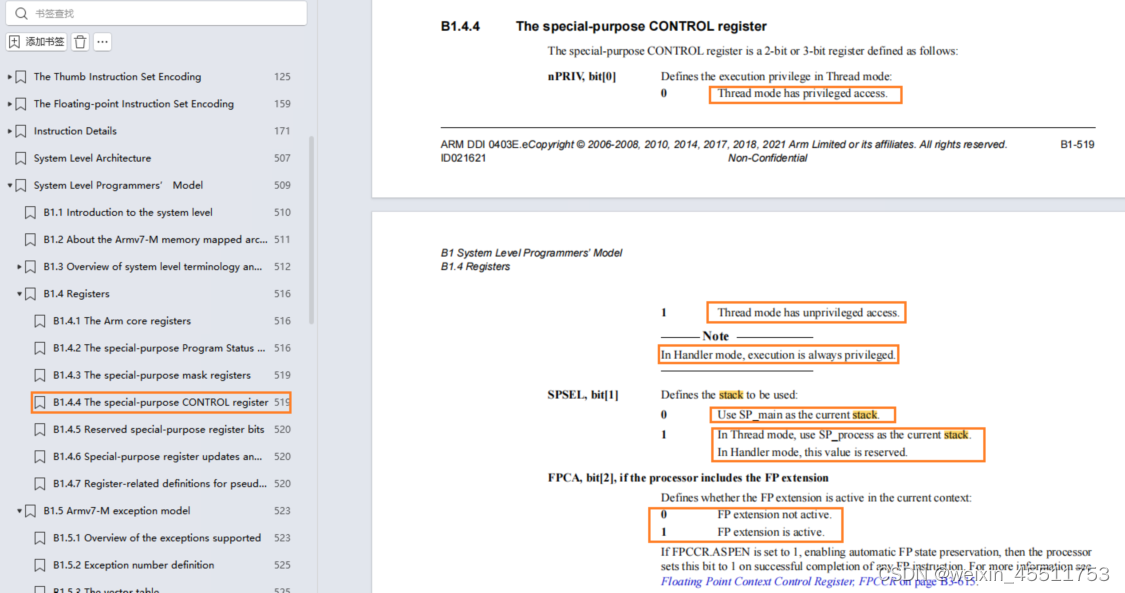

四，Control 寄存器描述：

标识特权模式，stack模式，浮点是否active

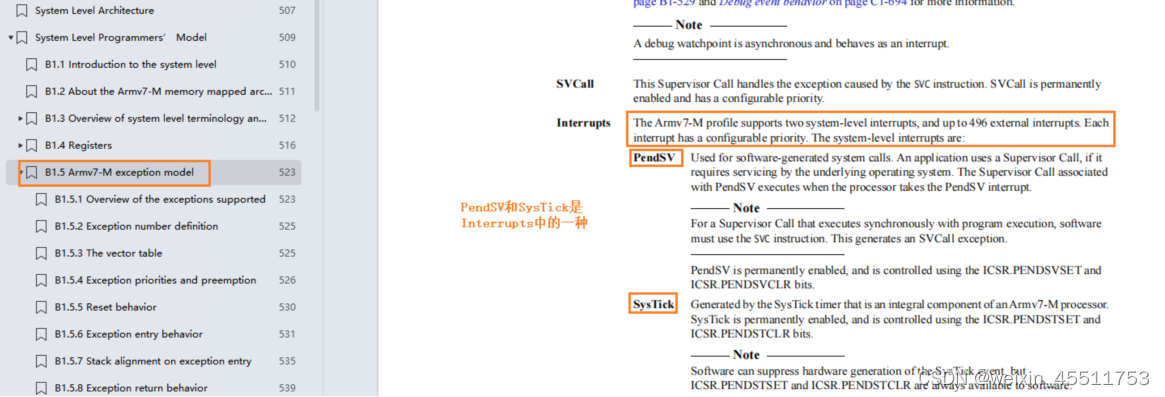

五，中断分类

PendSV和SysTick是2个系统中断，属于中断

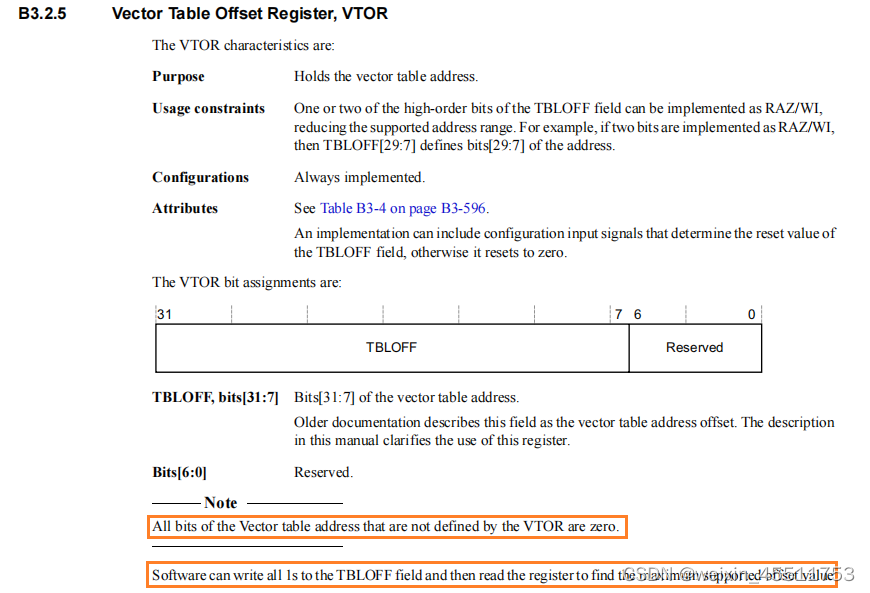

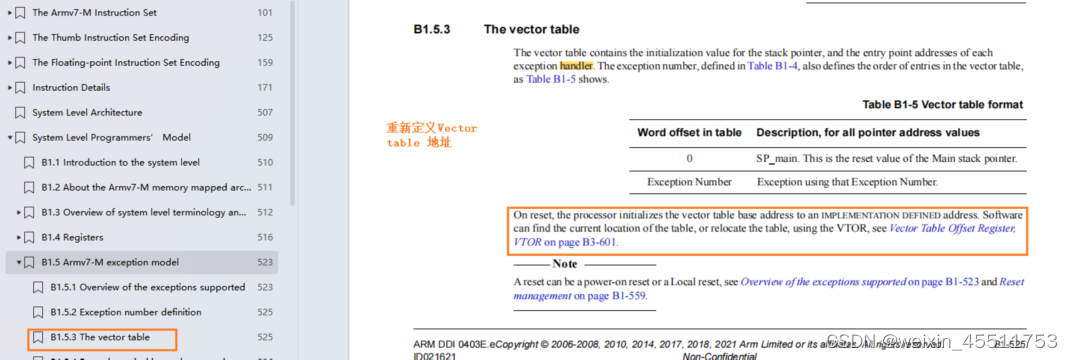

六，Vector Table

Vector Table地址可以被重新指定。

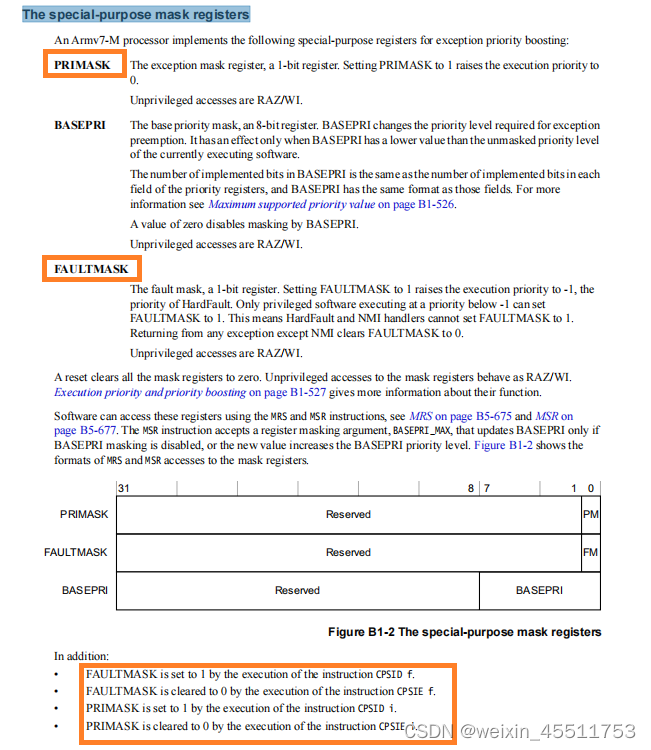

七，The special-purpose mask registers

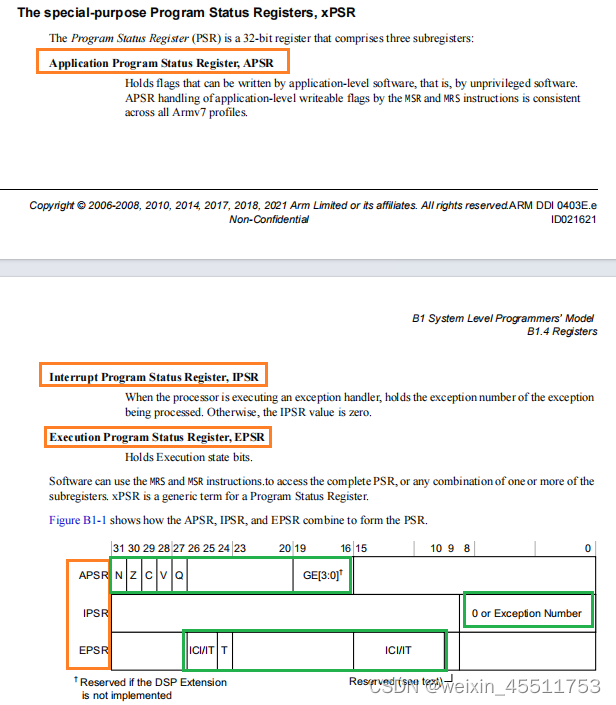

八，The special-purpose Program Status Registers, xPSR
