grcp入门使用(java)
1.依赖
<dependencies>
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-netty-shaded</artifactId>
<version>1.57.2</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-protobuf</artifactId>
<version>1.57.2</version>
</dependency>
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-stub</artifactId>
<version>1.57.2</version>
</dependency>
<dependency> <!-- necessary for Java 9+ -->
<groupId>org.apache.tomcat</groupId>
<artifactId>annotations-api</artifactId>
<version>6.0.53</version>
<scope>provided</scope>
</dependency>
</dependencies>
<build>
<plugins>
<!-- protobuf插件 自动下载 重启idea-->
<plugin>
<groupId>org.xolstice.maven.plugins</groupId>
<artifactId>protobuf-maven-plugin</artifactId>
<version>0.6.1</version>
<configuration>
<protocArtifact>com.google.protobuf:protoc:3.22.3:exe:${os.detected.classifier}</protocArtifact>
<pluginId>grpc-java</pluginId>
<pluginArtifact>io.grpc:protoc-gen-grpc-java:1.57.2:exe:${os.detected.classifier}</pluginArtifact>
</configuration>
<executions>
<execution>
<goals>
<goal>compile</goal>
<goal>compile-custom</goal>
</goals>
</execution>
</executions>
</plugin>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<configuration>
<excludes>
<exclude>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</exclude>
</excludes>
</configuration>
</plugin>
</plugins>
</build>

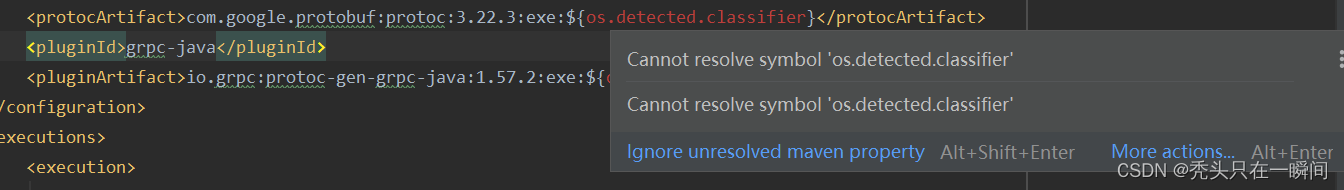

说明:如果出现如下情况 则在properties中添加<os.detected.classifier>windows-x86_64</os.detected.classifier>
<properties>
<os.detected.classifier>windows-x86_64</os.detected.classifier>
</properties>

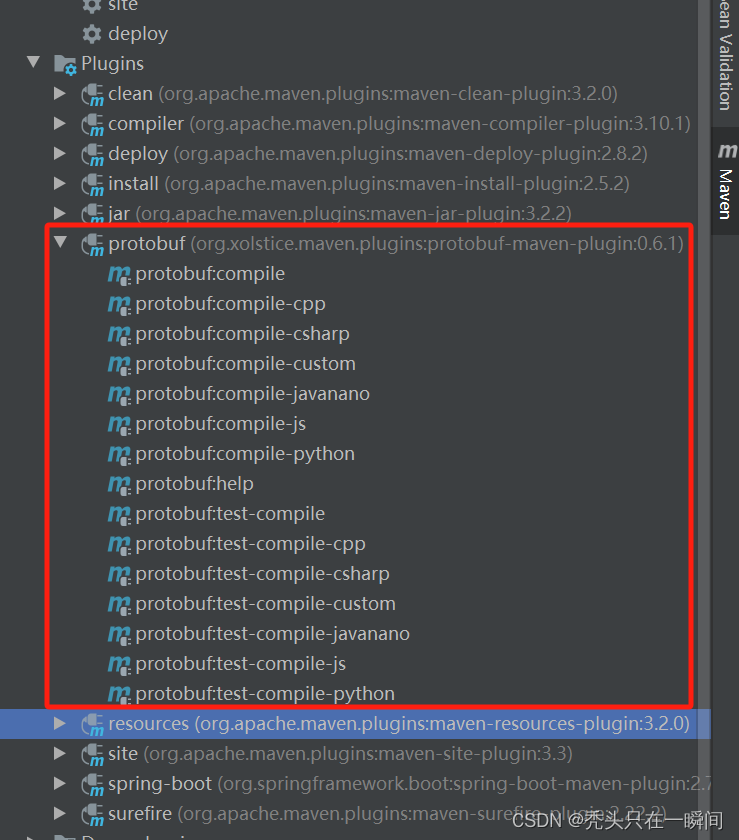

创建完成后
2.创建目录导入proto文件

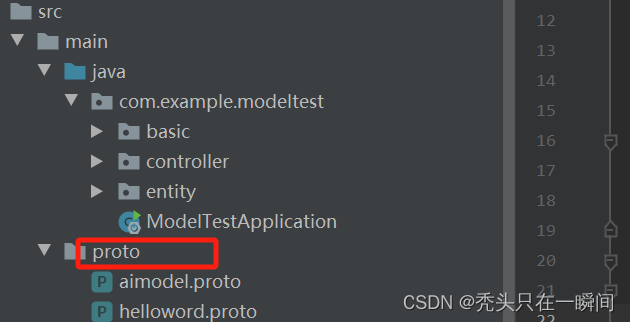

1.创建proto目录(与java目录同级) 并proto目录下创建.proto文件
2.proto文件内容
syntax = "proto3";
//java_multiple_files(文件选项):如果为false,.proto文件和所有的Java类、枚举等仅生成单个java文件。生成的顶层消息、服务和枚举将被内嵌到一个外部类中(参见java_outer_classname)。如果为true,每个Java类、枚举等将回生成一个单独的java文件。该.proto文件生成的顶层消息、服务、枚举和包装器java类将不会内嵌任何类、枚举等。这是一个默认值为false的布尔选项。如果不生成Java代码,该选项不起作用。
option java_multiple_files = true;
//用于生成Java类的包
option java_package = "io.grpc.examples.helloworld";
//要生成的java类的类名
option java_outer_classname = "HelloWorldProto";
package helloworld;
// The greeting service definition.
service Greeter {
// Sends a greeting
rpc SayHello (HelloRequest) returns (HelloReply) {}
rpc SayHelloAgain (HelloRequest) returns (HelloReply) {}
rpc sayTest (HelloRequest) returns (HelloReply) {}
}
// The request message containing the user's name.
message HelloRequest {
string name = 1;
}
// The response message containing the greetings
message HelloReply {
string message = 1;
}
3.proto文件解析
protoBuf相关内容可看protoBu入门贴 在次不做赘述
3.使用protobuf插件生成protobuf 代码和 grpc 代码

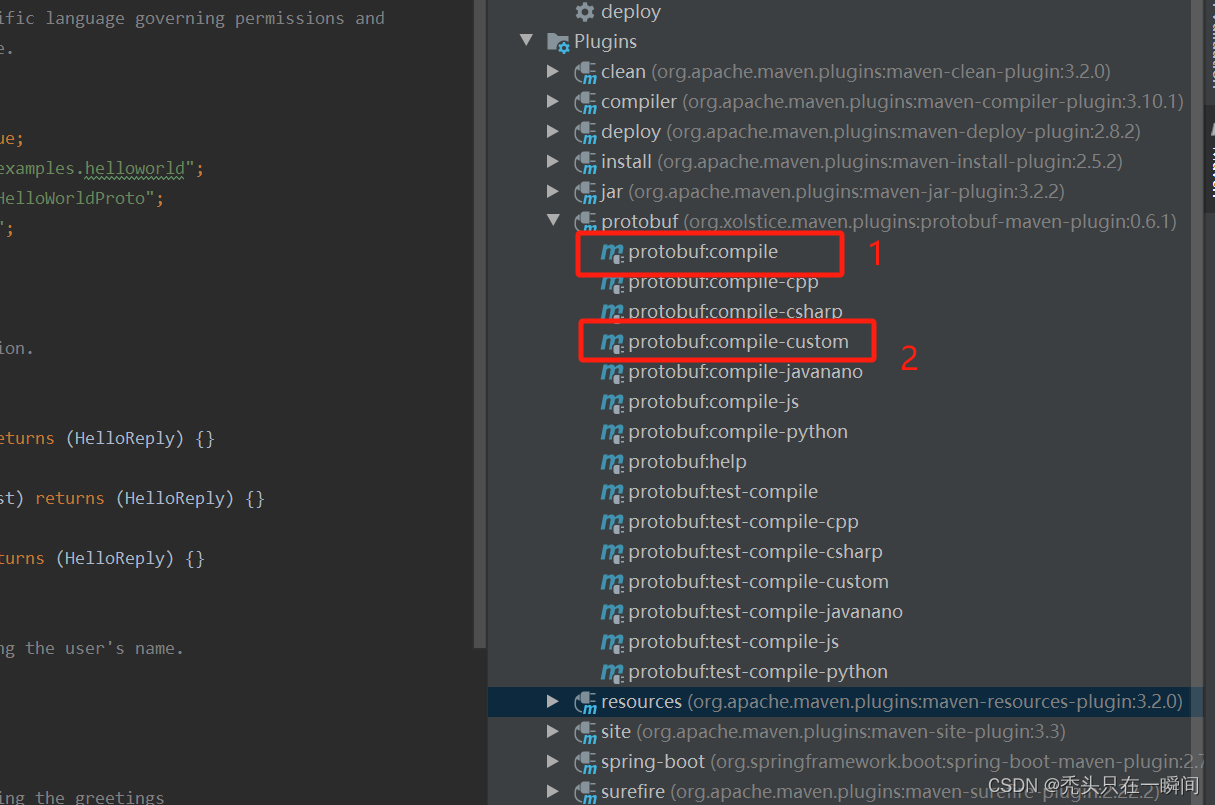

1.依次运行protobuf:compile 和protobuf:compile-custom
2.创建完成

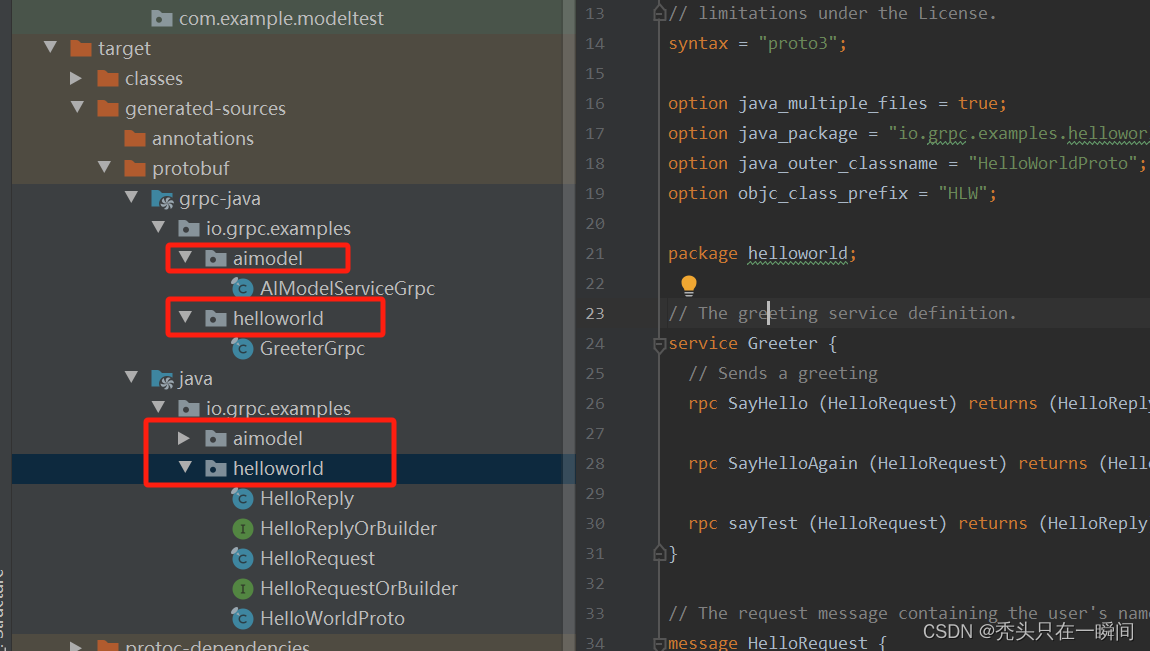

创建完成后在target/generated-sources/protobuf/grpc-java下可以看到生成的代码 可再项目中直接引用
4.编写客户端及服务的代码
客户端
public class GrpcClient {
public static void main(String[] args) throws InterruptedException {
String host = "localhost";
int port = 50051;
ManagedChannel managedChannel = Grpc.newChannelBuilderForAddress(host, port, InsecureChannelCredentials.create()).build();
GreeterGrpc.GreeterBlockingStub blockingStub = GreeterGrpc.newBlockingStub(managedChannel);
HelloRequest helloRequest = HelloRequest.newBuilder().setName("我是客户端").build();
HelloReply reply = blockingStub.sayTest(helloRequest);
System.out.println(reply.getMessage());
managedChannel.shutdownNow().awaitTermination(5, TimeUnit.SECONDS);
}
}
服务端
public class GrpcServer {
public static void main(String[] args) throws IOException, InterruptedException {
int port = 50051;
Server server = Grpc.newServerBuilderForPort(port, InsecureServerCredentials.create())
.addService(new GreeterImpl())
.build()
.start();
Runtime.getRuntime().addShutdownHook(new Thread(()->{
stopServer(server);
}));
server.awaitTermination();
}
private static void stopServer(Server server) {
if (server != null) {
server.shutdown();
}
}
static class GreeterImpl extends GreeterGrpc.GreeterImplBase {
@Override
public void sayTest(HelloRequest req, StreamObserver<HelloReply> responseObserver) {
HelloReply reply = HelloReply.newBuilder().setMessage("我是服务端" + req.getName()).build();
responseObserver.onNext(reply);
responseObserver.onCompleted();
}
}
}
测试时先运行服务端再运行客户端
在服务端代码中可加入拦截器等代码完善业务逻辑
待完善=======
