本篇文章将会介绍搜索二叉树的概念和模拟实现,以及它的应用Key模型和Key/value模型,简写为K模型和KV模型。
🌌搜索二叉树的概念
搜索二叉树又称二叉树搜索树(Binary Search Tree),顾名思义是用来查找的,当树不为空时,有以下性质:
1. 当左子树不为空时,左子树上的所以节点的值小于根节点
2. 当右子树不为空时,右子树上的所有节点的值大于根节点
3. 搜索二叉树每个节点的值key都不相同
4. 搜索二叉树的左右子树都是搜索二叉树
根据搜索二叉树的以上性质,可以排序+去重,中序遍历是可以排升序,每个节点的值不同可以去重,所以搜索二叉树也可称为排序二叉树
🌌BSTree的模拟实现
🌌迭代实现
大致框架:
#pragma once
#include <iostream>
using namespace std;
namespace K
{
template <class K>
//节点
struct BSTreeNode
{
BSTreeNode(const K& key)
:left(nullptr)
, right(nullptr)
, _key(key)
{}
struct BSTreeNode<K>* left;
struct BSTreeNode<K>* right;
K _key;
};
//树
template <class K>
class BSTree
{
typedef BSTreeNode<K> Node;
public:
BSTree()
:_root(nullptr)
{}
//插入值为key的节点,插入失败返回false
bool Insert(const K& key);
//查找值为key的节点,查找失败返回nullptr
Node* Find(const K& key);
//删除值为key的节点,删除失败返回false
bool Erase(const K& key);
//中序遍历(类外无法访问根,所以由子函数完成)
void InOrder();
private:
//通过子函数完成中序遍历
void _InOrder(Node* root);
Node* _root;
};
}
🌌查找

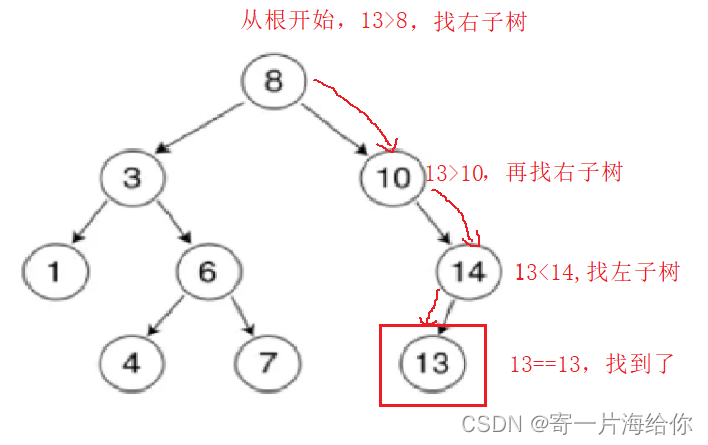

先来实现BSTree的查找,比如要查找13,有如下过程,先从根开始比较,比根大就在右子树查找,比根小就在左子树查找,以此类推,如果走到nullptr还未找到,就说明树中没有该节点

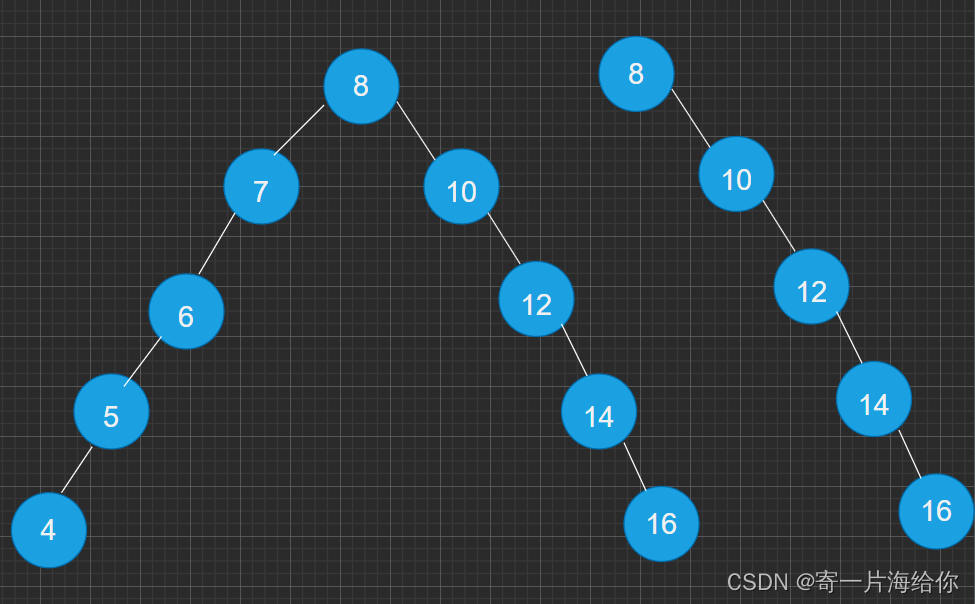

所以BSTree最多查找高度次,如果以完全二叉树为例就是O(logN),也就是说从10亿个数中找一个数最多只需要大约30次。当然如果BSTree退化为单支树,也就是查找的最坏情况O(N),所以搜索二叉树是有缺陷的,后来引入了平衡搜索二叉树,两种实现AVL树和红黑树,之后的文章会讲解,这里就不在赘述了。
Node* Find(const K& key)
{
//从根节点开始查找
Node* cur = _root;
while (cur)
{
if (key > cur->_key)
cur = cur->right;
else if (key < cur->_key)
cur = cur->left;
else
return cur;
}
//还未找到就返回nullptr
return nullptr;
}
🌌插入

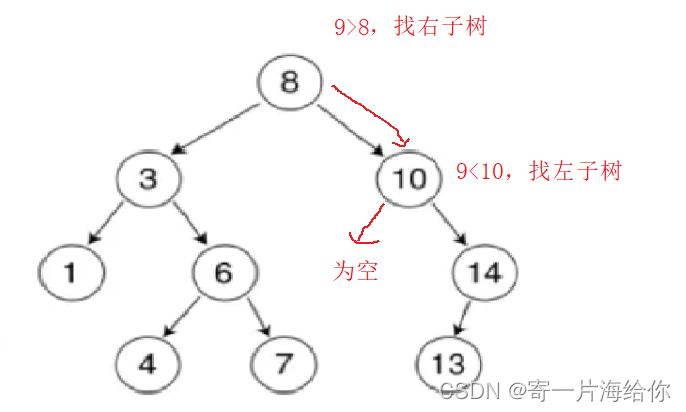

假设要将9插入BSTree,定义一个cur从根开始比较,最后找到了要插入的位置,但是需要和10链接起来,所以还需要定义一个parent完成链接关系
bool Insert(const K& key)
{
if (_root == nullptr)
{
_root = new Node(key);
return true;
}
Node* cur = _root;
Node* parent = nullptr;
while (cur)
{
if (key > cur->_key)
{
parent = cur;
cur = cur->right;
}
else if (key < cur->_key)
{
parent = cur;
cur = cur->left;
}
//插入的值和BSTree的值相等时,插入失败返回false
else
return false;
}
//cur找到插入的位置后,判断比parent大还是小,然后完成链接关系
if (key > parent->_key)
parent->right = new Node(key);
else
parent->left = new Node(key);
return true;
}
🌌删除
删除时BSTree的一个重难点,相比于上面的查找和插入要更复杂,考虑的情况也很多,我们先来一一分析
要删除的节点有以下三种情况,当然也可能树中没有这个节点:
1. 只有一个孩子
2. 没有孩子
3. 有两个孩子
只有一个孩子和没有孩子可以统一处理,直接托孤,将要删除节点的孩子托给它的父亲,没有孩子就将nullptr托给它的父亲。

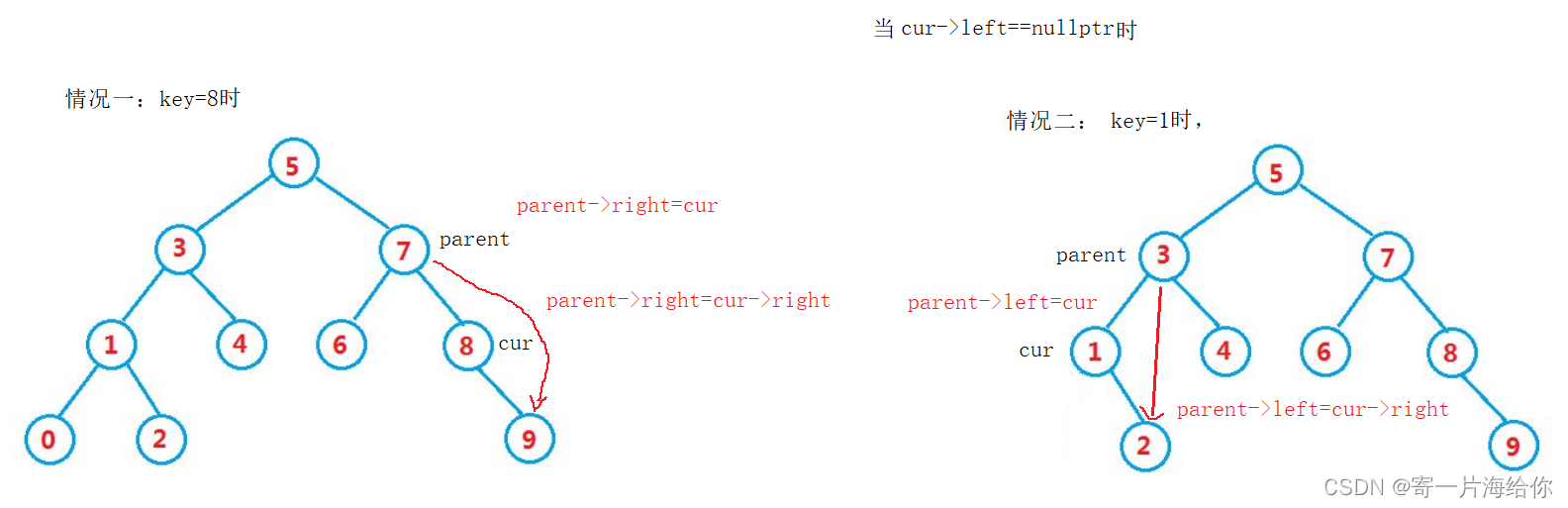

当节点的左为nullptr时,有以下三种情况(没有孩子的归类到左为nullptr的情况)
1. 要删除的节点是父亲的右孩子
2. 要删除的节点是父亲的左孩子

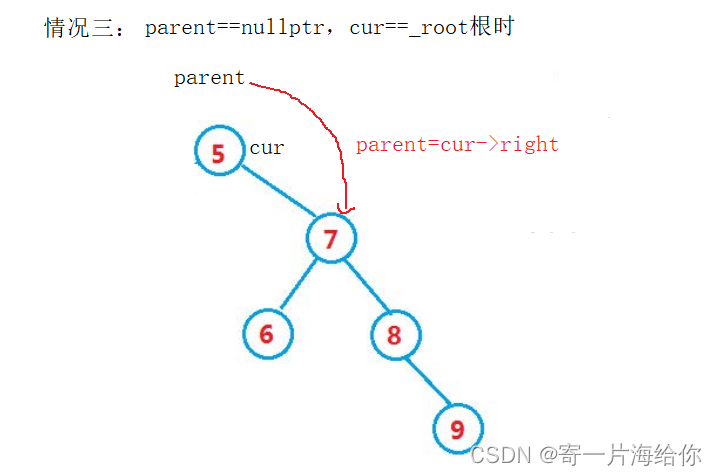

3. 要删除的节点是根节点
同理当节点的右为nullptr时,也有以上三种情况。
再来讨论当要删除的节点有两个孩子时,这时候就不能用托孤了,需要采用替换法。
替换法:以要删除的节点为根,找到它左子树的最大值或右子树的最小值替换掉它的key,然后删除替换的节点

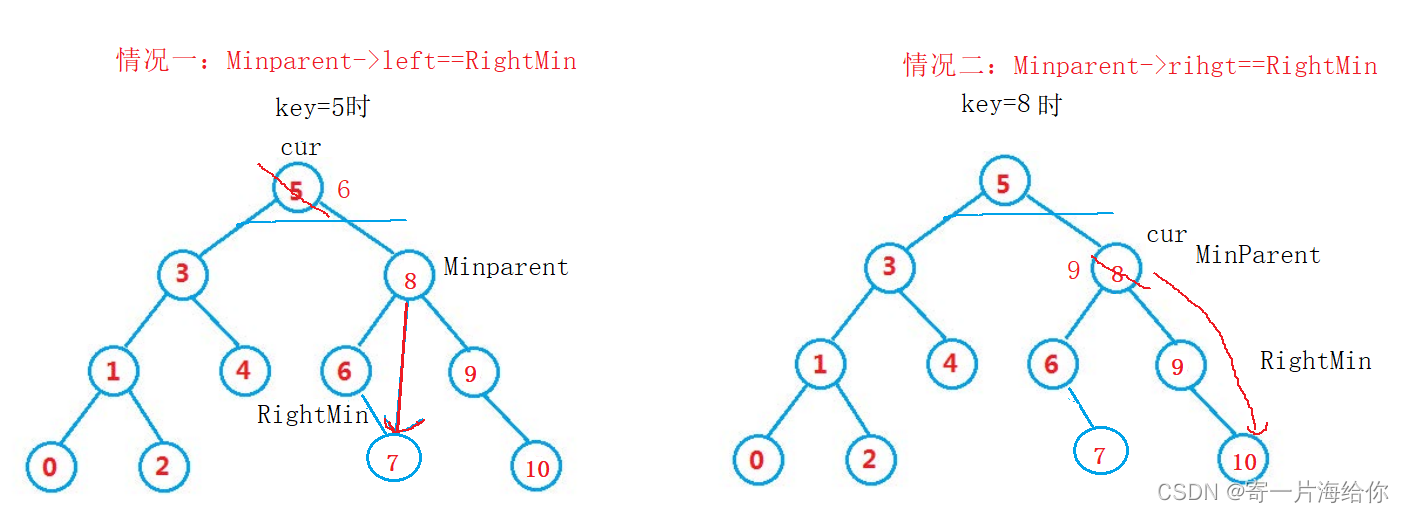

以找右子树最小值为例,右子树的最小值就是右子树最左边的节点,且它肯定没有左孩子
1. 右子树最小值的节点是父亲的左孩子
2. 右子树最小值的节点是父亲的右孩子
bool Erase(const K& key)
{
Node* parent = nullptr;
Node* cur = _root;
while (cur)
{
if (key > cur->_key)
{
parent = cur;
cur = cur->right;
}
else if (key < cur->_key)
{
parent = cur;
cur = cur->left;
}
//找到了
else
{
//要删除的节点只有一个孩子(只有一个右孩子)或是没有孩子时
if (cur->left == nullptr)
{
//要删除的节点是根节点时
if (cur == _root)
_root = _root->right;
else
{
if (parent->left == cur)
parent->left = cur->right;
else
parent->right = cur->right;
}
delete cur;
}
//要删除的节点只有一个左孩子
else if (cur->right == nullptr)
{
if (cur == _root)
_root = _root->left;
else
{
if (parent->left == cur)
parent->left = cur->left;
else
parent->right = cur->left;
}
delete cur;
}
//要删除的节点有两个孩子
else
{
Node* RightMin = cur->right;//寻找cur右子树的最小值,也就是右子树最左边节点
Node* MinParent = cur;
while (RightMin->left)
{
MinParent = RightMin;
RightMin = RightMin->left;
}
cur->_key = RightMin->_key;
//如果右子树最小值在右边
if (RightMin == MinParent->right)
MinParent->right = RightMin->right;
else
MinParent->left = RightMin->right;
delete RightMin;
}
return true;
}
}
//未找到
return false;
}

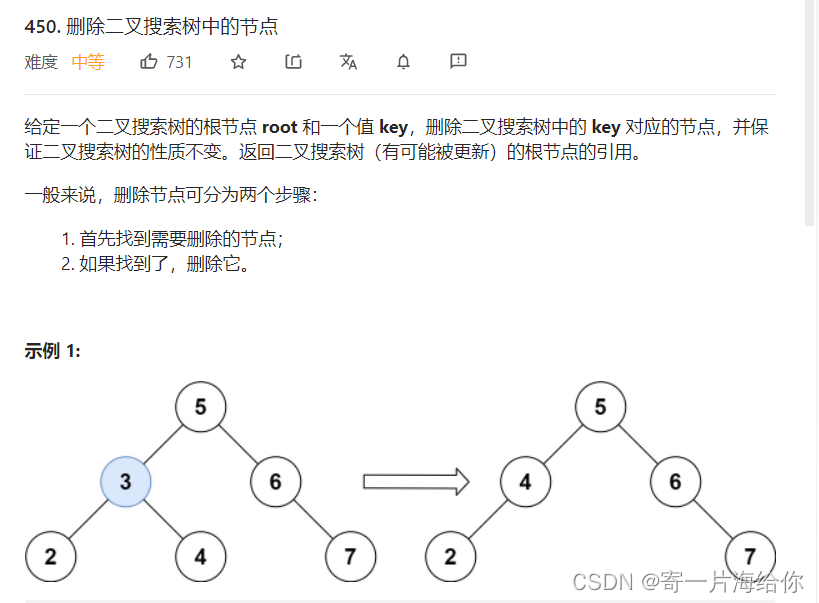

LeetCode上也有对应的题目
🌌递归实现
递归都需要通过子函数完成,因为类外无法访问根节点。
Node* _FindR(Node* root, const K& key)
{
if (root == nullptr)
return nullptr;
if (key > root->_key)
return _FindR(root->right, key);
else if (key < root->_key)
return _FindR(root->left, key);
else
return root;
}
bool FindR(const K& key)
{
return _FindR(_root, key);
}
bool _InsertR(Node*& root, const K& key)
{
if (root == nullptr)
{
root = new Node(key);
return true;
}
if (key > root->_key)
return _InsertR(root->right, key);
else if (key < root->_key)
return _InsertR(root->left, key);
else
return false;
}
bool InsertR(const K& key)
{
return _InsertR(_root, key);
}
用递归实现插入,这里传的是引用,迭代法中的三种插入情况,都在root为nullptr这里处理,将root为根的情况也包含进来了,部分递归展开图:
删除也是传引用
bool _EraseR(Node*& root, const K& key)
{
if (root == nullptr)
return false;
if (key > root->_key)
return _EraseR(root->right, key);
else if (key < root->_key)
return _EraseR(root->left, key);
//找到了
else
{
Node* del = root;//保存要删除的节点
if (root->left == nullptr)
//这里的root是上一级root的左孩子或是右孩子,直接完成托孤,将这一级root的右孩子托给它的父亲
root = root->right;
else if (root->right == nullptr)
root = root->left;
else
{
Node* RightMin = root->right;
while (RightMin->left)
{
RightMin = RightMin->left;
}
//找到右子树最左边的值后,交换
swap(RightMin->_key, root->_key);
//递归到右子树删除
//直接将要删除的节点有两个孩子,变成只有一个孩子或是没有孩子的情况
_EraseR(root->right, RightMin->_key);
}
delete del;
return true;
}
}
bool EraseR(const K& key)
{
return _EraseR(_root, key);
}
🌌BSTree的应用
🌌K模型
K模型即只有key作为关键码,结构中只需要存储Key即可,关键码即为需要搜索到的值。上面模拟实现的就是K模型。K模型简单来说就是在不在。比如学校宿舍楼的门禁闸口,当我们刷卡过门禁时,机器根据卡上的信息查找当前楼栋是否有你的信息,如果没有就证明你不是这栋楼的。
ps:这只是一个例子,具体实现肯定不会用搜索二叉树实现
比如:给一个单词word,判断该单词是否拼写正确,具体方式如下:
- 以单词集合中的每个单词作为key,构建一棵二叉搜索树
- 在二叉搜索树中检索该单词是否存在,存在则拼写正确,不存在则拼写错误。
简答来说就是搜索单词是否在树里面,不在就拼写错误
🌌KV模型
KV模型就是通过一个值,查找相关联的另外一个值。每一个关键码key,都有与之对应的值Value,即<Key, Value>的键值对。比如中英文翻译<English,Chinese>,通过英文翻译出对应的中文,可以实现一个简单的英译汉词典。
1. 以<英语单词,中文含义>键值对构建BSTree
2. 通过英语单词key,找打对应的中文含义value
KV模型只需要在K模型的基础上稍作修改即可,加入一个模板参数V,具体实现在后面的源码给出

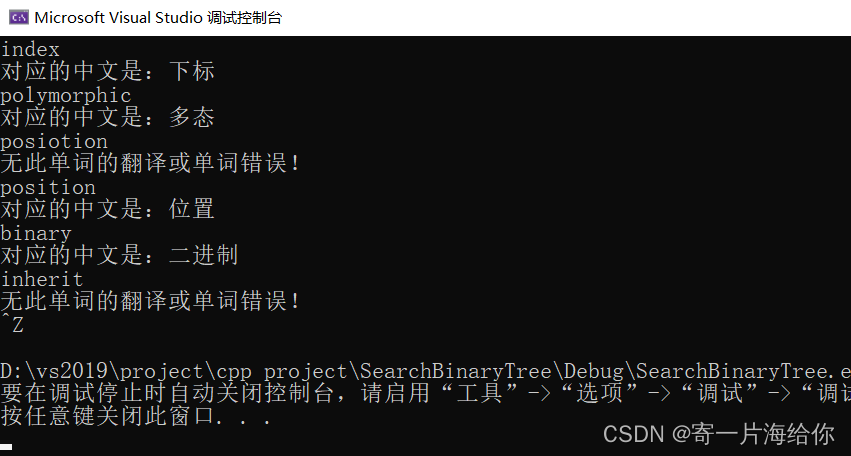

//根据输入的英文单词翻译出对应的中文
void Test1()
{
BSTree<string, string> dir;
dir.Insert("index", "下标");
dir.Insert("binary", "二进制");
dir.Insert("position", "位置");
dir.Insert("inorder", "中序");
dir.Insert("polymorphic", "多态");
string s;
while (cin >> s)
{
BSTreeNode<string, string>* ret;
ret = dir.Find(s);
if (ret)
{
cout << "对应的中文是:";
cout << ret->_value << endl;
}
else
cout << "无此单词的翻译或单词错误!" << endl;
}
}
同时KV模型还可以用来统计次数
//统计水果出现的次数
void Test2()
{
string arr[] = { "香蕉","橙子","葡萄","橙子","香蕉","橙子","草莓","葡萄" };
BSTree<string, int> count;
for (auto& str : arr)
{
BSTreeNode<string, int>* ret = count.Find(str);
if (ret)
ret->_value++;
else
count.Insert(str, 1);
}
count.InOrder();
}
🌌源码
#pragma once
#include <iostream>
using namespace std;
namespace K
{
template <class K>
struct BSTreeNode
{
BSTreeNode(const K& key)
:left(nullptr)
, right(nullptr)
, _key(key)
{}
struct BSTreeNode<K>* left;
struct BSTreeNode<K>* right;
K _key;
};
template <class K>
class BSTree
{
typedef BSTreeNode<K> Node;
public:
BSTree()
:_root(nullptr)
{}
bool Insert(const K& key)
{
if (_root == nullptr)
{
_root = new Node(key);
return true;
}
Node* cur = _root;
Node* parent = nullptr;
while (cur)
{
if (key > cur->_key)
{
parent = cur;
cur = cur->right;
}
else if (key < cur->_key)
{
parent = cur;
cur = cur->left;
}
else
return false;
}
if (key > parent->_key)
parent->right = new Node(key);
else
parent->left = new Node(key);
return true;
}
Node* Find(const K& key)
{
Node* cur = _root;
while (cur)
{
if (key > cur->_key)
cur = cur->right;
else if (key < cur->_key)
cur = cur->left;
else
return cur;
}
return nullptr;
}
bool Erase(const K& key)
{
Node* parent = nullptr;
Node* cur = _root;
while (cur)
{
if (key > cur->_key)
{
parent = cur;
cur = cur->right;
}
else if (key < cur->_key)
{
parent = cur;
cur = cur->left;
}
//找到了
else
{
//要删除的节点只有一个孩子(只有一个右孩子)或是没有孩子时
if (cur->left == nullptr)
{
//要删除的节点是根节点时
if (cur == _root)
_root = _root->right;
else
{
if (parent->left == cur)
parent->left = cur->right;
else
parent->right = cur->right;
}
delete cur;
}
//要删除的节点只有一个左孩子
else if (cur->right == nullptr)
{
if (cur == _root)
_root = _root->left;
else
{
if (parent->left == cur)
parent->left = cur->left;
else
parent->right = cur->left;
}
delete cur;
}
//要删除的节点有两个孩子
else
{
Node* RightMin = cur->right;//寻找cur右子树的最小值,也就是右子树最左边节点
Node* MinParent = cur;
while (RightMin->left)
{
MinParent = RightMin;
RightMin = RightMin->left;
}
cur->_key = RightMin->_key;
//如果右子树最小值在右边
if (RightMin == MinParent->right)
MinParent->right = RightMin->right;
else
MinParent->left = RightMin->right;
delete RightMin;
}
return true;
}
}
//未找到
return false;
}
bool FindR(const K& key)
{
return _FindR(_root, key);
}
bool InsertR(const K& key)
{
return _InsertR(_root, key);
}
bool EraseR(const K& key)
{
return _EraseR(_root, key);
}
void InOrder()
{
_InOrder(_root);
cout << endl;
}
~BSTree()
{
Destroy(_root);
}
private:
//通过子函数完成中序遍历
void _InOrder(Node* root)
{
if (root == nullptr)
return;
_InOrder(root->left);
cout << root->_key << " ";
_InOrder(root->right);
}
Node* _FindR(Node* root, const K& key)
{
if (root == nullptr)
return nullptr;
if (key > root->_key)
return _FindR(root->right, key);
else if (key < root->_key)
return _FindR(root->left, key);
else
return root;
}
bool _InsertR(Node*& root, const K& key)
{
if (root == nullptr)
{
root = new Node(key);
return true;
}
if (key > root->_key)
return _InsertR(root->right, key);
else if (key < root->_key)
return _InsertR(root->left, key);
else
return false;
}
bool _EraseR(Node*& root, const K& key)
{
if (root == nullptr)
return false;
if (key > root->_key)
return _EraseR(root->right, key);
else if (key < root->_key)
return _EraseR(root->left, key);
//找到了
else
{
Node* del = root;//保存要删除的节点
if (root->left == nullptr)
root = root->right;
else if (root->right == nullptr)
root = root->left;
else
{
Node* RightMin = root->right;
while (RightMin->left)
{
RightMin = RightMin->left;
}
//找到右子树最左边的值后,交换
swap(RightMin->_key, root->_key);
//递归到右子树删除
_EraseR(root->right, RightMin->_key);
}
delete del;
return true;
}
}
void Destroy(Node* root)
{
if (root == nullptr)
return;
Destroy(root->left);
Destroy(root->right);
free(root);
}
private:
Node* _root;
};
}
namespace KV
{
template <class K, class V>
struct BSTreeNode
{
BSTreeNode(const K& key, const V& value)
:left(nullptr)
, right(nullptr)
, _key(key)
,_value(value)
{}
struct BSTreeNode<K, V>* left;
struct BSTreeNode<K, V>* right;
K _key;
V _value;
};
template <class K, class V>
class BSTree
{
typedef BSTreeNode<K, V> Node;
public:
BSTree()
:_root(nullptr)
{}
bool Insert(const K& key, const V& value)
{
if (_root == nullptr)
{
_root = new Node(key, value);
return true;
}
Node* cur = _root;
Node* parent = nullptr;
while (cur)
{
if (key > cur->_key)
{
parent = cur;
cur = cur->right;
}
else if (key < cur->_key)
{
parent = cur;
cur = cur->left;
}
else
return false;
}
if (key > parent->_key)
parent->right = new Node(key, value);
else
parent->left = new Node(key, value);
return true;
}
Node* Find(const K& key)
{
Node* cur = _root;
while (cur)
{
if (key > cur->_key)
cur = cur->right;
else if (key < cur->_key)
cur = cur->left;
else
return cur;
}
return nullptr;
}
bool Erase(const K& key)
{
Node* parent = nullptr;
Node* cur = _root;
while (cur)
{
if (key > cur->_key)
{
parent = cur;
cur = cur->right;
}
else if (key < cur->_key)
{
parent = cur;
cur = cur->left;
}
//找到了
else
{
//要删除的节点只有一个孩子(只有一个右孩子)或是没有孩子时
if (cur->left == nullptr)
{
//要删除的节点是根节点时
if (cur == _root)
_root = _root->right;
else
{
if (parent->left == cur)
parent->left = cur->right;
else
parent->right = cur->right;
}
delete cur;
}
//要删除的节点只有一个左孩子
else if (cur->right == nullptr)
{
if (cur == _root)
_root = _root->left;
else
{
if (parent->left == cur)
parent->left = cur->left;
else
parent->right = cur->left;
}
delete cur;
}
//要删除的节点有两个孩子
else
{
Node* RightMin = cur->right;//寻找cur右子树的最小值,也就是右子树最左边节点
Node* MinParent = cur;
while (RightMin->left)
{
MinParent = RightMin;
RightMin = RightMin->left;
}
cur->_key = RightMin->_key;
//如果右子树最小值在右边
if (RightMin == MinParent->right)
MinParent->right = RightMin->right;
else
MinParent->left = RightMin->right;
delete RightMin;
}
return true;
}
}
//未找到
return false;
}
~BSTree()
{
Destroy(_root);
}
void InOrder()
{
_InOrder(_root);
cout << endl;
}
private:
//通过子函数完成中序遍历
void _InOrder(Node* root)
{
if (root == nullptr)
return;
_InOrder(root->left);
cout << root->_key << ":" << root->_value << endl;
_InOrder(root->right);
}
void Destroy(Node* root)
{
if (root == nullptr)
return;
Destroy(root->left);
Destroy(root->right);
free(root);
}
private:
Node* _root;
};
//根据输入的英文单词翻译出对应的中文
void Test1()
{
BSTree<string, string> dir;
dir.Insert("index", "下标");
dir.Insert("binary", "二进制");
dir.Insert("position", "位置");
dir.Insert("inorder", "中序");
dir.Insert("polymorphic", "多态");
string s;
while (cin >> s)
{
BSTreeNode<string, string>* ret;
ret = dir.Find(s);
if (ret)
{
cout << "对应的中文是:";
cout << ret->_value << endl;
}
else
cout << "无此单词的翻译或单词错误!" << endl;
}
}
//统计水果出现的次数
void Test2()
{
string arr[] = { "香蕉","橙子","葡萄","橙子","香蕉","橙子","草莓","葡萄" };
BSTree<string, int> count;
for (auto& str : arr)
{
BSTreeNode<string, int>* ret = count.Find(str);
if (ret)
ret->_value++;
else
count.Insert(str, 1);
}
count.InOrder();
}
}
以上就是搜索二叉树的实现和应用了。希望我的文章对你有所帮助,欢迎👍点赞 ,📝评论,🌟关注,⭐️收藏
