实现淘宝搜索后界面显示商品列表效果

目录

activity_main.xml

list_view_header.xml

mainactivity.xml

---

用于高校Android studio课程课后作业实例，如无必要，请勿抄袭

实现了商品列表化的效果，包含了六个商品，需要添加商品请自行研究

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <TextView
        android:layout_width="match_parent"
        android:layout_height="45dp"
        android:text="水果商城"
        android:textSize="18sp"
        android:textColor="#FFFFFF"
        android:background="#FA3C78"
        android:gravity="center" />
    <ListView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/lv"/>
</LinearLayout>

list_view_header.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp">
    <ImageView
        android:layout_width="120dp"
        android:layout_height="90dp"
        android:id="@+id/iv"
        android:layout_centerVertical="true" />
    <RelativeLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="10dp"
        android:layout_toRightOf="@+id/iv"
        android:layout_centerVertical="true">
        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/title"
            android:text="桌子"
            android:textSize="20sp"
            android:textColor="#000000" />
        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/tv_price"
            android:text="价格:"
            android:textSize="20sp"
            android:layout_marginTop="10dp"
            android:layout_below="@id/title"
            android:textColor="#FF8F03" />
        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/price"
            android:text="1000"
            android:textSize="20sp"
            android:layout_marginTop="10dp"
            android:layout_below="@id/title"
            android:layout_toRightOf="@id/tv_price"
            android:textColor="#FF8F03" />
    </RelativeLayout>
</RelativeLayout>

mainactivity.xml

package com.example.myapplication;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;


public class MainActivity extends Activity {
    private  String[] titles = {"苹果","香蕉","梨子","火龙果","猕猴桃","桃子"};
    private  String[] prices = {"10元/kg","8元/kg","7元/kg","15元/kg","10元/kg","11元/kg"};

    private int[] icons = {R.drawable.pingguo,R.drawable.xiangjiao,R.drawable.lizi,R.drawable.huolongguo,R.drawable.mihoutoa,R.drawable.taozi};

    protected  void onCreate(Bundle saveInstanceState){
        super.onCreate(saveInstanceState);
        setContentView(R.layout.activity_main);

        ListView mListView = (ListView) findViewById(R.id.lv);

        MyBaseAdaPter mAdapter = new MyBaseAdaPter();

        mListView.setAdapter(mAdapter);
    }
class MyBaseAdaPter extends  BaseAdapter{
        @Override
        public int getCount( ){
            return  titles.length;
        }
        @Override
        public Object getItem(int position){
            return titles[position];
        }
        @Override
        public long getItemId(int position){
            return  position;
        }
        @Override
        public View getView(int position,View convertView,ViewGroup parent){
            ViewHolder holder;
            if(convertView == null){
                convertView = View.inflate( MainActivity.this,R.layout.list_item,null);
                holder= new ViewHolder();
                holder.title=(TextView) convertView.findViewById(R.id.title);
                holder.price=(TextView) convertView.findViewById(R.id.price);
                holder.iv=(ImageView) convertView.findViewById(R.id.iv);
                convertView.setTag(holder);
            }
            else {
                holder = (ViewHolder) convertView.getTag();
            }
            holder.title.setText(titles[position]);
            holder.price.setText(prices[position]);
            holder.iv.setBackgroundResource(icons[position]);
            return  convertView;
        }
    }
    static class ViewHolder{
        TextView title;
        TextView price;
        ImageView iv;
    }
}

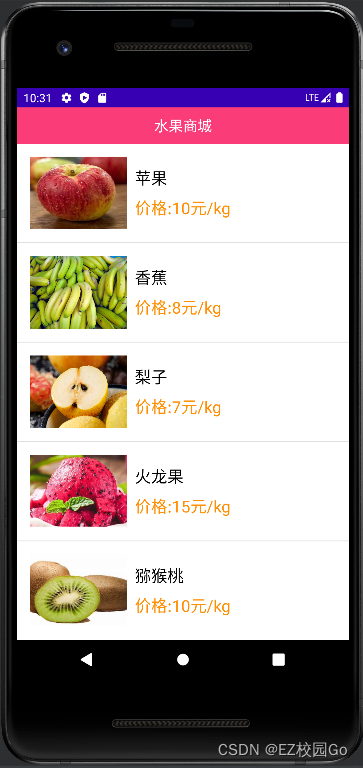

修改后，运行界面

同学们，交了学费一定要好好学习啊，抄来抄去终究害己

加关注点赞，感谢！！！

注意：直接复制代码使用时 ，请添加自己的背景图片和修改文件名，其他报错请留言
