纯vue 获取usb串口，实现电子秤的对接

说明：解决生产上过秤重量手动输入出错问题

效果图：

 一：代码部分

        1、创建一个名字为seriaport.js文件（随便定义，为下面页面引入使用）




export default class MySerialPort  {
  constructor() {
    this.state = {
      portIndex: undefined,
      ports: [],
      isOpen: false,
      writeType: 1,
      readType: 1,
      isScroll: true,
      readValue: [],
      status:false,
      //port参数
      baudRate: "9600",
      dataBits: "8",
      stopBits: "1",
      parity: "none",
      flowControl: "none",
    };
    this.keepReading=false;
    this.getPorts = this.getPorts.bind(this);
    this.handleRequestPort = this.handleRequestPort.bind(this);
    this.handleChildrenChange = this.handleChildrenChange.bind(this);
    this.readText = this.readText.bind(this);
    this.writeText = this.writeText.bind(this);
    this.handleClear = this.handleClear.bind(this);
    this.a2hex = this.a2hex.bind(this);
    this.hex2a = this.hex2a.bind(this);
    this.hex2atostr=this.hex2atostr.bind(this);
    this.reader={};
    this.closed;
  }

  async getPorts() {
    // 获取已授权的全部串口
    let ports = await navigator.serial.getPorts();
    this.setState({
      ports,
    });
  }
  async handleRequestPort() {
    // 请求授权
    try {
      await navigator.serial.requestPort();
      await this.getPorts();
    } catch (e) {
      this.$message.error(e.toString());
    }
  }
  async openPort(portIndex, isOpen,callBack=null) {
    // 打开串口
    let port = this.state.ports[portIndex];
    if (!isOpen) {
      // 关闭串口
      this.keepReading = false;
      this.reader.cancel();
      await this.closed;
      this.handlePortOpen({
        portIndex,
        isOpen,
      });
    } else {
      await port.open({
        baudRate: this.state.baudRate,
        dataBits: this.state.dataBits,
        stopBits: this.state.stopBits,
        parity: this.state.parity,
        flowControl: this.state.flowControl,
      });
      this.handlePortOpen({
        portIndex,
        isOpen,
      });
      this.keepReading = true;
      this.closed=this.readUntilClosed(portIndex,callBack);
    }
  }
  async readUntilClosed(portIndex,callBack=null) {
    let port = this.state.ports[portIndex];
    while (port.readable && this.keepReading) {
      this.reader = port.readable.getReader();
      try {
        let readCache=[]
        while (true) {
          const { value, done } = await this.reader.read();
          if (done) {
            break;
          }
          readCache.push(...value)
          setTimeout(() => {
          if(readCache.length>0){
            this.readText(readCache);
            callBack(readCache)
            readCache=[]
          }
          }, 300);//串口缓存
        }
      } catch (error) {
        this.$message.error(error.toString());
      } finally {
        this.reader.releaseLock();
      }
      await port.close();
    }
  }
  handlePortOpen({ portIndex, isOpen }) {
    // 处理打开串口
    this.setState({
      portIndex,
      isOpen,
    });
  }
  handleChildrenChange(type, value) {
    this.setState({
      [type]: value,
    });
  }
  portWrite(value) {
    return new Promise(async (resolve, reject) => {
      if (!this.state.isOpen) {
        this.$message.error("串口未打开");
        reject();
        return;
      } else {
        let port = this.state.ports[this.state.portIndex];
        const writer = port.writable.getWriter();
        await writer.write(new Uint8Array(value));
        writer.releaseLock();
        resolve(value);
      }
    });
  }
  readText(value) {
    // console.log(value, "读取");
    let newValue = this.state.readValue.concat({
      value,
      type: 1,
    });
    this.setState({
      readValue: newValue,
    });
  }
  writeText(value) {
    // console.log(value, "写入");
    this.portWrite(value).then((res) => {
      let newValue = this.state.readValue.concat({
        value: res,
        type: 1,
      });
      this.setState({
        readValue: newValue,
      });
    });
  }
  handleClear() {
    this.setState({
      readValue: [],
    });
  }
  componentDidMount() {
    this.getPorts();
  }
  handleState(status) {
    this.setState({
      status,
    });
  }
  setState(obj){
    Object.keys(this.state).forEach(key => {
           if(obj[key]!=undefined){
            this.state[key]=obj[key]
           }
      });
  }
  //字节转字符串
  hex2atostr (arr) {

    return String.fromCharCode.apply(String, arr);

  }
   hex2a(hexx) {
    return String.fromCharCode(hexx);
  }
  //字符转16进制
 a2hex(str) {
    return str.charCodeAt(0);
}
}

        2、创建一个为usb.json 文件（随便定义，为下面页面引入使用）

        文件过大，下载地址（因为大部分是参考这位大佬的，一部分是按照自己的需求进行更改的ZhangY1217的博客_CSDN博客-java,c#,java23种设计模式领域博主）

文件下载链接：https://download.csdn.net/download/ZhangY1217/86662302

3、页面代码部分

<template>
  <span>
    <a-row :gutter="[10, 1]">
      <a-col :span="6">
             <a-form-item :labelCol="{ span: 6 }" :wrapperCol="{ span: 16 }">
                  <template v-slot:label>
//v-has="'cont:Scales'" 为管理员权限，方便调试，普通用户进入页面直接授权，是为了第一次进行调试
                    <a v-has="'cont:Scales'" @click="getScales"><a-icon type="windows"/></a>
                    <span> 重&nbsp;&nbsp; &nbsp; &nbsp; 量 </span>
                  </template>
                  <!-- <a-input-number /> -->
                  <a-input-search
                    placeholder=" "
                    enter-button="换端口"
                    v-model="ObjFrom.qtReal"
                    @pressEnter="OnScreen"
                    :formatter="value => `${value}`.replace(/\B(?=(\d{3})+(?!\d))/g, ',')"
                    :parser="value => `${value}`.replace(/\$\s?|(,*)/g, '')"
                    :precision="2"
                    style="width: 100%"
                    @search="obtainAuthorization"
                    :key="time1"
                  />
                </a-form-item>
</a-col>
</a-row>
</span>
</template>
//js部分
<script>
//第一步新建的文件名称
import MySerialPort from '@api/seriaport.js'
//第二步新建的
import USBDevice from '@api/usb.json'
export default {
  name: 'MzInProducts',
  components: {
    MzOrderlist,
    LbCard,
    modalScales
  },
  data() {
    return {
      // 电子秤
      form: {
        baudRate: '9600',
        dataBits: '8',
        stopBits: '1',
        parity: 'none',
        flowControl: 'none',
        desc: '',
        type: '1',
        isShowHistory: false,
        port: '1'
      },
      btnType: 'primary',
    //这个portsList是我自己写死的，因为我的电子秤是这个名称
      portsList: [
        {
          label: 'PL2303 Serial Port / Mobile Action MA-8910P',
          value: 1
        }
      ],

ObjFrom:{},
      readType: 1,
      time1: '',
    }
  },
  mounted() {
    this.loadData()
  },
  methods: {
    // 链接配置页面

    // 电子称配置
    loadData() {
      console.log(navigator)
      console.log('serial' in navigator)
      if ('serial' in navigator) {
        this.myserialport = new MySerialPort()
        this.getPorts()
        navigator.serial.addEventListener('connect', e => {
          this.$message.success('电子秤已连接')
          this.getPorts()
        })
        navigator.serial.addEventListener('disconnect', e => {
          this.$message.error('设备已断开')
        })
        this.restaurants = this.loadAll()
      } else {
        this.$message.error('当前浏览器不支持，请换成谷歌浏览器8 9 以上浏览器')
      }
    },
    //   链接电子秤
    async connectBtn() {
      if (this.btnType == 'primary') {
        try {
          this.myserialport.state.baudRate = this.form.baudRate
          this.myserialport.state.dataBits = this.form.dataBits
          this.myserialport.state.stopBits = this.form.stopBits
          this.myserialport.state.parity = this.form.parity
          this.myserialport.state.flowControl = this.form.flowControl
          await this.myserialport.openPort(this.form.port, true, this.callBack)
        } catch (error) {
          this.$message.error('串口连接失败！请关闭其他页面占用电子称的系统，确保电子秤的是唯一的值')
        }
        if (this.myserialport.state.isOpen) {
          this.$message.success('电子秤链接成功')
          this.btnType = 'dashed'
          this.btnText = '关闭电子称'
        }
      } else {
        this.myserialport.openPort(this.form.port, false, this.callBack)
        this.$message.success('串口关闭成功')
        this.btnType = 'primary'
        this.btnText = '链接电子秤'
      }
    },
    //接受数据的回调
    callBack(value) {
//this.ObjFrom.qtReal 是input 的值
      if (this.form.isShowHistory) this.ObjFrom.qtReal = this.getNumberFromStr(this.readLi().join(''))
      else {
        if (value.length > 0) this.ObjFrom.qtReal = this.getNumberFromStr(this.myserialport.hex2atostr(value))
      }
      console.log(this.ObjFrom.qtReal)
      this.time1 = Date.now()
    },
    clearHistory() {
      this.form.desc = ''
      this.myserialport.state.readValue = []
    },
    loadHistory() {
      if (this.form.isShowHistory) {
        this.form.desc = this.readLi().join('')

        console.log(temp[temp.length - 1].join(''))
      } else {
        let temp = this.readLi()
        if (temp.length > 0) this.form.desc = temp[temp.length - 1].join('')
        console.log(temp[temp.length - 1].join(''))
      }
    },
    readLi() {
      let readType = this.readType
      return this.myserialport.state.readValue.map((items, index) => {
        const item = items.value
        const type = items.type // 1接收，2发送
        let body = []
        if (item !== undefined) {
          let strArr = []
          for (let hex of Array.from(item)) {
            strArr.push(hex.toString(16).toLocaleUpperCase())
          }
          if (strArr.includes('D') && strArr.includes('A')) {
            if (strArr.indexOf('A') - strArr.indexOf('D') === 1) {
              strArr.splice(strArr.indexOf('D'), 1)
              strArr.splice(strArr.indexOf('A'), 1, <br key={0} />)
            }
          }
          strArr = strArr.map(item => {
            if (typeof item === 'string') {
              if (readType === 1) {
                return this.myserialport.hex2a(parseInt(item, 16))
              } else if (readType === 2) {
                return item + ' '
              }
            }
            return item
          })
          if (typeof strArr[strArr.length - 1] === 'string') {
            strArr.push('\r\n')
          }
          body.push(strArr.join(''))
        }
        return body
      })
    },

    //授权
    async obtainAuthorization() {
      if ('serial' in navigator) {
        console.log('The Web Serial API is supported.')
        if (!this.myserialport) this.myserialport = new MySerialPort()
        try {
          await this.myserialport.handleRequestPort()
          this.$message.success('串口授权成功')
          this.getPortInfo(this.myserialport.state.ports)
        } catch (error) {
          this.$message.warning('未选择新串口授权！')
        }
      } else {
        this.$message.error('当前为HTTP模式或者浏览器版本过低，不支持网页连接串口')
      }
    },
    //串口列表初始化
    getPortInfo(portList) {
      this.portsList = []
      portList.map((port, index) => {
        const { usbProductId, usbVendorId } = port.getInfo()
        if (usbProductId === undefined || usbVendorId === undefined) {
          // this.portsList.push({ label: "未知设备" + index, value: index });
        } else {
          const usbVendor = USBDevice.filter(item => parseInt(item.vendor, 16) === usbVendorId)
          let usbProduct = []
          if (usbVendor.length === 1) {
            usbProduct = usbVendor[0].devices.filter(item => parseInt(item.devid, 16) === usbProductId)
          }
          console.log(usbProduct[0].devname)
          this.portsList.push({ label: usbProduct[0].devname, value: index })
          if (this.portsList.length > 0) {
            this.form.port = this.portsList[0].value
          }
        }
      })
    },
    async getPorts() {
      await this.myserialport.getPorts()
      this.getPortInfo(this.myserialport.state.ports)
      this.connectBtn()
    },
    querySearch(queryString, cb) {
      var restaurants = this.restaurants
      var results = queryString ? restaurants.filter(this.createFilter(queryString)) : restaurants
      // 调用 callback 返回建议列表的数据
      cb(results)
    },
    createFilter(queryString) {
      return restaurant => {
        return restaurant.value.toLowerCase().indexOf(queryString.toLowerCase()) === 0
      }
    },
    loadAll() {
      return [
        { value: '110' },
        { value: '300' },
        { value: '600' },
        { value: '1200' },
        { value: '2400' },
        { value: '4800' },
        { value: '7200' },
        { value: '9600' },
        { value: '14400' },
        { value: '19200' },
        { value: '28800' },
        { value: '38400' },
        { value: '56000' },
        { value: '57600' },
        { value: '76800' },
        { value: '115200' },
        { value: '230400' },
        { value: '460800' }
      ]
    },
    // 截取方法
    getNumberFromStr(str) {
      let matchArr = str.match(/\d+\.\d+/)
      if (matchArr && matchArr.length) {
        let num = parseFloat(matchArr[0])
          .toFixed(2)
          .toString()
        if (num.indexOf('.') === -1) {
          return num
        }
        let numArr = num.split('.')
        if (numArr[0] !== '') {
          numArr[0] = parseInt(numArr[0]).toString()
        }
        if (numArr[0] === '0' && numArr[0].length > 1) {
          numArr[0] = numArr[0].slice(1)
        }
        return numArr.join('.')
      }
      return ''
    },
// ScalesFrom页面是调试页面
    getScales() {
      this.$refs.ScalesFrom.showDrawer()
    }
  }
}
</script>

注： ScalesFrom 后期我在更新上去

4、这个搭建只适合（只支持本机访问和https的，你这个要弄nginx和自己生成证书来用https的才能访问）但是可以通过别的方式解决本地服务器，使用一个局域网访问的需求（解决方法5）

5、解决谷歌服务器安全机制（因为谷歌浏览器有安全机制，我们是http访问，而不是https，https不会有这种问题）

解决方案：

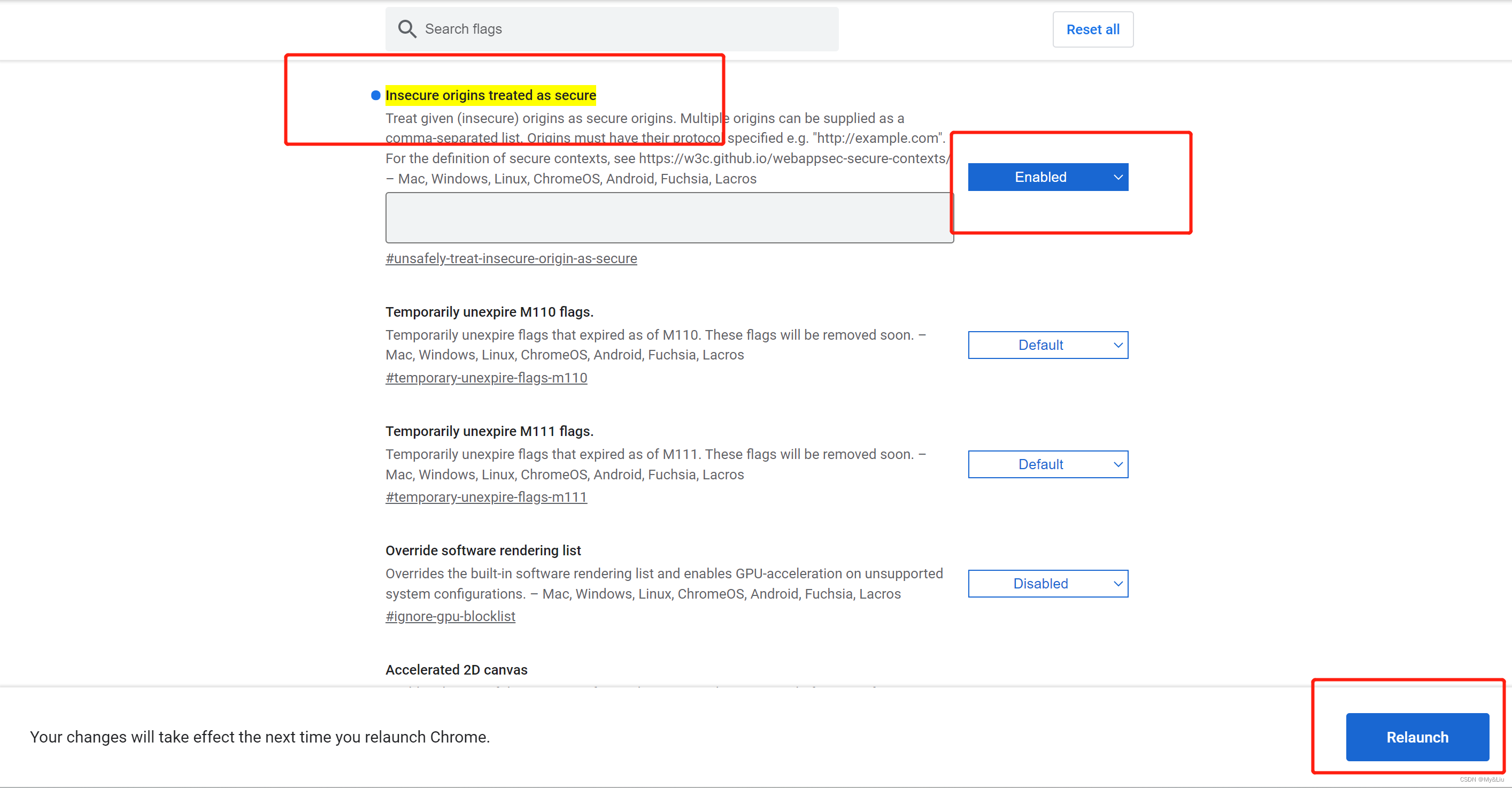

1、谷歌浏览器访问：chrome://flags/#unsafely-treat-insecure-origin-as-secure

设置为Enabled  ---一定点击下面Relaunch

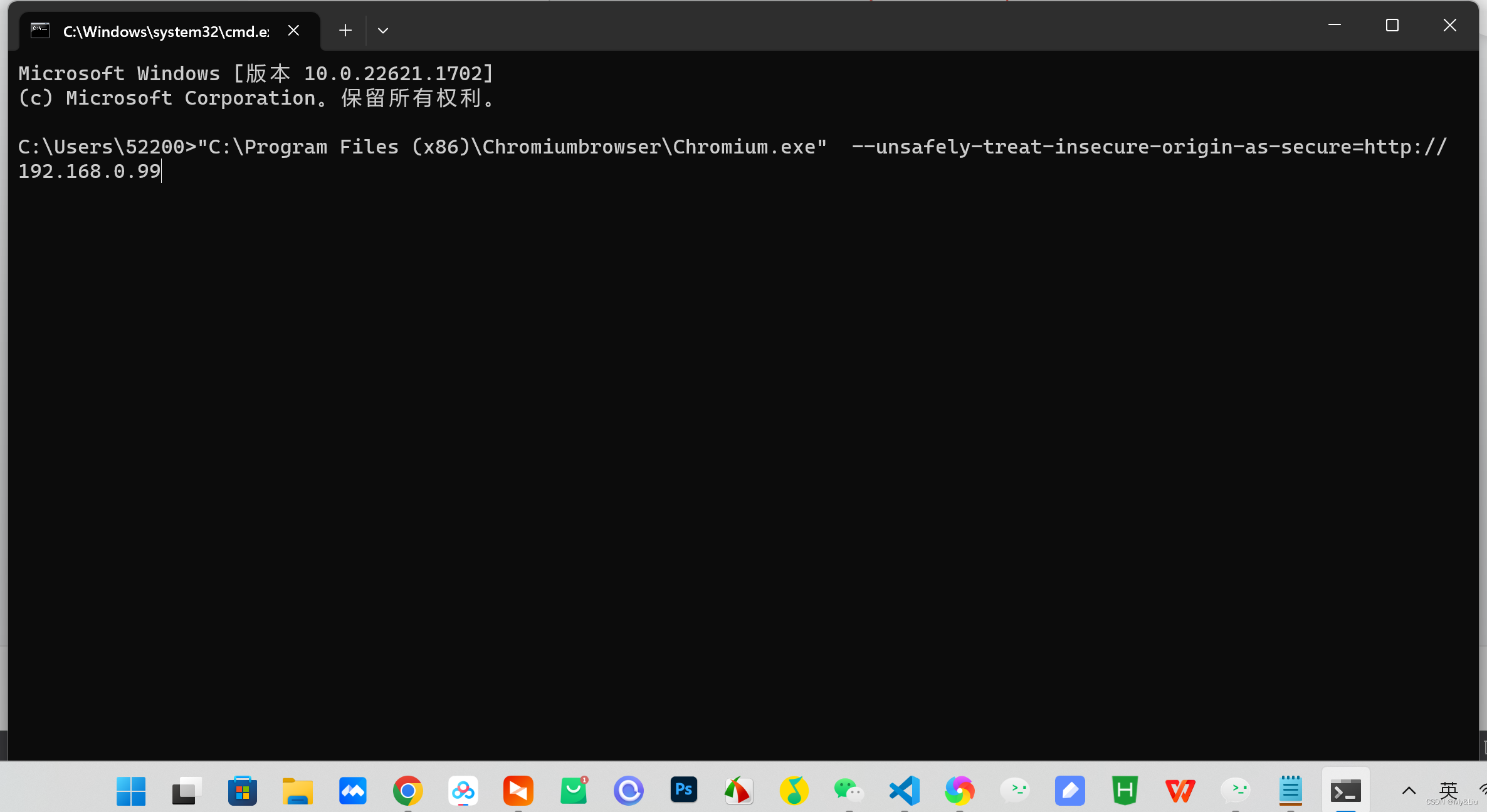

 2、打开电脑终端：

chrome（为你自己安装路径) --unsafely-treat-insecure-origin-as-secure=http://192.168.0.99（http://192.168.0.99 这个是我们服务地址，改为你自己的）

我的地址是（"C:\Program Files (x86)\Chromiumbrowser\Chromium.exe"）则是"C:\Program Files (x86)\Chromiumbrowser\Chromium.exe"  --unsafely-treat-insecure-origin-as-secure=http://192.168.0.99
图片：

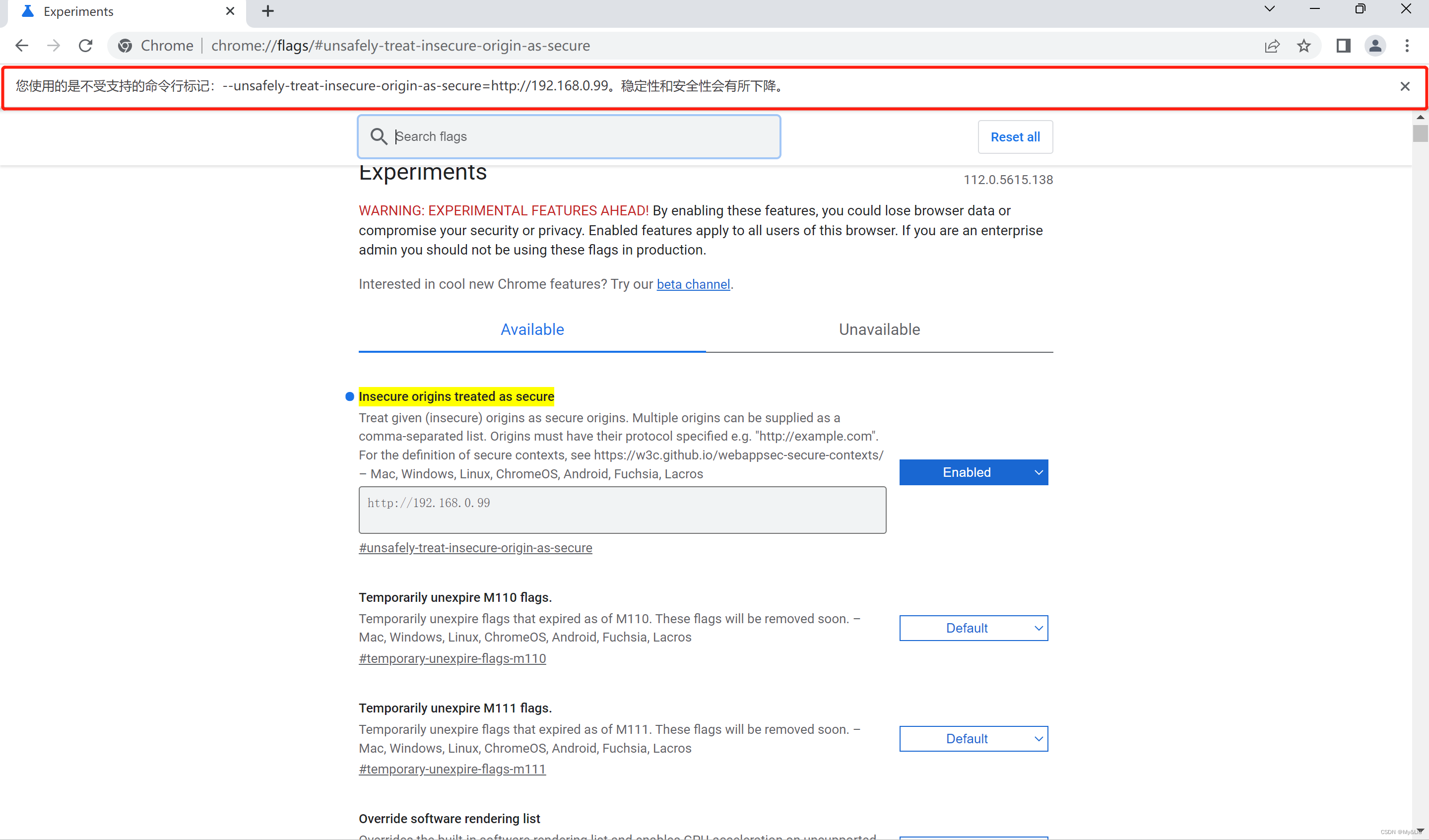

 设置成功之后图片：（这个X号不能删除，否则会清空，我自己电脑试过几次会清空）

问题图片：

注：有问题私信留言
