本文详细介绍了如何在Java项目中使用Maven引入poi-tl库，通过Controller处理GET请求并调用Service，服务端生成包含表格、图片和文本的Word文档，展示了数据绑定和模板渲染的过程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

项目代码

maven依赖

        <dependency>
			  <groupId>com.deepoove</groupId>
			  <artifactId>poi-tl</artifactId>
			  <version>1.10.5</version>
		 </dependency>

controller

    @GetMapping("/word")
    public ResponseEntity<byte[]> getImageAsByteArray() throws IOException {
        byte[] bytes = reportService.exportWord();
        HttpHeaders headers = new HttpHeaders();
        String filename = "导出报告.docx";
        String encodedFilename = new String(filename.getBytes(StandardCharsets.UTF_8), StandardCharsets.ISO_8859_1);
        headers.set("Content-Disposition", "attachment;filename=\""+encodedFilename +"\"");
        return new ResponseEntity<>(bytes, headers, HttpStatus.OK);
    }

service

@Override
    public byte[] exportWord() throws IOException {
        // 构造数据
        Map<String, Object> dataMap = Maps.newHashMap();
        // 描述
        dataMap.put("generalDescription", "这是报告生成的总体概述。请详情描述总体概述！");
        List<ReportTable> tableList = Lists.newArrayListWithCapacity(6);
        // 表格
        tableList.add(ReportTable.builder().no("1").category("一类").product("手机1").build());
        tableList.add(ReportTable.builder().no("2").category("二类").product("手机2").build());
        tableList.add(ReportTable.builder().no("3").category("三类").product("手机3").build());
        tableList.add(ReportTable.builder().no("4").category("四类").product("手机4").build());
        tableList.add(ReportTable.builder().no("5").category("五类").product("手机5").build());
        tableList.add(ReportTable.builder().no("6").category("六类").product("手机6").build());
        dataMap.put("table", tableList);
        // 图片
        try (InputStream inputStreamPicture = ReportServiceImpl.class.getClassLoader().getResourceAsStream("static/1.jpg");){
            dataMap.put("picture", Pictures.ofStream(inputStreamPicture).size(400, 400).create());
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
        // 绑定 render渲染表格等
        Configure config = Configure.builder().bind("table", new ReportTableRender()).build();
        // 文件写出
        byte[] bytes;
        FileOutputStream fos = null;
        FileInputStream fis = null;
        XWPFTemplate template = null;
        try (InputStream inputStream = ReportServiceImpl.class.getClassLoader().getResourceAsStream("templates/wordExportTemplate.docx")) {

            template = XWPFTemplate.compile(inputStream, config).render(dataMap);
            String tempDir = System.getProperty("java.io.tmpdir");
            File tempFile = File.createTempFile("temp", ".word", new File(tempDir));
            fos = new FileOutputStream(tempFile);
            template.writeAndClose(fos);
            fis = new FileInputStream(tempFile);
            bytes = new byte[Math.toIntExact(tempFile.length())];
            fis.read(bytes);
            fis.close();
            tempFile.delete();
        } catch (IOException e) {
            throw new RuntimeException(e);
        } finally {
            fos.close();
            fis.close();
            template.close();
        }
        return bytes;
    }

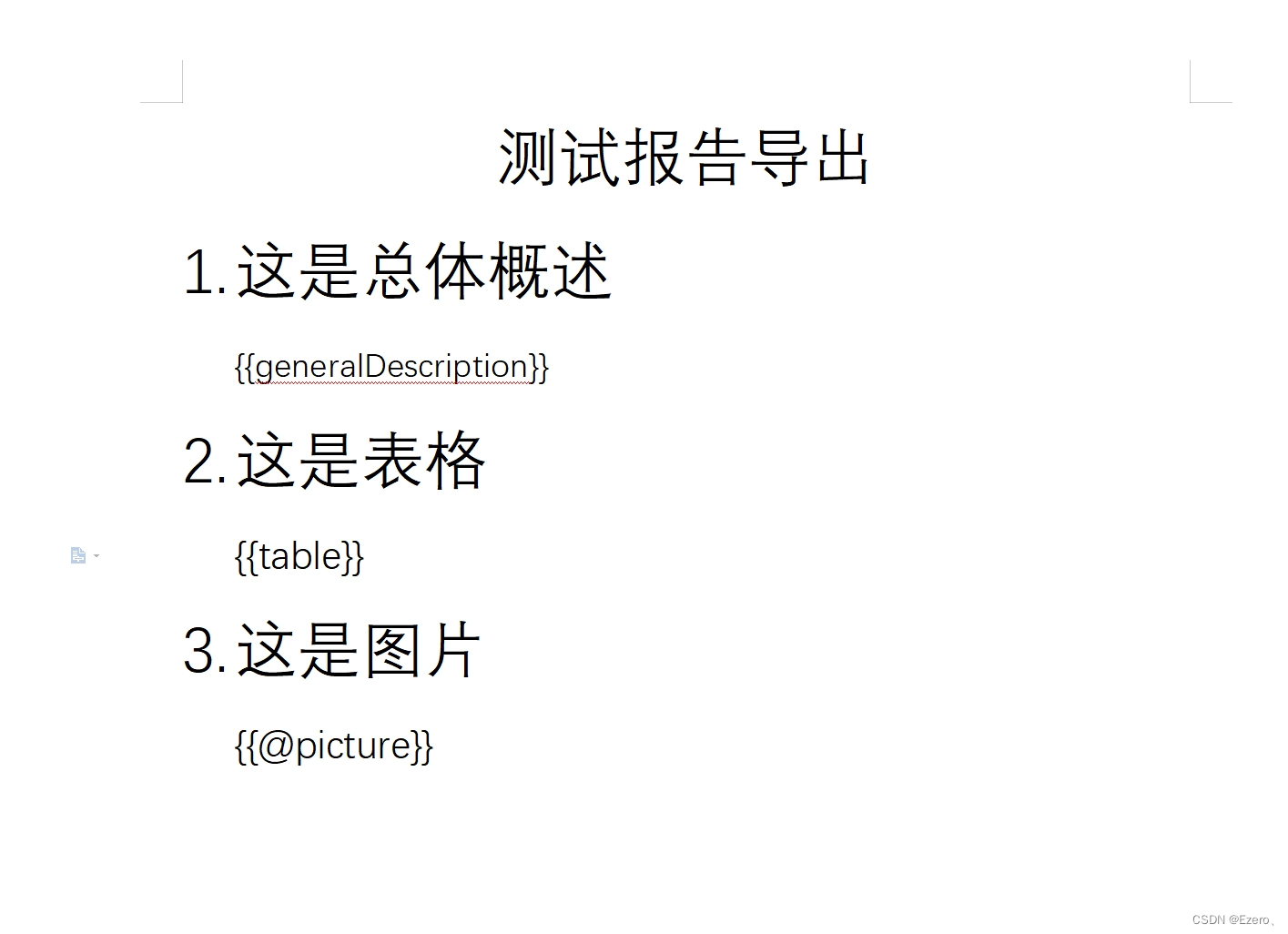

word模板

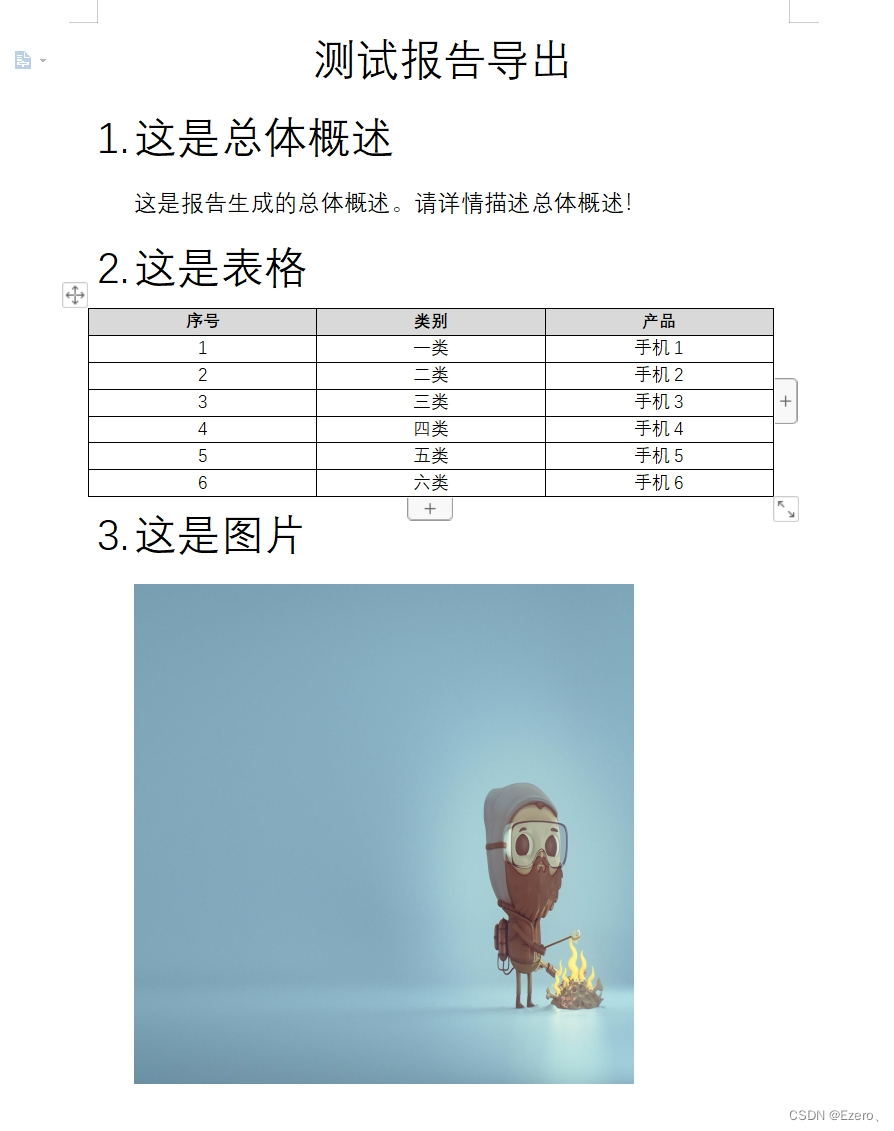

导出效果

导出不同样式代码

文本：在标题模板中使用{{字段key}} 然后在生成的时候放到数据map中

        // 构造数据
        Map<String, Object> dataMap = Maps.newHashMap();
        // 描述
        dataMap.put("generalDescription", "这是报告生成的总体概述。请详情描述总体概述！");

表格：首先是模板绑定也是{{字段key}} 然后放入数据map中，但是表格需要编写一个表格代理类去继承AbstractRenderPolicy。并且在渲染的时候绑定到template里面。如果有多个render可以bind多个

// 表格
        tableList.add(ReportTable.builder().no("1").category("一类").product("手机1").build());
        tableList.add(ReportTable.builder().no("2").category("二类").product("手机2").build());
        tableList.add(ReportTable.builder().no("3").category("三类").product("手机3").build());
        tableList.add(ReportTable.builder().no("4").category("四类").product("手机4").build());
        tableList.add(ReportTable.builder().no("5").category("五类").product("手机5").build());
        tableList.add(ReportTable.builder().no("6").category("六类").product("手机6").build());
        dataMap.put("table", tableList);
        // 绑定 render渲染表格等
        Configure config = Configure.builder().bind("table", new ReportTableRender()).build();

// 渲染时要绑定
 template = XWPFTemplate.compile(inputStream, config).render(dataMap);

表格代理类

package com.example.boot.report.render;

import cn.hutool.core.collection.CollUtil;
import com.deepoove.poi.data.style.BorderStyle;
import com.deepoove.poi.policy.AbstractRenderPolicy;
import com.deepoove.poi.render.RenderContext;
import com.deepoove.poi.util.TableTools;
import com.deepoove.poi.util.UnitUtils;
import com.deepoove.poi.xwpf.BodyContainer;
import com.deepoove.poi.xwpf.BodyContainerFactory;
import com.example.boot.report.model.ReportTable;
import org.apache.poi.xwpf.usermodel.*;
import org.springframework.stereotype.Component;

import java.util.List;
@Component
public class ReportTableRender extends AbstractRenderPolicy<List<ReportTable>> {

    private static final int COL_NUM = 3;
    private static final float TABLE_WIDTH = 14.49f;
    private static final String[] COL_TITLE = {"序号", "类别", "产品"};

    @Override
    protected void afterRender(RenderContext<List<ReportTable>> context) {
        // 清空标签
        clearPlaceholder(context, true);
    }

    @Override
    public void doRender(RenderContext<List<ReportTable>> context) throws Exception {
        XWPFRun run = context.getRun();
        List<ReportTable> thing = context.getThing();
        BodyContainer bodyContainer = BodyContainerFactory.getBodyContainer(run);
        if (CollUtil.isEmpty(thing)) {
            return;
        }
        insertTable(run, bodyContainer, thing);
    }

    private static void insertTable(XWPFRun run, BodyContainer bodyContainer, List<ReportTable> dto) {
        int row = dto.size() + 1;
        // 插入表格
        XWPFTable table = bodyContainer.insertNewTable(run, row, COL_NUM);
        // 表格宽度
        TableTools.setWidth(table, UnitUtils.cm2Twips(TABLE_WIDTH) + "", null);
        // 边框和样式
        TableTools.borderTable(table, BorderStyle.DEFAULT);
        // 列标题编辑
        XWPFTableRow firstRow = table.getRow(0);
        firstRow.setHeight(0);
        List<XWPFTableCell> firstRowTableCells = firstRow.getTableCells();
        for (int i = 0; i < firstRowTableCells.size(); i++) {
            XWPFTableCell cell = firstRowTableCells.get(i);
            if (i == 0) {
                cell.setWidth("20%");
            }
            cell.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);
            cell.setColor("D9D9D9");
            XWPFParagraph paragraph = cell.getParagraphs().get(0);
            paragraph.setAlignment(ParagraphAlignment.CENTER);
            XWPFRun paraRun = paragraph.createRun();
            paraRun.setText(COL_TITLE[i]);
            paraRun.setFontSize(10);
            paraRun.setBold(true);
        }
        // 数据区域赋值
        List<XWPFTableRow> rows = table.getRows();
        for (int i = 0; i < dto.size(); i++) {
            ReportTable tableDto = dto.get(i);
            XWPFTableRow tableRow = rows.get(i + 1);
            // 第一列
            XWPFTableCell cell = tableRow.getCell(0);
            cell.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);
            XWPFParagraph paragraph = cell.getParagraphs().get(0);
            paragraph.setAlignment(ParagraphAlignment.CENTER);
            paragraph.createRun().setText(tableDto.getNo());
            // 第二列
            cell = tableRow.getCell(1);
            cell.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);
            paragraph = cell.getParagraphs().get(0);
            paragraph.setAlignment(ParagraphAlignment.CENTER);
            paragraph.createRun().setText(tableDto.getCategory());
            // 第三列
            cell = tableRow.getCell(2);
            cell.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);
            paragraph = cell.getParagraphs().get(0);
            paragraph.setAlignment(ParagraphAlignment.CENTER);
            paragraph.createRun().setText(tableDto.getProduct());
        }
    }


}

图片：需要加@符号 {{@picture}} 可以用图片流，url等

        try (InputStream inputStreamPicture = ReportServiceImpl.class.getClassLoader().getResourceAsStream("static/1.2.jpg");){
            dataMap.put("picture", Pictures.ofStream(inputStreamPicture).size(400, 400).create());
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
