对数扫频频率比f2/f1与总时间ts的关系

对数扫频总时间

式中：为每分钟倍频程；为扫频起始频率；为扫频终止频率。

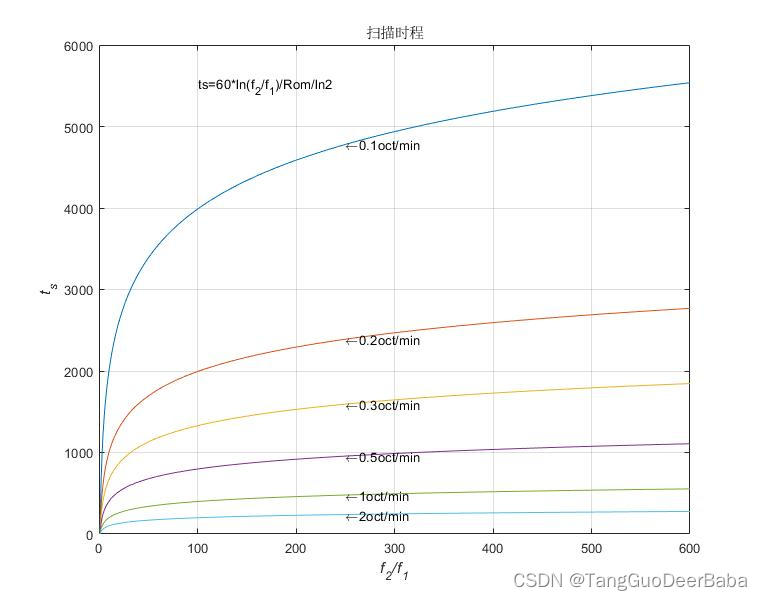

对数扫频频率比f2/f1与总时间ts的关系：

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
clear   %清楚内存中所有变量和函数
clc     %清楚工作窗口中所有显示的内容
close all hidden %关闭所有隐藏的窗口
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

for Rom=[0.1 0.2 0.3 0.5 1 2]
    f=0:600;
    ts=60*log(f)./Rom/log(2);
    plot(f,ts);
    txt=['\leftarrow' num2str(Rom) 'oct/min'];
    text(250,60*log(250)./Rom/log(2),txt)
    hold on;
end
grid on;
title('扫描时程');
xlabel('\it{f}_2/\it{f}_1');
ylabel('\it{t}_s');

formula=['ts=60*ln(f_2/f_1)/Rom/ln2 '];
text(100,5500,formula)
