Linux内核实现名称空间的创建

ip netns命令
可以借助ip netns命令来完成对 Network Namespace 的各种操作。ip netns命令来自于iproute安装包，一般系统会默认安装，如果没有的话，请自行安装。

注意：ip netns命令修改网络配置时需要 sudo 权限。

可以通过ip netns命令完成对Network Namespace 的相关操作，可以通过ip netns help查看命令帮助信息：

[root@localhost ~]# ip netns help
Usage: ip netns list
       ip netns add NAME
       ip netns set NAME NETNSID
       ip [-all] netns delete [NAME]
       ip netns identify [PID]
       ip netns pids NAME
       ip [-all] netns exec [NAME] cmd ...
       ip netns monitor
       ip netns list-id

默认情况下，Linux系统中是没有任何 Network Namespace的，所以ip netns list命令不会返回任何信息。

[root@localhost ~]# ip netns list
[root@localhost ~]#

创建Network Namespace
通过命令创建一个名为ns1的命名空间：

[root@localhost ~]# ip netns list
[root@localhost ~]# ip netns add ns1
[root@localhost ~]# ip netns add ns2
[root@localhost ~]# ip netns list
ns2
ns1

新创建的 Network Namespace 会出现在/var/run/netns/目录下。如果相同名字的 namespace 已经存在，命令会报Cannot create namespace file “/var/run/netns/ns0”: File exists的错误。

[root@localhost ~]# ls /var/run/netns
ns1  ns2
[root@localhost ~]# ip netns add ns2
Cannot create namespace file "/var/run/netns/ns2": File exists

对于每个 Network Namespace 来说，它会有自己独立的网卡、路由表、ARP 表、iptables 等和网络相关的资源。
操作Network Namespace
ip命令提供了ip netns exec子命令可以在对应的 Network Namespace 中执行命令。

查看新创建 Network Namespace 的网卡信息

[root@localhost ~]# ip netns exec ns1 ip addr
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
[root@localhost ~]# ip netns exec ns2 ip addr
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

可以看到，新创建的Network Namespace中会默认创建一个lo回环网卡，此时网卡处于关闭状态。此时，尝试去 ping 该lo回环网卡，会提示（Network is unreachable）网络不可达

[root@localhost ~]# ip netns exec ns1 ping 127.0.0.1
connect: 网络不可达

通过下面的命令启用lo回环网卡：

[root@localhost ~]# ip netns exec ns1 ip link set lo up
[root@localhost ~]# ip netns exec ns1 ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
[root@localhost ~]# ip netns exec ns1 ping 127.0.0.1
PING 127.0.0.1 (127.0.0.1) 56(84) bytes of data.
64 bytes from 127.0.0.1: icmp_seq=1 ttl=64 time=0.055 ms
64 bytes from 127.0.0.1: icmp_seq=2 ttl=64 time=0.035 ms
^C
--- 127.0.0.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 999ms
rtt min/avg/max/mdev = 0.035/0.045/0.055/0.010 ms

转移设备
我们可以在不同的 Network Namespace 之间转移设备（如veth）。由于一个设备只能属于一个 Network Namespace ，所以转移后在这个 Network Namespace 内就看不到这个设备了。

其中，veth设备属于可转移设备，而很多其它设备（如lo、vxlan、ppp、bridge等）是不可以转移的。
veth pair

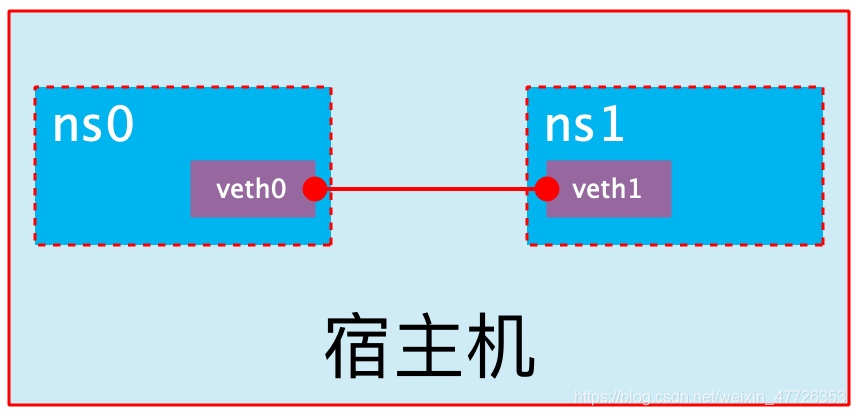

veth pair 全称是 Virtual Ethernet Pair，是一个成对的端口，所有从这对端口一端进入的数据包都将从另一端出来，反之也是一样。
引入veth pair是为了在不同的 Network Namespace 直接进行通信，利用它可以直接将两个 Network Namespace 连接起来。
在这里插入图片描述
创建veth pair

创建一对虚拟网卡
[root@localhost ~]# ip link add type veth
[root@localhost ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:1e:69:85 brd ff:ff:ff:ff:ff:ff
    inet 192.168.175.100/24 brd 192.168.175.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::ea80:e71e:f5fc:9a2c/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
    link/ether 02:42:a5:12:84:e8 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:a5ff:fe12:84e8/64 scope link
       valid_lft forever preferred_lft forever
48: veth0@veth1: <BROADCAST,MULTICAST,M-DOWN> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether ce:ff:53:d1:67:c9 brd ff:ff:ff:ff:ff:ff    //为创建的网卡
49: veth1@veth0: <BROADCAST,MULTICAST,M-DOWN> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 72:ea:ca:75:8b:a4 brd ff:ff:ff:ff:ff:ff    //为创建的网卡

可以看到，此时系统中新增了一对veth pair，将veth0和veth1两个虚拟网卡连接了起来，此时这对 veth pair 处于”未启用“状态。
实现Network Namespace间通信

把veth0给ns1用、veth1给ns2用
[root@localhost ~]# ip link set veth0 netns ns1
[root@localhost ~]# ip link set veth1 netns ns2
可以看到给了网卡之后，真机上面就没有了，所有网卡是移动过去的
[root@localhost ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:1e:69:85 brd ff:ff:ff:ff:ff:ff
    inet 192.168.175.100/24 brd 192.168.175.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::ea80:e71e:f5fc:9a2c/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
    link/ether 02:42:a5:12:84:e8 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:a5ff:fe12:84e8/64 scope link
       valid_lft forever preferred_lft forever
[root@localhost ~]# ip netns exec ns1 ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
48: veth0@if49: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether ce:ff:53:d1:67:c9 brd ff:ff:ff:ff:ff:ff link-netnsid 1
[root@localhost ~]# ip netns exec ns2 ip addr
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
49: veth1@if48: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 72:ea:ca:75:8b:a4 brd ff:ff:ff:ff:ff:ff link-netnsid 0
设置网卡开启
[root@localhost ~]# ip netns exec ns1 ip link set veth0 up
[root@localhost ~]# ip netns exec ns2 ip link set veth1 up
分别查看，发现网卡已经开启
[root@localhost ~]# ip netns exec ns2 ip addr
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
49: veth1@if48: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether 72:ea:ca:75:8b:a4 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::70ea:caff:fe75:8ba4/64 scope link
       valid_lft forever preferred_lft forever
[root@localhost ~]# ip netns exec ns1 ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
48: veth0@if49: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether ce:ff:53:d1:67:c9 brd ff:ff:ff:ff:ff:ff link-netnsid 1
    inet6 fe80::ccff:53ff:fed1:67c9/64 scope link
       valid_lft forever preferred_lft forever
分别添加ip
[root@localhost ~]# ip netns exec ns1 ip addr add 1.1.1.1/24 dev veth0
[root@localhost ~]# ip netns exec ns2 ip addr add 1.1.1.2/24 dev veth1
查看
[root@localhost ~]# ip netns exec ns1 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
48: veth0@if49: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether ce:ff:53:d1:67:c9 brd ff:ff:ff:ff:ff:ff link-netnsid 1
    inet 1.1.1.1/24 scope global veth0
       valid_lft forever preferred_lft forever
    inet6 fe80::ccff:53ff:fed1:67c9/64 scope link
       valid_lft forever preferred_lft forever
[root@localhost ~]# ip netns exec ns2 ip a
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
49: veth1@if48: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether 72:ea:ca:75:8b:a4 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 1.1.1.2/24 scope global veth1
       valid_lft forever preferred_lft forever
    inet6 fe80::70ea:caff:fe75:8ba4/64 scope link
       valid_lft forever preferred_lft forever
网络互相可以ping通
[root@localhost ~]# ip netns exec ns2 ping 1.1.1.1
PING 1.1.1.1 (1.1.1.1) 56(84) bytes of data.
64 bytes from 1.1.1.1: icmp_seq=1 ttl=64 time=6.56 ms
64 bytes from 1.1.1.1: icmp_seq=2 ttl=64 time=0.063 ms
^C
--- 1.1.1.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.063/3.312/6.561/3.249 ms

可以看到，veth pair成功实现了两个不同Network Namespace之间的网络交互。
veth设备重命名

先让网卡down
[root@localhost ~]# ip netns exec ns1 ip link set veth0 down
修改名称
[root@localhost ~]# ip netns exec ns1 ip link set dev veth0 name eth0
开启新网卡
[root@localhost ~]# ip netns exec ns1 ip link set eth0 up
查看
[root@localhost ~]# ip netns exec ns1 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
48: eth0@if49: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether ce:ff:53:d1:67:c9 brd ff:ff:ff:ff:ff:ff link-netnsid 1
    inet 1.1.1.1/24 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::ccff:53ff:fed1:67c9/64 scope link
       valid_lft forever preferred_lft forever

四种网络模式配置

bridge模式配置

用rm创建容器代表一旦退出就自己删除
[root@localhost ~]# docker run -it --name t1 --rm centos /bin/bash
[root@localhost ~]# docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES
caffb83d39f6        centos              "/bin/bash"         12 seconds ago      Up 9 seconds                            t1
退出
[root@caffb83d39f6 /]# exit
exit
[root@localhost ~]# docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES

查看容器状态与docker ps -a一样
[root@localhost ~]# docker container ls -a
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES

在创建容器时添加--network bridge与不加--network选项效果是一致的
[root@localhost ~]# docker run -it --network bridge --name t1 --rm busybox /bin/sh
/ # ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:11:00:02
          inet addr:172.17.0.2  Bcast:172.17.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:8 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:648 (648.0 B)  TX bytes:0 (0.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

/ #

none模式配置

[root@localhost ~]# docker run -it --name t1 --network none --rm busybox
/ # ifconfig -a
lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

/ # exit

container模式配置

[root@localhost ~]# docker run -it --name web1 --rm nginx
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Configuration complete; ready for start up

[root@localhost ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
aa6ed2c4908d        nginx               "/docker-entrypoint.…"   5 seconds ago       Up 4 seconds        80/tcp              web1

[root@localhost ~]# wget -O - -q 172.17.0.2
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

host模式配置
启动容器时直接指明模式为host

[root@localhost ~]# docker run -it --name b2 --rm --network host busybox
/ # ifconfig
docker0   Link encap:Ethernet  HWaddr 02:42:06:25:98:91
          inet addr:10.0.0.1  Bcast:10.0.255.255  Mask:255.255.0.0
          inet6 addr: fe80::42:6ff:fe25:9891/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:55 errors:0 dropped:0 overruns:0 frame:0
          TX packets:82 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:8339 (8.1 KiB)  TX bytes:7577 (7.3 KiB)

ens33     Link encap:Ethernet  HWaddr 00:0C:29:01:78:90
          inet addr:192.168.10.144  Bcast:192.168.10.255  Mask:255.255.255.0
          inet6 addr: fe80::20c:29ff:fe01:7890/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:55301 errors:0 dropped:0 overruns:0 frame:0
          TX packets:26269 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:63769938 (60.8 MiB)  TX bytes:2672449 (2.5 MiB)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:42 errors:0 dropped:0 overruns:0 frame:0
          TX packets:42 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:4249 (4.1 KiB)  TX bytes:4249 (4.1 KiB)

vethffa4d46 Link encap:Ethernet  HWaddr 06:4F:68:16:6E:B0
          inet6 addr: fe80::44f:68ff:fe16:6eb0/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:8 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:0 (0.0 B)  TX bytes:648 (648.0 B)

此时如果我们在这个容器中启动一个http站点，我们就可以直接用宿主机的IP直接在浏览器中访问这个容器中的站点了。

容器的常用操作

查看容器的主机名

主机名代表容器ID
[root@localhost ~]# docker run -it --name t1 --rm busybox
/ # hostname
17b75fa07dda

在容器启动时注入主机名

[root@localhost ~]# docker run -it --name t1 --rm --hostname node1 busybox
/ # hostname
node1
/ # cat /etc/hosts     //注入主机名时会自动创建主机名到IP的映射关系
127.0.0.1       localhost
::1     localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
172.17.0.2      node1
DNS也会自动配置为宿主机的DNS
/ # cat /etc/resolv.conf
# Generated by NetworkManager
nameserver 8.8.8.8
/ # route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.17.0.1      0.0.0.0         UG    0      0        0 eth0
172.17.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth0

手动指定容器要使用的DNS

[root@localhost ~]# docker run -it --name t1 --network bridge --hostname wangqing --dns 114.114.114.114 --rm busybox
/ # cat /etc/resolv.conf
search localdomain
nameserver 114.114.114.114
/ # nslookup -type=a www.baidu.com
Server:         114.114.114.114
Address:        114.114.114.114:53

手动往/etc/hosts文件中注入主机名到IP地址的映射

只能在容器外加，不能在容器里面加
[root@localhost ~]# docker run -it --name t1 --rm --hostname node1 --add-host www.baidu.com:1.1.1.1 busybox
/ # cat /etc/hosts
127.0.0.1       localhost
::1     localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
1.1.1.1 www.baidu.com    //可以看到映射
172.17.0.2      node1

开放容器端口
执行docker run的时候有个-p选项，可以将容器中的应用端口映射到宿主机中，从而实现让外部主机可以通过访问宿主机的某端口来访问容器内应用的目的。

-p选项能够使用多次，其所能够暴露的端口必须是容器确实在监听的端口。

-p选项的使用格式：

-p （containerPort）
将指定的容器端口映射至主机所有地址的一个动态端口
-p （hostPort）:（containerPort）
将容器端口（containerPort）映射至指定的主机端口<（hostPort）
-p （ip）::（containerPort）
将指定的容器端口（containerPort）映射至主机指定ip的动态端口
-p （ip）:（hostPort）:（containerPort）
将指定的容器端口（containerPort）映射至主机指定（ip）的端口（hostPort）
动态端口指的是随机端口，具体的映射结果可使用docker port命令查看。

[root@localhost ~]# docker run -d --name web2 -p 80 nginx
可以看到端口被映射到32768
[root@localhost ~]# docker port web2
80/tcp -> 0.0.0.0:32769

由此可见，容器的80端口被暴露到了宿主机的32769端口上，此时我们在宿主机上访问一下这个端口看是否能访问到容器内的站点

[root@localhost ~]# curl http://127.0.0.1:32769
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

iptables防火墙规则将随容器的创建自动生成，随容器的删除自动删除规则。

查看防火墙规则
[root@localhost ~]# iptables -t nat -nvL

自定义docker0桥的网络属性信息
自定义docker0桥的网络属性信息需要修改/etc/docker/daemon.json配置文件

[root@localhost ~]# vim /etc/docker/daemon.json
[root@localhost ~]# cat /etc/docker/daemon.json
{
    "registry-mirrors": ["https://xdhxsbuh.mirror.aliyuncs.com"],
    "bip":"192.168.20.1/24"     //添加内容
}
[root@localhost ~]# systemctl restart docker
[root@localhost ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:1e:69:85 brd ff:ff:ff:ff:ff:ff
    inet 192.168.175.100/24 brd 192.168.175.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::ea80:e71e:f5fc:9a2c/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
    link/ether 02:42:a5:12:84:e8 brd ff:ff:ff:ff:ff:ff
    inet 192.168.20.1/24 brd 192.168.20.255 scope global docker0
       valid_lft forever preferred_lft forever     //可以看到网桥为192.168.20.1
    inet6 fe80::42:a5ff:fe12:84e8/64 scope link
       valid_lft forever preferred_lft forever

核心选项为bip，即bridge ip之意，用于指定docker0桥自身的IP地址；其它选项可通过此地址计算得出。
docker远程连接
dockerd守护进程的C/S，其默认仅监听Unix Socket格式的地址(/var/run/docker.sock)，如果要使用TCP套接字，则需要修改/etc/docker/daemon.json配置文件，然后重启docker服务
在客户端上向dockerd直接传递“-H|–host”选项指定要控制哪台主机上的docker容器

docker -H 192.168.10.145:2375 ps

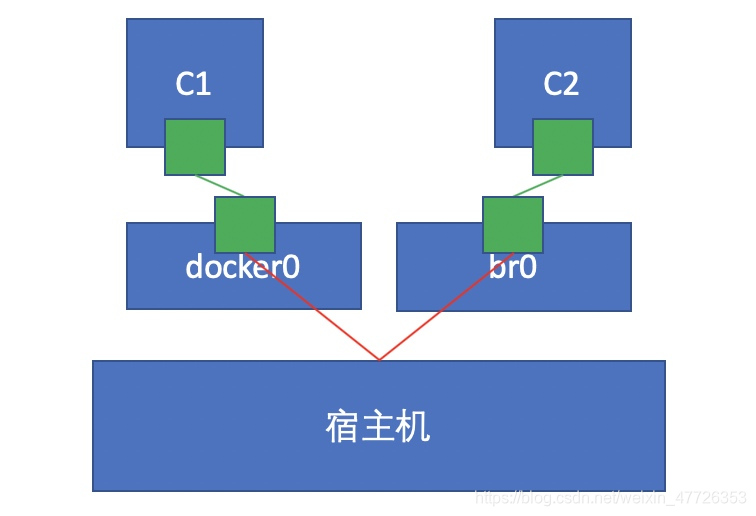

docker创建自定义桥
创建一个额外的自定义桥，区别于docker0

[root@localhost ~]# docker network ls
NETWORK ID          NAME                DRIVER              SCOPE
69ab15085a9b        bridge              bridge              local
8ab40bae74b5        host                host                local
6ae96818bcac        none                null                local
[root@localhost ~]# docker network create -d bridge --subnet=192.25.0.0/16 --gateway=192.25.0.1 br0
e23b607d5d242ae8eeba1c7c2f9e03ce15f4ac057597f7c959e8c698cfa5bf4c
[root@localhost ~]# docker network ls
NETWORK ID          NAME                DRIVER              SCOPE
e23b607d5d24        br0                 bridge              local
69ab15085a9b        bridge              bridge              local
8ab40bae74b5        host                host                local
6ae96818bcac        none                null                local
[root@localhost ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:1e:69:85 brd ff:ff:ff:ff:ff:ff
    inet 192.168.175.100/24 brd 192.168.175.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::ea80:e71e:f5fc:9a2c/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
    link/ether 02:42:a5:12:84:e8 brd ff:ff:ff:ff:ff:ff
    inet 192.168.20.1/24 brd 192.168.20.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:a5ff:fe12:84e8/64 scope link
       valid_lft forever preferred_lft forever
70: br-e23b607d5d24: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
    link/ether 02:42:2e:c9:3e:c8 brd ff:ff:ff:ff:ff:ff
    inet 192.25.0.1/16 brd 192.25.255.255 scope global br-e23b607d5d24
       valid_lft forever preferred_lft forever

使用新创建的自定义桥来创建容器：

[root@localhost ~]# docker run --rm --network br0 nginx
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Configuration complete; ready for start up

[root@localhost ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
544db080d1c1        nginx               "/docker-entrypoint.…"   22 seconds ago      Up 21 seconds       80/tcp              sleepy_hofstadter
[root@localhost ~]# docker inspect 544db080d1c1  //可以看到地址为上面定义的
省略。。。。。。
                    "Gateway": "192.25.0.1",
                    "IPAddress": "192.25.0.2",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "02:42:c0:19:00:02",
                    "DriverOpts": null
                }

在这里插入图片描述

A panacea

关注

0
点赞
踩
0

收藏

觉得还不错? 一键收藏
0
评论
docker容器网络配置

Linux内核实现名称空间的创建ip netns命令可以借助ip netns命令来完成对 Network Namespace 的各种操作。ip netns命令来自于iproute安装包，一般系统会默认安装，如果没有的话，请自行安装。注意：ip netns命令修改网络配置时需要 sudo 权限。可以通过ip netns命令完成对Network Namespace 的相关操作，可以通过ip netns help查看命令帮助信息：[root@localhost ~]# ip netns helpUsa
复制链接

扫一扫
