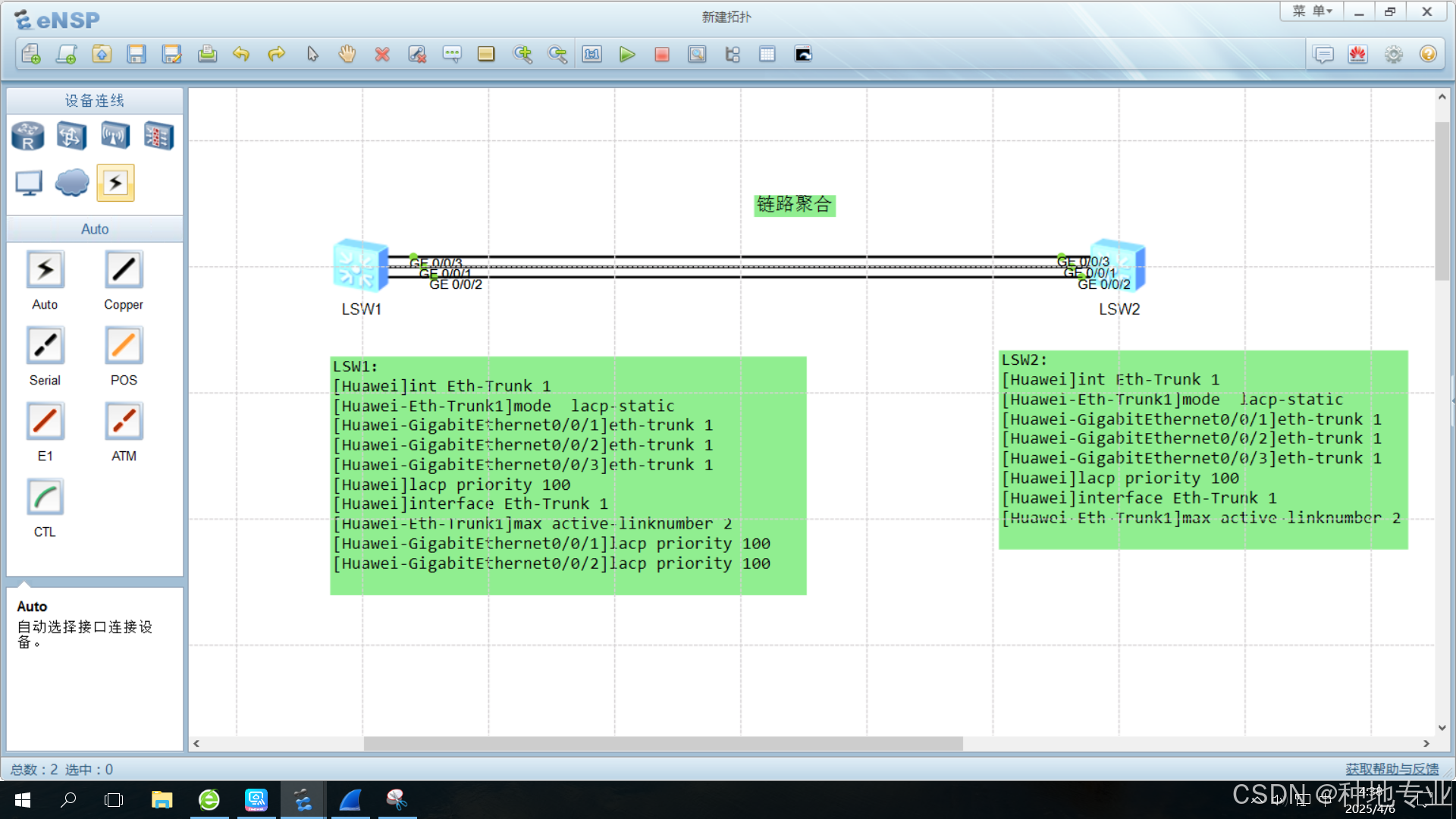

LSW1：
[Huawei]int Eth-Trunk 1
[Huawei-Eth-Trunk1]mode  lacp-static
[Huawei-GigabitEthernet0/0/1]eth-trunk 1
[Huawei-GigabitEthernet0/0/2]eth-trunk 1
[Huawei-GigabitEthernet0/0/3]eth-trunk 1
[Huawei]lacp priority 100
[Huawei]interface Eth-Trunk 1
[Huawei-Eth-Trunk1]max active-linknumber 2
[Huawei-GigabitEthernet0/0/1]lacp priority 100
[Huawei-GigabitEthernet0/0/2]lacp priority 100

LSW2:
[Huawei]int Eth-Trunk 1
[Huawei-Eth-Trunk1]mode  lacp-static
[Huawei-GigabitEthernet0/0/1]eth-trunk 1
[Huawei-GigabitEthernet0/0/2]eth-trunk 1
[Huawei-GigabitEthernet0/0/3]eth-trunk 1
[Huawei]lacp priority 100
[Huawei]interface Eth-Trunk 1
[Huawei-Eth-Trunk1]max active-linknumber 2

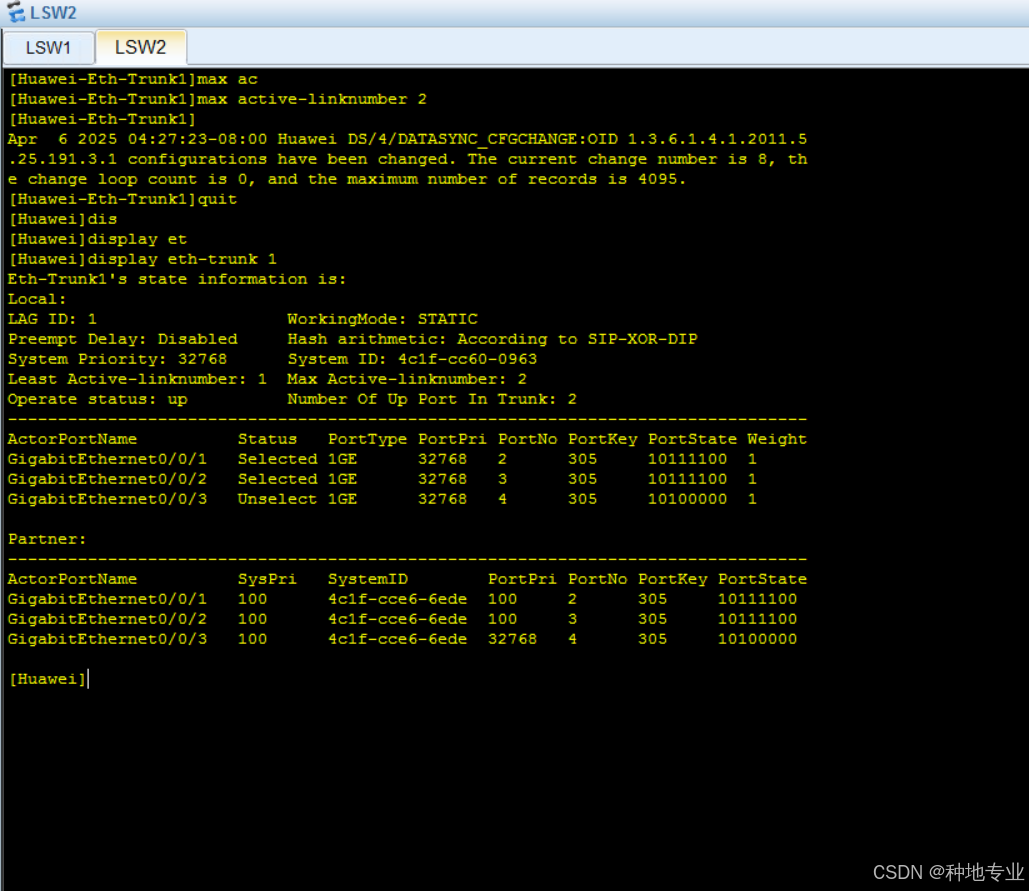

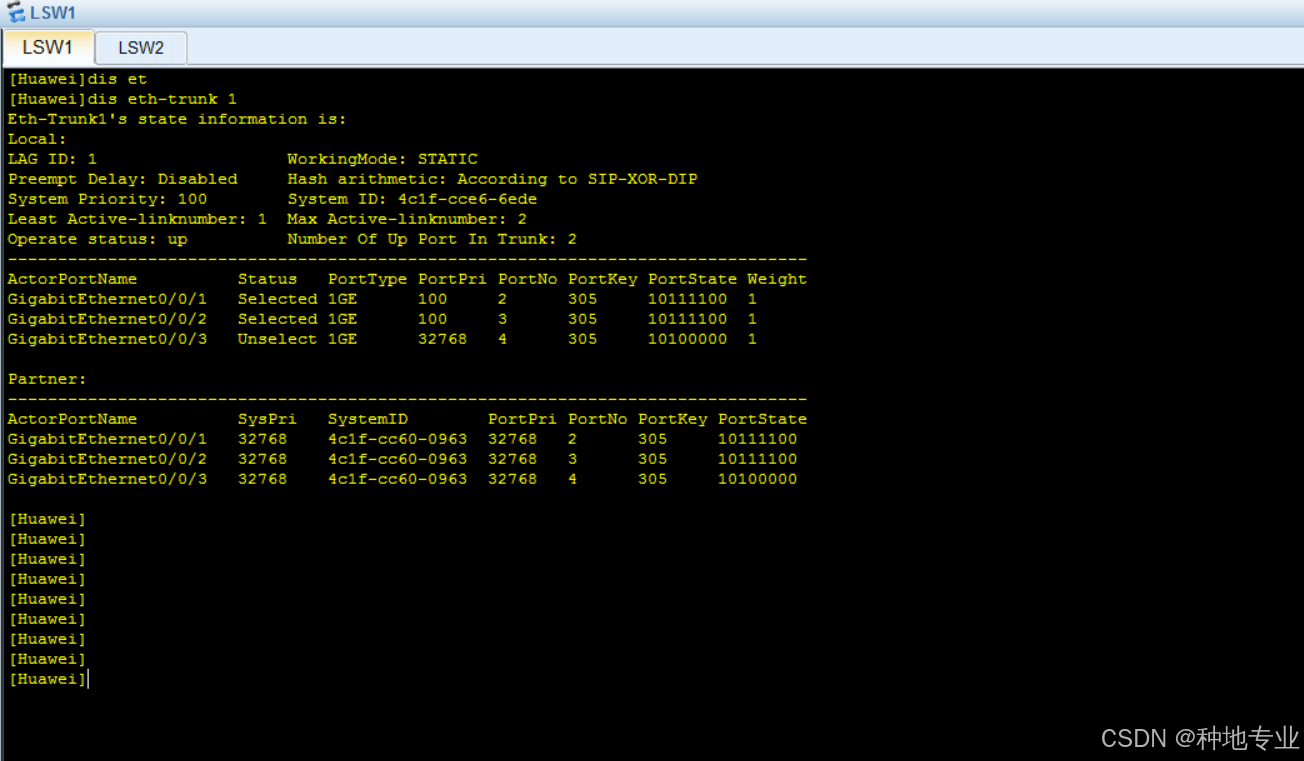

测试
