MTK Android 13添加开机音乐

山人牛牛

已于 2024-06-19 09:48:07 修改

阅读量881

点赞数 7

文章标签： android java

于 2024-06-11 10:45:59 首次发布

本文链接：https://blog.csdn.net/weixin_51115260/article/details/139592966

版权

手动启动开机动画：

adb root

adb shell setprop service.bootanim.exit 0

adb shell start bootanim

退出动画：

adb shell setprop service.bootanim.exit 1

开机音乐，系统自带：

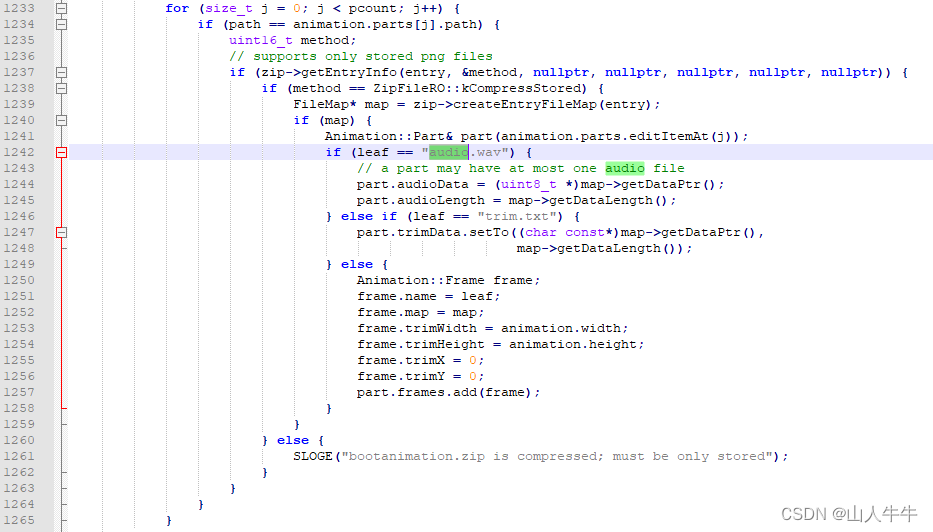

\frameworks\base\cmds\bootanimation\BootAnimation.cpp 文件中有实现

将开机音乐命名成 audio.wav 放入开机动画文件的part0 文件夹中并打包；发现并没有播放开机音乐，可能是和下面的问题一样 media 服务没有起来；

logcat分析：

        Line 7058: 11-23 23:24:51.973   773   902 D bootanimation: PlayerBase::PlayerBase()
        Line 7059: 11-23 23:24:51.974   773   902 E bootanimation: PlayerBase(): binding to audio service failed, service up?
        Line 7060: 11-23 23:24:51.974   773   902 D bootanimation: TrackPlayerBase::TrackPlayerBase()
        Line 7184: 11-23 23:24:51.989   773   902 E bootanimation: AudioPlayer realize: no audio service, player will not be registered
        Line 7185: 11-23 23:24:51.984   773   773 I BootAnimation::: type=1400 audit(0.0:325): avc: denied { call } for scontext=u:r:bootanim:s0 tcontext=u:r:mediametrics:s0 tclass=binder permissive=1
        Line 7243: 11-23 23:24:52.008   773   818 D BootAnimation: Playing files = /system/media/bootanimation.zip/part0, Requested repeat = 1, playUntilComplete = false
        Line 7243: 11-23 23:24:52.008   773   818 D BootAnimation: Playing files = /system/media/bootanimation.zip/part0, Requested repeat = 1, playUntilComplete = false
        Line 15405: 11-23 23:25:00.620   773   818 D BootAnimation: Playing files = /system/media/bootanimation.zip/part1, Requested repeat = 0, playUntilComplete = false

看开机的logcat，个人理解是播放audio.wav这段音频铃声的时候，audio service服务还没有初始化成功，binding失败，导致没有播放声音。

framework目录：

diff --git a/av/media/libmediaplayerservice/MediaPlayerService.cpp b/av/media/libmediaplayerservice/MediaPlayerService.cpp
old mode 100644
new mode 100755
index 210099c..0a88cd2
--- a/av/media/libmediaplayerservice/MediaPlayerService.cpp
+++ b/av/media/libmediaplayerservice/MediaPlayerService.cpp
@@ -2855,7 +2855,7 @@ MediaPlayerService::BatteryTracker::BatteryTracker() {
     // reset battery stats
     // if the mediaserver has crashed, battery stats could be left
     // in bad state, reset the state upon service start.
-    BatteryNotifier::getInstance().noteResetVideo();
+    //BatteryNotifier::getInstance().noteResetVideo();
 }

 void MediaPlayerService::BatteryTracker::addBatteryData(uint32_t params)
diff --git a/av/services/audioflinger/AudioFlinger.cpp b/av/services/audioflinger/AudioFlinger.cpp
old mode 100644
new mode 100755
index f0eb035..625b169
--- a/av/services/audioflinger/AudioFlinger.cpp
+++ b/av/services/audioflinger/AudioFlinger.cpp
@@ -330,7 +330,7 @@ AudioFlinger::AudioFlinger()
       mGlobalEffectEnableTime(0),
       mPatchPanel(this),
       mDeviceEffectManager(this),
-      mSystemReady(false)
+      mSystemReady(true)
 {
     // Move the audio session unique ID generator start base as time passes to limit risk of
     // generating the same ID again after an audioserver restart.
diff --git a/av/services/audioflinger/Threads.cpp b/av/services/audioflinger/Threads.cpp
old mode 100644
new mode 100755
index b786879..0ec3ecb
--- a/av/services/audioflinger/Threads.cpp
+++ b/av/services/audioflinger/Threads.cpp
@@ -649,11 +649,11 @@ status_t AudioFlinger::ThreadBase::sendConfigEvent_l(sp<ConfigEvent>& event)
 {
     status_t status = NO_ERROR;

-    if (event->mRequiresSystemReady && !mSystemReady) {
-        event->mWaitStatus = false;
-        mPendingConfigEvents.add(event);
-        return status;
-    }
+    //if (event->mRequiresSystemReady && !mSystemReady) {
+    //    event->mWaitStatus = false;
+    //    mPendingConfigEvents.add(event);
+    //    return status;
+    //}
     mConfigEvents.add(event);
     ALOGV("sendConfigEvent_l() num events %zu event %d", mConfigEvents.size(), event->mType);
     mWaitWorkCV.signal();
@@ -1209,7 +1209,7 @@ void AudioFlinger::ThreadBase::releaseWakeLock_l()
 }

 void AudioFlinger::ThreadBase::getPowerManager_l() {
-    if (mSystemReady && mPowerManager == 0) {
+    if (mPowerManager == 0) {
         // use checkService() to avoid blocking if power service is not up yet
         sp<IBinder> binder =
             defaultServiceManager()->checkService(String16("power"));
@@ -3623,6 +3623,9 @@ ssize_t AudioFlinger::PlaybackThread::threadLoop_write()
     ssize_t bytesWritten;
     const size_t offset = mCurrentWriteLength - mBytesRemaining;

+    if(mPowerManager == 0)
+        acquireWakeLock();
+
 #if defined(MTK_LATENCY_DETECT_PULSE)
     if (AudioDetectPulse::getDetectPulse()) {
         AudioDetectPulse::doDetectPulse(TAG_NORMAL_MIXER, 800, 0, (void *)((char *)mSinkBuffer + offset),
@@ -6163,6 +6166,16 @@ AudioFlinger::PlaybackThread::mixer_state AudioFlinger::MixerThread::prepareTrac
                 track->mHasVolumeController = false;
             }

+             /*xyx modify start */
+            char mvalue[PROPERTY_VALUE_MAX] = { 1 };
+            property_get("service.bootanim.exit", mvalue, "");
+            if (strcmp(mvalue,"0") == 0){
+                ALOGE("bootanim volume setting");
+                vlf = 0.50f;
+                vrf = 0.50f;
+            }
+            /*xyx modify end */
+
             // XXX: these things DON'T need to be done each time
             mAudioMixer->setBufferProvider(trackId, track);
             mAudioMixer->enable(trackId);

如果发现开机铃声太小，可以将上面的vlf和vrf修改大些。

device目录

diff --git a/mediatek/system/mssi_{project}/copyfile/system/media/bootanimation.zip b/mediatek/system/mssi_{project}/copyfile/system/media/bootanimation.zip
old mode 100644
new mode 100755
index e26a717..a095326
Binary files a/mediatek/system/mssi_{project}/copyfile/system/media/bootanimation.zip and b/mediatek/system/mssi_{project}/copyfile/system/media/bootanimation.zip differ
diff --git a/mediatek/system/mssi_{project}/sepolicy/zlt/private/audioserver.te b/mediatek/system/mssi_{project}/sepolicy/zlt/private/audioserver.te
new file mode 100755
index 0000000..a48d541
--- /dev/null
+++ b/mediatek/system/mssi_{project}/sepolicy/zlt/private/audioserver.te
@@ -0,0 +1,5 @@
+# ==============================================
+# MTK Policy Rule
+# ==============================================
+
+allow audioserver bootanim:binder call;
diff --git a/mediatek/system/mssi_{project}/sepolicy/zlt/private/bootanim.te b/mediatek/system/mssi_{project}/sepolicy/zlt/private/bootanim.te
new file mode 100755
index 0000000..682fd9e
--- /dev/null
+++ b/mediatek/system/mssi_{project}/sepolicy/zlt/private/bootanim.te
@@ -0,0 +1,5 @@
+# ==============================================
+# MTK Policy Rule
+# ==============================================
+
+allow bootanim mediametrics:binder { call };

其他问题：

按照上述patch修改后，有的开机速度快的机器会出现开机动画还未播放完整，就进入桌面了，导致开机铃声未播放完全；出现该现象的时候，我们可以修改一下开机动画的退出时间：

--- a/base/services/core/java/com/android/server/wm/WindowManagerService.java
+++ b/base/services/core/java/com/android/server/wm/WindowManagerService.java
@@ -3750,6 +3750,18 @@ public class WindowManagerService extends IWindowManager.Stub
                 // stop boot animation
                 // formerly we would just kill the process, but we now ask it to exit so it
                 // can choose where to stop the animation.
+                //add:
+                while (true) {//这里本来想做个条件判断一下需要延迟多少轮，发现10秒够了
+                    try {
+                        Thread.sleep(10000);
+                        Slog.i(TAG_WM, "******* sleep 10s is run");
+                    } catch (InterruptedException e) {
+                        e.printStackTrace();
+                        Slog.i(TAG_WM, "******* sleep 10s not run");
+                    }
+                    break;
+                }
+                //end
                 SystemProperties.set("service.bootanim.exit", "1");//就是这个属性控制开机动画的退出
                 mBootAnimationStopped = true;
             }
