最近项目有一个需求

这个项目类似大屏可视化，用到了不规则图片的div 背景，部分UI如图
在这里插入图片描述

遇到的问题

因为项目内容比较多，这种卡片的情况不同，宽高都不是固定的，所以直接把图片动态宽高的话会导致图片拉伸变形，根据每个宽高让UI老师切图也是不现实的，效率很低！

解决办法 - 做一个组件

首先找UI老师要一张这个背景图片最高和最宽的可能的背景图片，我要的是 960px * 960px 的，4个角固定，不随整体宽高做适配 dialog.jpg

2.新建 div 的四个角的子div，用 css 的 background-position
css 的 background-position 切出四个角

background-position 用来设置背景图像起始位置的CSS样式属性
background-position 配合最高最宽的背景图片，可以使四个角的样式不变形

新建 TopLeft、TopRight、BottomRight、BottomLeft 四个角的div，分别定位到父div 的四个角
然后根据 background-position 分别从不同位置开始延伸宽高来拼凑样式,
height: calc(100% - 100px);
width: calc(100% - 100px);
延伸的顺序不能重了，要不会出现样式重叠的情况

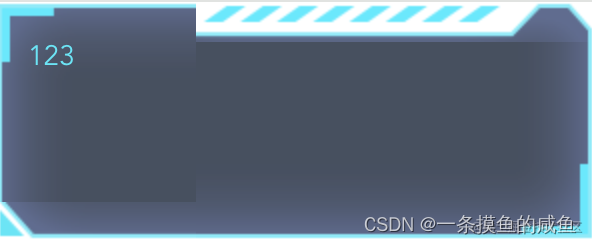

错误的
在这里插入图片描述
正确代码

<template>
  <div id="CustomDialog" :class="data.dialogClass" class="CustomDialog" :style="props.style">
    <div v-if="data.dialogClass === 'upgradeClass'" class="background_style">
      <div class="TopLeft"></div>
      <div class="TopRight"></div>
      <div class="BottomRight"></div>
      <div class="BottomLeft"></div>
    </div>
    <div class="content">
      <slot></slot>
    </div>
  </div>
</template>

<script lang="ts" setup>
  import { onMounted, reactive, defineProps } from 'vue'
  interface IProps {
    style: {
      width: string
      height: string
    }
  }
  const props = defineProps<IProps>()
  const data = reactive({
    dialogClass: '',
  })
  onMounted(() => {
    let dom = document.getElementById('CustomDialog') as HTMLElement
    let width = parseInt(dom.style.width.replace('px', ''))
    let height = parseInt(dom.style.height.replace('px', ''))
    if (width < 340 && height < 145) {
      data.dialogClass = 'simpleClass'
    } else {
      data.dialogClass = 'upgradeClass'
    }
  })
</script>
<style lang="less" scoped>
  .simpleClass {
    background: rgba(6, 21, 43, 0.75) !important;
    border: 1px solid #1fb8c5 !important;
    box-shadow: 0px 2px 8px 0px rgba(161, 234, 240, 0.44) !important;
    border-radius: 3px;
    .content {
      padding: 8px !important;
    }
  }
  .CustomDialog {
    position: relative;
    .background_style {
      position: absolute;
      z-index: -1;
      width: 100%;
      height: 100%;
      .TopLeft {
        background-image: url('/@/assets/dialog.jpg');
        position: absolute;
        background-position: top left;
        top: 0;
        left: 0;
        width: 100px;
        height: 100px;
      }
      .TopRight {
        background-image: url('/@/assets/dialog.jpg');
        position: absolute;
        background-position: top right;
        top: 0;
        right: 0;
        width: calc(100% - 100px);
        height: calc(100% - 100px);
      }
      .BottomRight {
        background-image: url('/@/assets/dialog.jpg');
        position: absolute;
        background-position: bottom right;
        bottom: 0;
        right: 0;
        width: calc(100% - 100px);
        height: 100px;
      }
      .BottomLeft {
        background-image: url('/@/assets/dialog.jpg');
        position: absolute;
        background-position: bottom left;
        bottom: 0;
        left: 0;
        width: 100px;
        height: calc(100% - 100px);
      }
    }
    .content {
      color: #1ae7f8;
      text-align: left;
      padding: 16px;
      position: absolute;
      width: 100%;
      height: 100%;
      z-index: 1;
    }
  }
</style>

3.使用组件

<template>
  <div>
    <CustomDialog :style="{ width: '340px', height: '145px' }">
      <div>123</div>
    </CustomDialog>
  </div>
</template>

<script lang="ts" setup>
  import { onMounted, reactive } from 'vue'
  import CustomDialog from '/@/components/CustomDialog.vue'

  const data = reactive({})
  onMounted(() => {})
</script>
<style scoped></style>

在这里插入图片描述

上面我又多做了一个判断，如果宽高小于 340 和 145 ，也会导致样式变形,340 和 145 是根据右上角最小的宽度 + 左上角的宽度算出的，宽度也是如此

在这里插入图片描述
所以在小于指定宽高之后就取消背景图显示，给他用css 代码来实现简单的样式

.simpleClass {
    background: rgba(6, 21, 43, 0.75) !important;
    border: 1px solid #1fb8c5 !important;
    box-shadow: 0px 2px 8px 0px rgba(161, 234, 240, 0.44) !important;
    border-radius: 3px;
    .content {
      padding: 8px !important;
    }
  }

在这里插入图片描述
完整代码

<template>
  <div>
    <CustomDialog :style="{ width: '300px', height: '120px' }"><div>123</div> </CustomDialog>
  </div>
</template>

<script lang="ts" setup>
  import { onMounted, reactive } from 'vue'
  import CustomDialog from '/@/components/CustomDialog.vue'

  const data = reactive({})
  onMounted(() => {})
</script>
<style scoped></style>

<template>
  <div id="CustomDialog" :class="data.dialogClass" class="CustomDialog" :style="props.style">
    <div v-if="data.dialogClass === 'upgradeClass'" class="background_style">
      <div class="TopLeft"></div>
      <div class="TopRight"></div>
      <div class="BottomRight"></div>
      <div class="BottomLeft"></div>
    </div>
    <div class="content">
      <slot></slot>
    </div>
  </div>
</template>

<script lang="ts" setup>
  import { onMounted, reactive, defineProps } from 'vue'
  interface IProps {
    style: {
      width: string
      height: string
    }
  }
  const props = defineProps<IProps>()
  const data = reactive({
    dialogClass: 'upgradeClass',
  })
  onMounted(() => {
    let dom = document.getElementById('CustomDialog') as HTMLElement
    let width = parseInt(dom.style.width.replace('px', ''))
    let height = parseInt(dom.style.height.replace('px', ''))
    if (width < 340 && height < 145) {
      data.dialogClass = 'simpleClass'
    } else {
      data.dialogClass = 'upgradeClass'
    }
  })
</script>
<style lang="less" scoped>
  .simpleClass {
    background: rgba(6, 21, 43, 0.75) !important;
    border: 1px solid #1fb8c5 !important;
    box-shadow: 0px 2px 8px 0px rgba(161, 234, 240, 0.44) !important;
    border-radius: 3px;
    .content {
      padding: 8px !important;
    }
  }
  .CustomDialog {
    position: relative;
    .background_style {
      position: absolute;
      z-index: -1;
      width: 100%;
      height: 100%;
      .TopLeft {
        background-image: url('/@/assets/dialog.jpg');
        position: absolute;
        background-position: top left;
        top: 0;
        left: 0;
        width: 100px;
        height: 100px;
      }
      .TopRight {
        background-image: url('/@/assets/dialog.jpg');
        position: absolute;
        background-position: top right;
        top: 0;
        right: 0;
        width: calc(100% - 100px);
        height: calc(100% - 100px);
        //width: 300px;
        //height: 100px;
      }
      .BottomRight {
        background-image: url('/@/assets/dialog.jpg');
        position: absolute;
        background-position: bottom right;
        bottom: 0;
        right: 0;
        width: calc(100% - 100px);
        height: 100px;
      }
      .BottomLeft {
        background-image: url('/@/assets/dialog.jpg');
        position: absolute;
        background-position: bottom left;
        bottom: 0;
        left: 0;
        width: 100px;
        height: calc(100% - 100px);
        //height: 100px;
      }
    }
    .content {
      color: #1ae7f8;
      text-align: left;
      padding: 16px;
      position: absolute;
      width: 100%;
      height: 100%;
      z-index: 1;
    }
  }
</style>
