Data Models

the concept of tools that are developed to summarize the description of the database为总结数据库描述而开发的工具的概念

数据模型为我们提供了透明的数据图片，帮助我们创建实际的数据库。它向我们展示了从数据的设计到数据的正确实现。

數據庫的類型是因為數據模型的不同

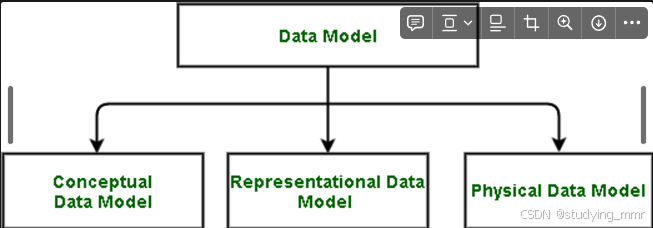

Type of Relational Models

1. Conceptual Data Model 概念数据模型
2. Representational Data Model 代表性数据模型
3. Physical Data Model 物理数据模型

Conceptual Data Model

used in the requirement-gathering process. before the Database Designers start making a particular database. One such popular model is the entity/relationship model (ER model).

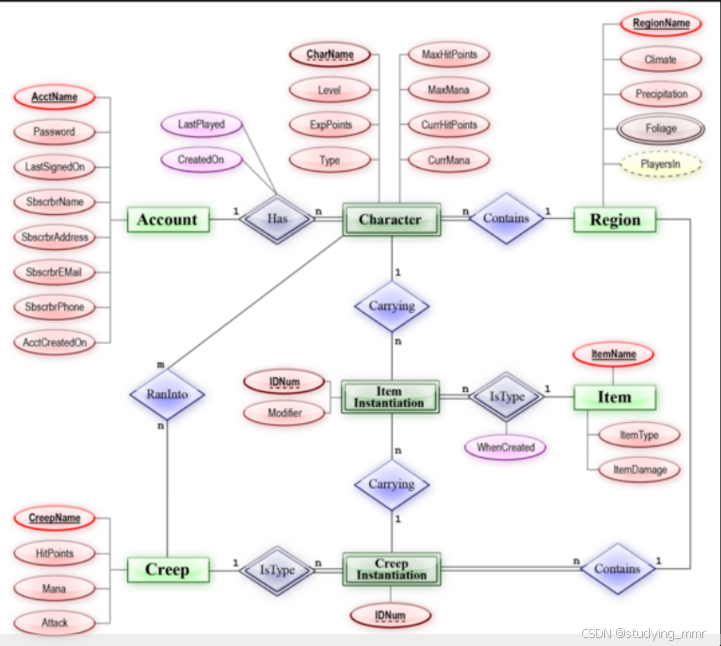

Entity-Relationship Model:

a high-level data model which is used to define the data and the relationships between them

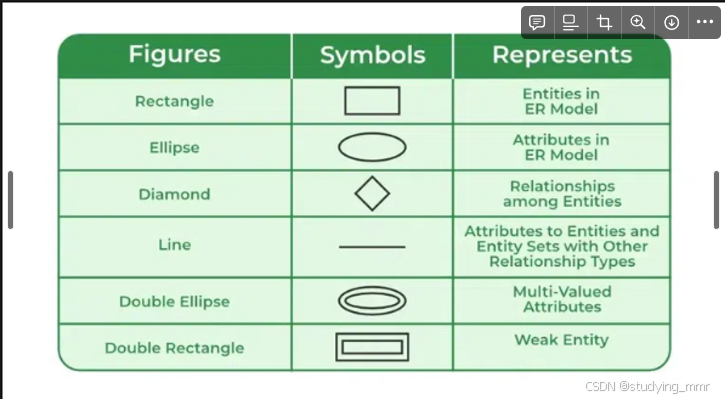

1. Entity: An entity is referred to as a real-world object. It can be a name, place, object, class, etc. These are represented by a rectangle in an ER Diagram.实体被称为现实世界的对象。它可以是名称、地点、对象、类等。这些在 ER 图中用矩形表示。
2. **Attributes:** An attribute can be defined as the description of the entity. These are represented by Ellipse in an ER Diagram. It can be Age, Roll Number, or Marks for a Student.属性可以定义为实体的描述。这些在 ER 图中用椭圆表示。它可以是学生的年龄、学号或分数。
3. **Relationship:** Relationships are used to define relations among different entities. Diamonds and Rhombus are used to show Relationships.关系用于定义不同实体之间的关系。菱形和菱形用于表示关系。

Representational Data Model

This type of data model is used to represent only the logical part of the database and does not represent the physical structure of the database

Relational model is popular representational model

The relational Model consists of Relational Algebra and Relational Calculus.

Physical Data Model 物理數據模型

The physical Data Model is used to practically implement Relational Data Model.

Structured Query Language (SQL) is used to practically implement Relational Algebra.

该数据模型描述了如何使用特定的 DBMS 系统来实现系统。该模型通常由 DBA 和开发人员创建。目的是数据库的实际实现。

Con

• Data modeling is the process of developing data model for the data to be stored in a Database.数据建模是为要存储在数据库中的数据开发数据模型的过程。
• Data Models ensure consistency in naming conventions, default values, semantics, security while ensuring quality of the data.数据模型确保命名约定、默认值、语义、安全性的一致性，同时确保数据的质量。
• Data Model structure helps to define the relational tables, primary and foreign keys and stored procedures.数据模型结构有助于定义关系表、主键和外键以及存储过程。
• There are three types of conceptual, logical, and physical.可分为概念型、逻辑型和物理型三种。
• The main aim of conceptual model is to establish the entities, their attributes, and their relationships.概念模型的主要目的是建立实体、实体的属性及其关系。
• Logical data model defines the structure of the data elements and set the relationships between them.逻辑数据模型定义数据元素的结构并设置它们之间的关系。
• A Physical Data Model describes the database specific implementation of the data model.
