滚刀破岩

批量运行dat文件

开挖面模拟

生成刀片

加载侵入

软硬互层岩石的侵入

---

滚刀破岩

---

批量运行dat文件

---

console 文件批量运行不需要修改的dat文件

call 4yinglishifang
call 5jiagundao
call 6jiazai

---

开挖面模拟

---

进行应力释放

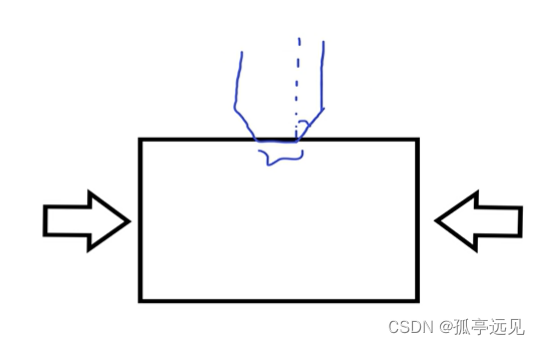

 滚刀破岩情况下，岩石处于横向应力之间，受到两侧的压力作用。

restore jiajiaojie
wall attribute vel 0  ；将墙体初速度定为0
def computer_chicun
    wlx=wall.pos.x(wpright)-wall.pos.x(wpleft)
end
；定义墙体尺寸
def computer_stress
    computer_chicun
    wxss=0.5*(wall.force.contact.x(wpleft)-wall.force.contact.x(wpright))/wly
end
def get_g

    zongKNX=100e6*2.0
    loop foreach ct wall.contactmap(wpleft)
        zongKNX+=contact.prop(ct,"kn")
    endloop
    loop foreach ct wall.contactmap(wpright)
        zongKNX+=contact.prop(ct,"kn")
    endloop

    gx=1.0*servo_factor*wly/(zongKNX*global.timestep)
end
def sevro_walls
    computer_stress
    if global.step>time_record then
        get_g
        time_record=global.step+sevro_freq
    endif
    xvel=gx*math.abs(math.abs(wxss)-txx)
    if math.abs(wxss)<txx then
        wall.vel.x(wpleft)=xvel
        wall.vel.x(wpright)=-xvel
    else
        wall.vel.x(wpleft)=-xvel
        wall.vel.x(wpright)=xvel
    endif
end
；去除竖向伺服，在滚刀破岩情况下只有横向作用

wall delete walls range id 3
；删除墙体

cycle 1
solve
；施加初始扰动，然后再平衡

save init_state

---

生成刀片

---

加滚刀（对岩石施加两种作用力：滚动切削+竖向侵蚀）

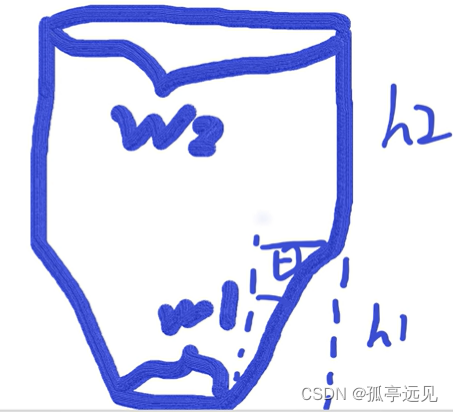

滚刀底部宽度w1，顶部宽度w2，两侧角度θ

每一步都要去平衡，必须始终保持模型处于平衡状态

冒泡算法：

def get_max_height
    ball_max_height=-1e100
    loop foreach bp ball.list
        if ball_max_height <ball.pos.y(bp)+ball.radius(bp) then
            ball_max_height=ball.pos.y(bp)+ball.radius(bp)
        endif
    endloop
end
@get_max_height

创建边:

wall create vertices x1 y1 x2 y2

restore init_state

def gundao_par
    width_down=0.03
    width_up=width_down*2.0   ;两者建立联系，让参数尽可能少
    jiaodu=20
    height_down=(width_up-width_down)/math.tan(jiaodu*math.pi/180.0)
    height_up=height_down*2.0
end
@gundao_par
；定义滚刀参数，底部和顶部宽度，角度
；角度需要转化为弧度制
；height_up=height_down*2.0为自主建立的关系

def get_max_height
    ball_max_height=-1e100
    loop foreach bp ball.list
        if ball_max_height <ball.pos.y(bp)+ball.radius(bp) then
            ball_max_height=ball.pos.y(bp)+ball.radius(bp)
        endif
    endloop
end
@get_max_height
；冒泡算法
；得到试样顶部的位置：顶部颗粒的位置加上半径

wall create vertices [-width_up*0.5] [ball_max_height+height_down+height_up] [-width_up*0.5] [ball_max_height+height_down] ...
                    [-width_up*0.5] [ball_max_height+height_down] [-width_down*0.5] [ball_max_height] ...
                    [-width_down*0.5] [ball_max_height]  [width_down*0.5] [ball_max_height]  ...
                    [width_down*0.5] [ball_max_height] [width_up*0.5] [ball_max_height+height_down] ...
                    [width_up*0.5] [ball_max_height+height_down]  [width_up*0.5] [ball_max_height+height_down+height_up] ...
                    [width_up*0.5] [ball_max_height+height_down+height_up] [-width_up*0.5] [ball_max_height+height_down+height_up]
；每条边的终点，是下一条边的起点
；和之前的滚筒模型类似
；在此处用方括号[]来调用之前的fish函数

cycle 1
solve
save jiadaopian
；每一步都要去平衡，必须始终保持模型处于平衡状态

---

加载侵入

---

需要添加裂纹（fracture文件）

call fracture.p2fis
@track_init
；调用裂纹文件

restore jiadaopian

[daopian_vel=0.1]
[shendu=0.2]
set mech age 0
ball attribute displacement multiply 0

wall attribute vel [-daopian_vel] range id 5

call fracture.p2fis
@track_init
；调用裂纹

[wp_daopian=wall.find(5)]
def jiance
    whilestepping
    faxiangli=wall.force.contact.y(wp_daopian)
    weiyi=wall.disp.y(wp_daopian)
    time=mech.age
end
；法向力、位移、时间

history delete
history id 1 @faxiangli
history id 2 @weiyi
history id 3 @time
；先删除之前的历史记录


solve time [shendu/daopian_vel]

---

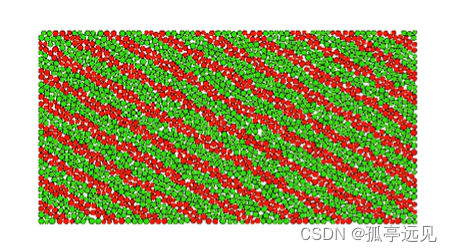

软硬互层岩石的侵入

---

cmat 全称：cmat model apply table，只对新接触起作用

对于已有接触需要使用 cmat apply 来更新接触

cmat list 命令可以列出cmat储存的相关属性

cmat add 1 model linear method deform emod 100e6 kratio 1.5 range contact type ball-facet

用来和ball-ball的接触区分。如果不加这一段，则fracture运行时会报错（fracture只能处理ball-ball部分)

restore yuya
[jianju=rdmax*10]
[kuandu=rdmax*3]
[jiaodu=30]

ball group ying
ball group ruan range plane origin 0 0 dip [jiaodu] distance [kuandu*0.5]
;先全部定义为硬岩，然后再划分出软岩，[kuandu*0.5]
def add_ruan_up
    pos_x=0
    pos_y=0
    loop while pos_x<wlx*0.5
        pos_x+=(jianju+kuandu)*math.cos(jiaodu*math.pi/180.0)
        pos_y+=(jianju+kuandu)*math.sin(jiaodu*math.pi/180.0)
        command
            ball group ruan range plane origin [pos_x] [pos_y] dip [jiaodu] distance [kuandu*0.5]
        endcommand
    endloop
end
@add_ruan_up
；建立上方的多个软弱岩层

def add_ruan_down
    pos_x=0
    pos_y=0
    loop while pos_x>-wlx*0.5
        pos_x-=(jianju+kuandu)*math.cos(jiaodu*math.pi/180.0)
        pos_y-=(jianju+kuandu)*math.sin(jiaodu*math.pi/180.0)
        command
            ball group ruan range plane origin [pos_x] [pos_y] dip [jiaodu] distance [kuandu*0.5]
        endcommand
    endloop
end
@add_ruan_down
；建立下方的多个软弱岩层


cmat add 1 model linear method deform emod 100e6 kratio 1.5 range contact type ball-facet
；墙体和球
cmat add 2 model linearpbond method deform emod 1e8 kratio 1.5 ...
                            pb_deform emod 1e8 kratio 1.5 ...
                            property pb_coh 1e6 pb_ten 1e6 pb_fa 40 fric 0.5 ...
                            range group ruan
；软岩的物理属性
cmat add 3 model linearpbond method deform emod 1e8 kratio 1.5 ...
                            pb_deform emod 1e8 kratio 1.5 ...
                            property pb_coh 2e6 pb_ten 2e6 pb_fa 40 fric 0.5 ...
                            range group ying
；硬岩的物理属性
cmat apply
cycle 1
solve
save temp1
；首先平衡，消除cmat apply带来的不平衡力
contact method bond gap [rdmin*0.2]
；创建胶结，默认为[rdmin*0.2]

cycle 1
solve
save jiajiaojie
