1、瑞萨RA4M2 开发板介绍

瑞萨电子 RA4M2 32 位微控制器 (MCU) 产品群使用支持 TrustZone 的高性能 Arm® Cortex®-M33 内核。 与片内的 Secure Crypto Engine (SCE) 配合使用，可实现安全芯片的功能。 RA4M2 采用高效的 40nm 工艺，由灵活配置软件包 (FSP) 这个开放且灵活的生态系统概念提供支持，FSP 基于 FREERTOS 构建，并能够进行扩展，以使用其他实时操作系统 (RTOS) 和中间件。 RA4M2 适用于物联网应用的需求， 如多样化的通信功能、面向未来应用的安全功能、大容量嵌入式 RAM 和较低的运行功耗（从闪存运行 CoreMark® 算法时功耗低至 81µA/MHz）。

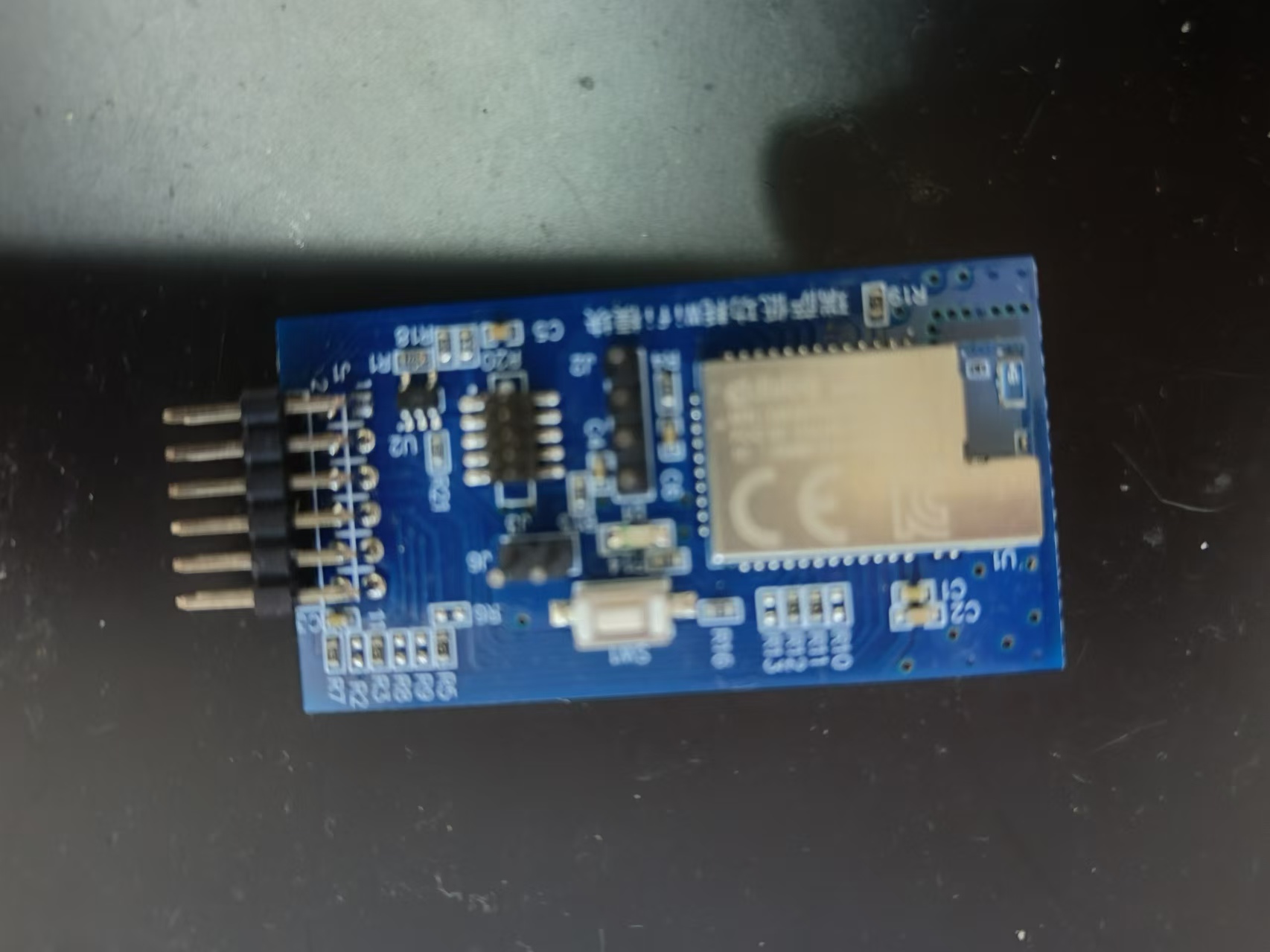

2、 DA16200  介绍

DA16200 片上系统 (SoC) 是全球首款为一直在线的 Wi-Fi 物联网设备提供一年以上电池续航时间的 Wi-Fi SoC。 DA16200 是一款低功耗 Wi-Fi 网络 SoC，即使是持续连接 Wi-Fi 网络的设备，其电池寿命也能大大延长。 大多数应用中可实现一年以上的电池寿命。 SoC 的续航时间业界领先，所以无需在输出功率或续航方面有所权衡。 该芯片还具有非常强大的物联网安全性，包括 WPA3 和 TLS，用于 Wi-Fi 和更高堆栈层的身份验证和加密。 DA16200 是完全卸载的器件，因此整个 Wi-Fi 和 TCP/IP 网络堆栈，甚至最终产品应用代码都可以在芯片上运行，无需外部 CPU 或 MCU。 另外，小型廉价 MCU 也可以发送 DA16200 命令，而 SoC 仍将执行完整的卸载网络堆栈功能。

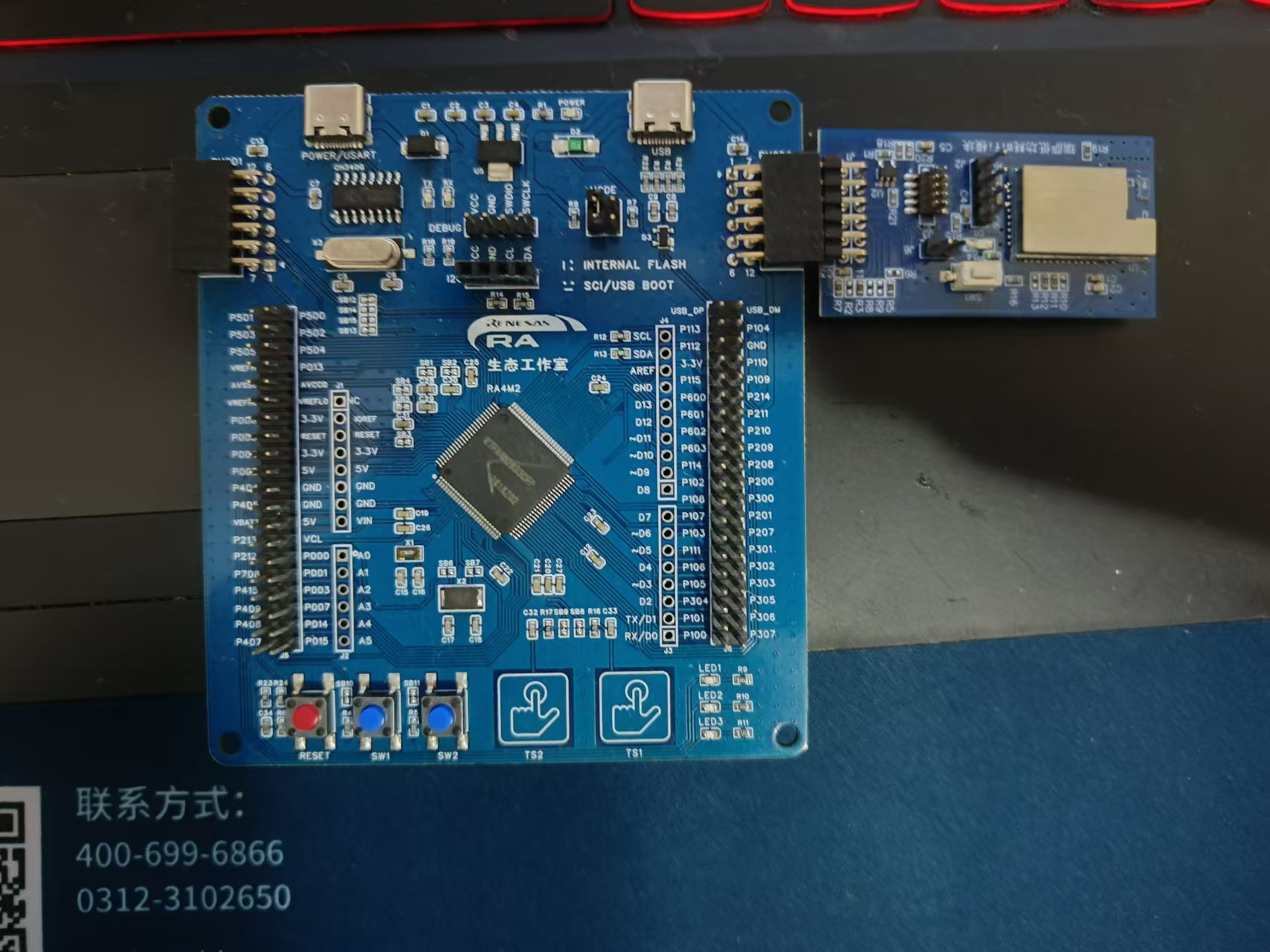

3、开发板连接方式

通过瑞萨旁边的标准接插件可以很方便的进行连接和测试

下面我们使用串口发送AT指令的方式进行测试

4、 开发工具我们使用瑞萨自己的e2stdio就是eclipe的魔改版本

我们打开后选择我们的开发板套件为RA4M2

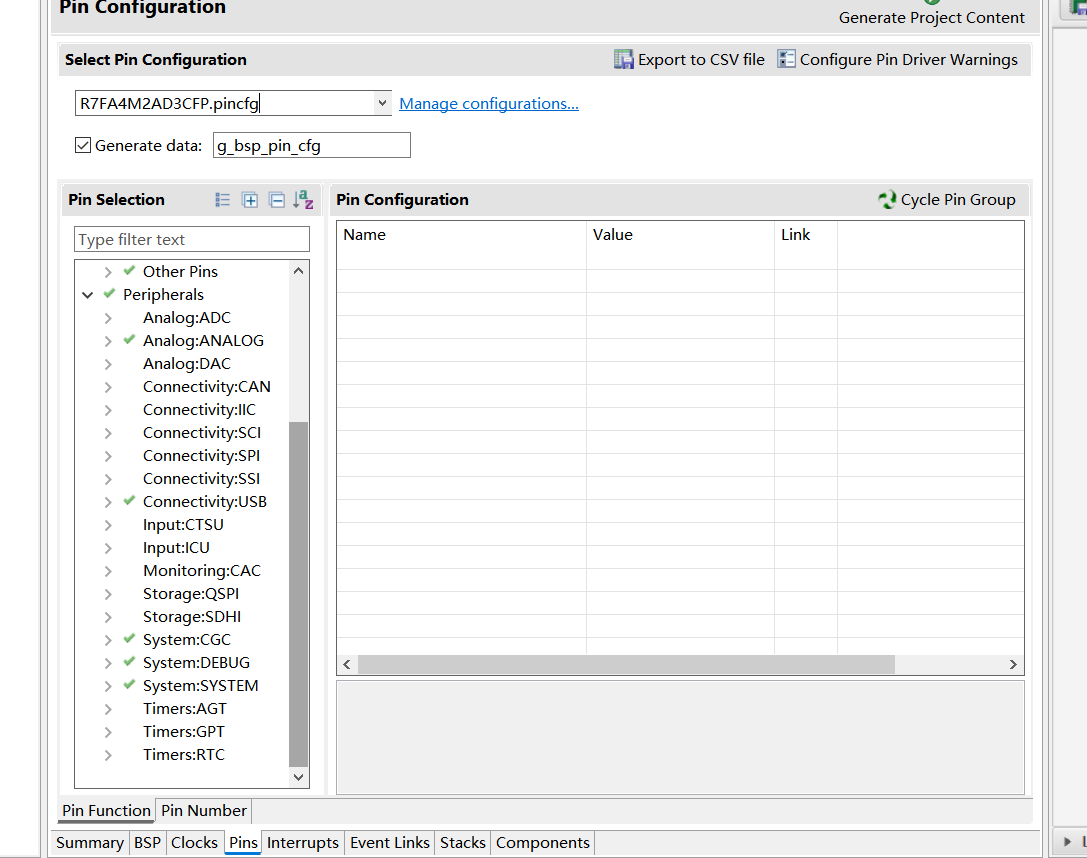

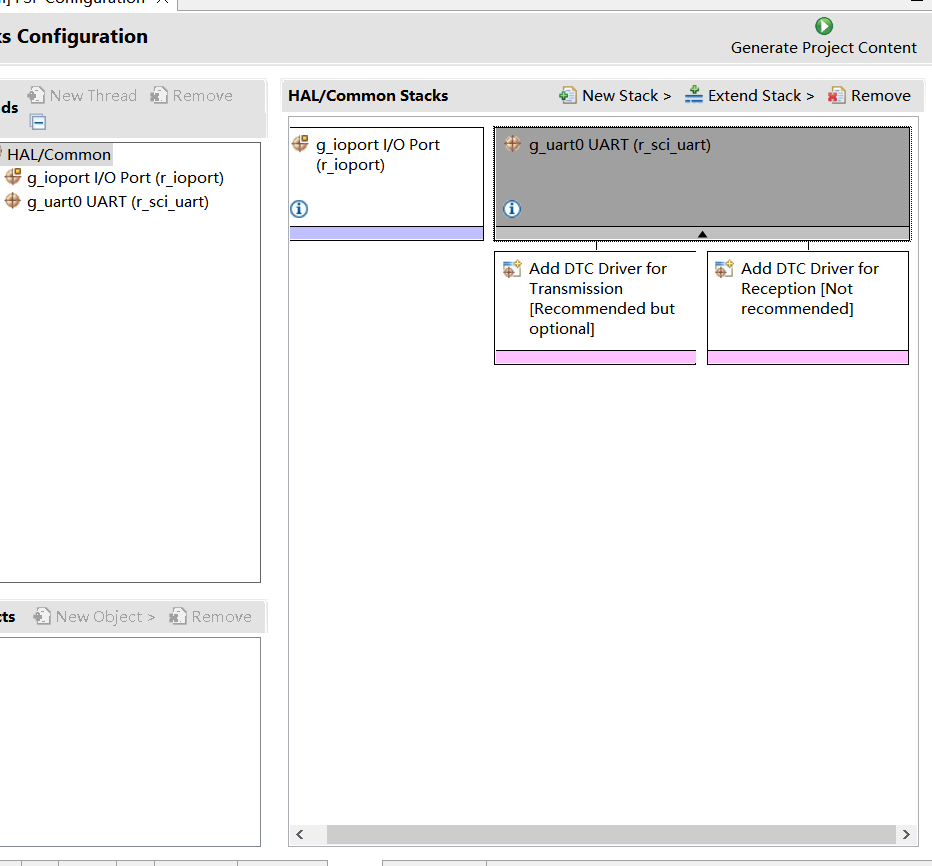

在pin这里我们选择对应的串口引脚在栈这里将我们的串口加进去

5、书写驱动

这里驱动是借鉴的网友的我将他的粘贴到下发

da16200_AT.c

/*
@hehung
2023-2-8
转载请注明出处，版权由@hehung所有
email: 1398660197@qq.com
wechat: hehung95
*/
#include "hal_data.h"
#include "da16200_AT.h"
#include "app_common.h"
#include "app_led.h"
#include "app_wifi.h"

// this structure is used to cache the received AT informations
typedef struct
{
    char at_buf[DA16200_STR_LEN_256];
    uint16_t at_len;
    uint16_t at_timeout;
} s_AtCmdBfType;


/** AT Command sets */
/*LDRA_INSPECTED 27 D This structure must be accessible in user code. It cannot be static. */
da16200_at_cmd_set_t g_da16200_cmd_set[] =
{
    /** Intial AT command */
    [DA16200_AT_CMD_INDEX_ATZ] =
    {
        .p_cmd = (uint8_t *) "ATZ\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_10,
        .retry_delay = DA16200_DELAY_500MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /** Echo on/ off */
    [DA16200_AT_CMD_INDEX_ATE] =
    {
        .p_cmd = (uint8_t *) "ATE\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* ATF */
    [ DA16200_AT_CMD_INDEX_AT_ATF] =
    {
        .p_cmd = (uint8_t *) "ATF\r\n",
        .p_success_resp = (uint8_t *) "DONE",
        .max_resp_length = DA16200_STR_LEN_128,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_500MS,
        .wait_timeout = DA16200_DELAY_3000MS
    },
    /* Set boot mode */
    [DA16200_AT_CMD_INDEX_AT_TMRFNOINIT] =
    {
        .p_cmd = (uint8_t *) "AT+TMRFNOINIT=0\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* Set Station mode */
    [DA16200_AT_CMD_INDEX_AT_WFMODE] =
    {
        .p_cmd = (uint8_t *) "AT+WFMODE=0\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* Restart */
    [ DA16200_AT_CMD_INDEX_AT_RESTART] =
    {
        .p_cmd = (uint8_t *) "AT+RESTART\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_128,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_1000MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* 连接wifi热点 */
    [DA16200_AT_CMD_INDEX_AT_WFJAP] =
    {
        .p_cmd = (uint8_t *) "AT+WFJAP=hehungphone,4,1,1234543210\r\n",
        .p_success_resp = (uint8_t *) "+WFJAP:1",
        .max_resp_length = DA16200_STR_LEN_128,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_1000MS,
        .wait_timeout = DA16200_DELAY_5000MS
    },
    /* TCP连接 - Contact to the ONENET TCP server:183.230.40.40:1811 */
    [DA16200_AT_CMD_INDEX_AT_TRTC] =
    {
        .p_cmd = (uint8_t *) "AT+TRTC=183.230.40.40,1811,0\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_2000MS
    },
    // 断开TCP连接
    [DA16200_AT_CMD_INDEX_AT_TRTRM] =
    {
        .p_cmd = (uint8_t *) "AT+TRTRM=1\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* Set Country Code */
    [DA16200_AT_CMD_INDEX_AT_WFCC] =
    {
        .p_cmd = (uint8_t *) "AT+WFCC=CH\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* Set Country Code */
    [ DA16200_AT_CMD_INDEX_AT_WFSAP] =
    {
        .p_cmd = (uint8_t *) "AT+WFSAP=Renesas_Wifi,3,1,12345678,1,CH\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_128,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* Set IP */
    [ DA16200_AT_CMD_INDEX_AT_NWIP] =
    {
        .p_cmd = (uint8_t *) "AT+NWIP=1,192.168.10.2,255.255.255.0,192.168.10.1\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_1000MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* Start DHCP */
    [ DA16200_AT_CMD_INDEX_AT_NWDHS] =
    {
        .p_cmd = (uint8_t *) "AT+NWDHS=1\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* DHCP IP area set*/
    [ DA16200_AT_CMD_INDEX_AT_NWDHR] =
    {
        .p_cmd = (uint8_t *) "AT+NWDHR=192.168.10.3,192.168.10.10\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* TCP server port set*/
    [ DA16200_AT_CMD_INDEX_AT_TRTS] =
    {
        .p_cmd = (uint8_t *) "AT+TRTS=80\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* TCP server port message save */
    [ DA16200_AT_CMD_INDEX_AT_TRSAVE] =
    {
        .p_cmd = (uint8_t *) "AT+TRSAVE\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* Wifi AP connect status */
    [ DA16200_AT_CMD_INDEX_AT_WFSTA] =
    {
        .p_cmd = (uint8_t *) "AT+WFSTA\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_1,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    /* sntp start with address 'pool.ntp.org'*/
    [ DA16200_AT_CMD_INDEX_AT_NWSNTP_START] =
    {
        .p_cmd = (uint8_t *) "AT+NWSNTP=1,pool.ntp.org,60\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    [ DA16200_AT_CMD_INDEX_AT_NWSNTP_STOP] =
    {
        .p_cmd = (uint8_t *) "AT+NWSNTP=0\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    [ DA16200_AT_CMD_INDEX_AT_NWSNTP_STATUS] =
    {
        .p_cmd = (uint8_t *) "AT+NWSNTP=?\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_200MS,
        .wait_timeout = DA16200_DELAY_1000MS
    },
    [ DA16200_AT_CMD_INDEX_AT_TZONE_GET] =
    {
        .p_cmd = (uint8_t *) "AT+TZONE=?\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_100MS,
        .wait_timeout = DA16200_DELAY_500MS
    },
    [ DA16200_AT_CMD_INDEX_AT_TZONE_SET] =
    {
        .p_cmd = (uint8_t *) "AT+TZONE=28800\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_100MS,
        .wait_timeout = DA16200_DELAY_500MS
    },
    [ DA16200_AT_CMD_INDEX_AT_TIME_GET] =
    {
        .p_cmd = (uint8_t *) "AT+TIME=?\r\n",
        .p_success_resp = (uint8_t *) "+TIME",
        .max_resp_length = DA16200_STR_LEN_64,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_100MS,
        .wait_timeout = DA16200_DELAY_500MS
    },
    [DA16200_AT_CMD_INDEX_AT_NWDHC] =
    {
        .p_cmd = (uint8_t *) "AT+NWDHC\r\n",
        .p_success_resp = (uint8_t *) "OK",
        .max_resp_length = DA16200_STR_LEN_32,
        .retry = DA16200_RETRY_VALUE_5,
        .retry_delay = DA16200_DELAY_100MS,
        .wait_timeout = DA16200_DELAY_500MS
    }
};

static uint32_t g_wifi_receive_time_count = 0;
static uint32_t count = 0;
static demo_data_t g_demo_data;
static s_AtCmdBfType g_at_buf;


static s_Da16200FbType RespList[] =
{
    {Da16200_TRDTC_response, "+TRDTC:1"}
};


// DA16200 wifi module AT command
fsp_err_t Da1620_ATCommandExe(da16200_at_cmd_index_t at_cmd,
                                uint8_t *resp_buff)
{
    uint16_t bytes_read = 0U;
    uint16_t bytes_write;
    fsp_err_t result = FSP_ERR_ASSERTION;
    uint8_t retry_count = 0U;
    da16200_at_cmd_set_t  * p_cmd_set = g_da16200_cmd_set;

    // setting mutex for lock wifi uart
    if (pdTRUE == xSemaphoreTake(wifi_mutex, portMAX_DELAY))
    {
        do
        {
            /** AT MODODR command **/
            bytes_write = (uint16_t) strlen((char *) p_cmd_set[at_cmd].p_cmd);
            wifi_serial_write((uint8_t*)p_cmd_set[at_cmd].p_cmd, bytes_write);

            bytes_read = p_cmd_set[at_cmd].max_resp_length;

            /** Clear respond memory **/
            memset (resp_buff, 0, bytes_read);

            result = wifi_serial_read(resp_buff,
                                      &bytes_read,
                                      (const char*)p_cmd_set[at_cmd].p_success_resp,
                                      p_cmd_set[at_cmd].wait_timeout);

            if (FSP_SUCCESS == result)
            {
                break;
            }

            DELAY_MS(p_cmd_set[at_cmd].retry_delay);

            ++retry_count;
        }
        while(retry_count < p_cmd_set[at_cmd].retry);

        // release the mutex, unlock
        (void)xSemaphoreGive(wifi_mutex);
    }

    return result;
}

/************************************************************************************
* Name:       is_str_present
* Function:   compare string
* Parameters: p_resp_str, p_search_str
* Return:     comparing result
************************************************************************************/
uint8_t is_str_present(const char * p_resp_str, const char * p_search_str)
{
    if (strstr (p_resp_str, p_search_str))
    {
        return SF_WIFI_TRUE;
    }

    return SF_WIFI_FALSE;
}

/************************************************************************************
* Name:       wifi_serial_read
* Function:   read receive data
* Parameters: p_dest, p_bytes, p_resp_ptr, timeout_ms
* Return:     read result
************************************************************************************/
fsp_err_t wifi_serial_read(uint8_t * p_dest,
                           const uint16_t * p_bytes,
                           const char * p_resp_ptr,
                           uint32_t timeout_ms)
{
    fsp_err_t status = FSP_SUCCESS;
    uint16_t bytes = *p_bytes;
    uint16_t i;
    uint8_t expected_resp_present;

    g_wifi_receive_time_count = 0U;

    do
    {
        // some data received from DA16200
        if (g_at_buf.at_len >= strlen(p_resp_ptr))
        {
            if (g_at_buf.at_len >= bytes)
            {
                /* Overflow */
                status = FSP_ERR_RXBUF_OVERFLOW;
                break;
            }

            // compare the response data
            expected_resp_present = is_str_present(g_at_buf.at_buf, p_resp_ptr);
            if(SF_WIFI_TRUE == expected_resp_present)
            {
                printf ("==>da16200 recv:%s\n", g_at_buf.at_buf);
                status = FSP_SUCCESS;
                break;
            }
            // memset(g_at_buf.at_buf, '\0', sizeof(g_at_buf.at_buf));
        }

        expected_resp_present = is_str_present(g_at_buf.at_buf, "ERROR");
        if(SF_WIFI_TRUE == expected_resp_present)
        {
            // error
            printf ("==>da16200 error:%s\n", g_at_buf.at_buf);
            status = FSP_ERR_ASSERTION;
            break;
        }

        // timeout
        if(g_wifi_receive_time_count >= timeout_ms)
        {
            if (g_at_buf.at_len >= 0)
                memset(g_at_buf.at_buf, '\0', sizeof(g_at_buf.at_buf));
            g_wifi_receive_time_count = 0U;
            status = FSP_ERR_TIMEOUT;
            break;
        }

        /* Added delay for freeRTOS and used for solved thread dead */
        DELAY_MS(1);
    } while(1);

    // load the data to dest buffer
    if (FSP_SUCCESS == status)
    {
        for (i = 0; i < g_at_buf.at_len; i++)
        {
            *p_dest = g_at_buf.at_buf[i];
            p_dest ++;
        }
    }

    return status;
}


/************************************************************************************
* Name:       wifi_serial_write
* Function:   write data
* Parameters: p_src, bytes
* Return:     write result
************************************************************************************/
fsp_err_t wifi_serial_write(uint8_t * p_src, uint16_t bytes)
{
    fsp_err_t status = FSP_SUCCESS;

    if (g_at_buf.at_len > 0U)
    {
        g_at_buf.at_len = 0U;
        memset(g_at_buf.at_buf, '\0', sizeof(g_at_buf.at_buf));
    }
    status = g_uart0.p_api->write(g_uart0.p_ctrl, p_src, bytes);

    return(status);
}

/************************************************************************************
* Name:       uart0_notification
* Function:   write data callback
* Parameters: p_args
* Return:     write result
************************************************************************************/
void uart0_notification(uart_callback_args_t *p_args)
{
    if (p_args->event == UART_EVENT_RX_CHAR)
    {
        if (g_at_buf.at_len < (DA16200_STR_LEN_256 - 1U))
        {
            // save the data into the buffer 'g_at_buf.at_buf'
            g_at_buf.at_buf[g_at_buf.at_len] = (uint8_t)p_args->data;
            g_at_buf.at_len ++;
        }
    }
}

/************************************************************************************
* Name:       timer0_1ms_callback
* Function:   1ms callback
* Parameters: p_args
* Return:     1ms timing
************************************************************************************/
void timer0_1ms_callback(timer_callback_args_t *p_args)
{
    FSP_PARAMETER_NOT_USED(p_args);
    g_wifi_receive_time_count++;

    g_demo_data.led_blink_count++;
    if(g_demo_data.led_blink_count >= 1000)
    {
        count++;
        g_demo_data.led_blink_count = 0;
        if(count%2)
        {
            Led_Ctrl(LED_3, 1);
        }
        else
        {
            Led_Ctrl(LED_3, 0);
        }
    }

    // Used for handle the UART data from DA16200

    WIfi_CheckPreiodLoop();
}

// This function is used for handle the response data
void Da16200_FeedbackHandle(void)
{
    uint8_t i;

    for (i = 0; i < (sizeof(RespList) / sizeof(s_Da16200FbType)); i++)
    {
        if (SF_WIFI_TRUE == is_str_present(g_at_buf.at_buf, RespList->p_cmd))
        {
            RespList->RespFbFunc(g_at_buf.at_buf, g_at_buf.at_len);
        }
    }
    if (g_at_buf.at_len > 0)
    {
        ENTER_CRITICAL();
        // clear buffer
        memset(g_at_buf.at_buf, '\0', sizeof(g_at_buf.at_buf));
        g_at_buf.at_len = 0;
        EXIT_CRITICAL();
    }
}

da16200_AT.h

#ifndef DA16200_AT_H_
#define DA16200_AT_H_


#include "hal_data.h"


/** Macros to define string length */
#define DA16200_STR_LEN_8        (8U)       ///< Length 8
#define DA16200_STR_LEN_16       (16U)      ///< Length 16
#define DA16200_STR_LEN_32       (32U)      ///< Length 32
#define DA16200_STR_LEN_64       (64U)      ///< Length 64
#define DA16200_STR_LEN_128      (128U)     ///< Length 128
#define DA16200_STR_LEN_256      (256U)     ///< Length 128
#define DA16200_STR_LEN_512      (512U)     ///< Length 512


/** DA16200 delay in milliseconds between AT command retry */
#define DA16200_DELAY_0      (0U)       ///< No delay
#define DA16200_DELAY_20MS   (20U)      ///< Delay of 20 milliseconds
#define DA16200_DELAY_50MS   (50U)      ///< Delay of 50 milliseconds
#define DA16200_DELAY_100MS  (100U)     ///< Delay of 100 milliseconds
#define DA16200_DELAY_200MS  (200U)     ///< Delay of 200 milliseconds
#define DA16200_DELAY_300MS  (300U)     ///< Delay of 300 milliseconds
#define DA16200_DELAY_500MS  (500U)     ///< Delay of 500 milliseconds
#define DA16200_DELAY_1000MS (1000U)    ///< Delay of 1000 milliseconds
#define DA16200_DELAY_2000MS (2000U)    ///< Delay of 2000 milliseconds
#define DA16200_DELAY_3000MS (3000U)    ///< Delay of 3000 milliseconds
#define DA16200_DELAY_4000MS (4000U)    ///< Delay of 4000 milliseconds
#define DA16200_DELAY_5000MS (5000U)    ///< Delay of 5000 milliseconds

/** DA16200 retry count for AT command set */
#define DA16200_RETRY_VALUE_0    (0U)       ///< No Retry
#define DA16200_RETRY_VALUE_1    (1U)       ///< Retry Once
#define DA16200_RETRY_VALUE_5    (5U)       ///< Retry 5 times
#define DA16200_RETRY_VALUE_10   (10U)      ///< Retry 10 times

/** Logical Value TRUE for Cellular */
#define SF_WIFI_TRUE        (1U)
/** Logical Value FALSE for Cellular */
#define SF_WIFI_FALSE       (0U)


/** Structure defining AT commands parameters */
typedef struct da16200_at_cmd_set
{
    uint8_t * p_cmd;                ///< AT Command
    uint8_t * p_success_resp;       ///< Success response string
    uint16_t  max_resp_length;       ///< Maximum length of expected response
    uint8_t  retry;                  ///< Retry count
    uint16_t retry_delay;           ///< Delay between AT command retry
    uint16_t wait_timeout;          ///< Waiting time for feedback
} da16200_at_cmd_set_t;

typedef enum da16200_at_cmd_index
{
    DA16200_AT_CMD_INDEX_ATZ = 0,                            ///< Index for Command ATZ
    DA16200_AT_CMD_INDEX_ATE,
    DA16200_AT_CMD_INDEX_AT_ATF,
    DA16200_AT_CMD_INDEX_AT_TMRFNOINIT,
    DA16200_AT_CMD_INDEX_AT_WFMODE,
    DA16200_AT_CMD_INDEX_AT_RESTART,
    DA16200_AT_CMD_INDEX_AT_WFJAP,
    DA16200_AT_CMD_INDEX_AT_TRTC,
    DA16200_AT_CMD_INDEX_AT_TRTRM,

    DA16200_AT_CMD_INDEX_AT_WFCC,
    DA16200_AT_CMD_INDEX_AT_WFSAP,
    DA16200_AT_CMD_INDEX_AT_NWIP,
    DA16200_AT_CMD_INDEX_AT_NWDHS,
    DA16200_AT_CMD_INDEX_AT_NWDHR,
    DA16200_AT_CMD_INDEX_AT_TRTS,
    DA16200_AT_CMD_INDEX_AT_TRSAVE,

    DA16200_AT_CMD_INDEX_AT_WFSTA,
    DA16200_AT_CMD_INDEX_AT_NWSNTP_START,
    DA16200_AT_CMD_INDEX_AT_NWSNTP_STOP,
    DA16200_AT_CMD_INDEX_AT_NWSNTP_STATUS,
    DA16200_AT_CMD_INDEX_AT_TZONE_GET,
    DA16200_AT_CMD_INDEX_AT_TZONE_SET,
    DA16200_AT_CMD_INDEX_AT_TIME_GET,
    DA16200_AT_CMD_INDEX_AT_NWDHC,

    DA16200_AT_CMD_INDEX_AT_NONE
} da16200_at_cmd_index_t;

typedef struct
{
    char * p_cmd;                // AT Command
    void (*Da16200_AtCmdCbFunc)(char *resp_buf);  // callback function
} s_Da16200AtCmdCbType;



typedef struct demo_data
{
    uint8_t  led_blink_flag;
    uint16_t led_blink_count;
} demo_data_t;


typedef struct
{
    void (*RespFbFunc)(char *resp_data, uint16_t resp_data_len);
    char * p_cmd;
} s_Da16200FbType;


extern fsp_err_t wifi_serial_read(uint8_t * p_dest,
                           const uint16_t * p_bytes,
                           const char * p_resp_ptr,
                           uint32_t timeout_ms);
extern fsp_err_t wifi_serial_write(uint8_t * p_src, uint16_t bytes);
extern uint8_t is_str_present(const char * p_resp_str, const char * p_search_str);
extern fsp_err_t Da1620_ATCommandExe(da16200_at_cmd_index_t at_cmd, uint8_t *resp_buff);
extern void Da16200_FeedbackHandle(void);

#endif /* DA16200_AT_H_ */

6、书写自己的测试

这里我写了一个连接tcp并且一直发送helloword的程序

#include "hal_data.h"
#include "da16200_AT.h"
#include "app_common.h"
#include "app_led.h"
#include "app_wifi.h"

// 服务器配置

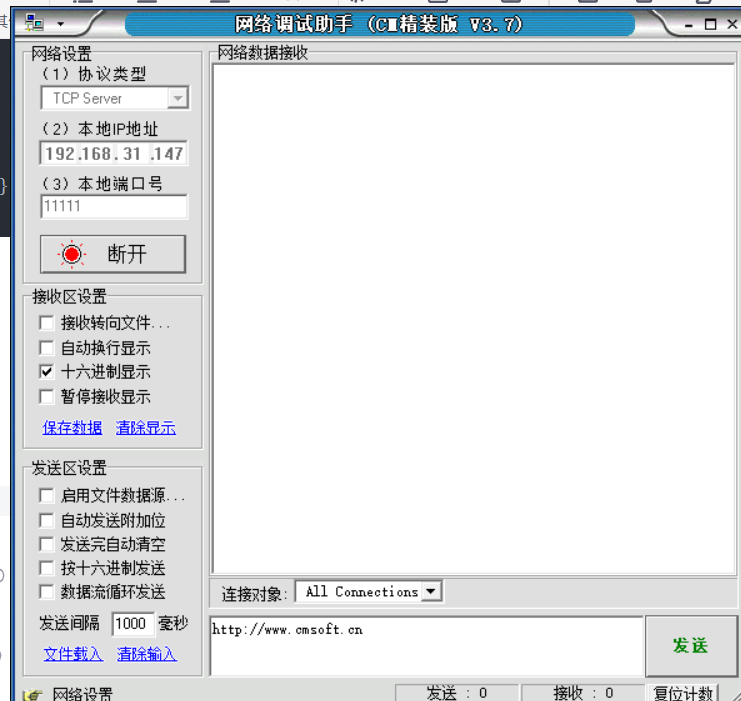

#define TCP_SERVER_IP     "192.168.31.147"
#define TCP_SERVER_PORT   11111

// 数据发送间隔(毫秒)
#define SEND_INTERVAL_MS  1000

// 初始化WiFi模块
fsp_err_t init_wifi_module(void) {
    fsp_err_t err;
    uint8_t resp_buff[DA16200_STR_LEN_256];

    // 复位模块
    err = Da1620_ATCommandExe(DA16200_AT_CMD_INDEX_ATZ, resp_buff);
    if (err != FSP_SUCCESS) {
        printf("ATZ command failed\n");
        return err;
    }

    // 关闭回显
    err = Da1620_ATCommandExe(DA16200_AT_CMD_INDEX_ATE, resp_buff);
    if (err != FSP_SUCCESS) {
        printf("ATE command failed\n");
        return err;
    }

    // 设置工作模式为Station
    err = Da1620_ATCommandExe(DA16200_AT_CMD_INDEX_AT_WFMODE, resp_buff);
    if (err != FSP_SUCCESS) {
        printf("WFMODE command failed\n");
        return err;
    }

    // 连接WiFi热点
    err = Da1620_ATCommandExe(DA16200_AT_CMD_INDEX_AT_WFJAP, resp_buff);
    if (err != FSP_SUCCESS) {
        printf("WFJAP command failed\n");
        return err;
    }

    printf("WiFi connected successfully\n");
    return FSP_SUCCESS;
}

// 连接TCP服务器
fsp_err_t connect_tcp_server(void) {
    fsp_err_t err;
    uint8_t resp_buff[DA16200_STR_LEN_256];

    // 构建连接TCP服务器的命令
    char cmd_buffer[64];
    sprintf(cmd_buffer, "AT+TRTC=%s,%d,0\r\n", TCP_SERVER_IP, TCP_SERVER_PORT);

    // 更新命令集
    da16200_at_cmd_set_t *p_cmd_set = g_da16200_cmd_set;
    p_cmd_set[DA16200_AT_CMD_INDEX_AT_TRTC].p_cmd = (uint8_t *)cmd_buffer;

    // 连接TCP服务器
    err = Da1620_ATCommandExe(DA16200_AT_CMD_INDEX_AT_TRTC, resp_buff);
    if (err != FSP_SUCCESS) {
        printf("TRTC command failed\n");
        return err;
    }

    printf("TCP server connected successfully\n");
    return FSP_SUCCESS;
}

// 发送数据到TCP服务器
fsp_err_t send_data_to_tcp(const char *data) {
    fsp_err_t err;
    uint8_t resp_buff[DA16200_STR_LEN_256];
    uint16_t data_len = strlen(data);

    // 构建发送数据的命令
    char cmd_buffer[64];
    sprintf(cmd_buffer, "AT+TRTSEND=0,%d\r\n", data_len);

    // 发送数据长度命令
    err = Da1620_ATCommandExe(DA16200_AT_CMD_INDEX_AT_TRTS, resp_buff);
    if (err != FSP_SUCCESS) {
        printf("TRTSEND length command failed\n");
        return err;
    }

    // 发送实际数据
    err = wifi_serial_write((uint8_t *)data, data_len);
    if (err != FSP_SUCCESS) {
        printf("Data send failed\n");
        return err;
    }

    printf("Data sent: %s\n", data);
    return FSP_SUCCESS;
}

// 主应用程序
void app_main(void) {
    fsp_err_t err;

    // 初始化WiFi模块
    err = init_wifi_module();
    if (err != FSP_SUCCESS) {
        printf("WiFi initialization failed\n");
        return;
    }

    // 连接TCP服务器
    err = connect_tcp_server();
    if (err != FSP_SUCCESS) {
        printf("TCP connection failed\n");
        return;
    }

    // 持续发送"helloworld"
    while (1) {
        err = send_data_to_tcp("helloworld");
        if (err != FSP_SUCCESS) {
            printf("Send failed, trying to reconnect...\n");

            // 尝试重新连接TCP服务器
            err = connect_tcp_server();
            if (err != FSP_SUCCESS) {
                printf("Reconnection failed, will retry later\n");
            }
        }

        // 延时
        DELAY_MS(SEND_INTERVAL_MS);
    }
}

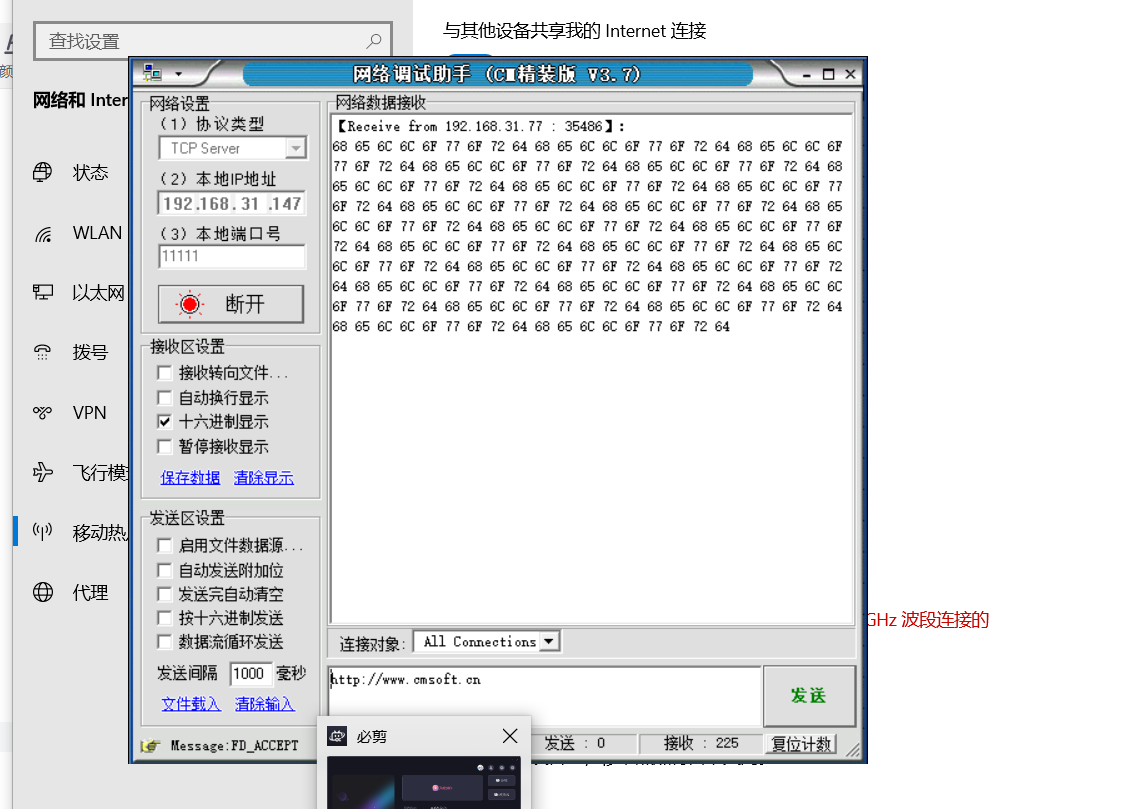

结果

可以看到打印出来了字符的16进制

总结

在嵌入式系统开发中，微控制器与通信模块的协同工作能力是项目成功的关键。近期对RA4M2微控制器与DA16200 WiFi模块的联合测试，让我对这对组合有了深刻的认识。 RA4M2作为瑞萨电子的高性能MCU，展现出了卓越的处理能力和低功耗特性。其丰富的外设接口，特别是UART通信功能，为与DA16200的连接提供了便利。在测试中，通过简单配置UART参数，就能实现与WiFi模块的稳定通信，数据传输准确可靠。 DA16200 WiFi模块的AT命令集设计简洁明了，易于理解和使用。通过发送AT指令，可以方便地配置WiFi连接参数、建立TCP连接并进行数据传输。模块对AT命令的响应迅速，状态反馈清晰，大大降低了开发难度。 在联合测试过程中，两者的兼容性表现出色。RA4M2能够稳定地控制DA16200模块完成WiFi连接、TCP通信等操作，即使在长时间运行测试中，也未出现明显的通信异常或数据丢失现象。这为开发基于WiFi的物联网应用奠定了坚实的基础。 不过，测试中也发现了一些需要注意的地方。例如，DA16200在处理大量连续数据时，偶尔会出现缓冲区溢出的情况，需要合理控制数据发送速率。另外，在复杂电磁环境下，WiFi连接的稳定性会受到一定影响，需要进一步优化抗干扰措施。 总体而言，RA4M2与DA16200的组合是一套性能优良、可靠性高的解决方案，非常适合用于开发各类物联网终端设备。通过这次测试，我不仅熟悉了这两款器件的特性和使用方法，也积累了宝贵的嵌入式系统开发经验。

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
