BGP练习实验

BGP练习实验

实验要求

使用BGP协议失所有路由器的环回互通

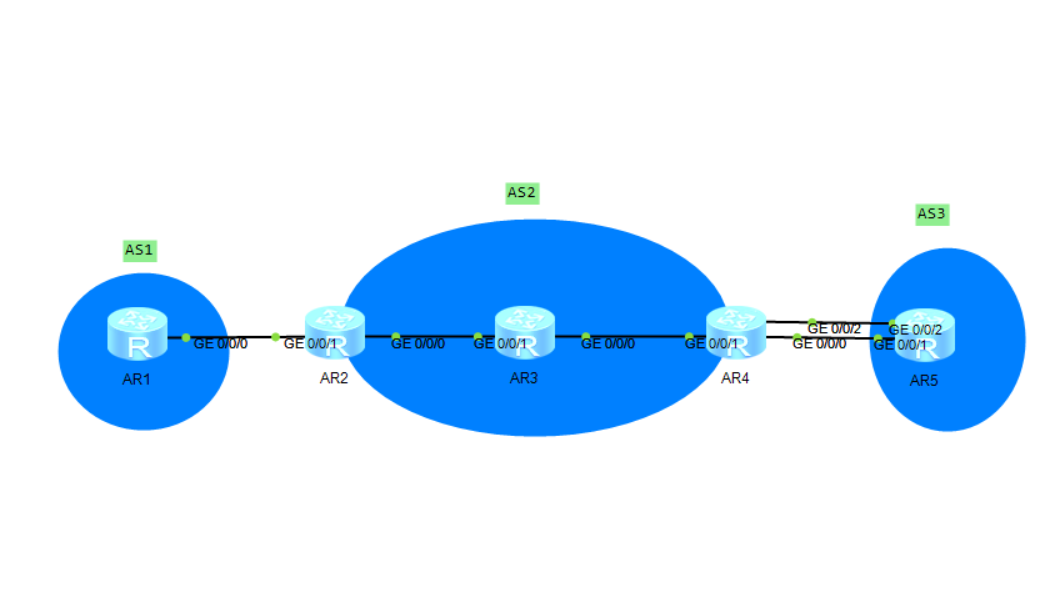

实验拓扑

在这里插入图片描述

实验配置

AR1

[Huawei]display current-configuration
[V200R003C00]
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 12.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.0
#
bgp 1
 router-id 1.1.1.1
 peer 12.1.1.2 as-number 2
 #
 ipv4-family unicast
  undo synchronization
  network 1.1.1.0 255.255.255.0
  peer 12.1.1.2 enable
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

AR2

[Huawei]display current-configuration
[V200R003C00]
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 23.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 12.1.1.2 255.255.255.0
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.0
#
bgp 2
 router-id 2.2.2.2
 peer 3.3.3.3 as-number 2
 peer 3.3.3.3 connect-interface LoopBack0
 peer 4.4.4.4 as-number 2
 peer 4.4.4.4 connect-interface LoopBack0
 peer 12.1.1.1 as-number 1
 #
 ipv4-family unicast
  undo synchronization
  network 2.2.2.0 255.255.255.0
  network 3.3.3.0 255.255.255.0
  peer 3.3.3.3 enable
  peer 3.3.3.3 next-hop-local
  peer 4.4.4.4 enable
  peer 4.4.4.4 next-hop-local
  peer 12.1.1.1 enable
#
ospf 1 router-id 2.2.2.2
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 23.1.1.1 0.0.0.0
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

AR3

[Huawei]display current-configuration
[V200R003C00]
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 34.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 23.1.1.2 255.255.255.0
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.0
#
bgp 2
 router-id 3.3.3.3
 peer 2.2.2.2 as-number 2
 peer 2.2.2.2 connect-interface LoopBack0
 peer 4.4.4.4 as-number 2
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 3.3.3.0 255.255.255.0
  peer 2.2.2.2 enable
  peer 4.4.4.4 enable
#
ospf 1 router-id 3.3.3.3
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 23.1.1.2 0.0.0.0
  network 34.1.1.1 0.0.0.0
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

AR4

[Huawei]display current-configuration
[V200R003C00]
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 54.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 34.1.1.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 45.1.1.1 255.255.255.0
#
interface NULL0
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.0
#
bgp 2
 router-id 4.4.4.4
 peer 2.2.2.2 as-number 2
 peer 2.2.2.2 connect-interface LoopBack0
 peer 3.3.3.3 as-number 2
 peer 3.3.3.3 connect-interface LoopBack0
 peer 5.5.5.5 as-number 3
 peer 5.5.5.5 ebgp-max-hop 255
 peer 5.5.5.5 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 4.4.4.0 255.255.255.0
  peer 2.2.2.2 enable
  peer 2.2.2.2 next-hop-local
  peer 3.3.3.3 enable
  peer 3.3.3.3 next-hop-local
  peer 5.5.5.5 enable
#
ospf 1 router-id 4.4.4.4
 area 0.0.0.0
  network 4.4.4.4 0.0.0.0
  network 34.1.1.2 0.0.0.0
#
ip route-static 5.5.5.5 255.255.255.255 45.1.1.2
ip route-static 5.5.5.5 255.255.255.255 54.1.1.2
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

AR5

[Huawei]display current-configuration
[V200R003C00]
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
#
interface GigabitEthernet0/0/1
 ip address 54.1.1.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 45.1.1.2 255.255.255.0
#
interface NULL0
#
interface LoopBack0
 ip address 5.5.5.5 255.255.255.0
#
bgp 3
 router-id 5.5.5.5
 peer 4.4.4.4 as-number 2
 peer 4.4.4.4 ebgp-max-hop 255
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 5.5.5.0 255.255.255.0
  peer 4.4.4.4 enable
#
ip route-static 4.4.4.0 255.255.255.0 45.1.1.1
ip route-static 4.4.4.0 255.255.255.0 54.1.1.1
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

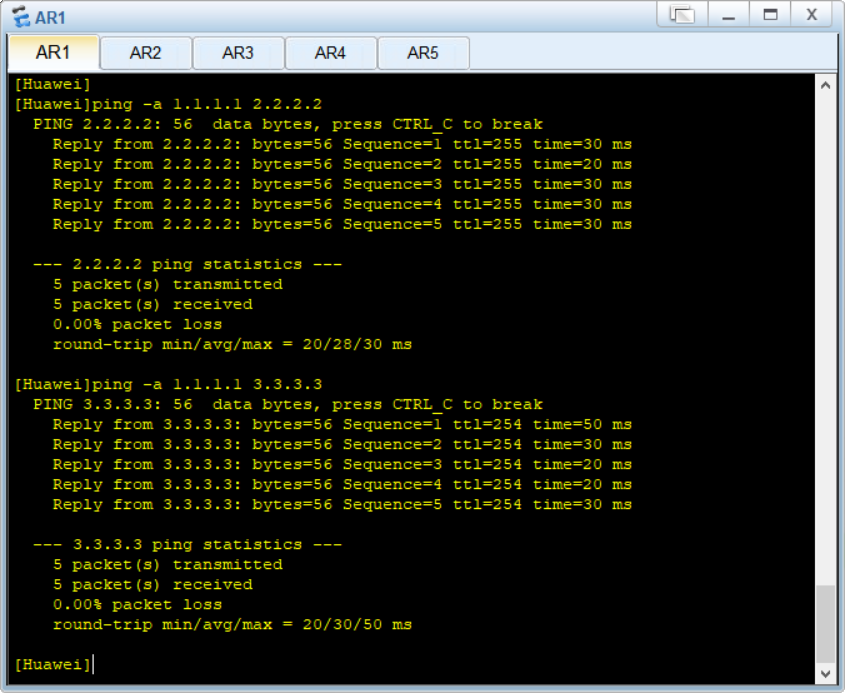

实验结果测试

在这里插入图片描述
在这里插入图片描述
