Mac-Grafana+Prometheus+node_exporter+process_exporter

---

前言

背景：在校本科生，因为作业的原因需要用到 Prometheus
设备：Macbook air M2
CPU：arm64
涉及：brew、Docker、Grafana、Prometheus、node-exporter、process-exporter
默认：已经配置好 Homebrew 和Docker

1. 下载 Grafana

brew install Grafana
brew services start grafana

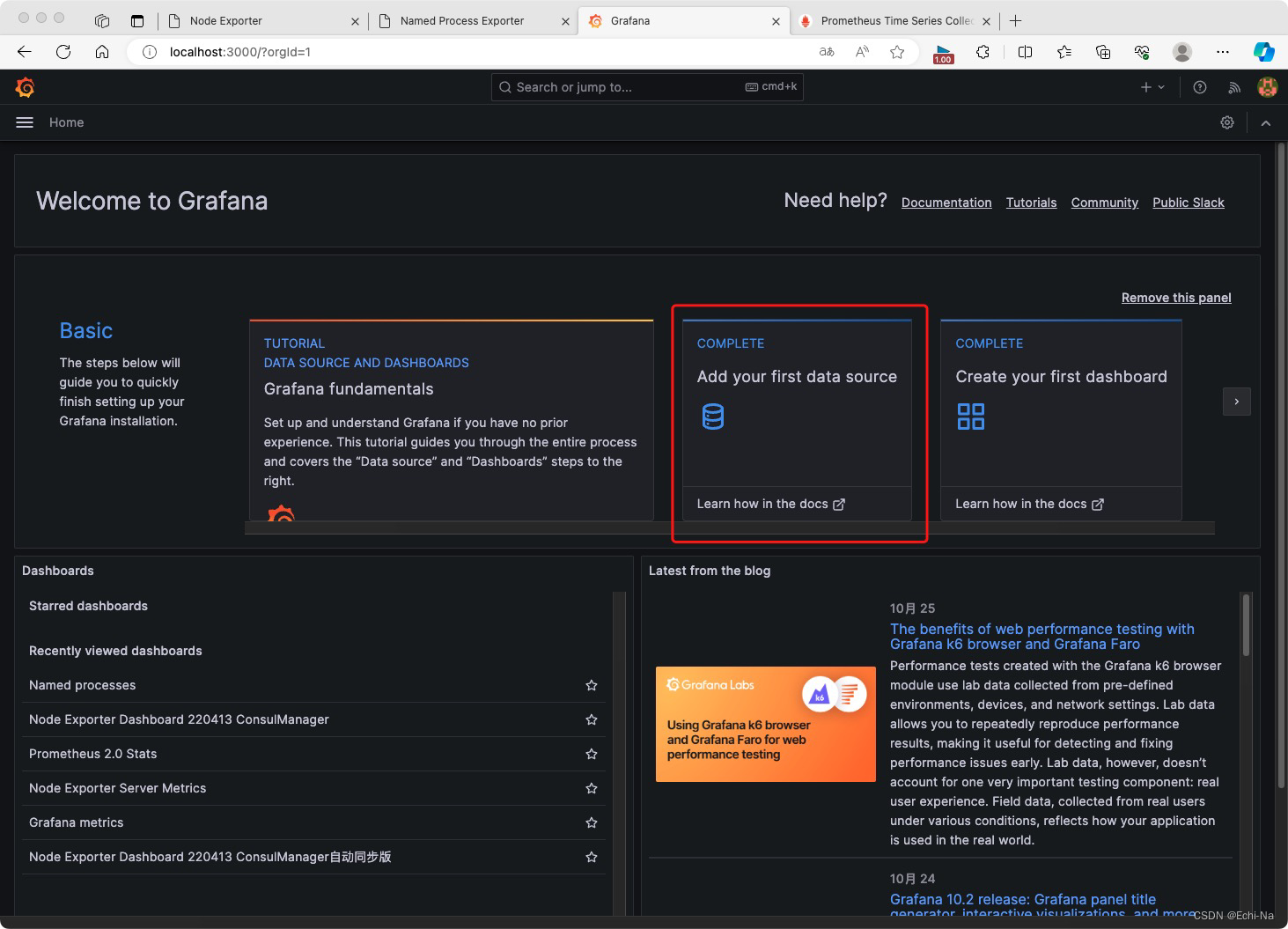

打开：localhost:3000
默认账户密码都是 admin，第一次登陆会要求修改密码

2. 下载 node_exporter

brew install node_exporter
brew services start node_exporter

打开：localhost:9100

3. 下载 process-exporter

wget -c https://github.com/ncabatoff/process-exporter/releases/download/v0.5.0/process-exporter-0.5.0.linux-arm64.tar.gz
tar -zxvf process-exporter-*.tar.gz

4. 配置 process-exporter.yaml

cd process-exporter-0.5.0.linux-arm64
vim process-exporter.yaml

里面写入

process_names:
  - name: "{{.Comm}}"
    cmdline:
    - '.+'

打开 docker 并运行 (直接运行好像有问题)

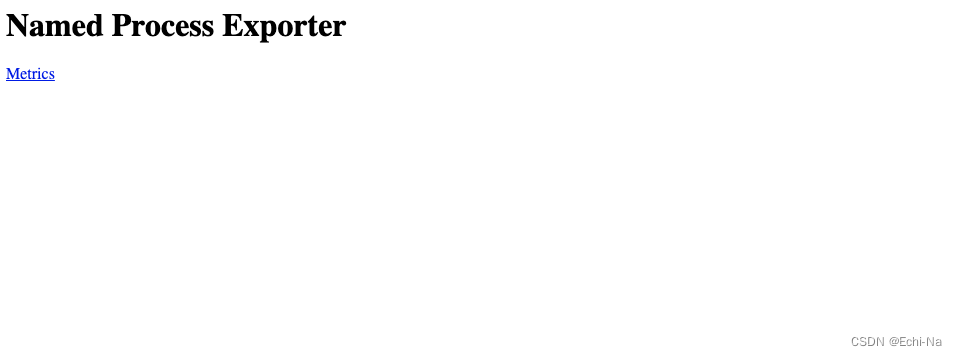

docker run -d --rm -p 9256:9256 --privileged -v /proc:/host/proc -v ` pwd `:/config ncabatoff/process-exporter --procfs /host/proc -config.path /config/process-exporter.yaml

5. 下载 Prometheus

wget https://github.com/prometheus/prometheus/releases/download/v2.20.1/prometheus-2.20.1.linux-arm64.tar.gz`
cd ~
tar -zxvf prometheus-*.tar.gz

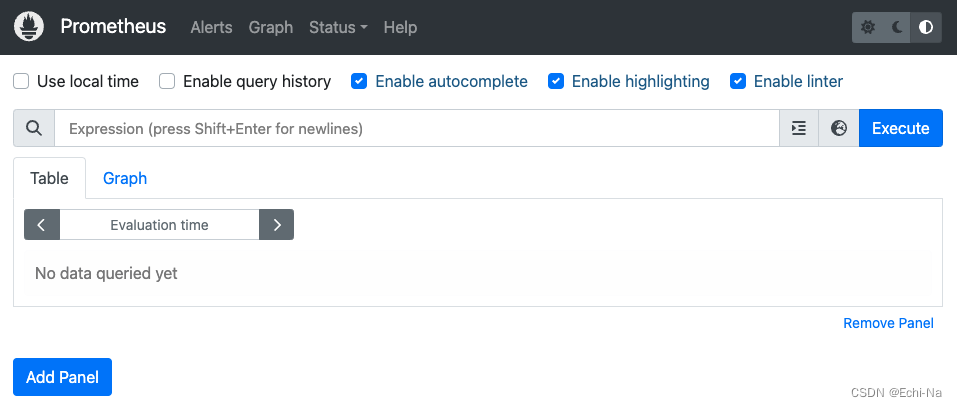

打开 localhost:9090

6. 配置 prometheus.yml 文件

cd prometheus-2.20.1.linux-arm64
vim prometheus.yml

在里面写入

global:
  scrape_interval: 15s
  evaluation_interval: 15s

scrape_configs:
  - job_name: 'prometheus'
    static_configs:
    - targets: ['localhost:9090']

  - job_name: 'linux-node-cluster'
    static_configs:
    - targets: ['localhost:9100']

  - job_name: 'process'
    static_configs:
    - targets: ['localhost:9256']

运行 prometheus

prometheus --config.file=prometheus.yml

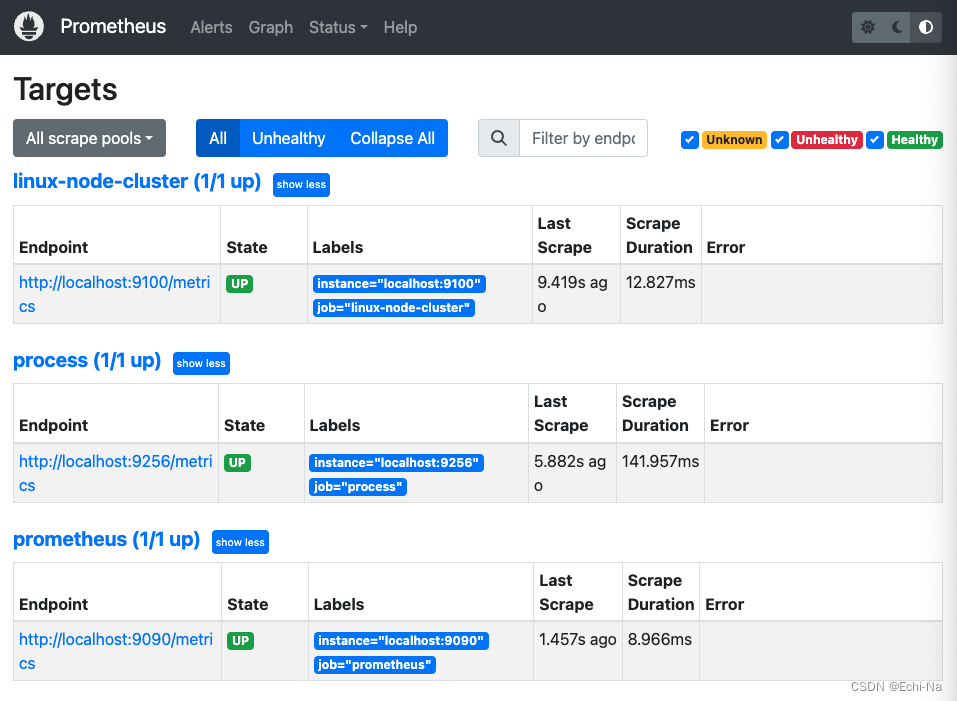

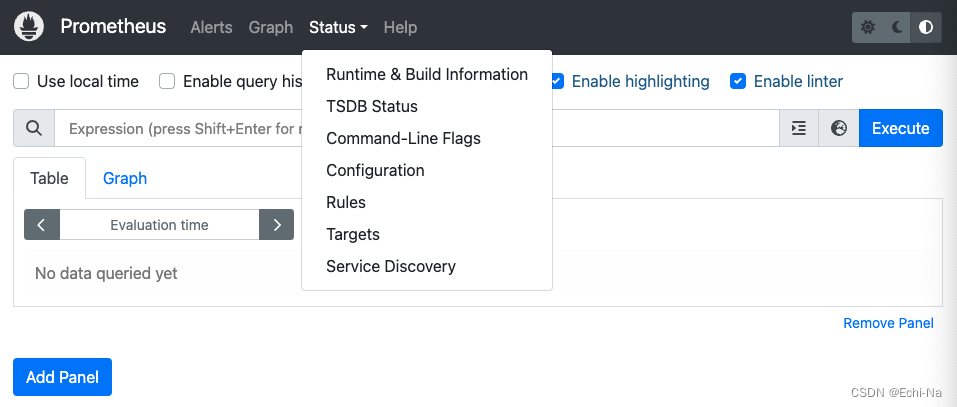

再次打开 localhost: 9090，进入Targets

如果打开刷新后内容如下，则配置成功了

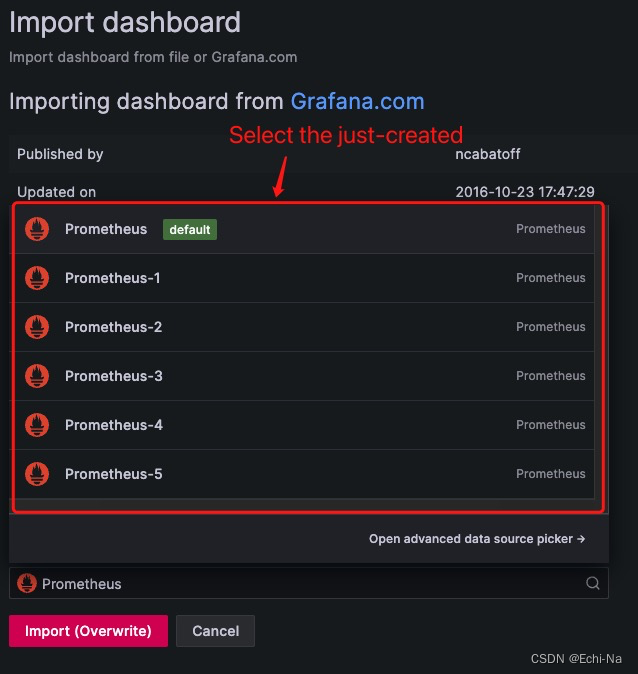

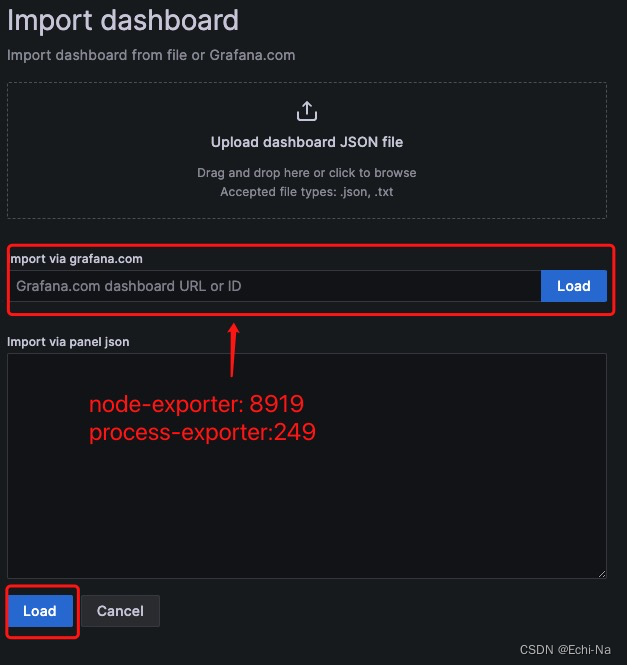

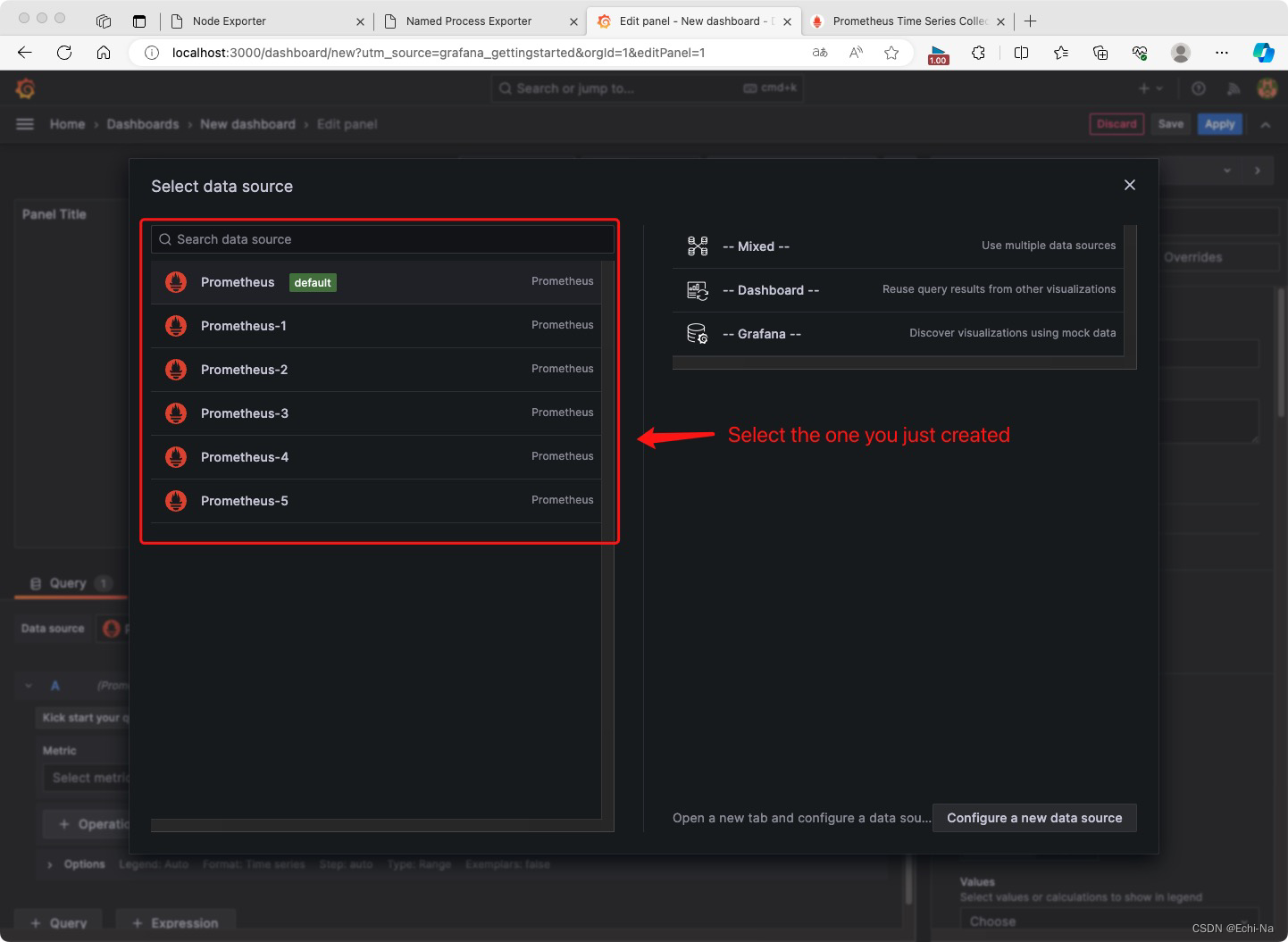

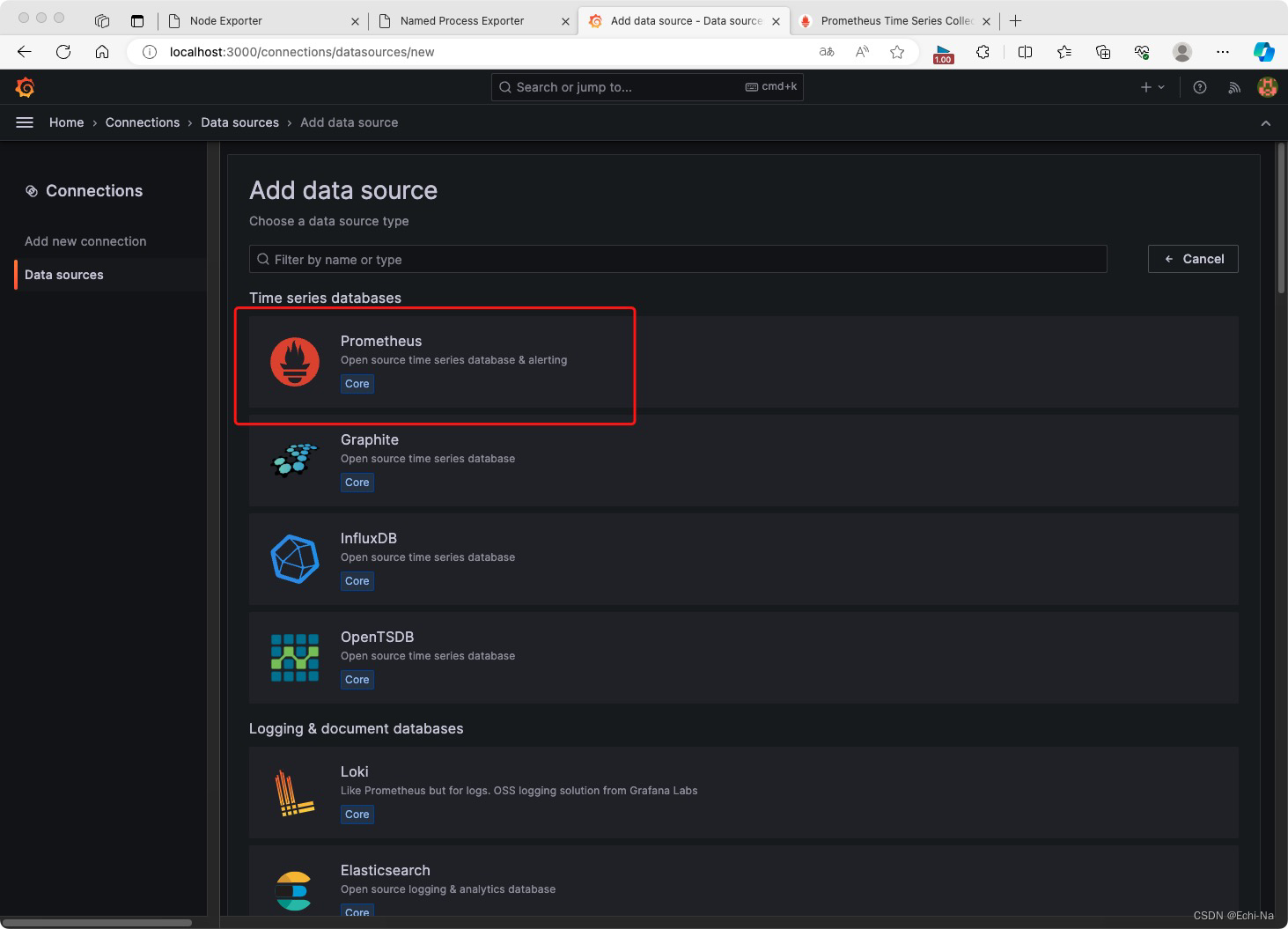

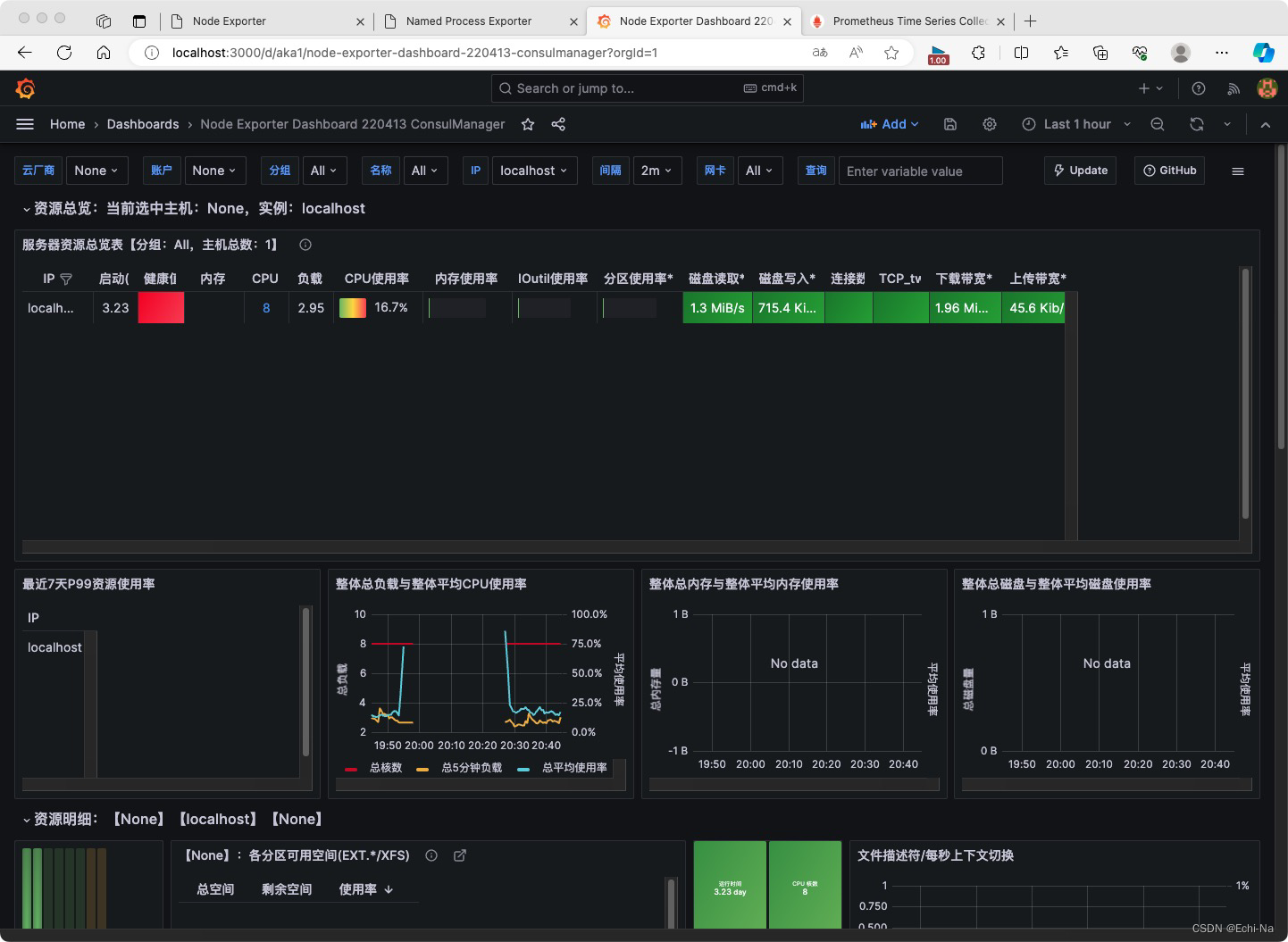

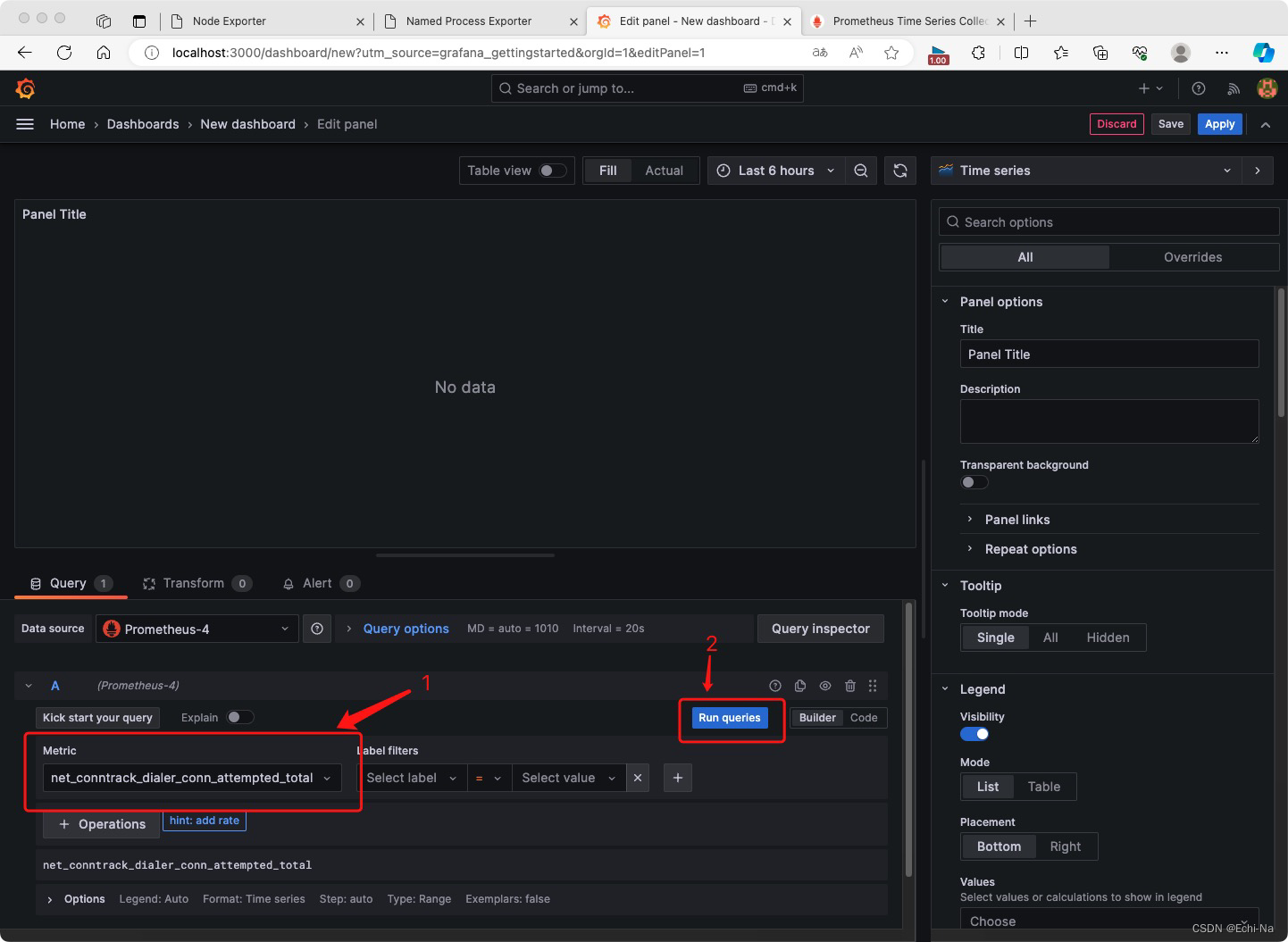

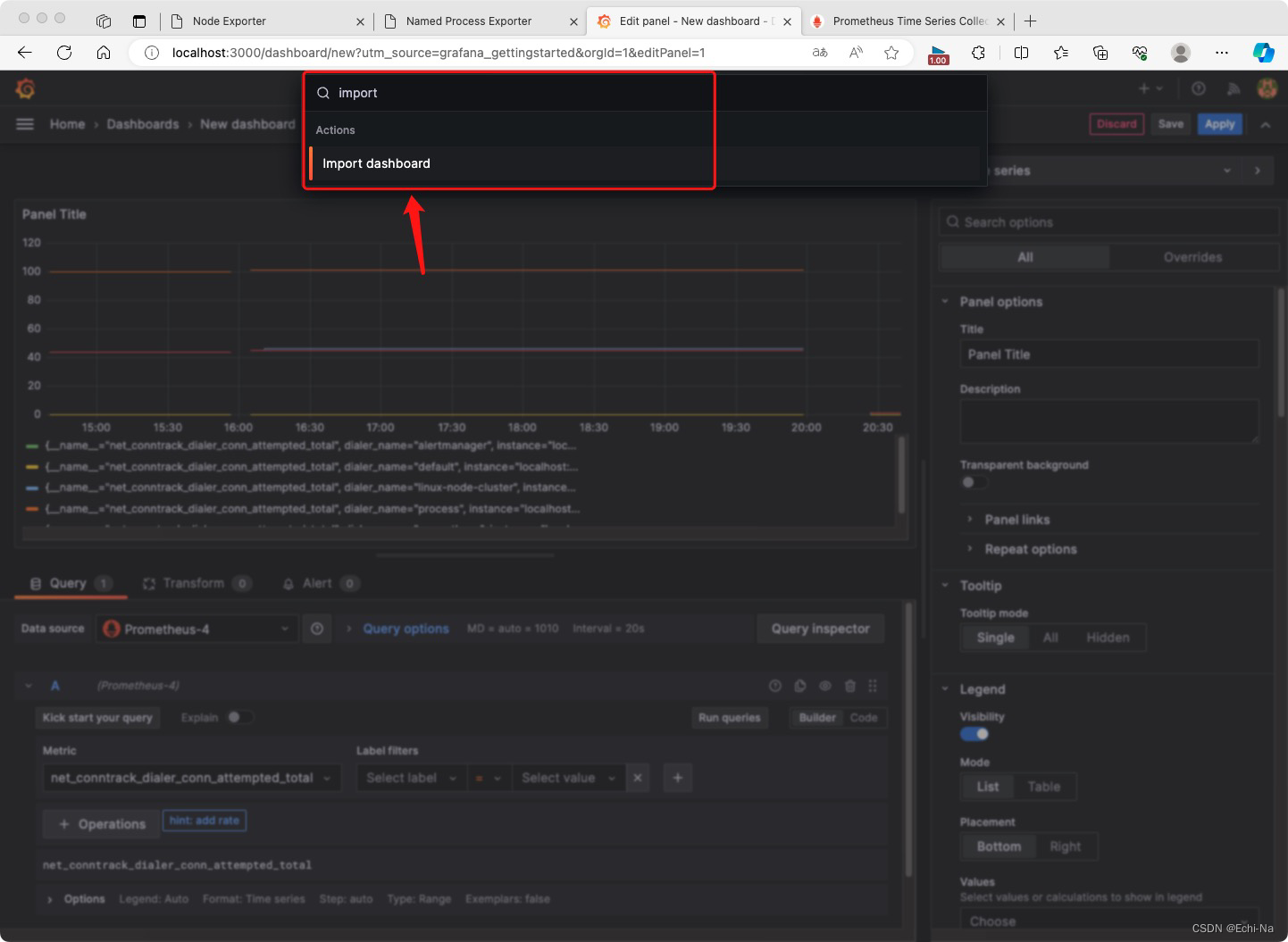

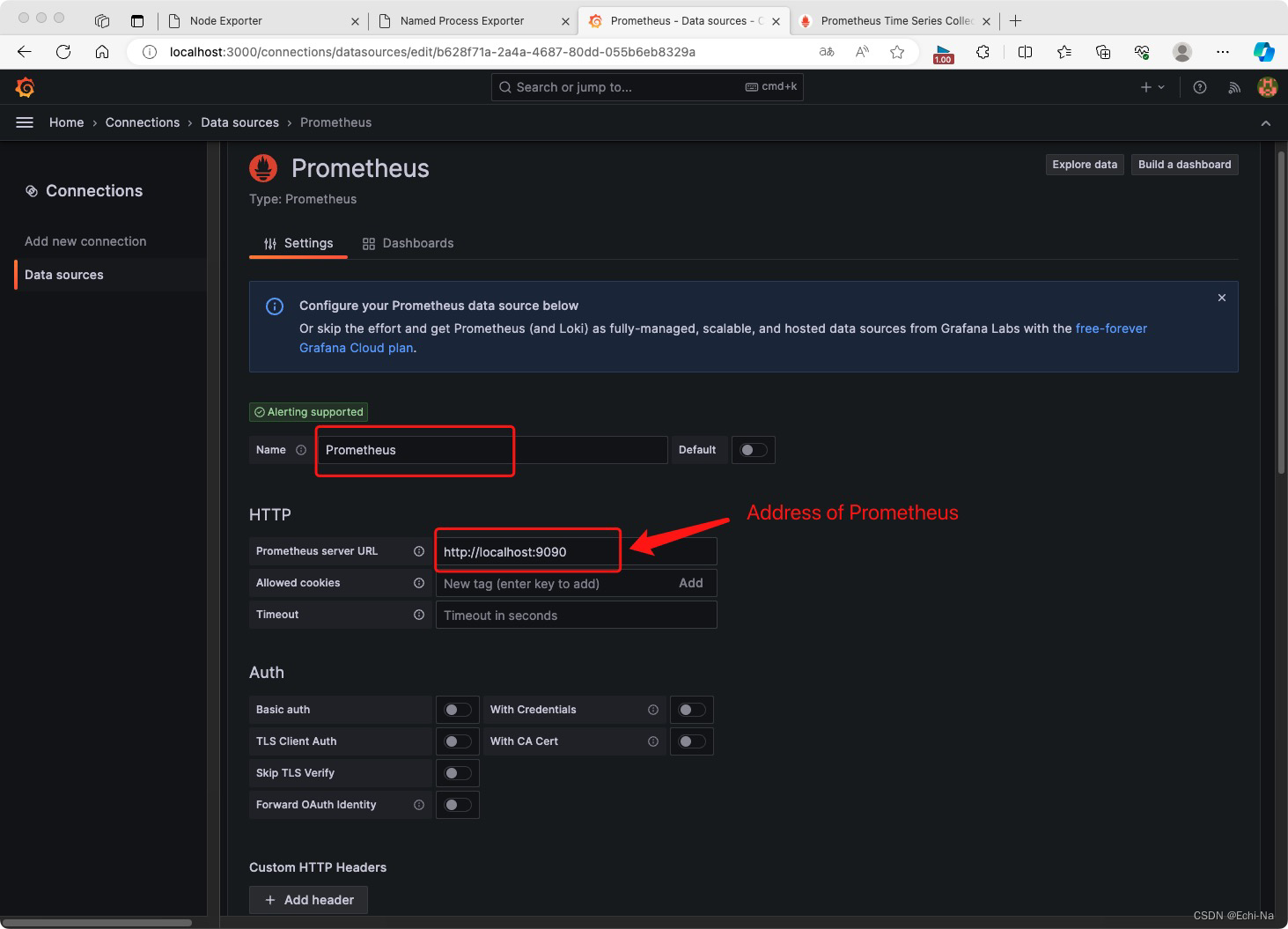

7. 设置 Grafana 及模板
