页面引擎之velocity的基础入门学习

什么是velocity

velocity是一个基于java的模板引擎,可以通过特定的语法获取在java对象的数据,填充到模板中,从而实现界面和Java的分离。

应用场景

Web应用场景:作为应用程序的试图,展示数据。

源代码生成:velocity可以用来基于模板生成java源代码

自动电子邮箱:网站注册,认证等的电子邮箱模板

网页静态化:基于velocity模板生成静态网页

快速入门demo

使用velocity定义一个html模板,将动态数据填充到模板中形成一个完整的HTML页面

1.创建项目

2.引入依赖

    <!--velocity模板引擎-->
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
            <version>2.3</version>
        </dependency>

模板的使用后缀名是vm

html.vm

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>

</body>
</html>

编写测试类进行测试生成一个html模板

import org.apache.velocity.Template;
import org.apache.velocity.VelocityContext;
import org.apache.velocity.app.Velocity;
import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;

import java.io.FileWriter;
import java.io.IOException;
import java.util.Properties;

@SpringBootTest
class CommonPowerApplicationTests {

    @Test
    void contextLoads() throws IOException {
        //设置velocity的资源加载器
        Properties prop = new Properties();
        prop.put("file.resource.loader.class", "org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader");
        //初始化velocity引擎
        Velocity.init(prop);
        //创建velocity容器
        VelocityContext context = new VelocityContext();
        context.put("name","张三");
        //加载velocity模板文件
        Template template = Velocity.getTemplate("templates/html.vm","UTF-8");
        //合并数据到模板
        FileWriter fw = new FileWriter("C:\\Users\\MI\\Desktop\\ruoyi\\yy-power\\src\\main\\resources\\html\\html.html");
        template.merge(context,fw);
        //释放资源
        fw.close();
    }

}

VTL注释

注释允许在模板中包含描述文字,而这些文字不会被放置到模板引擎的输出中。注释是一种有效的提醒自己和向别人解释你的VTL语句要做什么事情的方法。你也可以把注释用来做其他你认为有用的用途。下面就是一个注释的例子。

语法

行注释

## 注释内容

块注释

#*
块注释内容1
块注释内容2
*#

文档注释

#**
文档注释内容1
文档注释内容2
*#

VTL非解析内容

#[[ 非解析内容1 非解析内容2 ]]#

VTL变量引用

$变量名,若上下文没有对应的变量,则输出字符串”$变量名“

${变量名}, 若上下文中没有对应的变量,则输出字符串”${变量名}“

$!变量名,若上下文中没有对应的变量,则输出空字符串""

$!{变量名},若上下文中没有对应的变量,则输出空字符串""

VTL变量

常规变量:$name
正规语法:${name}
##以上二种,如果获取的变量不存在,在原样显示表达式,如果想展示为”“,可以使用$!变量名
常规变量:$!name
正规语法:$!{name}
​​​​​​​测试类中ontext.put("name","张三");引用了变量。注释后第二种变量会为空第一种则会打印$name

VTL方法的引用

写一个实体类
public class User {
    private  String username;
    private  String password;
    private  String email;

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }
}

 使用测试类进行引用

常规语法:$user.username ------$user.password----$user.email
正规语法:${user.username} ------${user.password}----${user.email}


常规语法:$!user.username ------$!user.password----$!user.email
正规语法:$!{user.username} ------$!{user.password}----$!{user.email}

方法引用

方法引用实际就是指方法调用操作,关注点和参数方法的返回值将输出到最终的结果中

语法

方法的引用
常规写法:    $str ----$now
正规写法:   ${str} ----${now}
常规写法:   $str.split("")---$now.getTime(),
正规写法:   ${str.split("")}---------${now.getTime()}

方法的引用
常规写法:    $str ----$now
正规写法:   ${str} ----${now}

常规写法:   $str.split(" ")---$now.getTime(),
正规写法:   ${str.split(" ")}---------${now.getTime()}

常规写法:   $str.split(" ")---$now.getTime(),
正规写法:   ${str.split(" ")}---------${now.getTime()}

常规写法:   $!str.split1(" ")---$!now1.getTime()
正规写法:   $!{str.split1(" ")}---------$!{now1.getTime()}
测试类的使用
 @Test
    public  void contextLoads() throws IOException {
        //设置velocity的资源加载器
        Properties prop = new Properties();
        prop.put("file.resource.loader.class", "org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader");
        //初始化velocity引擎
        Velocity.init(prop);
        //创建velocity容器
        VelocityContext context = new VelocityContext();
        context.put("str","hello word velocity !");
        context.put("now",new Date());
/*
        User user = new User();
        user.setUsername("张三");
        user.setPassword("123456");
        user.setEmail("zhangsan@163.com");
        context.put("user",user);
*/
        //context.put("name","张三");
        //加载velocity模板文件
        Template template = Velocity.getTemplate("templates/html.vm","UTF-8");
        //合并数据到模板
        FileWriter fw = new FileWriter("C:\\Users\\MI\\Desktop\\ruoyi\\yy-power\\src\\main\\resources\\html\\html.html");
        template.merge(context,fw);
        //释放资源
        fw.close();
    }

VIT指令----#set

指令主要用于定义重要模块,引用外部资源、流程控制、指令以#作为起始字符

流程控制

#set

作用:在页面中声明定义变量

语法:#set($变量=值)

示例

#获取set指令定义的变量
字符串: $str -----${str}
字符串: $str2 -----${str2}
整形: $int -----${int}
数组类型: $arr -----${arr}
布尔类型: $boolean -----${boolean}

map.key1: $map.key1----${map.key1}
map.key2: $map.key2----${map.key2}
map.key3: $map.key3----${map.key3}
#if

#set($language="java")
#if($language.equals("java"))
java开发工程师
#elseif($language.equals("php"))
php开发工程师
#else
开发工程师
#end

#foreach

作用遍历循环数组和集合

格式:

#foreach($item in $items)
    ......
    [#break]
#end
$items:需要遍历的对象和集合
如果items的类型为map集合,那么遍历的是map的value
$item 变量名称,代表遍历的每一项
#break 退出循环
内置属性:
$foreach.index 获取遍历的索引,从0开始
$foreach.count 获取遍历的次数,从1开始

测试类的使用

@SpringBootTest
class CommonPowerApplicationTests {

    @Test
    public  void contextLoads() throws IOException {
        //设置velocity的资源加载器
        Properties prop = new Properties();
        prop.put("file.resource.loader.class", "org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader");
        //初始化velocity引擎
        Velocity.init(prop);
        //创建velocity容器
        VelocityContext context = new VelocityContext();
        context.put("str","hello word velocity !");
        context.put("now",new Date());
        //context.put("name","张三");//初始化输出直接写死
/*
        //使用实体类的优势可以从数据库获取
        User user = new User();
        user.setUsername("张三");
        user.setPassword("123456");
        user.setEmail("zhangsan@163.com");
        context.put("user",user);

*/
       //循环一个集合

        //字符串数据
        String[] hobbies = new String[]{"eat", "drink", "play", "happy"};
        context.put("hobbies",hobbies);
        //对象集合
        ArrayList<User> list = new ArrayList<>();
        list.add(new User("yangguo","123456","yangguo@163.com"));
        list.add(new User("xiaolongnv","123456","xiaolongnv@163.com"));
        list.add(new User("guofurong","123456","guofurong@163.com"));
        list.add(new User("lisi","123456","lisi@163.com"));
        context.put("list",list);
        //map
        HashMap<String, Object> map = new HashMap<>();
        map.put("key1","value1");
        map.put("key2","value2");
        map.put("key3","value3");
        map.put("key4","value4");
        context.put("map",map);

        //加载velocity模板文件
        Template template = Velocity.getTemplate("templates/html.vm","UTF-8");
        //合并数据到模板
        FileWriter fw = new FileWriter("C:\\Users\\MI\\Desktop\\ruoyi\\yy-power\\src\\main\\resources\\html\\html.html");
        template.merge(context,fw);
        //释放资源
        fw.close();
    }
}

  示例:

##使用
<h1>遍历字符串数组</h1>
 ##查询字符串数组
 #foreach($hobby in $hobbies)
 $foreach.index----$foreach.count----$hobby
#end


<h1>遍历对象集合</h1>
<table border="1px">
    <tr>
        <td>编码</td>
        <td>用户名</td>
        <td>密码</td>
        <td>邮箱</td>
        <td>操作</td>
    </tr>

    #foreach($user in $list)
    <tr>
        <td>$foreach.count</td>
        <td>$user.username</td>
        <td>$user.password</td>
        <td>$user.email</td>
        <td>
            <a href="">编辑</a>
            <a href="">删除</a>
        </td>
    </tr>
    #end
'</table>

<h1>遍历map集合</h1>
<h2>遍历值</h2>
#foreach($value in $map)
    $value
#end

<h2>遍历键值对</h2>
#foreach($entry in $map.entrySet())
$entry.key ------$entry.value
#end

#include指令

#include

作用:引入外部资源,引入的资源不会被引擎解析

语法:

#include(resource)
resource以为单引号或者双引号的字符串,也可以为$变量,内容为外部资源路径
注意的是:如果路径为相对路径,则引擎配置的文件加载路径作为参考

示例

#include("templates/html.vm")

#parse

作用:引入外部资源,引用的资源被引擎所解析

语法:

#parse(resource)
resource以为单引号或者双引号的字符串,也可以为$变量,内容为外部资源路径
注意的是:如果路径为相对路径,则引擎配置的文件加载路径作为参考

示例:

#parse("templates/html.vm")

#define

作用:定义重用模板(不带参数)

 语法:

#define($模块名称)
模板内容
#end

 示例:

#define($table)
<table border="1px">
    <tr>
        <td>编码</td>
        <td>用户名</td>
        <td>密码</td>
        <td>邮箱</td>
        <td>操作</td>
    </tr>

    <tr>
        <td>1</td>
        <td>yangguo</td>
        <td>123456</td>
        <td>yangguo@163.com</td>
        <td>
            <a href="">编辑</a>
            <a href="">删除</a>
        </td>
    </tr>
    <tr>
        <td>2</td>
        <td>xiaolongnv</td>
        <td>123456</td>
        <td>xiaolongnv@163.com</td>
        <td>
            <a href="">编辑</a>
            <a href="">删除</a>
        </td>
    </tr>
    <tr>
        <td>3</td>
        <td>guofurong</td>
        <td>123456</td>
        <td>guofurong@163.com</td>
        <td>
            <a href="">编辑</a>
            <a href="">删除</a>
        </td>
    </tr>
    <tr>
        <td>4</td>
        <td>lisi</td>
        <td>123456</td>
        <td>lisi@163.com</td>
        <td>
            <a href="">编辑</a>
            <a href="">删除</a>
        </td>
    </tr>
</table>
#end
​​​​​​​##引用定义好的模块
​​​$table
$table
$table
$table
 #evaluate

语法:

<h1>动态计算</h1>
#set($name="over")
#evaluate("#if($name=='over') over #else not over #end")
#if($name=='over')
    over
   #else
    not over
#endc
测试类
   @Test
    public  void test5() throws IOException {
        //设置velocity的资源加载器
        Properties prop = new Properties();
        prop.put("file.resource.loader.class", "org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader");
        //初始化velocity引擎
        Velocity.init(prop);
        //创建velocity容器
        VelocityContext context = new VelocityContext();
       context.put("code","#if($language.equals(\"java\"))java开发工程师#elseif($language.equals(\"php\"))php开发工程师#else开发工程师#end");

        //加载velocity模板文件
        Template template = Velocity.getTemplate("templates/cs.vm","UTF-8");
        //合并数据到模板
        FileWriter fw = new FileWriter("C:\\Users\\MI\\Desktop\\ruoyi\\yy-power\\src\\main\\resources\\html\\cs.html");
        template.merge(context,fw);
        //释放资源
        fw.close();
    }

 vm的用法

#evaluate($code)

宏指令

作用:定义重用模块(可带参数)

语法:

定义语法:

#macro(宏名[$arg]?)
    ........
#end

调用语法:

#宏名([$arg]?)

 示例:

测试类的用法

@Test
    public  void test6() throws IOException {
        //设置velocity的资源加载器
        Properties prop = new Properties();
        prop.put("file.resource.loader.class", "org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader");
        //初始化velocity引擎
        Velocity.init(prop);
        //创建velocity容器
        VelocityContext context = new VelocityContext();
        //对象集合
        ArrayList<User> list = new ArrayList<>();
        list.add(new User("yangguo","123456","yangguo@163.com"));
        list.add(new User("xiaolongnv","123456","xiaolongnv@163.com"));
        list.add(new User("guofurong","123456","guofurong@163.com"));
        list.add(new User("lisi","123456","lisi@163.com"));
        context.put("list",list);

        //加载velocity模板文件
        Template template = Velocity.getTemplate("templates/cs3.vm","UTF-8");
        //合并数据到模板
        FileWriter fw = new FileWriter("C:\\Users\\MI\\Desktop\\ruoyi\\yy-power\\src\\main\\resources\\html\\cs3.html");
        template.merge(context,fw);
        //释放资源
        fw.close();
    }
}

vm的用法

#macro(table $list)
<table border="1px">
    <tr>
        <td>编码</td>
        <td>用户名</td>
        <td>密码</td>
        <td>邮箱</td>
        <td>操作</td>
    </tr>
    #foreach ($user in $list)
    <tr>
        <td>$foreach.count</td>
        <td>$user.username</td>
        <td>$user.password</td>
        <td>$user.email</td>
        <td>
            <a href="">编辑</a>
            <a href="">删除</a>
        </td>
    </tr>
 #end
</table>
#end

## 引用定义好的模块
#table($list)

VelocityTools使用

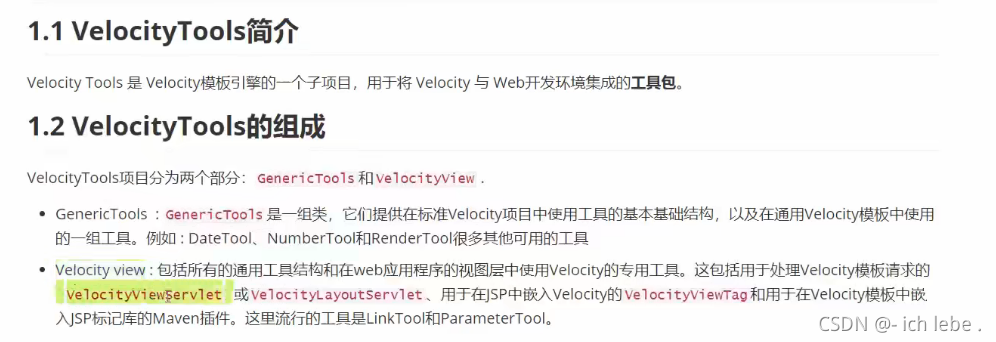

我们已经知道了velocity的基础知识,现在有一个工具包,VelocityTools

在这里插入图片描述

GenericTools 使用

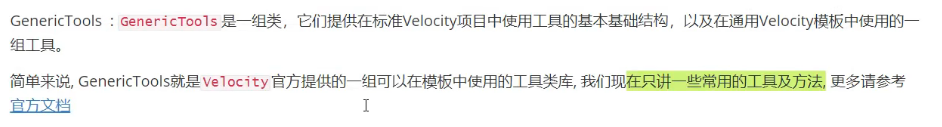

什么叫做GenericTools

在这里插入图片描述
总之就是工具类,我们学习这个,就是学习这个工具类的api

搭建环境

   <!--        velocity  的核心包-->
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
            <version>2.2</version>
        </dependency>
        <!--        velocity  的工具包   要使用人家工具包里面的api,就需要导入工具包-->

        <dependency>
            <groupId>org.apache.velocity.tools</groupId>
            <artifactId>velocity-tools-generic</artifactId>
            <version>3.0</version>
        </dependency>

快速入门

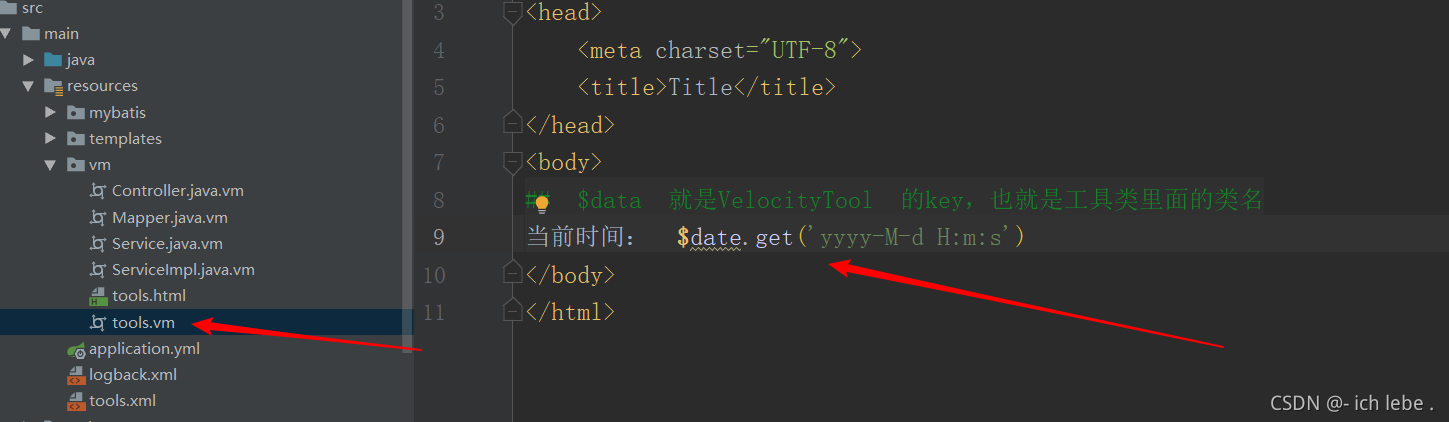

项目中已经导入了依赖,我们自己创建一个模板,在这个模板里面就可以使用工具类了。

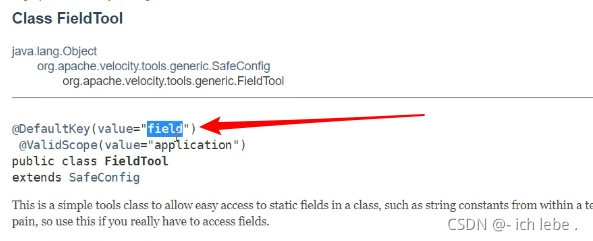

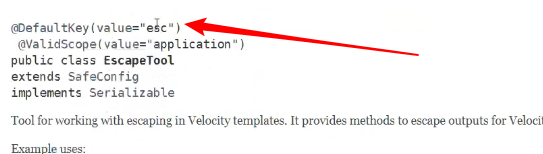

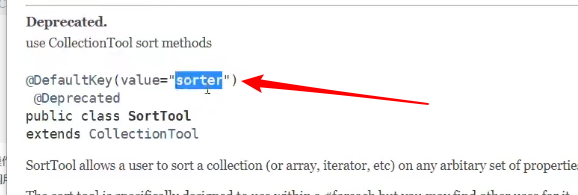

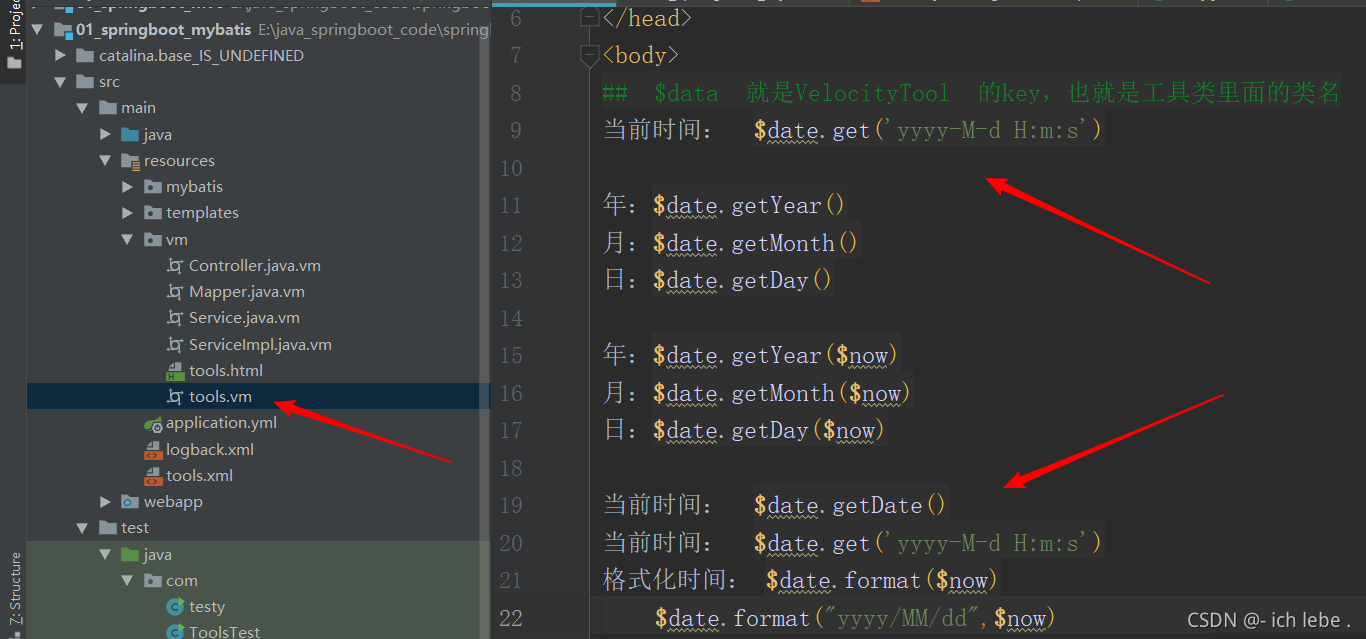

我们查看工具类的文档,现在我们要在模板里面定义事件,那么在工具类的api里面找到相关事件的类。

这个文档里面有很多的类,每一个类里面有很多的方法,我们就是使用这个类里面的方法

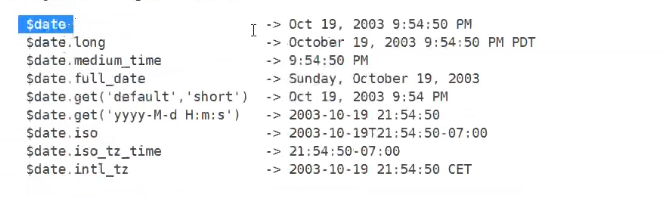

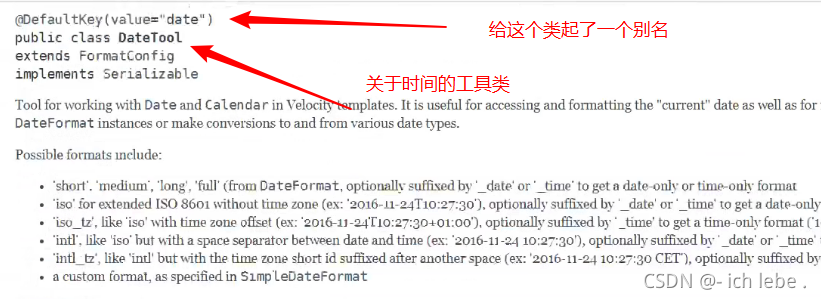

比如这个时间,就是一个类,这个类里面有很多的方法

在这里插入图片描述

这个类里面的一些方法是

在这里插入图片描述
使用步骤:

写一个vm,里面使用工具类

在这里插入图片描述

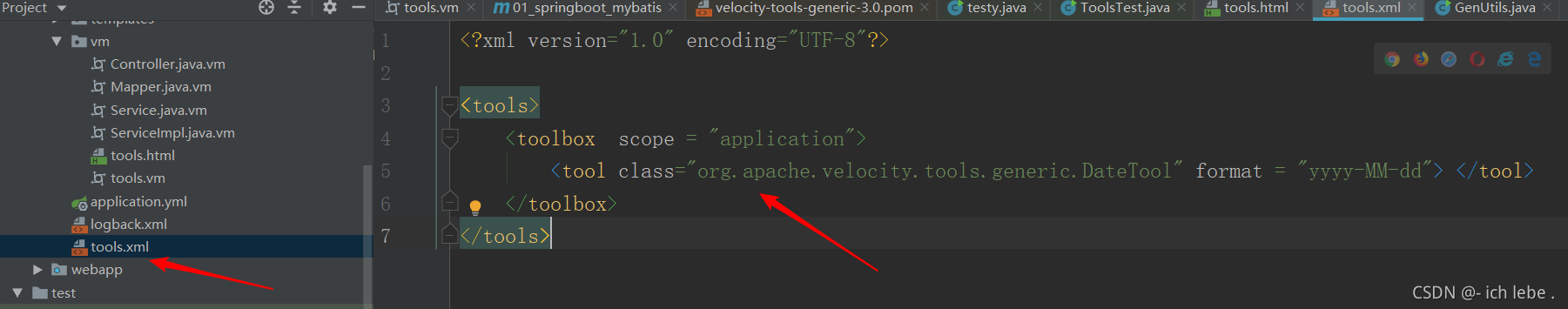

写一个配置的xml

 在这里插入图片描述

 写测试方法

public class ToolsTest {

    public static void main(String[] args) throws IOException {
//        1 创建引擎对象

        VelocityEngine engine = new VelocityEngine();
//        2 设置模板的加载路径

        engine.setProperty(Velocity.RESOURCE_LOADER,"class");
        engine.setProperty("class.resource.loader.class","org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader");
//        3  初始化引擎

        engine.init();
//        4  加载tools.xml配置文件

        ToolManager toolManager = new ToolManager();
        toolManager.configure("tools.xml");
//        5  加载模板

        Template template = engine.getTemplate("vm/tools.vm");
//        6  设置数据

        ToolContext context = toolManager.createContext();
        context.put("now",new Date());
//        7 合并数据到模板

        FileWriter fileWriter = new FileWriter("E:\\java_springboot_code\\springboot_first\\01_springboot_mybatis\\src\\main\\resources\\vm\\tools.html");
        template.merge(context,fileWriter);
//        8 释放资源

        fileWriter.close();
    }
}

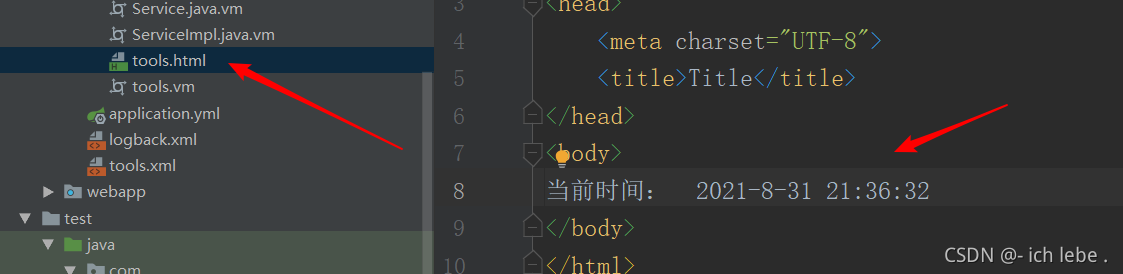

最后生成的html 是

在这里插入图片描述
工具类以及案例

DateTool



 在这里插入图片描述

##  $data  就是VelocityTool  的key,也就是工具类里面的类名
当前时间:  $date.get('yyyy-M-d H:m:s')

年:$date.getYear()
月:$date.getMonth()
日:$date.getDay()

年:$date.getYear($now)
月:$date.getMonth($now)
日:$date.getDay($now)

当前时间:  $date.getDate()
当前时间:  $date.get('yyyy-M-d H:m:s')
格式化时间: $date.format($now)
    $date.format("yyyy/MM/dd",$now)

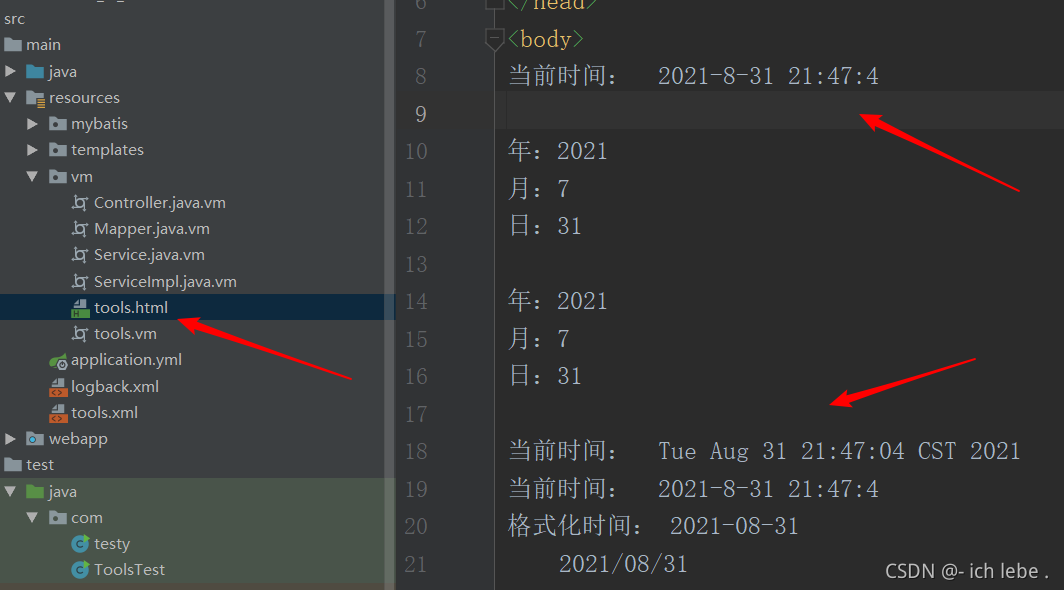

最后生成的HTML是

在这里插入图片描述

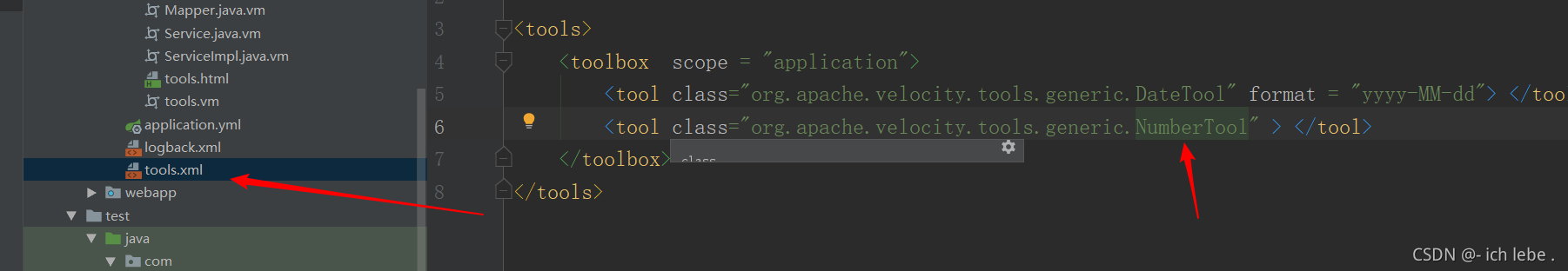

NumberTool

在这里插入图片描述

<?xml version="1.0" encoding="UTF-8"?>



<tools>
    <toolbox  scope = "application">
        <tool class="org.apache.velocity.tools.generic.DateTool" format = "yyyy-MM-dd"> </tool>
        <tool class="org.apache.velocity.tools.generic.NumberTool" > </tool>
    </toolbox>
</tools>

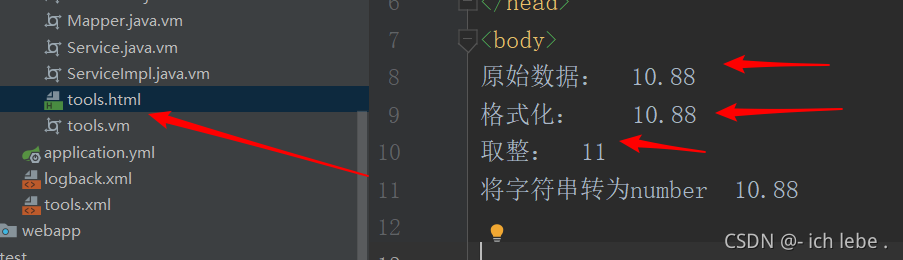

原始数据:  $mynumber
## $number 工具类   里面有很多的方法
格式化:    $number.format($mynumber)
取整:  $number.integer($mynumber)
将字符串转为number  $number.toNumber($mynumber1)

在这里插入图片描述

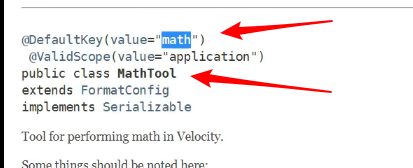

MathTool

在这里插入图片描述

在这里插入图片描述

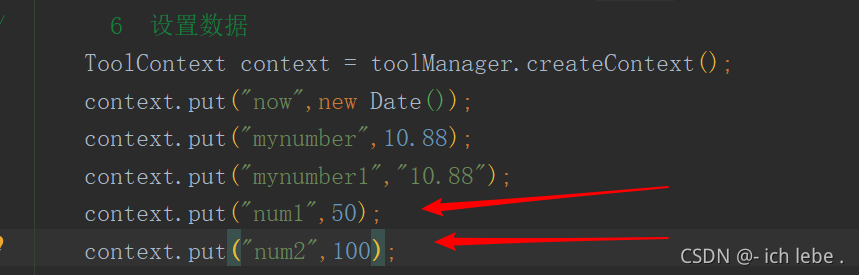

 在模板里面要对这两个数据进行运算

 在这里插入图片描述

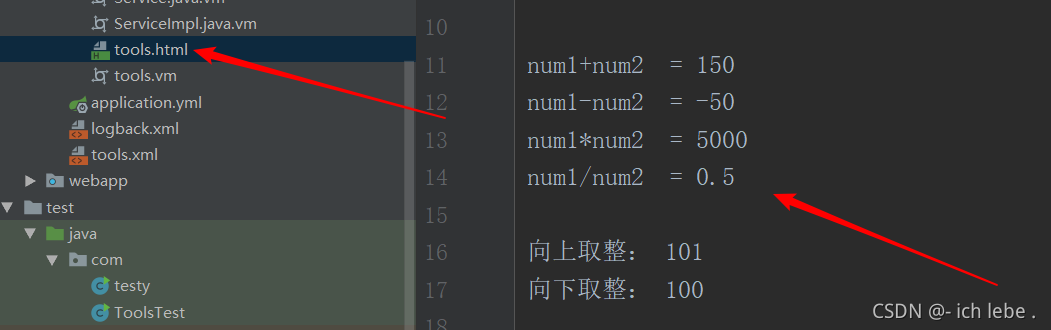

num1+num2  = $math.add($num1,$num2)
num1-num2  = $math.sub($num1,$num2)
num1*num2  = $math.mul($num1,$num2)
num1/num2  = $math.div($num1,$num2)

向上取整: $math.ceil($num3)
向下取整: $math.floor($num3)

在这里插入图片描述

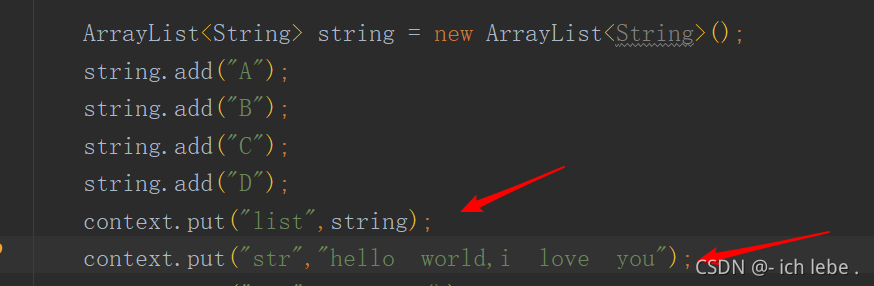

DisplayTool

在这里插入图片描述

 在这里插入图片描述

默认输出格式:  $display.list($list)
自定义分隔符    $display.list($list,',')

字符串截取  默认30个长度   $display.truncate($str)
    $display.truncate($str,10)
    $display.truncate($str,10,"10")
## alt 方法用于判断给的数据是否为空,如果为空,展示默认值
不为空:  $display.alt($num1,"hhhh")

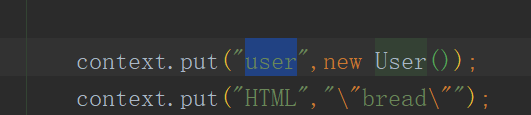

EscapeTool

$esc.velocity($HTML)
$esc.html($HTML)
$esc.url($HTML)
     <tool class="org.apache.velocity.tools.generic.EscapeTool" > </tool>

FieldTool

 在这里插入图片描述



 在这里插入图片描述

  <tool class="org.apache.velocity.tools.generic.FieldTool"
  include="com.pojo.User" > </tool>

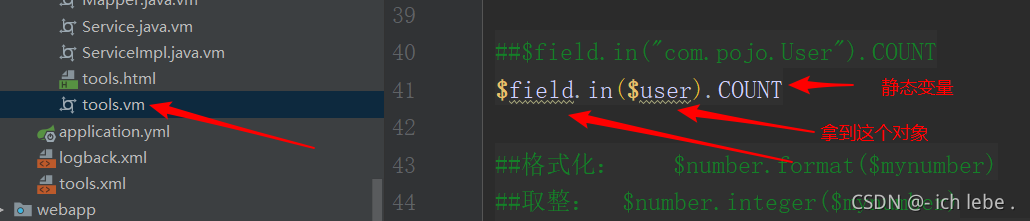

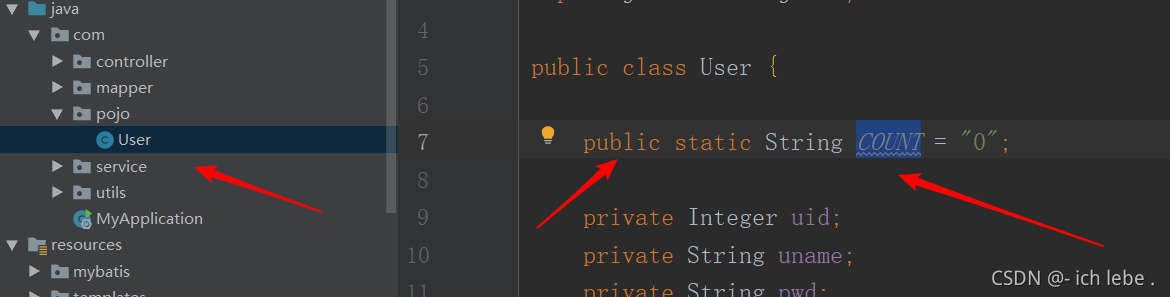

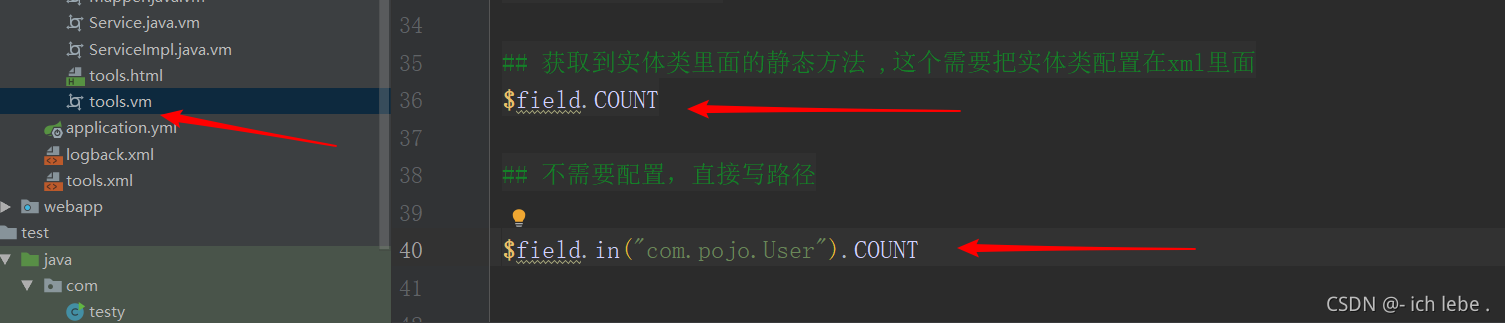

我们还可以在context里面存对象,之后利用这个工具,获取到这个对象里面的静态变量

在这里插入图片描述

在这里插入图片描述

ClassTool

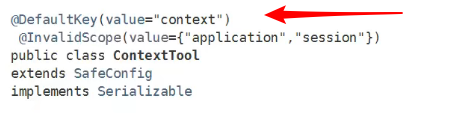

ContextTool

在这里插入图片描述

这个就是帮助我们拿到在context里面存的数据

<tools>
    <toolbox  scope = "application">
        <tool class="org.apache.velocity.tools.generic.DateTool" format = "yyyy-MM-dd"> </tool>
        <tool class="org.apache.velocity.tools.generic.NumberTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.MathTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.DisplayTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.EscapeTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.FieldTool" include="com.pojo.User" > </tool>



    </toolbox>


ContextTool 对于这个工具,必须放到这个request里面才可以生效
    <toolbox scope="request">
        <tool class="org.apache.velocity.tools.generic.ContextTool" > </tool>
    </toolbox>
</tools>

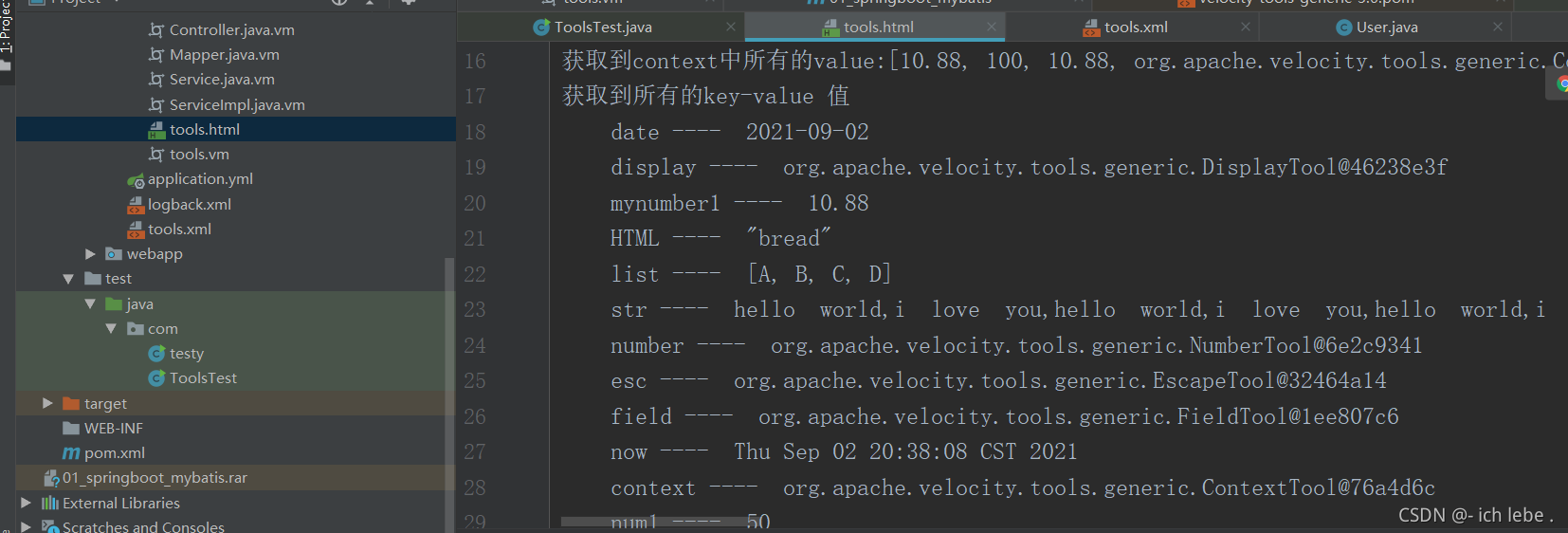

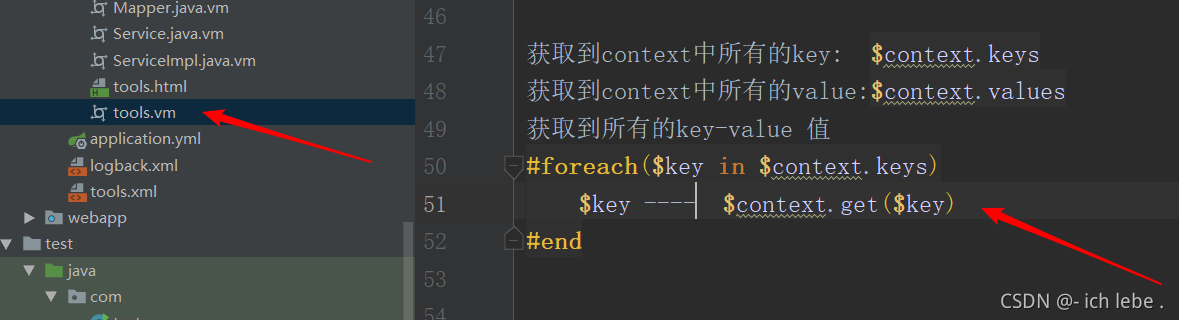

获取到context中所有的key:  $context.keys
获取到context中所有的value:$context.values
获取到所有的key-value 值
#foreach($key in $context.keys)
    $key ----  $context.get($key)
#end

在这里插入图片描述
RenderTool

这个工具的意思是,我们自己在这个页面定义的数据,如果表达式变为字符串了,就不能执行了,现在想要将字符串的表达式进行执行,那么就可以使用这个工具

<tools>
    <toolbox  scope = "application">
        <tool class="org.apache.velocity.tools.generic.DateTool" format = "yyyy-MM-dd"> </tool>
        <tool class="org.apache.velocity.tools.generic.NumberTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.MathTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.DisplayTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.EscapeTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.FieldTool" include="com.pojo.User" > </tool>

    </toolbox>

    <toolbox scope="request">
        <tool class="org.apache.velocity.tools.generic.ContextTool" > </tool>
        <tool class="org.apache.velocity.tools.generic.RenderTool" > </tool>
    </toolbox>
</tools>
##定义一个list集合
#set($list=[1,2,2,3])

## 设置变量为一个字符串
#set($object = '$list')
#set($method = 'size()')

##获取集合的长度
$render.eval("$object.$method")

生成的为

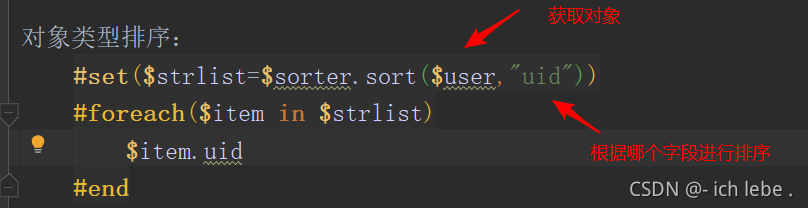

SortTool

在这里插入图片描述

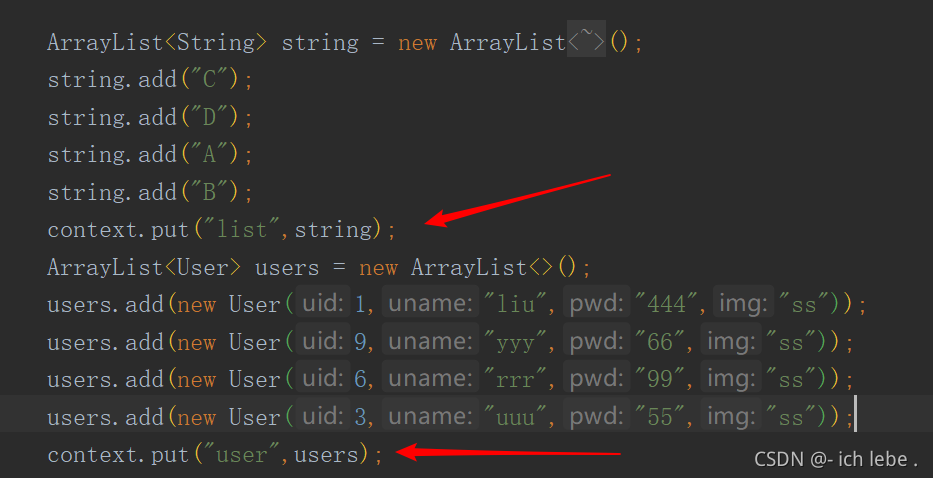

先往context里面存放list集合数据,里面的数据是杂乱无章的

在这里插入图片描述

    <tool class="org.apache.velocity.tools.generic.SortTool" > </tool>

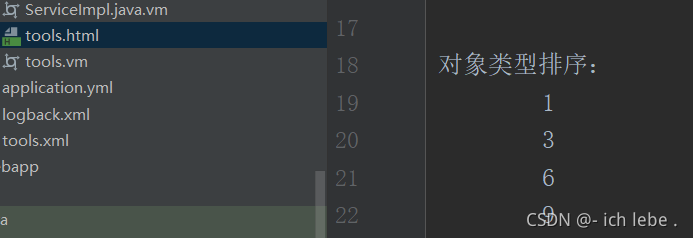

以上是有序的

在这里插入图片描述

在这里插入图片描述

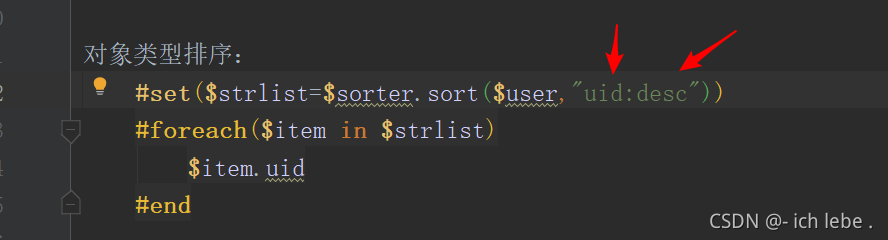

以上对于对象是默认升序的,现在我们想要降序咋办

在这里插入图片描述

在这里插入图片描述

在这里插入图片描述

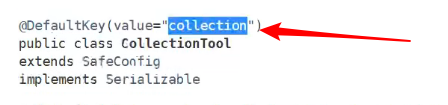

CollectionTool

在这里插入图片描述
除了有SortTool 的方法功能,还有

将字符串根据某个规则 生成为集合

#set($str="44,88,99")
$str.split(",")

在这里插入图片描述

XmlTool

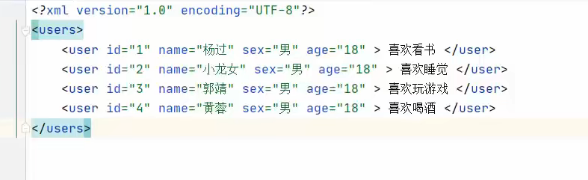

 创建一个xml

在这里插入图片描述

 在这里插入图片描述





  • 2
    点赞
  • 9
    收藏
    觉得还不错? 一键收藏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
