代码参考自StackOverFlow,由本人修改
业务场景
视频(大文件)分段下载,视频速览
请求头简介
ETag
前端浏览器资源缓存的标识符,由后端传给前端,用于判断资源是否发生了改变,缓存是否失效。不同文件的ETag有不同的实现方式,我的项目中采用了md5。
If-None-Match
如果前端存在缓存,则设置该请求头的内容为Etag/*,若请求头的内容匹配则后端不传输任何数据,返回304表示资源未被修改,缓存可以直接使用。
If-Match
搭配 Range首部使用,可以用来保证新请求的范围与之前请求的范围是对同一份资源的请求。实际使用是判断该请求头的内容和服务器的ETag是否相等。如果 ETag 无法匹配,那么需要返回 416 (Range Not Satisfiable,范围请求无法满足) 响应。
Range
请求文件的多个部分,服务器会以 multipart 文件的形式将其返回。如果服务器返回的是范围响应,需要使用 206 Partial Content 状态码。假如所请求的范围不合法,那么服务器会返回 416 Range Not Satisfiable 状态码,表示客户端错误。服务器允许忽略 Range 首部,从而返回整个文件,状态码用 200 。
示例:
Range: <unit>=<range-start>-
Range: <unit>=<range-start>-<range-end>
Range: <unit>=<range-start>-<range-end>, <range-start>-<range-end>
Range: <unit>=<range-start>-<range-end>, <range-start>-<range-end>, <range-start>-<range-end>
bytes=-20/20 表示后20个字节;
bytes=20-100/80 表示20-100总计80个字节
bytes=20-40/20,60-80/20 表示一个Range请求返回两个文件块
Accept
Accept 请求头用来告知服务器,客户端可以处理的内容类型。在我的项目中是用于设置Content-Disposition请求头,若为video/mp4类型,说明是可以处理的类型就告知inline,否则告知attachment。
Content-Type
服务端指示资源的 MIME 类型 media type 。
测试样例

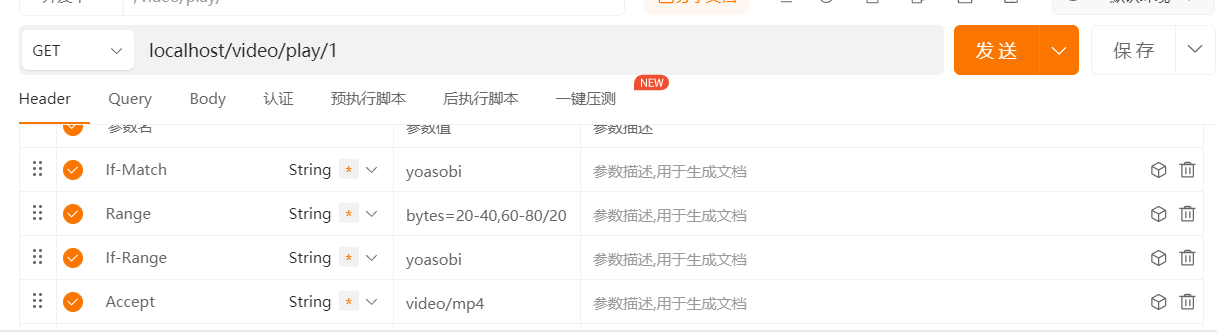

- 请求头设置

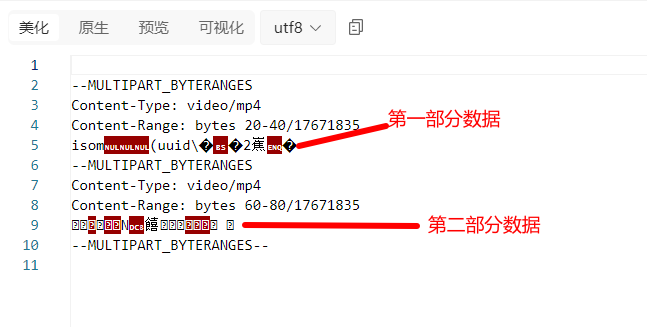

- 返回结果

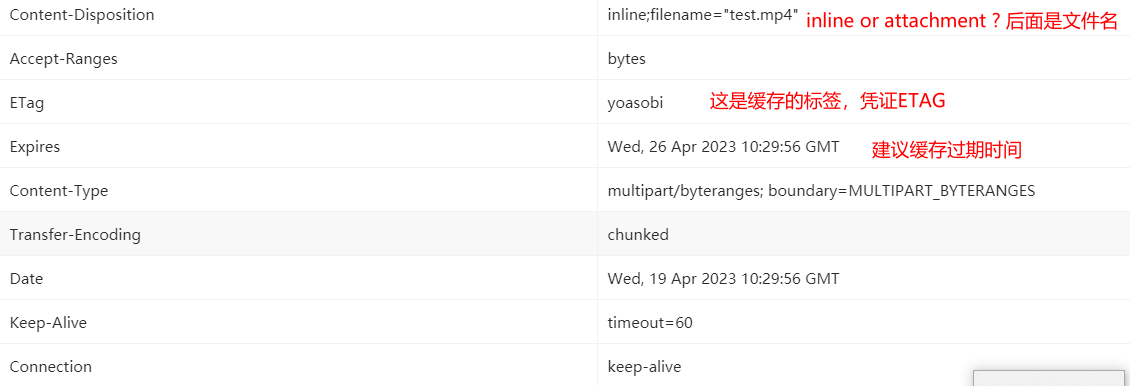

- 响应头结果
代码(注释很详细)
package org.demo.service;
import jakarta.servlet.ServletOutputStream;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.demo.constant.EntityConstant;
import org.demo.mapper.VideoMapper;
import org.demo.pojo.Video;
import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import java.io.BufferedInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
/**
* Created by kevin on 10/02/15.
* See full code here : https://github.com/davinkevin/Podcast-Server/blob/d927d9b8cb9ea1268af74316cd20b7192ca92da7/src/main/java/lan/dk/podcastserver/utils/multipart/MultipartFileSender.java
* Updated by limecoder on 23/04/19
*/
@Slf4j
@Component(value = "multipartFileSender")
@RequiredArgsConstructor
@Scope("request")
public class MultipartFileSender {
private static final int DEFAULT_BUFFER_SIZE = 20480; // ..bytes = 20KB.
private static final long DEFAULT_EXPIRE_TIME = 604800000L; // ..ms = 1 week.
private static final String MULTIPART_BOUNDARY = "MULTIPART_BYTERANGES";
private static final String PATTERN = "^bytes=\\d*-\\d*(/\\d*)?(,\\d*-\\d*(/\\d*)?)*$";
private final HttpServletRequest request;
private final HttpServletResponse response;
private final VideoMapper videoMapper;
private final MinioService minioService;
public void sent(Long videoId) throws Exception {
if (response == null || request == null) {
log.warn("http-request/http-response 注入失败");
return;
}
Video video = videoMapper.selectById(videoId);
/*
* 处理视频不存在的情况
* */
if (video == null) {
log.warn("videoId doesn't exist at database : {}", videoId);
response.sendError(HttpServletResponse.SC_NOT_FOUND);
return;
}
Long size = video.getSize();
String md5 = video.getMd5();
// 处理缓存信息 ---------------------------------------------------
/*
* If-None-Match是缓存请求头,如果缓存的值与文件的md5相同或者值为*,那么就直接提示前端直接使用缓存即可
* 并将md5再次返回给前端
* */
// If-None-Match header should contain "*" or ETag. If so, then return 304.
String ifNoneMatch = request.getHeader("If-None-Match");
if (ifNoneMatch != null && HttpUtils.matches(ifNoneMatch, md5)) {
response.setHeader("ETag", md5); // Required in 304.
response.sendError(HttpServletResponse.SC_NOT_MODIFIED);
return;
}
// 确保Range请求合法 ----------------------------------------------------
/*
* 对于 GET 和 HEAD 方法,搭配 Range首部使用,可以用来保证新请求的范围与之前请求的范围是对同一份资源的请求。
* 如果 ETag 无法匹配,那么需要返回 416 (Range Not Satisfiable,范围请求无法满足) 响应。
* */
// If-Match header should contain "*" or ETag. If not, then return 412.
String ifMatch = request.getHeader("If-Match");
if (ifMatch != null && !HttpUtils.matches(ifMatch, md5)) {
response.sendError(HttpServletResponse.SC_PRECONDITION_FAILED);
return;
}
// 验证和解析Range请求头 -------------------------------------------------------------
// Prepare some variables. The full Range represents the complete file.
Range full = new Range(0, size - 1, size);
List<Range> ranges = new ArrayList<>();
// Validate and process Range and If-Range headers.
String range = request.getHeader("Range");
if (range != null) {
/*
* 如果Range请求头不满足规范格式,那么发送错误请求
* */
// Range header should match format "bytes=n-n,n-n,n-n...". If not, then return 416.
if (!range.matches(PATTERN)) {
response.setHeader("Content-Range", "bytes */" + size); // Required in 416.
response.sendError(HttpServletResponse.SC_REQUESTED_RANGE_NOT_SATISFIABLE);
return;
}
/*
* If-Range 头字段通常用于断点续传的下载过程中,用来自从上次中断后,确保下载的资源没有发生改变。
* */
String ifRange = request.getHeader("If-Range");
if (ifRange != null && !ifRange.equals(md5)) {
// 如果资源发生了改变,直接将数据全部返回
ranges.add(full);
}
/*
* 如果If-Range请求头是合法的,也就是视频数据并没有更新
* 例子:bytes:10-80,bytes:80-180
* */
// If any valid If-Range header, then process each part of byte range.
if (ranges.isEmpty()) {
// substring去除bytes:
for (String part : range.substring(6).split(",")) {
// Assuming a file with size of 100, the following examples returns bytes at:
// 50-80 (50 to 80), 40- (40 to size=100), -20 (size-20=80 to size=100).
//去除多余空格
part = part.trim();
/*
* 解决20-80及20-80/60的切割问题
* */
long start = Range.subLong(part, 0, part.indexOf("-"));
int index1 = part.indexOf("/");
int index2 = part.length();
int index = index2 > index1 && index1 > 0 ? index1 : index2;
long end = Range.subLong(part, part.indexOf("-") + 1, index);
// 如果是-开头的情况 -20
if (start == -1) {
start = size - end;
end = size - 1;
// 如果是20但没有-的情况,或者end> size - 1的情况
} else if (end == -1 || end > size - 1) {
end = size - 1;
}
/*
* 如果范围不合法, 80-10
* */
// Check if Range is syntactically valid. If not, then return 416.
if (start > end) {
response.setHeader("Content-Range", "bytes */" + size); // Required in 416.
response.sendError(HttpServletResponse.SC_REQUESTED_RANGE_NOT_SATISFIABLE);
return;
}
// Add range.
ranges.add(new Range(start, end, size));
}
}
}
// Prepare and initialize response --------------------------------------------------------
// Get content type by file name and set content disposition.
String disposition = "inline";
// If content type is unknown, then set the default value.
// For all content types, see: http://www.w3schools.com/media/media_mimeref.asp
// To add new content types, add new mime-mapping entry in web.xml.
String contentType = "video/mp4";
/*
* 经过测试当accept为"video/mp4"是inline, 其他情况都是attachment
* */
// Else, expect for images, determine content disposition. If content type is supported by
// the browser, then set to inline, else attachment which will pop a 'save as' dialogue.
String accept = request.getHeader("Accept");
disposition = accept != null && HttpUtils.accepts(accept, contentType) ? "inline" : "attachment";
log.debug("Content-Type : {}", contentType);
// Initialize response.
response.reset();
response.setBufferSize(DEFAULT_BUFFER_SIZE);
response.setHeader("Content-Type", contentType);
String videoPath = video.getVideoPath();
response.setHeader("Content-Disposition", disposition + ";filename=\"" + videoPath.substring(videoPath.lastIndexOf('/') + 1) + "\"");
log.debug("Content-Disposition: {}, fileName: {}", disposition, videoPath.substring(videoPath.lastIndexOf('/') + 1));
response.setHeader("Accept-Ranges", "bytes");
response.setHeader("ETag", md5);
// 设置缓存过期时间
response.setDateHeader("Expires", System.currentTimeMillis() + DEFAULT_EXPIRE_TIME);
// Send requested file (part(s)) to client ------------------------------------------------
/*
* 注意minioService okhttp3经过测试最大只能一次传8kb, 而bufferedInputStream的默认缓存区恰好8kb
* */
// Prepare streams.
try (InputStream input = new BufferedInputStream(minioService.getDownloadInputStream(EntityConstant.VIDEO_BUCKET, videoPath));
ServletOutputStream output = response.getOutputStream()) {
if (ranges.isEmpty() || ranges.get(0) == full) {
// Return full file.
log.debug("返回全部的视频文件,不进行划分");
response.setContentType(contentType);
response.setHeader("Content-Range", "bytes " + full.start + "-" + full.end + "/" + full.total);
response.setHeader("Content-Length", String.valueOf(full.length));
Range.copy(input, output, size, full.start, full.length);
} else if (ranges.size() == 1) {
// Return single part of file.
Range r = ranges.get(0);
log.info("Return 1 part of file : from ({}) to ({})", r.start, r.end);
response.setContentType(contentType);
response.setHeader("Content-Range", "bytes " + r.start + "-" + r.end + "/" + r.total);
response.setHeader("Content-Length", String.valueOf(r.length));
response.setStatus(HttpServletResponse.SC_PARTIAL_CONTENT); // 206.
// Copy single part range.
Range.copy(input, output, size, r.start, r.length);
} else {
/* 发送多种数据的多部分对象集合:
多部分对象集合包含:
1、multipart/form-data
在web表单文件上传时使用
2、multipart/byteranges
状态码206响应报文包含了多个范围的内容时使用。*/
// Return multiple parts of file.
response.setContentType("multipart/byteranges; boundary=" + MULTIPART_BOUNDARY);
response.setStatus(HttpServletResponse.SC_PARTIAL_CONTENT); // 206.
// Cast back to ServletOutputStream to get the easy println methods.
// Copy multi part range.
for (Range r : ranges) {
log.debug("Return multi part of file : from ({}) to ({})", r.start, r.end);
// Add multipart boundary and header fields for every range.
output.println();
output.println("--" + MULTIPART_BOUNDARY);
output.println("Content-Type: " + contentType);
output.println("Content-Range: bytes " + r.start + "-" + r.end + "/" + r.total);
// Copy single part range of multi part range.
Range.copy(input, output, size, r.start, r.length);
}
// End with multipart boundary.
output.println();
output.println("--" + MULTIPART_BOUNDARY + "--");
}
}
}
private static class Range {
long start;
long end;
long length;
long total;
/**
* Construct a byte range.
* @param start Start of the byte range.
* @param end End of the byte range.
* @param total Total length of the byte source.
*/
public Range(long start, long end, long total) {
this.start = start;
this.end = end;
this.length = end - start + 1;
this.total = total;
}
public static long subLong(String value, int beginIndex, int endIndex) {
String substring = value.substring(beginIndex, endIndex);
return (substring.length() > 0) ? Long.parseLong(substring) : -1;
}
private static void copy(InputStream input, OutputStream output, long inputSize, long start, long length) throws IOException {
byte[] buffer = new byte[DEFAULT_BUFFER_SIZE];
int read;
if (inputSize == length) {
// Write full range.
while ((read = input.read(buffer)) > 0) {
output.write(buffer, 0, read);
output.flush();
}
} else {
input.skip(start);
long toRead = length;
while ((read = input.read(buffer)) > 0) {
if ((toRead -= read) > 0) {
output.write(buffer, 0, read);
output.flush();
} else {
output.write(buffer, 0, (int) toRead + read);
output.flush();
break;
}
}
}
}
}
private static class HttpUtils {
/**
* Returns true if the given accept header accepts the given value.
* @param acceptHeader The accept header.
* @param toAccept The value to be accepted.
* @return True if the given accept header accepts the given value.
*/
public static boolean accepts(String acceptHeader, String toAccept) {
String[] acceptValues = acceptHeader.split("\\s*(,|;)\\s*");
Arrays.sort(acceptValues);
return Arrays.binarySearch(acceptValues, toAccept) > -1
|| Arrays.binarySearch(acceptValues, toAccept.replaceAll("/.*$", "/*")) > -1
|| Arrays.binarySearch(acceptValues, "*/*") > -1;
}
/**
* Returns true if the given match header matches the given value.
* @param matchHeader The match header.
* @param toMatch The value to be matched.
* @return True if the given match header matches the given value.
*/
public static boolean matches(String matchHeader, String toMatch) {
String[] matchValues = matchHeader.split("\\s*,\\s*");
Arrays.sort(matchValues);
return Arrays.binarySearch(matchValues, toMatch) > -1
|| Arrays.binarySearch(matchValues, "*") > -1;
}
}
}
