单片机8x8点阵滚动是指通过51单片机控制8x8点阵屏幕上的LED灯，实现数字或文字的滚动显示。具体实现方法可以通过编写相应的程序来实现。下面是一个简单的实现步骤：

定义一个8x8的字符数组，用于存储需要显示的内容。
编写一个函数，将字符数组中的内容按照一定的速度向左或向右滚动。
在主函数中，调用该函数实现滚动显示。
将单片机与8x8点阵屏幕连接，通过端口控制点阵屏幕上的LED灯。

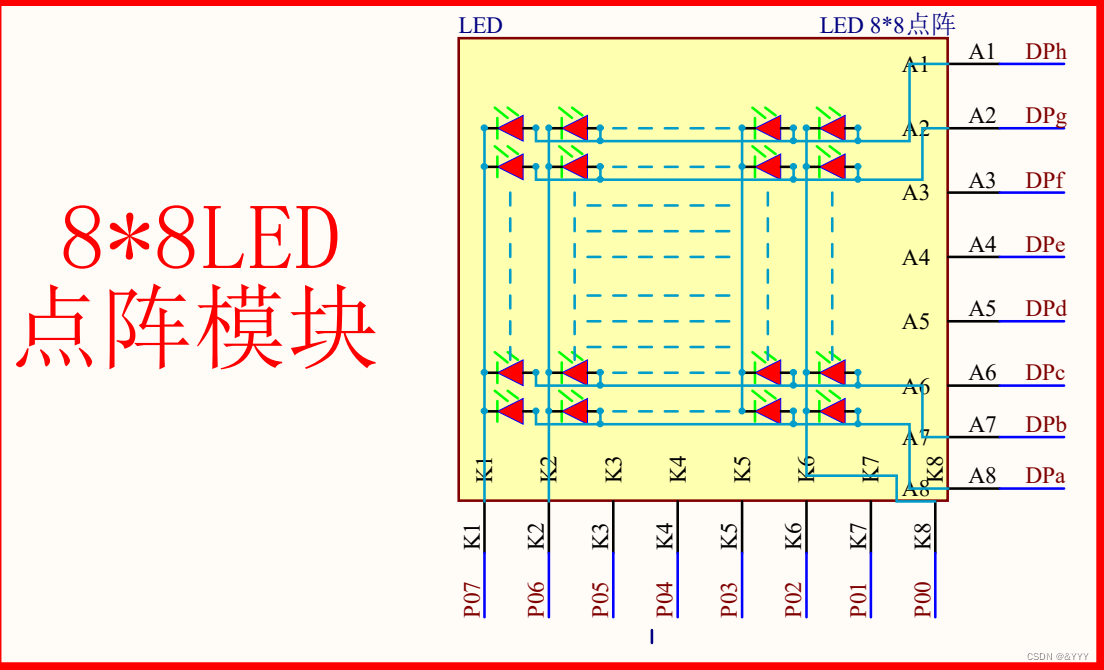

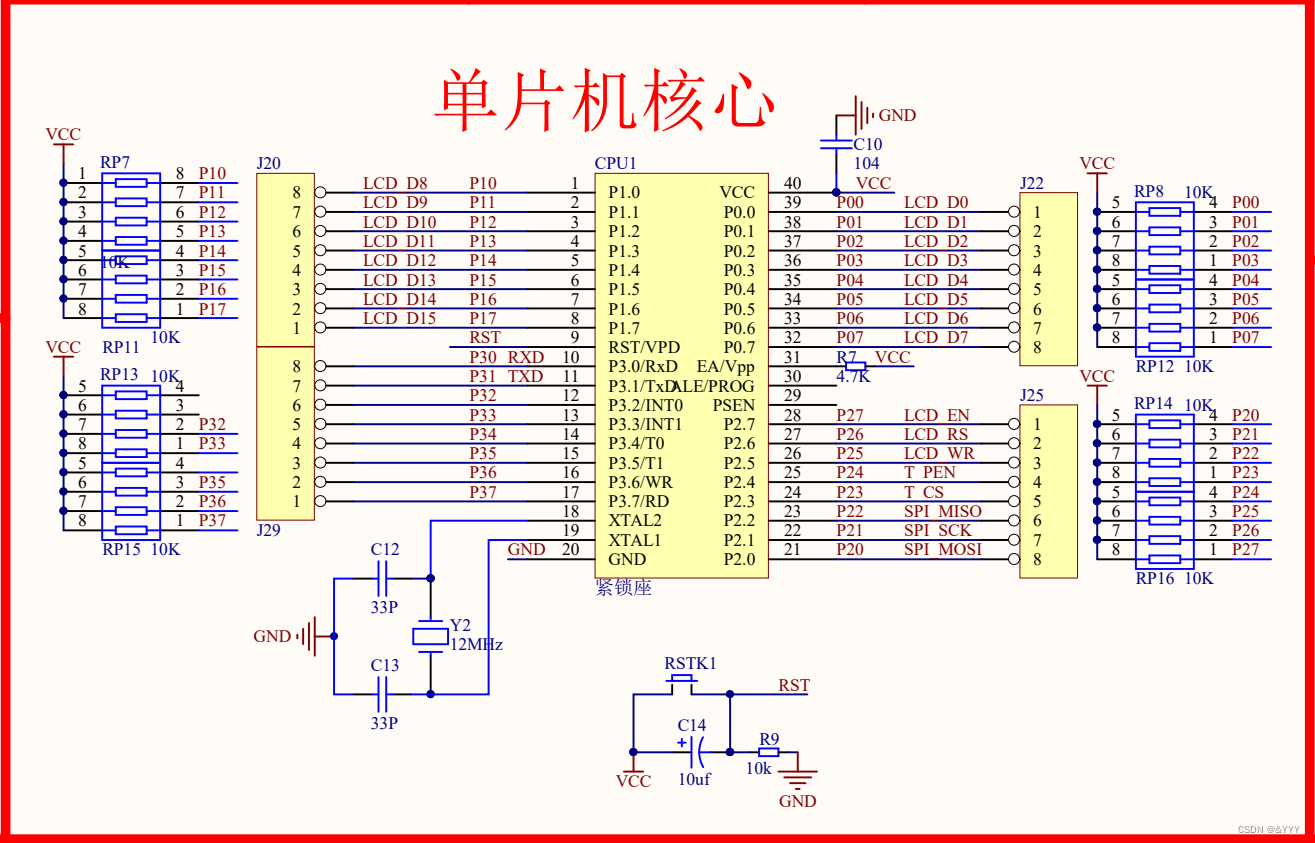

单片机的接口图：

程序设计如下：main.c

#include <REGX52.H>
#include "delay.h"
#include "matrix.h"

unsigned char code donghua[]=
{
0x18,0x18,0x3D,0x5A,0x98,0x28,0x28,0x28,
0x5A,0x5A,0x3C,0x18,0x18,0x28,0x18,0x08,
0x30,0x18,0x3C,0x1C,0x18,0x18,0x18,0x08,
0x30,0x98,0x7C,0x18,0x18,0x28,0x18,0x08,
0x10,0x18,0x3C,0x3C,0x18,0x28,0x28,0x08,
0x30,0x18,0x3C,0x3C,0x18,0x24,0x24,0x44,
0x30,0x18,0x3C,0x38,0x18,0x28,0x24,0x44,

0x18,0x0C,0x1E,0x1C,0x0C,0x14,0x24,0x44,
0x00,0x30,0x18,0x3C,0x1C,0x38,0x28,0x44,
0x00,0xC0,0x60,0xF0,0xF0,0x30,0x48,0x44,
	0x00,0x30,0x18,0x3C,0x1C,0x38,0x28,0x44,
0x18,0x0C,0x1E,0x1C,0x0C,0x14,0x24,0x44,
0x00,0x30,0x18,0x3C,0x1C,0x38,0x28,0x44,
0x00,0xC0,0x60,0xF0,0xF0,0x30,0x48,0x44,
	0x00,0x30,0x18,0x3C,0x1C,0x38,0x28,0x44,
0x18,0x0C,0x1E,0x1C,0x0C,0x14,0x24,0x44,
0x00,0x30,0x18,0x3C,0x1C,0x38,0x28,0x44,
0x00,0xC0,0x60,0xF0,0xF0,0x30,0x48,0x44,

0x00,0x30,0x18,0x3C,0x1C,0x38,0x28,0x44,
0x18,0x0C,0x1E,0x1C,0x0C,0x14,0x24,0x44,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
};

int main()
{
	unsigned char i,offset,count=0;
	void matrix_init();
	while(1)
	{
		for(i=0;i<8;i++)
		{
			matrix_showcol(i,donghua[i+offset]);
		}
		count++;
		if(count>40)
		{
			count=0;
			offset+=8;
			if(offset>160)
			{offset=0;}
		}
	}
}
