企业规模不断扩大时，不同地点有可能属于不同的AS，当两个不同AS的CE之间需要互相通信时，要用到跨域技术。

跨域需要解决的问题：1 .AS之间不会运行LDP协议，无法经历外层隧道。

2. PE之间没有运行IGP协议，默认情况下无法建立BGP邻居，进而无法传递VPNv4路由.

解决思路：OpitonA 采用ipv4数据包转发数据——将对端的整个AS看成一个CE

OpitonB 采用携带一层MPLS标签的方式转发数据——

OpitonC 采用多层MPLS标签的方式转发数据——

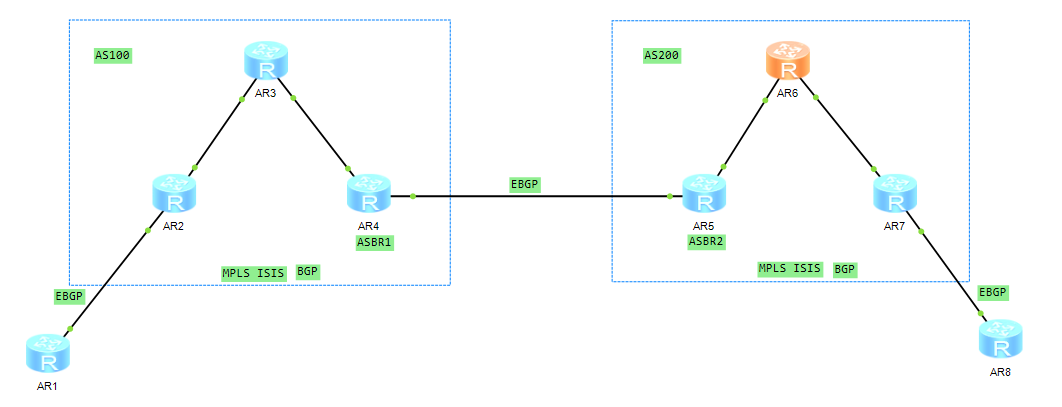

基础环境搭建完成需检验：


[AR3]dis isis peer             //检查isis配置，邻居状态正常

                          Peer information for ISIS(1)

  System Id     Interface          Circuit Id       State HoldTime Type     PRI
-------------------------------------------------------------------------------
0000.0000.0002  GE0/0/0            0000.0000.0003.01 Up   28s      L2       64
0000.0000.0004  GE0/0/1            0000.0000.0003.02 Up   23s      L2       64

Total Peer(s): 2




[AR3]dis isis peer              //检查mplsp配置，去往2、4都有标签（正常）

                          Peer information for ISIS(1)

  System Id     Interface          Circuit Id       State HoldTime Type     PRI
-------------------------------------------------------------------------------
0000.0000.0002  GE0/0/0            0000.0000.0003.01 Up   28s      L2       64
0000.0000.0004  GE0/0/1            0000.0000.0003.02 Up   23s      L2       64

Total Peer(s): 2
[AR3]dis mpls lsp
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
2.2.2.2/32         NULL/3        -/GE0/0/0
2.2.2.2/32         1024/3        -/GE0/0/0
3.3.3.3/32         3/NULL        -/-
4.4.4.4/32         NULL/3        -/GE0/0/1
4.4.4.4/32         1025/3        -/GE0/0/1




[AR2]dis bgp vpnv4 all peer    //检查bgp配置，查看bgp的vpnv4邻居，状态为Established 正常

 BGP local router ID : 2.2.2.2
 Local AS number : 100
 Total number of peers : 1		  Peers in established state : 1

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State Pre
fRcv

  4.4.4.4         4         100       13       15     0 00:11:42 Established

OpitonA配置举例：

在R2上创建实例2，并绑定与R1相连的接口，与R5相连的接口建立基于vpnv4的EBGP关系。

在R4上创建实例4，并绑定与R5相连的接口，与R5相连的接口建立基于vpnv4的EBGP关系。

[AR2]ip vpn-instance 2
[AR2-vpn-instance-2]route-distinguisher 2:2
[AR2-vpn-instance-2-af-ipv4]vpn-target 2:4 export-extcommunity
[AR2-vpn-instance-2-af-ipv4]vpn-target 4:2 import-extcommunity

[AR2-GigabitEthernet0/0/0]ip binding vpn-instance 2
[AR2-GigabitEthernet0/0/0]ip  add 12.1.1.2 24
[AR2]bgp 100
[AR2-bgp]ipv4-family vpn-instance 2
[AR2-bgp-4]peer 12.1.1.1 as-number 1


[AR4]ip vpn-instance 4
[AR4-vpn-instance-4]route-distinguisher 4:4
[AR4-vpn-instance-4-af-ipv4]vpn-target 2:4 import-extcommunity
[AR4-vpn-instance-4-af-ipv4]vpn-target 4:2 export-extcommunity

[AR4-GigabitEthernet0/0/1]ip binding vpn-instance 4
[AR4-GigabitEthernet0/0/1]ip add 45.1.1.4 24
[AR4]bgp 100
[AR4-bgp]ipv4-family vpn-instance 4
[AR4-bgp-4]peer 45.1.1.5 as-number 200

R5和R7参照R2和R4配置（略）

配置结果验证：

[AR2]dis bgp vpnv4 all routing-table      //在R2上查看R1的路由信息


 Total number of routes from all PE: 2
 Route Distinguisher: 2:2


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   192.168.1.0        12.1.1.1        0                     0      1i

 Route Distinguisher: 4:4


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  192.168.0.0        4.4.4.4                    100        0      200 8i


VPN-Instance 2, Router ID 2.2.2.2:

 Total Number of Routes: 2
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  192.168.0.0        4.4.4.4                    100        0      200 8i
 *>   192.168.1.0        12.1.1.1        0                     0      1i



<AR4>dis bgp vpnv4 all routing-table 192.168.1.0    //在R4上查看R1的路由信息


 BGP local router ID : 4.4.4.4
 Local AS number : 100

 Total routes of Route Distinguisher(2:2): 1
 BGP routing table entry information of 192.168.1.0/24:
 Label information (Received/Applied): 1027/NULL
 From: 2.2.2.2 (2.2.2.2)                               //下一跳为R2
 Route Duration: 00h12m07s
 Relay IP Nexthop: 34.1.1.3
 Relay IP Out-Interface: GigabitEthernet0/0/0
 Relay Tunnel Out-Interface: GigabitEthernet0/0/0
 Relay token: 0x1
 Original nexthop: 2.2.2.2
 Qos information : 0x0
 Ext-Community:RT <2 : 4>




<AR5>dis bgp vpnv4 all routing-table 192.168.1.0      //在R5上查看R1的路由信息


 BGP local router ID : 5.5.5.5
 Local AS number : 200

 Total routes of Route Distinguisher(5:5): 1
 BGP routing table entry information of 192.168.1.0/24:
 Label information (Received/Applied): NULL/1027         //收到的标签为空，说明是ipv4路由
 From: 45.1.1.4 (4.4.4.4)                           //下一跳为R4
 Route Duration: 00h14m59s
 Direct Out-interface: GigabitEthernet0/0/0
 Original nexthop: 45.1.1.4
 Qos information : 0x0
 Ext-Community:RT <5 : 7>



<AR7>dis bgp vpnv4 all routing-table 192.168.1.0      //在R7上查看R1的路由信息


 BGP local router ID : 7.7.7.7
 Local AS number : 200

 Total routes of Route Distinguisher(5:5): 1
 BGP routing table entry information of 192.168.1.0/24:
 Label information (Received/Applied): 1027/NULL        //出标签为空，即剥离标签
 From: 5.5.5.5 (5.5.5.5)
 Route Duration: 00h28m00s
 Relay IP Nexthop: 67.1.1.6                        //下一跳为R6
 Relay IP Out-Interface: GigabitEthernet0/0/0
 Relay Tunnel Out-Interface: GigabitEthernet0/0/0
 Relay token: 0x1
 Original nexthop: 5.5.5.5
 Qos information : 0x0
 Ext-Community:RT <5 : 7>



[AR8]dis bgp routing-table 192.168.1.0      //在R8上查看R1的路由信息

 BGP local router ID : 78.1.1.8
 Local AS number : 8
 Paths:   1 available, 1 best, 1 select
 BGP routing table entry information of 192.168.1.0/24:
 From: 78.1.1.7 (7.7.7.7)                               //下一跳为R7
 Route Duration: 00h27m08s
 Direct Out-interface: GigabitEthernet0/0/0
 Original nexthop: 78.1.1.7
 Qos information : 0x0
 AS-path 200 100 1, origin igp, pref-val 0, valid, external, best, select, activ
e, pre 255


[AR8]ping -a 192.168.0.1 192.168.1.1             //在R8上ping R1上宣告的路由
  PING 192.168.1.1: 56  data bytes, press CTRL_C to break
    Reply from 192.168.1.1: bytes=56 Sequence=1 ttl=249 time=70 ms
    Reply from 192.168.1.1: bytes=56 Sequence=2 ttl=249 time=70 ms
    Reply from 192.168.1.1: bytes=56 Sequence=3 ttl=249 time=70 ms
    Reply from 192.168.1.1: bytes=56 Sequence=4 ttl=249 time=50 ms
    Reply from 192.168.1.1: bytes=56 Sequence=5 ttl=249 time=50 ms

  --- 192.168.1.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 50/62/70 ms

R1上的数据来到R2，打上V标、T标，在出R4时剥离。进入R5时又打上，出R7时又剥离。
