从零开始搭建一个项目骨架,最好选择合适熟悉的技术,并且在未来易拓展,适合微服务化体系等。所以一般以Springboot作为我们的框架基础,这是离不开的了。
然后数据层,我们常用的是Mybatis,易上手,方便维护。但是单表操作比较困难,特别是添加字段或减少字段的时候,比较繁琐,所以这里我推荐使用Mybatis Plus( mp.baomidou.com/ ),为简化开发而生,只需简单配置,即可快速进行CRUD操作,从而节省大量时间。
SpringSecurity,使用security作为我们的权限控制和会话控制的框架。
- SpringBoot
- mybatis plus
- spring security
- lombok
- redis
- hibernate validatior
- jwt
二、新建SpringBoot 项目,注意版本
1、新建SpringBoot工程
这里,我们使用IDEA来开发我们项目
开发工具与环境:
idea
mysql
jdk 8
maven3.3.9

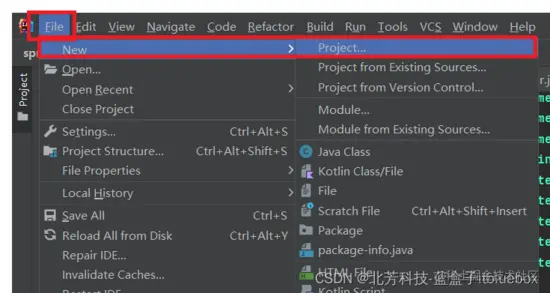

新建SpringBoot

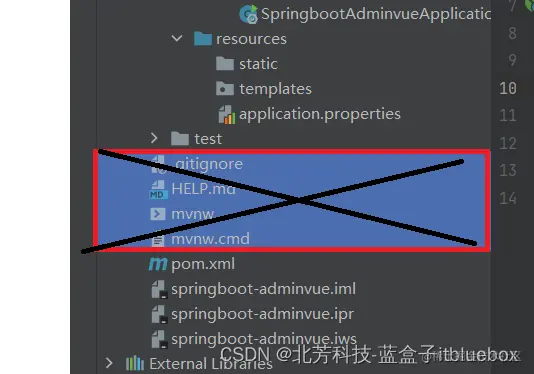

删除部分内容
2、整合MyBatis plus,生成代码

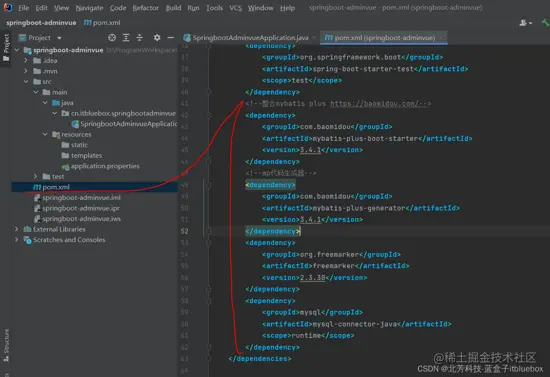

(1)引入依赖
<!--整合mybatis plus https://baomidou.com/-->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.4.1</version>
</dependency>
<!--mp代码生成器-->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-generator</artifactId>
<version>3.4.1</version>
</dependency>
<dependency>
<groupId>org.freemarker</groupId>
<artifactId>freemarker</artifactId>
<version>2.3.30</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
复制代码

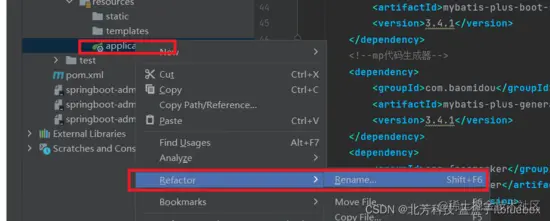

(2)设置配置文件
server:
port: 8081
# DataSource Config
spring:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://localhost:3306/zhengadminvue?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=Asia/Shanghai
username: root
password: root
mybatis-plus:
mapper-locations: classpath*:/mapper/**Mapper.xml
复制代码

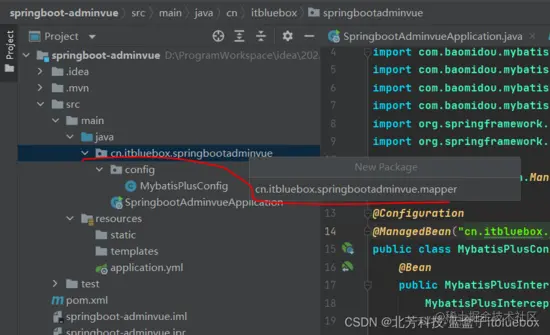

新建一个包:通过@mapperScan注解指定要变成实现类的接口所在的包,然后包下面的所有接口在编译之后都会生成相应的实现类。
@Configuration
@ManagedBean("cn.itbluebox.springbootadminvue.mapper")
public class MybatisPlusConfig {
@Bean
public MybatisPlusInterceptor mybatisPlusInterceptor(){
MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
//分页插件
interceptor.addInnerInterceptor(new PaginationInnerInterceptor());
//防止全表更新插件
interceptor.addInnerInterceptor(new BlockAttackInnerInterceptor());
return interceptor;
}
@Bean
public ConfigurationCustomizer configurationCustomizer() {
return configuration -> configuration.setUseDeprecatedExecutor(false);
}
}
复制代码

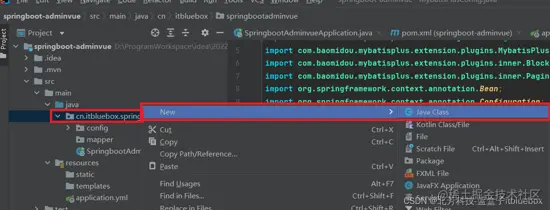

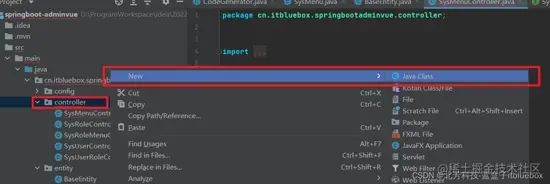

创建对应的mapper文件
(3)创建数据库和表
SQL语句
DROP TABLE IF EXISTS `sys_menu`;
CREATE TABLE `sys_menu` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`parent_id` bigint(20) DEFAULT NULL COMMENT '父菜单ID,一级菜单为0',
`name` varchar(64) NOT NULL,
`path` varchar(255) DEFAULT NULL COMMENT '菜单URL',
`perms` varchar(255) DEFAULT NULL COMMENT '授权(多个用逗号分隔,如:user:list,user:create)',
`component` varchar(255) DEFAULT NULL,
`type` int(5) NOT NULL COMMENT '类型 0:目录 1:菜单 2:按钮',
`icon` varchar(32) DEFAULT NULL COMMENT '菜单图标',
`orderNum` int(11) DEFAULT NULL COMMENT '排序',
`created` datetime NOT NULL,
`updated` datetime DEFAULT NULL,
`statu` int(5) NOT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `name` (`name`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=21 DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for sys_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_role`;
CREATE TABLE `sys_role` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`name` varchar(64) NOT NULL,
`code` varchar(64) NOT NULL,
`remark` varchar(64) DEFAULT NULL COMMENT '备注',
`created` datetime DEFAULT NULL,
`updated` datetime DEFAULT NULL,
`statu` int(5) NOT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `name` (`name`) USING BTREE,
UNIQUE KEY `code` (`code`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for sys_role_menu
-- ----------------------------
DROP TABLE IF EXISTS `sys_role_menu`;
CREATE TABLE `sys_role_menu` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`role_id` bigint(20) NOT NULL,
`menu_id` bigint(20) NOT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=102 DEFAULT CHARSET=utf8mb4;
-- ----------------------------
-- Table structure for sys_user
-- ----------------------------
DROP TABLE IF EXISTS `sys_user`;
CREATE TABLE `sys_user` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`username` varchar(64) DEFAULT NULL,
`password` varchar(64) DEFAULT NULL,
`avatar` varchar(255) DEFAULT NULL,
`email` varchar(64) DEFAULT NULL,
`city` varchar(64) DEFAULT NULL,
`created` datetime DEFAULT NULL,
`updated` datetime DEFAULT NULL,
`last_login` datetime DEFAULT NULL,
`statu` int(5) NOT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `UK_USERNAME` (`username`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for sys_user_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_user_role`;
CREATE TABLE `sys_user_role` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`user_id` bigint(20) NOT NULL,
`role_id` bigint(20) NOT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=15 DEFAULT CHARSET=utf8mb4;
复制代码
(4)代码生成
package cn.itbluebox.springbootadminvue;
import com.baomidou.mybatisplus.core.exceptions.MybatisPlusException;
import com.baomidou.mybatisplus.core.toolkit.StringPool;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.InjectionConfig;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.po.TableInfo;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import com.baomidou.mybatisplus.generator.engine.FreemarkerTemplateEngine;
import java.util.ArrayList;
import java.util.List;
import java.util.Scanner;
// 演示例子,执行 main 方法控制台输入模块表名回车自动生成对应项目目录中
public class CodeGenerator {
/**
* <p>
* 读取控制台内容
* </p>
*/
public static String scanner(String tip) {
Scanner scanner = new Scanner(System.in);
StringBuilder help = new StringBuilder();
help.append("请输入" + tip + ":");
System.out.println(help.toString());
if (scanner.hasNext()) {
String ipt = scanner.next();
if (StringUtils.isNotBlank(ipt)) {
return ipt;
}
}
throw new MybatisPlusException("请输入正确的" + tip + "!");
}
public static void main(String[] args) {
// 代码生成器
AutoGenerator mpg = new AutoGenerator();
// 全局配置
GlobalConfig gc = new GlobalConfig();
String projectPath = System.getProperty("user.dir");
gc.setOutputDir(projectPath + "/src/main/java");
gc.setAuthor("itbluebox");
gc.setOpen(false);
// gc.setSwagger2(true); 实体属性 Swagger2 注解
gc.setServiceName("%sService");
mpg.setGlobalConfig(gc);
// 数据源配置
DataSourceConfig dsc = new DataSourceConfig();
dsc.setUrl("jdbc:mysql://localhost:3306/itzheng-vue-admin?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=Asia/Shanghai");
// dsc.setSchemaName("public");
dsc.setDriverName("com.mysql.cj.jdbc.Driver");
dsc.setUsername("root");
dsc.setPassword("root");
mpg.setDataSource(dsc);
// 包配置
PackageConfig pc = new PackageConfig();
// pc.setModuleName(scanner("模块名"));
pc.setParent("cn.itbluebox.springbootadminvue");
mpg.setPackageInfo(pc);
// 自定义配置
InjectionConfig cfg = new InjectionConfig() {
@Override
public void initMap() {
// to do nothing
}
};
// 如果模板引擎是 freemarker
String templatePath = "/templates/mapper.xml.ftl";
// 如果模板引擎是 velocity
// String templatePath = "/templates/mapper.xml.vm";
// 自定义输出配置
List<FileOutConfig> focList = new ArrayList<>();
// 自定义配置会被优先输出
focList.add(new FileOutConfig(templatePath) {
@Override
public String outputFile(TableInfo tableInfo) {
// 自定义输出文件名 , 如果你 Entity 设置了前后缀、此处注意 xml 的名称会跟着发生变化!!
return projectPath + "/src/main/resources/mapper/" + pc.getModuleName()
+ "/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
}
});
/*
cfg.setFileCreate(new IFileCreate() {
@Override
public boolean isCreate(ConfigBuilder configBuilder, FileType fileType, String filePath) {
// 判断自定义文件夹是否需要创建
checkDir("调用默认方法创建的目录,自定义目录用");
if (fileType == FileType.MAPPER) {
// 已经生成 mapper 文件判断存在,不想重新生成返回 false
return !new File(filePath).exists();
}
// 允许生成模板文件
return true;
}
});
*/
cfg.setFileOutConfigList(focList);
mpg.setCfg(cfg);
// 配置模板
TemplateConfig templateConfig = new TemplateConfig();
// 配置自定义输出模板
//指定自定义模板路径,注意不要带上.ftl/.vm, 会根据使用的模板引擎自动识别
// templateConfig.setEntity("templates/entity2.java");
// templateConfig.setService();
// templateConfig.setController();
templateConfig.setXml(null);
mpg.setTemplate(templateConfig);
// 策略配置
StrategyConfig strategy = new StrategyConfig();
strategy.setNaming(NamingStrategy.underline_to_camel);
strategy.setColumnNaming(NamingStrategy.underline_to_camel);
strategy.setSuperEntityClass("BaseEntity");
strategy.setEntityLombokModel(true);
strategy.setRestControllerStyle(true);
// 公共父类
strategy.setSuperControllerClass("BaseController");
// 写于父类中的公共字段
strategy.setSuperEntityColumns("id", "created", "updated", "statu");
strategy.setInclude(scanner("表名,多个英文逗号分割").split(","));
strategy.setControllerMappingHyphenStyle(true);
// strategy.setTablePrefix("sys_");//动态调整
mpg.setStrategy(strategy);
mpg.setTemplateEngine(new FreemarkerTemplateEngine());
mpg.execute();
}
}
复制代码
1、获取对应项目所有的表和字段的信息
2、新建一个freemarker的页面模板
3、提供相关需要进行渲染的动态数据

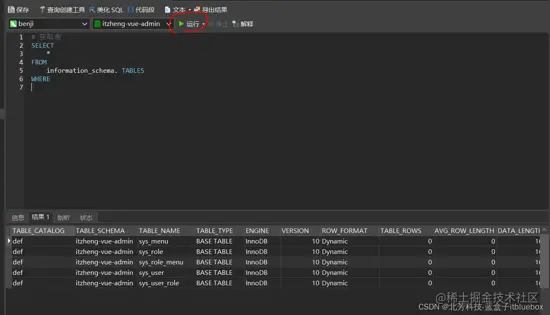

# 获取表
SELECT
*
FROM
information_schema. TABLES
WHERE
TABLE_SCHEMA = (SELECT DATABASE());
复制代码

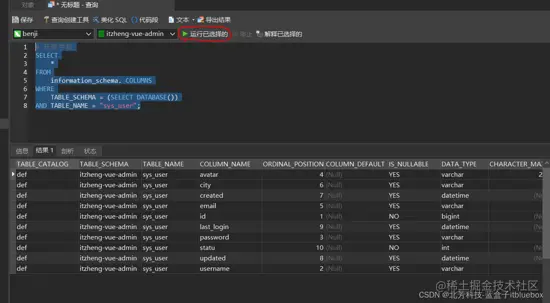

# 获取字段
SELECT
*
FROM
information_schema. COLUMNS
WHERE
TABLE_SCHEMA = (SELECT DATABASE())
AND TABLE_NAME = "sys_user";
复制代码
sys_user_role,sys_user,sys_role_menu,sys_role,sys_menu
复制代码
自动生成代码

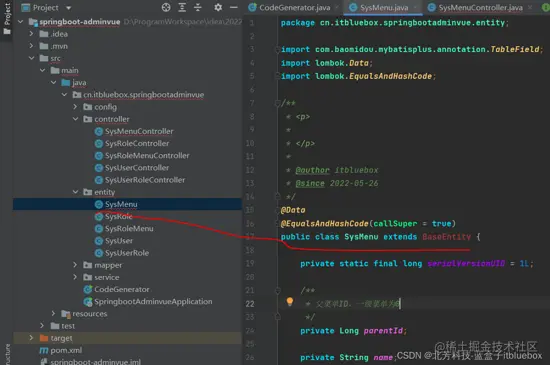

我们发现实体类和controller报错缺少对应的Bese
创建BaseEntity
package cn.itbluebox.springbootadminvue.entity;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import lombok.Data;
import java.io.Serializable;
import java.time.LocalDateTime;
@Data
public class BaseEntity implements Serializable {
@TableId(value = "id", type = IdType.AUTO)
private Long id;
private LocalDateTime created;
private LocalDateTime updated;
private Integer statu;
}
复制代码
注意每一个Controller的引入
(5)编写测试方法
/**
* <p>
* 前端控制器
* </p>
*
* @author itbluebox
* @since 2022-05-26
*/
@RestController
@RequestMapping("/sys-user")
public class SysUserController extends BaseController {
@Autowired
private SysUserService sysUserService;
@GetMapping("list")
public List<SysUser> getUserList(){
List<SysUser> list = sysUserService.list(new QueryWrapper<>(null));
return list;
}
}
复制代码

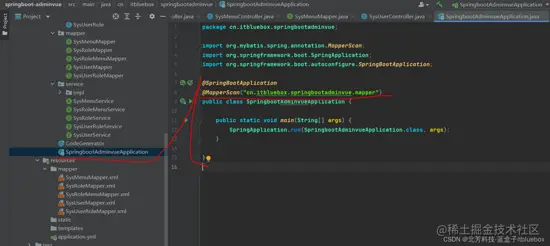

在启动类上设置对应的mapper扫描
@SpringBootApplication
@MapperScan("cn.itbluebox.springbootadminvue.mapper")
public class SpringbootAdminvueApplication {
public static void main(String[] args) {
SpringApplication.run(SpringbootAdminvueApplication.class, args);
}
}
复制代码

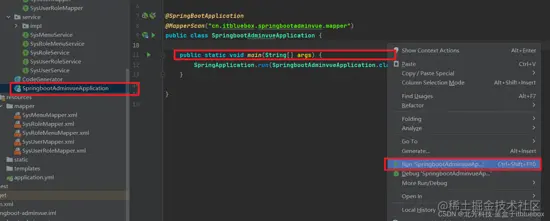

启动项目

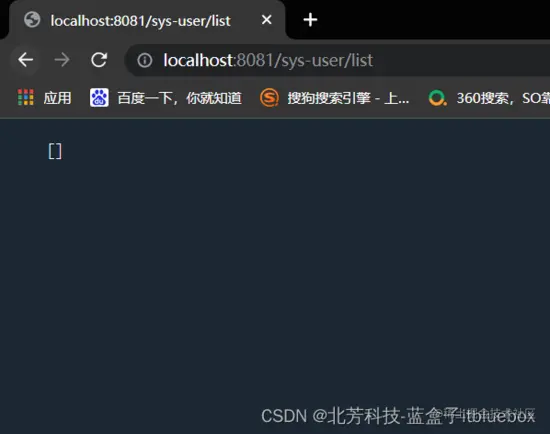

访问接口
http://localhost:8081/sys-user/list
访问成功

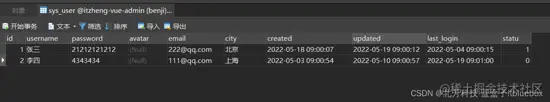

在数据库当中添加一些数据

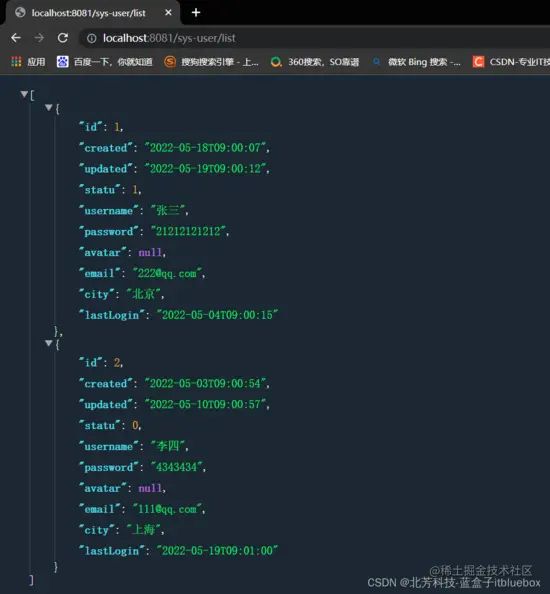

刷新页面
三、结果封装
因为是前后端分离的项目,所以我们有必要统一一个结果返回封装类,这样前后端交互的时候有个统一的标准,约定结果返回的数据是正常的或者遇到
