一、轮转调度（Round Robin, RR）

轮转法的基本原理

进程切换时机

代码示例

二、优先级调度（Priority Scheduling, PS）

核心思想

代码示例

三、全部代码

一、轮转调度（Round Robin, RR）

轮转法的基本原理

        在轮转(RR)法中，系统根据FCFS策略，将所有的就绪进程排成一个就绪队列，并可设置每隔一定时间间隔(如 30ms)即产生一次中断，激活系统中的进程调度程序，完成一次调度，将CPU分配给队首进程，令其执行。当该进程的时间片耗尽或运行完毕时，系统再次将 CPU分配给新的队首进程(或新到达的紧迫进程)。由此，可保证就绪队列中的所有进程在一个确定的时间段内，都能够获得一次 CPU 执行。

进程切换时机

        在RR调度算法中，应在何时进行进程的切换，可分为两种情况:①若一个时间片尚未用完，正在运行的进程便已经完成，就立即激活调度程序，将它从就绪队列中删除，再调度就绪队列中队首的进程运行，并启动一个新的时间片。②在一个时间片用完时，计时器中断处理程序被激活。如果进程尚未运行完毕，调度程序将把它送往就绪队列的末尾

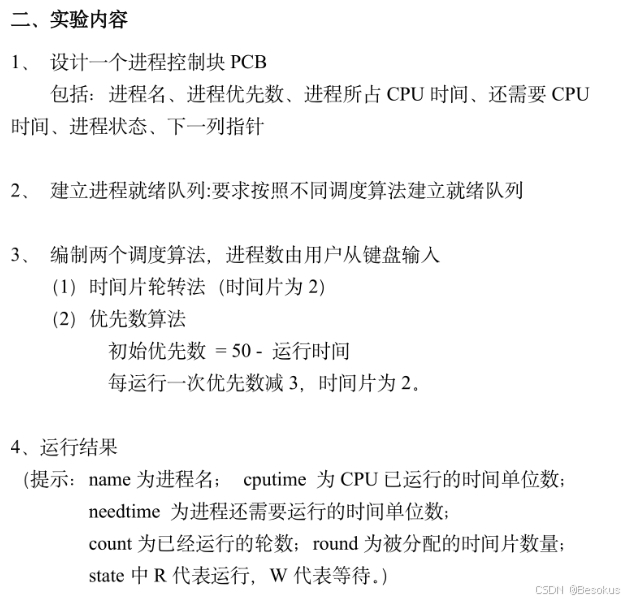

本次实验的题目

代码示例

通过上面描述想必你应该明白了轮转调度的算法，但可能不知道如何实现，那下面就来点代码对照着思路学习吧！

我们先创建一个process进程类

const int Time_slice = 2;
const int Process = 3;


class PCB {
public:
	string name; //进程名称
	int process_priority; //进程优先级
	double cputime; //使用cpu时间
	double needtime; //还需要cpu时间
	int state; //进程状态
	int cnt; //已经运行的轮数
	int round; //被分配时间片的数量
	int index; //下一个指针
	int count; //进程数量
	bool is_finish = false;
public:

	enum State {
		F, R, W //完成，运行，等待
	};
	PCB set_pcb_time(string name, double needtime) {
		PCB p;
		p.name = name;
		p.needtime = needtime;
		p.cputime = 0;
		p.state=State::W;
		p.cnt = 0;
		p.round = Time_slice;
		return p;
	}
	PCB set_pcb_pri(string name, double needtime) {
		PCB p;
		p.name = name;
		p.needtime = needtime;
		p.cputime = 0;
		p.state = State::W;
		p.cnt = 0;
		p.round = Time_slice;
		p.process_priority = 50 - needtime;
		return p;
	}
	void time_slice();
	void Priority_algorithm();

	void addprocess_time(string name,double time);
	void addprocess_priority(string name, double time);
	void show_time();
	void show_pri();


};



deque<PCB> q; //就绪队列
deque<PCB> ans; //完成队列

轮转调度实现

//轮转调度
void PCB::time_slice() {
	double time;
	string name;
	cout << "input # to end" << endl;
	while (1) {
		cout << "input name and needtime" << endl;
		cin >> name ;
		if (name == "#")break;
		cin >> time;
		addprocess_time(name,time);
	}
	//进行调度算法
	while (true) {
		auto it = q.front();
		it.state = State::R;
		show_time();
		if (ans.size() == count)break;
		q.pop_front();
		if (it.needtime > Time_slice) {
			it.needtime -= Time_slice;
			it.cputime += Time_slice;
			it.state = State::W;
		}
		else {
			it.cputime += it.needtime;
			it.needtime = 0;
			it.state = State::F;
			if (!it.is_finish)ans.push_back(it);
			it.is_finish = true;

		}
		it.cnt++;
		q.push_back(it);
	}

}

void PCB::addprocess_time(string name,double time) {
	PCB p;
	p = set_pcb_time(name, time);
	q.push_back(p);
	count++;
}

是不是比较简单啊，看完之后自己试试吧！！

二、优先级调度（Priority Scheduling, PS）

核心思想

根据进程的 优先级（Priority） 分配CPU，优先级高的进程优先执行。可分为：

  1. 非抢占式：进程运行到结束或主动让出CPU。

  2. 抢占式：高优先级进程到达时立即抢占当前进程。

我们这里演示的是非抢占式的优先级调度。优先级调度顾名思义就是优先级高的先进行调度（优先处理），当我们每一次进行完调度之后都重新按照优先级进行排序，优先处理优先级高的！！

代码示例

bool cmp(const PCB& a, const PCB& b) {
	if (a.state != PCB::F && b.state == PCB::F) return true;
	if (a.state == PCB::F && b.state != PCB::F) return false;
	if (a.state != PCB::F && b.state != PCB::F)
		return a.process_priority > b.process_priority;
	return false;
}

//优先级调度
void PCB::Priority_algorithm() {
	double time;
	string name;
	cout << "input # to end" << endl;
	while (1) {
		cout << "input name and needtime" << endl;
		cin >> name;
		if (name == "#")break;
		cin >> time;
		addprocess_priority(name, time);
	}
	//优先级调度算法
	while (true) {
		sort(q.begin(), q.end(), cmp);
		auto it = q.front();
		it.state = State::R;
		show_pri();
		if (ans.size() == count)break;
		q.pop_front();
		if (it.needtime > Time_slice) {
			it.needtime -= Time_slice;
			it.cputime += Time_slice;
			it.state = State::W;
			it.process_priority -= Process;
		}
		else {
			it.cputime += it.needtime;
			it.process_priority -= Process;
			it.needtime = 0;
			it.state = State::F;
			if (!it.is_finish) {
				ans.push_back(it);
				it.is_finish = true;
			}
		}
		it.cnt++;
		q.push_back(it);
	}

}

void PCB::addprocess_priority(string name, double time) {
	PCB p;
	p = set_pcb_pri(name, time);
	q.push_back(p);
	count++;

}



void PCB::show_pri() {
	cout << "name	cputime	needtime  count	pri	state" << endl;
	for (auto i = q.begin(); i != q.end(); i++) {
		cout << i->name << "	   " << i->cputime << "	    " << i->needtime << "      " << i->cnt << "	  " << i->process_priority << " 	";
		if (i == q.begin() && i->state != State::F) {
			cout << "R" << endl;
			continue;
		}
		if (i->state == State::F)cout << "F" << endl;
		if (i->state == State::W)cout << "W" << endl;

	}
	cout << "就绪队列：";
	for (auto i = q.begin() + 1; i != q.end(); i++) {
		if (i->state != State::F)
			cout << i->name << ",";
	}
	cout << endl;
	cout << "完成队列：";
	for (auto i = ans.begin(); i != ans.end(); i++) {
		cout << i->name << ",";
	}
	cout << endl;
	cout << endl;

}

三、全部代码

#include <iostream>
#include <string>
#include <queue>
#include <algorithm>

using namespace std;

const int Time_slice = 2;
const int Process = 3;


class PCB {
public:
	string name; //进程名称
	int process_priority; //进程优先级
	double cputime; //使用cpu时间
	double needtime; //还需要cpu时间
	int state; //进程状态
	int cnt; //已经运行的轮数
	int round; //被分配时间片的数量
	int index; //下一个指针
	int count; //进程数量
	bool is_finish = false;
public:

	enum State {
		F, R, W //完成，运行，等待
	};
	PCB set_pcb_time(string name, double needtime) {
		PCB p;
		p.name = name;
		p.needtime = needtime;
		p.cputime = 0;
		p.state=State::W;
		p.cnt = 0;
		p.round = Time_slice;
		return p;
	}
	PCB set_pcb_pri(string name, double needtime) {
		PCB p;
		p.name = name;
		p.needtime = needtime;
		p.cputime = 0;
		p.state = State::W;
		p.cnt = 0;
		p.round = Time_slice;
		p.process_priority = 50 - needtime;
		return p;
	}
	void time_slice();
	void Priority_algorithm();

	void addprocess_time(string name,double time);
	void addprocess_priority(string name, double time);
	void show_time();
	void show_pri();


};



deque<PCB> q; //就绪队列
deque<PCB> ans; //完成队列

//轮转调度
void PCB::time_slice() {
	double time;
	string name;
	cout << "input # to end" << endl;
	while (1) {
		cout << "input name and needtime" << endl;
		cin >> name ;
		if (name == "#")break;
		cin >> time;
		addprocess_time(name,time);
	}
	//进行调度算法
	while (true) {
		auto it = q.front();
		it.state = State::R;
		show_time();
		if (ans.size() == count)break;
		q.pop_front();
		if (it.needtime > Time_slice) {
			it.needtime -= Time_slice;
			it.cputime += Time_slice;
			it.state = State::W;
		}
		else {
			it.cputime += it.needtime;
			it.needtime = 0;
			it.state = State::F;
			if (!it.is_finish)ans.push_back(it);
			it.is_finish = true;

		}
		it.cnt++;
		q.push_back(it);
	}

}

bool cmp(const PCB& a, const PCB& b) {
	if (a.state != PCB::F && b.state == PCB::F) return true;
	if (a.state == PCB::F && b.state != PCB::F) return false;
	if (a.state != PCB::F && b.state != PCB::F)
		return a.process_priority > b.process_priority;
	return false;
}

//优先级调度
void PCB::Priority_algorithm() {
	double time;
	string name;
	cout << "input # to end" << endl;
	while (1) {
		cout << "input name and needtime" << endl;
		cin >> name;
		if (name == "#")break;
		cin >> time;
		addprocess_priority(name, time);
	}
	//优先级调度算法
	while (true) {
		sort(q.begin(), q.end(), cmp);
		auto it = q.front();
		it.state = State::R;
		show_pri();
		if (ans.size() == count)break;
		q.pop_front();
		if (it.needtime > Time_slice) {
			it.needtime -= Time_slice;
			it.cputime += Time_slice;
			it.state = State::W;
			it.process_priority -= Process;
		}
		else {
			it.cputime += it.needtime;
			it.process_priority -= Process;
			it.needtime = 0;
			it.state = State::F;
			if (!it.is_finish) {
				ans.push_back(it);
				it.is_finish = true;
			}
		}
		it.cnt++;
		q.push_back(it);
	}

}

void PCB::addprocess_priority(string name, double time) {
	PCB p;
	p = set_pcb_pri(name, time);
	q.push_back(p);
	count++;

}

void PCB::addprocess_time(string name,double time) {
	PCB p;
	p = set_pcb_time(name, time);
	q.push_back(p);
	count++;
}

void PCB::show_time() {
	cout << "name	cputime	needtime  count	round	state" << endl;
	for (auto i = q.begin(); i != q.end(); i++) {
		cout << i->name << "	   " << i->cputime << "	    " <<i->needtime<< "      " << i->cnt << "	  " << i->round << " 	";
		if (i == q.begin()&&i->state!=State::F) {
			cout << "R" << endl;
			continue;
		}
		if (i->state == State::F)cout << "F" << endl;
		if (i->state == State::W)cout << "W" << endl;

	}
	cout << "就绪队列：";
	for (auto i = q.begin() + 1; i != q.end(); i++) {
		if(i->state!=State::F)
		cout << i->name << ",";
	}
	cout << endl;
	cout << "完成队列：";
	for (auto i = ans.begin(); i != ans.end(); i++) {
		cout << i->name << ",";
	}
	cout << endl;
	cout << endl;
}

void PCB::show_pri() {
	cout << "name	cputime	needtime  count	pri	state" << endl;
	for (auto i = q.begin(); i != q.end(); i++) {
		cout << i->name << "	   " << i->cputime << "	    " << i->needtime << "      " << i->cnt << "	  " << i->process_priority << " 	";
		if (i == q.begin() && i->state != State::F) {
			cout << "R" << endl;
			continue;
		}
		if (i->state == State::F)cout << "F" << endl;
		if (i->state == State::W)cout << "W" << endl;

	}
	cout << "就绪队列：";
	for (auto i = q.begin() + 1; i != q.end(); i++) {
		if (i->state != State::F)
			cout << i->name << ",";
	}
	cout << endl;
	cout << "完成队列：";
	for (auto i = ans.begin(); i != ans.end(); i++) {
		cout << i->name << ",";
	}
	cout << endl;
	cout << endl;

}


PCB pcb;

int main() {
	bool t = true;
	int n;
	while (t) {
		cout << " -------------------------------------------" << endl;
		cout << "--------------1.时间片流转法-----------------" << endl;
		cout << "--------------2.优先数算法-------------------" << endl;
		cout << "--------------------------------------------" << endl;
		cout << "请输入进程算法选项" << endl;
		cin >> n;
		switch(n){
		case 1:pcb.time_slice();
			break;

		case 2:pcb.Priority_algorithm();
			break;
		default:
			t = false;
			break;
		}

	}

	return 0;
}
