AC和AP wlan使用案例

关于AC和AP的一篇

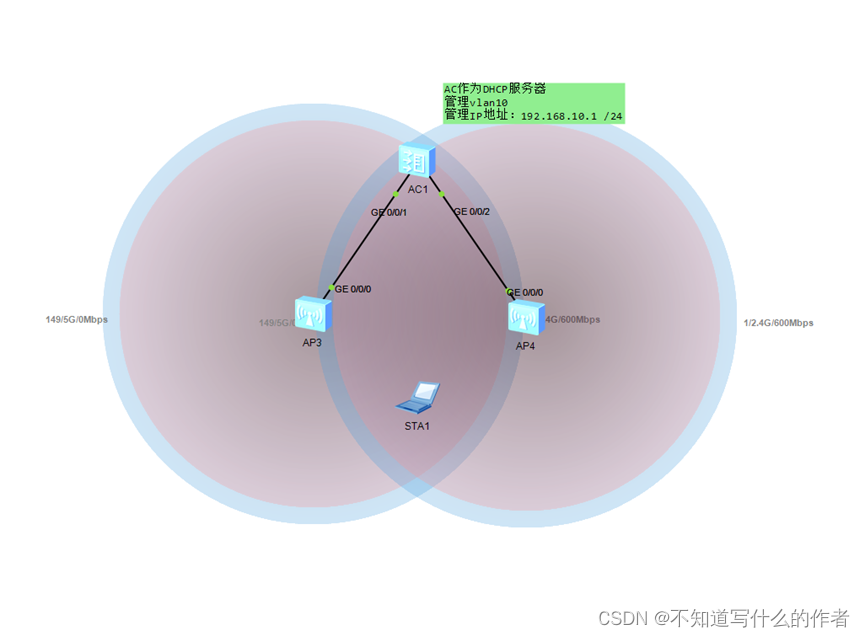

拓补图：

AC1

sysn AC
vlan 10int g0/0/1
p l t
p t a v 10
port trunk pvid vlan 10
q
int g0/0/2
p l t
p t a v 10
port trunk pvid vlan 10
q
int vlan 10
ip add 192.168.10.1 24
q
dhcp enable
int vlan 10
dhcp select interface
q
capwap source int vlan 10
wlan
ap auth-mode no-auth
q
查看

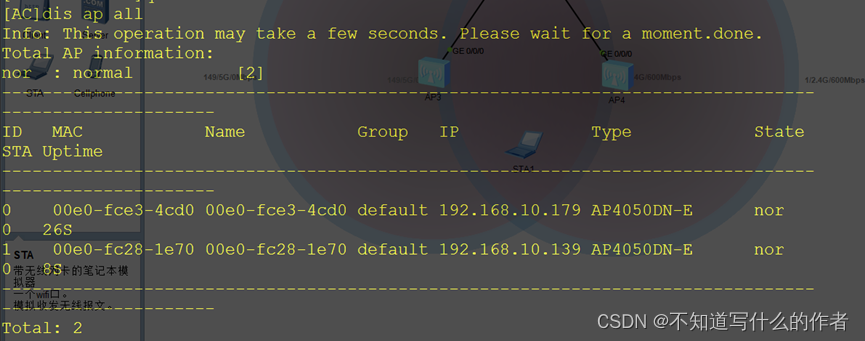

dis ap all

wlan
ap-group name huawei
q
ap-id 0
ap-name ap1
q
ap-id 1
ap-name ap2
ap-group huawei

q
ap-id 0
ap-group huawei
q
q

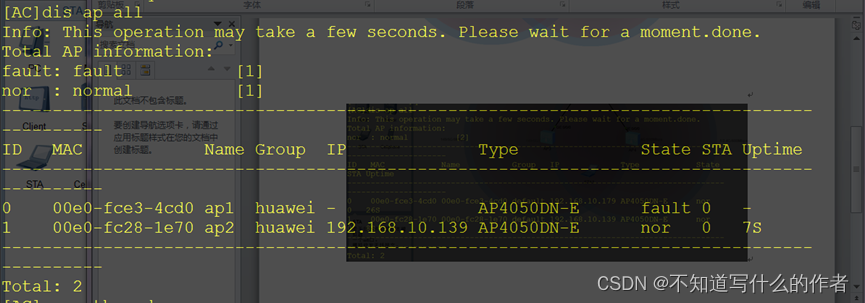

dis ap all

wlan
ap auth-mode mac-auth
regulatory-domain-profile name huawei
country-code CN
q
security-profile name huawei
security open
q
ssid-profile name huawei
ssid huawei
q
vap-profile name huawei
forward-mode direct-forward
service-vlan vlan-id 10
security-profile huawei
ssid-profile huawei
q
ap-group name huawei
regulatory-domain-profile huawei
vap-profile huawei wlan 1 radio all
q
查看

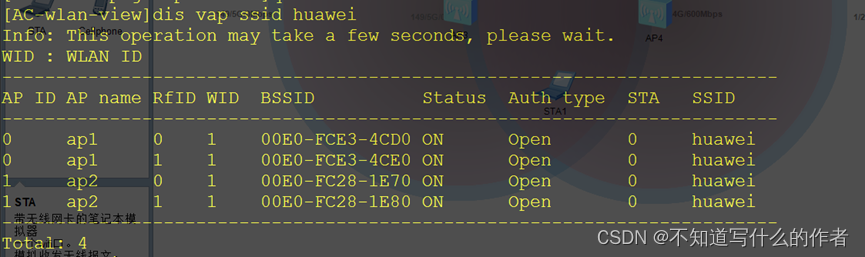

dis vap ssid huawei
