数据结构——静态链表

什么是静态链表

        静态链表( static linked list ), 就是用数组来表示链表,用数组元素的下标来模拟链表的指针.
由于是利用数组来定义的链表,属于静态储存分配, 因而叫做静态链表.

结点的定义

        静态链表的节点也有由两个域组成: 数据域和游标.因此，静态链表中节点的构成用 C 语言实现为：

typedef struct StaticLinkedNode
{
	char data;		//数据域
	int next;		//游标
} *NodePtr;

跟普通链表的区别就是 next 是数组下标是int 类型.

备用链表

        用来记录空间存储空间的位置，以便后期分配给新添加元素使用。

typedef struct StaticLinkedList
{
	NodePtr nodes;
	int* used;
} *ListPtr;

整体代码

#include<stdio.h>
#include<malloc.h>

#define DEFAULT_SIZE 5

typedef struct StaticLinkedNode
{
	char data;		//数据域
	int next;		//指针域
} *NodePtr;

typedef struct StaticLinkedList
{
	NodePtr nodes;
	int* used;
} *ListPtr;

/*
* Initialize the list with a header.
* @return The pointer to the header.
*/

ListPtr initLinkedList()
{
	//The pointer to the whole list space.
	ListPtr tempPtr = (ListPtr)malloc(sizeof(struct StaticLinkedList));

	//Allocate total space.
	tempPtr->nodes = (NodePtr)malloc(sizeof(struct StaticLinkedNode) * DEFAULT_SIZE);
	tempPtr->used = (int*)malloc(sizeof(int) * DEFAULT_SIZE);

	//the first node is the header.
	tempPtr->nodes[0].data = '\0';
	tempPtr->nodes[0].next = -1;

	//Only the first node is used.
	tempPtr->used[0] = 1;
	for (int i = 1; i < DEFAULT_SIZE; i++)
	{
		tempPtr->used[i] = 0;
	}
	return tempPtr;
}

/*
* Print the list.
* @param paraListPtr The pointer to the list.
*/

void printList(ListPtr paraListPtr)
{
	int p = 0;
	while (p != -1)
	{
		printf("%c", paraListPtr->nodes[p].data);
		p = paraListPtr->nodes[p].next;
	}
	printf("\r\n");
}

/*
* Insert an element to the given position.
* @param paraListPtr the position of the list.
* @param paraChar The given char.
* @param paraPosition The given position.
*/

void insertElement(ListPtr paraListPtr, char paraChar, int paraPosition)
{
	int p, q, i;

	//1.Search to the position.
	p = 0;
	for (i = 0; i < paraPosition; i++)
	{
		p = paraListPtr->nodes[p].next;
		if (p == -1)
		{
			printf("The position %d is beyond the scope of the list.\r\n", paraPosition);
			return;
		}
	}

	//2.Construct a new node.
	for (i = 1; i < DEFAULT_SIZE; i++)
	{
		if (paraListPtr->used[i] == 0)
		{
			//This is identical to malloc.
			printf("Space at %d allocated.\r\n", i);
			paraListPtr->used[i] = 1;
			q = i;
			break;
		}
	}
	if (i == DEFAULT_SIZE)
	{
		printf("No space.\r\n");
		return;
	}

	paraListPtr->nodes[q].data = paraChar;

	//3.Now link.
	printf("linking\r\n");
	paraListPtr->nodes[q].next = paraListPtr->nodes[p].next;
	paraListPtr->nodes[p].next = q;
}

/*
* Delete an element from the list.
* @param paraHeader The header of the list.
* @param paraChar The given char.
*/

void deleteElement(ListPtr paraListPtr, char paraChar)
{
	int p, q;
	p = 0;
	while ((paraListPtr->nodes[p].next != -1) && (paraListPtr->nodes[paraListPtr->nodes[p].next].data != paraChar))
	{
		p = paraListPtr->nodes[p].next;
	}

	if (paraListPtr->nodes[p].next == -1)
	{
		printf("Cannot delete %c\r\n", paraChar);
		return;
	}

	q = paraListPtr->nodes[p].next;
	paraListPtr->nodes[p].next = paraListPtr->nodes[paraListPtr->nodes[p].next].next;

	//This statement is identical to free(q)
	paraListPtr->used[q] = 0;
}

/*
* Unit Test.
*/

void appendInsertDeleteTest()
{
	//1.Initialize an empty list.
	ListPtr tempList = initLinkedList();
	printList(tempList);

	//2.Add some characters.
	insertElement(tempList, 'H', 0);
	insertElement(tempList, 'e', 1);
	insertElement(tempList, 'l', 2);
	insertElement(tempList, 'l', 3);
	insertElement(tempList, '0', 4);
	printList(tempList);

	//3.Delete some characters(the first occurrence).
	printf("Deleting 'e'.\r\n");
	deleteElement(tempList, 'e');
	printf("Deleting 'a'.\r\n");
	deleteElement(tempList, 'a');
	printf("Deleting 'o'.\r\n");
	deleteElement(tempList, 'o');
	printList(tempList);

	insertElement(tempList, 'x', 1);
	printList(tempList);
}

/*
* the entrance.
*/

void main()
{
	appendInsertDeleteTest();
}

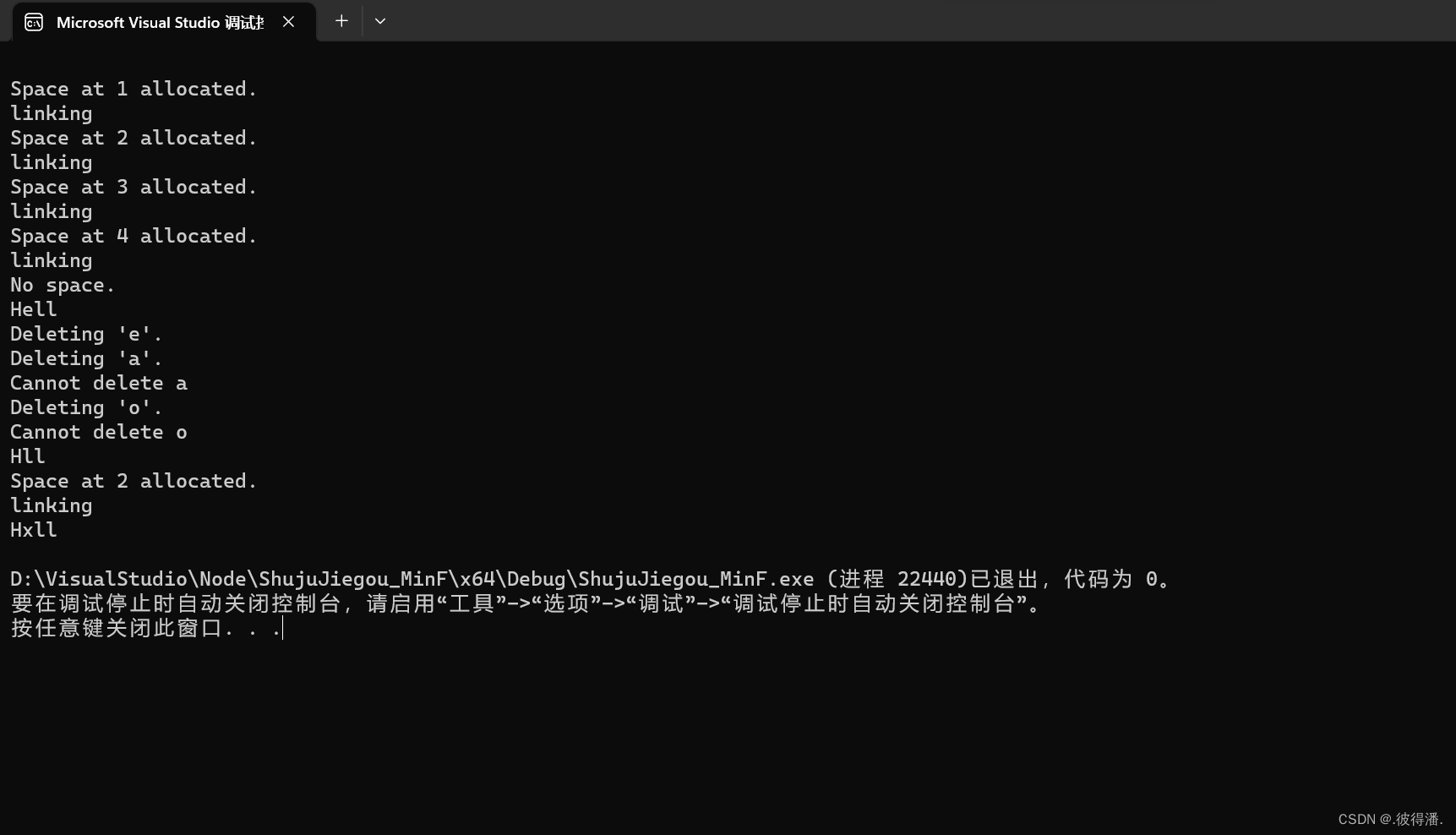

运行结果



        使用静态链表存储数据，需要预先申请足够大的一整块内存空间，也就是说，静态链表存储数据元素的个数从其创建的那一刻就已经确定，后期无法更改。
比如，如果创建静态链表时只申请存储 10 个数据元素的空间，那么在使用静态链表时，数据的存储个数就不能超过 10 个，否则程序就会发生错误。不仅如此，静态链表是在固定大小的存储空间内随机存储各个数据元素，这就造成了静态链表中需要使用另一条链表（通常称为"备用链表"）来记录空间存储空间的位置，以便后期分配给新添加元素使用。这意味着，如果你选择使用静态链表存储数据，你需要通过操控两条链表，一条是存储数据，另一条是记录空闲空间的位置。
