当我们需要很多机器来测试初始化集群和基础服务时,如果每次都去手工安装虚拟机,显然效率是低的,这时候就可以使用vagrant来批量生产虚拟机。
一、下载
需要注意的是:最好先下载vagrant,然后在安装时,会提示你要下载的对应的virtualbox版本。
* vagrant https://www.vagrantup.com/
* virtualbox https://www.virtualbox.org/
二、下载box
下载一个box开始测试,新建一个目录E:/vagrant/,进入命令行切换到此目录,执行
vagrant init puppetlabs/centos-7.2-64-nocm
这时会下载一个centos7.2的box,并在目录下生成一个名为Vagrantfile的文件。
所谓box是一个打包好的虚拟机。
三、配置集群
参考如下:
# -*- mode: ruby -*-
# vi: set ft=ruby :
servers = {
:hadoop1 => '192.168.2.11',
:hadoop2 => '192.168.2.12',
:hadoop3 => '192.168.2.13',
:hadoop4 => '192.168.2.14'
}
Vagrant.configure("2") do |config|
config.vm.box = "puppetlabs/centos-7.2-64-nocm"
config.vm.box_check_update = false
servers.each do |server_name, server_ip|
config.vm.define server_name do |server_config|
server_config.vm.hostname = "#{server_name.to_s}"
server_config.vm.network :private_network, ip: server_ip
server_config.vm.provider "virtualbox" do |vb|
vb.name = server_name.to_s
vb.memory = "2048"
vb.cpus = 1
end
end
end
end
可以看到配置了4台机器,每个1核2G内存。
四、生成虚拟机并启动
1、首先可以迅雷手动去下载centos7.2版本的virtualbox(也可以下面第3步去自动下载)
https://atlas.hashicorp.com/puppetlabs/boxes/centos-7.2-64-nocm/versions/1.0.1/providers/virtualbox.box
2、用varant box 添加box,名字要和上一步init的名字保持一致(如果是自动去下载box就不需要执行这步)
vagrant box add --name puppetlabs/centos-7.2-64-nocm E:\vagrant\virtualbox.box
3、输入
vagrant up
可以看到依次生成了虚拟机并启动(==如果中途下载速度特别慢的话,可以中断然后执行完上两步之后再执行up命令==),控制台输出类似于:
E:\vagrant>vagrant up
Bringing machine 'hadoop1' up with 'virtualbox' provider...
Bringing machine 'hadoop2' up with 'virtualbox' provider...
Bringing machine 'hadoop3' up with 'virtualbox' provider...
Bringing machine 'hadoop4' up with 'virtualbox' provider...
==> hadoop1: Importing base box 'puppetlabs/centos-7.2-64-nocm'...
==> hadoop1: Matching MAC address for NAT networking...
==> hadoop1: Setting the name of the VM: caas1
==> hadoop1: Clearing any previously set network interfaces...
There was an error while executing `VBoxManage`, a CLI used by Vagrant
for controlling VirtualBox. The command and stderr is shown below.
Command: ["hostonlyif", "create"]
Stderr: 0%...
Progress state: E_FAIL
VBoxManage.exe: error: Failed to create the host-only adapter
VBoxManage.exe: error: Operation canceled by the user
VBoxManage.exe: error: Details: code E_FAIL (0x80004005), component VirtualBoxWrap, interface IVirtualBox
VBoxManage.exe: error: Context: "enum RTEXITCODE __cdecl handleCreate(struct HandlerArg *)" at line 71 of file VBoxManageHostonly.cpp
E:\vagrant>vagrant up
Bringing machine 'hadoop1' up with 'virtualbox' provider...
Bringing machine 'hadoop2' up with 'virtualbox' provider...
Bringing machine 'hadoop3' up with 'virtualbox' provider...
Bringing machine 'hadoop4' up with 'virtualbox' provider...
==> hadoop1: Clearing any previously set network interfaces...
==> hadoop1: Preparing network interfaces based on configuration...
hadoop1: Adapter 1: nat
hadoop1: Adapter 2: hostonly
==> hadoop1: Forwarding ports...
hadoop1: 22 (guest) => 2222 (host) (adapter 1)
==> hadoop1: Running 'pre-boot' VM customizations...
==> hadoop1: Booting VM...
==> hadoop1: Waiting for machine to boot. This may take a few minutes...
hadoop1: SSH address: 127.0.0.1:2222
hadoop1: SSH username: vagrant
hadoop1: SSH auth method: private key
hadoop1: Warning: Remote connection disconnect. Retrying...
hadoop1: Warning: Remote connection disconnect. Retrying...
hadoop1: Warning: Remote connection disconnect. Retrying...
hadoop1:
hadoop1: Vagrant insecure key detected. Vagrant will automatically replace
hadoop1: this with a newly generated keypair for better security.
hadoop1:
hadoop1: Inserting generated public key within guest...
hadoop1: Removing insecure key from the guest if it's present...
hadoop1: Key inserted! Disconnecting and reconnecting using new SSH key...
==> hadoop1: Machine booted and ready!
==> hadoop1: Checking for guest additions in VM...
==> hadoop1: Setting hostname...
==> hadoop1: Configuring and enabling network interfaces...
==> hadoop1: Mounting shared folders...
hadoop1: /vagrant => E:/vagrant
==> hadoop2: Importing base box 'puppetlabs/centos-7.2-64-nocm'...
==> hadoop2: Matching MAC address for NAT networking...
==> hadoop2: Setting the name of the VM: caas2
==> hadoop2: Fixed port collision for 22 => 2222. Now on port 2200.
==> hadoop2: Clearing any previously set network interfaces...
==> hadoop2: Preparing network interfaces based on configuration...
hadoop2: Adapter 1: nat
hadoop2: Adapter 2: hostonly
==> hadoop2: Forwarding ports...
hadoop2: 22 (guest) => 2200 (host) (adapter 1)
==> hadoop2: Running 'pre-boot' VM customizations...
==> hadoop2: Booting VM...
==> hadoop2: Waiting for machine to boot. This may take a few minutes...
hadoop2: SSH address: 127.0.0.1:2200
hadoop2: SSH username: vagrant
hadoop2: SSH auth method: private key
hadoop2: Warning: Remote connection disconnect. Retrying...
hadoop2: Warning: Remote connection disconnect. Retrying...
hadoop2: Warning: Remote connection disconnect. Retrying...
hadoop2:
hadoop2: Vagrant insecure key detected. Vagrant will automatically replace
hadoop2: this with a newly generated keypair for better security.
hadoop2:
hadoop2: Inserting generated public key within guest...
hadoop2: Removing insecure key from the guest if it's present...
hadoop2: Key inserted! Disconnecting and reconnecting using new SSH key...
==> hadoop2: Machine booted and ready!
==> hadoop2: Checking for guest additions in VM...
==> hadoop2: Setting hostname...
==> hadoop2: Configuring and enabling network interfaces...
==> hadoop2: Mounting shared folders...
hadoop2: /vagrant => E:/vagrant
==> hadoop3: Importing base box 'puppetlabs/centos-7.2-64-nocm'...
==> hadoop3: Matching MAC address for NAT networking...
==> hadoop3: Setting the name of the VM: caas3
==> hadoop3: Fixed port collision for 22 => 2222. Now on port 2201.
==> hadoop3: Clearing any previously set network interfaces...
==> hadoop3: Preparing network interfaces based on configuration...
hadoop3: Adapter 1: nat
hadoop3: Adapter 2: hostonly
==> hadoop3: Forwarding ports...
hadoop3: 22 (guest) => 2201 (host) (adapter 1)
==> hadoop3: Running 'pre-boot' VM customizations...
==> hadoop3: Booting VM...
==> hadoop3: Waiting for machine to boot. This may take a few minutes...
hadoop3: SSH address: 127.0.0.1:2201
hadoop3: SSH username: vagrant
hadoop3: SSH auth method: private key
hadoop3: Warning: Remote connection disconnect. Retrying...
hadoop3: Warning: Remote connection disconnect. Retrying...
hadoop3: Warning: Remote connection disconnect. Retrying...
hadoop3:
hadoop3: Vagrant insecure key detected. Vagrant will automatically replace
hadoop3: this with a newly generated keypair for better security.
hadoop3:
hadoop3: Inserting generated public key within guest...
hadoop3: Removing insecure key from the guest if it's present...
hadoop3: Key inserted! Disconnecting and reconnecting using new SSH key...
==> hadoop3: Machine booted and ready!
==> hadoop3: Checking for guest additions in VM...
==> hadoop3: Setting hostname...
==> hadoop3: Configuring and enabling network interfaces...
==> hadoop3: Mounting shared folders...
hadoop3: /vagrant => E:/vagrant
==> hadoop4: Importing base box 'puppetlabs/centos-7.2-64-nocm'...
==> hadoop4: Matching MAC address for NAT networking...
==> hadoop4: Setting the name of the VM: caas4
==> hadoop4: Fixed port collision for 22 => 2222. Now on port 2202.
==> hadoop4: Clearing any previously set network interfaces...
==> hadoop4: Preparing network interfaces based on configuration...
hadoop4: Adapter 1: nat
hadoop4: Adapter 2: hostonly
==> hadoop4: Forwarding ports...
hadoop4: 22 (guest) => 2202 (host) (adapter 1)
==> hadoop4: Running 'pre-boot' VM customizations...
==> hadoop4: Booting VM...
==> hadoop4: Waiting for machine to boot. This may take a few minutes...
hadoop4: SSH address: 127.0.0.1:2202
hadoop4: SSH username: vagrant
hadoop4: SSH auth method: private key
hadoop4: Warning: Remote connection disconnect. Retrying...
hadoop4: Warning: Remote connection disconnect. Retrying...
hadoop4: Warning: Remote connection disconnect. Retrying...
hadoop4:
hadoop4: Vagrant insecure key detected. Vagrant will automatically replace
hadoop4: this with a newly generated keypair for better security.
hadoop4:
hadoop4: Inserting generated public key within guest...
hadoop4: Removing insecure key from the guest if it's present...
hadoop4: Key inserted! Disconnecting and reconnecting using new SSH key...
==> hadoop4: Machine booted and ready!
==> hadoop4: Checking for guest additions in VM...
==> hadoop4: Setting hostname...
==> hadoop4: Configuring and enabling network interfaces...
==> hadoop4: Mounting shared folders...
hadoop4: /vagrant => E:/vagrant
本质上vagrant就是将box导入到virtualbox(也可以是其他虚拟化软件,但不同虚拟化软件的box格式不同,需要分别下载),并参照Vagrantfile的设置修改虚拟机配置,包括硬件和网络配置。
五、使用
启动后使用SSH登录到各个虚拟机的22端口,即可开始使用。
==root密码为puppet==。
如果需要清除己有虚拟机,可以使用
vagrant destroy
然后再次在此目录下使用
vagrant up
即可重新生成干净的虚拟机。
正常生成虚拟机后,打开你的virtualbox ,这时可以看到生成的虚拟机都是正在运行的状态。

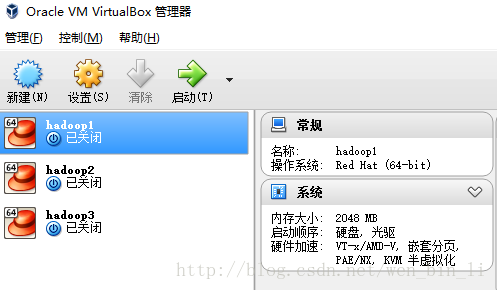

但如果你是windows10系统,那么你很有可能怀疑自己是不是眼花,看到的是却是“已关闭”,如下图:
状态依然是已关闭,此时,你可以Xshell连接127.0.0.1:2200等虚拟机端口,但这不是我们要达到的效果

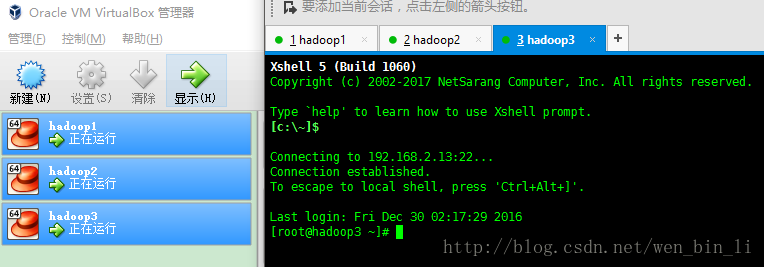

我们在vagrant命令界面,运行vagrant halt停掉服务,然后到virtualbox这边全选无界面启动,就可以了,这样麻烦的地方就在于每次启动要到virtualbox里面来启动
ok完了
