警告warning: missing braces around initializer [-Wmissing-braces]的解决办法

已于 2025-03-21 09:14:58 修改
阅读量972 收藏 9
点赞数 24
分类专栏： C C++ STM32 文章标签： 单片机 stm32 嵌入式硬件 c++ c语言
于 2025-03-20 16:31:35 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/wenchm/article/details/146395354
版权

目录

一、产生原因

‌1、数组初始化‌

2、结构体初始化‌

二、解决方法

‌1、确保每个元素都被大括号包围‌

‌2、完整的初始化列表‌

三、案例

1、必要的定义

2、引起警告的错误代码书写

3、解除警告的正确代码书写

        warning: missing braces around initializer [-Wmissing-braces]‌ 警告通常出现在数组或结构体初始化时，编译器检测到初始化列表没有用大括号明确区分每个元素的初始化值。这种警告意味着初始化列表中的元素没有被正确地用大括号包围，导致编译器无法准确解析每个元素的初始值。例如：

一、产生原因

‌1、数组初始化‌

        在初始化数组时，如果直接使用一系列数值而没有用大括号将每个元素的值分开，就会触发这个警告。例如：

//错误的代码书写
const unint8 tansition_table[8][4]={0,1,0,1，
									5,2,5,1，
									3,4,5,6，
									7,8,9,0，
									6,7,8,9，
									2,3,4,5，
									1,3,1,4，
									5,2,0,1};
//正确的代码书写
const unint8 tansition_table[8][4]={{0,1,0,1},
									{5,2,5,1},
									{3,4,5,6},
									{7,8,9,0},
									{6,7,8,9},
									{2,3,4,5},
									{1,3,1,4},
									{5,2,0,1}
									};

2、结构体初始化‌

        在初始化结构体时，如果初始化列表中的值没有用大括号分开，也会导致这个警告。例如：

//错误的代码书写
typedef struct {
    int x;
    int y;
} Point;

int main() {
    Point points[3] = {0, 0, 0, 1, 1, 0};
    return 0;
}


//正确的代码书写
typedef struct {
    int x;
    int y;
} Point;

int main() {
    Point points[3] = {{0, 0}, {1, 0}};
    return 0;
}

二、解决方法

‌1、确保每个元素都被大括号包围‌

        在初始化数组或结构体时，确保每个元素的值都被大括号包围。例如：

int a‌:ml-citation{ref="1" data="citationList"} = {{1}, {2}, {3}};
struct Point point = {{1，0}, {2,2}};

void (*PanelMenuFun[9][7])(STR_PANELOPERRATION *p) = {
/*0 RDY RDY			*/	{ KeyModeFunZero, 	NullFuntion, 	NullFuntion, 	NullFuntion, 	KeyLongShiftFunZero, NullFuntion, 	NullFuntion 	},
/*1 H00 H0D			*/	{ KeyModeFun1st, 	KeyUpFun1st,	KeyDownFun1st, 	KeyShiftFun1st, KeyShiftFun1st, 	 KeySetFun1st, 	KeySetFun1st 	},
/*2 H00.00 H0D.11 	*/	{ KeyModeFun2nd, 	KeyUpFun2nd, 	KeyDownFun2nd, 	KeyShiftFun2nd, KeyShiftFun2nd, 	 KeySetFun2nd, 	KeySetFun2nd 	},
/*3 14000 0200		*/	{ KeyModeFun3rd, 	KeyUpFun3rd, 	KeyDownFun3rd, 	KeyShiftFun3rd, KeyLongShiftFun3rd,  KeySetFun3rd,  KeySetFun3rd 	},
/*4                	*/	{ KeyModeFun4th, 	KeyUpFun4th, 	KeyDownFun4th, 	KeyShiftFun4th, KeyShiftFun4th, 	 KeySetFun4th, 	KeySetFun4th 	},
/*5 JOG    			*/	{ KeyModeFun5th, 	NullFuntion, 	NullFuntion, 	NullFuntion, 	NullFuntion, 		 NullFuntion, 	NullFuntion 	},
/*6                	*/	{ KeyModeFun6th, 	NullFuntion, 	NullFuntion, 	NullFuntion, 	NullFuntion, 		 NullFuntion, 	KeyLongSetFun6th},
/*7                	*/	{ KeyModeFun7th, 	NullFuntion, 	NullFuntion, 	NullFuntion, 	NullFuntion, 		 NullFuntion, 	NullFuntion 	},
/*8                	*/	{ NullFuntion, 		NullFuntion, 	NullFuntion, 	NullFuntion, 	NullFuntion, 		 NullFuntion, 	NullFuntion 	}
};//

‌2、完整的初始化列表‌

        如果数组或结构体的所有元素都需要初始化，确保每个元素都被大括号包围。如果部分元素不需要初始化，可以使用默认值填充剩余位置。例如：

//正确的代码书写
typedef struct {
    int x;
    int y;
} Point points[3] = {{0, 0}, {1, 0}};

三、案例

        简单的结构体、结构体数组、数组的定义，容易一眼看穿错误在哪里。复杂一点的定义，不容易看穿警告的错误出现在哪里，或者模糊地知道错误的原因，但是做不到一步到位解除警告。

        本实例以摘录一段复杂的结构体数组为例，旨在说明出现题目所示的警告时，如何操作才能解除警告。

1、必要的定义

         仅列举与本文相关的必要的定义

/* Includes ------------------------------------------------------------------*/
/* 引用头文件 */

/* Private_Constants ---------------------------------------------------------*/
/* 宏定义 常数类*/

//下限表示显示类别 上限表示显示需要的页数
typedef struct{
    Uint16 Value;
    Uint16 LowerLmt;                 		//下限
    Uint16 UpperLmt;                 		//上限
    volatile UNI_FUNCODE_ATTRIBUTE Attrib;  //功能码属性
}STR_FUNCODE_DEFAULT;

//功能码属性表长度
#define	FUNCODEDFTLEN	(H3200DFTINDEX + H32LEN)

//每组功能码长度
#define H0BLEN	100
#define H0DLEN	25
#define H2FLEN	70
#define H30LEN	10
#define H31LEN	30
#define H32LEN	24

//功能码属性表中每组首个功能码序号
#define      H0000DFTINDEX       0
#define      H0100DFTINDEX       (H0000DFTINDEX + H00LEN)
#define      H0200DFTINDEX       (H0100DFTINDEX + H01LEN)
#define      H0300DFTINDEX       (H0200DFTINDEX + H02LEN)
#define      H0400DFTINDEX       (H0300DFTINDEX + H03LEN)
#define      H0500DFTINDEX       (H0400DFTINDEX + H04LEN)
#define      H0600DFTINDEX       (H0500DFTINDEX + H05LEN)
#define      H0700DFTINDEX       (H0600DFTINDEX + H06LEN)
#define      H0800DFTINDEX       (H0700DFTINDEX + H07LEN)
#define      H0900DFTINDEX       (H0800DFTINDEX + H08LEN)
#define      H0A00DFTINDEX       (H0900DFTINDEX + H09LEN)
//H0B组在辅助功能码中定义
#define      H0C00DFTINDEX       (H0A00DFTINDEX + H0ALEN)
//H0D组在辅助功能码中定义
#define      H0E00DFTINDEX       (H0C00DFTINDEX + H0CLEN)
#define      H0F00DFTINDEX       (H0E00DFTINDEX + H0ELEN)
#define      H1000DFTINDEX       (H0F00DFTINDEX + H0FLEN)
#define      H1100DFTINDEX       (H1000DFTINDEX + H10LEN)
#define      H1200DFTINDEX       (H1100DFTINDEX + H11LEN)
#define      H1300DFTINDEX       (H1200DFTINDEX + H12LEN)
#define      H1400DFTINDEX       (H1300DFTINDEX + H13LEN)
#define      H1500DFTINDEX       (H1400DFTINDEX + H14LEN)
#define      H1600DFTINDEX       (H1500DFTINDEX + H15LEN)
#define      H1700DFTINDEX       (H1600DFTINDEX + H16LEN)
#define      H1800DFTINDEX       (H1700DFTINDEX + H17LEN)
#define      H1900DFTINDEX       (H1800DFTINDEX + H18LEN)
#define      H1A00DFTINDEX       (H1900DFTINDEX + H19LEN)
#define      H1B00DFTINDEX       (H1A00DFTINDEX + H1ALEN)
#define      H1C00DFTINDEX       (H1B00DFTINDEX + H1BLEN)
#define      H1D00DFTINDEX       (H1C00DFTINDEX + H1CLEN)

//辅助功能码
#define      H0B00DFTINDEX       (H1D00DFTINDEX + H1DLEN)
#define      H0D00DFTINDEX       (H0B00DFTINDEX + H0BLEN)
#define      H2F00DFTINDEX       (H0D00DFTINDEX + H0DLEN)
#define      H3000DFTINDEX       (H2F00DFTINDEX + H2FLEN)
#define      H3100DFTINDEX       (H3000DFTINDEX + H30LEN)
#define      H3200DFTINDEX       (H3100DFTINDEX + H31LEN)

typedef union
{
    volatile Uint32	all;
    volatile STR_FUNCODE_ATTRIBUTE_BIT	bit;
}UNI_FUNCODE_ATTRIBUTE;

/* 结构体变量类型定义 枚举变量类型定义 */
typedef struct{            		//bits 	description
    Uint32  Writable:2;    		//0-1  	00:RW;01:停机设定  02:显示  03:保留参数
    Uint32  rsvd:1;        		//2    	保留
    Uint32  UpperLmt:1;    		//3    	0:直接由上限限制 1:参数由上限相关功能码限制
    Uint32  LowerLmt:1;    		//4    	0:直接由下限限制 1:参数由下限相关功能码限制
    Uint32  DataBits:1;    		//5    	0:16位   1:32位
    Uint32  DispBits:4;    		//6-9 	5个数码管要显示的位数。0:显示0位，1:显示1位...5:显示5位
    Uint32  DotBit:3;      		//10-12 0:无小数位  1:1位小数位...4:4位小数位
    Uint32  Sign:1;        		//13    0:无符号   1：有符号
    Uint32  Active:1;      		//14   	0：立即生效   1：再次上电生效
    Uint32  DataType:2;    		//15-16	0:非数字数据  1:十进制数据  2:十六进制数据
    Uint32  DataIndex:1;   		//17    0:32位数据低十六位或16位数据  1:32位数据高十六位
    Uint32  OEMProtect:1;  		//18    0:不用保护  1:厂家保护
    Uint32  PanelAttrib:2;		//19-20	0: (PANEL_UNCHANGE)面板显示但不可更改
    Uint32  CommSaveEn:1;  		//21  	0: 写时存Eeprom 1:写时不存Eeprom
    Uint32  CommReadEn:1;  		//22 	0: 读时返回真实值 1:读时返回0
    Uint32  Rsvd:9;        		//23-31	Rsvd10
}STR_FUNCODE_ATTRIBUTE_BIT;

2、引起警告的错误代码书写

        仅列举与本文相关的，错误书写的代码：

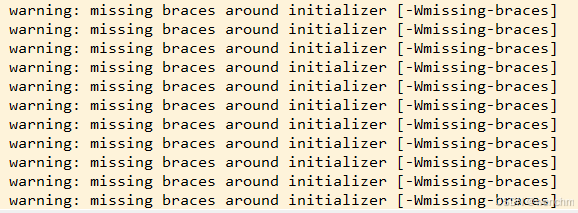

        本例定义了一个结构体数组FunCodeDeft[]，共有60个成员。程序员按如下穷举所有成员的方法初始化该结构体数组。通过STM32CubeIDE编译后出现了本文讨论的警告。

//功能码属性表(包含辅助功能码)
const STR_FUNCODE_DEFAULT   FunCodeDeft[FUNCODEDFTLEN] = {

/*默认属性：ANY_WRT| YNUM_TYP| DRCT_LMTL| DRCT_LMTH| ONE_WORD| ZERO_DOT| UN_SIGN| INST_ACT| LOW_WORD|UN_OEMPROTECT*/
/*注释      默认值  下限    	上限   	        属性*/
#if NONSTANDARD_PROJECT == IS600P
/*H00_00*/  6,       0,		65535, 	POSD_WRT|   DISP_5| NEXT_ACT,
#else
/*H00_00*/  14000,   0,     65535, 	POSD_WRT|   DISP_5| NEXT_ACT,
#endif
/*H00_01*/  0,       0,     65535, 	RSVD_WRT,
/*H00_02*/  0,       0,     65535, 	DISP_WRT| HNUM_TYP|   DISP_5| TWO_WORD| TWO_DOT,
/*H00_03*/  0,       0,     65535, 	DISP_WRT| HNUM_TYP|   DISP_5| TWO_WORD| TWO_DOT| HIGH_WORD,
/*H00_04*/  0,       0,     65535, 	DISP_WRT|   DISP_5|  ONE_DOT,
/*H00_05*/  0,       0,     65535, 	DISP_WRT|   DISP_5,
/*H00_06*/  0,       0,     65535, 	DISP_WRT| HNUM_TYP|   DISP_5| TWO_WORD| TWO_DOT,
/*H00_07*/  0,       0,     65535, 	DISP_WRT| HNUM_TYP|   DISP_5| TWO_WORD| TWO_DOT| HIGH_WORD,
/*H00_08*/  0,       0,     65535,	POSD_WRT|   DISP_5| NEXT_ACT,
/*H00_09*/  0,       0,     65535, 	POSD_WRT|   DISP_1| NEXT_ACT| OEMPROTECT,


#if NONSTANDARD_PROJECT == LINEARMOT       //功率单位为W
/*H00_10*/  39,      0,    	65535, 	POSD_WRT| DISP_5|  NEXT_ACT|OEMPROTECT,
/*H00_11*/  230,     0,    	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_12*/  375,     0,    	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_13*/  690,     0,    	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_14*/  1900,    0,    	65535, 	POSD_WRT| DISP_4|  NEXT_ACT|OEMPROTECT,
/*H00_15*/  1900,    0,    	65535, 	POSD_WRT| DISP_4|  NEXT_ACT|OEMPROTECT,
/*H00_16*/  290,     0,    	65535, 	POSD_WRT| DISP_5| NEXT_ACT| OEMPROTECT,
/*H00_17*/  1,       0,   	65535,  POSD_WRT| DISP_3|  NEXT_ACT|OEMPROTECT,
/*H00_18*/ 	4000,    0,    	65535, 	POSD_WRT| DISP_5| THREE_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_19*/  100,     0,   	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
#else
/*H00_10*/  75,      0,   	65535,	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_11*/  470,     0,   	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_12*/  239,     0,    	65535,  POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_13*/  716,     0,    	65535,	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_14*/  3000,    0,   	65535, 	POSD_WRT| DISP_4|  NEXT_ACT|OEMPROTECT,
/*H00_15*/  6000,    0, 	65535,	POSD_WRT| DISP_4|  NEXT_ACT|OEMPROTECT,
/*H00_16*/  130,     0,    	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_17*/  4,       0,   	65535, 	POSD_WRT| DISP_3|  NEXT_ACT|OEMPROTECT,
/*H00_18*/  500,     0,   	65535, 	POSD_WRT| DISP_5| THREE_DOT|  NEXT_ACT|OEMPROTECT,
/*H00_19*/  327,     0,   	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT,
#endif


#if NONSTANDARD_PROJECT == LINEARMOT
/*H00_20*/  100,     0,  	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
/*H00_21*/  6700,    0,    	65535, 	POSD_WRT| DISP_5|THREE_DOT| NEXT_ACT|OEMPROTECT,
/*H00_22*/  1650,    0,   	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
/*H00_23*/  25,      0,   	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
/*H00_24*/  600,     0,    	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
#else
/*H00_20*/  387,     0,   	65535,	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
/*H00_21*/  3330,    0,   	65535,	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
/*H00_22*/  51,      0,   	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
/*H00_23*/  654,     0,   	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
/*H00_24*/  24,      0,    	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT,
#endif
/*H00_25*/  0,       0,   	65535, 	RSVD_WRT,
/*H00_26*/  0,       0,   	65535, 	RSVD_WRT,
/*H00_27*/  0,       0,   	65535, 	RSVD_WRT,
/*H00_28*/ 	0,		 0,		65535,	POSD_WRT|DISP_11| TWO_WORD| NEXT_ACT| OEMPROTECT,
/*H00_29*/  0,       0,   	65535,	POSD_WRT|DISP_11| TWO_WORD| NEXT_ACT| OEMPROTECT | HIGH_WORD,


#if NONSTANDARD_PROJECT == IS600P
/*H00_30*/  0x01,    0,    	65535, 	POSD_WRT|HNUM_TYP|  DISP_3| NEXT_ACT|OEMPROTECT,
#elif NONSTANDARD_PROJECT == LINEARMOT
/*H00_30*/  0x30,    0,     65535, 	POSD_WRT|HNUM_TYP|  DISP_3| NEXT_ACT|OEMPROTECT,
#els
/*H00_30*/  0x13,    0,    	65535,  POSD_WRT|HNUM_TYP|  DISP_3| NEXT_ACT|OEMPROTECT,
#endif

#if NONSTANDARD_PROJECT == IS600P
/*H00_31*/  2500,    0,    	65535, 	POSD_WRT|TWO_WORD| DISP_10| NEXT_ACT| OEMPROTECT,
/*H00_32*/  0,       0,   	65535, 	POSD_WRT|TWO_WORD| DISP_10| NEXT_ACT| HIGH_WORD| OEMPROTECT,
#elif NONSTANDARD_PROJECT == LINEARMOT
/*H00_31*/  16,      0,    	65535, 	POSD_WRT|  DISP_4|NEXT_ACT| OEMPROTECT,
/*H00_32*/  100,     0,    	65535, 	POSD_WRT|  DISP_4|NEXT_ACT| TWO_DOT | OEMPROTECT,
#else
/*H00_31*/  0,       0,    	65535,	POSD_WRT|TWO_WORD| DISP_10| NEXT_ACT| OEMPROTECT,
/*H00_32*/  0x10,    0,   	65535, 	POSD_WRT|TWO_WORD| DISP_10| NEXT_ACT| HIGH_WORD| OEMPROTECT,
#endif

/*H00_33*/  1800,    0,  	3600, 	POSD_WRT|  DISP_4| ONE_DOT| NEXT_ACT| OEMPROTECT,
/*H00_34*/  1800,    0, 	3600,  	POSD_WRT|  DISP_4| ONE_DOT| NEXT_ACT| OEMPROTECT,
/*H00_35*/  0,       0,   	65535, 	POSD_WRT|  DISP_5,
/*H00_36*/	2,		 0,		65535,	POSD_WRT|  DISP_5| NEXT_ACT,
/*H00_37*/  0,       0,   	65535, 	POSD_WRT|HNUM_TYP| DISP_2,
/*H00_38*/  0,       0,    	65535, 	RSVD_WRT,
/*H00_39*/  0,       0,    	65535, 	RSVD_WRT,
/*H00_40*/  0,       0,    	65535, 	RSVD_WRT,
/*H00_41*/  0,       0, 	65535,	RSVD_WRT,
/*H00_42*/  0,       0,    	65535, 	RSVD_WRT,
/*H00_43*/  0,       0, 	65535, 	RSVD_WRT,
/*H00_44*/  0,       0,   	65535,	RSVD_WRT,
/*H00_45*/  0,       0,    	65535,	RSVD_WRT,
/*H00_46*/  1,       0,    	65535,	RSVD_WRT,
/*H00_47*/  0,       0,   	65535,	RSVD_WRT,
/*H00_48*/  0,       0,    	65535, 	RSVD_WRT,
/*H00_49*/  0,       0,  	65535,	RSVD_WRT,
/*H00_50*/  0,       0,   	65535, 	RSVD_WRT,
/*H00_51*/  0,       0,   	65535,  RSVD_WRT,
/*H00_52*/  0,       0,  	65535, 	RSVD_WRT,
/*H00_53*/  0,       0,    	65535, 	RSVD_WRT,
/*H00_54*/  0,       0,    	65535,	RSVD_WRT,
/*H00_55*/  0,       0,    	65535, 	RSVD_WRT,
/*H00_56*/  0,       0,   	65535, 	RSVD_WRT,
/*H00_57*/  0,       0,    	65535,	RSVD_WRT,
/*H00_58*/  0,       0,    	65535, 	RSVD_WRT,
/*H00_59*/  0x0A5C,  0,   	65535, 	RSVD_WRT,

};

3、解除警告的正确代码书写

         结构体数组FunCodeDeft[]的数据类型结构体STR_FUNCODE_DEFAULT，其中，结构体STR_FUNCODE_DEFAULT由4个成员组成，这4个成员包含3个Uint16整型数据和1个联合体数据。FunCodeDeft[]是一个复杂的结构体数组。

        结构体数组FunCodeDeft[]共包含60个实例，可以采用穷举的方法进行初始化，但每个实例必须用{}括起来，{}之间用,分隔，{}内各成员之间也有,分隔。

        本例中，每个实例中的第4个成员是联合体数据类型，最好用{}括起来，在本例中可以省略{}。不影响编译器的结果。在不同的IDE版本下结果不一样，如果显示警告，把这个联合体成员括起来就没是了。

//功能码属性表(包含辅助功能码)
const STR_FUNCODE_DEFAULT   FunCodeDeft[FUNCODEDFTLEN] = {

/*默认属性：ANY_WRT| YNUM_TYP| DRCT_LMTL| DRCT_LMTH| ONE_WORD| ZERO_DOT| UN_SIGN| INST_ACT| LOW_WORD|UN_OEMPROTECT*/
/*注释      默认值  下限    	上限   	            属性*/
#if NONSTANDARD_PROJECT == IS600P
/*H00_00*/  {6,       0,	65535, 	POSD_WRT|   DISP_5| NEXT_ACT},
#else
/*H00_00*/  {14000,   0,    65535, 	POSD_WRT|   DISP_5| NEXT_ACT},
#endif
/*H00_01*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_02*/  {0,       0,    65535, 	DISP_WRT| HNUM_TYP|   DISP_5| TWO_WORD| TWO_DOT},
/*H00_03*/  {0,       0,    65535, 	DISP_WRT| HNUM_TYP|   DISP_5| TWO_WORD| TWO_DOT| HIGH_WORD},
/*H00_04*/  {0,       0,    65535, 	DISP_WRT|   DISP_5|  ONE_DOT},
/*H00_05*/  {0,       0,    65535, 	DISP_WRT|   DISP_5},
/*H00_06*/  {0,       0,    65535, 	DISP_WRT| HNUM_TYP|   DISP_5| TWO_WORD| TWO_DOT},
/*H00_07*/  {0,       0,    65535, 	DISP_WRT| HNUM_TYP|   DISP_5| TWO_WORD| TWO_DOT| HIGH_WORD},
/*H00_08*/  {0,       0,    65535,	POSD_WRT|   DISP_5| NEXT_ACT},
/*H00_09*/  {0,       0,    65535, 	POSD_WRT|   DISP_1| NEXT_ACT| OEMPROTECT},


#if NONSTANDARD_PROJECT == LINEARMOT       //功率单位为W
/*H00_10*/  {39,      0,    65535, 	POSD_WRT| DISP_5|  NEXT_ACT|OEMPROTECT},
/*H00_11*/  {230,     0,    65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_12*/  {375,     0,    65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_13*/  {690,     0,    65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_14*/  {1900,    0,    65535, 	POSD_WRT| DISP_4|  NEXT_ACT|OEMPROTECT},
/*H00_15*/  {1900,    0,    65535, 	POSD_WRT| DISP_4|  NEXT_ACT|OEMPROTECT},
/*H00_16*/  {290,     0,    65535, 	POSD_WRT| DISP_5|  NEXT_ACT| OEMPROTECT},
/*H00_17*/  {1,       0,   	65535,  POSD_WRT| DISP_3|  NEXT_ACT|OEMPROTECT},
/*H00_18*/ 	{4000,    0,    65535, 	POSD_WRT| DISP_5| THREE_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_19*/  {100,     0,   	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
#else
/*H00_10*/  {75,      0,   	65535,	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_11*/  {470,     0,   	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_12*/  {239,     0,    65535,  POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_13*/  {716,     0,    65535,	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_14*/  {3000,    0,   	65535, 	POSD_WRT| DISP_4|  NEXT_ACT|OEMPROTECT},
/*H00_15*/  {6000,    0, 	65535,	POSD_WRT| DISP_4|  NEXT_ACT|OEMPROTECT},
/*H00_16*/  {130,     0,    65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_17*/  {4,       0,   	65535, 	POSD_WRT| DISP_3|  NEXT_ACT|OEMPROTECT},
/*H00_18*/  {500,     0,   	65535, 	POSD_WRT| DISP_5| THREE_DOT|  NEXT_ACT|OEMPROTECT},
/*H00_19*/  {327,     0,   	65535, 	POSD_WRT| DISP_5|   TWO_DOT|  NEXT_ACT|OEMPROTECT},
#endif


#if NONSTANDARD_PROJECT == LINEARMOT
/*H00_20*/  {100,     0,  	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
/*H00_21*/  {6700,    0,    65535, 	POSD_WRT| DISP_5|THREE_DOT| NEXT_ACT|OEMPROTECT},
/*H00_22*/  {1650,    0,   	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
/*H00_23*/  {25,      0,   	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
/*H00_24*/  {600,     0,    65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
#else
/*H00_20*/  {387,     0,   	65535,	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
/*H00_21*/  {3330,    0,   	65535,	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
/*H00_22*/  {51,      0,   	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
/*H00_23*/  {654,     0,   	65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
/*H00_24*/  {24,      0,    65535, 	POSD_WRT| DISP_5|  TWO_DOT| NEXT_ACT|OEMPROTECT},
#endif
/*H00_25*/  {0,       0,   	65535, 	RSVD_WRT},
/*H00_26*/  {0,       0,   	65535, 	RSVD_WRT},
/*H00_27*/  {0,       0,   	65535, 	RSVD_WRT},
/*H00_28*/ 	{0,		  0,	65535,	POSD_WRT|DISP_11| TWO_WORD| NEXT_ACT| OEMPROTECT},
/*H00_29*/  {0,       0,   	65535,	POSD_WRT|DISP_11| TWO_WORD| NEXT_ACT| OEMPROTECT | HIGH_WORD},


#if NONSTANDARD_PROJECT == IS600P
/*H00_30*/  {0x01,    0,    65535, 	POSD_WRT|HNUM_TYP|  DISP_3| NEXT_ACT|OEMPROTECT},
#elif NONSTANDARD_PROJECT == LINEARMOT
/*H00_30*/  {0x30,    0,    65535, 	POSD_WRT|HNUM_TYP|  DISP_3| NEXT_ACT|OEMPROTECT},
#els
/*H00_30*/  {0x13,    0,    65535,  POSD_WRT|HNUM_TYP|  DISP_3| NEXT_ACT|OEMPROTECT},
#endif

#if NONSTANDARD_PROJECT == IS600P
/*H00_31*/  {2500,    0,    65535, 	POSD_WRT|TWO_WORD| DISP_10| NEXT_ACT| OEMPROTECT},
/*H00_32*/  {0,       0,   	65535, 	POSD_WRT|TWO_WORD| DISP_10| NEXT_ACT| HIGH_WORD| OEMPROTECT},
#elif NONSTANDARD_PROJECT == LINEARMOT
/*H00_31*/  {16,      0,    65535, 	POSD_WRT|  DISP_4|NEXT_ACT| OEMPROTECT},
/*H00_32*/  {100,     0,    65535, 	POSD_WRT|  DISP_4|NEXT_ACT| TWO_DOT | OEMPROTECT},
#else
/*H00_31*/  {0,       0,    65535,	POSD_WRT|TWO_WORD| DISP_10| NEXT_ACT| OEMPROTECT},
/*H00_32*/  {0x10,    0,   	65535, 	POSD_WRT|TWO_WORD| DISP_10| NEXT_ACT| HIGH_WORD| OEMPROTECT},
#endif

/*H00_33*/  {1800,    0,  	3600, 	POSD_WRT|  DISP_4| ONE_DOT| NEXT_ACT| OEMPROTECT},
/*H00_34*/  {1800,    0, 	3600,  	POSD_WRT|  DISP_4| ONE_DOT| NEXT_ACT| OEMPROTECT},
/*H00_35*/  {0,       0,   	65535, 	POSD_WRT|  DISP_5},
/*H00_36*/	{2,		  0,	65535,	POSD_WRT|  DISP_5| NEXT_ACT},
/*H00_37*/  {0,       0,   	65535, 	POSD_WRT|HNUM_TYP| DISP_2},
/*H00_38*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_39*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_40*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_41*/  {0,       0, 	65535,	RSVD_WRT},
/*H00_42*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_43*/  {0,       0, 	65535, 	RSVD_WRT},
/*H00_44*/  {0,       0,   	65535,	RSVD_WRT},
/*H00_45*/  {0,       0,    65535,	RSVD_WRT},
/*H00_46*/  {1,       0,    65535,	RSVD_WRT},
/*H00_47*/  {0,       0,   	65535,	RSVD_WRT},
/*H00_48*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_49*/  {0,       0,  	65535,	RSVD_WRT},
/*H00_50*/  {0,       0,   	65535, 	RSVD_WRT},
/*H00_51*/  {0,       0,   	65535,  RSVD_WRT},
/*H00_52*/  {0,       0,  	65535, 	RSVD_WRT},
/*H00_53*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_54*/  {0,       0,    65535,	RSVD_WRT},
/*H00_55*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_56*/  {0,       0,   	65535, 	RSVD_WRT},
/*H00_57*/  {0,       0,    65535,	RSVD_WRT},
/*H00_58*/  {0,       0,    65535, 	RSVD_WRT},
/*H00_59*/  {0x0A5C,  0,   	65535, 	RSVD_WRT},

};

【GCC警告&报错2】warning: missing braces around initializer [-Wmissing-braces]
黑猫奥利奥的博客
04-03 153
本文介绍了C语言中出现'warning: missing braces around initializer'警告的原因，包括未正确使用大括号初始化数组元素。提供了解决这种警告的正确初始化语法，并讨论了不同编译器对此的处理差异。同时提到了结构体数组初始化的注意事项和 memset 在初始化中的应用。
C语言警告error: missing braces around initializer [-Werror=missing-braces]
weixin_41476415的博客
12-01 2417
error: missing braces around initializer [-Werror=missing-braces]
【原创】arm-linux-gcc “missing braces around initializer”编译错误处理
池上好风---码农改变世界
05-23 3496
【原创】arm-linux-gcc “missing braces around initializer”编译错误处理 Author: chad Mail: linczone@163.com 本文可以自由转载，但转载请务必注明出处以及本声明信息。程序编译出现如下错误： db_app.c:24: warning: missing braces around initializer
C语言告警warning: missing braces around initializer详解
热门推荐
yihongxiaoxiang的专栏
12-17 12万+
 warning: missing braces around initializer 警告的意思是初始化缺少了大括号，也就是没有用大括号明确的区分出初始化数据的归类。 那什么时候会使用到大括号初始化呢？一般情况下初始化使用到大括号的情况是初始化结构体struct或者数组时。 首先说明一下多维数组和结构体的初始化，下面以二维数组的初始化为例（使用默认值为0）： 1、分行初始化：int
warning: missing braces around initializer
yannwpu的专栏
11-16 7024
warning: missing braces around initializer  这主要发生在结构体中多维或多个数组初始化的时候，其错误发生的原因是没有用大括号明确的区分出初始化数据的归类，改正的方法如下例子     二维数组定义如下：                             char s1[4][16] =  { 14, 4,13, 1, 2,15,11,
[DEBUG]warning: missing braces around initializer
宁静致远
12-01 2549
[DEBUG]warning: missing braces around initializer
warning: missing braces around initializer [-Wmissing-braces]
04-06
This code will produce the warning "missing braces around initializer" because the initializer values are not enclosed in braces. To fix the issue, the code should be written as follows: ``` int ...
../src/main.c:25:17: warning: missing braces around initializer [-Wmissing-braces]怎么修改
10-22
这个警告是在`main.c`文件的第25行提示缺少花括号(`{}`)来初始化某个结构体、...修复这个问题后，编译器应该就不会再发出`-Wmissing-braces`的警告了。如果你不确定哪里出了问题，可以检查对应行并添加缺失的花括号。
dpcengine.c:83:34: warning: missing braces around initializer [-Wmissing-braces]
06-10
为了解决这个警告，你需要添加缺少的大括号来确保初始化器的正确性。例如，如果你有一个结构体变量的初始化器，应该像这样写： ``` struct my_struct { int foo; int bar; }; struct my_struct my_var = { .foo...
GCCAVR(AVR Studio)中多维数组定义警告：missing braces around initializer
12-29 6216
                          GCCAVR(AVR Studio)中多维定义警告：missing braces around initializer    详细警告为：                            warning: missing braces around initializer                            w
警告warning: braces around scalar initializer的解决办法
最新发布
wenchm的博客
03-21 591
/本例中必要的结构体、联合体定义//面板结构体类型定义//扫描按键结构体类型定义//输入信号//经滤波后的输入信号//当前键扫描的值//当前键边沿状态//MODE键滤波计数器//UP键滤波计数器//DOWN键滤波计数器/SHIFT键滤波计数器//SET键滤波计数器//UP键和DOWN键加速计数器//UP键和DOWN键加速等级//UP键和DOWN键加速等级计数器// 键值定义UPKEY = 1,//键状态定义//面板菜单结构体类型定义。
Convenience initialzer missing a self call to another initializer警告
人生如戏 戏如人生
01-25 3038
Convenience initialzer missing a self call to another initializer警告
嵌入式开发使用 GCC编译器警告错误问题
不浮夸，不将就，认真对待学知识的我们
12-23 9288
记录下嵌入式开发中使用gcc工具链开发的过程中遇到的一些警告或者错误处理方式
android 多重数组,android – 缺少多维数组的大括号
weixin_28994227的博客
05-28 2459
当我在Visual Studio中为Android共享库构建项目时,我收到了一条警告消息.warning : suggest braces around initialization of subobject[-Wmissing-braces]此消息指示仅使用一对大括号的数组初始化语句.int myArray [ROW] [COL] = {1,2,3,4,5,6,…,451,452,453};我不...
GCC编译C语言常见错误和警告汇总
嵌入式开发及工业通信
05-05 6604
1.suggest parentheses around comparison in operand of '&' [-Wparentheses] 建议在'&'的操作数比较周围加上括号 报错语句 while(HWREG(PRCM_BASE_ADDR3 + CM_PER_SPI0_CLKCTRL) & CM_PER_SPI0_CLKCTRL_IDLEST!= CM_PER_SPI0_CLKCTRL_IDLEST_FUNC); 解决这个问题就是在......
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

wenchm

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
