[Realtek sdk-3.4.14b]RTL8197FH-VG增加IPv6功能支持

内核配置增加IPv6支持

make linux_menuconfig

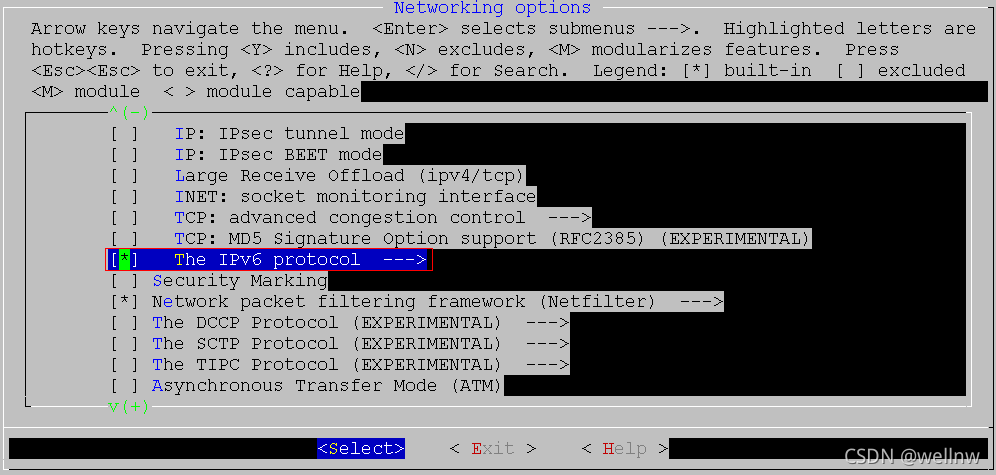

1) Networking support --->
            Networking options--->
                       The ipv6 protocol---> // Selected and enter

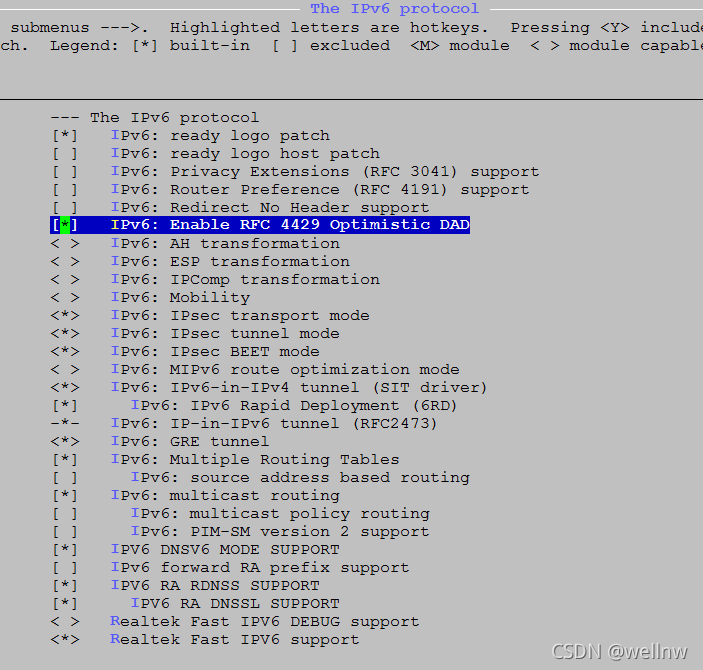

 2) Networking support --->
                Networking options--->
                        The ipv6 protocol--->

                                IPv6: ready logo patch // Selected
                                IPv6: Enable RFC 4429 Optimistic DAD // Selected
                                IPv6: Multiple Routing Tables // Selected
                                IPv6: multicast routing // Selected
                                IPV6 DNSV6 MODE SUPPORT // Selected
                                IPV6 RA RDNSS SUPPORT // Selected
                                IPV6 RA DNSSL SUPPORT //selected
                                Realtek Fast IPV6 support //selected

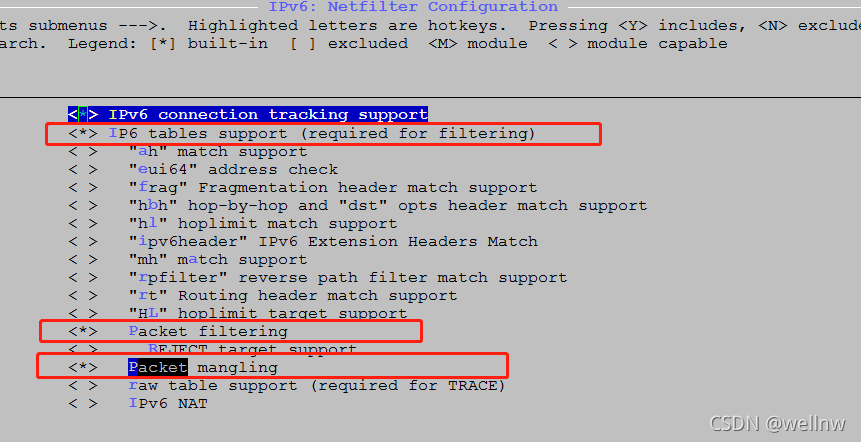

                         Netfiler--->
                                IPv6 netfilter configure--->
                                        IPv6 connection tracking support-> //selected
                                        ip6tables support---> // Selected
                                        packet mangling---> // Selected
                                        packet filtering ---> //Selected



IPv6应用层配置

make users_ menucofig
        1) dhcpv6 // Selected
        2) dnsmasq //Selected
        3) dslite //selected
        4) radvd // Selected
        5) ndisc6 //Selected

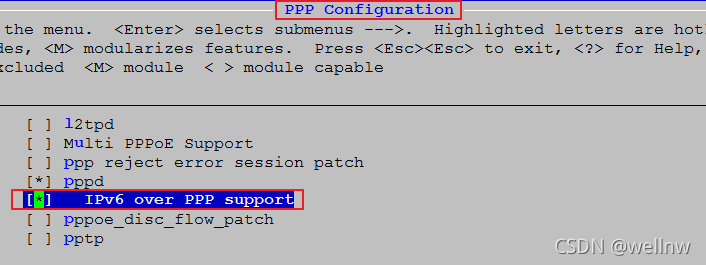

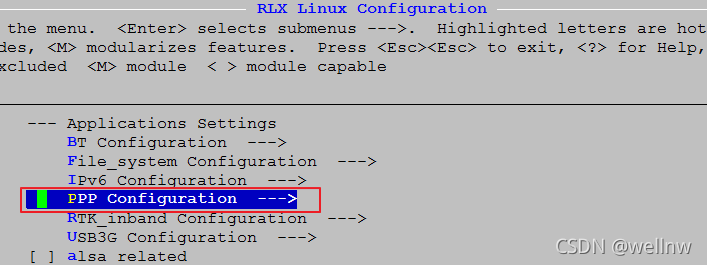

         5) PPP support IPv6 //Selected

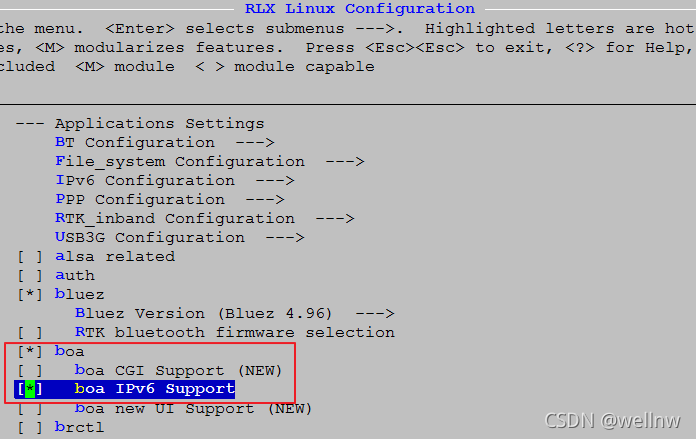

6) BOA support IPv6 //Selected

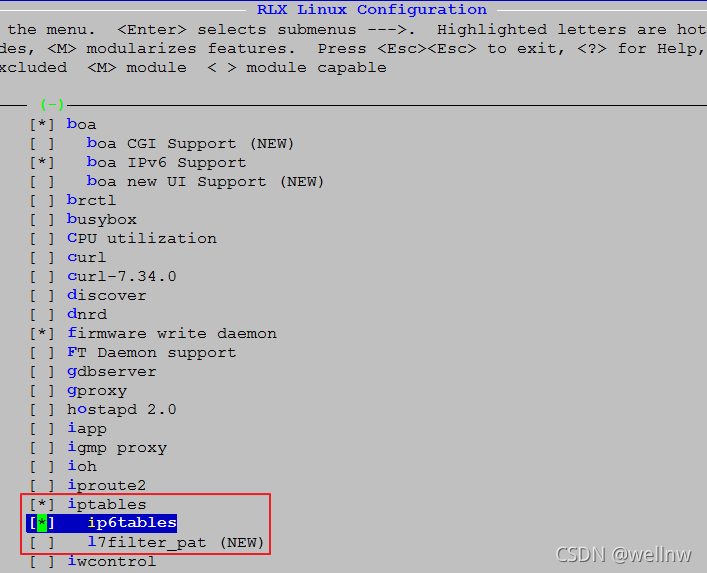

 7) ip6tables support //Selected

 8) mldproxy support //Selected

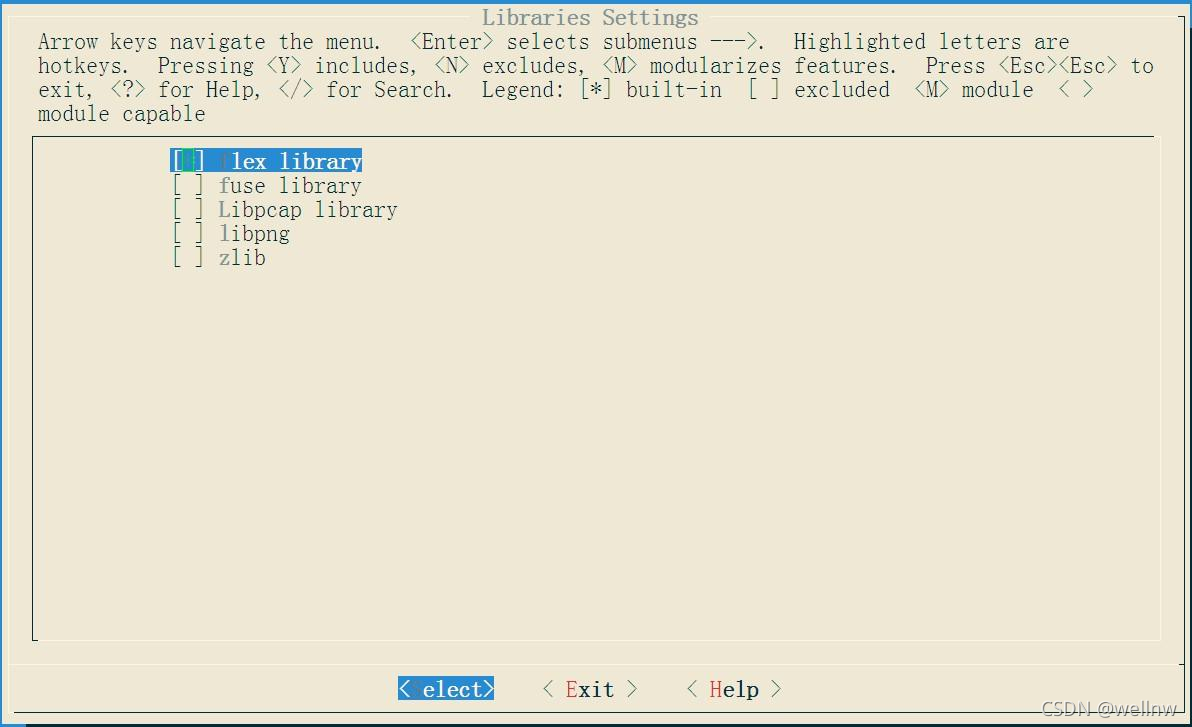

 9) flex library support //Selected

         Libraries Settings --->
                [*] flex library

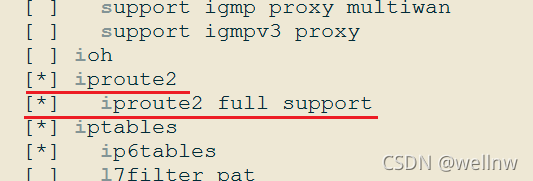

10）iproute2

         [*] iproute2
         [*] iproute2 full support



 IPv6 busybox配置

 1) Networking Utilities --->
                Enable IPv6 support // Selected
                        Preferentially use IPv4 addresses from DNS queries (NEW) // Selected

 2) Networking Utilities --->

        ping6 // Selected

 问题Error!!!! : Kernel image too big will overwirte rootfs image

解决方案

Realtek 3.4.14b sdk增加IPV6固件打包出现Error!!!! : Kernel image too big will overwirte rootfs image_wgl307293845的博客-CSDN博客

固件下载链接地址

fw_rtl8197FH+8812F+8367R_add_IPv6_Support.bin-Linux文档类资源-CSDN文库
