虽然是很简单的一个操作,不过我觉得对于初学者们还是有所帮助的。
大家都知道,网络请求数据的时候需要一段时间,尤其是使用移动数据网络的时候,所以我们的程序需要一个Dialog向用户反馈正在请求网络,但由于系统自带的ProgressDialog看起来实在是有点幽幽的蛋疼,所以还是动手自定义一个吧。
使用系统ProgressBar
首先布局一下MyProgressDialog
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:orientation="horizontal">
<ProgressBar
android:id="@+id/loadbar"
style="?android:attr/progressBarStyleLarge"
android:layout_width="wrap_content"
android:layout_height="wrap_content" />
<TextView
android:id="@+id/id_tv_loadingmsg"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center_vertical"
android:textSize="20sp"/>
</LinearLayout>
然后继承Dialog完成我们的MyProgressDialog类
public class MyProgressDialog extends Dialog {
private Context context = null;
private static MyProgressDialog progressDialog = null;
public MyProgressDialog(Context context){
super(context);
this.context = context;
}
public MyProgressDialog(Context context, int theme) {
super(context, theme);
}
public static MyProgressDialog createDialog(Context context){
progressDialog = new MyProgressDialog(context,R.style.myprogressDialog);
progressDialog.setContentView(R.layout.my_progressdialog);
progressDialog.getWindow().getAttributes().gravity = Gravity.CENTER;
return progressDialog;
}
public void onWindowFocusChanged(boolean hasFocus){
if (progressDialog == null){
return;
}
View progressBar = (ProgressBar) progressDialog.findViewById(R.id.loadbar);
progressBar.setVisibility(View.VISIBLE);
}
/**
* setTitile 标题
* @param strTitle
*
*/
public MyProgressDialog setTitile(String strTitle){
return progressDialog;
}
/**
* setMessage 提示内容
* @param strMessage
*/
public MyProgressDialog setMessage(String strMessage){
TextView tvMsg = (TextView)progressDialog.findViewById(R.id.id_tv_loadingmsg);
if (tvMsg != null){
tvMsg.setText(strMessage);
}
return progressDialog;
}
}
到这里我们的MyProgressDialog就算完成了,不过这个还不够,需要对Dialog的style进行相应的调整
<style name="myprogressDialog" parent="@android:Theme.Dialog">
<item name="android:windowFrame">@null</item><!--边框-->
<item name="android:windowIsFloating">true</item><!--是否浮现在activity之上-->
<item name="android:windowSoftInputMode">stateUnspecified|adjustPan</item><!--输入法影响-->
<item name="android:windowBackground">@android:color/transparent</item><!--背景透明-->
<item name="android:windowNoTitle">true</item>
</style>
这下一切都完成了,放到Activity里面使用吧,下面附上系统自带与现在的对比图

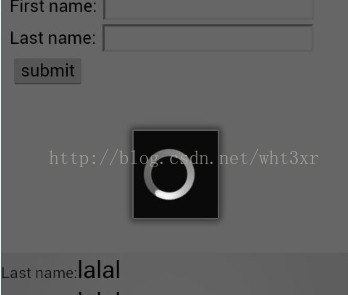

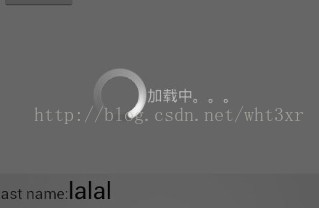

系统自带: 自定义:
