kafka源码解析之八LogManager

8.1 kafka日志的组成

class LogManager(val logDirs: Array[File],
                 val topicConfigs: Map[String, LogConfig],
                 val defaultConfig: LogConfig,
                 val cleanerConfig: CleanerConfig,
                 ioThreads: Int,
                 val flushCheckMs: Long,
                 val flushCheckpointMs: Long,
                 val retentionCheckMs: Long,
                 scheduler: Scheduler,
                 val brokerState: BrokerState,
                 private val time: Time) extends Logging {
private val logs = new Pool[TopicAndPartition, Log]()
}
class Log(val dir: File,
          @volatile var config: LogConfig,
          @volatile var recoveryPoint: Long = 0L,
          scheduler: Scheduler,
          time: Time = SystemTime) extends Logging with KafkaMetricsGroup {
……
private val segments: ConcurrentNavigableMap[java.lang.Long, LogSegment] = new ConcurrentSkipListMap[java.lang.Long, LogSegment]
}

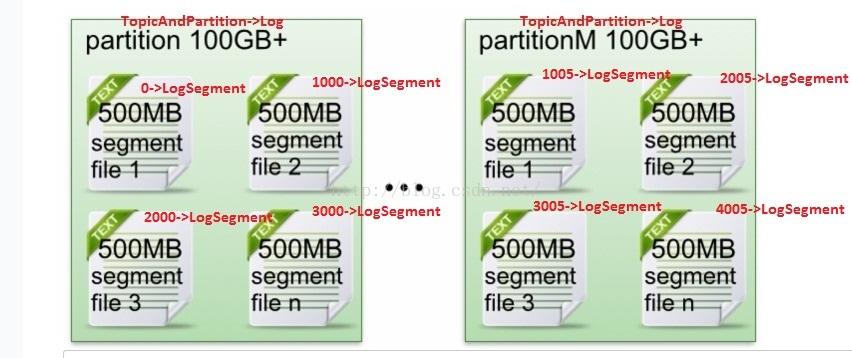

Kafka创建topic时可以指定topic的partition个数，每个broker按照自己分到的topic的partition创建对应的log。其中每个log由多个LogSegment组成，每个LogSegment以本LogSegment的第一条message为索引供segments管理，如图：

其中LogSegment的组成如下：

class LogSegment(val log: FileMessageSet,
                 val index: OffsetIndex,
                 val baseOffset: Long,
                 val indexIntervalBytes: Int,
                 val rollJitterMs: Long,
                 time: Time) extends Logging {
……
}

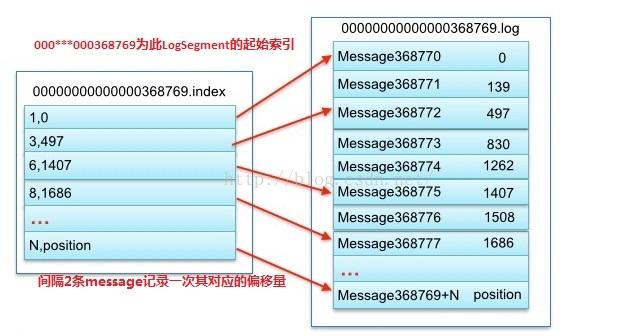

其中FileMessageSet通过设定设定segment之内的start和end来读取segment内的文件，OffsetIndex是segment里面的message索引，它并不是每条message建立索引，而是间隔log.index.interval.bytes条message添加一条索引，即如下图所示：

因此查找一条记录的话，如果给定topic，partition和offset，则分2步完成：

1）快速定位segmentfile

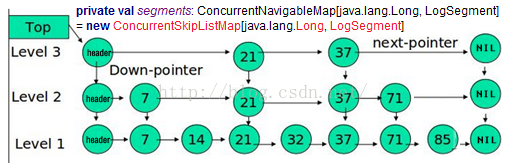

先定位位于哪个segmentfile，因为segments是由ConcurrentSkipListMap组成的一个跳跃表，即：

通过跳跃表快速定位到位于哪个segment file

2）segment file中查找msg chunk

然后通过稀疏索引的方式进行二分查找，查找到对应的索引块：

class OffsetIndex(@volatile var file: File, val baseOffset: Long, val maxIndexSize: Int = -1) extends Logging {
/**
 * Find the slot in which the largest offset less than or equal to the given
 * target offset is stored.
 *
 * @param idx The index buffer
 * @param targetOffset The offset to look for
 *
 * @return The slot found or -1 if the least entry in the index is larger than the target offset or the index is empty
 */
private def indexSlotFor(idx: ByteBuffer, targetOffset: Long): Int = {
  // we only store the difference from the base offset so calculate that
  val relOffset = targetOffset - baseOffset
  // check if the index is empty
  if(entries == 0)
    return -1
  // check if the target offset is smaller than the least offset
  if(relativeOffset(idx, 0) > relOffset)
    return -1
  // binary search for the entry
  var lo = 0
  var hi = entries-1
  while(lo < hi) {
    val mid = ceil(hi/2.0 + lo/2.0).toInt
    val found = relativeOffset(idx, mid)
    if(found == relOffset)
      return mid
    else if(found < relOffset)
      lo = mid
    else
      hi = mid - 1
  }
  lo
}
}

8.2 LogManager的启动

主要分2步:

第一步：根据每个kafka配置的log目录，重建logs。

class LogManager(val logDirs: Array[File],
                 val topicConfigs: Map[String, LogConfig],
                 val defaultConfig: LogConfig,
                 val cleanerConfig: CleanerConfig,
                 ioThreads: Int,
                 val flushCheckMs: Long,
                 val flushCheckpointMs: Long,
                 val retentionCheckMs: Long,
                 scheduler: Scheduler,
                 val brokerState: BrokerState,
                 private val time: Time) extends Logging {
  val RecoveryPointCheckpointFile = "recovery-point-offset-checkpoint"
  val LockFile = ".lock"
  val InitialTaskDelayMs = 30*1000
  private val logCreationOrDeletionLock = new Object
  private val logs = new Pool[TopicAndPartition, Log]()

  createAndValidateLogDirs(logDirs)
  private val dirLocks = lockLogDirs(logDirs)
  private val recoveryPointCheckpoints = logDirs.map(dir => (dir, new OffsetCheckpoint(new File(dir, RecoveryPointCheckpointFile)))).toMap
  loadLogs()
……
}

recoveryPointCheckpoints记录了每个log最新的刷新的位置，即刷到磁盘的topic and partition的messages的偏移量，有可能在这之后的LogSegment和OffsetIndex刷新异常，需要特殊处理。



第二步：启动3个task和是否开启日志合并功能

def startup() {
  /* Schedule the cleanup task to delete old logs */
  if(scheduler != null) {
    info("Starting log cleanup with a period of %d ms.".format(retentionCheckMs))
    //删除过期的数据+删除冗余的数据
    scheduler.schedule("kafka-log-retention",
                       cleanupLogs,
                       delay = InitialTaskDelayMs,
                       period = retentionCheckMs,
                       TimeUnit.MILLISECONDS)
    info("Starting log flusher with a default period of %d ms.".format(flushCheckMs))
    //flush脏数据
    scheduler.schedule("kafka-log-flusher",
                       flushDirtyLogs,
                       delay = InitialTaskDelayMs,
                       period = flushCheckMs,
                       TimeUnit.MILLISECONDS)

    scheduler.schedule("kafka-recovery-point-checkpoint",
                       checkpointRecoveryPointOffsets,
                       delay = InitialTaskDelayMs,
                       period = flushCheckpointMs,
                       TimeUnit.MILLISECONDS)
  }
  //日志合并，把小的多个logsegment合并为大的一个logsegment
  if(cleanerConfig.enableCleaner)
    cleaner.startup()
}

cleanupLogs：负责删除任何过期的数据和冗余的数据

flushDirtyLogs：负责刷新数据

checkpointRecoveryPointOffsets：对log进行checkpoint，可以提高broker重启的速度，只需要针对checkpoint之后的数据进行特殊处理

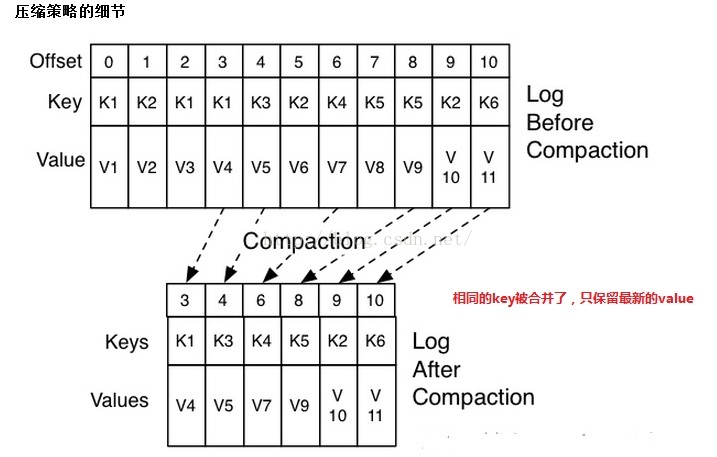

cleaner：根据log.cleaner.enable配置是否开启日志合并功能，日志合并指的是是否对相同的key进行压缩，如下图：
