soul网关源码解析-http协议接入-divide插件

这里的demo 都是soul-examples中的不同用户的test代码

divide插件

此插件主要针对http请求的接入

接入方法

  1. pom 添加依赖(Springboot用户)
<dependency>
  <groupId>org.dromara</groupId>
  <artifactId>soul-spring-boot-starter-client-springmvc</artifactId>
   <version>${soul.version}</version>
</dependency>
  1. 添加注解

在你的control类上增加注解@SoulSpringMvcClient(具体的可以查询官网)

  1. 管理后台添加相关的配置

在这里插入图片描述

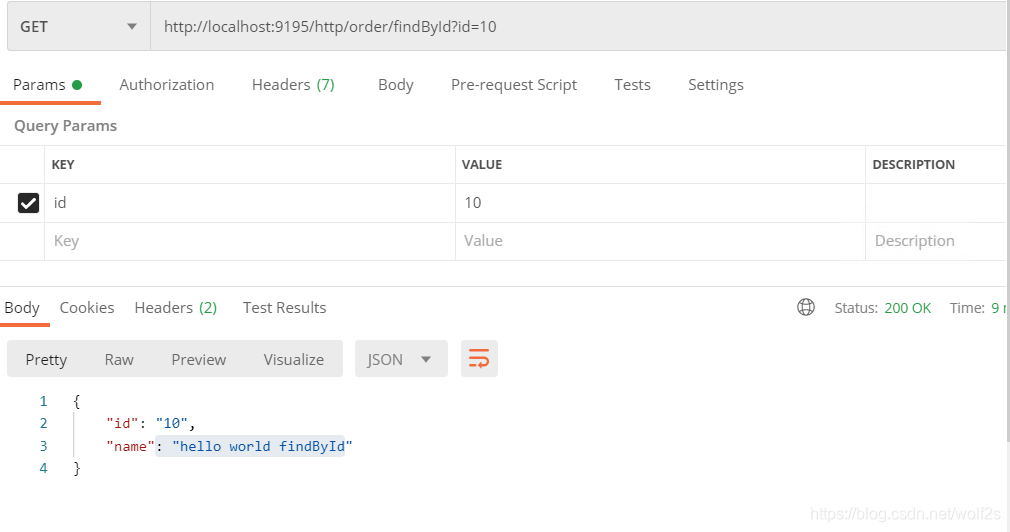

运行结果在这里插入图片描述

到这里我们已经运行了简单的http模式的api网关请求模式.

项目运行日志:

soul 拉取配置和转发都是项目 soul-bootstrap

  1. 项目启动日志
    在这里插入图片描述
    从日志中可以看出在启动的时候我们读取了插件相关的配置

http 请求日志

在这里插入图片描述
从日志来看请求进入类的顺序
1.AbstractSoulPlugin
2.WebClientPlugin

http请求步骤

根据日志我们可以查询梳理出http请求的大概路径
在这里插入图片描述

从上图我们可以看到请求经历的项目和类的方法。
首先我们看下第一步中的方法这里主要进行的过滤和转发定义的规则中

    @Override
    public Mono<Void> filter(@Nullable final ServerWebExchange exchange, @Nullable final WebFilterChain chain) {
        ServerHttpRequest request = Objects.requireNonNull(exchange).getRequest();
        String urlPath = request.getURI().getPath();
        for (String check : FILTER_TAG) {
            if (check.equals(urlPath)) {
                String result = JsonUtils.toJson(new Health.Builder().up().build());
                DataBuffer dataBuffer = exchange.getResponse().bufferFactory().wrap(result.getBytes());
                return exchange.getResponse().writeWith(Mono.just(dataBuffer));
            }
        }
        return Objects.requireNonNull(chain).filter(exchange);
    }

第二步中的方法主要是匹配到对应的插件

    @Override
    public Mono<Void> execute(final ServerWebExchange exchange, final SoulPluginChain chain) {
        String pluginName = named();
        final PluginData pluginData = BaseDataCache.getInstance().obtainPluginData(pluginName);
        //1.判断插件是否开启
        if (pluginData != null && pluginData.getEnabled()) {
            final Collection<SelectorData> selectors = BaseDataCache.getInstance().obtainSelectorData(pluginName);
            if (CollectionUtils.isEmpty(selectors)) {
                return handleSelectorIsNull(pluginName, exchange, chain);
            }
            //2.找到对应插件的选择器
            final SelectorData selectorData = matchSelector(exchange, selectors);
            if (Objects.isNull(selectorData)) {
                return handleSelectorIsNull(pluginName, exchange, chain);
            }
            selectorLog(selectorData, pluginName);
            //3.找到对应插件的规则
            final List<RuleData> rules = BaseDataCache.getInstance().obtainRuleData(selectorData.getId());
            if (CollectionUtils.isEmpty(rules)) {
                return handleRuleIsNull(pluginName, exchange, chain);
            }
            RuleData rule;
            if (selectorData.getType() == SelectorTypeEnum.FULL_FLOW.getCode()) {
                //get last
                rule = rules.get(rules.size() - 1);
            } else {
                rule = matchRule(exchange, rules);
            }
            if (Objects.isNull(rule)) {
                return handleRuleIsNull(pluginName, exchange, chain);
            }
            ruleLog(rule, pluginName);
            //4.转发到我们对应的插件中
            return doExecute(exchange, chain, selectorData, rule);
        }
        return chain.execute(exchange);
    }

第三步中的方法主获取对应规则信息并指定执行的服务

 @Override
    protected Mono<Void> doExecute(final ServerWebExchange exchange, final SoulPluginChain chain, final SelectorData selector, final RuleData rule) {
        final SoulContext soulContext = exchange.getAttribute(Constants.CONTEXT);
        assert soulContext != null;
        //1.获取链接对应的规则
        final DivideRuleHandle ruleHandle = GsonUtils.getInstance().fromJson(rule.getHandle(), DivideRuleHandle.class);
        //2.获取启动的所有服务信息
        final List<DivideUpstream> upstreamList = UpstreamCacheManager.getInstance().findUpstreamListBySelectorId(selector.getId());
        if (CollectionUtils.isEmpty(upstreamList)) {
            log.error("divide upstream configuration error: {}", rule.toString());
            Object error = SoulResultWrap.error(SoulResultEnum.CANNOT_FIND_URL.getCode(), SoulResultEnum.CANNOT_FIND_URL.getMsg(), null);
            return WebFluxResultUtils.result(exchange, error);
        }
        final String ip = Objects.requireNonNull(exchange.getRequest().getRemoteAddress()).getAddress().getHostAddress();
        //3.指定需要执行方法的服务
        DivideUpstream divideUpstream = LoadBalanceUtils.selector(upstreamList, ruleHandle.getLoadBalance(), ip);
        if (Objects.isNull(divideUpstream)) {
            log.error("divide has no upstream");
            Object error = SoulResultWrap.error(SoulResultEnum.CANNOT_FIND_URL.getCode(), SoulResultEnum.CANNOT_FIND_URL.getMsg(), null);
            return WebFluxResultUtils.result(exchange, error);
        }
        // set the http url
        String domain = buildDomain(divideUpstream);
        String realURL = buildRealURL(domain, soulContext, exchange);
        exchange.getAttributes().put(Constants.HTTP_URL, realURL);
        // set the http timeout
        exchange.getAttributes().put(Constants.HTTP_TIME_OUT, ruleHandle.getTimeout());
        exchange.getAttributes().put(Constants.HTTP_RETRY, ruleHandle.getRetry());
        //4.转发
        return chain.execute(exchange);

第四步中的方法跳转到需要执行的服务

    @Override
    public Mono<Void> execute(final ServerWebExchange exchange, final SoulPluginChain chain) {
        final SoulContext soulContext = exchange.getAttribute(Constants.CONTEXT);
        assert soulContext != null;
        //获取我们实际需要执行的url
        String urlPath = exchange.getAttribute(Constants.HTTP_URL);
        if (StringUtils.isEmpty(urlPath)) {
            Object error = SoulResultWrap.error(SoulResultEnum.CANNOT_FIND_URL.getCode(), SoulResultEnum.CANNOT_FIND_URL.getMsg(), null);
            return WebFluxResultUtils.result(exchange, error);
        }
        long timeout = (long) Optional.ofNullable(exchange.getAttribute(Constants.HTTP_TIME_OUT)).orElse(3000L);
        int retryTimes = (int) Optional.ofNullable(exchange.getAttribute(Constants.HTTP_RETRY)).orElse(0);
        log.info("The request urlPath is {}, retryTimes is {}", urlPath, retryTimes);
        HttpMethod method = HttpMethod.valueOf(exchange.getRequest().getMethodValue());
        WebClient.RequestBodySpec requestBodySpec = webClient.method(method).uri(urlPath);
        //转发到接口服务器
        return handleRequestBody(requestBodySpec, exchange, timeout, retryTimes, chain);
    }
