基于rancher搭建k8s集群并部署helm chart

基于Ubuntu构建rancher服务

一、准备环境

name	version
ubuntu	20.04
kubectl	1.21.13
helm	3.9.3
docker	20.10.17

1、更换apt源

# 备份默认apt源
$ sudo mv /etc/apt/sources.list /etc/apt/sources.list.bak
# 替换阿里源
$ sudo vi /etc/apt/sources.list
$ sudo apt-get update -y && sudo apt-get upgrade -y
# 阿里源
deb http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse

deb http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse

deb http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse

deb http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse

deb http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse

2、安装相关工具

# 安装openssh-server是为了使用xshell远程连接
$ sudo apt install -y curl git tree openssh-server

## 安装openssh-server若出现一下错误、先安装指定版本的openssh-client
 openssh-server : Depends: openssh-client (= 1:7.6p1-4ubuntu0.7)
                  Depends: openssh-sftp-server but it is not going to be installed
$ sudo apt install -y openssh-client= 1:7.6p1-4ubuntu0.7

3、设置root用户密码

$ sudo passwd root
  New password: ******
  Retype new password: ******
# 切换root用户(为了方便切换root用户，执行命令不再添加sudo前缀提权)
$ sudo root
  [sudo] password for coderwqs: ******

4、安装、启动docker并设置开机自启

$ curl -fsSL https://get.docker.com -o get-docker.sh
$ sh ./get-docker.sh
$ systemctl start docker && systemctl enable docker
# 设置docker国内镜像源
$ cat <<EOF>> /etc/docker/daemon.json
{
    "registry-mirrors": [
        "http://hub-mirror.c.163.com",
        "https://docker.mirrors.ustc.edu.cn",
        "https://registry.docker-cn.com"
    ]
}
EOF
# 重启docker服务
$ systemctl daemon-reload && systemctl restart docker
# 检查docker
$ docker version

5、关闭并禁用防火墙

Ubuntu

# ubuntu默认防火墙关闭
# 防火墙状态、启用、禁用、版本
$ ufw status | enable | disable | version
# 允许/拒绝外部访问本机
$ ufw default allow | deny
# 允许/拒绝外部端口访问本机
$ ufw allow | deny [port]
# 允许某个IP地址访问本机所有端口
$ ufw allow from [ip]

CentOS

# 关闭防火墙
$ systemctl stop firewalld && systemctl disable firewalld
$ sed -i 's/enforcing/disabled/g' /etc/selinux/config; setenforce 0
# 放行端口
$ firewall-cmd --zone=public --add-port=81/tcp --permanent
$ firewall-cmd --zone=public --add-port=444/tcp --permanent

6、安装Rancher

$ docker run -itd --privileged -p 70:80 -p 444:443 -v /data/docker/volumes/rancher:/var/lib/rancher --name rancher-server --restart=unless-stopped -e CATTLE_AGENT_IMAGE="registry.cn-hangzhou.aliyuncs.com/rancher/rancher-agent:v2.6.3" registry.cn-hangzhou.aliyuncs.com/rancher/rancher:v2.6.3

二、Rancher构建集群环境

# 查看rancher日志
$ docker logs -f rancher-server
# 获取初始化密码
$ docker logs rancher-server 2>&1 | grep "Bootstrap Password:"
# 访问服务(服务启动过程有点慢)
https://[host]:444

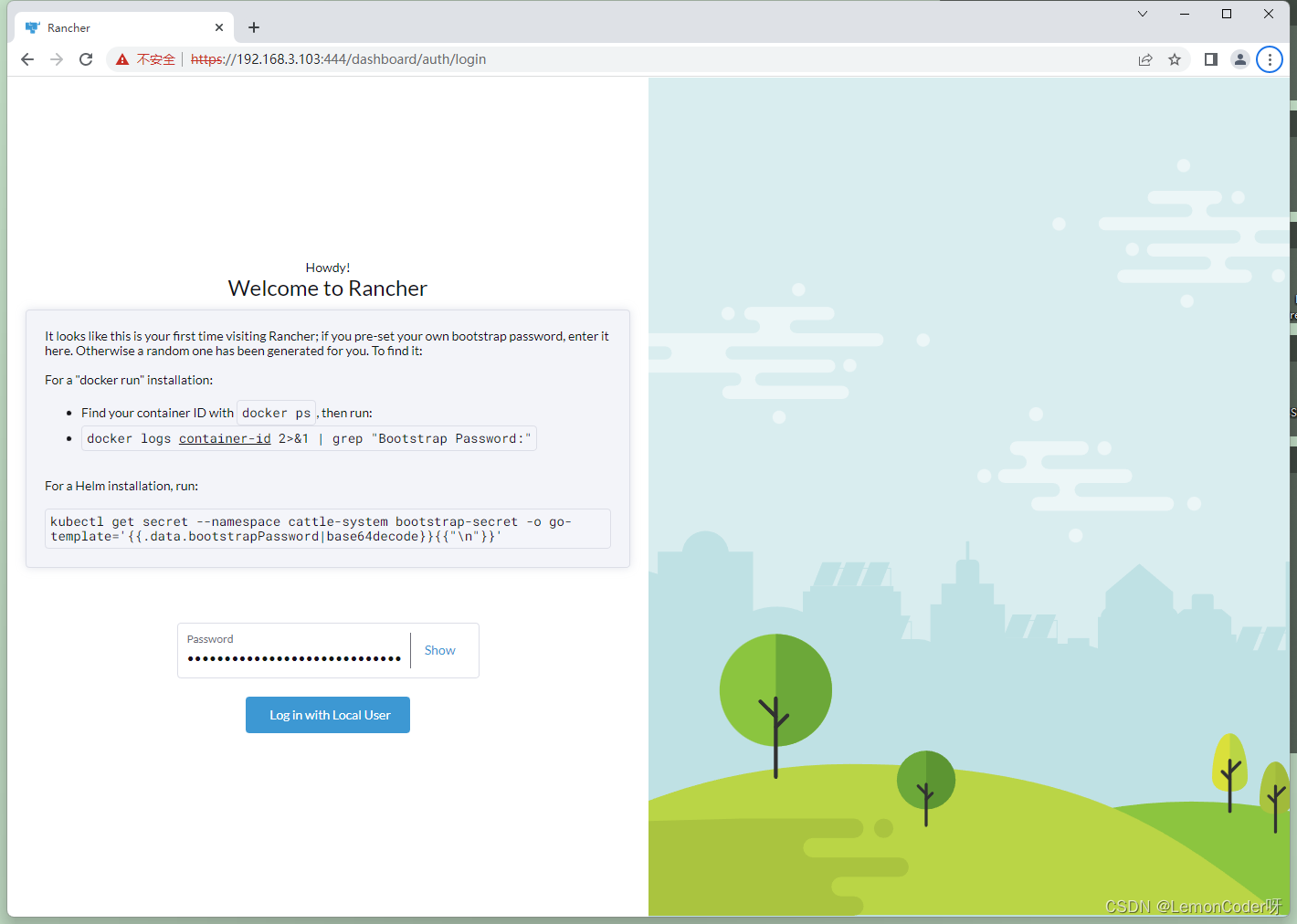

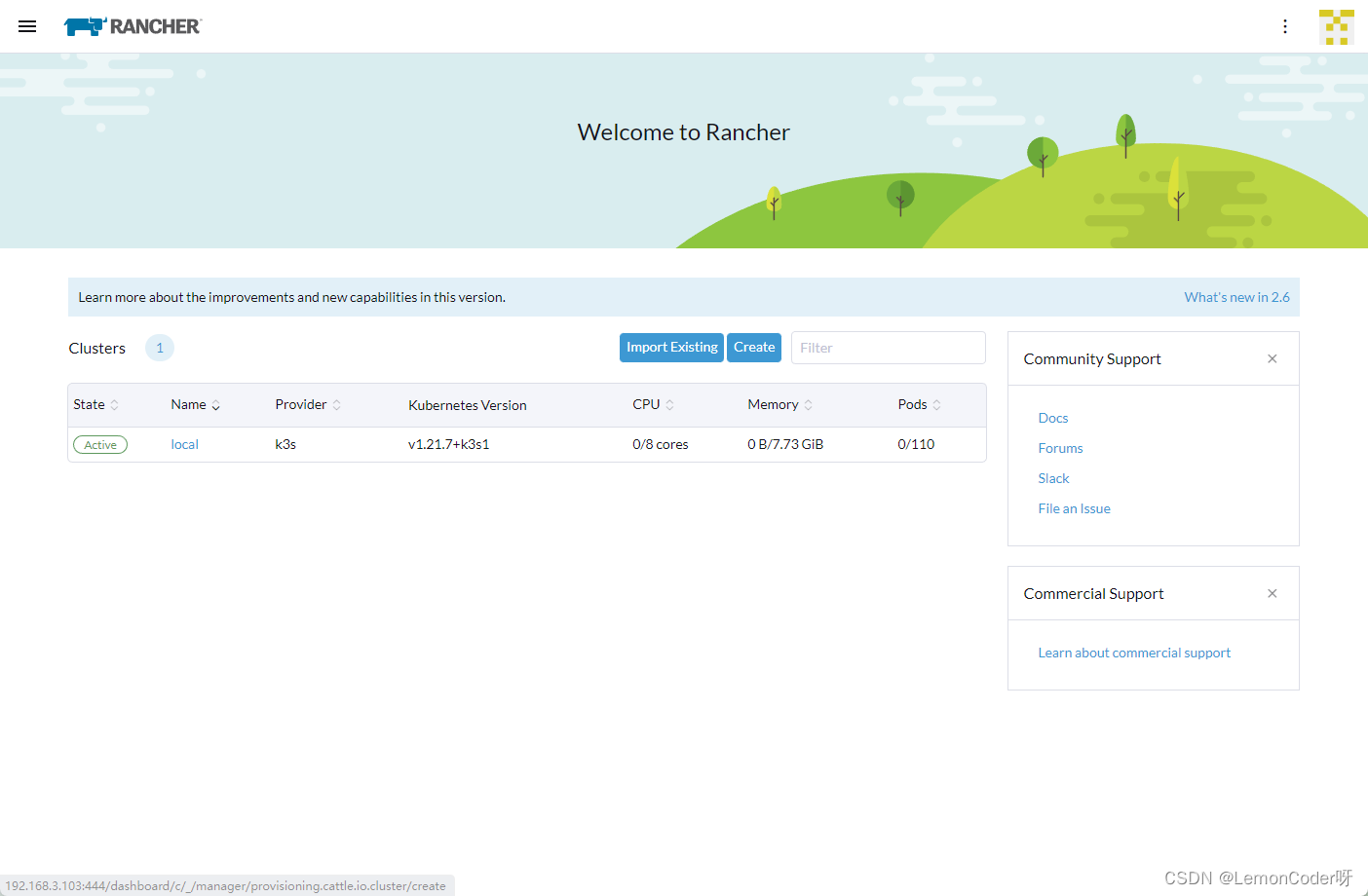

1、访问rancher

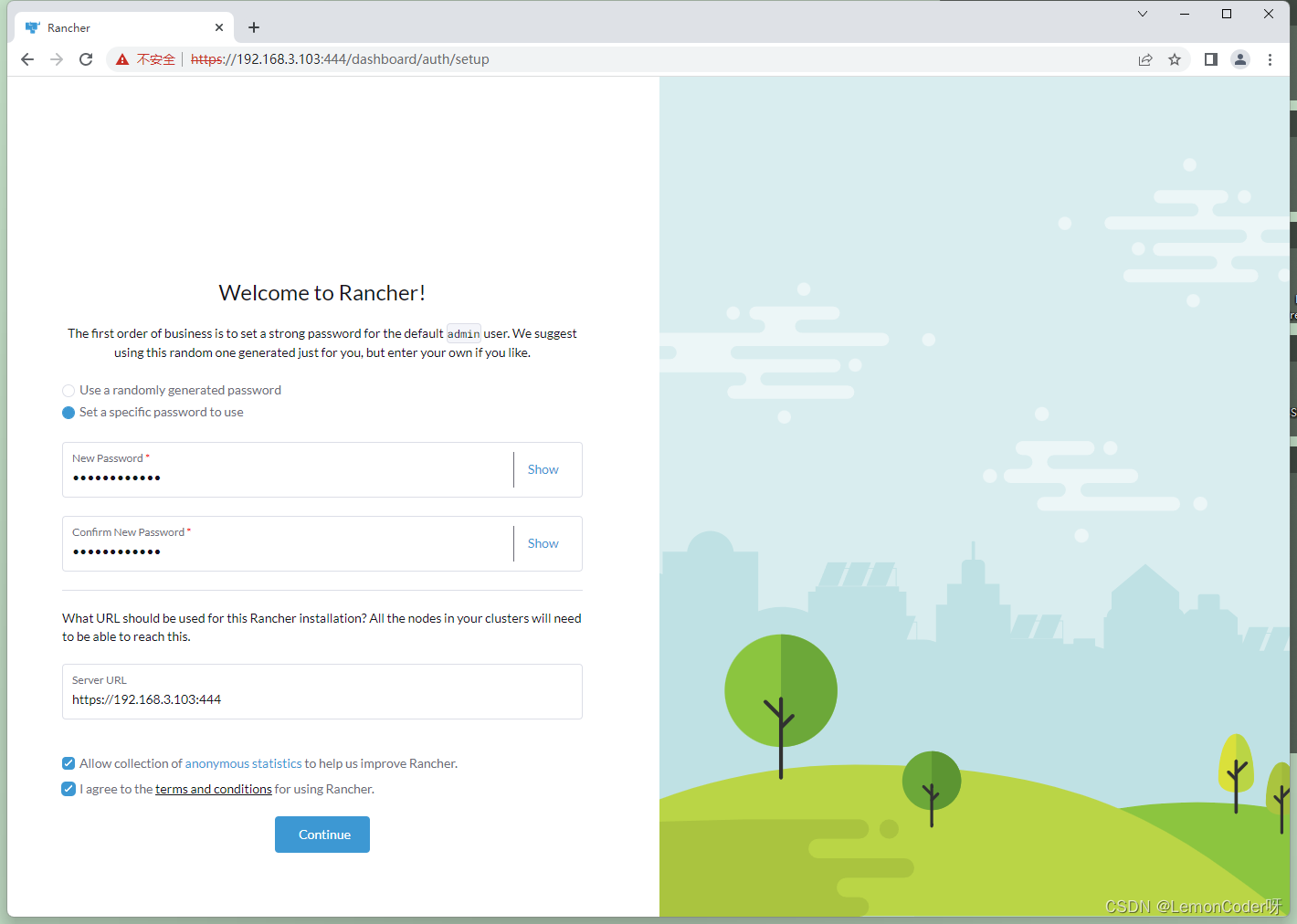

2、修改密码（Continue）

3、修改密码（Create）

4、修改系统默认镜像源（Custom）

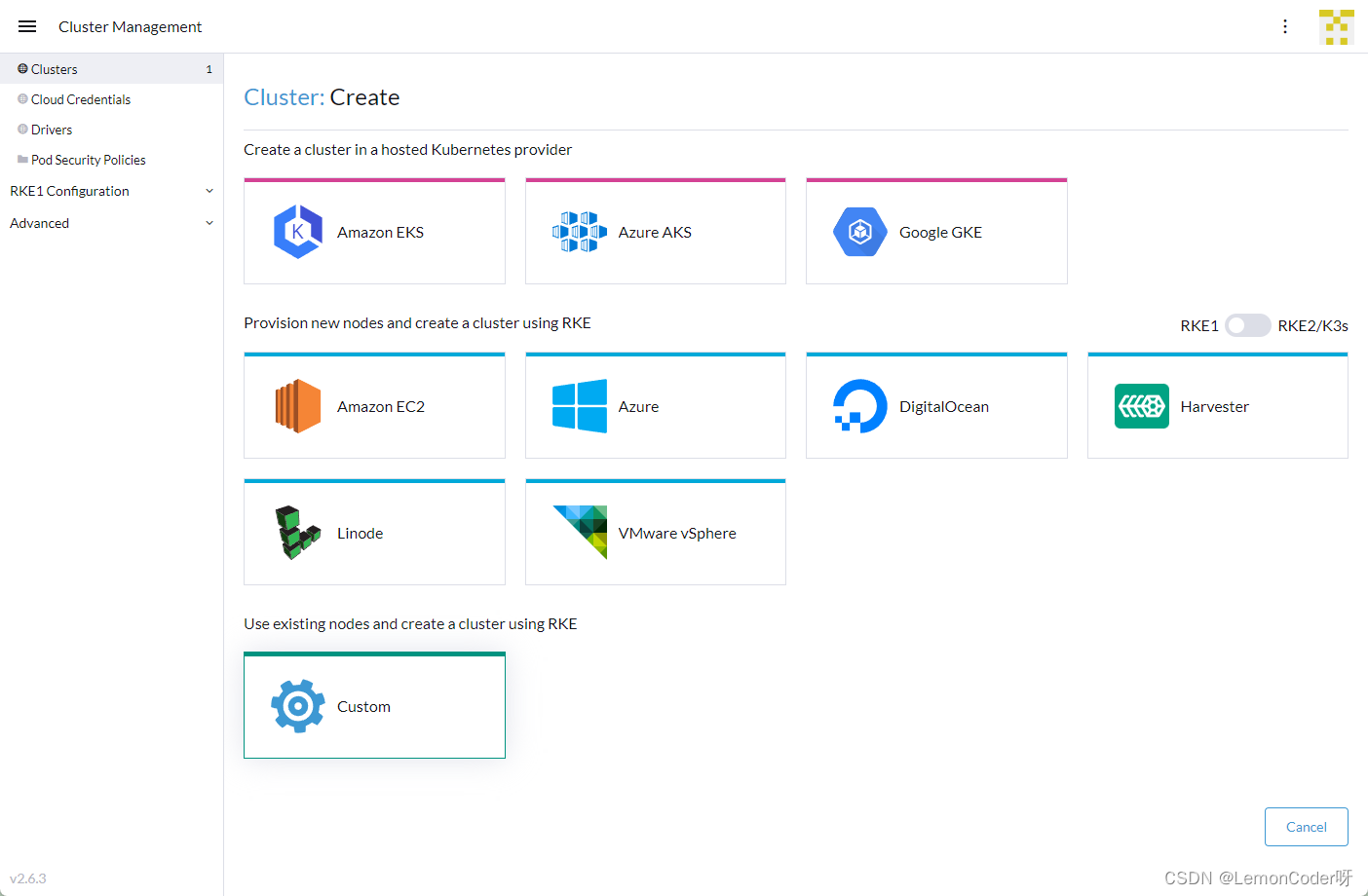

5、创建自定义集群（Custom）

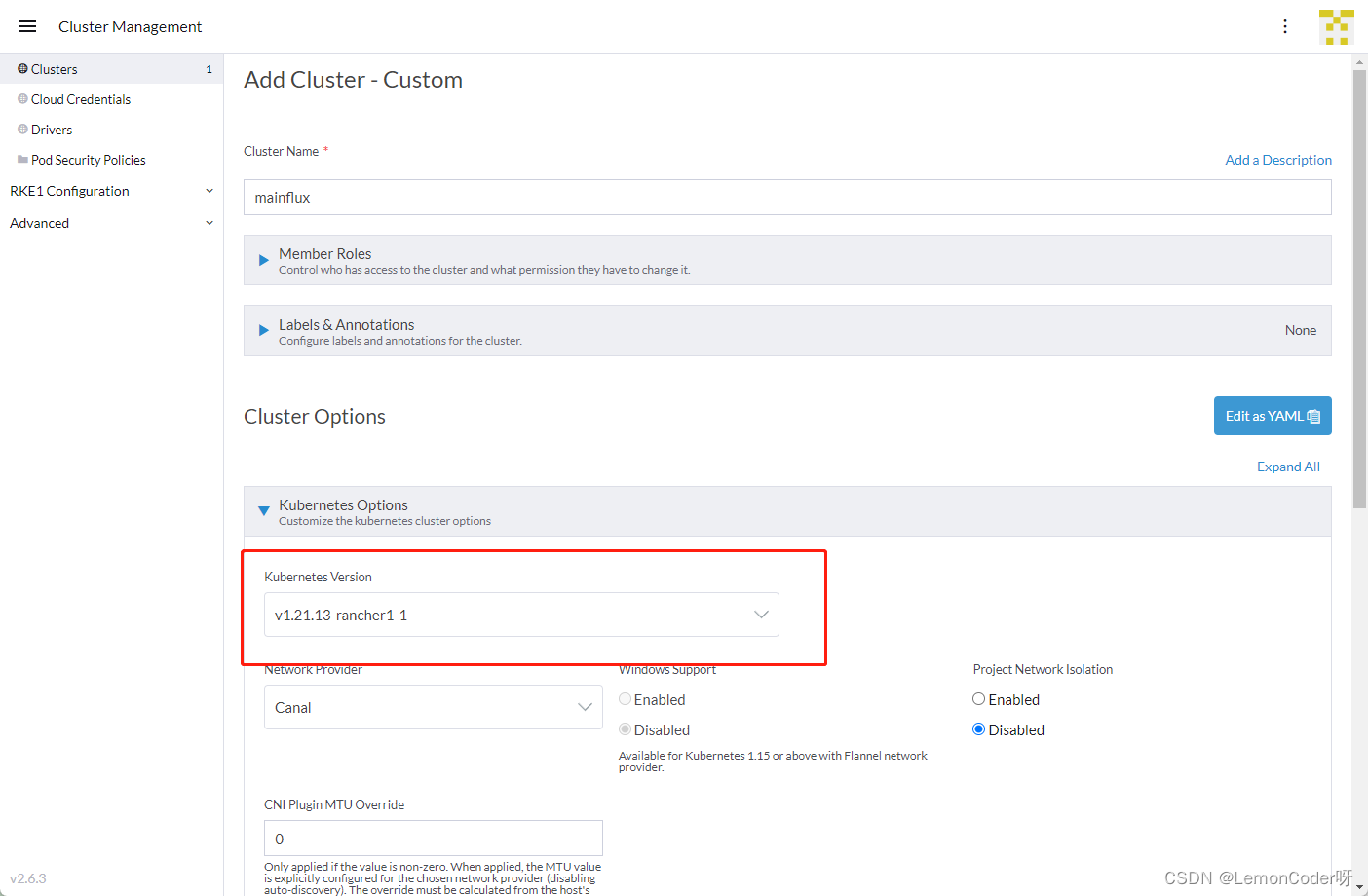

6、配置集群（Next）

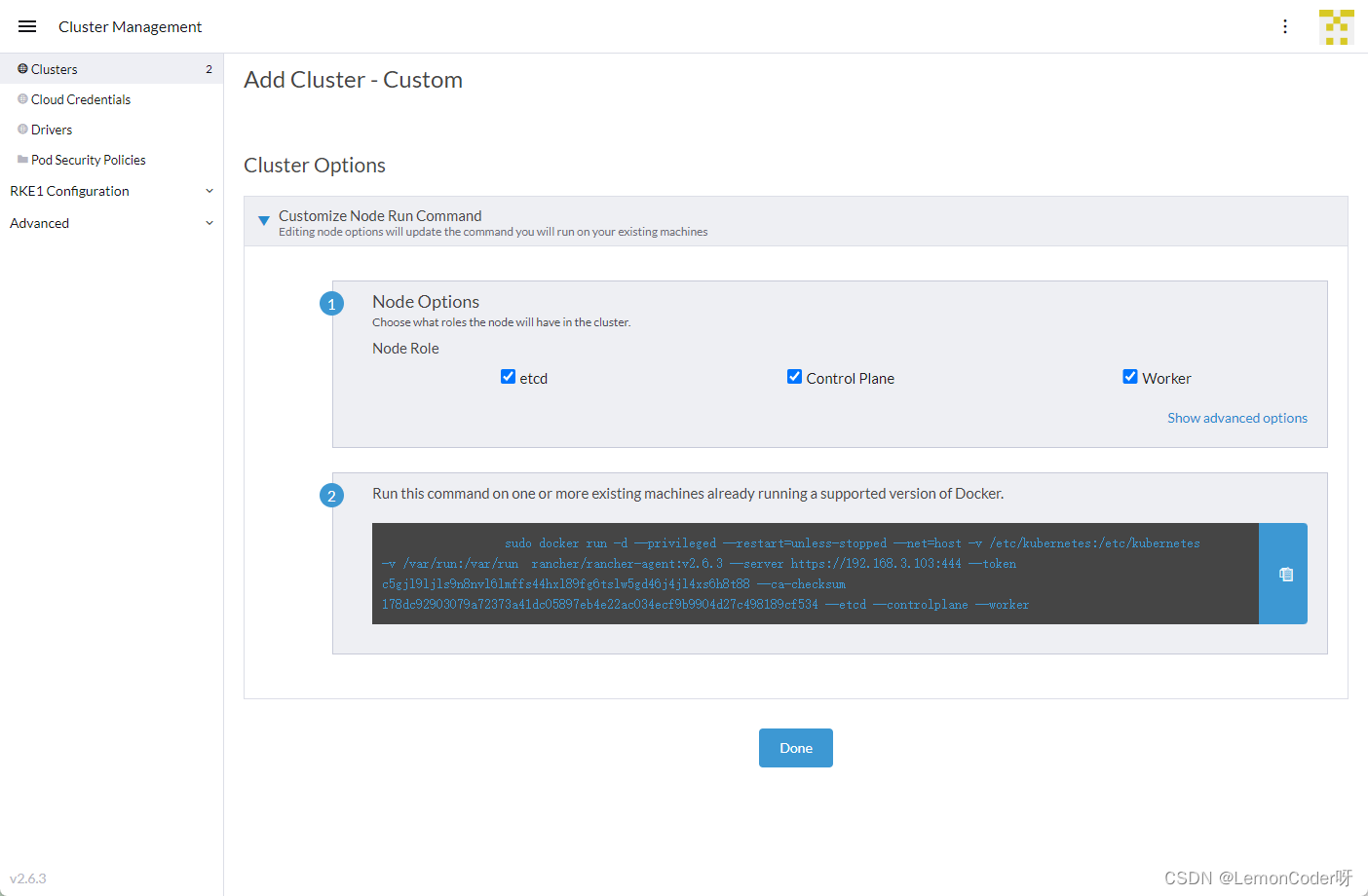

7、配置单节点集群，选中etc、control、worker

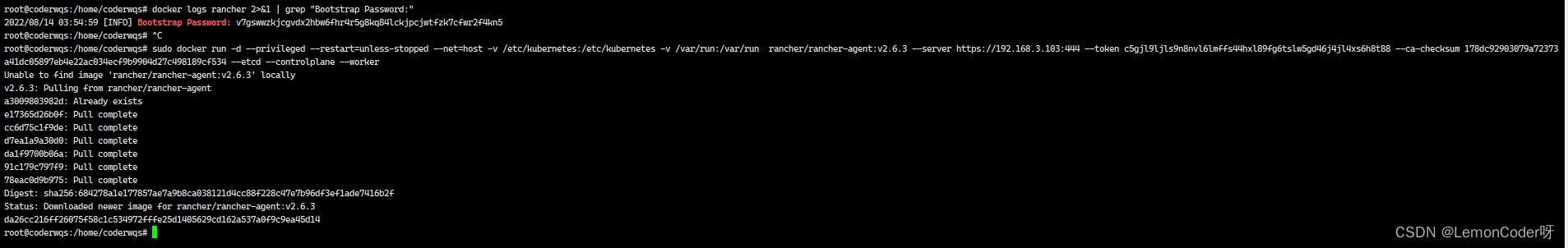

8、复制node注册命令并执行（Done）

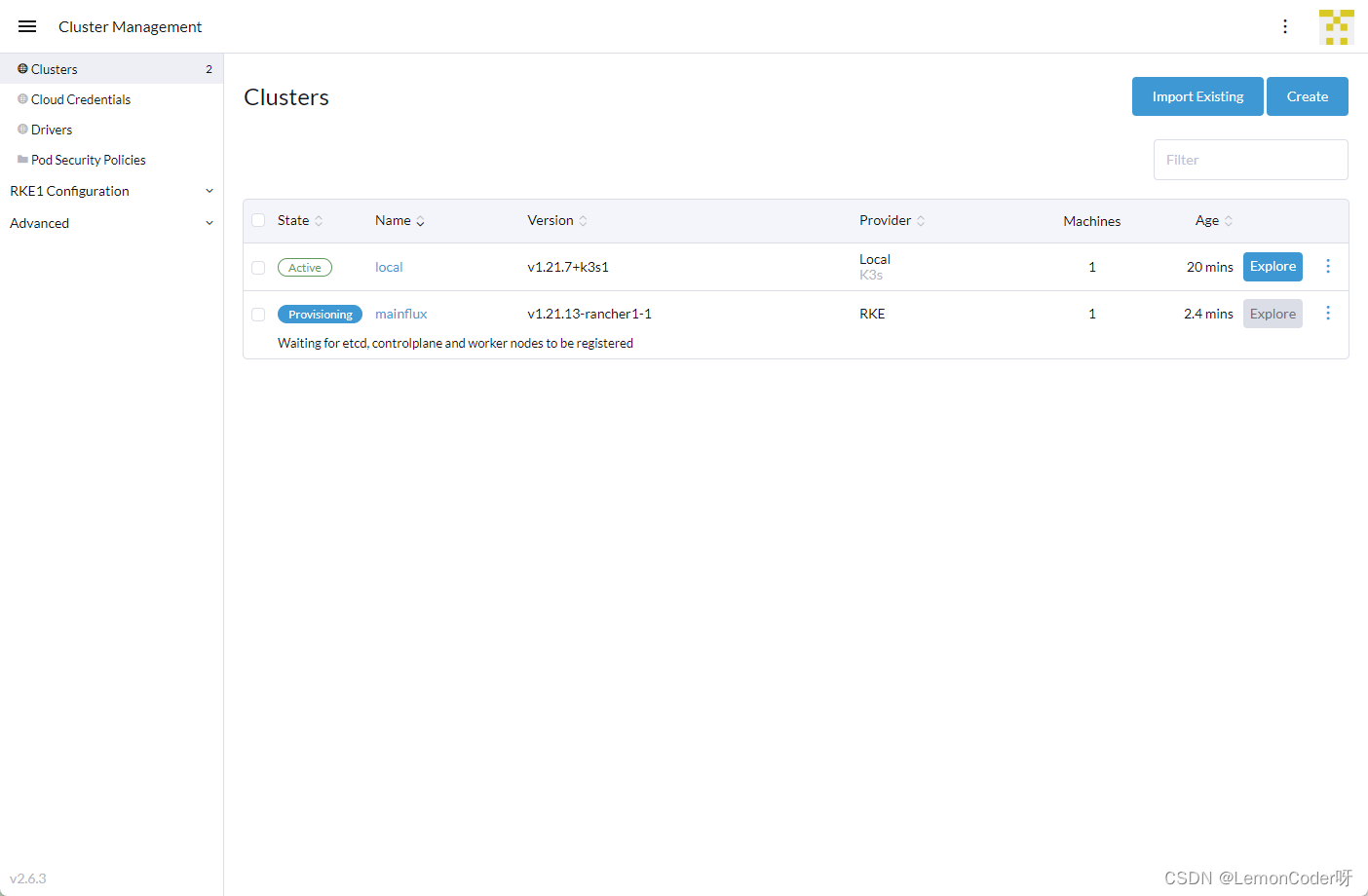

9、点击自定义集群，等待Provisioning Log结束，状态由 provisioning ===>>> active

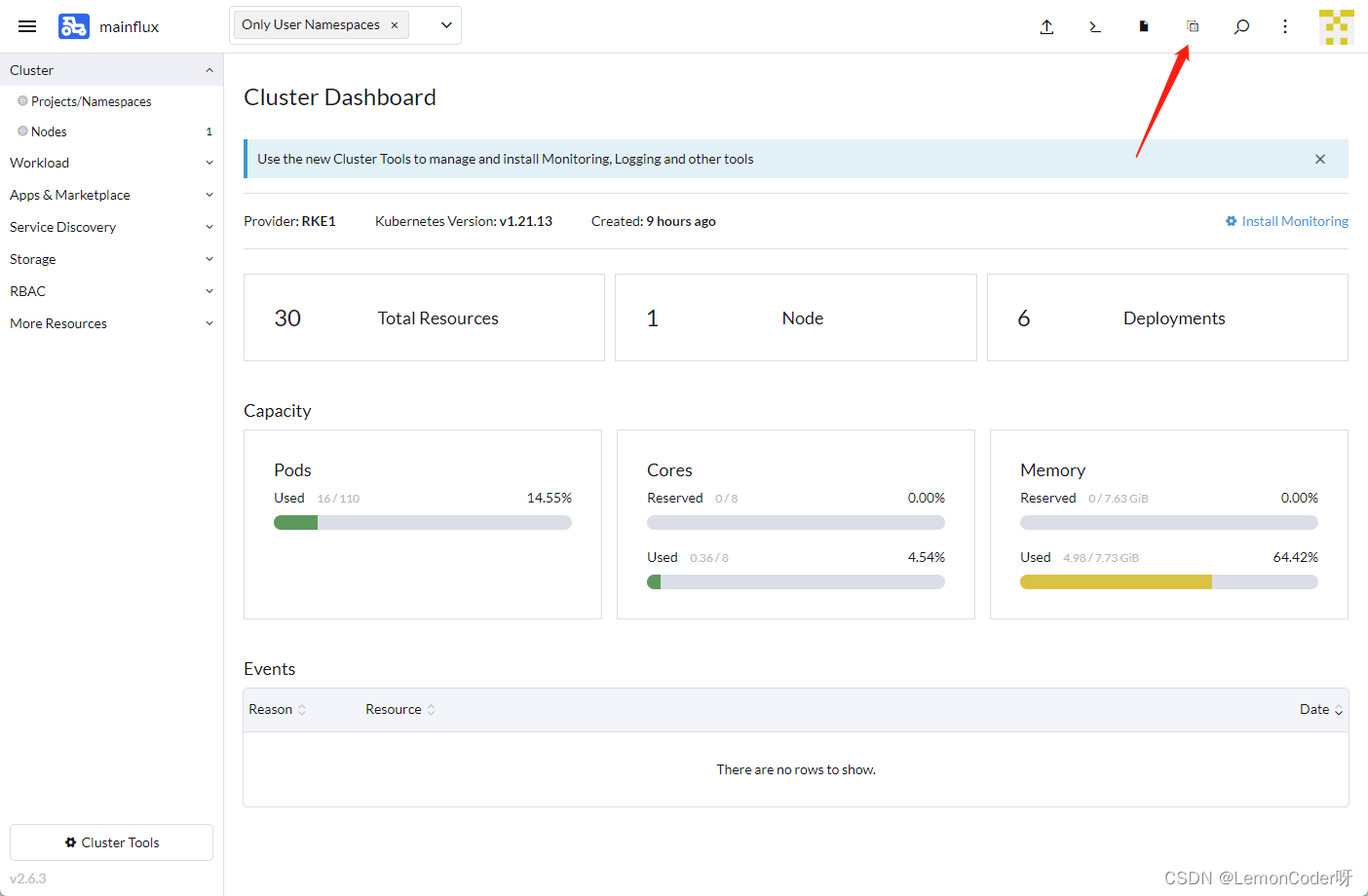

10、配置kubectl

$ mkdir ~/.kube
# 将复制的内容粘贴到~/.kube/config文件
$ vi ~/.kube/config

10、安装kubectl、helm工具

Ubuntu

# 添加验证密钥
$ curl https://baltocdn.com/helm/signing.asc | sudo apt-key add -
$ apt-get install apt-transport-https --yes
# 添加helm和kubernetes apt源
$ echo "deb https://baltocdn.com/helm/stable/debian/ all main" | tee /etc/apt/sources.list.d/helm-stable-debian.list
$ echo "deb http://mirrors.ustc.edu.cn/kubernetes/apt kubernetes-xenial main" | tee /etc/apt/sources.list.d/kubernetes.list
$ apt-get update
# 查看可用的kubeadm kubelet kubectl版本
$ apt-cache madison kubeadm kubelet kubectl
# 安装kubectl(保持版本和安装的kubernetes一致)
$ apt-get install -y kubectl=1.21.13-00
# 安装helm
$ apt-get install helm
# 测试
$ helm version
$ kubectl get nodes

CentOS

# 添加kubernetes yum源
cat >> /etc/yum.repos.d/kubernetes.repo <<EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
EOF
# 查看可安装版本
$ yum list kubectl –showduplicates
# 安装kubectl
$ yum install -y kubectl.x86_64

# 下载helm
# 华为镜像：https://mirrors.huaweicloud.com/helm/
$ wget https://get.helm.sh/helm-v3.9.2-linux-amd64.tar.gz
# 解压并移动helm至/usr/local/bin
$ tar -zxvf helm-v3.9.2-linux-amd64.tar.gz
$ mv ./linux-amd64/helm /usr/local/bin && chmod +x /usr/local/bin/helm
# 验证helm
$ helm version

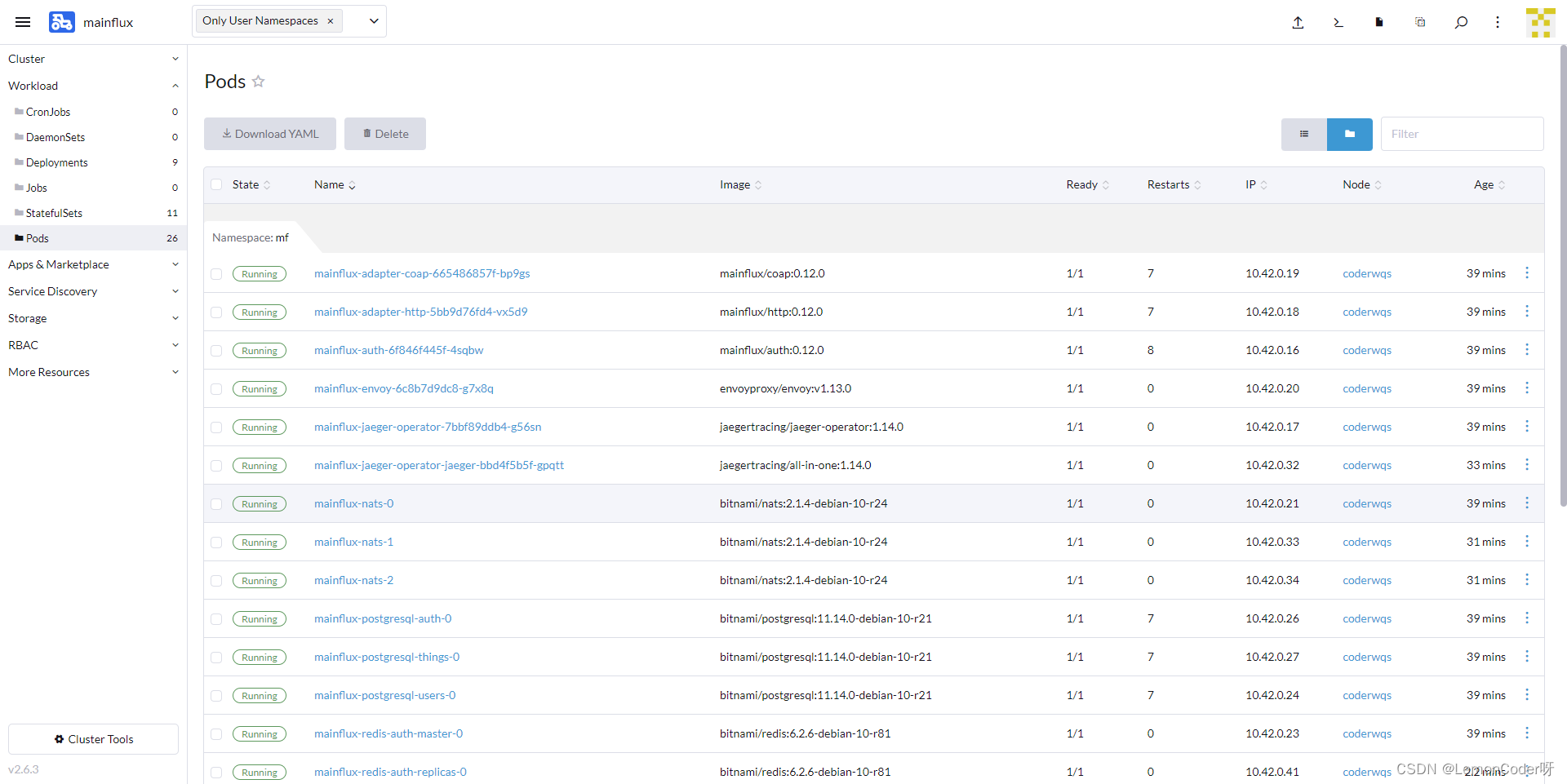

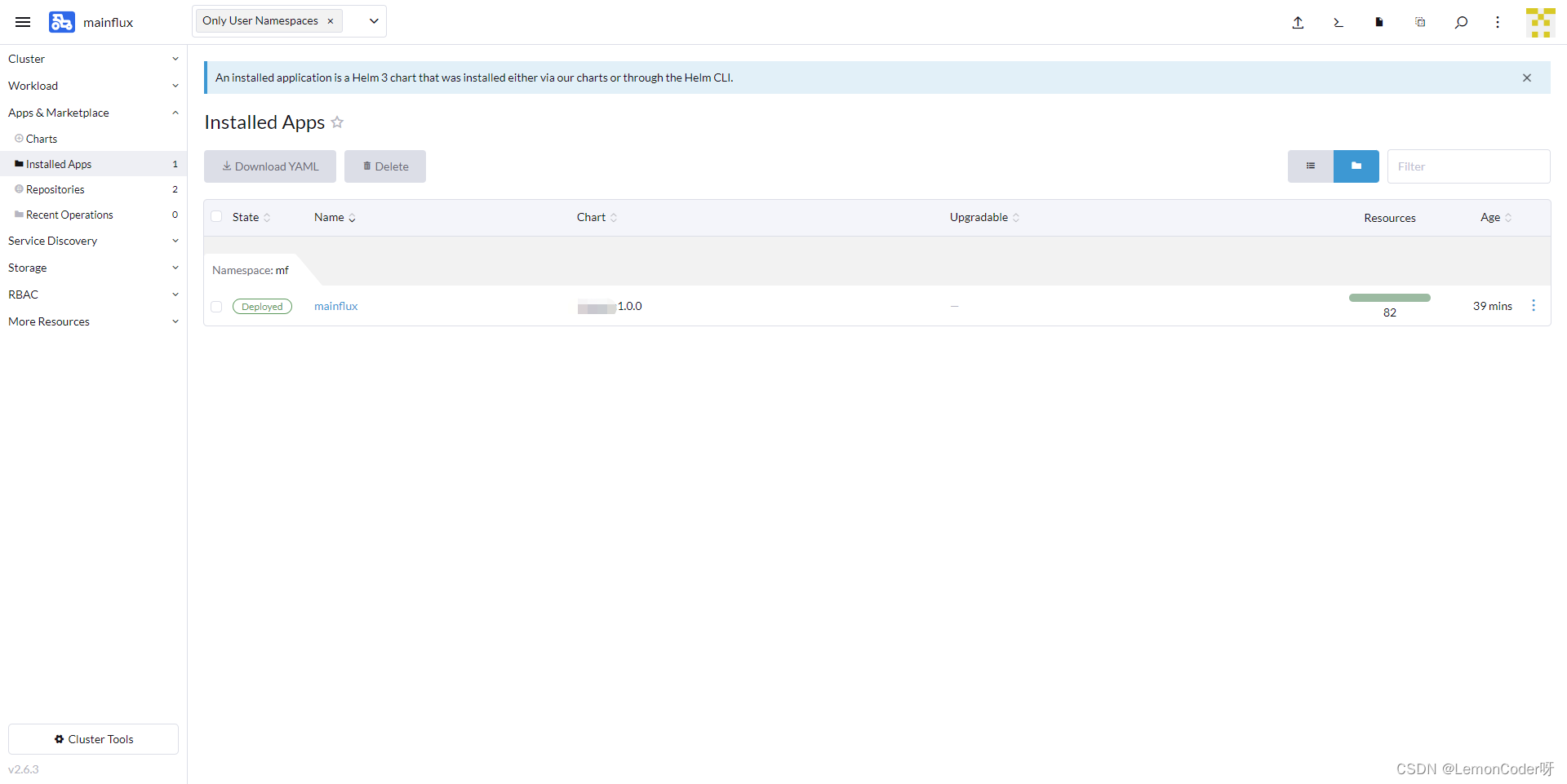

三、Rancher部署mainflux测试

# 添加项目所需的heml仓库
$ helm repo add stable https://charts.helm.sh/stable
$ helm repo add bitnami https://charts.bitnami.com/bitnami
# 克隆项目
$ git clone https://github.com/mainflux/devops.git
# 切换到chart目录
$ cd devops/charts/mainflux
# 更新项目依赖
$ helm dependency update
# 创建命名空间
$ kubectl create namespace mf
# 安装项目
$ helm install mainflux . -n mf
##########################################################
#	该项目必须提供一定数量的pv卷支持
# 	如果拉取镜像太慢，可以手动拉取
#	pv卷类型，目前rancher v2.6.6不支持local
#	若提示tcp-service启动失败，请修改ingress.yaml为相关服务
#	提供独立的namespaces
##########################################################

# 若部分服务启动失败，先查看pod日志
$ kubectl logs [pod-name] -n [namespace-name]

四、Rancher卸载脚本

tips: 若重新部署rancher，需重启系统

#!/bin/bash

KUBE_SVC='
kubelet
kube-scheduler
kube-proxy
kube-controller-manager
kube-apiserver
'

for kube_svc in ${KUBE_SVC};
do
  # 停止服务
  if [[ `systemctl is-active ${kube_svc}` == 'active' ]]; then
    systemctl stop ${kube_svc}
  fi
  # 禁止服务开机启动
  if [[ `systemctl is-enabled ${kube_svc}` == 'enabled' ]]; then
    systemctl disable ${kube_svc}
  fi
done

# 停止所有容器
docker stop $(docker ps -aq)

# 删除所有容器
docker rm -f $(docker ps -qa)

# 删除所有容器卷
docker volume rm $(docker volume ls -q)

# 卸载mount目录
for mount in $(mount | grep tmpfs | grep '/var/lib/kubelet' | awk '{ print $3 }') /var/lib/kubelet /var/lib/rancher;
do
  umount $mount;
done

# 备份目录
# mv /etc/kubernetes /etc/kubernetes-bak-$(date +"%Y%m%d%H%M")
# mv /var/lib/etcd /var/lib/etcd-bak-$(date +"%Y%m%d%H%M")
# mv /var/lib/rancher /var/lib/rancher-bak-$(date +"%Y%m%d%H%M")
# mv /opt/rke /opt/rke-bak-$(date +"%Y%m%d%H%M")

# 删除残留路径
rm -rf /etc/ceph \
    /etc/cni \
    /opt/cni \
    /run/secrets/kubernetes.io \
    /run/calico \
    /run/flannel \
    /var/lib/calico \
    /var/lib/cni \
    /var/lib/kubelet \
    /var/log/containers \
    /var/log/kube-audit \
    /var/log/pods \
    /var/run/calico \
    /usr/libexec/kubernetes \
    /data/docker/volumes/rancher/*

# 清理网络接口
no_del_net_inter='
lo
docker0
eth
ens
bond
'

network_interface=`ls /sys/class/net`

for net_inter in $network_interface;
do
  if ! echo "${no_del_net_inter}" | grep -qE ${net_inter:0:3}; then
    ip link delete $net_inter
  fi
done

# 清理残留进程
port_list='
80
443
6443
2376
2379
2380
8472
9099
10250
10254
'

for port in $port_list;
do
  pid=`netstat -atlnup | grep $port | awk '{print $7}' | awk -F '/' '{print $1}' | grep -v - | sort -rnk2 | uniq`
  if [[ -n $pid ]]; then
    kill -9 $pid
  fi
done

kube_pid=`ps -ef | grep -v grep | grep kube | awk '{print $2}'`

if [[ -n $kube_pid ]]; then
  kill -9 $kube_pid
fi

# 清理Iptables表
## 注意：如果节点Iptables有特殊配置，以下命令请谨慎操作
sudo iptables --flush
sudo iptables --flush --table nat
sudo iptables --flush --table filter
sudo iptables --table nat --delete-chain
sudo iptables --table filter --delete-chain
systemctl restart docker

五、相关错误或警告处理

1.错误处理

W: GPG 错误：https://dl.winehq.org/wine-builds/ubuntu xenial InRelease: 由于没有公钥，无法验证下列签名： NO_PUBKEY 76F1A20FF987672F

$ sudo apt-key adv --keyserver keyserver.ubuntu.com --recv-keys <PUBKEY_ID>

[etcd] Failed to bring up Etcd Plane: etcd cluster is unhealthy: hosts [192.168.100.666] failed to report healthy. Check etcd container logs on each host for more information

$ docker stop $(docker ps -aq)
$ docker system prune -f
$ docker volume rm $(docker volume ls -q)
$ rm -rf /etc/ceph \
       /etc/cni \
       /etc/kubernetes \
       /opt/cni \
       /opt/rke \
       /run/secrets/kubernetes.io \
       /run/calico \
       /run/flannel \
       /var/lib/calico \
       /var/lib/etcd \
       /var/lib/cni \
       /var/lib/kubelet \
       /var/lib/rancher/rke/log \
       /var/log/containers \
       /var/log/pods \
       /var/run/calico \
       /data/docker/volume/rancher

2、警告处理

WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /root/.kube/config
WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /root/.kube/config

$ chmod g-rw ~/.kube/config
$ chmod o-r ~/.kube/config
# 针对jenkins处理,若没有jenkins可忽略
$ chmod -R 600   ~/.kube/config

2023/03/02 21:57:00

补充 ！！！

rancher安装内容整理（此处以Ubuntu为准）

    # ubuntu
    curl https://releases.rancher.com/install-docker/20.10.sh | sh
    # centos
    yum install -y yum-utils
    yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
    yum list docker-ce --showduplicates | sort -r
    yum install docker-ce-20.10.9 -y

    systemctl disable firewalld --now
    systemctl enable docker --now

1.搭建docker私有仓库

    docker run --name registry -d -p 5000:5000 --restart=always  -v /var/lib/registry:/var/lib/registry registry
    # 编辑私有仓库配置文件
    cat <<EOF>> /etc/docker/daemon.json
    {
        "registry-mirrors": ["https://t0gam4iy.mirror.aliyuncs.com"],
        "insecure-registries": ["192.168.3.101:5000"]
    }
    EOF

    systemctl daemon-reload && systemctl restart docker

    # 查看仓库镜像及特定镜像版本号
    curl -XGET http://192.168.3.101:5000/v2/_catalog
    curl -XGET http://192.168.3.101:5000/v2/rancher/rancher/tags/list

2.修改Linux内核

    # 查看所有内核配置
    sysctl -a
    # 立即生效
    sysctl -w net.bridge.bridge-nf-call-iptables=1
    # 永久写入
    sysctl -w net.bridge.bridge-nf-call-iptables=1 >> /etc/sysctl.conf

3.rancher使用私有仓库注意事项

    # rancher内置k3s容器运行时采用containerd，不再使用docker,所以需要为containerd指定私有镜像仓库配置
    # 通过容器卷映射 registries.yaml 配置文件
    cat <<EOF>> registries.yaml
    mirrors:
      192.168.3.101:5000:
        endpoint:
          - "http://192.168.3.101:5000"
    EOF

4.准备指定版本rancher所需的镜像

    # 下载特定release版本的rancher镜像制作脚本

    # 安装helm工具
    # 华为镜像：https://mirrors.huaweicloud.com/helm/
    wget https://get.helm.sh/helm-v3.9.2-linux-amd64.tar.gz
    # 解压并移动helm至/usr/local/bin
    tar -zxvf helm-v3.9.2-linux-amd64.tar.gz
    mv ./linux-amd64/helm /usr/local/bin

    # 添加证书仓库
    helm repo add jetstack https://charts.jetstack.io
    # 更新仓库
    helm repo update
    # 获取证书
    helm fetch jetstack/cert-manager --version v1.7.1
    # 使用 Rancher 默认的自签名 TLS 证书，则必须添加 cert-manager 镜像
    helm template ./cert-manager-v1.7.1.tgz | awk '$1 ~ /image:/ {print $2}' | sed s/\"//g >> ./rancher-images.txt
    # 对镜像列表进行排序和唯一化，去除重复的镜像源
    sort -u rancher-images.txt -o rancher-images.txt
    # 提权
    chmod +x rancher-save-images.sh rancher-load-images.sh
    # 创建所有需要镜像的压缩包
    ./rancher-save-images.sh --image-list ./rancher-images.txt
    # 将镜像上传到私有镜像库
    ./rancher-load-images.sh --image-list ./rancher-images.txt --registry <REGISTRY.YOURDOMAIN.COM:PORT>`

5.安装rancher

    # step 3
    mkdir -p rancher/k3s && cd rancher
    cat <<EOF>> k3s/registries.yaml
    mirrors:
    192.168.3.101:5000:
        endpoint:
        - "http://192.168.3.101:5000"
    EOF

    docker run --privileged -d --restart=unless-stopped \
    -p 81:80 -p 444:443 --name=rancher-server \
    -v ./rancher:/var/lib/rancher \
    -v ./k3s/registries.yaml:/etc/rancher/k3s/registries.yaml \
    -e CATTLE_SYSTEM_DEFAULT_REGISTRY=192.168.3.101:5000 \
    -e CATTLE_BOOTSTRAP_PASSWORD=admin123 \
    -e CATTLE_SYSTEM_CATALOG=bundled \
    192.168.3.101:5000/rancher/rancher:v2.7.1

    # 如果rancher ui安装的自定义集群不启动，建议降低Kubernetes的version(important !)
    # 81->80, 444->443 用于创建单节点集群（etcd,control plane,worker in one host),不做端口映射会导致rancher-agent注册失败

tips: 使用阿里云私有镜像仓库安装rancher

    # 对于single rancher可以指定内部访问ip,避免ip变动引起的不必要问题
    ## -e CATTLE_SERVER_URL=https://127.0.0.1:444
    docker run --privileged -d --restart=unless-stopped \
    -p 81:80 -p 444:443 --name=rancher-server \
    -e CATTLE_SYSTEM_DEFAULT_REGISTRY=registry.cn-hangzhou.aliyuncs.com \
    -e CATTLE_BOOTSTRAP_PASSWORD=admin123 \
    -e CATTLE_SYSTEM_CATALOG=bundled \
    registry.cn-hangzhou.aliyuncs.com/rancher/rancher:v2.7.1

    # 对于single agent节点可以指定local_ip/domain访问
    docker run -d --privileged --restart=unless-stopped \
    -p 81:80 -p 444:443 rancher/rancher-agent:v2.7.1 \
    --server http://hostname:8080/v3 \
    --token <token> --ca-checksum <checksum>
