NVIDIA vGPU应用

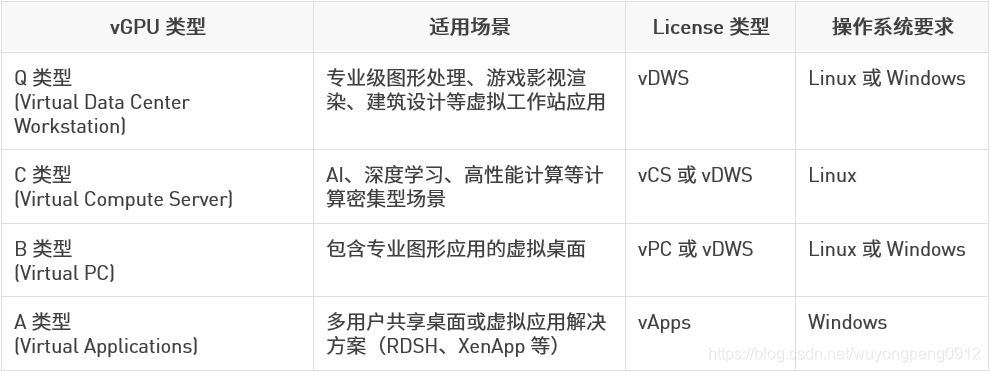

Series	Optimal Workload
Q-series	Virtual workstations for creative and technical professionals who require the performance and features of Quadro technology
C-series	Compute-intensive server workloads, such as artificial intelligence (AI), deep learning, or high-performance computing (HPC)
B-series	Virtual desktops for business professionals and knowledge workers
A-series	App streaming or session-based solutions for virtual applications users

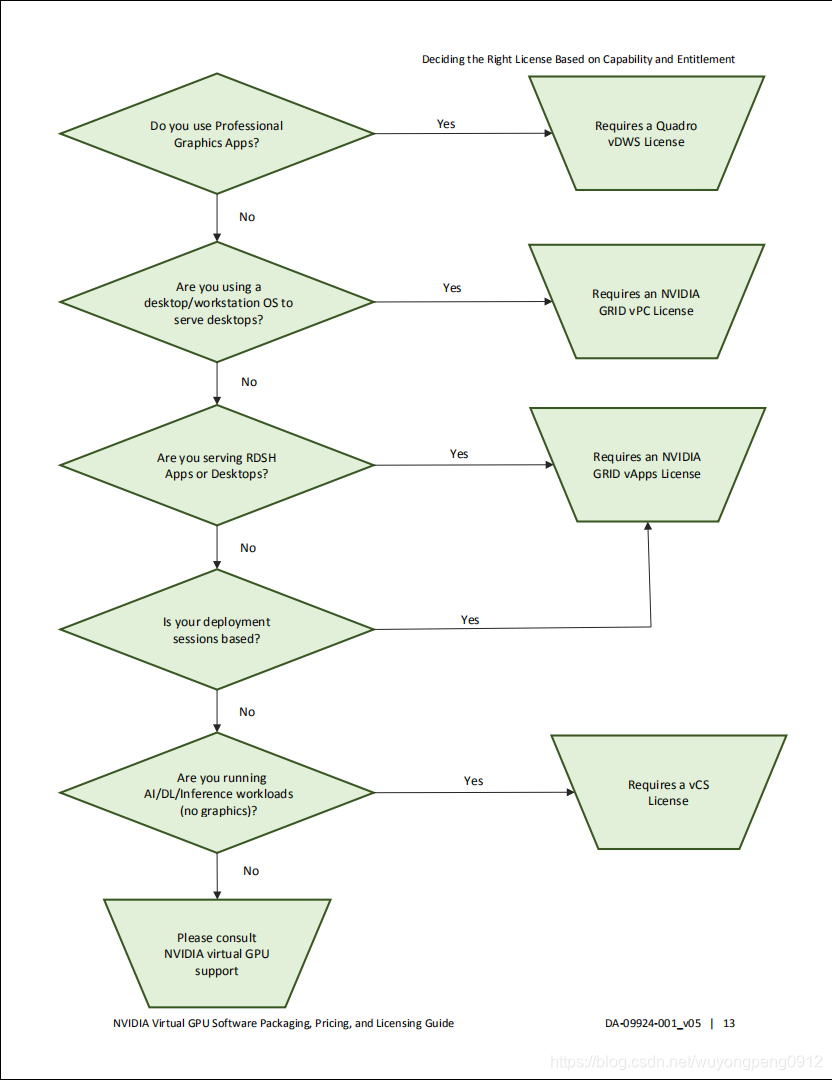

2、如何选择合适的vGPU

二、基于KVM创建vGPU设备

此处以创建一个M10-2Q类型的vGPU设备为例。

1、物理机安装vGPU驱动

GPU物理节点的Linux驱动，在安装过程中需要编译kernel module，安装vGPU-kvm驱动之后，需要reboot重启计算节点。

重启之前，没有mdev设备相关信息（对应pci设备目录下没有mdev_supported_types目录）；
重启之后，可看到mdev设备相关信息（对应pci设备目录下可以看到mdev_supported_types目录）。

[root@localhost ~]# chmod +x NVIDIA-Linux-x86_64-430.67-vgpu-kvm.run
[root@localhost ~]# ./NVIDIA-Linux-x86_64-430.67-vgpu-kvm.run  -s

# 配置驱动
[root@localhost ~]# nvidia-smi -e 0
[root@localhost ~]# nvidia-smi -pm 1

# 重启节点，让驱动生效
[root@localhost ~]# reboot

[root@localhost vgpu]# ./NVIDIA-Linux-x86_64-430.67-vgpu-kvm.run -s
Verifying archive integrity... OK
Uncompressing NVIDIA Accelerated Graphics Driver for Linux-x86_64 430.67.....................................................................................................................................................
......................................................
[root@localhost vgpu]#
[root@localhost vgpu]# nvidia-smi -e 0
ECC support is already Disabled for GPU 00000000:3D:00.0.
ECC support is already Disabled for GPU 00000000:3E:00.0.
ECC support is already Disabled for GPU 00000000:40:00.0.
ECC support is already Disabled for GPU 00000000:41:00.0.
ECC support is already Disabled for GPU 00000000:B1:00.0.
ECC support is already Disabled for GPU 00000000:B2:00.0.
ECC support is already Disabled for GPU 00000000:B4:00.0.
ECC support is already Disabled for GPU 00000000:B5:00.0.
All done.
[root@localhost vgpu]# nvidia-smi -pm 1
Enabled persistence mode for GPU 00000000:3D:00.0.
Enabled persistence mode for GPU 00000000:3E:00.0.
Enabled persistence mode for GPU 00000000:40:00.0.
Enabled persistence mode for GPU 00000000:41:00.0.
Enabled persistence mode for GPU 00000000:B1:00.0.
Enabled persistence mode for GPU 00000000:B2:00.0.
Enabled persistence mode for GPU 00000000:B4:00.0.
Enabled persistence mode for GPU 00000000:B5:00.0.
All done.
[root@localhost vgpu]#

[root@localhost ]# lspci -nn| grep 3D
3d:00.0 3D controller [0302]: NVIDIA Corporation Device [10de:1eb8] (rev a1)
3e:00.0 3D controller [0302]: NVIDIA Corporation Device [10de:1eb8] (rev a1)
40:00.0 3D controller [0302]: NVIDIA Corporation Device [10de:1eb8] (rev a1)
41:00.0 3D controller [0302]: NVIDIA Corporation Device [10de:1eb8] (rev a1)
b1:00.0 3D controller [0302]: NVIDIA Corporation Device [10de:1eb8] (rev a1)
b2:00.0 3D controller [0302]: NVIDIA Corporation Device [10de:1eb8] (rev a1)
b4:00.0 3D controller [0302]: NVIDIA Corporation Device [10de:1eb8] (rev a1)
b5:00.0 3D controller [0302]: NVIDIA Corporation Device [10de:1eb8] (rev a1)
[root@localhost 0000:3d:00.0]#
[root@localhost 0000:3d:00.0]# cd /sys/bus/pci/devices/0000\:3d\:00.0/
[root@localhost 0000:3d:00.0]# ls
broken_parity_status  consistent_dma_mask_bits  dma_mask_bits    enable  iommu        local_cpulist  msi_bus    power   reset      resource1     resource3_wc    subsystem         uevent
class                 d3cold_allowed            driver           i2c-4   iommu_group  local_cpus     msi_irqs   remove  resource   resource1_wc  sriov_numvfs    subsystem_device  vendor
config                device                    driver_override  i2c-5   irq          modalias       numa_node  rescan  resource0  resource3     sriov_totalvfs  subsystem_vendor
[root@localhost 0000:3d:00.0]#
[root@localhost 0000:3d:00.0]# reboot
[root@localhost ~]# cd /sys/bus/pci/devices/0000\:3d\:00.0/
[root@localhost 0000:3d:00.0]#
[root@localhost 0000:3d:00.0]# ls
broken_parity_status  consistent_dma_mask_bits  dma_mask_bits    enable  iommu        local_cpulist         modalias  numa_node  rescan    resource0     resource3     sriov_totalvfs    subsystem_vendor
class                 d3cold_allowed            driver           i2c-4   iommu_group  local_cpus            msi_bus   power      reset     resource1     resource3_wc  subsystem         uevent
config                device                    driver_override  i2c-5   irq          mdev_supported_types  msi_irqs  remove     resource  resource1_wc  sriov_numvfs  subsystem_device  vendor
[root@localhost 0000:3d:00.0]#

2、切换到物理GPU对应的mdev_supported_types目录

其中，0000:06:00.0表示domain:bus:slot.function

[root@localhost ~]# cd /sys/bus/pci/devices/0000\:3d\:00.0/mdev_supported_types/

3、mdev_supported_types子目录遍历可创建的vGPU类型

查看支持的所有vGPU类型

[root@localhost mdev_supported_types]# grep -l "T4-8Q" nvidia-*/name
nvidia-233/name

# 或直接自定义shell脚本遍历，获取所有支持的vGPU类型
[root@localhost mdev_supported_types]# for i in `ls`;do cat $i/name |awk '{print $2}'; done;

4、确认可在物理GPU上创建vGPU类型实例的个数

注意：此处available_instances如果返回0，表示该物理GPU上已经存在另一种vGPU类型实例，或者已经创建了允许的最大实例数。

[root@localhost mdev_supported_types]# cat nvidia-233/available_instances
2

5、生成随机uuid写入create文件

使用uuidgen生成随机uuid，写入需要创建的vGPU类型目录下的create文件中。

[root@localhost mdev_supported_types]# echo "aa618089-8b16-4d01-a136-25a0f3c73123" > nvidia-233/create

6、确认vGPU设备已创建

[root@localhost ~]# ls -l /sys/bus/mdev/devices/
lrwxrwxrwx. 1 root root 0 Nov 24 13:33 aa618089-8b16-4d01-a136-25a0f3c73123 -> ../../../devices/pci0000:00/0000:00:03.0/0000:03:00.0/0000:04:09.0/0000:06:00.0/aa618089-8b16-4d01-a136-25a0f3c73123

至此，vGPU设备创建完成。

可使用shell脚本循环创建mdev设备，或其它组件调用方式创建mdev设备（例如openstack Queens版nova组件初始化时，会自动创建mdev设备）
