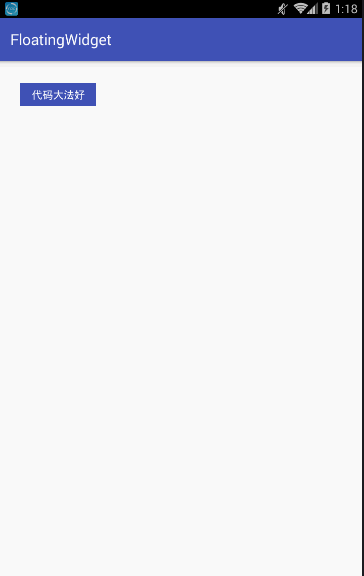

最近需求做个漂浮移动的点击广告,就这玩意,看图。
对代码有好的优化建议请留言。
源码地址https://github.com/weixx/FloatingWidget
可以自由设置漂浮移动的范围,为了演示所以范围设置的200*200
一、代码:
public class FloatingWidget extends TextView {
private int mWidth;
private int mHeight;
private int windowWidth;
private int windowHeight;
private Handler handler = new Handler(Looper.getMainLooper());
private boolean xIsReduce;
private boolean yIsReduce;
private boolean isStop;
private int speed = 10;
private int stepping = 1;//步进,每次移动1px,这是最小的值了,因为不支持float类型
private ThreadPoolExecutor threadPoolExecutor;
public FloatingWidget(Context context) {
this(context, null);
}
public FloatingWidget(Context context, AttributeSet attrs) {
this(context, attrs, 0);
}
public FloatingWidget(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
threadPoolExecutor = new ThreadPoolExecutor(1, 1, 0, TimeUnit.MILLISECONDS, new SynchronousQueue<Runnable>());
setVisibility(GONE);
setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
setVisibility(GONE);
isStop = true;
}
});
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
int widthMode = MeasureSpec.getMode(widthMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
int heightMode = MeasureSpec.getMode(heightMeasureSpec);
if (widthMode == MeasureSpec.EXACTLY) {
mWidth = widthSize;
} else {
mWidth = dp2px(100);
}
if (heightMode == MeasureSpec.EXACTLY) {
mHeight = heightSize;
} else {
mHeight = dp2px(30);
}
setMeasuredDimension(mWidth,mHeight);
}
public int dp2px(int dp){
return (int) TypedValue.applyDimension(
TypedValue.COMPLEX_UNIT_DIP,
dp,
getResources().getDisplayMetrics());
}
public int sp2px(int sp){
return (int)TypedValue.applyDimension(
TypedValue.COMPLEX_UNIT_SP,
sp,
getResources().getDisplayMetrics());
}
public void start() {
if(isStop) return;
setVisibility(VISIBLE);
if (windowHeight == 0 || windowWidth == 0) {
layout(0, 0, mWidth, mHeight);
} else {
int l;
int t;
int r;
int b;
int right = getRight();
int bottom = getBottom();
if (xIsReduce) {
if (right - stepping < mWidth) {
r = mWidth;
xIsReduce = false;
} else {
r = right - stepping;
}
} else {
if (right + stepping > windowWidth) {
r = windowWidth;
xIsReduce = true;
} else {
r = right + stepping;
}
}
if (yIsReduce) {
if (bottom - stepping < mHeight) {
b = mHeight;
yIsReduce = false;
} else {
b = bottom - stepping;
}
} else {
if (bottom + stepping > windowHeight) {
b = windowHeight;
yIsReduce = true;
} else {
b = bottom + stepping;
}
}
l = r - mWidth;
t = b - mHeight;
layout(l,t,r,b);
}
threadPoolExecutor.execute(new Runnable() {
@Override
public void run() {
Log.e("TAG", Thread.currentThread().getName());
try {
Thread.sleep(speed);
} catch (InterruptedException e) {
e.printStackTrace();
}
handler.post(new Runnable() {
@Override
public void run() {
FloatingWidget.this.start();
}
});
}
});
}
/**
* 以屏幕分辨率为漂浮范围
* @param activity 漂浮在的页面,用于获取屏幕分辨率
*/
public FloatingWidget setActivity(Activity activity) {
DisplayMetrics metrics = new DisplayMetrics();
activity.getWindowManager().getDefaultDisplay().getMetrics(metrics);
windowWidth = metrics.widthPixels;
windowHeight = metrics.heightPixels;
return this;
}
/**
* 设置漂浮范围,范围为一个矩形
* @param widthPixels 矩形的宽度,单位px
* @param heightPixels 矩形的高度,单位px
*/
public FloatingWidget setMovingRange(int widthPixels, int heightPixels) {
windowWidth = widthPixels;
windowHeight = heightPixels;
return this;
}
/**
* 设置漂浮移动的速度
* @param speed 参数范围(1 - 10),数值越大移动速度越快,
* 建议不要低于5,值过小时,会出现抖动视感
*/
public FloatingWidget setSpeed(int speed) {
this.speed *= (11 - speed);
return this;
}
/**
* 停止
*/
public void stop(){
isStop = true;
}
}
二、使用:
1、xml中
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/activity_main"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="com.xinxin.floatingwidget.MainActivity">
<com.xinxin.floatingwidget.FloatingWidget
android:id="@+id/mFloatingWidget"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="代码大法好"
android:textColor="#FFFFFF"
android:gravity="center"
android:background="@color/colorPrimary"/>
</RelativeLayout>
2、activity中
public class MainActivity extends AppCompatActivity {
private FloatingWidget mFloatingWidget;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
mFloatingWidget = (FloatingWidget) findViewById(R.id.mFloatingWidget);
mFloatingWidget.setMovingRange(200,200).setSpeed(10).start();
}
@Override
protected void onDestroy() {
mFloatingWidget.stop();
super.onDestroy();
}
}
也可以将漂浮移动范围设置为整个屏幕,代码替换即可
mFloatingWidget.setActivity(this).setSpeed(10).start();
具体使用,类中的方法都有注释。
