linux中的ip命令

比较好用的options

OBJECT相当于子命令

网络概念

ip tunnel:隧道

ip address: 创建与删除interface

ip link: 配置interface

ip netns

iptables命令

表(TABLE)里链(CHAIN)中规则(RULE)增删改查

 自定义链的增删改名

规则(RULE=MATCH+TARGET+TARGET_OPTIONS)

MATCH

通过ipset匹配

iptables中使用ipset

地址类型

TARGET

各表功能

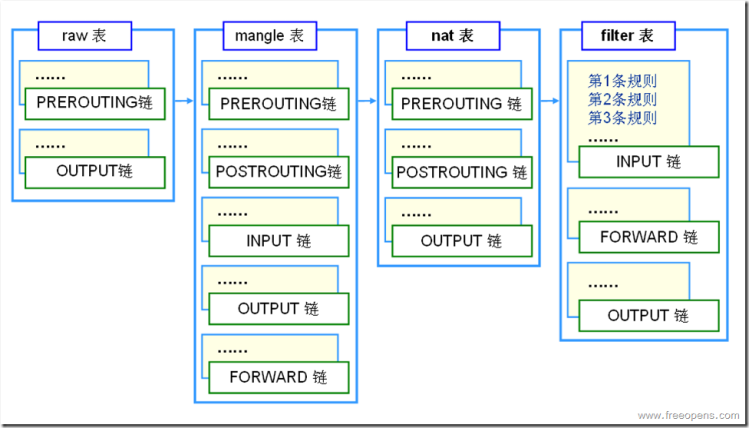

表匹配顺序 ：raw->mangle->nat->filter

不是每张表都有5条链

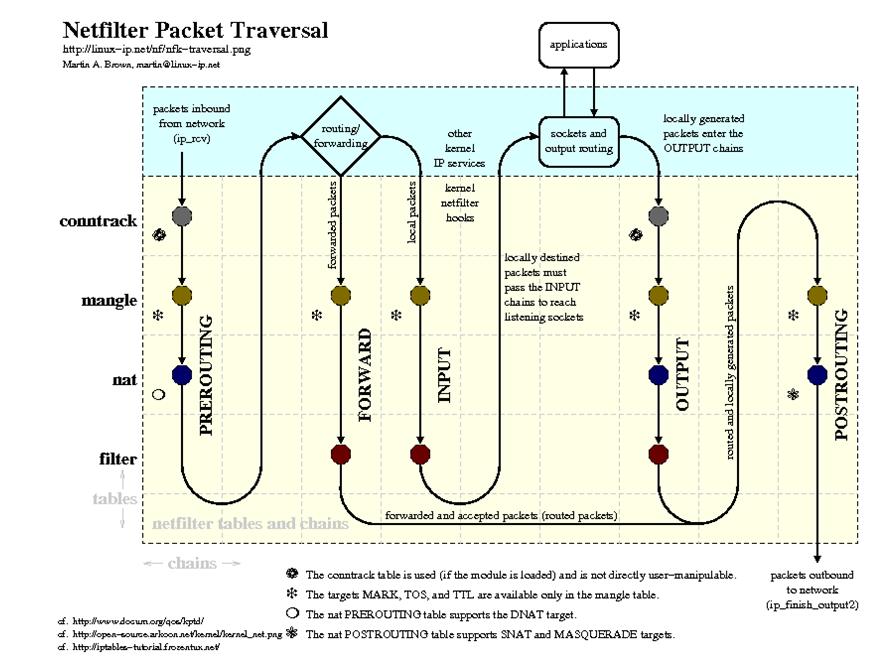

netfilter：数据包处理流程

例子

tcpdump抓包工具

DUMP参数

MATCH规则

match = proto direction type

type: host,net,port,portrange

direction: src, dst, src or dst, src and dst, ra, ta, addr1, addr2, addr3, addr4

proto: ether, wlan, ip ip6, arp, rarp, sctp, tcp, udp

逻辑关系and or not ()

example

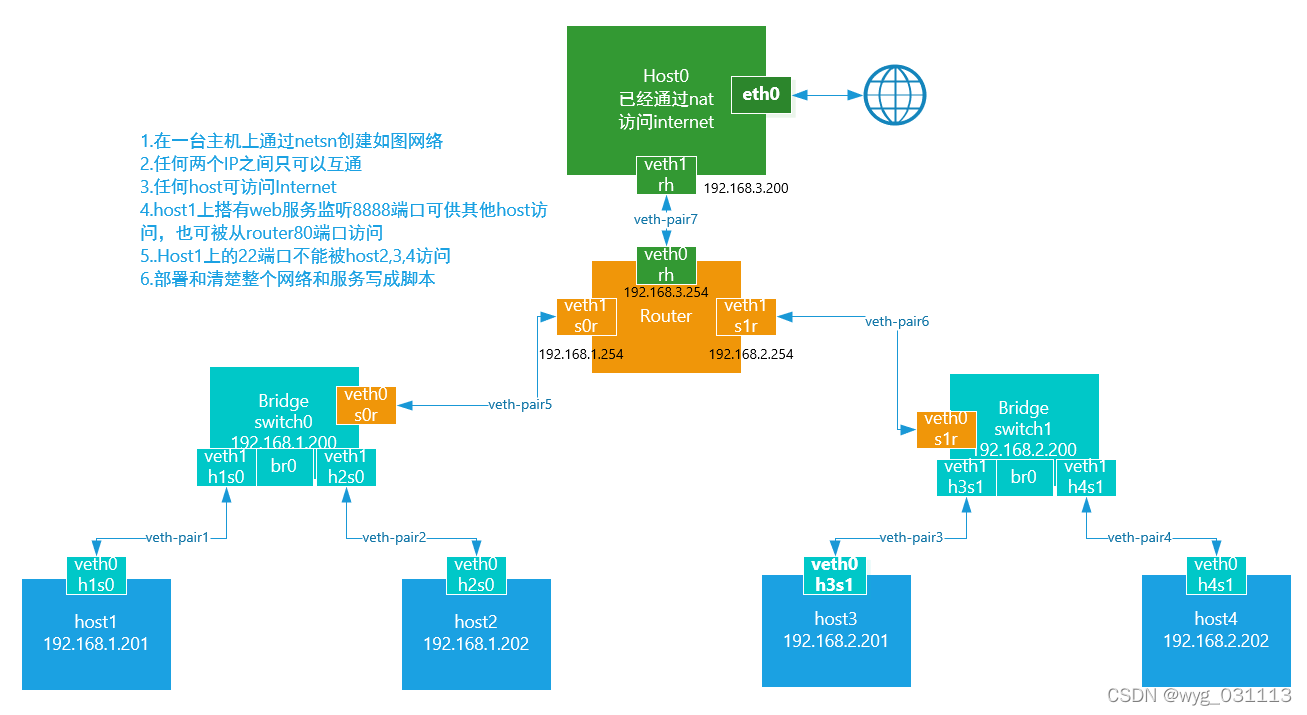

网络综合试验

实现环境

base.sh

 build_network.sh

remove_network.sh

实际结果

引用

linux中的ip命令

linux中各种网络管理命令，如ifconfig, brctl route等，其中ip命令涵盖了所有功能。ip(8) - Linux manual page

man手册里非常清楚的定义了Ip命令的使用方式

ip [ OPTIONS ] OBJECT { COMMAND | help }

ip [ -force ] -batch filename

OBJECT := { link | address | addrlabel | route | rule | neigh |
               ntable | tunnel | tuntap | maddress | mroute | mrule |
               monitor | xfrm | netns | l2tp | tcp_metrics | token |
               macsec | vrf | mptcp }

 OPTIONS := { -V[ersion] | -h[uman-readable] | -s[tatistics] |
               -d[etails] | -r[esolve] | -iec | -f[amily] { inet | inet6
               | link } | -4 | -6 | -I | -D | -B | -0 | -l[oops] {
               maximum-addr-flush-attempts } | -o[neline] | -rc[vbuf]
               [size] | -t[imestamp] | -ts[hort] | -n[etns] name |
               -N[umeric] | -a[ll] | -c[olor] | -br[ief] | -j[son] |
               -p[retty] }

比较好用的options

ip -c a #带颜色
ip -d a #详细
ip -br a #简略
ip -s a #展示统计信息
ip -n ns_name a #在netns中运行

OBJECT相当于子命令

address - protocol (IP or IPv6) address on a device.
addrlabel - label configuration for protocol address selection.
l2tp   - tunnel ethernet over IP (L2TPv3).
link   - network device.
maddress - multicast address.
monitor - watch for netlink messages.
mptcp  - manage MPTCP path manager.
mroute - multicast routing cache entry.
mrule  - rule in multicast routing policy database.
neighbour - manage ARP or NDISC cache entries.
netns  - manage network namespaces.
ntable - manage the neighbor cache's operation.
route  - routing table entry.
rule   - rule in routing policy database.
tcp_metrics/tcpmetrics - manage TCP Metrics
token  - manage tokenized interface identifiers.
tunnel - tunnel over IP.
tuntap - manage TUN/TAP devices.
vrf    - manage virtual routing and forwarding devices.
xfrm   - manage IPSec policies.
 ip-address(8), ip-addrlabel(8), ip-l2tp(8), ip-link(8),
 ip-maddress(8), ip-monitor(8), ip-mptcp(8), ip-mroute(8),
       ip-neighbour(8), ip-netns(8), ip-ntable(8), ip-route(8),
       ip-rule(8), ip-tcp_metrics(8), ip-token(8), ip-tunnel(8),
       ip-vrf(8), ip-xfrm(8)

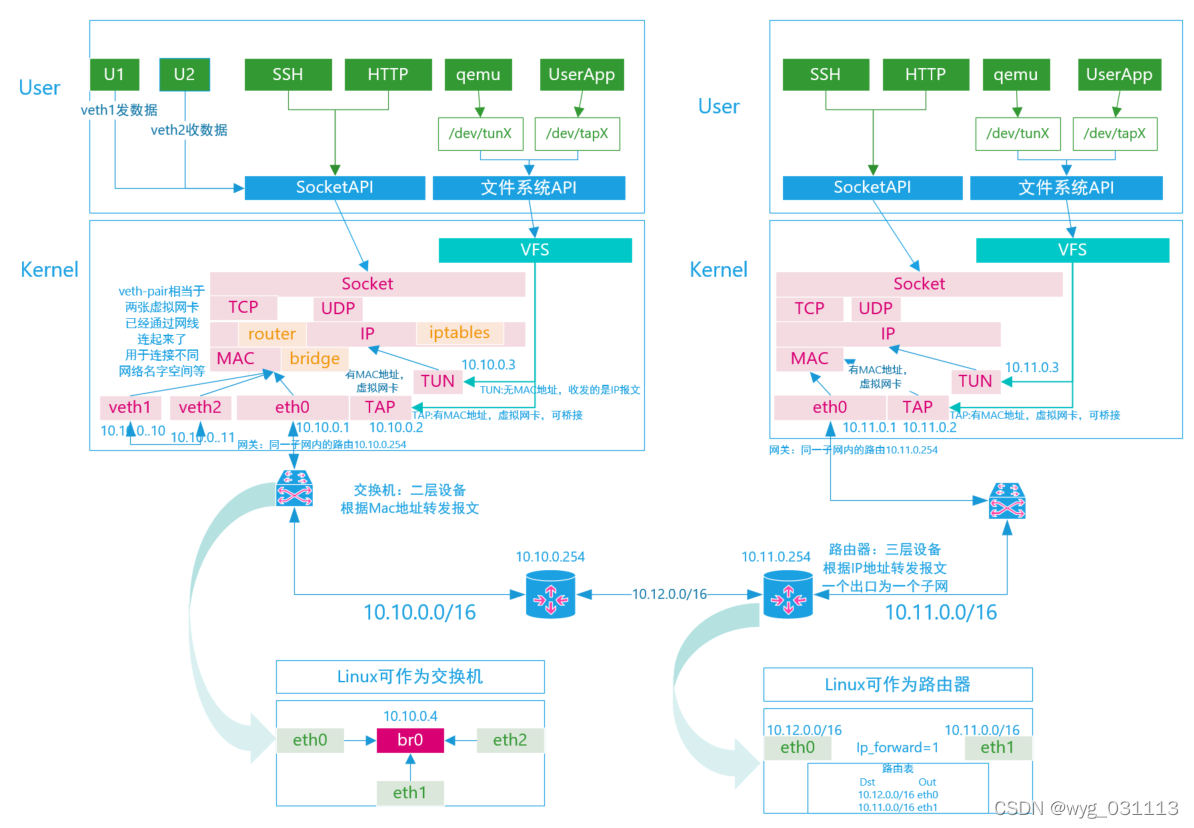

网络概念

ip命令在man手册中已经有非常详细的描述了。其设计也非常友好。关键是要理解网络概念。

ip tunnel:隧道

 MODE :=  { ipip | gre | sit | isatap | vti | ip6ip6 | ipip6 |
               ip6gre | vti6 | any }

ip address: 创建与删除interface

  TYPE := [ bridge | bridge_slave | bond | bond_slave | can | dummy
               | hsr | ifb | ipoib | macvlan | macvtap | vcan | veth |
               vlan | vxlan | ip6tnl | ipip | sit | gre | gretap |
               erspan | ip6gre | ip6gretap | ip6erspan | vti | vrf |
               nlmon | ipvlan | lowpan | geneve | macsec ]

ip link: 配置interface

ip link set { DEVICE | group GROUP }
               [ { up | down } ]
               [ type ETYPE TYPE_ARGS ]
               [ arp { on | off } ]
               [ dynamic { on | off } ]
               [ multicast { on | off } ]
               [ allmulticast { on | off } ]
               [ promisc { on | off } ]
               [ protodown { on | off } ]
               [ protodown_reason PREASON { on | off } ]
               [ trailers { on | off } ]
               [ txqueuelen PACKETS ]
               [ name NEWNAME ]
               [ address LLADDR ]
               [ broadcast LLADDR ]
               [ mtu MTU ]
               [ netns { PID | NETNSNAME } ]
               [ link-netnsid ID ]
               [ alias NAME ]
               [ vf NUM [ mac LLADDR ]
                        [ VFVLAN-LIST ]
                        [ rate TXRATE ]
                        [ max_tx_rate TXRATE ]
                        [ min_tx_rate TXRATE ]
                        [ spoofchk { on | off } ]
                        [ query_rss { on | off } ]
                        [ state { auto | enable | disable } ]
                        [ trust { on | off } ]
                        [ node_guid eui64 ]
                        [ port_guid eui64 ] ]
               [ { xdp | xdpgeneric | xdpdrv | xdpoffload } { off |
                       object FILE [ section NAME ] [ verbose ] |
                       pinned FILE } ]
               [ master DEVICE ]
               [ nomaster ]
               [ vrf NAME ]
               [ addrgenmode { eui64 | none | stable_secret | random } ]
               [ macaddr [ MACADDR ]
                         [ { flush | add | del } MACADDR ]
                         [ set MACADDR ] ]

ip netns

       ip [ OPTIONS ] netns  { COMMAND | help }

       ip netns [ list ]

       ip netns add NETNSNAME

       ip netns attach NETNSNAME PID

       ip [-all] netns del [ NETNSNAME ]

       ip netns set NETNSNAME NETNSID

       NETNSID := auto | POSITIVE-INT

       ip netns identify [ PID ]

       ip netns pids NETNSNAME

       ip [-all] netns exec [ NETNSNAME ] command...

       ip netns monitor

       ip netns list-id [ target-nsid POSITIVE-INT ] [ nsid POSITIVE-INT]

iptables命令

iptables -t TABLE -A CHAIN MATCH -j TARGET  TARGET_OPTIONS

表(TABLE)里链(CHAIN)中规则(RULE)增删改查

  • TABLE: raw, mangle, nat, filter
  • CHAIN: PREROUTING, INPUT, FORWARD, OUTPUT, POSTROUTING
  • TARGET: ACCEPT, DROP, QUEUE, RETURN，自定义链
#设置TABLE中链的默认策略(POLICE)
iptables -P CHAIN TARGET

#在TABLE表中最后添加一条规则(RULE=MATCH ACTION)
iptables -t TABLE -A CHAIN RULE

#在TABLE表中RULE_NUM位置插入一条规则(RULE_NUM=1,2,3...)
iptables -t TABLE -I CHAIN RULE_NUM RULE

#替换TABLE表中RULE_NUM位置插的条规则(RULE_NUM=1,2,3...)
iptables -t TABLE -R CHAIN RULE_NUM RULE

#查看规则和规则的RULE_NUM(RULE_NUM=1,2,3...)
iptables -t TABLE -L -v -n --line-number #查看所有CHAIN
iptables -t TABLE -L CHAIN -v -n --line-number #查看指定CHAIN

#删除指定RULE_NUM
iptables -t TABLE -D CHAIN RULE_NUM

#清空整个TABLE/CHAIN 规则
iptables -t TABLE -F  #清除所有CHAIN
iptables -t TABLE -F CHAIN #清除指定CHAIN

#清空整个TABLE/CHAIN 计数
iptables -t TABLE -Z  #清除所有CHAIN
iptables -t TABLE -Z CHAIN #清除指定CHAIN

 自定义链的增删改名

#table中新增链
iptable -t table -N new_chain_name

#删除table中链
iptable -t table -X new_chain_name
iptable -t table -X #删除所有非内建链(自定义链)

#修改CHAIN名字
iptable -t table -E old_chain_name new_chain_name

规则(RULE=MATCH+TARGET+TARGET_OPTIONS)

一个表中多行规则，每条规则分为MATCH部分和TARGET和TARGET_OPTIONS。

  • MATCH:匹配数据包(PACKET)
  • TARGET+OPTIONS: 对匹配到的规则执行的动作
  • 规则匹配顺序：每个表中从上到下依次进行，直到遇到能匹配的规则

MATCH

匹配数据包，其选项与数据包中的字段有关。可以匹配TCP/IP协议栈中的网络层，传输层包中的字段，可以匹配数据包的出入接口，可以匹配给数据打上去的标记，可以匹配连接追踪中contrack。Iptables Tutorial 1.2.2。多个匹配条件默认是逻辑与的关系。也可以表达逻辑非：! -p tcp表示不是TCP协议的所有协议。

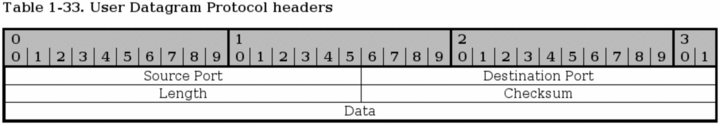

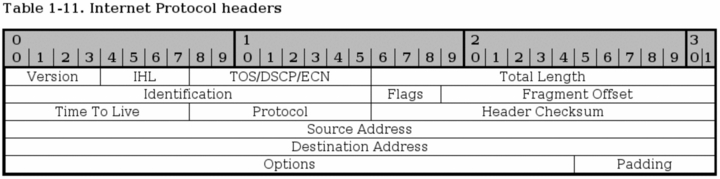

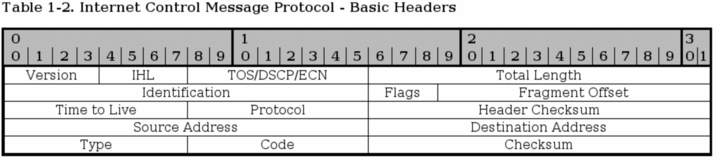

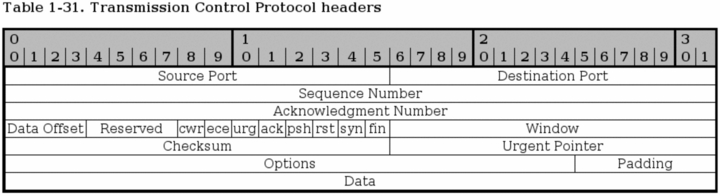

iptables 匹配 MATCH规则
MATCH参数Example说明
-p, --protocoliptables -A INPUT -p tcp协议
-s, --src, --sourceiptables -A INPUT -s 192.168.1.1/32源IP
-d, --dst, --destinationiptables -A INPUT -d 192.168.1.1/32目的IP
--src-rangeiptables -A INPUT -p tcp -m iprange --src-range 192.168.1.13-192.168.2.19匹配源IP地址区间
--dst-rangeiptables -A INPUT -p tcp -m iprange --dst-range 192.168.1.13-192.168.2.19匹配目的IP地址区间
--lengthiptables -A INPUT -p tcp -m length --length 1400:1500IP数据包长度
--limitiptables -A INPUT -m limit --limit 3/hour
--limit-burstiptables -A INPUT -m limit --limit-burst 5
--sport, --source-portiptables -A INPUT -p tcp --sport 22源port。-p udp可匹配UDP port
--dport, --destination-portiptables -A INPUT -p tcp --dport 22目的port
--source-portiptables -A INPUT -p tcp -m multiport --source-port 22,53,80,110多个源port
--destination-portiptables -A INPUT -p tcp -m multiport --destination-port 22,53,80,110多个目的port
--portiptables -A INPUT -p tcp -m multiport --port 22,53,80,110多个源或目的port都能匹配
--tcp-flagsiptables -p tcp --tcp-flags SYN,FIN,ACK SYNtcp FLAG字段
--syniptables -p tcp --syn相当于--tcp-flags SYN,RST,ACK SYN
--tcp-optioniptables -p tcp --tcp-option 16TCP options字段匹配
--icmp-typeiptables -A INPUT -p icmp --icmp-type 8匹配ICMP
-i, --in-interfaceiptables -A INPUT -i eth0包进入接口
-o, --out-interfaceiptables -A FORWARD -o eth0包输出接口
--mac-sourceiptables -A INPUT -m mac --mac-source 00:00:00:00:00:01源MAC
--src-typeiptables -A INPUT -m addrtype --src-type UNICAST源地址类型
--dst-typeiptables -A INPUT -m addrtype --dst-type UNICAST目的地址类型
--markiptables -A INPUT -m connmark --mark 12 -j ACCEPT连接标记
--markiptables -t mangle -A INPUT -m mark --mark 1
--ctstateiptables -A INPUT -p tcp -m conntrack --ctstate RELATED

INVALID

ESTABLISHED

NEW

RELATED

SNAT

DNAT

通过ipset匹配

iptables里可以指定匹配ip地址，但是IP数量过多时效率较低。Linux内核支持把大量IP放入一个set进行高效查询。

ip set 可以分为以下几种类型：ip地址， 网路地址（网段），tcp/udp 端口号， mac地址， 网卡名称。或者是上述类型的组合，并保证快速的匹配。

ipset 适用于以下几种场景：

（1）一次性存储大量的ip或者端口，用以iptables匹配

（2）在不影响性能的前提下，动态更新iptables规则（针对ip或者端口）

（3）期望使用ipset的告诉匹配，或者在一条iptables规则中表达复杂的 ip/端口规则

ipset create SETNAME TYPENAME [ CREATE-OPTIONS ]

ipset add SETNAME ADD-ENTRY [ ADD-OPTIONS ]

ipset del SETNAME DEL-ENTRY [ DEL-OPTIONS ]

SET TYPES

#hash:net
ipset create foo hash:net
ipset add foo 192.168.0.0/24
ipset add foo 10.1.0.0/16
ipset add foo 192.168.0/24
ipset add foo 192.168.0/30 nomatch

#hash:net,net
ipset create foo hash:net,net
ipset add foo 192.168.0.0/24,10.0.1.0/24
ipset add foo 10.1.0.0/16,10.255.0.0/24
ipset add foo 192.168.0/24,192.168.54.0-192.168.54.255
ipset add foo 192.168.0/30,192.168.64/30 nomatch

#hash:ip,port
ipset create foo hash:ip,port
ipset add foo 192.168.1.0/24,80-82
ipset add foo 192.168.1.1,udp:53
ipset add foo 192.168.1.1,vrrp:0
ipset test foo 192.168.1.1,80

#hash:net,port
ipset create foo hash:net,port
ipset add foo 192.168.0/24,25
ipset add foo 10.1.0.0/16,80
ipset test foo 192.168.0/24,25

#hash:ip,port,ip
ipset create foo hash:ip,port,ip
ipset add foo 192.168.1.1,80,10.0.0.1
ipset test foo 192.168.1.1,udp:53,10.0.0.1

#hash:ip,port,net
ipset create foo hash:ip,port,net
ipset add foo 192.168.1,80,10.0.0/24
ipset add foo 192.168.2,25,10.1.0.0/16
ipset test foo 192.168.1,80.10.0.0/24

#hash:ip,mark
ipset create foo hash:ip,mark
ipset add foo 192.168.1.0/24,555
ipset add foo 192.168.1.1,0x63
ipset add foo 192.168.1.1,111236

#hash:net,port,net
ipset create foo hash:net,port,net
ipset add foo 192.168.1.0/24,0,10.0.0/24
ipset add foo 192.168.2.0/24,25,10.1.0.0/16
ipset test foo 192.168.1.1,80,10.0.0.1

#hash:net,iface
ipset create foo hash:net,iface
ipset add foo 192.168.0/24,eth0
ipset add foo 10.1.0.0/16,eth1
ipset test foo 192.168.0/24,eth0



#bitmap:ip
ipset create foo bitmap:ip range 192.168.0.0/16
ipset add foo 192.168.1/24
ipset test foo 192.168.1.1

#bitmap:ip,mac
ipset create foo bitmap:ip,mac range 192.168.0.0/16
ipset add foo 192.168.1.1,12:34:56:78:9A:BC
ipset test foo 192.168.1.1

#bitmap:port
ipset create foo bitmap:port range 0-1024
ipset add foo 80
ipset test foo 80
ipset del foo udp:[macon-udp]-[tn-tl-w2]

#hash:ip

#hash:mac
ipset create foo hash:mac
ipset add foo 01:02:03:04:05:06
ipset test foo 01:02:03:04:05:06

#hash:ip,mac
ipset create foo hash:ip,mac
ipset add foo 1.1.1.1,01:02:03:04:05:06
ipset test foo 1.1.1.1,01:02:03:04:05:06

#list:set

iptables中使用ipset

#目的ip使用ipset
iptables -I INPUT -s 192.168.100.36  -m set --match-set setname dst -j DROP

#源ip使用ipset
iptables -I INPUT -m set --match-set setname src -d 192.168.100.36  -j DROP

#源和目的都使用ipset
iptables -I INPUT -m set --match-set aaa setname1-m set --match-set setname2 dst  -j DROP

地址类型

ANYCAST        BLACKHOLE        BROADCAST        LOCAL

MULTICAST        NAT        PROHIBIT        THROW        UNICAST

UNREACHABLE        UNSPEC        XRESOLVE

TARGET

  • ACCEPT：接受，通过防火墙
  • DROP：丢弃：被防火墙过滤掉了
  • QUEUE：排队：放到其他队列里，可由应用程序去处理
  •  RETURN：返回，停止继续匹配
  • 自定义链：到自定义链中匹配，如遇RETURN会返回上一个链继续匹配

目标，即完成匹配后的动作，如可以丢弃数据包，可以修改包字段等。-j TARGET options

iptables TARGET
target名称ExampleOptions说明
ACCEPT-j ACCEPT防火墙接收此包
DROP-j DROP防火墙静默丢弃此包
REJECTiptables -A FORWARD -p TCP --dport 22 -j REJECT --reject-with tcp-reset--reject-with丢弃并返回错误
RETURN -j RETURN当前链下边的规则不匹配了，返回上一个列
DNATiptables -t nat -A PREROUTING -p tcp -d 15.45.23.67 --dport 80 -j DNAT --to-destination 192.168.1.1-192.168.1.10--to-destination

目的地址转换。

可指定目的地址范围

SNATiptables -t nat -A POSTROUTING -p tcp -o eth0 -j SNAT --to-source 194.236.50.155-194.236.50.160:1024-32000--to-source源IP地址转换
MASQUERADE iptables -t nat -A POSTROUTING -p TCP -j MASQUERADE --to-ports 1024-31000--to-port

自动源IP地址转换.

并设置源端口范围

REDIRECTiptables -t nat -A PREROUTING -p tcp --dport 80 -j REDIRECT --to-ports 8080--to-ports把数据包重定向到本地的端口，用来实现proxy。只能在PREROUTING和OUTPUT链中使用
NETMAPiptables -t mangle -A PREROUTING -s 192.168.1.0/24 -j NETMAP --to 10.5.6.0/24源IP与一一映射到新IP
SAMEiptables -t mangle -A PREROUTING -s 192.168.1.0/24 -j SAME --to 10.5.6.7-10.5.6.9--to源地址转换时使用相同的IP
iptables -t mangle -A PREROUTING -s 192.168.1.0/24 -j SAME --to 10.5.6.7-10.5.6.9 --nodst--nodst
MARKiptables -t mangle -A PREROUTING -p tcp --dport 22 -j MARK --set-mark 2--set-mark包打标记
CONNMARK ptables -t nat -A PREROUTING -p tcp --dport 80 -j CONNMARK --set-mark 4--set-mark设置mark
iptables -t mangle -A PREROUTING --dport 80 -j CONNMARK --save-mark--save-mark把packet mark保存到连接mark中
iptables -t mangle -A PREROUTING --dport 80 -j CONNMARK --restore-mark--restore-mark
iptables -t mangle -A PREROUTING --dport 80 -j CONNMARK --restore-mark --mask 1--mask

CLASSIFY

iptables -t mangle -A POSTROUTING -p tcp --dport 80 -j CLASSIFY --set-class 20:10--set-class给包分类
CLUSTERIP iptables -A INPUT -p tcp -d 192.168.0.5 --dport 80 -j CLUSTERIP --new ...--new
iptables -A INPUT -p tcp -d 192.168.0.5 --dport 443 -j CLUSTERIP --new --hashmode sourceip ...--hashmode
iptables -A INPUT -p tcp -d 192.168.0.5 --dport 80 -j CLUSTERIP --new --hashmode sourceip --clustermac 01:00:5e:00:00:20 ...--clustermac
iptables -A INPUT -p tcp -d 192.168.0.5 --dport 80 -j CLUSTERIP --new --hashmode sourceip --clustermac 01:00:5e:00:00:20 --total-nodes 2 ...--total-nodes
iptables -A INPUT -p tcp -d 192.168.0.5 --dport 80 -j CLUSTERIP --new --hashmode sourceip --clustermac 01:00:5e:00:00:20 --total-nodes 2 --local-node 1--local-node
iptables -A INPUT -p tcp -d 192.168.0.5 --dport 80 -j CLUSTERIP --new --hashmode sourceip --clustermac 01:00:5e:00:00:20 --hash-init 1234--hash-init
MIRROR 源IP目的IP互换，再发出去
NFQUEUE iptables -t nat -A PREROUTING -p tcp --dport 80 -j NFQUEUE --queue-num 30--queue-num所数据包放到指定队列里
QUEUE
NOTRACK关闭连接追踪，只能在raw表中使用
TCPMSS
TOS
TTL iptables -t mangle -A PREROUTING -i eth0 -j TTL --ttl-set 64--ttl-set设置TTL

各表功能

  • raw: 主要用于决定数据包是否被状态跟踪机制处理。一但匹配则不会再走其他表
  • mangle: 修改数据中的字段，如mark标记，qos, ttl等
  • nat: 地址转换：可以修改源IP/PORT,目的IP/PORT,或者重定向到其他端口
  • filter: 包过滤，决定一个包是否通过防火墙

表匹配顺序 ：raw->mangle->nat->filter

不是每张表都有5条链

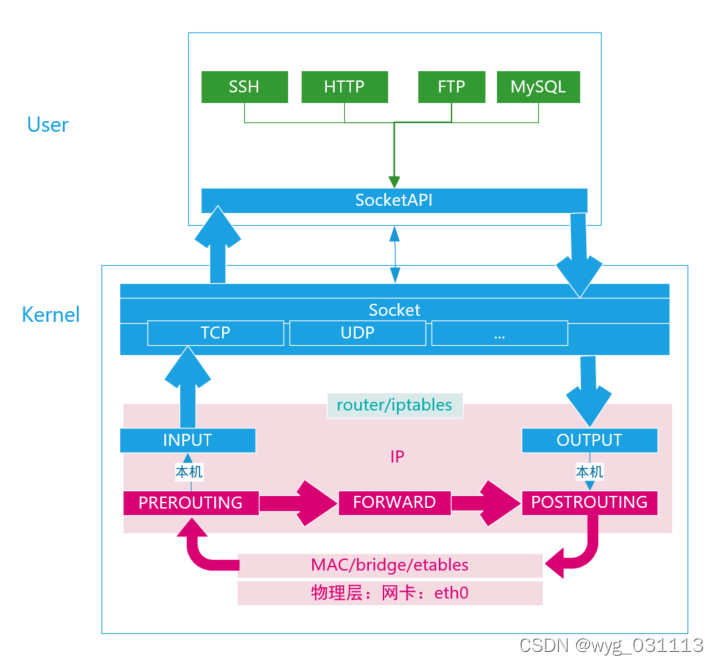

netfilter：数据包处理流程

例子

iptables详解及一些常用规则 - 简书

iptables -t filter -L -v -n
Chain INPUT (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination
  732 72340 ACCEPT     all  --  *      *       0.0.0.0/0            0.0.0.0/0            ctstate RELATED,ESTABLISHED
    0     0 ACCEPT     all  --  lo     *       0.0.0.0/0            0.0.0.0/0
   10   754 INPUT_direct  all  --  *      *       0.0.0.0/0            0.0.0.0/0
   10   754 INPUT_ZONES_SOURCE  all  --  *      *       0.0.0.0/0            0.0.0.0/0
   10   754 INPUT_ZONES  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 DROP       all  --  *      *       0.0.0.0/0            0.0.0.0/0            ctstate INVALID
    9   702 REJECT     all  --  *      *       0.0.0.0/0            0.0.0.0/0            reject-with icmp-host-prohibited

Chain FORWARD (policy DROP 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination
    0     0 DOCKER-ISOLATION  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 DOCKER     all  --  *      docker0  0.0.0.0/0            0.0.0.0/0
    0     0 ACCEPT     all  --  *      docker0  0.0.0.0/0            0.0.0.0/0            ctstate RELATED,ESTABLISHED
    0     0 ACCEPT     all  --  docker0 !docker0  0.0.0.0/0            0.0.0.0/0
    0     0 ACCEPT     all  --  docker0 docker0  0.0.0.0/0            0.0.0.0/0
    0     0 ACCEPT     all  --  *      *       0.0.0.0/0            0.0.0.0/0            ctstate RELATED,ESTABLISHED
    0     0 ACCEPT     all  --  lo     *       0.0.0.0/0            0.0.0.0/0
    0     0 FORWARD_direct  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 FORWARD_IN_ZONES_SOURCE  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 FORWARD_IN_ZONES  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 FORWARD_OUT_ZONES_SOURCE  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 FORWARD_OUT_ZONES  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 DROP       all  --  *      *       0.0.0.0/0            0.0.0.0/0            ctstate INVALID
    0     0 REJECT     all  --  *      *       0.0.0.0/0            0.0.0.0/0            reject-with icmp-host-prohibited

Chain OUTPUT (policy ACCEPT 523 packets, 97359 bytes)
 pkts bytes target     prot opt in     out     source               destination
    0     0 ACCEPT     all  --  *      lo      0.0.0.0/0            0.0.0.0/0
  541 98613 OUTPUT_direct  all  --  *      *       0.0.0.0/0            0.0.0.0/0

Chain DOCKER (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain DOCKER-ISOLATION (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 RETURN     all  --  *      *       0.0.0.0/0            0.0.0.0/0

Chain FORWARD_IN_ZONES (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 FWDI_public  all  --  ens33  *       0.0.0.0/0            0.0.0.0/0           [goto]
    0     0 FWDI_public  all  --  +      *       0.0.0.0/0            0.0.0.0/0           [goto]

Chain FORWARD_IN_ZONES_SOURCE (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain FORWARD_OUT_ZONES (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 FWDO_public  all  --  *      ens33   0.0.0.0/0            0.0.0.0/0           [goto]
    0     0 FWDO_public  all  --  *      +       0.0.0.0/0            0.0.0.0/0           [goto]

Chain FORWARD_OUT_ZONES_SOURCE (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain FORWARD_direct (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain FWDI_public (2 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 FWDI_public_log  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 FWDI_public_deny  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 FWDI_public_allow  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 ACCEPT     icmp --  *      *       0.0.0.0/0            0.0.0.0/0

Chain FWDI_public_allow (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain FWDI_public_deny (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain FWDI_public_log (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain FWDO_public (2 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 FWDO_public_log  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 FWDO_public_deny  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 FWDO_public_allow  all  --  *      *       0.0.0.0/0            0.0.0.0/0

Chain FWDO_public_allow (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain FWDO_public_deny (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain FWDO_public_log (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain INPUT_ZONES (1 references)
 pkts bytes target     prot opt in     out     source               destination
   10   754 IN_public  all  --  ens33  *       0.0.0.0/0            0.0.0.0/0           [goto]
    0     0 IN_public  all  --  +      *       0.0.0.0/0            0.0.0.0/0           [goto]

Chain INPUT_ZONES_SOURCE (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain INPUT_direct (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain IN_public (2 references)
 pkts bytes target     prot opt in     out     source               destination
   10   754 IN_public_log  all  --  *      *       0.0.0.0/0            0.0.0.0/0
   10   754 IN_public_deny  all  --  *      *       0.0.0.0/0            0.0.0.0/0
   10   754 IN_public_allow  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    0     0 ACCEPT     icmp --  *      *       0.0.0.0/0            0.0.0.0/0

Chain IN_public_allow (1 references)
 pkts bytes target     prot opt in     out     source               destination
    1    52 ACCEPT     tcp  --  *      *       0.0.0.0/0            0.0.0.0/0            tcp dpt:22 ctstate NEW,UNTRACKED

Chain IN_public_deny (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain IN_public_log (1 references)
 pkts bytes target     prot opt in     out     source               destination

Chain OUTPUT_direct (1 references)
 pkts bytes target     prot opt in     out     source               destination

tcpdump抓包工具

tcpdump MATCH  DUMP_OPTIONS

tcpdump(1) man page | TCPDUMP & LIBPCAP

  • MATCH:匹配数据包，类似iptables中的MATCH,可以匹配协议报文中的字段
  • DUMP:匹配后执行的dump动作的选项。默认是输出到标准输出。

DUMP参数

tcpdump dump参数
参数        example说明

-i interface

--interface=interface

-i eth0监听interface上的数据包
-F file-f match_rule.txt从文件中读取匹配规则。忽略后续匹配规则
-w file-w data.pcap匹配到的数据包写入文件
-r file-r data.pcap从-w写入文件里读回数据
--print在用-w时同时输出到标准输出

-x

-xx

-X

打印数据包头

-v

-vv

-vvv

-V

打印并解析数据包头字段为可读字符

-t

-tt

-ttt

-tttt

-ttttt

打印时间戳

-#

--number

打印包序号
-n不把IP转为域名

-I

--monitor-mode

监听方式抓WiFi
-D tcpdump -D打印所有可用Interface
-c count抓到count个包就退出
-A以ASCII打印包内容

MATCH规则

  • match = proto direction type

  • type: host,net,port,portrange

    • host foo
    • net 128.3
    • port 20
    • portrange 6000-6008

  • direction: src, dst, src or dst, src and dst, ra, ta, addr1, addr2, addr3, addr4

    • src foo
    • dst net 128.3
    • src or dst port ftp-data
    • 默认src or dst
    • 可以加在type前限制type: src host, dst port

  • proto: ether, wlan, ip ip6, arp, rarp, sctp, tcp, udp

    • 加在direction前来限制
    • ether src foo
    • arp net 128.3
    • tcp port 21
    • udp portrange 7000-7009

  • 逻辑关系and or not ()

    • tcp port 80 and (((ip[2:2] - ((ip[0]&0xf)<<2)) - ((tcp[12]&0xf0)>>2)) != 0)

    • ether[0] & 1 = 0 and ip[16] >= 224

    • tcpdump -i eth0 -vv -n tcp src or dst port http and not \(tcp port telnet or udp port 53\)

example

tcpdump -i eth0 -vvv -tttt -n src host 172.31.7.72 and dst host 220.181.38.148 and tcp dst port 80

tcpdump 'tcp[tcpflags] & (tcp-syn|tcp-fin) != 0 and not src and dst net localnet'

tcpdump 'gateway snup and ip[2:2] > 576'

tcpdump host sundown

网络综合试验

centos7中进行的测试。会清空防火墙和nat的所有规则。确保已经安装了python2.7 ssh

[root@centos100 netexp]# uname -a
Linux centos100 3.10.0-1160.el7.x86_64 #1 SMP Mon Oct 19 16:18:59 UTC 2020 x86_64 x86_64 x86_64 GNU/Linux
[root@centos100 netexp]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:cc:91:94 brd ff:ff:ff:ff:ff:ff
    inet 192.168.0.100/24 brd 192.168.0.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever

实现环境

同时在host2 host4之间实现ipip隧道

base.sh

#!/bin/bash
ns="host1 host2 host3 host4 switch0 switch1 router"
host1_ip=192.168.1.201
host2_ip=192.168.1.202
host3_ip=192.168.2.201
host4_ip=192.168.2.202
host_default_ip=192.168.3.201
switch0_ip=192.168.1.200
switch1_ip=192.168.2.200
router_s0_ip=192.168.1.254
router_s1_ip=192.168.2.254
router_h_ip=192.168.3.254
net1=192.168.1.0
net2=192.168.2.0
net3=192.168.3.0

function showns(){
    for s in $ns
    do
        echo "---------------$s------------------"
        ip netns exec $s ip -br -c link show
        ip netns exec $s ip -br -c address show
        ip netns exec $s ip route show
    done
     echo "---------------default------------------"
    ip -br -c link show
    ip -br -c addr show
}
function createns(){
    for s in $ns
    do
        echo "add ns $s"
        ip netns add $s
        ip netns exec $s ip link set up dev lo
    done
}

function delns(){
    for s in $ns
    do
        echo "del ns $s"
        ip netns del $s
    done

}

function add_veth_to_ns()
{
    echo "add $1 to $3, add $2 to $4"
    ip link add $1 type veth  peer name $2
    ip link set $1 netns $3
    ip link set $2 netns $4
}

function set_ip_addr() {
    echo "set ns $1 $2 to $3"
    ip netns exec $1 ip address add $3 dev $2
    ip netns exec $1 ip link set up dev $2
}

function add_bridge() {
    echo "add bridge $2 to ns $1"
    ip netns exec $1 ip link add name $2 type bridge
    ip netns exec $1 ip link set up dev $2
}

function add_veth_to_bridge() {
    echo "add $2 to bridge $3 in $1"
    ip netns exec $1 ip link set up dev $2
    ip netns exec $1 ip link set $2 master $3
}

function test_connection() {
    #check switch0 network
    echo check: $host1_ip -- $host2_ip
    ip netns exec host1 ping -c 2 ${host2_ip}

    echo check: $host1_ip -- $switch0_ip
    ip netns exec host1 ping -c 2 ${switch0_ip}

    echo check: $host1_ip -- ${router_s0_ip}
    ip netns exec host1 ping -c 2 ${router_s0_ip}

    #check switch1 network
    echo check: $host3_ip -- ${host4_ip}
    ip netns exec host3 ping -c 2 ${host4_ip}

    echo check: $host3_ip -- ${switch1_ip}
    ip netns exec host3 ping -c 2 ${switch1_ip}

    echo check: $host3_ip -- ${router_s1_ip}
    ip netns exec host3 ping -c 2 ${router_s1_ip}

    #check router host
    ping -c 2 ${router_h_ip}

    #check ping via different net
    echo check $net1 ping $net2
    ip netns exec host1 ping -c 2 ${host3_ip}
    echo check $net2 ping $net1
    ip netns exec host4 ping -c 2 ${host2_ip}
    echo check $net1 ping $net3
    ip netns exec host1 ping -c 2 ${host_default_ip}
    echo check $net2 ping $net3
    ip netns exec host3 ping -c 2 ${host_default_ip}

    #check all net can access internet
    ip netns exec router curl baidu.com
    ip netns exec host1 curl baidu.com
    ip netns exec host3 curl baidu.com

    #check dnat
    curl 192.168.3.254
    ip netns exec host3 curl 192.168.3.254

    #check ipip tunnel
    ip netns exec host2 ping -c 2 192.168.4.102
    ip netns exec host4 ping -c 2 192.168.4.101

}

 build_network.sh

#!/bin/bash
. base.sh
set -e
#create netns
echo 1 >  /proc/sys/net/ipv4/ip_forward
createns
ip netns list

#create veth and put it to netns
#veth-pair1
add_veth_to_ns veth0h1s0 veth1h1s0 host1 switch0
#veth-pair2
add_veth_to_ns veth0h2s0 veth1h2s0 host2 switch0
#veth-pair3
add_veth_to_ns veth0h3s1 veth1h3s1 host3 switch1
#veth-pair4
add_veth_to_ns veth0h4s1 veth1h4s1 host4 switch1
#veth-pair5
add_veth_to_ns veth0s0r veth1s0r switch0 router
#veth-pair6
add_veth_to_ns veth0s1r veth1s1r switch1 router

#veth-pair7
echo "add veth0rh to router, add veth1rh to host"
ip link add veth0rh type veth  peer name veth1rh
ip link set veth0rh netns router

#add bridge to switch0
add_bridge switch0 br
add_bridge switch1 br


#add veth to bridge
#switch0
add_veth_to_bridge switch0 veth1h1s0 br
add_veth_to_bridge switch0 veth1h2s0 br
add_veth_to_bridge switch0 veth0s0r br
#switch1
add_veth_to_bridge switch1 veth1h3s1 br
add_veth_to_bridge switch1 veth1h4s1 br
add_veth_to_bridge switch1 veth0s1r br


#config veth
set_ip_addr host1 veth0h1s0 ${host1_ip}/24
set_ip_addr host2 veth0h2s0 ${host2_ip}/24
set_ip_addr host3 veth0h3s1 ${host3_ip}/24
set_ip_addr host4 veth0h4s1 ${host4_ip}/24
set_ip_addr switch0 br ${switch0_ip}/24
set_ip_addr switch1 br ${switch1_ip}/24
set_ip_addr router veth0rh ${router_h_ip}/24
set_ip_addr router veth1s0r ${router_s0_ip}/24
set_ip_addr router veth1s1r ${router_s1_ip}/24

#host
ip address add ${host_default_ip} dev veth1rh
ip link set up dev veth1rh
ip route add 192.168.3.0/24 dev veth1rh
ip route add 192.168.2.0/24 via 192.168.3.254
ip route add 192.168.1.0/24 via 192.168.3.254

#config router switch0 switch1可互通
#default gateway
ip netns exec host1 ip route add default via ${router_s0_ip}
ip netns exec host2 ip route add default via ${router_s0_ip}
ip netns exec host3 ip route add default via ${router_s1_ip}
ip netns exec host4 ip route add default via ${router_s1_ip}
#router 默认已经建立了路由
#ip netns exec router ip route add ${net1}/24 via ${router_s0_ip}
#ip netns exec router ip route add ${net2}/24 via ${router_s1_ip}
#ip netns exec router ip route add ${net3}/24 via ${router_h_ip}

#config nat to access internet
ip netns exec router ip route add default via 192.168.3.201
iptables -F
iptables -P FORWARD ACCEPT
iptables -t nat -I POSTROUTING -s 192.168.1.0/24 -j MASQUERADE
iptables -t nat -I POSTROUTING -s 192.168.2.0/24 -j MASQUERADE
iptables -t nat -I POSTROUTING -s 192.168.3.0/24 -j MASQUERADE

#only 192.168.3.201 can access host1 22 port
ip netns exec  host1 /usr/sbin/sshd
ip netns exec  host1 iptables -t filter -I INPUT -p tcp ! -s 192.168.3.201 --dport 22 -j DROP

#run http server at 192.168.3.201:8888 but can access by 192.168.3.254:80
ip netns exec host1 python -m SimpleHTTPServer 8888 &
ip netns exec router iptables -t nat -I PREROUTING  -p tcp --dst 192.168.3.254/32 --dport 80 -j DNAT --to-destination 192.168.1.201:8888


#build ip tunnel between host2 and host4
#host2
ip netns exec host2 modprobe ipip
ip netns exec host2 ip tunnel add tun0 mode ipip remote 192.168.2.202 local 192.168.1.202 ttl 64
ip netns exec host2 ip addr add 192.168.4.101 peer 192.168.4.102 dev tun0
ip netns exec host2 ip link set tun0 up
ip netns exec host2 ip route add 192.168.4.0/24  dev tun0
#host4
ip netns exec host4 modprobe ipip
ip netns exec host4 ip tunnel add tun0 mode ipip local 192.168.2.202 remote 192.168.1.202 ttl 64
ip netns exec host4 ip addr add 192.168.4.102 peer 192.168.4.101 dev tun0
ip netns exec host4 ip link set tun0 up
ip netns exec host4 ip route add 192.168.4.0/24 dev tun0


showns
test_connection

remove_network.sh

#!/bin/bash
. base.sh
delns
iptables -F
iptables -t nat -F
pkill python
ip netns list
ip route del 192.168.3.0/24 dev veth1rh
ip route del 192.168.2.0/24 via 192.168.3.254
ip route del 192.168.1.0/24 via 192.168.3.254
showns

实际结果

[root@centos100 netexp]# ./build.sh
add ns host1
add ns host2
add ns host3
add ns host4
add ns switch0
add ns switch1
add ns router
router
switch1
switch0
host4
host3
host2
host1
add veth0h1s0 to host1, add veth1h1s0 to switch0
add veth0h2s0 to host2, add veth1h2s0 to switch0
add veth0h3s1 to host3, add veth1h3s1 to switch1
add veth0h4s1 to host4, add veth1h4s1 to switch1
add veth0s0r to switch0, add veth1s0r to router
add veth0s1r to switch1, add veth1s1r to router
add veth0rh to router, add veth1rh to host
add bridge br to ns switch0
add bridge br to ns switch1
add veth1h1s0 to bridge br in switch0
add veth1h2s0 to bridge br in switch0
add veth0s0r to bridge br in switch0
add veth1h3s1 to bridge br in switch1
add veth1h4s1 to bridge br in switch1
add veth0s1r to bridge br in switch1
set ns host1 veth0h1s0 to 192.168.1.201/24
set ns host2 veth0h2s0 to 192.168.1.202/24
set ns host3 veth0h3s1 to 192.168.2.201/24
set ns host4 veth0h4s1 to 192.168.2.202/24
set ns switch0 br to 192.168.1.200/24
set ns switch1 br to 192.168.2.200/24
set ns router veth0rh to 192.168.3.254/24
set ns router veth1s0r to 192.168.1.254/24
set ns router veth1s1r to 192.168.2.254/24
Serving HTTP on 0.0.0.0 port 8888 ...
---------------host1------------------
lo               UNKNOWN        00:00:00:00:00:00 <LOOPBACK,UP,LOWER_UP>
tunl0@NONE       DOWN           0.0.0.0 <NOARP>
veth0h1s0@if75   UP             8e:6f:27:a7:e8:a5 <BROADCAST,MULTICAST,UP,LOWER_UP>
lo               UNKNOWN        127.0.0.1/8 ::1/128
tunl0@NONE       DOWN
veth0h1s0@if75   UP             192.168.1.201/24 fe80::8c6f:27ff:fea7:e8a5/64
default via 192.168.1.254 dev veth0h1s0
192.168.1.0/24 dev veth0h1s0 proto kernel scope link src 192.168.1.201
---------------host2------------------
lo               UNKNOWN        00:00:00:00:00:00 <LOOPBACK,UP,LOWER_UP>
tunl0@NONE       DOWN           0.0.0.0 <NOARP>
tun0@NONE        UNKNOWN        192.168.1.202 <POINTOPOINT,NOARP,UP,LOWER_UP>
veth0h2s0@if77   UP             ee:9d:0c:c2:76:52 <BROADCAST,MULTICAST,UP,LOWER_UP>
lo               UNKNOWN        127.0.0.1/8 ::1/128
tunl0@NONE       DOWN
tun0@NONE        UNKNOWN        192.168.4.101 peer 192.168.4.102/32 fe80::5efe:c0a8:1ca/64
veth0h2s0@if77   UP             192.168.1.202/24 fe80::ec9d:cff:fec2:7652/64
default via 192.168.1.254 dev veth0h2s0
192.168.1.0/24 dev veth0h2s0 proto kernel scope link src 192.168.1.202
192.168.4.0/24 dev tun0 scope link
192.168.4.102 dev tun0 proto kernel scope link src 192.168.4.101
---------------host3------------------
lo               UNKNOWN        00:00:00:00:00:00 <LOOPBACK,UP,LOWER_UP>
tunl0@NONE       DOWN           0.0.0.0 <NOARP>
veth0h3s1@if79   UP             aa:25:4e:8d:f2:3a <BROADCAST,MULTICAST,UP,LOWER_UP>
lo               UNKNOWN        127.0.0.1/8 ::1/128
tunl0@NONE       DOWN
veth0h3s1@if79   UP             192.168.2.201/24 fe80::a825:4eff:fe8d:f23a/64
default via 192.168.2.254 dev veth0h3s1
192.168.2.0/24 dev veth0h3s1 proto kernel scope link src 192.168.2.201
---------------host4------------------
lo               UNKNOWN        00:00:00:00:00:00 <LOOPBACK,UP,LOWER_UP>
tunl0@NONE       DOWN           0.0.0.0 <NOARP>
tun0@NONE        UNKNOWN        192.168.2.202 <POINTOPOINT,NOARP,UP,LOWER_UP>
veth0h4s1@if81   UP             ae:45:3d:71:4c:bf <BROADCAST,MULTICAST,UP,LOWER_UP>
lo               UNKNOWN        127.0.0.1/8 ::1/128
tunl0@NONE       DOWN
tun0@NONE        UNKNOWN        192.168.4.102 peer 192.168.4.101/32 fe80::5efe:c0a8:2ca/64
veth0h4s1@if81   UP             192.168.2.202/24 fe80::ac45:3dff:fe71:4cbf/64
default via 192.168.2.254 dev veth0h4s1
192.168.2.0/24 dev veth0h4s1 proto kernel scope link src 192.168.2.202
192.168.4.0/24 dev tun0 scope link
192.168.4.101 dev tun0 proto kernel scope link src 192.168.4.102
---------------switch0------------------
lo               UNKNOWN        00:00:00:00:00:00 <LOOPBACK,UP,LOWER_UP>
tunl0@NONE       DOWN           0.0.0.0 <NOARP>
br               UP             72:b8:53:09:20:56 <BROADCAST,MULTICAST,UP,LOWER_UP>
veth1h1s0@if76   UP             72:b8:53:09:20:56 <BROADCAST,MULTICAST,UP,LOWER_UP>
veth1h2s0@if78   UP             ca:0a:f5:7d:a0:78 <BROADCAST,MULTICAST,UP,LOWER_UP>
veth0s0r@if83    UP             ea:d2:48:91:ed:6c <BROADCAST,MULTICAST,UP,LOWER_UP>
lo               UNKNOWN        127.0.0.1/8 ::1/128
tunl0@NONE       DOWN
br               UP             192.168.1.200/24 fe80::84ba:26ff:fea2:f6bf/64
veth1h1s0@if76   UP             fe80::70b8:53ff:fe09:2056/64
veth1h2s0@if78   UP             fe80::c80a:f5ff:fe7d:a078/64
veth0s0r@if83    UP             fe80::e8d2:48ff:fe91:ed6c/64
192.168.1.0/24 dev br proto kernel scope link src 192.168.1.200
---------------switch1------------------
lo               UNKNOWN        00:00:00:00:00:00 <LOOPBACK,UP,LOWER_UP>
tunl0@NONE       DOWN           0.0.0.0 <NOARP>
br               UP             12:bf:92:82:0d:1e <BROADCAST,MULTICAST,UP,LOWER_UP>
veth1h3s1@if80   UP             12:bf:92:82:0d:1e <BROADCAST,MULTICAST,UP,LOWER_UP>
veth1h4s1@if82   UP             4a:e3:37:1e:9d:4f <BROADCAST,MULTICAST,UP,LOWER_UP>
veth0s1r@if85    UP             c6:4f:b6:cf:27:a0 <BROADCAST,MULTICAST,UP,LOWER_UP>
lo               UNKNOWN        127.0.0.1/8 ::1/128
tunl0@NONE       DOWN
br               UP             192.168.2.200/24 fe80::b88e:b5ff:fe40:6126/64
veth1h3s1@if80   UP             fe80::10bf:92ff:fe82:d1e/64
veth1h4s1@if82   UP             fe80::48e3:37ff:fe1e:9d4f/64
veth0s1r@if85    UP             fe80::c44f:b6ff:fecf:27a0/64
192.168.2.0/24 dev br proto kernel scope link src 192.168.2.200
---------------router------------------
lo               UNKNOWN        00:00:00:00:00:00 <LOOPBACK,UP,LOWER_UP>
tunl0@NONE       DOWN           0.0.0.0 <NOARP>
veth1s0r@if84    UP             b2:49:00:de:bd:8b <BROADCAST,MULTICAST,UP,LOWER_UP>
veth1s1r@if86    UP             36:30:be:64:de:7e <BROADCAST,MULTICAST,UP,LOWER_UP>
veth0rh@if87     UP             fe:e6:4a:12:9a:f2 <BROADCAST,MULTICAST,UP,LOWER_UP>
lo               UNKNOWN        127.0.0.1/8 ::1/128
tunl0@NONE       DOWN
veth1s0r@if84    UP             192.168.1.254/24 fe80::b049:ff:fede:bd8b/64
veth1s1r@if86    UP             192.168.2.254/24 fe80::3430:beff:fe64:de7e/64
veth0rh@if87     UP             192.168.3.254/24 fe80::fce6:4aff:fe12:9af2/64
default via 192.168.3.201 dev veth0rh
192.168.1.0/24 dev veth1s0r proto kernel scope link src 192.168.1.254
192.168.2.0/24 dev veth1s1r proto kernel scope link src 192.168.2.254
192.168.3.0/24 dev veth0rh proto kernel scope link src 192.168.3.254
---------------default------------------
lo               UNKNOWN        00:00:00:00:00:00 <LOOPBACK,UP,LOWER_UP>
ens33            UP             00:0c:29:c2:fc:1c <BROADCAST,MULTICAST,UP,LOWER_UP>
docker0          DOWN           02:42:62:c1:b1:e3 <NO-CARRIER,BROADCAST,MULTICAST,UP>
tunl0@NONE       DOWN           0.0.0.0 <NOARP>
veth1rh@if88     UP             ce:b0:8a:4a:e4:d9 <BROADCAST,MULTICAST,UP,LOWER_UP>
lo               UNKNOWN        127.0.0.1/8 ::1/128
ens33            UP             192.168.50.100/24 fe80::4a0c:6495:e803:ae76/64
docker0          DOWN           172.17.0.1/16
tunl0@NONE       DOWN
veth1rh@if88     UP             192.168.3.201/32 fe80::ccb0:8aff:fe4a:e4d9/64
check: 192.168.1.201 -- 192.168.1.202
PING 192.168.1.202 (192.168.1.202) 56(84) bytes of data.
64 bytes from 192.168.1.202: icmp_seq=1 ttl=64 time=1.03 ms
64 bytes from 192.168.1.202: icmp_seq=2 ttl=64 time=0.204 ms

--- 192.168.1.202 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.204/0.621/1.039/0.418 ms
check: 192.168.1.201 -- 192.168.1.200
PING 192.168.1.200 (192.168.1.200) 56(84) bytes of data.
64 bytes from 192.168.1.200: icmp_seq=1 ttl=64 time=0.637 ms
64 bytes from 192.168.1.200: icmp_seq=2 ttl=64 time=0.165 ms

--- 192.168.1.200 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 0.165/0.401/0.637/0.236 ms
check: 192.168.1.201 -- 192.168.1.254
PING 192.168.1.254 (192.168.1.254) 56(84) bytes of data.
64 bytes from 192.168.1.254: icmp_seq=1 ttl=64 time=0.642 ms
64 bytes from 192.168.1.254: icmp_seq=2 ttl=64 time=0.730 ms

--- 192.168.1.254 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.642/0.686/0.730/0.044 ms
check: 192.168.2.201 -- 192.168.2.202
PING 192.168.2.202 (192.168.2.202) 56(84) bytes of data.
64 bytes from 192.168.2.202: icmp_seq=1 ttl=64 time=0.121 ms
64 bytes from 192.168.2.202: icmp_seq=2 ttl=64 time=0.155 ms

--- 192.168.2.202 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.121/0.138/0.155/0.017 ms
check: 192.168.2.201 -- 192.168.2.200
PING 192.168.2.200 (192.168.2.200) 56(84) bytes of data.
64 bytes from 192.168.2.200: icmp_seq=1 ttl=64 time=0.361 ms
64 bytes from 192.168.2.200: icmp_seq=2 ttl=64 time=0.175 ms

--- 192.168.2.200 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 0.175/0.268/0.361/0.093 ms
check: 192.168.2.201 -- 192.168.2.254
PING 192.168.2.254 (192.168.2.254) 56(84) bytes of data.
64 bytes from 192.168.2.254: icmp_seq=1 ttl=64 time=0.118 ms
64 bytes from 192.168.2.254: icmp_seq=2 ttl=64 time=0.210 ms

--- 192.168.2.254 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.118/0.164/0.210/0.046 ms
PING 192.168.3.254 (192.168.3.254) 56(84) bytes of data.
64 bytes from 192.168.3.254: icmp_seq=1 ttl=64 time=0.113 ms
64 bytes from 192.168.3.254: icmp_seq=2 ttl=64 time=0.158 ms

--- 192.168.3.254 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.113/0.135/0.158/0.025 ms
check 192.168.1.0 ping 192.168.2.0
PING 192.168.2.201 (192.168.2.201) 56(84) bytes of data.
64 bytes from 192.168.2.201: icmp_seq=1 ttl=63 time=0.882 ms
64 bytes from 192.168.2.201: icmp_seq=2 ttl=63 time=0.247 ms

--- 192.168.2.201 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.247/0.564/0.882/0.318 ms
check 192.168.2.0 ping 192.168.1.0
PING 192.168.1.202 (192.168.1.202) 56(84) bytes of data.
64 bytes from 192.168.1.202: icmp_seq=1 ttl=63 time=0.386 ms
64 bytes from 192.168.1.202: icmp_seq=2 ttl=63 time=0.870 ms

--- 192.168.1.202 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.386/0.628/0.870/0.242 ms
check 192.168.1.0 ping 192.168.3.0
PING 192.168.3.201 (192.168.3.201) 56(84) bytes of data.
64 bytes from 192.168.3.201: icmp_seq=1 ttl=63 time=0.126 ms
64 bytes from 192.168.3.201: icmp_seq=2 ttl=63 time=0.137 ms

--- 192.168.3.201 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 0.126/0.131/0.137/0.012 ms
check 192.168.2.0 ping 192.168.3.0
PING 192.168.3.201 (192.168.3.201) 56(84) bytes of data.
64 bytes from 192.168.3.201: icmp_seq=1 ttl=63 time=0.103 ms
64 bytes from 192.168.3.201: icmp_seq=2 ttl=63 time=0.251 ms

--- 192.168.3.201 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 0.103/0.177/0.251/0.074 ms
<html>
<meta http-equiv="refresh" content="0;url=http://www.baidu.com/">
</html>
<html>
<meta http-equiv="refresh" content="0;url=http://www.baidu.com/">
</html>
<html>
<meta http-equiv="refresh" content="0;url=http://www.baidu.com/">
</html>
192.168.3.201 - - [27/Feb/2022 10:39:29] "GET / HTTP/1.1" 200 -
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 3.2 Final//EN"><html>
<title>Directory listing for /</title>
<body>
<h2>Directory listing for /</h2>
<hr>
<ul>
<li><a href="base.sh">base.sh</a>
<li><a href="build.sh">build.sh</a>
<li><a href="remove.sh">remove.sh</a>
</ul>
<hr>
</body>
</html>
192.168.2.201 - - [27/Feb/2022 10:39:29] "GET / HTTP/1.1" 200 -
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 3.2 Final//EN"><html>
<title>Directory listing for /</title>
<body>
<h2>Directory listing for /</h2>
<hr>
<ul>
<li><a href="base.sh">base.sh</a>
<li><a href="build.sh">build.sh</a>
<li><a href="remove.sh">remove.sh</a>
</ul>
<hr>
</body>
</html>
PING 192.168.4.102 (192.168.4.102) 56(84) bytes of data.
64 bytes from 192.168.4.102: icmp_seq=1 ttl=64 time=0.130 ms
64 bytes from 192.168.4.102: icmp_seq=2 ttl=64 time=0.902 ms

--- 192.168.4.102 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.130/0.516/0.902/0.386 ms
PING 192.168.4.101 (192.168.4.101) 56(84) bytes of data.
64 bytes from 192.168.4.101: icmp_seq=1 ttl=64 time=0.124 ms
64 bytes from 192.168.4.101: icmp_seq=2 ttl=64 time=0.307 ms

--- 192.168.4.101 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.124/0.215/0.307/0.092 ms

引用

iptables之四表五链 - 云行者 - 博客园

iptables(8) - Linux man page

iptables详解及一些常用规则 - 简书

Iptables Tutorial 1.2.2

ipset 使用 - 简书

Man page of IPSET

wyg_031113
关注
  • 0
    点赞
  • 踩
  • 1
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
linux基本网络配置（二）详解IP命令
chinaltx的博客
01-15 2万+
目录 序、网络设置基本需求 0.1有哪些情况需要进行网络配置？ 0.2 新上线一台服务器的步骤 0.3 与查看网络相关的命令 一、查看网络接口（网卡）信息 1.1 ip a 1.2 ip -x a 1.3 ip a（ddress） show ens37 1.4 ip -4 a show ens37 1.5 ip link ls up 1.6 ip a list ens37 ...
XDP, traffic control/tc/qdisc和netfilter在Linux的网络架构(packet flow in Netfilter and General Network)
meihualing的专栏
04-06 790
packet flow in netfilter and general networking, XDP, netfilter, qdisc, traffic control, linux iproute2, linux tc工具, Linux网络架构
Docker Swarm集群与Kubernetes的搭建与试用
m0_60918581的博客
04-21 980
一、Docker Swarm集群的环境搭建与试用 Docker Swarm 搭建 1. OS设置 Step 1 关闭SELinux，firewalld Step 2 网络设置 Step 3 [root@vm1 ~]# ip -br a | grep 0s8 | awk '{print $3}' 192.168.50.100/24 Step 4 ..
centos7 docker删除端口映射_在CentOS 7 上为docker配置端口转发以兼容firewall的解决方法...
weixin_42691388的博客
12-28 428
在CentOS 7上当我们以类似下列命令将主机端口与容器端口映射时可能遇到无法访问容器服务的问题docker run --name web_a -p 192.168.1.250:803:80 -d web_a:beta1.0.0 .由于docker在执行此命令时，是向iptables注入了一条规则将主机803映射到容器80端口，但是CentOS 7中以firewalld服务替代了iptables。...
eBPF/XDP实现防火墙功能
程序创坊
02-13 2884
eBPF/XDP实现防火墙功能
Linux虚拟机初学网络防火墙
02-05
适合初学Linux，用MVware搭建学习环境，配置主机和虚拟机之间的网络，防火墙打开等
linux 网络安全 防火墙
04-28
计算机网络安全的基本概念及Linux系统安全 防火墙技术基本知识 用iptales实现包过滤型防火墙
linux 网络安全技术 防火墙
04-04
linux 网络安全技术 防火墙
网络安全-基于C语言开发的linux下的网络状态检测防火墙.zip
最新发布
04-03
网络安全_基于C语言开发的linux下的网络状态检测防火墙
网络安全技术报告-Linux下的防火墙技术与搭建1
08-08
2.2 NAT表NAT的全名是Network Address Translation，即网络地址转换 2.2.1 PREROUTINGPREROUTING这个链
Linux基础命令---iptables防火墙
cjju71217的博客
03-06 620
iptables iptables 指令用来设置Linux内核的ip过滤规则以及管理nat功能。iptables用于在Linux内核中设置、维护和检查IPv4数据包过滤规则表。可以定义...
Linux 网络故障排除初学者指南
qq_45768180的博客
04-06 1364
当我担任以网络为中心的角色时，最大的挑战之一总是弥合网络和系统工程之间的差距。系统管理员缺乏对网络的可见性，通常会将中断或奇怪的问题归咎于网络。网络管理员无法控制服务器，并且厌倦了对网络“有罪直到被证明是无辜的”态度，他们经常会责怪网络端点。当然，责备并不能解决问题。花时间了解某人领域的基础知识可以大大有助于改善与其他团队的关系并更快地解决问题。这个事实对于系统管理员来说尤其如此。通过对网络故障排除的基本了解，当我们怀疑网络可能出现故障时，我们可以为我们的网络同事提供更有力的证据。
docker 删除默认连接_Docker正在创建另一条覆盖默认路由的默认网络路由并禁用Internet连接...
weixin_39816024的博客
12-20 757
我使用的是docker，当我启动某个容器时，它会启动docker网络接口。守护进程使用它设置了2条新路由，包括新的默认路由，覆盖了我的旧路由。而且，当然，它会禁用我的互联网连接。我必须选择：容器还是互联网。wlp8s0是通过DHCP进行的，我想也是docker。我正在使用：Debian 4.19.28-2(2019-03-15)x86_64 GNU / LinuxDocker版本18.09.5，内...
Debian10Standard无网络安装后,设置静态IP,安装openssh-server 221024记录
kfepiza的博客
11-01 1835
安装环境是 Win10下 的 VMware16.2本次安装用的是从页面下载的开启网卡时,安装会比较慢, 所以禁用了网卡或者点右下角网络图标,断开连接选择语言, 中文在本地控制台无法显示, 选其它语言又不好选时区, 所以可以选择第一个, no localization 无定位让后选 Asia 亚洲Debian10Standard的iso镜像没有apt仓库功能, 无网安装后, 没法使用查看此时的apt镜像配置文件启用虚拟机的网络连接,ip addr没有地址, 需要手动配置网络。
ovs afxdp
weixin_54707208的博客
12-30 638
xdp 在 ovs 上使用
linux删除旧网卡,如何删除旧网卡驱动
weixin_35676939的博客
05-01 1359
解决方案1、在“开始”菜单单击“运行”，然后在“运行”对话框中输入“CMD”命令打开命令提示符窗口；2、输入命令“set devmgr_show_nonpresent_devices=1”，回车；3、输入命令“Start DEVMGMT.MSC”即可打开“设备管理器”；4、在“设备管理器”的菜单栏上选择“查看→显示隐藏的设备”看到以前的网卡，双击该网卡打开该网卡的“属性”对话框，切换到“驱动程序”...
【Linux命令】ip link
热门推荐
m0_45406092的博客
07-06 1万+
文章目录1. 前言2. ip link 命令格式2.1 ip link add2.1.1 命令实例参考 1. 前言 ifconfig命令已经废弃。其功能可通过下文介绍的ip addr、ip link和ip -s link等命令代替。 常用语法：ip [ OPTIONS ] OBJECT { COMMAND | help } OPTIONS是修改ip行为或改变其输出的选项。所有的选项都是以-字符开头，分为长、短两种形式，常用的OPTIONS： option： -h：输出人类可读的统计信息和后缀 -b：从提供
配置SR-IOV网卡的VF权限
为幸福写歌的博客
06-26 1万+
可以使用 ip-link(8) 工具对SR-IOV网卡的VF进行权限配置，命令组：ip link set用于改变设备的权限。1. 设置VF的mac地址：ip link set dev p5p1 vf 0 mac aa:bb:cc:dd:ee:002. 对指定的VF添加信任： ip link set dev p5p1 vf 0 trust onThis command enables trust o...
使用netfilter/iptables时经常能在匹配规则中看到-m addrtype --dst-type这样的内容，何解
watermelonbig的专栏
05-15 9408
比方说我们使用docker容器，一定会在iptables的NAT表中看到下在这样的一条配置规则：-A PREROUTING -m addrtype --dst-type LOCAL -j DOCKER从整体上看，这条规则是要把符合什么匹配规则的数据包，在数据包进入NAT表PREROUTING链时，让它直接jump到一个名为DOCKER的链。至于在这个DOCKER的链中有哪些继续生效的NAT规则，不...
linux永久关闭防火墙
08-19
要在Linux永久关闭防火墙，你可以按照以下步骤进行操作： 1. 首先，以root用户或拥有sudo权限的用户登录到Linux系统。...如果你更喜欢保持一定的安全性，可以通过配置防火墙规则来允许特定的网络流量。

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
