声网Android端集成与一对一音视频功能实现

该sdk集成的前提条件

（现在一般都符合的）

1. Android Studio 3.0 或以上版本
2. Android SDK API 等级 16 或以上
3. 支持 Android 4.1 或以上版本的移动设备
4. 有效的 Agora 账户 和 App ID

集成SDK

集成方式一：使用JCenter自动集成

（该方法也是目前Android端项目使用的方式）

在项目的/app/build.gradle文件中，添加如下行：

dependencies {
 //…
 implementation 'io.agora.rtc:full-sdk:3.1.3'
}

具体的版本号可以查看官网文档的发版说明。

集成方式二：手动复制sdk文件

1. 前往 SDK 下载页面，获取最新版的 Agora 视频 SDK，然后解压。

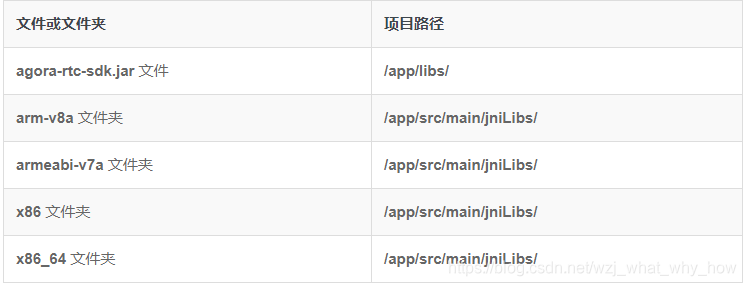

2. 将 SDK 包内 libs 路径下的如下文件，拷贝到你的项目路径下：


添加项目权限

根据场景需要，在 /app/src/main/AndroidManifest.xml 文件中添加如下行，获取相应的设备权限：

 <manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="io.agora.tutorials1v1acall">

   <uses-permission android:name="android.permission.READ_PHONE_STATE" />
   <uses-permission android:name="android.permission.INTERNET" />
   <uses-permission android:name="android.permission.RECORD_AUDIO" />
   <uses-permission android:name="android.permission.CAMERA" />
   <uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
   <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
   <uses-permission android:name="android.permission.BLUETOOTH" />
   <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
   // 如果你的场景中涉及读取外部存储，需添加如下权限：
   <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
   // 如果你使用的是 Android 10.0 及以上设备，还需要添加如下权限：
   <uses-permission android:name="android.permission.READ_PRIVILEGED_PHONE_STATE" />

...
</manifest>

如果你的 targetSdkVersion ≥ 29，还需要在 AndroidManifest.xml 文件的 区域添加如下行：

   <application
  android:requestLegacyExternalStorage="true">
  ...
   </application>

防止代码混淆

在 app/proguard-rules.pro 文件中添加如下行，防止混淆 Agora SDK 的代码：

-keep class io.agora.**{*;}

音视频功能实现

大致步骤如下：

1. 创建用户界面
2. 获取设备权限
3. 初始化RtcEngine
4. 设置本地视图
5. 加入频道
6. 设置远端视图
7. 更多步骤
8. 离开频道

具体实现可以直接看

import android.Manifest;
import android.content.pm.PackageManager;
import android.os.Bundle;
import android.text.TextUtils;
import android.util.Log;
import android.view.SurfaceView;
import android.view.View;
import android.widget.FrameLayout;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.Toast;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;
import androidx.core.content.ContextCompat;

import io.agora.rtc.IRtcEngineEventHandler;
import io.agora.rtc.RtcEngine;
import io.agora.rtc.video.VideoCanvas;
import io.agora.rtc.video.VideoEncoderConfiguration;

public class VideoChatViewActivity extends AppCompatActivity {
    private static final String TAG = VideoChatViewActivity.class.getSimpleName();

    private static final int PERMISSION_REQ_ID = 22;

    private static final String[] REQUESTED_PERMISSIONS = {
            Manifest.permission.RECORD_AUDIO,
            Manifest.permission.CAMERA,
            Manifest.permission.WRITE_EXTERNAL_STORAGE
    };

    private RtcEngine mRtcEngine;
    private boolean mCallEnd;
    private boolean mMuted;

    private FrameLayout mLocalContainer;
    private RelativeLayout mRemoteContainer;
    private SurfaceView mLocalView;
    private SurfaceView mRemoteView;

    private ImageView mCallBtn;
    private ImageView mMuteBtn;
    private ImageView mSwitchCameraBtn;


    private LoggerRecyclerView mLogView;

    private final IRtcEngineEventHandler mRtcEventHandler = new IRtcEngineEventHandler() {

        @Override
        public void onJoinChannelSuccess(String channel, final int uid, int elapsed) {
            runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    mLogView.logI("Join channel success, uid: " + (uid & 0xFFFFFFFFL));
                }
            });
        }

        @Override
        public void onFirstRemoteVideoDecoded(final int uid, int width, int height, int elapsed) {
            runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    mLogView.logI("First remote video decoded, uid: " + (uid & 0xFFFFFFFFL));
                    setupRemoteVideo(uid);
                }
            });
        }

        @Override
        public void onUserOffline(final int uid, int reason) {
            runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    mLogView.logI("User offline, uid: " + (uid & 0xFFFFFFFFL));
                    onRemoteUserLeft();
                }
            });
        }
    };

    private void setupRemoteVideo(int uid) {

        int count = mRemoteContainer.getChildCount();
        View view = null;
        for (int i = 0; i < count; i++) {
            View v = mRemoteContainer.getChildAt(i);
            if (v.getTag() instanceof Integer && ((int) v.getTag()) == uid) {
                view = v;
            }
        }

        if (view != null) {
            return;
        }


        mRemoteView = RtcEngine.CreateRendererView(getBaseContext());
        mRemoteContainer.addView(mRemoteView);

        mRtcEngine.setupRemoteVideo(new VideoCanvas(mRemoteView, VideoCanvas.RENDER_MODE_HIDDEN, uid));
        mRemoteView.setTag(uid);
    }

    private void onRemoteUserLeft() {
        removeRemoteVideo();
    }

    private void removeRemoteVideo() {
        if (mRemoteView != null) {
            mRemoteContainer.removeView(mRemoteView);
        }
        mRemoteView = null;
    }

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_video_chat_view);
        initUI();

        if (checkSelfPermission(REQUESTED_PERMISSIONS[0], PERMISSION_REQ_ID) &&
                checkSelfPermission(REQUESTED_PERMISSIONS[1], PERMISSION_REQ_ID) &&
                checkSelfPermission(REQUESTED_PERMISSIONS[2], PERMISSION_REQ_ID)) {
            initEngineAndJoinChannel();
        }
    }

    private void initUI() {
        mLocalContainer = findViewById(R.id.local_video_view_container);
        mRemoteContainer = findViewById(R.id.remote_video_view_container);

        mCallBtn = findViewById(R.id.btn_call);
        mMuteBtn = findViewById(R.id.btn_mute);
        mSwitchCameraBtn = findViewById(R.id.btn_switch_camera);

        mLogView = findViewById(R.id.log_recycler_view);

        // Sample logs are optional.
        showSampleLogs();
    }

    private void showSampleLogs() {
        mLogView.logI("Welcome to Agora 1v1 video call");
        mLogView.logW("You will see custom logs here");
        mLogView.logE("You can also use this to show errors");
    }

    private boolean checkSelfPermission(String permission, int requestCode) {
        if (ContextCompat.checkSelfPermission(this, permission) !=
                PackageManager.PERMISSION_GRANTED) {
            ActivityCompat.requestPermissions(this, REQUESTED_PERMISSIONS, requestCode);
            return false;
        }

        return true;
    }

    @Override
    public void onRequestPermissionsResult(int requestCode,
                                           @NonNull String[] permissions, @NonNull int[] grantResults) {

        if (requestCode == PERMISSION_REQ_ID) {
            if (grantResults[0] != PackageManager.PERMISSION_GRANTED ||
                    grantResults[1] != PackageManager.PERMISSION_GRANTED ||
                    grantResults[2] != PackageManager.PERMISSION_GRANTED) {
                showLongToast("Need permissions " + Manifest.permission.RECORD_AUDIO +
                        "/" + Manifest.permission.CAMERA + "/" + Manifest.permission.WRITE_EXTERNAL_STORAGE);
                finish();
                return;
            }

            initEngineAndJoinChannel();
        }
    }

    private void showLongToast(final String msg) {
        this.runOnUiThread(new Runnable() {
            @Override
            public void run() {
                Toast.makeText(getApplicationContext(), msg, Toast.LENGTH_LONG).show();
            }
        });
    }

    private void initEngineAndJoinChannel() {

        initializeEngine();
        setupVideoConfig();
        setupLocalVideo();
        joinChannel();
    }

    private void initializeEngine() {
        try {
            mRtcEngine = RtcEngine.create(getBaseContext(), getString(R.string.agora_app_id), mRtcEventHandler);
        } catch (Exception e) {
            Log.e(TAG, Log.getStackTraceString(e));
            throw new RuntimeException("NEED TO check rtc sdk init fatal error\n" + Log.getStackTraceString(e));
        }
    }

    private void setupVideoConfig() {
        mRtcEngine.enableVideo();

        mRtcEngine.setVideoEncoderConfiguration(new VideoEncoderConfiguration(
                VideoEncoderConfiguration.VD_640x360,
                VideoEncoderConfiguration.FRAME_RATE.FRAME_RATE_FPS_15,
                VideoEncoderConfiguration.STANDARD_BITRATE,
                VideoEncoderConfiguration.ORIENTATION_MODE.ORIENTATION_MODE_FIXED_PORTRAIT));
    }

    private void setupLocalVideo() {

        mLocalView = RtcEngine.CreateRendererView(getBaseContext());
        mLocalView.setZOrderMediaOverlay(true);
        mLocalContainer.addView(mLocalView);

        mRtcEngine.setupLocalVideo(new VideoCanvas(mLocalView, VideoCanvas.RENDER_MODE_HIDDEN, 0));
    }

    private void joinChannel() {

        String token = getString(R.string.agora_access_token);
        if (TextUtils.isEmpty(token) || TextUtils.equals(token, "#YOUR ACCESS TOKEN#")) {
            token = null;
        }
        mRtcEngine.joinChannel(token, "demochannel", "Extra Optional Data", 1);
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        if (!mCallEnd) {
            leaveChannel();
        }

        RtcEngine.destroy();
    }

    private void leaveChannel() {
        mRtcEngine.leaveChannel();
    }

    public void onLocalAudioMuteClicked(View view) {
        mMuted = !mMuted;
        mRtcEngine.muteLocalAudioStream(mMuted);
        int res = mMuted ? R.drawable.btn_mute : R.drawable.btn_unmute;
        mMuteBtn.setImageResource(res);
    }

    public void onSwitchCameraClicked(View view) {
        mRtcEngine.switchCamera();
    }

    public void onCallClicked(View view) {
        if (mCallEnd) {
            startCall();
            mCallEnd = false;
            mCallBtn.setImageResource(R.drawable.btn_endcall);
        } else {
            endCall();
            mCallEnd = true;
            mCallBtn.setImageResource(R.drawable.btn_startcall);
        }

        showButtons(!mCallEnd);
    }

    private void startCall() {
        setupLocalVideo();
        joinChannel();
    }

    private void endCall() {
        removeLocalVideo();
        removeRemoteVideo();
        leaveChannel();
    }

    private void removeLocalVideo() {
        if (mLocalView != null) {
            mLocalContainer.removeView(mLocalView);
        }
        mLocalView = null;
    }

    private void showButtons(boolean show) {
        int visibility = show ? View.VISIBLE : View.GONE;
        mMuteBtn.setVisibility(visibility);
        mSwitchCameraBtn.setVisibility(visibility);
    }
}

踩坑：

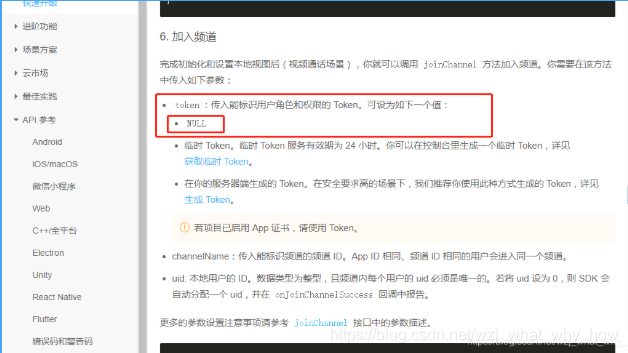

坑一：不能为null

几个值都要有值，不然相机是黑屏的。

 public abstract int joinChannel(String token, String channelName, String optionalInfo, int optionalUid);

还有app_id：agora_app_id；

坑二：

常用API

官方api文档

1. RtcEngine 类包含应用程序调用的主要方法。
2. IRtcEngineEventHandler 类用于向应用程序发送回调通知。
3. RtcChannel 类在指定频道中实现实时音视频功能。通过创建多个 RtcChannel 对象，用户可以同时加入多个频道。
4. IRtcChannelEventHandler 类监听和报告指定频道的事件和数据。
5. IAudioEffectManager 类提供管理音效文件的方法。

其中：
IRtcEngineEventHandler 接口类用于SDK向 App 发送回调事件通知，App 通过继承该接口类的方法获取 SDK 的事件通知。 接口类的所有方法都有缺省（空）实现， App 可以根据需要只继承关心的事件。在回调方法中，App 不应该做耗时或者调用可能会引起阻塞的 API（如 SendMessage），否则可能影响 SDK 的运行。
