java.net.URLClassLoader#findClass解析

​jdk1.8 中 AppClassLoader 与 ExtClassLoader 都继承于 URLClassLoader。

AppClassLoader 与 ExtClassLoader 没有重写 findClass 方法，URLClassLoader重写了 findClass 方法。
故 findClass 都指向 URLClassLoader。

protected Class<?> findClass(final String name)
    throws ClassNotFoundException
{
    final Class<?> result;
    try {
        result = AccessController.doPrivileged(
            new PrivilegedExceptionAction<Class<?>>() {
                public Class<?> run() throws ClassNotFoundException {
                    String path = name.replace('.', '/').concat(".class");
                    Resource res = ucp.getResource(path, false);
                    if (res != null) {
                        try {
                            return defineClass(name, res);
                        } catch (IOException e) {
                            throw new ClassNotFoundException(name, e);
                        }
                    } else {
                        return null;
                    }
                }
            }, acc);
    } catch (java.security.PrivilegedActionException pae) {
        throw (ClassNotFoundException) pae.getException();
    }
    if (result == null) {
        throw new ClassNotFoundException(name);
    }
    return result;
}

Resource res = ucp.getResource(path, false);
private final URLClassPath ucp;

http://hg.openjdk.java.net/jdk8/jdk8/jdk/raw-file/687fd7c7986d/src/share/classes/sun/misc/URLClassPath.java

public Resource getResource(String name, boolean check) {
        if (DEBUG) {
            System.err.println("URLClassPath.getResource(\"" + name + "\")");
        }

        Loader loader;
        for (int i = 0; (loader = getLoader(i)) != null; i++) {
            Resource res = loader.getResource(name, check);
            if (res != null) {
                return res;
            }
        }
        return null;
    }

private static class Loader implements Closeable {
        private final URL base;
        private JarFile jarfile;

        Loader(URL var1) { this.base = var1; }
        URL getBaseURL() { return this.base; }
      	// 子类实现
        URL findResource(String var1, boolean var2) {}
        Resource getResource(final String var1, boolean var2) {}
      	// .........
        Resource getResource(String var1) { return this.getResource(var1, true); }
        public void close() throws IOException {
            if (this.jarfile != null) {
                this.jarfile.close();
            }
        }
        URL[] getClassPath() throws IOException {
            return null;
        }
    }

Loader 的实现有两个：
private static class FileLoader extends URLClassPath.Loader {}
static class JarLoader extends URLClassPath.Loader {}

sun.misc.URLClassPath.JarLoader#getResource(java.lang.String, boolean)

@Override
Resource getResource(final String name, boolean check) {
  	//
    if (metaIndex != null) {
        if (!metaIndex.mayContain(name)) {
            return null;
        }
    }

    try {
      	// 确保 jar 存在
        ensureOpen();
    } catch (IOException e) {
        throw new InternalError(e);
    }
    final JarEntry entry = jar.getJarEntry(name);
    if (entry != null) {
        return checkResource(name, check, entry);
    }

    if (index == null) {
        return null;
    }

    HashSet<String> visited = new HashSet<String>();
    return getResource(name, check, visited);
}

metaIndex 需要调用 sun.misc.MetaIndex#registerDirectory 注册。
JVM 默认注册的如下：

JarFile JarEntry的使用：

@Test
public void test1() {
    JarFile jar = null;
    InputStream inputStream = null;
    try {
        jar = new JarFile("/Users/N3verL4nd/.m2/repository/com/sankuai/mms/mms-boot-jetty9/1.3.5/mms-boot-jetty9-1.3.5.jar");
        JarEntry entry = jar.getJarEntry("jetty9.xml");
        inputStream = jar.getInputStream(entry);
        StreamUtils.copy(inputStream, System.out);
    } catch (IOException e) {
        e.printStackTrace();
    } finally {
        if (inputStream != null) {
            try {
                inputStream.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        if (jar != null) {
            try {
                jar.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

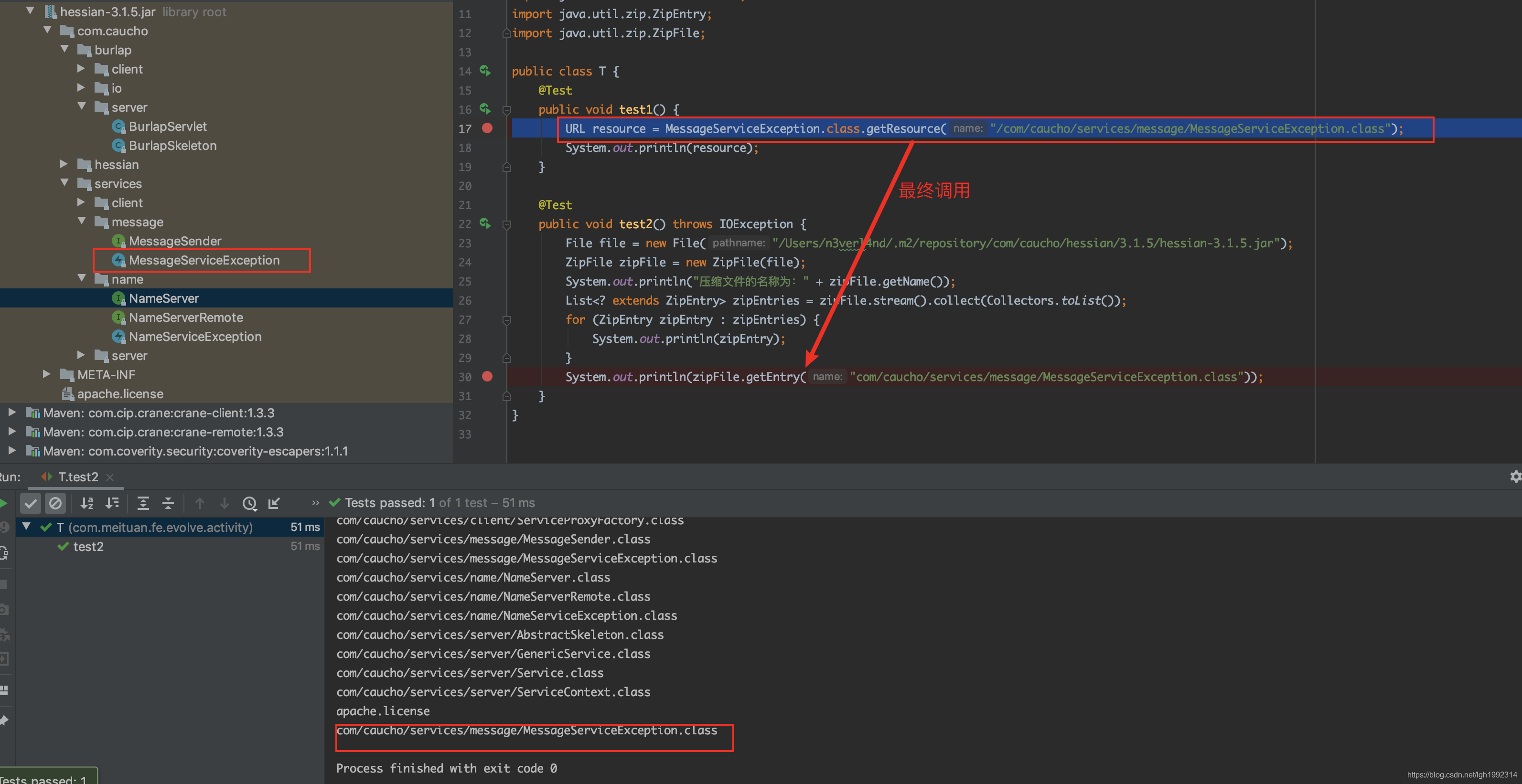

getJarEntry 最终的调用为 ZipFile::getEntry

    @Test
    public void test2() throws IOException {
        File file = new File("/Users/n3verl4nd/.m2/repository/com/caucho/hessian/3.1.5/hessian-3.1.5.jar");
        ZipFile zipFile = new ZipFile(file);
        System.out.println("压缩文件的名称为：" + zipFile.getName());
        List<? extends ZipEntry> zipEntries = zipFile.stream().collect(Collectors.toList());
        for (ZipEntry zipEntry : zipEntries) {
            System.out.println(zipEntry);
        }
        System.out.println(zipFile.getEntry("com/caucho/services/message/MessageServiceException.class"));
    }

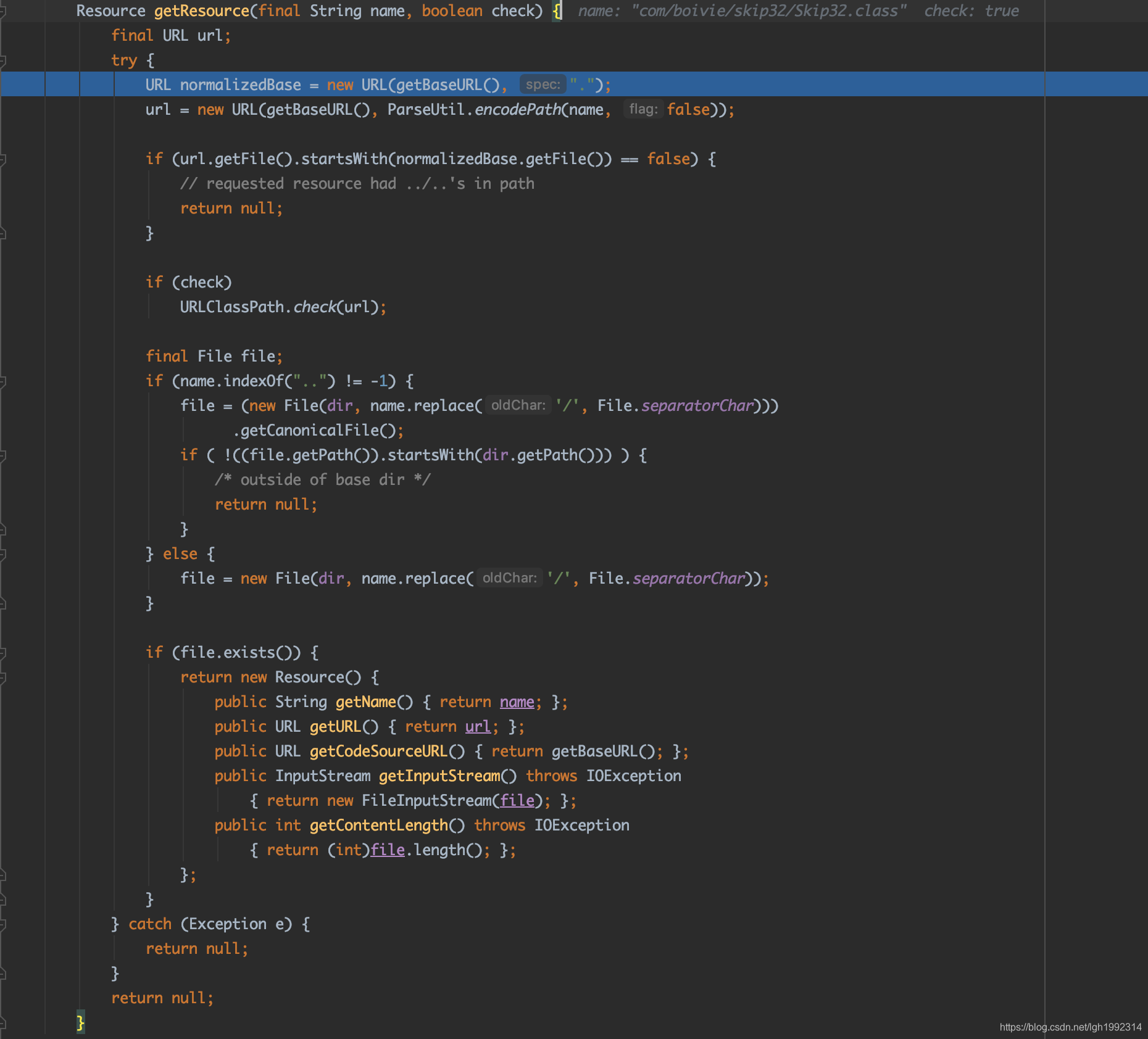

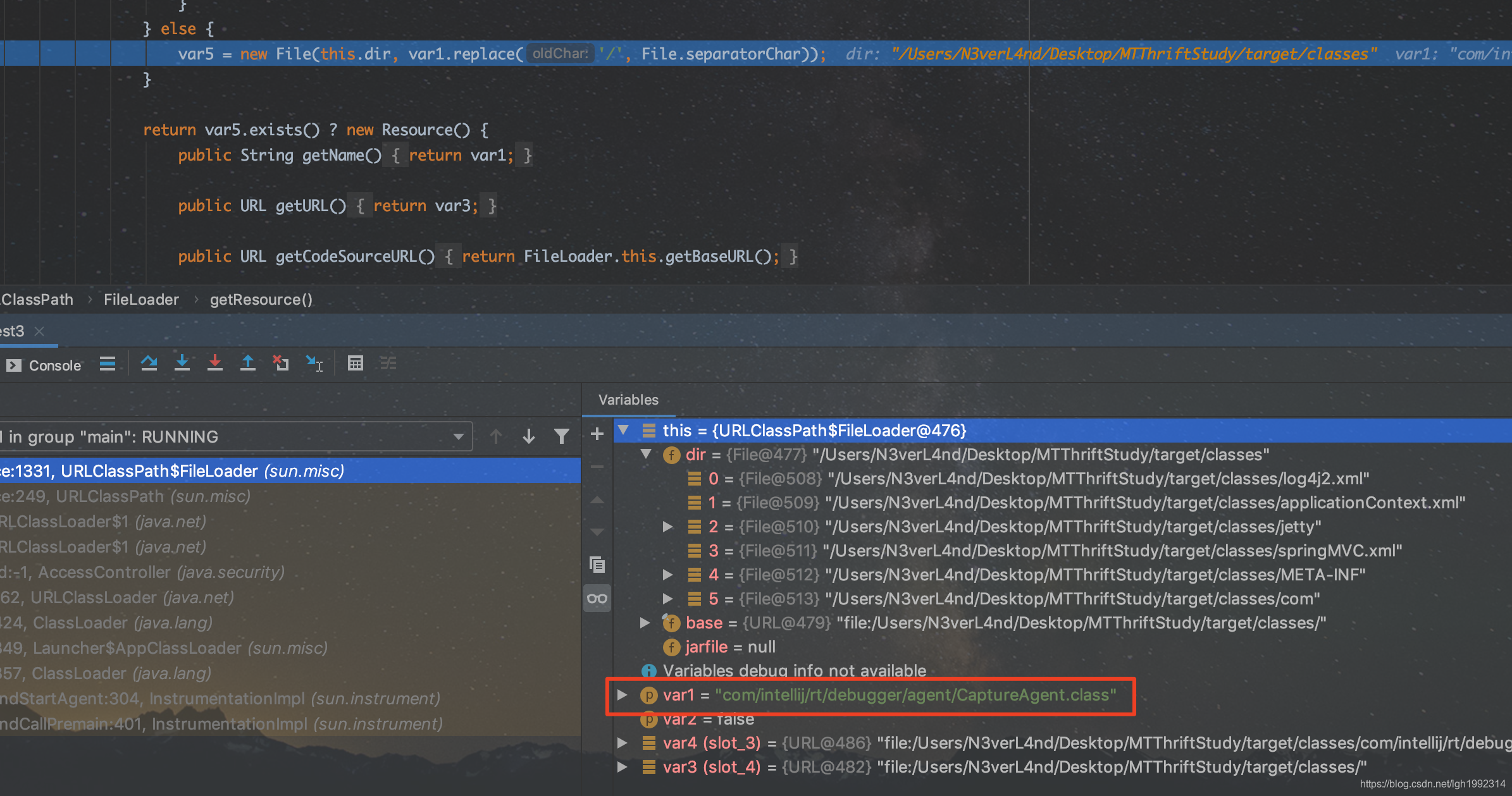

sun.misc.URLClassPath.FileLoader#getResource 就是文件夹和文件的拼接。

openjdk8 对应的源码

可以看到查找都是相对路径。

参考

https://mp.weixin.qq.com/s/U16h0njbAk6aMC27S_XDZA
