文章目录
用到的基础控件及布局
控件:TextView、EditText、Button、ImageView
布局:LinearLayout
- 奉上源码
<?xml version="1.0" encoding="utf-8"?>

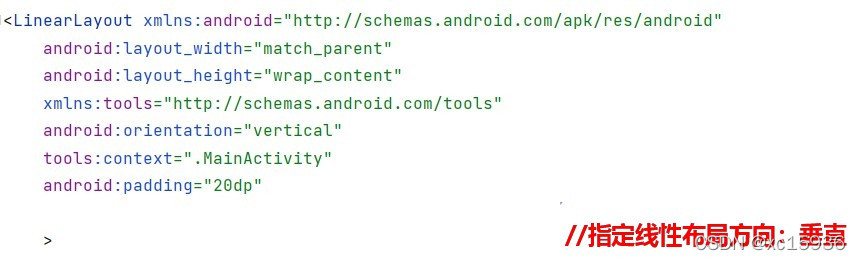

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="wrap_content"
xmlns:tools="http://schemas.android.com/tools"
android:orientation="vertical"
tools:context=".MainActivity"
android:padding="20dp"
>

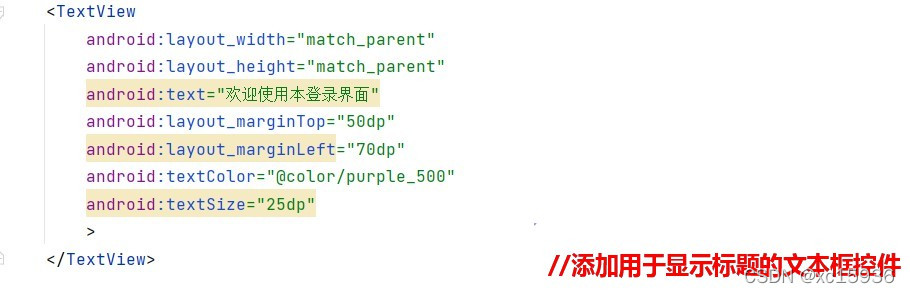

<TextView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:text="欢迎使用本登录界面"
android:layout_marginTop="50dp"
android:layout_marginLeft="70dp"
android:textColor="@color/purple_500"
android:textSize="25dp"
></TextView>

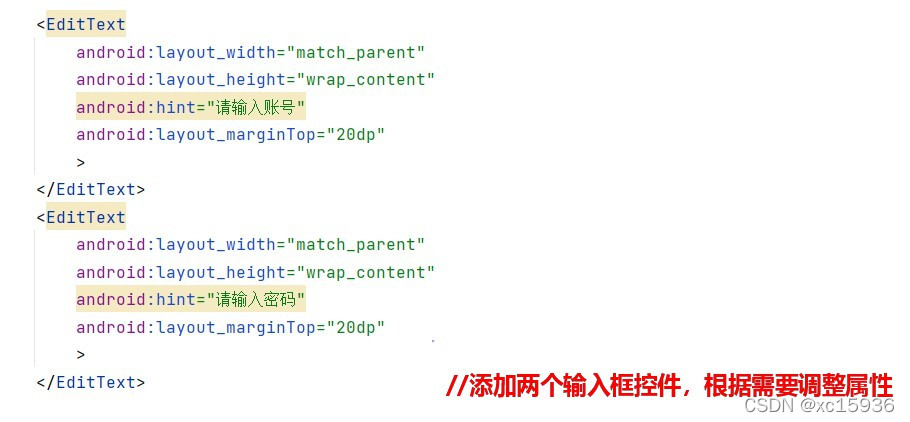

<EditText
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:hint="请输入账号"
android:layout_marginTop="20dp"
></EditText>
<EditText
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:hint="请输入密码"
android:layout_marginTop="20dp"
></EditText>

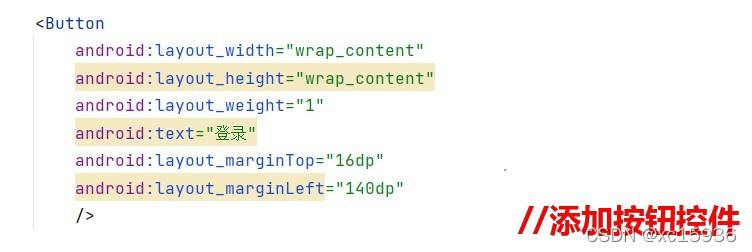

<Button
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="登录"
android:layout_marginTop="16dp"
android:layout_marginLeft="140dp"
/>

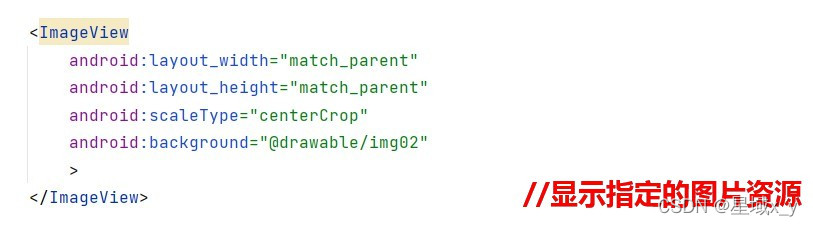

<ImageView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:scaleType="centerCrop"
android:background="@drawable/img02"
></ImageView>
</LinearLayout>
<!--orientation:横向/纵向-->
<!--默认情况为 horizontal 横向
此处布局使用 vertival:垂直/纵向-->
注意:要用到的图片放在自己选择的工程下(此处放在了 …/res/drawable 下)

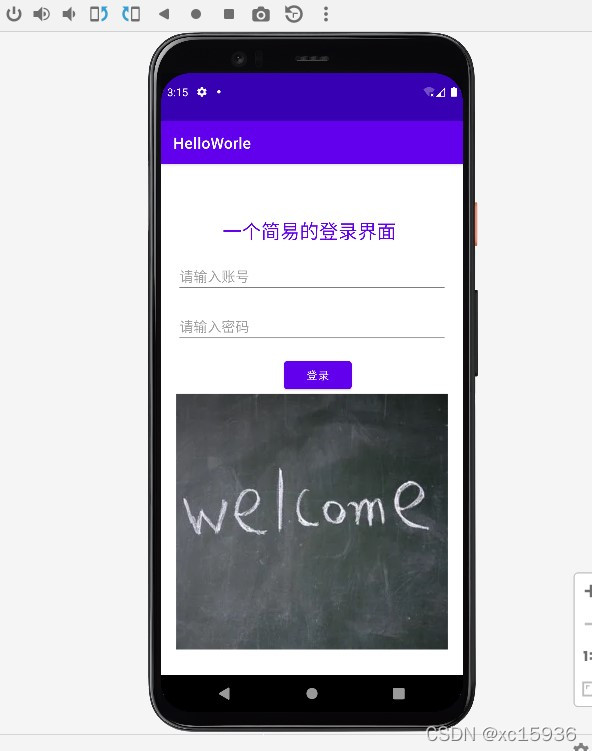

效果图
