Application初始化日志

15:23:12.790 [main] DEBUG o.s.core.env.StandardEnvironment - Adding [systemProperties] PropertySource with lowest search precedence
15:23:12.797 [main] DEBUG o.s.core.env.StandardEnvironment - Adding [systemEnvironment] PropertySource with lowest search precedence
15:23:12.797 [main] DEBUG o.s.core.env.StandardEnvironment - Initialized StandardEnvironment with PropertySources [systemProperties,systemEnvironment]
//初始化Environment
15:23:12.803 [main] INFO  o.s.c.s.ClassPathXmlApplicationContext - Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@480a6370: startup date [Mon Aug 25 15:23:12 CST 2014]; root of context hierarchy
15:23:12.861 [main] DEBUG o.s.core.env.StandardEnvironment - Adding [systemProperties] PropertySource with lowest search precedence
15:23:12.862 [main] DEBUG o.s.core.env.StandardEnvironment - Adding [systemEnvironment] PropertySource with lowest search precedence
15:23:12.862 [main] DEBUG o.s.core.env.StandardEnvironment - Initialized StandardEnvironment with PropertySources [systemProperties,systemEnvironment]
//读取XML
15:23:12.880 [main] INFO  o.s.b.f.xml.XmlBeanDefinitionReader - Loading XML bean definitions from class path resource [simpleContext.xml]
15:23:12.885 [main] DEBUG o.s.b.f.xml.DefaultDocumentLoader - Using JAXP provider [com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl]
15:23:12.928 [main] DEBUG o.s.b.factory.xml.BeansDtdResolver - Found beans DTD [http://www.springframework.org/dtd/spring-beans-2.0.dtd] in classpath: spring-beans-2.0.dtd
//读取BeanDefinition
15:23:12.953 [main] DEBUG o.s.b.f.x.DefaultBeanDefinitionDocumentReader - Loading bean definitions
//解析XML
15:23:12.971 [main] DEBUG o.s.b.f.x.BeanDefinitionParserDelegate - No XML 'id' specified - using 'simpleBean' as bean name and [] as aliases
15:23:12.986 [main] DEBUG o.s.b.f.x.BeanDefinitionParserDelegate - No XML 'id' specified - using 'anotherBean' as bean name and [] as aliases
15:23:12.986 [main] DEBUG o.s.b.f.xml.XmlBeanDefinitionReader - Loaded 3 bean definitions from location pattern [simpleContext.xml]
//将获取到的BeanDefined设置到BeanFactory中
15:23:12.987 [main] DEBUG o.s.c.s.ClassPathXmlApplicationContext - Bean factory for org.springframework.context.support.ClassPathXmlApplicationContext@480a6370: org.springframework.beans.factory.support.DefaultListableBeanFactory@74bdaaa: defining beans [simpleBean,property,anotherBean]; root of factory hierarchy
//初始化MessageSource，I18N中使用
15:23:13.025 [main] DEBUG o.s.c.s.ClassPathXmlApplicationContext - Unable to locate MessageSource with name 'messageSource': using default [org.springframework.context.support.DelegatingMessageSource@6f526c5f]
//application事件中心
15:23:13.029 [main] DEBUG o.s.c.s.ClassPathXmlApplicationContext - Unable to locate ApplicationEventMulticaster with name 'applicationEventMulticaster': using default [org.springframework.context.event.SimpleApplicationEventMulticaster@5629fbc9]

一些bean的初始化

一个简单的bean，里面有个属性property,以及test方法和需要进行属性注入的setProperty

/**
 * 基本的bean方便测试
 * Created by zhangya on 2014/8/13.
 */
public class SimpleBean
{
	private static final Logger LOGGER = LoggerFactory.getLogger(SimpleBean.class);
	private SimpleBeanProperty property;

	/**
	 * 简单测试方法
	 */
	public void test()
	{
		LOGGER.info("SimpleBean is loading.");
		property.propertyTest();
	}

	/**
	 * 设置属性 property
	 * <p>记录日志
	 * @param property
	 */
	public void setProperty(SimpleBeanProperty property)
	{
		LOGGER.info("Property is setting.");
		this.property = property;
	}
}

作为属性赋值的bean，里面包含初始化方法

/**
 * 作为属性初始化的bean
 * Created by zhangya on 2014/8/13.
 */
public class SimpleBeanProperty
{
	private static final Logger LOGGER = LoggerFactory.getLogger(SimpleBeanProperty.class);
	private String simpleVariable = "test567";
	public SimpleBeanProperty()
	{
		LOGGER.info("SimpleBeanProperty is loading.");
	}

	/**
	 * property的test方法
	 */
	public void propertyTest()
	{
		LOGGER.info("propertyTest method is invoking.{}",this);
	}

	/**
	 * 设置变量
	 * @param simpleVariable
	 */
	public void setSimpleVariable(String simpleVariable)
	{
		this.simpleVariable = simpleVariable;
	}

	/**
	 * 获取变量的值
	 * @return 变量的值
	 */
	public String getSimpleVariable()
	{
		return simpleVariable;
	}

	@Override
	public String toString()
	{
		return "SimpleBeanProperty{" +
				"simpleVariable='" + simpleVariable + '\'' +
				'}';
	}
}

另外一个

/**
 * 用于初始化的另外一个bean
 * @author zhangya
 * @category com.letume.spring.study.init
 * @since 2014/8/24
 */
public class SimpleAnotherBean
{
	private static final Logger LOGGER = LoggerFactory.getLogger(SimpleBeanProperty.class);
	private String simpleVariable = "test123";

	public SimpleAnotherBean()
	{
		LOGGER.info("SimpleAnotherBean is loading.");
	}

	/**
	 * property的test方法
	 */
	public void test()
	{
		LOGGER.info("test method is invoking.{}",this);
	}

	/**
	 * 设置变量
	 * @param simpleVariable
	 */
	public void setSimpleVariable(String simpleVariable)
	{
		this.simpleVariable = simpleVariable;
	}

	@Override
	public String toString()
	{
		return "SimpleAnotherBean{" +
				"simpleVariable='" + simpleVariable + '\'' +
				'}';
	}
}

simpleContext.xml applicationContext的配置文件，这里使用xml形式对bean进行配置

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN 2.0//EN"
        "http://www.springframework.org/dtd/spring-beans-2.0.dtd">
<beans>
    <bean name="simpleBean"
          class="com.letume.spring.study.init.SimpleBean">
        <property name="property"><ref local="property"/> </property>
    </bean>
    <bean id="property" name="property"
          class="com.letume.spring.study.init.SimpleBeanProperty" scope="prototype"/>
    <bean name="anotherBean"
          class="com.letume.spring.study.init.SimpleAnotherBean" scope="prototype"/>
</beans>

下面是main函数，

例1 普通的bean初始化调用过程

/**
 * 简单的spring类加载的方法
 * <pre>
 * ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(PATH+RESOURCE_CONTEXT);
 * SimpleBean simpleBean = context.getBean(SimpleBean.class)
 * simpleLoaderSimpleBean.test();
 * </pre>
 * Created by mitchz on 2014/8/13.
 */
public class SimpleInit
{

	private static final String PATH = "";
	private static final String RESOURCE_CONTEXT = "simpleContext.xml";

	public static void main(String[] args) throws InterruptedException
	{
		ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(
				PATH + RESOURCE_CONTEXT);
		//获取simpleBean
		SimpleBean simpleBean = context
				.getBean("simpleBean", SimpleBean.class);
		simpleBean.test();
		//context.registerShutdownHook();
	}
}

看下日志：

---执行单例的初始化（为什么会使用单例）
14:36:48.766 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Pre-instantiating singletons in org.springframework.beans.factory.support.DefaultListableBeanFactory@29d8a2c5: defining beans [simpleBean,property,anotherBean]; root of factory hierarchy
14:36:48.767 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Creating shared instance of singleton bean 'simpleBean'
---创建bean实例
14:36:48.767 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Creating instance of bean 'simpleBean'
14:36:48.786 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Eagerly caching bean 'simpleBean' to allow for resolving potential circular references
---创建属性的实例
14:36:48.799 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Creating instance of bean 'property'
14:36:48.799 [main] INFO  c.l.s.study.init.SimpleBeanProperty - SimpleBeanProperty is loading.
14:36:48.799 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Finished creating instance of bean 'property'
---赋值
14:36:48.838 [main] INFO  c.l.spring.study.init.SimpleBean - Property is setting.
14:36:48.840 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Finished creating instance of bean 'simpleBean'


....


---getBean的方法执行时，则直接从cache中取，之前初始化的实例
14:36:48.847 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Returning cached instance of singleton bean 'simpleBean'
14:36:48.847 [main] INFO  c.l.spring.study.init.SimpleBean - SimpleBean is loading.SimpleBean{property=SimpleBeanProperty{simpleVariable='test567'}}
14:36:48.849 [main] INFO  c.l.s.study.init.SimpleBeanProperty - propertyTest method is invoking.SimpleBeanProperty{simpleVariable='test567'}

从日志中可以看出bean在没有设置scope的时候，默认值为 singletone的。另外即使属性类是 protetype的时候，也会在父bean初始化将其填充。不会在调用父bean的时候，重新初始化属性所关联的bean。详细见例2

例2，在执行过程中，增加属性修改，咱们再来执行下看看

		//修改property bean实例中的变量simpleVariable
		simpleBean.getProperty().setSimpleVariable("aaaaa");
		//重新获取simpleBean实例
		simpleBean = context
				.getBean("simpleBean", SimpleBean.class);
		//再次执行test方法
		simpleBean.test();

看下新增的日志：

15:14:58.447 [main] INFO  c.l.spring.study.init.SimpleBean - SimpleBean is loading.SimpleBean{property=SimpleBeanProperty{simpleVariable='aaaaa'}}
15:14:58.447 [main] INFO  c.l.s.study.init.SimpleBeanProperty - propertyTest method is invoking.SimpleBeanProperty{simpleVariable='aaaaa'}

看来咱们之前的猜测是对的，

第一、bean的scope默认为SingleTone的

第二、bean的lazyInit为false的

第三、即使属性为prototype也不会再父bean为SingleTone的时重新初始化

例3、再增加两行

		//获取property实例
		SimpleBeanProperty property = context
				.getBean("property", SimpleBeanProperty.class);
		//测试propertyTest方法
		property.propertyTest();

再看下执行后新增的日志：

15:19:10.331 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Creating instance of bean 'property'
15:19:10.331 [main] INFO  c.l.s.study.init.SimpleBeanProperty - SimpleBeanProperty is loading.
15:19:10.331 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Finished creating instance of bean 'property'
15:19:10.331 [main] INFO  c.l.s.study.init.SimpleBeanProperty - propertyTest method is invoking.SimpleBeanProperty{simpleVariable='test567'}

由于property的bean由于是prototype的，所以被重新初始化了。

例4、再增加四行：

		//获取anotherBean实例
		SimpleAnotherBean anotherBean = context
				.getBean("anotherBean", SimpleAnotherBean.class);
		anotherBean.test();
		//设置变量的值
		anotherBean.setSimpleVariable("bbbbb");
		//重新获取anotherBean实例
		anotherBean = context
				.getBean("anotherBean", SimpleAnotherBean.class);
		anotherBean.test();

大家在看下执行日志：

15:23:13.130 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Creating instance of bean 'anotherBean'
15:23:13.130 [main] INFO  c.l.s.study.init.SimpleBeanProperty - SimpleAnotherBean is loading.
15:23:13.130 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Finished creating instance of bean 'anotherBean'
15:23:13.130 [main] INFO  c.l.s.study.init.SimpleBeanProperty - test method is invoking.SimpleAnotherBean{simpleVariable='test123'}
15:23:13.131 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Creating instance of bean 'anotherBean'
15:23:13.131 [main] INFO  c.l.s.study.init.SimpleBeanProperty - SimpleAnotherBean is loading.
15:23:13.131 [main] DEBUG o.s.b.f.s.DefaultListableBeanFactory - Finished creating instance of bean 'anotherBean'
15:23:13.131 [main] INFO  c.l.s.study.init.SimpleBeanProperty - test method is invoking.SimpleAnotherBean{simpleVariable='test123'}

bean为prototype的时候，每次都会被新初始化的

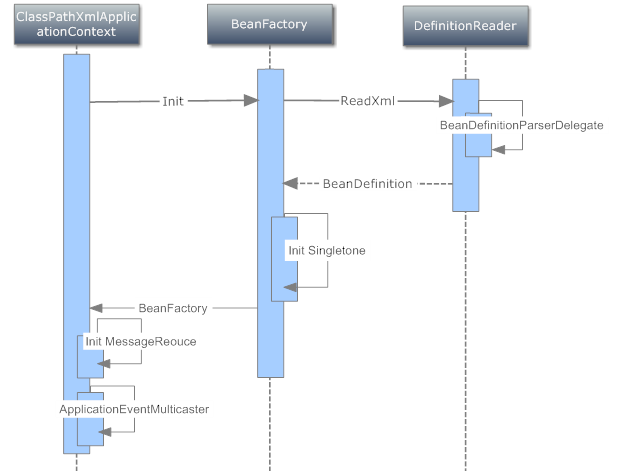

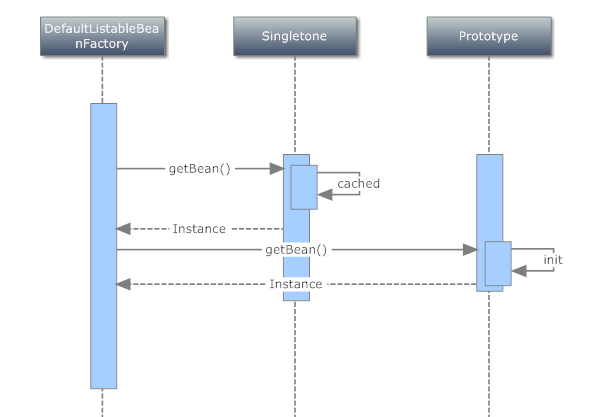

通过日志的内容，梳理一下大概初始化逻辑

可以看出主要针对beans context 还有core包。

具体怎么相互协作的，下一篇会进一步介绍。
