Redis为了节约内存空间使用,zset和hash容器对象在元素个数少的时候采用压缩列表(ziplist)进行存储。压缩列表是一块连续的内存空间,元素之间紧挨着存储,没有任何冗余空间
> zadd programmings 1.0 go 2.0 python 3.0 java
(integer) 3
> debug object programmings
Value at:0x7fec2de00020 refcount:1 encoding:ziplist serializedlength:36 lru:6022374 lru_seconds_idle:6
> hmset books go fast python slow java fast
OK
> debug object books
Value at:0x7fec2de000c0 refcount:1 encoding:ziplist serializedlength:48 lru:6022478 lru_seconds_idle:1
debug object输出的encoding为ziplist,这表示内部采用压缩列表的形式进行存储

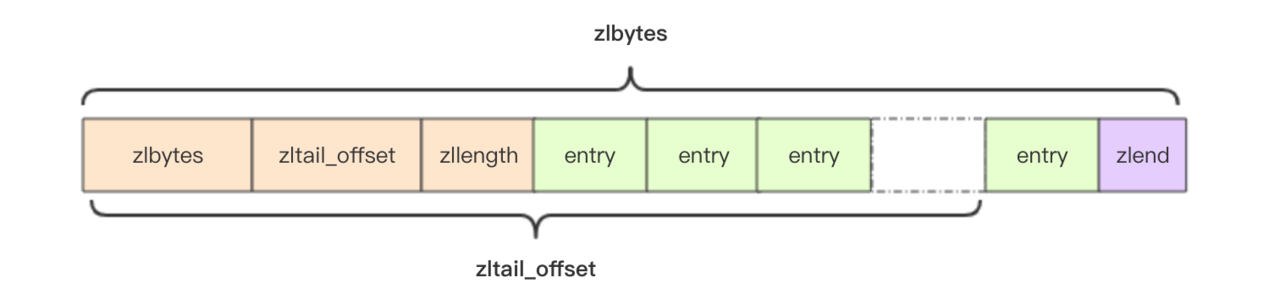

压缩列表内部结构
struct ziplist<T> {
int32 zlbytes; // 整个压缩列表占用字节数
int32 zltail_offset; // 最后一个元素距离压缩列表起始位置的偏移量,用于快速定位到最后一个节点
int16 zllength; // 元素个数
T[] entries; // 元素内容列表,挨个挨个紧凑存储
int8 zlend; // 标志压缩列表的结束,值恒为 0xFF
}
//entry块随着容纳的元素不同会有不一样的结构
struct entry {
int<var> prevlen; // 前一个 entry 的字节长度
int<var> encoding; // 元素类型编码
optional byte[] content; // 元素内容
}
1、压缩列表为了支持双向遍历,才会有ztail_offset用来定位到最后一个元素,然后倒序遍历
2、entry块随着容纳元素类型的不同也会有不一样的结构,prevlen字段表示签一个entry的字节长度,当压缩列表倒着遍历时需要通过这个字段快速定位到下一个元素的位置。这是一个变长的整数,当字符串小于254(0xFE)时使用一个字节表示,如果达到或者超出254(0xFE)就使用5个字节来表示,剩余四个字节表示字符串长度
3、encoding字段存储了内容的编码类型信息,ziplist通过这个字段来决定后面content内容的形式
encoding前缀具体内容及其含义
1、00xxxxxx 最大长度位 63 的短字符串,后面的 6 个位存储字符串的位数,剩余的字节就是字符串的内容
2、01xxxxxx xxxxxxxx 中等长度的字符串,后面 14 个位来表示字符串的长度,剩余的字节就是字符串的内容
3、10000000 aaaaaaaa bbbbbbbb cccccccc dddddddd 特大字符串,需要使用额外 4 个字节来表示长度;第一个字节前缀是10,剩余 6 位没有使用,统一置为零。后面跟着字符串内容。不过这样的大字符串是没有机会使用的,压缩列表通常只是用来存储小数据的
4、11000000 表示 int16,后跟两个字节表示整数
5、11010000 表示 int32,后跟四个字节表示整数
6、11100000 表示 int64,后跟八个字节表示整数
7、11110000 表示 int24,后跟三个字节表示整数
8、11111110 表示 int8,后跟一个字节表示整数
9、11111111 表示 ziplist 的结束,也就是 zlend 的值 0xFF
10、1111xxxx 表示极小整数,xxxx 的范围只能是 (0001~1101), 也就是1~13,因为0000、1110、1111都被占用了。读取到的 value 需要将 xxxx 减 1,也就是整数0~12就是最终的 value
4、entry中content字段定义为optional类型,表示这个字段是可选的,对于很小的整数而言,整数的内容已经内联到encoding字段的尾部了
增加元素
ziplist是紧凑型存储没有冗余空间,意味着插入一个新的元素就需要调用realloc扩展内存;取决于内存分配器算法和当前ziplist内存大小,realloc可能会重新分配新的内存空间并将之前的内容一次性拷贝到新的地址,也可能在原有地址上进行扩展,这时就不需要进行旧内容的内存拷贝;如果ziplist占据内存太大,重新分配内存和拷贝内存就会有很大的消耗;所以ziplist不适合存储大型字符串,存储的元素也不宜过多
级联更新
/* When an entry is inserted, we need to set the prevlen field of the next
* entry to equal the length of the inserted entry. It can occur that this
* length cannot be encoded in 1 byte and the next entry needs to be grow
* a bit larger to hold the 5-byte encoded prevlen. This can be done for free,
* because this only happens when an entry is already being inserted (which
* causes a realloc and memmove). However, encoding the prevlen may require
* that this entry is grown as well. This effect may cascade throughout
* the ziplist when there are consecutive entries with a size close to
* ZIP_BIG_PREVLEN, so we need to check that the prevlen can be encoded in
* every consecutive entry.
*
* Note that this effect can also happen in reverse, where the bytes required
* to encode the prevlen field can shrink. This effect is deliberately ignored,
* because it can cause a "flapping" effect where a chain prevlen fields is
* first grown and then shrunk again after consecutive inserts. Rather, the
* field is allowed to stay larger than necessary, because a large prevlen
* field implies the ziplist is holding large entries anyway.
*
* The pointer "p" points to the first entry that does NOT need to be
* updated, i.e. consecutive fields MAY need an update. */
unsigned char *__ziplistCascadeUpdate(unsigned char *zl, unsigned char *p) {
size_t curlen = intrev32ifbe(ZIPLIST_BYTES(zl)), rawlen, rawlensize;
size_t offset, noffset, extra;
unsigned char *np;
zlentry cur, next;
while (p[0] != ZIP_END) {
zipEntry(p, &cur);
rawlen = cur.headersize + cur.len;
rawlensize = zipStorePrevEntryLength(NULL,rawlen);
/* Abort if there is no next entry. */
if (p[rawlen] == ZIP_END) break;
zipEntry(p+rawlen, &next);
/* Abort when "prevlen" has not changed. */
// prevlen 的长度没有变,中断级联更新
if (next.prevrawlen == rawlen) break;
if (next.prevrawlensize < rawlensize) {
/* The "prevlen" field of "next" needs more bytes to hold
* the raw length of "cur". */
// 级联扩展
offset = p-zl;
extra = rawlensize-next.prevrawlensize;
// 扩大内存
zl = ziplistResize(zl,curlen+extra);
p = zl+offset;
/* Current pointer and offset for next element. */
np = p+rawlen;
noffset = np-zl;
/* Update tail offset when next element is not the tail element. */
// 更新 zltail_offset 指针
if ((zl+intrev32ifbe(ZIPLIST_TAIL_OFFSET(zl))) != np) {
ZIPLIST_TAIL_OFFSET(zl) = intrev32ifbe(intrev32ifbe(ZIPLIST_TAIL_OFFSET(zl))+extra);
}
/* Move the tail to the back. */
// 移动内存
memmove(np+rawlensize,
np+next.prevrawlensize,
curlen-noffset-next.prevrawlensize-1);
zipStorePrevEntryLength(np,rawlen);
/* Advance the cursor */
p += rawlen;
curlen += extra;
} else {
if (next.prevrawlensize > rawlensize) {
/* This would result in shrinking, which we want to avoid.
* So, set "rawlen" in the available bytes. */
// 级联收缩,不过这里可以不用收缩了,因为 5 个字节也是可以存储 1 个字节的内容的
// 虽然有点浪费,但是级联更新实在是太可怕了,所以浪费就浪费吧
zipStorePrevEntryLengthLarge(p+rawlen,rawlen);
} else {
// 大小没变,改个长度值就完事了
zipStorePrevEntryLength(p+rawlen,rawlen);
}
/* Stop here, as the raw length of "next" has not changed. */
break;
}
}
return zl;
}
每个entry都会用一个prevlen字段存储前一个entry的长度,如果内容小于254字节prevlen用1字节存储,否则就是5字节;如果某个entry经过了修改操作从253字节变成了254字节,那么它的下一个entry的prevlen字段就要更新,从1个字节扩展到5个字节;如果这个entry的长度本来也是253字节,那么后面entry的prevlen字段还得继续更新;ziplist的每个entry存储了253字节的内容,那么第一个entry内容的扩大会导致后续所有entry的级联更新,同时删除中间的某个节点也可能会导致级联更新,这是一个比较耗费计算资源的操作
IntSet小整数集合
struct intset<T> {
int32 encoding; // 决定整数位宽是 16 位、32 位还是 64 位
int32 length; // 元素个数
int<T> contents; // 整数数组,可以是 16 位、32 位和 64 位
}
当set集合容纳的元素都是证书并且元素个数较小时,Redis会使用intset来存储结合元素;intset是紧凑的数组结构,同时支持16位、32位、64位整数
> sadd codehole 1 2 3
(integer) 3
> debug object codehole
Value at:0x7fec2dc2bde0 refcount:1 encoding:intset serializedlength:15 lru:6065795 lru_seconds_idle:4
> sadd codehole go java python
(integer) 3
> debug object codehole
Value at:0x7fec2dc2bde0 refcount:1 encoding:hashtable serializedlength:22 lru:6065810 lru_seconds_idle:5
debug object中的encoding字段,当set里面全是整数值且数量较少较小时,encoding的值是intset;当set里面放进去了非整数值时,encoding存储形式立即从intset转变成了hash结构
