在上一章，我们跟踪了Producer源码的整体流程和一些细节，本章我们将重点跟踪Consumer的源码细节。

Consumer的配置文件如下：

Html代码

Kafka Consumer配置:
group.id: 指定consumer所属的consumer group
consumer.id: 如果不指定会自动生成
socket.timeout.ms：网络请求的超时设定
socket.receive.buffer.bytes： Socket的接收缓存大小
fetch.message.max.bytes：试图获取的消息大小之和(bytes)
num.consumer.fetchers：该消费去获取data的总线程数
auto.commit.enable: 如果是true, 定期向zk中更新Consumer已经获取的last message offset(所获取的最后一个batch的first message offset)
auto.commit.interval.ms： Consumer向ZK中更新offset的时间间隔
queued.max.message.chunks：默认为2
rebalance.max.retries: 在rebalance时retry的最大次数，默认为4
fetch.min.bytes：对于一个fetch request, Broker Server应该返回的最小数据大小，达不到该值request会被block, 默认是1字节。
fetch.wait.max.ms: Server在回答一个fetch request之前能block的最大时间（可能的block原因是返回数据大小还没达到fetch.min.bytes规定）；
rebalance.backoff.ms：当rebalance发生时，两个相邻retry操作之间需要间隔的时间。
refresh.leader.backoff.ms：如果一个Consumer发现一个partition暂时没有leader, 那么Consumer会继续等待的最大时间窗口（这段时间内会 refresh partition leader);
auto.offset.reset：当发现offset超出合理范围（out of range)时，应该设成的大小（默认是设成offsetRequest中指定的值）：
smallest: 自动把该consumer的offset设为最小的offset；
largest: 自动把该consumer的offset设为最大的offset；
anything else: throw exception to the consumer；
consumer.timeout.ms：如果在该规定时间内没有消息可供消费，则向Consumer抛出timeout exception；
该参数默认为-1，即不指定Consumer timeout；
client.id：区分不同consumer的ID，默认是group.id

先从一个消费者的demo开始：

Java代码

public class ConsumerDemo {
private final ConsumerConnector consumer;
private final String topic;
private ExecutorService executor;
public ConsumerDemo(String a_zookeeper, String a_groupId, String a_topic) {
consumer = Consumer.createJavaConsumerConnector(createConsumerConfig(a_zookeeper,a_groupId));
this.topic = a_topic;
}
public void shutdown() {
if (consumer != null)
consumer.shutdown();
if (executor != null)
executor.shutdown();
}
public void run(int numThreads) {
Map<String, Integer> topicCountMap = new HashMap<String, Integer>();
topicCountMap.put(topic, new Integer(numThreads));
Map<String, List<KafkaStream<byte[], byte[]>>> consumerMap = consumer
.createMessageStreams(topicCountMap);
List<KafkaStream<byte[], byte[]>> streams = consumerMap.get(topic);
// now launch all the threads
executor = Executors.newFixedThreadPool(numThreads);
// now create an object to consume the messages
//
int threadNumber = 0;
for (final KafkaStream stream : streams) {
executor.submit(new ConsumerMsgTask(stream, threadNumber));
threadNumber++;
}
}
private static ConsumerConfig createConsumerConfig(String a_zookeeper,
String a_groupId) {
Properties props = new Properties();
props.put("zookeeper.connect", a_zookeeper);
props.put("group.id", a_groupId);
props.put("zookeeper.session.timeout.ms", "400");
props.put("zookeeper.sync.time.ms", "200");
props.put("auto.commit.interval.ms", "1000");
return new ConsumerConfig(props);
}
public static void main(String[] arg) {
String[] args = { "172.168.63.221:2188", "group-1", "page_visits", "12" };
String zooKeeper = args[0];
String groupId = args[1];
String topic = args[2];
int threads = Integer.parseInt(args[3]);
ConsumerDemo demo = new ConsumerDemo(zooKeeper, groupId, topic);
demo.run(threads);
try {
Thread.sleep(10000);
} catch (InterruptedException ie) {
}
demo.shutdown();
}
}

上面的例子是用java编写的消费者的例子，也是官网提供的例子，那么我们的源码分析就从下面这一行开始：

Java代码

Map<String, List<KafkaStream<byte[], byte[]>>> consumerMap = consumer
.createMessageStreams(topicCountMap);

从createMessagesStreams方法进入后直接到kafka.javaapi.consumer.ZookeeperConsumerConnector类。

Java代码

private[kafka] class ZookeeperConsumerConnector(val config: ConsumerConfig,
val enableFetcher: Boolean) // for testing only
extends ConsumerConnector {
//初始化伴生对象
private val underlying = new kafka.consumer.ZookeeperConsumerConnector(config, enableFetcher)
private val messageStreamCreated = new AtomicBoolean(false)
def this(config: ConsumerConfig) = this(config, true)
// for java client
def createMessageStreams[K,V](
topicCountMap: java.util.Map[String,java.lang.Integer],
keyDecoder: Decoder[K],
valueDecoder: Decoder[V])
: java.util.Map[String,java.util.List[KafkaStream[K,V]]] = {
if (messageStreamCreated.getAndSet(true))
throw new MessageStreamsExistException(this.getClass.getSimpleName +
" can create message streams at most once",null)
val scalaTopicCountMap: Map[String, Int] = {
import JavaConversions._
Map.empty[String, Int] ++ (topicCountMap.asInstanceOf[java.util.Map[String, Int]]: mutable.Map[String, Int])
}
val scalaReturn = underlying.consume(scalaTopicCountMap, keyDecoder, valueDecoder)
val ret = new java.util.HashMap[String,java.util.List[KafkaStream[K,V]]]
for ((topic, streams) <- scalaReturn) {
var javaStreamList = new java.util.ArrayList[KafkaStream[K,V]]
for (stream <- streams)
javaStreamList.add(stream)
ret.put(topic, javaStreamList)
}
ret
}

这个类是整体Consumer的核心类，首先要初始化 ZookeeperConsumerConnector的伴生对象（关于伴生对象请大家查看scala语法，实际就是一个静态对象，每一个class都要有一个伴生对象，像我们的静态方法都要定义在这里面），在createMessageStreams中，topicCountMap主要是消费线程数，这个参数和partition的数量有直接有关系。

通过val scalaReturn = underlying.consume(scalaTopicCountMap, keyDecoder, valueDecoder)这行代码，将进入到伴生对象中，直接可以跟踪消费的内部逻辑。

Java代码

def consume[K, V](topicCountMap: scala.collection.Map[String,Int], keyDecoder: Decoder[K], valueDecoder: Decoder[V])
: Map[String,List[KafkaStream[K,V]]] = {
debug("entering consume ")
if (topicCountMap == null)
throw new RuntimeException("topicCountMap is null")
//封装成一个TopicCount对象，参数分别是消费者的ids字符串和线程数map
val topicCount = TopicCount.constructTopicCount(consumerIdString, topicCountMap)
//解析出每个topic对应多少个消费者线程，topicThreadsIds是一个map结构
val topicThreadIds = topicCount.getConsumerThreadIdsPerTopic
//针对每一个消费者线程创建一个BlockingQueue队列，队列中存储的是FetchedDataChunk数据块，每一个数据块中包括多条记录。
val queuesAndStreams = topicThreadIds.values.map(threadIdSet =>
threadIdSet.map(_ => {
val queue = new LinkedBlockingQueue[FetchedDataChunk](config.queuedMaxMessages)
val stream = new KafkaStream[K,V](
queue, config.consumerTimeoutMs, keyDecoder, valueDecoder, config.clientId)
(queue, stream)
})
).flatten.toList
val dirs = new ZKGroupDirs(config.groupId)
//将consumer的topic信息注册到zookeeper中，格式如下：
//Consumer id registry:/consumers/[group_id]/ids[consumer_id] -> topic1,...topicN
registerConsumerInZK(dirs, consumerIdString, topicCount)
reinitializeConsumer(topicCount, queuesAndStreams)
loadBalancerListener.kafkaMessageAndMetadataStreams.asInstanceOf[Map[String, List[KafkaStream[K,V]]]]
}

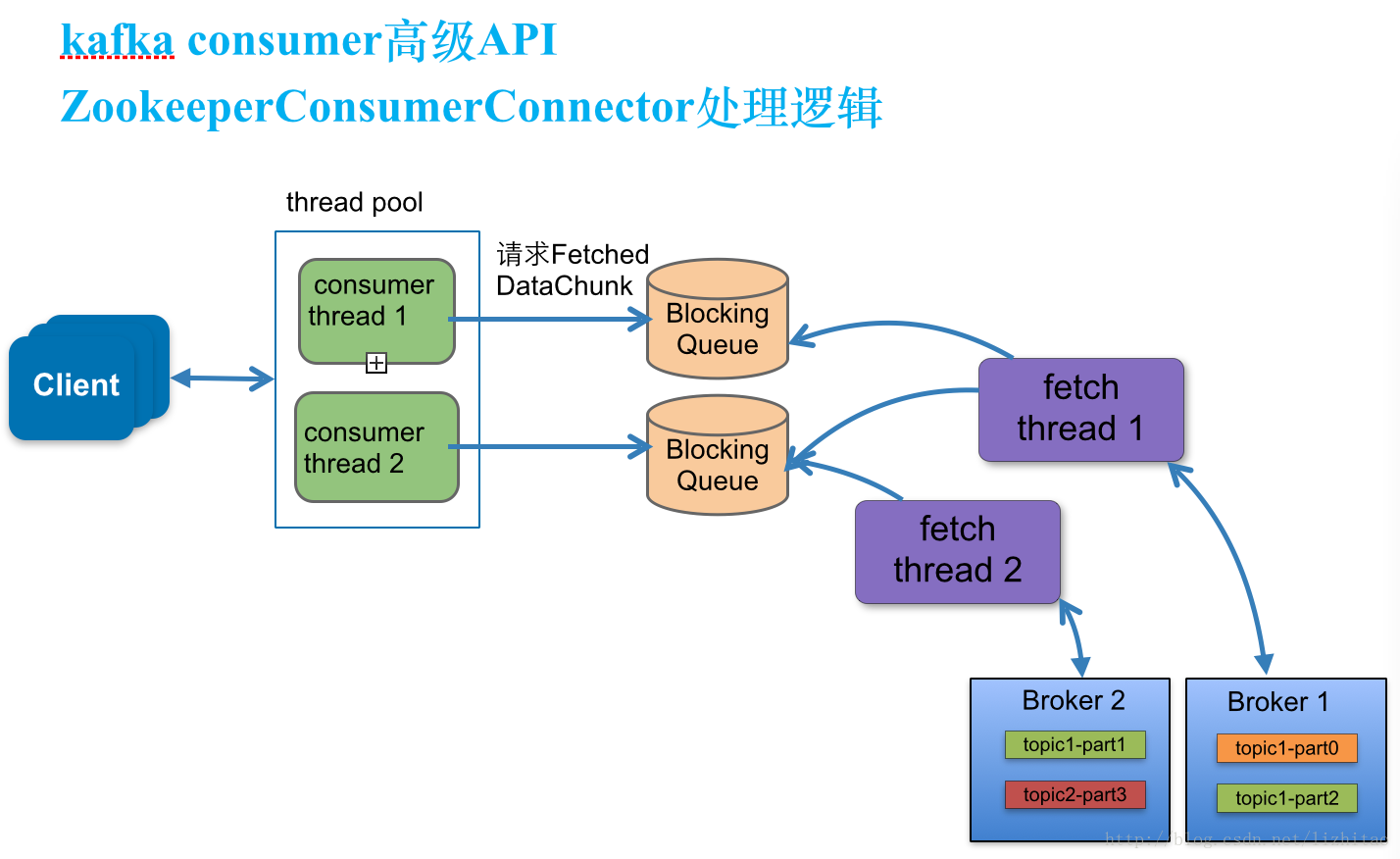

结合代码中的注释请看下面的图：

说明：

创建consumer thread

consumer thread数量与BlockingQueue一一对应。

a.当consumer thread count=1时

此时有一个blockingQueue1，三个fetch thread线程，该topic分布在几个node上就有几个fetch thread，每个fetch thread会于kafka broker建立一个连接。3个fetch thread线程去拉取消息数据，最终放到blockingQueue1中，等待consumer thread来消费。

接着看上面代码中的这个方法：

Java代码

registerConsumerInZK(dirs, consumerIdString, topicCount)

这个方法是将consumer的topic信息注册到zookeeper中，格式如下：

Consumer id registry:

/consumers/[group_id]/ids[consumer_id] -> topic1,...topicN

进入重新初始化Consumer方法：

Java代码

registerConsumerInZK(dirs, consumerIdString, topicCount)

这个方法会建立一系列的侦听器：

1、负载平衡器侦听器：ZKRebalancerListener。

2、会话超时侦听器：ZKSessionExpireListener。

3、监控topic和partition变化侦听器：ZKTopicPartitionChangeListener。

客户端启动后会在消费者注册目录上添加子节点变化的监听ZKRebalancerListener，ZKRebalancerListener实例会在内部创建一个线程，这个线程定时检查监听的事件有没有执行（消费者发生变化）,如果没有变化则wait1秒钟，当发生了变化就调用 syncedRebalance 方法，去rebalance消费者，代码如下：

Java代码

private val watcherExecutorThread = new Thread(consumerIdString + "_watcher_executor") {
override def run() {
info("starting watcher executor thread for consumer " + consumerIdString)
var doRebalance = false
while (!isShuttingDown.get) {
try {
lock.lock()
try {
if (!isWatcherTriggered)
cond.await(1000, TimeUnit.MILLISECONDS) // wake up periodically so that it can check the shutdown flag
} finally {
doRebalance = isWatcherTriggered
isWatcherTriggered = false
lock.unlock()
}
if (doRebalance)
syncedRebalance
} catch {
case t: Throwable => error("error during syncedRebalance", t)
}
}
info("stopping watcher executor thread for consumer " + consumerIdString)
}
}
watcherExecutorThread.start()
@throws(classOf[Exception])
def handleChildChange(parentPath : String, curChilds : java.util.List[String]) {
rebalanceEventTriggered()
}
def rebalanceEventTriggered() {
inLock(lock) {
isWatcherTriggered = true
cond.signalAll()
}
}

syncedRebalance方法在内部会调用def rebalance(cluster: Cluster): Boolean方法，去真正执行操作。

在这个方法中，获取者必须停止，避免重复的数据，重新平衡尝试失败，被释放的分区被另一个consumers拥有。如果我们不首先停止获取数据，消费者将继续并发的返回数据，所以要先停止之前的获取者，再更新当前的消费者信息，重新更新启动获取者。代码如下：

Java代码

private def rebalance(cluster: Cluster): Boolean = {
val myTopicThreadIdsMap = TopicCount.constructTopicCount(
group, consumerIdString, zkClient, config.excludeInternalTopics).getConsumerThreadIdsPerTopic
val brokers = getAllBrokersInCluster(zkClient)
if (brokers.size == 0) {
// This can happen in a rare case when there are no brokers available in the cluster when the consumer is started.
// We log an warning and register for child changes on brokers/id so that rebalance can be triggered when the brokers
// are up.
warn("no brokers found when trying to rebalance.")
zkClient.subscribeChildChanges(ZkUtils.BrokerIdsPath, loadBalancerListener)
true
}
else {
/**
* fetchers must be stopped to avoid data duplication, since if the current
* rebalancing attempt fails, the partitions that are released could be owned by another consumer.
* But if we don't stop the fetchers first, this consumer would continue returning data for released
* partitions in parallel. So, not stopping the fetchers leads to duplicate data.
*/
//在这行要先停止之前的获取者线程，再更新启动当前最新消费者的。
closeFetchers(cluster, kafkaMessageAndMetadataStreams, myTopicThreadIdsMap)
releasePartitionOwnership(topicRegistry)
val assignmentContext = new AssignmentContext(group, consumerIdString, config.excludeInternalTopics, zkClient)
val partitionOwnershipDecision = partitionAssignor.assign(assignmentContext)
val currentTopicRegistry = new Pool[String, Pool[Int, PartitionTopicInfo]](
valueFactory = Some((topic: String) => new Pool[Int, PartitionTopicInfo]))
// fetch current offsets for all topic-partitions
val topicPartitions = partitionOwnershipDecision.keySet.toSeq
val offsetFetchResponseOpt = fetchOffsets(topicPartitions)
if (isShuttingDown.get || !offsetFetchResponseOpt.isDefined)
false
else {
val offsetFetchResponse = offsetFetchResponseOpt.get
topicPartitions.foreach(topicAndPartition => {
val (topic, partition) = topicAndPartition.asTuple
val offset = offsetFetchResponse.requestInfo(topicAndPartition).offset
val threadId = partitionOwnershipDecision(topicAndPartition)
addPartitionTopicInfo(currentTopicRegistry, partition, topic, offset, threadId)
})
/**
* move the partition ownership here, since that can be used to indicate a truly successful rebalancing attempt
* A rebalancing attempt is completed successfully only after the fetchers have been started correctly
*/
if(reflectPartitionOwnershipDecision(partitionOwnershipDecision)) {
allTopicsOwnedPartitionsCount = partitionOwnershipDecision.size
partitionOwnershipDecision.view.groupBy { case(topicPartition, consumerThreadId) => topicPartition.topic }
.foreach { case (topic, partitionThreadPairs) =>
newGauge("OwnedPartitionsCount",
new Gauge[Int] {
def value() = partitionThreadPairs.size
},
ownedPartitionsCountMetricTags(topic))
}
topicRegistry = currentTopicRegistry
updateFetcher(cluster)
true
} else {
false
}
}
}
}

上面代码的流程图如下：

我们要了解Rebalance如何动作，看下updateFetcher怎么实现的。

Java代码

private def updateFetcher(cluster: Cluster) {
// 遍历topicRegistry中保存的当前消费者的分区信息，修改Fetcher的partitions信息
var allPartitionInfos : List[PartitionTopicInfo] = Nil
for (partitionInfos <- topicRegistry.values)
for (partition <- partitionInfos.values)
allPartitionInfos ::= partition
info("Consumer " + consumerIdString + " selected partitions : " +
allPartitionInfos.sortWith((s,t) => s.partition < t.partition).map(_.toString).mkString(","))
fetcher match {
case Some(f) =>
// 调用fetcher的startConnections方法，初始化Fetcher并启动它
f.startConnections(allPartitionInfos, cluster)
case None =>
}
}

注意下面这行代码：

Java代码

f.startConnections(allPartitionInfos, cluster)

在这个方法里面其实是启动了一个LeaderFinderThread线程的，这个线程主要是通过ClientUtils的io，获取最新的topic元数据，将topic：partitionLeaderId和brokerId对应起来，封装成Map结构。

Java代码

for ((brokerAndFetcherId, partitionAndOffsets) <- partitionsPerFetcher) {
var fetcherThread: AbstractFetcherThread = null
fetcherThreadMap.get(brokerAndFetcherId) match {
case Some(f) => fetcherThread = f
case None =>
fetcherThread = createFetcherThread(brokerAndFetcherId.fetcherId, brokerAndFetcherId.broker)
fetcherThreadMap.put(brokerAndFetcherId, fetcherThread)
fetcherThread.start
}
fetcherThreadMap(brokerAndFetcherId).addPartitions(partitionAndOffsets.map { case (topicAndPartition, brokerAndInitOffset) =>
topicAndPartition -> brokerAndInitOffset.initOffset
})
}

对每个broker创建一个FetcherRunnable线程，插入到fetcherThreadMap中并启动它。这个线程负责从服务器上不断获取数据，把数据插入内部阻塞队列的操作。

下面看一下ConsumerIterator的实现，客户端用它不断的从分区信息的内部队列中取数据。它实现了IteratorTemplate的接口，它的内部保存一个Iterator的属性current，每次调用 makeNext时会检查它，如果有则从中取否则从队列中取。下面给出代码

Java代码

protected def makeNext(): MessageAndMetadata[T] = {
var currentDataChunk: FetchedDataChunk = null
// if we don't have an iterator, get one，从内部变量中取数据
var localCurrent = current.get()
if(localCurrent == null || !localCurrent.hasNext) {
// 内部变量中取不到值，检查timeout的值
if (consumerTimeoutMs < 0)
currentDataChunk = channel.take // 是负数(-1)，则表示永不过期，如果接下来无新数据可取，客户端线程会在channel.take阻塞住
else {
// 设置了过期时间，在没有新数据可用时，pool会在相应的时间返回，返回值为空，则说明没有取到新数据，抛出timeout的异常
currentDataChunk = channel.poll(consumerTimeoutMs, TimeUnit.MILLISECONDS)
if (currentDataChunk == null) {
// reset state to make the iterator re-iterable
resetState()
throw new ConsumerTimeoutException
}
}
// kafka把shutdown的命令也做为一个datachunk放到队列中，用这种方法来保证消息的顺序性
if(currentDataChunk eq ZookeeperConsumerConnector.shutdownCommand) {
debug("Received the shutdown command")
channel.offer(currentDataChunk)
return allDone
} else {
currentTopicInfo = currentDataChunk.topicInfo
if (currentTopicInfo.getConsumeOffset != currentDataChunk.fetchOffset) {
error("consumed offset: %d doesn't match fetch offset: %d for %s;\n Consumer may lose data"
.format(currentTopicInfo.getConsumeOffset, currentDataChunk.fetchOffset, currentTopicInfo))
currentTopicInfo.resetConsumeOffset(currentDataChunk.fetchOffset)
}
// 把取出chunk中的消息转化为iterator
localCurrent = if (enableShallowIterator) currentDataChunk.messages.shallowIterator
else currentDataChunk.messages.iterator
// 使用这个新的iterator初始化current，下次可直接从current中取数据
current.set(localCurrent)
}
}
// 取出下一条数据，并用下一条数据的offset值设置consumedOffset
val item = localCurrent.next()
consumedOffset = item.offset
// 解码消息，封装消息和它的topic信息到MessageAndMetadata对象，返回
new MessageAndMetadata(decoder.toEvent(item.message), currentTopicInfo.topic)
}

下面看一下它的next方法的逻辑：

Java代码

override def next(): MessageAndMetadata[T] = {
val item = super.next()
if(consumedOffset < 0)
throw new IllegalStateException("Offset returned by the message set is invalid %d".format(consumedOffset))
// 使用makeNext方法设置的consumedOffset，去修改topicInfo的消费offset
currentTopicInfo.resetConsumeOffset(consumedOffset)
val topic = currentTopicInfo.topic
trace("Setting %s consumed offset to %d".format(topic, consumedOffset))
ConsumerTopicStat.getConsumerTopicStat(topic).recordMessagesPerTopic(1)
ConsumerTopicStat.getConsumerAllTopicStat().recordMessagesPerTopic(1)
// 返回makeNext得到的item
item
}

http://flychao88.iteye.com/blog/2268481

xiaomin_____

关注

0
点赞
踩
0

收藏

觉得还不错? 一键收藏
0
评论
跟我学Kafka源码之Consumer分析

在上一章，我们跟踪了Producer源码的整体流程和一些细节，本章我们将重点跟踪Consumer的源码细节。Consumer的配置文件如下：Html代码 Kafka Consumer配置: group.id: 指定consumer所属的consumer group consumer....
复制链接

扫一扫
