1 概要
1.1CFile(源码)
MFC提供了CFile类方便文件的读写,首先要知道,文件的数据读取、数据写入与文件指针的操作都是以字节为单位的,数据的读取和写入都是从文件指针的位置开始的,当打开一个文件的时候,文件指针总是在文件的开头。常规方法如下:
CFile file;
file.open( LPCTSTR lpszFileName, UINT nOpenFlags, CFileException* pError = NULL );
//lpszFileName是文件名,可包含文件路径,若只有文件名,则默认路径为工程路径,nOpenFlags是文件打开模式,pError是打开失败时用来接收失败信息,一般设置为NULL。
1.2 CArchive
当我们创建对象的时候,对象就存在于内存中,当其生命周期结束后,这些被创建的对象就要被销毁;当对象被销毁后,我们就无法知道这些对象的值。MFC提供了CArchive类可以将对象数据保存到永久设备,比如磁盘文件。当应用程序重新启动后,CArchive类可以帮助我们从磁盘文件读取这些数据,然后在内存中重新构建对应的对象;这样就使得我们的对象数据永久存在,该过程称之为序列化(或者串行化)。
2 代码
2.1 摘要
double g_data1 = 0.0;
double g_data2 = 0.0;
double g_data3 = 0.0;
int g_ndata = 0;
void CCFileTestDlg::OnButton1()
{
// TODO: Add your control notification handler code here
CString data1,data2,data3,data4;
CFile SetFile;
if(SetFile.Open(_T("setfujiandata.ini"),CFile::modeRead))
{
CArchive ar(&SetFile,CArchive::load);
try
{
ar >> data1;
ar >> data2;
ar >> data3;
ar >> data4;
}
catch(CArchiveException* e)
{
e->ReportError();
e->Delete();
ar.Close();
SetFile.Close();
}
ar.Close();
SetFile.Close();
g_data1 = atof(data1);
g_data2 = atof(data2);
g_data3 = atof(data3);
g_ndata = atoi(data4);
SetDlgItemText(IDC_EDIT1,data1);
SetDlgItemText(IDC_EDIT2,data2);
SetDlgItemText(IDC_EDIT3,data3);
SetDlgItemText(IDC_EDIT4,data4);
}
}
void CCFileTestDlg::OnButton2()
{
// TODO: Add your control notification handler code here
// TODO: 在此添加控件通知处理程序代码
CString data1,data2,data3,data4;
GetDlgItemText(IDC_EDIT1,data1);
GetDlgItemText(IDC_EDIT2,data2);
GetDlgItemText(IDC_EDIT3,data3);
GetDlgItemText(IDC_EDIT4,data4);
CFile SetFile;
if(SetFile.Open(_T("setfujiandata.ini"),CFile::modeCreate|CFile::modeWrite))
{
CArchive ar(&SetFile,CArchive::store);
try
{
ar << data1;
ar << data2;
ar << data3;
ar << data4;
}
catch(CArchiveException* e)
{
e->ReportError();
e->Delete();
ar.Close();
SetFile.Close();
}
g_data1 = atof(data1);
g_data2 = atof(data2);
g_data3 = atof(data3);
g_ndata = atof(data4);
ar.Close();
SetFile.Close();
//g_bSet = true;
MessageBox(_T("保存成功!"));
}
else
{
MessageBox(_T("保存失败!"));
}
}
void CCFileTestDlg::OnButton4()
{
// TODO: Add your control notification handler code here
SetDlgItemText(IDC_EDIT1,"");
SetDlgItemText(IDC_EDIT2,"");
SetDlgItemText(IDC_EDIT3,"");
SetDlgItemText(IDC_EDIT4,"");
}
2.2 代码
// CFileTestDlg.cpp : implementation file
//
#include "stdafx.h"
#include "CFileTest.h"
#include "CFileTestDlg.h"
#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif
/
// CAboutDlg dialog used for App About
class CAboutDlg : public CDialog
{
public:
CAboutDlg();
// Dialog Data
//{{AFX_DATA(CAboutDlg)
enum { IDD = IDD_ABOUTBOX };
//}}AFX_DATA
// ClassWizard generated virtual function overrides
//{{AFX_VIRTUAL(CAboutDlg)
protected:
virtual void DoDataExchange(CDataExchange* pDX); // DDX/DDV support
//}}AFX_VIRTUAL
// Implementation
protected:
//{{AFX_MSG(CAboutDlg)
//}}AFX_MSG
DECLARE_MESSAGE_MAP()
};
CAboutDlg::CAboutDlg() : CDialog(CAboutDlg::IDD)
{
//{{AFX_DATA_INIT(CAboutDlg)
//}}AFX_DATA_INIT
}
void CAboutDlg::DoDataExchange(CDataExchange* pDX)
{
CDialog::DoDataExchange(pDX);
//{{AFX_DATA_MAP(CAboutDlg)
//}}AFX_DATA_MAP
}
BEGIN_MESSAGE_MAP(CAboutDlg, CDialog)
//{{AFX_MSG_MAP(CAboutDlg)
// No message handlers
//}}AFX_MSG_MAP
END_MESSAGE_MAP()
/
// CCFileTestDlg dialog
CCFileTestDlg::CCFileTestDlg(CWnd* pParent /*=NULL*/)
: CDialog(CCFileTestDlg::IDD, pParent)
{
//{{AFX_DATA_INIT(CCFileTestDlg)
// NOTE: the ClassWizard will add member initialization here
//}}AFX_DATA_INIT
// Note that LoadIcon does not require a subsequent DestroyIcon in Win32
m_hIcon = AfxGetApp()->LoadIcon(IDR_MAINFRAME);
}
void CCFileTestDlg::DoDataExchange(CDataExchange* pDX)
{
CDialog::DoDataExchange(pDX);
//{{AFX_DATA_MAP(CCFileTestDlg)
// NOTE: the ClassWizard will add DDX and DDV calls here
//}}AFX_DATA_MAP
}
BEGIN_MESSAGE_MAP(CCFileTestDlg, CDialog)
//{{AFX_MSG_MAP(CCFileTestDlg)
ON_WM_SYSCOMMAND()
ON_WM_PAINT()
ON_WM_QUERYDRAGICON()
ON_BN_CLICKED(IDC_BUTTON1, OnButton1)
ON_BN_CLICKED(IDC_BUTTON2, OnButton2)
ON_BN_CLICKED(IDC_BUTTON4, OnButton4)
//}}AFX_MSG_MAP
END_MESSAGE_MAP()
/
// CCFileTestDlg message handlers
BOOL CCFileTestDlg::OnInitDialog()
{
CDialog::OnInitDialog();
// Add "About..." menu item to system menu.
// IDM_ABOUTBOX must be in the system command range.
ASSERT((IDM_ABOUTBOX & 0xFFF0) == IDM_ABOUTBOX);
ASSERT(IDM_ABOUTBOX < 0xF000);
CMenu* pSysMenu = GetSystemMenu(FALSE);
if (pSysMenu != NULL)
{
CString strAboutMenu;
strAboutMenu.LoadString(IDS_ABOUTBOX);
if (!strAboutMenu.IsEmpty())
{
pSysMenu->AppendMenu(MF_SEPARATOR);
pSysMenu->AppendMenu(MF_STRING, IDM_ABOUTBOX, strAboutMenu);
}
}
// Set the icon for this dialog. The framework does this automatically
// when the application's main window is not a dialog
SetIcon(m_hIcon, TRUE); // Set big icon
SetIcon(m_hIcon, FALSE); // Set small icon
// TODO: Add extra initialization here
return TRUE; // return TRUE unless you set the focus to a control
}
void CCFileTestDlg::OnSysCommand(UINT nID, LPARAM lParam)
{
if ((nID & 0xFFF0) == IDM_ABOUTBOX)
{
CAboutDlg dlgAbout;
dlgAbout.DoModal();
}
else
{
CDialog::OnSysCommand(nID, lParam);
}
}
// If you add a minimize button to your dialog, you will need the code below
// to draw the icon. For MFC applications using the document/view model,
// this is automatically done for you by the framework.
void CCFileTestDlg::OnPaint()
{
if (IsIconic())
{
CPaintDC dc(this); // device context for painting
SendMessage(WM_ICONERASEBKGND, (WPARAM) dc.GetSafeHdc(), 0);
// Center icon in client rectangle
int cxIcon = GetSystemMetrics(SM_CXICON);
int cyIcon = GetSystemMetrics(SM_CYICON);
CRect rect;
GetClientRect(&rect);
int x = (rect.Width() - cxIcon + 1) / 2;
int y = (rect.Height() - cyIcon + 1) / 2;
// Draw the icon
dc.DrawIcon(x, y, m_hIcon);
}
else
{
CDialog::OnPaint();
}
}
// The system calls this to obtain the cursor to display while the user drags
// the minimized window.
HCURSOR CCFileTestDlg::OnQueryDragIcon()
{
return (HCURSOR) m_hIcon;
}
double g_data1 = 0.0;
double g_data2 = 0.0;
double g_data3 = 0.0;
int g_ndata = 0;
void CCFileTestDlg::OnButton1()
{
// TODO: Add your control notification handler code here
CString data1,data2,data3,data4;
CFile SetFile;
if(SetFile.Open(_T("setfujiandata.ini"),CFile::modeRead))
{
CArchive ar(&SetFile,CArchive::load);
try
{
ar >> data1;
ar >> data2;
ar >> data3;
ar >> data4;
}
catch(CArchiveException* e)
{
e->ReportError();
e->Delete();
ar.Close();
SetFile.Close();
}
ar.Close();
SetFile.Close();
g_data1 = atof(data1);
g_data2 = atof(data2);
g_data3 = atof(data3);
g_ndata = atoi(data4);
SetDlgItemText(IDC_EDIT1,data1);
SetDlgItemText(IDC_EDIT2,data2);
SetDlgItemText(IDC_EDIT3,data3);
SetDlgItemText(IDC_EDIT4,data4);
}
}
void CCFileTestDlg::OnButton2()
{
// TODO: Add your control notification handler code here
// TODO: 在此添加控件通知处理程序代码
CString data1,data2,data3,data4;
GetDlgItemText(IDC_EDIT1,data1);
GetDlgItemText(IDC_EDIT2,data2);
GetDlgItemText(IDC_EDIT3,data3);
GetDlgItemText(IDC_EDIT4,data4);
CFile SetFile;
if(SetFile.Open(_T("setfujiandata.ini"),CFile::modeCreate|CFile::modeWrite))
{
CArchive ar(&SetFile,CArchive::store);
try
{
ar << data1;
ar << data2;
ar << data3;
ar << data4;
}
catch(CArchiveException* e)
{
e->ReportError();
e->Delete();
ar.Close();
SetFile.Close();
}
g_data1 = atof(data1);
g_data2 = atof(data2);
g_data3 = atof(data3);
g_ndata = atof(data4);
ar.Close();
SetFile.Close();
//g_bSet = true;
MessageBox(_T("保存成功!"));
}
else
{
MessageBox(_T("保存失败!"));
}
}
void CCFileTestDlg::OnButton4()
{
// TODO: Add your control notification handler code here
SetDlgItemText(IDC_EDIT1,"");
SetDlgItemText(IDC_EDIT2,"");
SetDlgItemText(IDC_EDIT3,"");
SetDlgItemText(IDC_EDIT4,"");
}

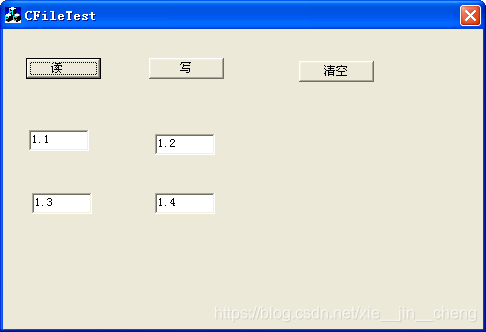

3. 运行
4. 引用
4.1 CFile
https://blog.csdn.net/zhang_fei_fresh/article/details/76408636
4.2 CArchive
https://blog.csdn.net/c_base_jin/article/details/55060720
