Android之TabLayout+ViewPager+Fragment实现标题栏与页面联动

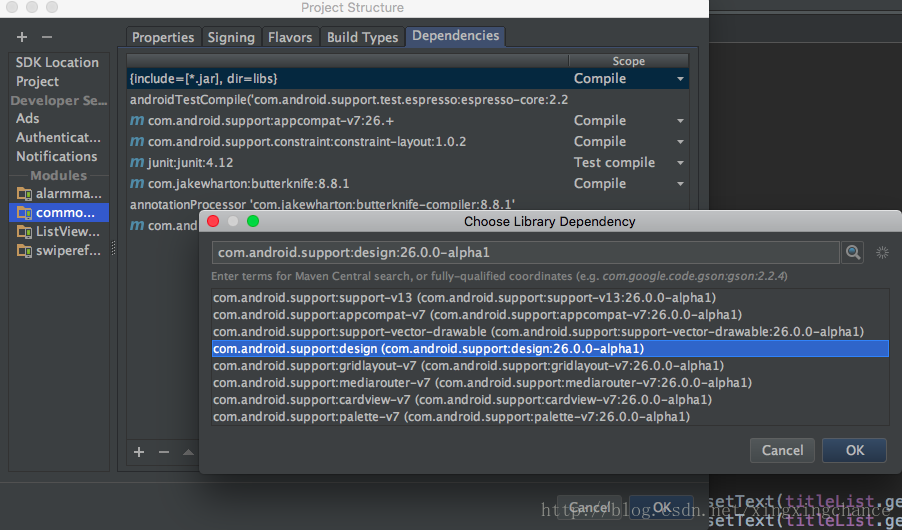

1. TabLayout组件的使用

2. 主界面activity_main.xml文件

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <!--tabSelectedTextColor:改变选中字体的颜色-->
    <!--tabTextColor:改变未选中字体的颜色-->
    <!--tabIndicatorColor:改变整个TabLayout的颜色-->
    <!--app:tabMode="scrollable":设为滚动模式-->
    <android.support.design.widget.TabLayout
        android:id="@+id/tab_layout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:tabIndicatorColor="@android:color/holo_blue_dark"
        app:tabSelectedTextColor="@android:color/holo_blue_dark"
        app:tabTextColor="@android:color/background_dark">
    </android.support.design.widget.TabLayout>

    <android.support.v4.view.ViewPager
        android:id="@+id/view_pager"
        android:layout_width="match_parent"
        android:layout_height="match_parent">
    </android.support.v4.view.ViewPager>
</LinearLayout>

1. 定义四个Fragment
   1) Fragment1.java

package com.example.zhaoxin.commonbaseadapter.fragment;

import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ListView;

import com.example.zhaoxin.commonbaseadapter.R;
import com.example.zhaoxin.commonbaseadapter.adapter.MyListViewAdapter;
import com.example.zhaoxin.commonbaseadapter.entity.Book;

import java.util.ArrayList;
import java.util.List;

import butterknife.BindView;
import butterknife.ButterKnife;
import butterknife.Unbinder;

/**
 * Created by zhaoxin on 17/11/24.
 *
 */

public class Fragment1 extends Fragment {


    private List<Book> bookList;// 图书集合
    private Unbinder unbinder;// 解绑

    @BindView(R.id.list)
    ListView list;
    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment1, null);
        unbinder = ButterKnife.bind(this, view);
        initListView();
        return view;
    }

    /**
     * 初始化ListView
     */
    private void initListView() {
        // 获取图书集合对象
        bookList = new ArrayList<>();
        // 循环添加集合数据
