数据绑定

将数据与视图分开,创建MainViewModel .cs 作为数据源的处理

MainViewModel

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Input;

namespace WpfTest.Model
{
    internal class MainViewModel : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler? PropertyChanged;

        /// <summary>
        /// 回写数据到视图
        /// </summary>
        /// <param name="propertyName"></param>
        private void NotifyPropertyChanged([CallerMemberName] string propertyName = "")
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }

        private string title = string.Empty;

        public string textVal = string.Empty;

        public string Title
        {
            get
            {
                return title;
            }
            set
            {
                title = value;
                NotifyPropertyChanged();
            }
        }

        public string TextVal
        {
            get
            {
                return textVal;
            }
            set
            {
                textVal = value;
                NotifyPropertyChanged();
            }
        }



    }
}

MainWindow.xaml，MainWindow.xaml.cs是UI文件

MainWindow.xaml

<Window x:Class="WpfTest.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfTest"
        xmlns:hc="https://handyorg.github.io/handycontrol"
        mc:Ignorable="d"
        Title="GPT" Height="450" Width="800">
    <!-- 在这个页面下的资源是局部资源，只能在这个页面自己用-->
    <Window.Resources>
        <SolidColorBrush x:Key="solidColor" Color="Green"></SolidColorBrush>
    </Window.Resources>
    <Grid>
        <StackPanel>
            <!--
Style="{DynamicResource SolidButton}" 动态绑定资源 StaticResource 为静态绑定
{Binding Title} 是绑定数据源为Title
-->
            <!--这边绑定的是资源字典中的资源，全局通用-->
            <Button Style="{DynamicResource SolidButton}" Content="{Binding Title}" Margin="10" Click="Button_Click_2"></Button>
            <!--这个是绑定的局部资源-->
            <Button BorderBrush="{StaticResource solidColor}" Content="按钮" Margin="10"></Button>
        </StackPanel>


    </Grid>
</Window>

MainWindow.xaml.cs

using HandyControl.Controls;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using WpfTest.Model;

namespace WpfTest
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : System.Windows.Window
    {

        MainViewModel model;

        public MainWindow()
        {
            InitializeComponent();
            model = new MainViewModel();
            // 上下文对象绑定为MainViewModel对象
            this.DataContext = model;
            model.Title= "我是按钮";
        }

        private void button_Click(object sender, RoutedEventArgs e)
        {
            model.Title = model.TextVal;

        }

        private void Button_Click_1(object sender, RoutedEventArgs e)
        {
            model.Title = "预览图片";
            new ImageBrowser(new Uri(@"C:\Users\HLT\Desktop\4.jpg")).Show();

        }

        private void Button_Click_2(object sender, RoutedEventArgs e)
        {
            // 从资源字典中查找元素
            var  buttonStyle = (Style)App.Current.FindResource("SolidButton");
        }
    }
}

资源字典

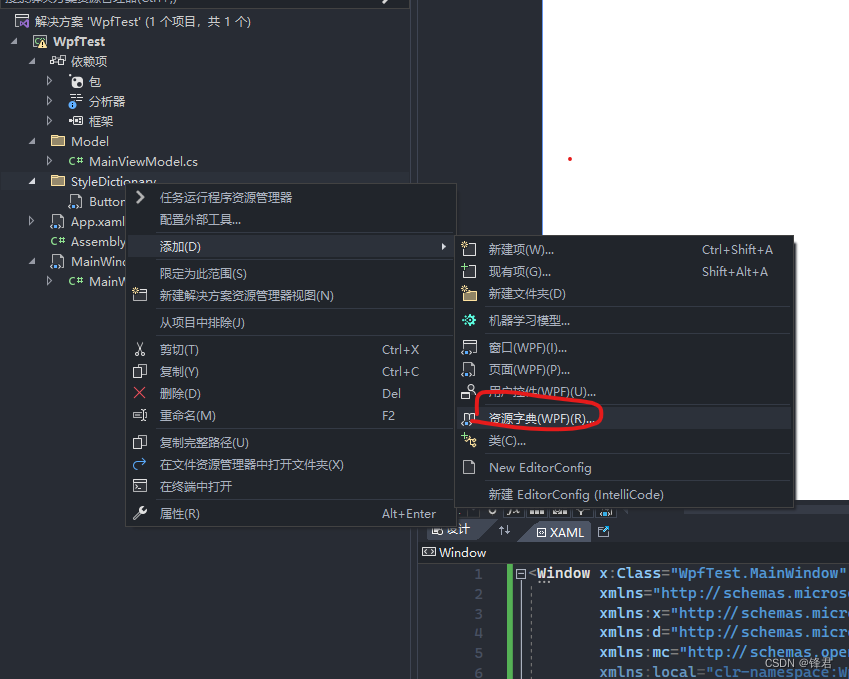

创建资源字典

ButtonStyleDictionary.xaml

<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">

    <SolidColorBrush x:Key="solidColor2" Color="Blue"></SolidColorBrush>
    <Style x:Key="SolidButton" TargetType="Button">
        <Setter Property="BorderBrush" Value="red"></Setter>
    </Style>

</ResourceDictionary>

在App.xaml中进行加入资源字典，这样才可以在全局中使用
App.xaml


<Application x:Class="WpfTest.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:WpfTest"
             StartupUri="MainWindow.xaml">
    <Application.Resources>

        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <!--配置HandyControl -->
                <ResourceDictionary Source="pack://application:,,,/HandyControl;component/Themes/SkinDefault.xaml"/>
                <ResourceDictionary Source="pack://application:,,,/HandyControl;component/Themes/Theme.xaml"/>

                <!--自定义资源字典-->
                <ResourceDictionary Source="StyleDictionary/ButtonStyleDictionary.xaml"></ResourceDictionary>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>
